Onida S09FLT-L3 User manual

The unit displayed is for representational purposes only. Actual unit may vary.
AIR CONDITIONERS
Warranty Registration System
Help us to serve you better by registering
your product for Warranty
Web Register at w
Telephone
Post / Visit Post the Warranty Registration Card &
ww.onida.com
Call Centre No. 0XX-39889000(0XX-STD Code of
State Capital)
Service Centre
Copy or Visit the Nearest Service Centre.
Collection Center address
Mirc Electronics Ltd.Village Kudus,Bhiwandi Wada road,
Taluka Wada., Dist. Thane - 421312,Tel no. 952525 220375/377
Visit at : for details about collection Centers. www.onida.com
As per Government of India’s E-Waste (Management and Handling)
Rules, 2011(effective from May 1st, 2012) the product purchased by you
is to be considered as E-Waste and cannot be disposed off with your
general household waste. It should be disposed of through the company’s
collection center so as to prevent any damage to environment
We request you to make a note of the above details and support us
in our endeavour to ensure an environmental friendly nation.
3 STAR 2 STAR
Model:
S09FLT-L3/ S12FLT-L3/ S18FLT-L3/ S24FLT-L3
S09FLT-L4/ S12FLT-L4/ S18FLT-L4

Dear customer
Congratulation on buying ONIDA Air Conditioner.
Your Air Conditioner comes with ONIDA Guarantee of Quality
as detailed in the manual.
ONIDA takes great pride in providing its customers with state-
of-the-art products that adheres to international quality
standards.
ONIDA is committed to following quality policy laid by our
chairman and managing director Mr. G. L. Mirchandani.
“We are committed to quality and strive for continuous
improvement through innovation and human development to
give customer better value for money always”
ONIDA stands committed to provide the ultimate customer
satisfaction, as nothing brings us greater joy than having
satisfied customers of ONIDA.
At ONIDA, feedback and suggestions based on your product
usage experience is greatly appreciated.
Please contact to us at r[email protected]
G. Sundar
Chief Executive Officer
IMPORTANT :
Please read this owner’s manual carefully and thoroughly
before installing and operating your room air conditioners.
Please retain this owner’s manual for future reference after
reading it thoroughly.

CONTENTS
Salient Features 1
Inside Overview 2
Indoor Unit Display 3
Remote Overview 4
Operations 5
General Instructions for Installation 12
Installation Sketch 15
Installation of Model 16
Take care of your Air Conditioner 20
Precautions to be taken 21
Trouble Shooting Chart 23
Installation and Satisfaction Report 25
Warranty Terms & Conditions 27
Preventive Maintenance Service Coupon 29
Warranty Card(Customer Copy) 31
Warranty Card(service Centre Copy) 33

SALIENT FEATURES
0.8T/ 1.0T / 1.5T Split Air Conditioner
a) 3 Star / 2 Star Energy Saver BEE Rated
Smart Sleep with 4 personal preference modes
Turbo- Cool Function for Cooling in adverse Condition
Model Code :
• Aesthetics:-
a) Unique Flat Panel
b) Sleek Indoor Unit
• Performance:-
b) High BTU Tropicalised Compressor
c) Trapezoidal Inner Grooved Tube
d) Large L - Shaped Condenser Coil
• Features:-
a) i-Cool Function- For Instant Cooling
b)
c)
d) 3 Stage Filtration- For Better Air Quality
e) Auto-Restart
• Safety & Reliability:-
a) Low Deration Factor
b) Hydrophilic Fins
c) Full Function LCD Remote
d) Special Insulation on the Air Vent
e) 5-Stage Epoxy Polyester Painting
f) Rugged Construction With Thicker Gauge Steel
S09FLT-L3/ S12FLT-L3/ S18FLT-L3/ S24FLT-L3
S09FLT-L4/ S12FLT-L4/ S18FLT-L4
1
3 STAR

32

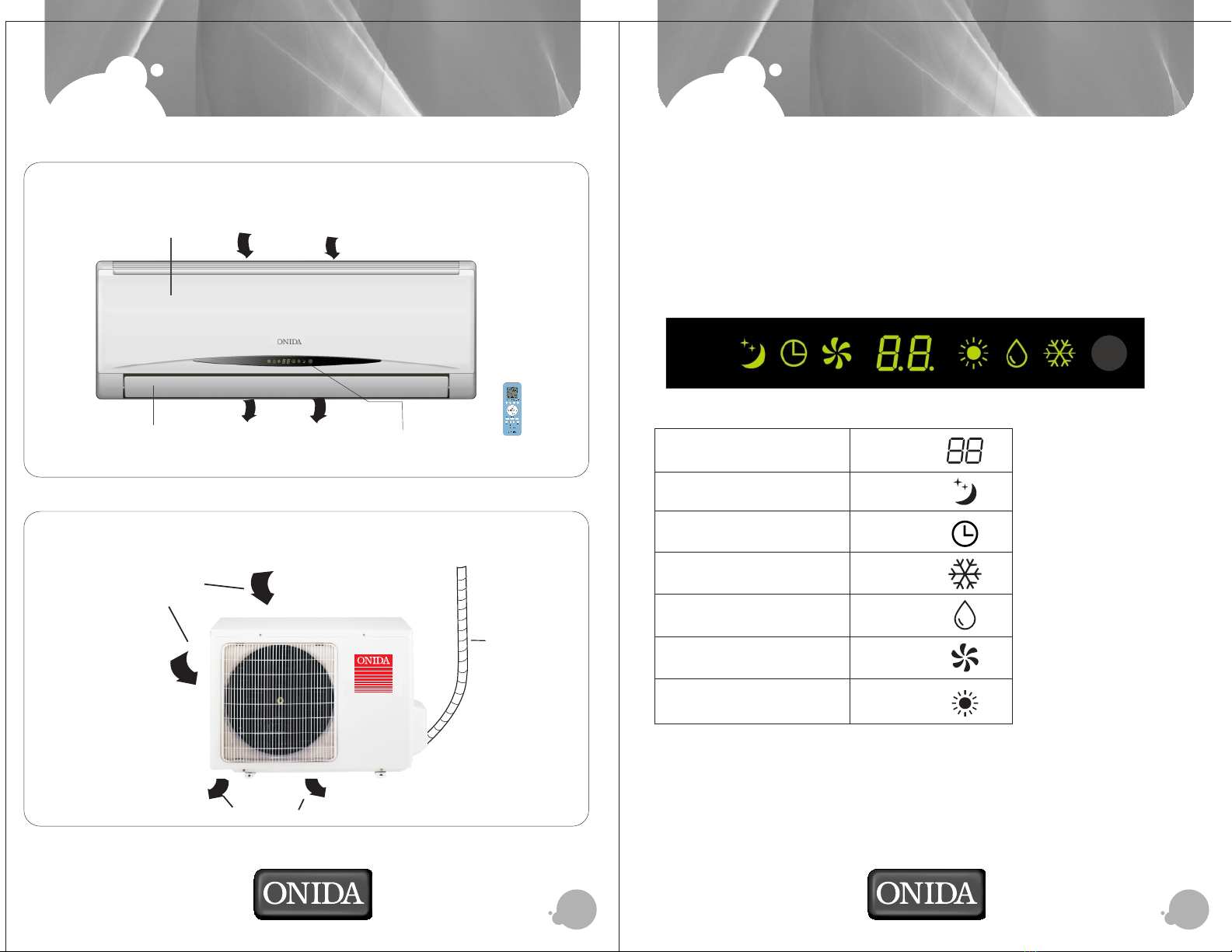

INSIDE OVERVIEW
nOUTDOOR UNIT
Air in
Exhaust Air
Connection
pipe and
connecting wire
Deflector Remote controller
Display
Front panel
nINDOOR UNIT
Return warm Air in
Conditioned Air out
INDOOR UNIT DISPLAY
Display on the indoor unit.
For the icon of LED windows, only relevant icons will light up with their displays on.
Temperature display
Sleep Mode
Cool Mode
Timer
Dry Mode
Fan Mode
Heat Mode
*Heat mode is not available with all models.

54
REMOTE OVERVIEW OPERATIONS
BACK VIEW
1. Open back cover and put 2 Nos. AAA size alkaline batteries.
2. The remote signal can be reached upto six metres from the indoor unit.
3. When the button is pressed on remote, indoor unit will “beep” once, indicating
the receipt of signal. If no “beep” sound is heard, press the button once again.
4. Remove batteries if remote control has not been used for long time.
5. *Heat mode & Money Saved is not available with all models.
Operating Your Air Conditioner:
Your Split Air Conditioner can be conveniently operated using the intelligent cordless
remote control.
1. Switch on the MCB.
Press ON/OFF button on remote handset to switch ON the AC.
All icons will glow once.
Your AC switches on with parameters that were set before power was switched
off. The unit receives the signal with "BEEP" tone and your AC starts operation.
Time Delay: To protect the compressor, a time delay is incorporated in the circuit.
The Time Delay ensures that the compressor switches ON only after a delay of about 3
minutes.
2. Press the “MODE” Button for Auto, Cool, Dry, or Fan Mode selection.
3. Press the "FAN” Button to set the Fan Speed. Each press changes the fan speed
from Low-Med.- High-Auto Fan speed. The selected fan setting symbol can be
seen on the LCD.
4. The Set Temp. is displayed on LCD, Press button ” “ to increase and “ “ to the
decrease the temperature.
5. To switch off the AC, press the same ON/OFF Button.
Setting the Desired Room Temp.:
You can set the temp. at which you would like your room to be.
O
Press " " button to increase the set temp. On every press, the temp. increases by 1 C.
O
Press " " button to decrease the set temp. On every press, the temp. decreases by 1 C
The two digit display shows the set temp. on LCD.
O
The setting temp. range is from 16- 31 C.
Your split AC operates in one of four modes, AUTO-COOL-DRY-FAN. The modes button
cyclically chooses between these operating modes.
*Cooling capacity measured at High speed, as per IS 1391:1992 Part 2
FAN SPEED
SLEEP
RUN/STOP
TEMPERATURE
ADJUSTMENT
TEMPERATURE
ADJUSTMENT
TIMER ON/OFF
i-Cool CONTROL
Signal ejecting window
MONEY SAVED
BUTTON
DISPLAY ON/OFF
MODE
ENERGY SAVER
OPERATION DISPLAY
TURBO MODE
OPERATION MODE
MANUAL/AUTO
SWING
FFAANNAAUUTTOOSSWWIINNGG
CLEANCLEANCLEANCLEAN
i-cool
MANUAL
MODEMODE
MONEMONEYY
SSAAVEDVED
SS
ENEGRYENEGRY
AAVERVER
SWINGSWING TIMERTIMER ON/OFF ON/OFF SLEESLEEPP
CONTRO CONTROLL
C.C.FF..
ON/OFFON/OFF
C.C.FF..
+ +
C.C.FF..
--
TURBOTURBO DISPLDISPLAAYY
ON/OFFON/OFF
FFAN SPEEDAN SPEED
i-cooli-cool

76
The AUTO Mode :
1. Press "MODE" button to cyclically step through the AUTO-COOL-DRY-FAN modes and stop
when AUTO mode is selected.
2. Auto
3. In this mode, the fan speed is changeable.
4. In the AUTO mode, unit will run in preset temperature and temperature can’t be changed.
The COOL mode:
In the cool mode, the compressor is in operation and your AC functions in the standard
operating mode, cooling your room to the desired set temp.
1. Press "MODE" button to cyclically step through the AUTO-COOL-DRY-FAN modes and stop
when cool mode is selected.
2. symbol can be seen on the Remote panel when you select the cool mode.
In this mode, you can change the temp. settings by pressing " " and “ ” temp. buttons.
You can change the fan speed setting by pressing FAN button.
3. If the Room temp. is more than the set temp., then the compressor & outdoor FAN will
remain ON and perform the Cooling operation. If the room temp. achieves the temp. less
than set temp., then the compressor & outdoor FAN will remain OFF.
The DRY Mode:
In the DRY mode, your AC reduces the humidity within the room faster.
O
When the room temp. is more than 16 C then only the DRY mode operates.
1. Press "MODE" button to cyclically step through the AUTO-COOL-DRY-FAN modes and stop
when DRY mode is selected.
2. symbol can be seen on the Remote panel when you select the DRY mode.
3. In DRY mode, Indoor FAN will run at low speed, Compressor & Outdoor Fan will remain
ON & run in preset temperature. Temperature cannot be changed.
symbol can be seen on the Remote panel.
The FAN Mode:
1. Press "MODE" button to cyclically step through the COOL, FAN, DRY & AUTO modes and
stop when FAN mode is selected.
2. symbol can be seen on the Remote panel when you select the FAN mode.
3. In FAN mode, only Indoor FAN will run at set speed and Compressor & Outdoor Fan will
remain off.
4. In this mode, you can change the Indoor FAN Speed, but you can not set the desired TEMP.
OPERATIONS OPERATIONS
i-Cool (With Ceiling Fan Controller):-
One touch auto cooling control of AC & Ceiling Fan*.
This mode is activated by pressing i-cool key on remote. To enable mode to control Ceiling
Fan also, main switch of Ceiling Fan has to be in ON position.
In this mode initially the AC & Ceiling Fan start in special mode at super high speed
designed to give instant cooling and comfort. Compressor will start immediately in this
mode. After some time the AC and Ceiling Fan work at special mode which gives powerful
cooling along with energy savings. During this mode the speed of AC Fan and ceiling fan
changes automatically with time and temperature change. Set temperature also changes
automatically. During this operation both AC and Ceiling Fan are coordinated to ensure
speed cooling with energy savings. While AC is in this mode temp, Fan Speed, Timer, Sleep
keys are inactive and these parameters cannot be changed.
To quit i-cool mode Press MODE or TURBO or Energy Saver Button.
i-Cool (Without Ceiling Fan Controller):-
In case i-cool ceiling fan controller which is an optional accessory has not been installed, the
AC will work in special i-cool mode on pressing i-cool key on remote. In this mode initially the
AC work start at super high speed designed to give instant cooling and comfort.
Compressor will start immediately in this mode. (Fan noise will be higher during this period
due to higher air throw).After some time the AC will work at special mode which gives
powerful cooling along with energy savings. During this mode the speed of AC Fan speed
changes automatically with time and temperature change. Set temperature also changes
automatically. While AC is in this mode temp, Fan Speed, Timer, Sleep keys are inactive and
these parameters cannot be changed. To quit i-cool mode Press MODE or TURBO or Energy
Saver Button.
* i-cool Ceiling Fan Controller is an optional accessory and is not part of the AC . Cost of i-
cool ceiling fan controller and its installation is extra and not included in the AC.

9 8
OPERATIONS
Turbo MODE:
Energy Saver MODE:
Pressing Turbo key on remote activates the Turbo function and air conditioner goes to
powerful cooling. During this Mode temperature and fan speed cannot be changed.
In this mode the AC works on a preset temperature of 18 degree centigrade at high fan
speed. Compressor will start immediately in this mode and will continue to operate till set
temperature is achieved .Thereafter it will work in cyclical ON/OFF mode to keep the room
temperature within 2 degree of set temperature. Press again to cancel this operation. The unit
will run in COOL Mode. ( symbol will appear on remote control display).
Pressing Energy Saver key on remote activates Energy Saver function to keep room normal
temperature by reducing compressor run hours to get more savings.
In this mode the AC works on a preset temperature of 25 degree centigrade at selectable fan
speed. Compressor will work in cyclical ON/OFF mode to keep the room temperature within 2
degree of set temperature. ( symbol will appear on remote control display).
In this mode temperature cannot be changed & Fan speed can be changed.
Press again to cancel this operation. The unit will run in COOL Mode
.
Ceiling Fan Manual Operation – only when optional i-cool ceiling fan
controller is installed:
Ceiling fan speed can be controlled only through AC remote control as all other manual
controllers are bypassed while installing i-cool fan controller.
When AC is in any mode other then i-cool mode, Ceiling fan speed can be controlled using
remote control. To enable this Ceiling fan mains have to be in ON position. Press C.F. ON key
on remote to start ceiling fan. Ceiling fan speeds can be changed by pressing C.F. + key on
remote to increase and C.F . – key on remote to decrease. The speeds can be varied by 5
steps by pressing C.F. + and C.F. – keys on remote. Press C.F. OFF key on remote to switch
off ceiling fan. ( symbol will appear on remote control display).
SMART-SLEEP MODE: 123
3 Stage Smart-Sleep with 4 personal preference modes,
To switch on Smart-Sleep operation, press “SLEEP” button on remote and the indoor fan
will run at low speed. Press the same button four times to quit the Smart-Sleep mode.
OPERATIONS
Initial Sleep Stage Deep Sleep Stage Wake Up stage Stage 1 Stage 2 Stage 3
Smart Sleep -Personal Preference mode Normal
Set Temperature - 31ºC - 16ºC
Cools at Set Temp + 1ºC / hour for next 2 hours.
Cools at Set Temp + 2ºC after 2 hours
Cools at Set Temp + 2ºC after 2 hours
Set Temperature - 23ºC - 16ºC
Cools at Set Temp + 1ºC / hour for next 3 hours.
Cools at Set Temp + 3ºC for next 5 hours
Cools at Set Temp + 1ºC after 8 hrs
Set Temperature - 24ºC - 27ºC
Cools at Set Temp + 1ºC / hour for next 2 hours.
Cools at Set Temp + 2ºC for next 6 hours
Cools at Set Temp after 8 hrs
Set Temperature - 28ºC - 31ºC
Cools at Set Temp all along Cools at Set Temp all along Cools at Set Temp all along
Set Temperature - 23ºC - 16ºC
Cools at Set Temp + 1ºC / hour for next 3 hours.
Cools at Set Temp + 3ºC for next 4 hours
Cools at Set Temp + 2ºC after 7 hrs
Set Temperature - 24ºC - 27ºC
Cools at Set Temp + 1ºC / hour for next 2 hours.
Cools at Set Temp + 2ºC for next 5 hours
Cools at Set Temp + 1ºC after 7 hrs
Set Temperature - 28ºC - 31ºC
Cools at Set Temp all along Cools at Set Temp all along Cools at Set Temp all along
Set Temperature - 23ºC - 16ºC
Cools at Set Temp + 1ºC / hour for next 3 hours.
Cools at Set Temp + 3ºC after 3 Hours
Cools at Set Temp + 3ºC after 3 Hours
Set Temperature - 24ºC - 27ºC
Cools at Set Temp + 1ºC / hour for next 2 hours.
Cools at Set Temp + 2ºC after 2 hours
Cools at Set Temp + 2ºC after 2 hours
Set Temperature - 28ºC - 31ºC
Cools at Set Temp all along Cools at Set Temp all along Cools at Set Temp all along
Bio Sleep -Personal Preference mode 2 Smart Sleep Personal Preference modes Temperature Set
Condition
Bio Sleep -Personal Preference mode 1 Bio Sleep -Personal Preference mode 3

1110
OPERATIONS
TIMER Operation:
You can program your split AC to switch itself ON or OFF at particular time.
Maximum set time is 24 hrs, with 1.0 hr increment .
ON TIMER:
When the AC is "OFF" (in standby), press "TIMER-ON/OFF" Button on remote to use this feature
as the TIMER. (make sure that MCB switch is "ON". The "TIMER-ON/OFF" light on Indoor unit will
glow ON.
For EXAMPLE:
Suppose you want to switch ON the AC after 8 hrs. Press "TIMER-ON/OFF" button, when AC is
in OFF condition. Press the “TIMER ON/OFF” button 8 times to set 8 hrs time delay.
Press "TIMER-ON/OFF" button to set on timer. Display on Remote will show "8”.
OFF TIMER:
When the AC is "ON", press "TIMER-ON/OFF" Button on remote to use this feature as
the TIMER. The "TIMER-ON/OFF" light on Indoor unit will glow ON.
For EXAMPLE:
Suppose you want to switch OFF the AC after 8 hrs. Press "TIMER-ON/OFF" button, when AC
is in ON condition. Press button 8 times to set 8 hrs time delay.
Press "TIMER-ON/OFF" button to set OFF timer. Display on Remote will show "8”.
CANCEL TIMER:
If you want to cancel the Timer either TIMER ON or TIMER OFF, press the corresponding
“TIMER-ON/OFF“ button and set the time to 0:0.
the “TIMER ON/OFF”
CLOCK SET:
As long as remote controller is power on, the clock will run and it can be adjusted in any
condition even when the air conditioner is off. While the remote is electrified for the
first time, the time is 0:00, means the clock counts the time automatically.
To adjust the clock press the “TIMER ON/OFF” button for 10 seconds,
the time of hour flashes, during this period add the time of hours by pressing the button
“ “ and reduce the time by pressing the button” “ .After setting the time of hour, press the
button “TIMER ON/OFF” again to adjust the time of minute(Do not need to press for
10seconds.)When the time of minutes flashes, press the button “ “ to add time of minute,
and press the button“ “ to reduce it. Finish setting of minute, press the button TIMER
ON/OFF for the third time to confirm the clock.
OPERATIONS
Air Flow direction Adjustment:
Your split AC has oscillating louvers for uniform cooling around your room.
You can stop the oscillation if you so desire.
Up/Down Air Direction Adjustment:
1. 5 step air swing can be achieved for the one time Press “ SWING ”
button on remote, the Up/Down air louvers will move to the
specific angle.
You can set 5 different angle settings, to set Up/Down louvers in
2. For the next Press “ SWING “ button to start Up/Down Air Louver which
starts swinging automatically.
Press again the “ SWING “ button to stop swinging at specific
position.
Left/Right Air Direction Adjustment:
Move manually, the left right air
louver at desired position as shown
in following figure.
Emergency Operation Switch:
In case the batteries in the remote are worn out, or remote is faulty or misseing, use
emergency operation switch (*) to ON/OFF AC.
Every time the switch is pressed, it changes in sequence of COOL Ý STOP.
O
In Emergency operation mode the set temperature will be 24 C, Fan speed will be
high and Up/Down Air louvers are in swinging mode.
To access emergency switch, open the grill as
shown in the figure.
order of (1) (2) (3) (4) (5)

1312
GENERAL INSTRUCTIONS FOR
INSTALLATION
Locating the indoor and outdoor units
properly will help optimise the performance of
your airconditioner. While your Onida /
Dealer's Technician will be happy to guide you
on the best location for your airconditioner,
here are a few helpful hints.
Locating the Indoor Unit
• Locate the IDU for the best cool air
circulation. Preferably, there should be
no obstructions nearby, as shown in the
adjacent figure.
• Do not locate the unit directly opposite a
door which is opened frequently. The
cold air will go out of the room each time
the door is opened, as shown in the
adjacent figure.
• All indoor units will form condensate water.
Please ensure that the condensate can
be drained out of the room to a toilet /
pantry, etc. The installation engineer will
make sure that a "U" bend is provided in
the drain to prevent insects from coming
into the room through the drain tube, as
shown in the adjacent figure.
GENERAL INSTRUCTIONS FOR
INSTALLATION
Locating the Outdoor Unit
The outdoor unit houses the compressor,
condenser fan and electrical components.
The heat removed from the room is expelled
to the atmosphere through the outdoor unit.
Once again, the Onida / dealer's Technician
will ensure optimal installation of the ODU for
you. However, the following information will
be of interest to you.
• The Outdoor Unit can be mounted on a
wall, sunshade or skirting.
• Ideally, the ODU should not be too
far a w a y f r o m t h e I D U ; t h e
recommended distances are
marked in the adjacent figure.
• Ensure that air can pass freely through
the unit. Please allow at least 2 meters
free space on the air outlet side, and 0.3
meters on the air inlet side.
• If more than one ODU is to be installed,
they must be properly separated, so that
the warm air from the outlet of one does
not enter the inlet of the other.

1514
• Avoid long and complicated routing
between the IDU and ODU, as
shown in the three adjacent figures.
• Too long
• Too high
• Too many bends
• The ODU must be placed on strong
frame or support. If mounted on a
wall, please ensure that the wall is
thick enough and that the frame is
supported adequately.
• Finally, it is most important for the
ODU to be easily accessible to the
service engineer. It is advisable to
discuss the same with the engineer
before deciding upon the location of
the unit.
If the ODU is to be located on a high
ledge, adequate space must be
provided for the service engineer to
service the unit. It is a good idea to
provide a catwalk (a platform)
around the unit and access door /
window to the Unit.
Electrical outlet
After the location of the outdoor unit and
indoor unit is finalised, you must provide
a suitable electrical outlet near the
indoor unit.
MCB
To ODU
STABILISER
To ODU
GENERAL INSTRUCTIONS FOR
INSTALLATION INSTALLATION SKETCH
A
A
1
2
G
7
6
5
C
F
D
E
A
9
Quantity
1 1
2 5
3 5
4 2
5 2
6 1
7 1
8 1
9 1
11 1
Indoor unit accessories
Mounting Plate
Tapping Screw ST4 X 25
Expansion Rubber Plug
Expansion Bolt
Battery
Remote controller
Felt
Adiabatic Underlay
Connecting Cable
10
Drain Joint(supplied by
customer)
Clamping cover of pipe
remark
Quantity
A 1
B 1
C 3
D 5
E 1
F 1
G 1
H 1
I 1
Jremark Air proof oil
K
Shockproof rubber
cushion(supplied by
customer)
1
Installation accessories
Connecting Cable
Bonding tape
Clamp
Cement nail
Drain hose
Opening cap
W all -hole cover
Indoor wall-hole cover
Putty
11
B
H
15cm right
15cm left
250cm above
60cmabove
60cm above
30cmabove
Air Outlet
30cmabove
200cmabove
15cm
15cm above

1716
INSTALLATION
INSTALLATION
nINDOOR UNIT
1. Fitment of mounting plate
The mounting plate should be fitted on the structural part of wall on which indoor unit
is to be installed.
2. Drill two holes at a distance of 450 mm between them for the expansion bolts.
or more
from sidewall
C or more
from sidewall
mounting
plate
fasten string at the central hole
plumb
at least B from top
A
Model
1.0 T
1.5 T
Dimensions in mm
A
175
175
245
245
260
260
BC
nDrill on the wall
Confirm the position of holes and drill holes of diameter 65 mm on the wall
18
10
Center of Hole(Ø65mm)
Insert Ruler
180mm
Align Ruler with straight line
Indoor unit terminal
Screw
Diagram
Connecting cable
Electrical box cover
Screw
Indoor unit
terminal
Fastener
Pull the Connecting cable’s
wire in completely
Connecting cable
nConnecting of cables
1. Open the front panel
2. Dismentle the electric box cover
and fastener
3. Connect the cable
4. Reassemble the fastener and electric
box cover.
Outdoor unit terminal
Connecting
cable
Connecting
cable
Outdoor unit terminal
Yellow/Green
White
Blue
Indoor unit terminal
Connect diagram
nInstallation of indoor unit
After putting the pipe assembly through
the wall, attach the indoor unit to the
mounting plate on the wall as shown in
the figure.
nInstallation of outdoor unit
• The connecting cables must be clipped together.
• Special cable to be used to connect indoor unit and outdoor unit.
• The electric box cover must be mounted on its position on outdoor unit.
Mounting Plate
Rib of indoor unit
Bottom
Indoor unit

19
18
INSTALLATIONINSTALLATION
External connection
electric wire
Liquid side piping
Liquid side
piping insulation
Water
drainage
pipe
Finally wrap it
with tape
Gas side
piping insulation
Gas side piping
nDischarge the air of the units:
It can be used as vaccum pump.
Remove screw cap of closing valve and
gas charging hole; Open the closing valve
with Allen wrench(turn 90 clockwise),
then push the gas hole for about 10 seconds,
(When a gas like fog appears, it indicates
that the air of unit has been discharged)
put back the screw cap of gas charging hole.
Do the leak test with leak detector or soap water.
nSealing the wall hole and clamping the pipe
• Use putty to seal the wall hole.
• Use pipe fastener to clamp the pipe on wall
air proof with putty
Mounting Board
Mounting Board
Fixing Hook
Gas
Charging
Hole
Screw Cap
Screw Cap
Gas connecting
pipe
Liquid connecting pipe Cap
Liquid closing valve
Gas closing
valve
Allen Wrench
nConnecting of pipes
6.35 mm
6.35 mm
12.7 mm
12.7 mm
Diameter of pipePipe Model
1.0 T
1.5 T
Torque (N • m)
Liquid pipe
Liquid pipe
Gas pipe
Gas pipe
13.7--17.6
13.7--17.6
49.0--56.4
49.0--56.4
Indoor unit Liquid pipe
Gas pipe Gas charging hole
Closing valve
connecting pipe
Bottle of storage refrigerant
Bottle’s valve of storage refrigerant
Outdoor unit
nAdd refrigerant
• If the connecting pipe is longer than 7 meters, add refrigerant as needed. Add
amount A= (Lm-7m) 15g/m.
(A: add refrigerant amount, L: the length of connecting pipe)
• Add refrigerant with the spring balance, as specified above.
the length of connecting pipe (m) 7 8 9 10
add amount (g) 0 15 30 45
nTest
• Proceed leak test (with leak detector or soap water.) and inspect connecting
cables before test operation.
Test procedure: (Control by emergency operation switch or remote
controller) For detailed operation, see OPERATION OF AIR CONDITIONER
in the manual.

2120
TAKE CARE OF YOUR
AIR CONDITIONER
Most of the maintenance work on your air
conditioner, during warranty and
subsequently under the maintenance
contract, will be handled by a trained
technician. However, there are some simple
maintenance jobs that you, as a user, should
carry out on your own.
• Lift the cover by applying gentle
pressure on both sides and lift it
upwards
• The filters will be visible
• Lift the filters slightly upwards
• Pull out the filters
• Wash the filters under a tap until
they are clean
• Do not use detergents for cleaning
the filter.
PRECAUTIONS TO BE TAKEN
Do's ( )
• Seal all air gaps in the room
• Choose the right temperature to avoid over cooling
• Ventilate the room regularly.
• Switch off the power supply if not in use for long.
• Unplug the unit while cleaning.
Don't's ( )
• Don't leave the doors and windows open when the air conditioner is on.
• Don't use hot water to clean your front grill
• Don't use scouring powder, harsh soaps, wax or polish on the grill.
• Don't switch on the air conditioner immediately after switching it off.
Wait for 2 minutes.
• Don't operate with a clogged filter
• Don't block air intake & outlet vents
• Don't change setting unnecessarily.
X

2322
Suggested Remedy
Note: If the unit still does not work, or if any other types of symptoms are encountered,
shut off the mains (switch fuse unit) and call the service engineer.
Reset MCB
Replace fuse wire
If the input voltage to
the stabiliser is below
the acceptable range,
the AC will not operate
Press the On/Off key
on the control panel or
the remote
Remove all
obstructions to make
the airflow paths free
Change to COOL
mode
Make the selected
temperature less than
room temerature
Clean the air-filter
TROUBLE SHOOTING CHART
MCB has tripped
Fuse has burnt
Input voltage to the
stabiliser is below
acceptable range
The On/Off key is not
pressed
The airflow paths are
not free
The Units is in the fan
mode
Selected temperature is
more than room
temperature
Air-filter is not clea
Possible Causes
Unit does not start
Units does not cool
(Even after the normal
Time Delay of approx.
2/3 minutes for
compressor to start)
Symptoms

2524
Customer Name :
Address
Phone[O] [R]
Unit Model Unit Serial Number Dealer Name
Invoice Number Date of Purchase Date of Installation
MCB Rating Current (Amps.)
O
Cable Size Ambient Temp. ( C)
O
Earthing Room Temp. ( C)
O
Stabiliser Grill Temp. ( C)
Input Voltage Remote Operation
Customer's Response : To be filled up by the Customer
1.Installation completed within:
12hrs( ), 24 hrs( ) , 36 hrs ( ), more than 36 hrs ( )
2. How did you find the behavior of the Engineer :
Excellent ( J ), Good ( K ), Not satisfied ( L )
3. Overall rating of the service:
Excellent ( J ), Good ( K ), Not satisfied ( L )
4. Suggestion if any:
Job Number Engineer's Signature Customer's Signature
INSTALLATION & SATISFACTION
REPORT

2726
M/S. MIRC ELECTRONICS LTD, WARRANTS THIS ONIDA AIR CONDITIONER[(except the front grill,
knobs, remote unit and add-on plastic parts) TO THE ORIGINAL PURCHASER TO BE FREE FROM
DEFECTS IN MATERIALS AND WORKMANSHIP WITHIN ONE YEAR FROM THE DATE OF PURCHASE
AS PROVIDED IN THE WARRANTY REGISTERATION CARD.
WARRANTY FOR COMPRESSOR:
MIRC ELCTRONICS LTD, HEREAFTER WARRANTS TO THE PURCHASER OF THIS ONIDA AIR
CONDITIONER THAT FOR A PERIOD OF SIXTY MONTHS FROM THE DATE OF INVOICE .
WE WILL REPAIR/REPLACE THE COMPRESSOR WHICH PROVES UPON INSPECTION BY US OR ANY
OF OUR AUTHORISED SALES DEALERS TO HAVE BEEN DEFECTIVE DUE TO MANUFACTURING
DEFECT.
This warranty is subject to terms and conditions as mentioned below:
1. This warranty shall be valid only for the said period of 12 months as specified above, irrespective of
whether the said unit has been in use or not for any reason whatsoever, or the unit is moved from one
location to another. Warranty does not cover accessories external to the equipment.
2. The warranty period specified above shall include time taken for repairs, replacements, break-downs,
transit time etc. No notice of expiry period of warranty will be given by the company.
3. This warranty shall stand automatically terminated in the event of the said unit being serviced,
repaired, installed, de-installed, re-installed or otherwise attended to by any person or organization or
agency or by the said purchaser himself other than the authorized representative of the company.
4. Parts of the unit replaced or repaired under the terms of this warranty are warranted only for the
remaining period of the original warranty period.
5. For attending any service call under this warranty beyond the municipal limits of the locality in which
the authorized representative/dealer is situated (outstation locations), all to and fro travelling and
other incidental expenses as prevailing from time to time incurred in connection with the visit of the
service personnel, technicians, etc shall be borne by the said purchaser and shall be payable in
advance. Additionally, all expenses incurred by the authorized representative /dealer in collecting the
said unit or any part thereof from such outstation locations and its return to the original location shall
be borne by the said purchaser.
6. Any loss of refrigerant caused due to sabotage, improper handling or treatment , carelessness,
accident, fire, flood earthquake or any natural calamity any corrosive action on the original refrigerant
pipes, fittings, valves etc for whatever reasons, shall not be covered under this warranty.
7. In the event of any change in the location of the unit during the warranty period, this warranty shall
become null and void unless the fact of the proposed change is communicated in writing to the
authorized dealer at least seven (7) days prior to the said change. On receipt of such information the
authorized dealer or any of its counterparts shall arrange for de-installation of the said unit on
chargeable basis. However, in the event of any damage occuring to the unit or to any of its parts during
the course of its transit by the said purchaser, repair or replacement, the said unit or any part thereof
damaged shall not be covered by this warranty.
WARRANTY TERMS
AND CONDITIONS

2928
8. It shall be the absolute discretion of the company to a) effect the repairs or replacement of parts
whether at the site of installation or at any service centre, and b) have the job attended to either by the
Company's service personnel or its authorised dealer
9. This warranty is in the nature of and for the purpose of set forth herein above and in particular the
Company shall not in any event be liable for direct, indirect, incidental or consequential loss or
damages to either the said purchaser and /or his property or any other third party.
10. The AC is designed to operate at a range (230V +/- 10%). Any failure due to operation of the machine
beyond these limits will not be covered by the above warranty.
Customer shall ensure that a stabilizer is installed in those areas where voltage is not available within
the warranty range (230V +/- 10%). The stabilizer should be of any reputed manufacturer, tested and
recommended by the Company.
11. The purchaser should preserve the original invoice for necessary verification and produce, as and
when required.
12. Warranty null and void if:
i. The Air Conditioner is not purchased from the authorized dealers of the company.
ii. The Service Centre copy of warranty card is not received within 10days of date of purchase at the
nearest Authorised Service Centre.
iii. Any damage is caused by accident, mishandling, tampering with installation, or negligence in
following instructions of the user manual issued by Company.
iv. Any damage is caused by improper electrical circuit outside the unit or by any defective electrical
supply
v. At any time, during the warranty period if any part of the unit is tampered with, altered, repaired or
serviced by any unauthorized person, not being the authorized representative of the company or
its authorized dealers
vi. The serail number of the unit or any part thereof is damaged , defaced, altered, obliterated , or
tampered with or removal for any reason whatsoever
viii. The unit is unauthorisedly moved from its original place of installation or re-installation
13. None of the employees and /or Authorized Dealers of the Company have any authority whatsoever to
vary the terms and conditions of this warranty.
14. This warranty shall be deemed to have been issued at Mumbai, state of Maharashtra and courts at
Mumbai shall have exclusive jurisdiction on matters covered by or following from this warranty, and
the original purchaser alone shall have cause of action arising out of the transaction.
Preventive Maintenance Service 1 Date: ________
Customer Identification Number: ___________________________________________
Name of the customer: ____________________________________________________
Installation address: ______________________________________________________
________________________________________________________________________
________________________________________________________________________
Phone: _________________ Mobile: __________________ Fax: ________________
E-mail: _________________________________________________________________
Unit model: ____________________________ Serial Number: __________________
Service report number: ___________________________________________________
Customer's Signature: _______________________ Name: _______________________
Preventive Maintenance Service
Customer Identification
Number:
______________________
Unit Model: ___________
Sr. No: _______________
Name of Serviceman:
______________________
Date: ______ Time: _____
Sign. of Serviceman
Preventive Maintenance Service 2 Date: ________
Customer Identification Number: ___________________________________________
Name of the customer: ____________________________________________________
Installation address: ______________________________________________________
________________________________________________________________________
________________________________________________________________________
Phone: _________________ Mobile: __________________ Fax: ________________
E-mail: _________________________________________________________________
Unit model: ____________________________ Serial Number: __________________
Service report number: ___________________________________________________
Customer's Signature: _______________________ Name: _______________________
Preventive Maintenance Service
Customer Identification
Number:
______________________
Unit Model: ___________
Sr. No: _______________
Name of Serviceman:
______________________
Date: ______ Time: _____
Sign. of Serviceman

Title: Mr Ms Mrs M/s
Name:
Residence Address:
Dist:
State: Occupation:
Tel:(_____) Res(:_ _ _ _ _) Fax:
Code Code
Mobile No: Email:
Please Tick The Appropriate Product Colour TV B&W TV DVD Washing M/C. AC Plasma TV Rear Projection TV
Microwave Oven LCD TV
Model No:
Serial No
Please Refer Sticker On Back Cover Of Your Product
Purchase Date
Day Month Year
Bill No.
I Accept The Terms And Conditions of The Warranty Customer Signature
Thank you for selecting a World Class product and we assure you that it will perform as per your expectations
We thank you for taking your time to complete this form. All Information Provided by You will be Kept Confidential.
(Please Fill In, Tear off, Fold and Mail this form to Reach us within 10 days of the Product Purchase.)
We welcome your Valuable Suggestions, if any, to Improve our Products and Services :
FOR OFFICE USE ONLY
Customer Code:
MIRC Electronics Limited
Warranty Card
Customer Details
Product Details
Serial No.
Customer Copy
Pin:
Branch:
Mirc Electronics Ltd.
Note: Company Will Not Be Responsible For The Loss Of This Form During Transit. For Other Details on Our Products & Services Log On To www.onida.com
Dealer’s Name & Address
Signature

Title: Title:
Name:Name:
Residence Address:Residence Address:
Dist: Dist:
State: Occupation:State: Occupation:
Tel:(_____) Res(:_ _ _ _ _) Fax:Tel:(_____) Res(:_ _ _ _ _) Fax:
Mobile No: Email:Mobile No: Email:
Please Tick The Appropriate Product Colour TV B&W TV DVD Washing M/C. AC Plasma TV Rear Projection TVPlease Tick The Appropriate Product Colour TV B&W TV DVD Washing M/C. AC Plasma TV Rear Projection TV
Model No:Model No:
Serial NoSerial No
Purchase DatePurchase Date
Bill No.Bill No.
I Accept The Terms And Conditions of The Warranty Customer SignatureI Accept The Terms And Conditions of The Warranty Customer Signature
Thank you for selecting a World Class product and we assure you that it will perform as per your expectationsThank you for selecting a World Class product and we assure you that it will perform as per your expectations
We thank you for taking your time to complete this form. All Information Provided by You will be Kept Confidential.We thank you for taking your time to complete this form. All Information Provided by You will be Kept Confidential.
(Please Fill In, Tear off, Fold and Mail this form to Reach us within 10 days of the Product Purchase.)(Please Fill In, Tear off, Fold and Mail this form to Reach us within 10 days of the Product Purchase.)
We welcome your Valuable Suggestions, if any, to Improve our Products and Services :We welcome your Valuable Suggestions, if any, to Improve our Products and Services :
FOR OFFICE USE ONLYFOR OFFICE USE ONLY
Customer Code:Customer Code:
Customer DetailsCustomer Details
Product DetailsProduct Details
Serial No.Serial No.
Branch:Branch:
Note: Company Will Not Be Responsible For The Loss Of This Form During Transit.Note: Company Will Not Be Responsible For The Loss Of This Form During Transit.
Code CodeCode Code
Mr Ms Mrs M/sMr Ms Mrs M/s
Please Refer Sticker On Back Cover Of Your ProductPlease Refer Sticker On Back Cover Of Your Product
Day Month YearDay Month Year
Microwave Oven LCD TVMicrowave Oven LCD TV
MIRC Electronics LimitedMIRC Electronics Limited
Service Centre CopyService Centre Copy
Warranty CardWarranty Card
For Other Details on Our Products & Services Log On To www.onida.comFor Other Details on Our Products & Services Log On To www.onida.com
Dealer’s Name & AddressDealer’s Name & Address
Pin:Pin:
SignatureSignature
Mirc Electronics Ltd.Mirc Electronics Ltd.
