Onkyo W800BT User manual

W800BT
USER
MANUAL

1EN
Contents
Contents
1 Important safety instructions 2
Hearing Safety 2
General information 2
2 Onkyo Bluetooth wireless headset3
Box content 3
Other devices 3
Overview of your Bluetooth wireless
headset 3
3 Charge and pair your headset 4
Charge the battery 4
Pair your headset 5
4 Use your headset 6
Connect the headset to a Bluetooth
device 6
Operate your headset 6
Wear your headset 7
5 Technical data 8
6 Notice 9
Declaration of conformity 9
Disposal of your old product and
battery 9
Compliance with EMF 10
Trademarks 10
7 Frequently asked questions 11

2EN
1 Important
safety
instructions
Hearing Safety
Danger
• To avoid hearing damage, limit the time you use
headphones at high volume and set the volume to
a safe level. The louder the volume, the shorter the
safe listening time is.
Be sure to observe the following guidelines
when using your headset.
• Listen at reasonable volumes for
reasonable periods of time.
• Be careful not to adjust the volume
continuously upwards as your hearing
adapts.
• Do not turn up the volume so high that
you can’t hear what’s around you.
• You should use caution or temporarily
discontinue use in potentially
hazardous situations.
• Excessive sound pressure from
earphones and headphones can cause
hearing loss.
• Using headphones with both
ears covered while driving is not
recommended and may be illegal in
some areas while driving.
• For your safety, avoid distractions
from music or phone calls while in
trac or other potentially dangerous
environments.
General information
To avoid damage or malfunction:
Caution
• Do not expose the headset to excessive heat.
• Do not drop your headset.
• Headset shall not be exposed to dripping or
splashing.
• Do not allow your headset to be submerged in
water.
• Do not use any cleaning agents containing alcohol,
ammonia, benzene, or abrasives.
• If cleaning is required use a soft cloth, if necessary
dampened with a minimum amount of water or
diluted mild soap, to clean the product.
• The integrated battery shall not be exposed to
excessive heat such as sunshine, fire or the like.
• Risk of explosion if battery is replaced by an
incorrect type. Replace only with the same or
equivalent type.
About operating and storage temperatures
and humidity
• Operate or store in a place where
temperature is between -15ºC (5ºF)
and 55ºC (131ºF) (up to 90% relative
humidity.
• Battery life may be shorter in high or
low temperature conditions.

3EN
2 Onkyo
Bluetooth
wireless
headset
Box content

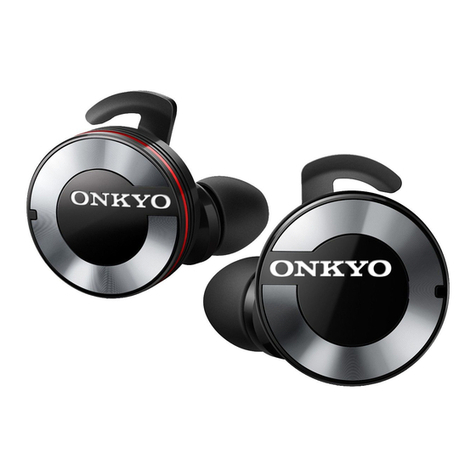

Onkyo Bluetooth wireless headset W800BT
Replaceable rubber ear caps x 2 pairs
Charging case
Quick start guide
Other devices
A mobile phone or electronic device (e.g.
notebook, PDA, Bluetooth adapters, MP3
players etc) which supports Bluetooth and
is compatible to the headset (see 'Technical
data' on page 6).
Overview of your Bluetooth
wireless headset
1
2
4
5
6
3
7
8
9
a On/o, call control button
b LED indicator
c Microphone
d USB cable (for charging)
e Headset charging socket
f Battery indicator
g Battery indicator button
h LED indicator
i On/o button

4EN
3 Charge and pair
your headset
Charge the battery
Note
• Before you use your headset/charging case for
the first time, charge the battery for 5 hours for
optimum battery capacity and lifetime.
• Use only the original USB charging cable to avoid
any damage.
• Finish your call before charging the headset, as
connecting the headset for charging will power the
headset o.
Charging case
Plug the USB cable into the power source.
The charging case starts charging.
Tip
• Normally, a full charge takes 2 hours.
• When the charging case is charging, the battery
indicator keeps flashing until charging is complete.
There are 5 indicator lights. The leftmost LED light
indicates the charging status. The other 4 LED
lights indicate the battery level. Each LED light
indicated 25% battery. When all 4 LED lights are
turned on and stable, the charging case is fully
charged.
• Press the battery indicator button to show the
battery level status.

5EN
Headset
Place the headset on the charging case.
The headset starts charging.
• When the headset is charging, a white
LED light will be displayed.
• When the headset is fully charged, the
white light goes o.
Tip
• Normally, a full charge takes 70 minutes.
Pair your headset
1 Make sure that the headset is fully
charged.
2 Press and hold the power on/o button.
The white LED light on the right side
of the headset flashes rapidly.
3 Turn on the Bluetooth function of your
mobile phone.
The headset is in pairing mode for
2 minutes.
4 Pair the headset with the mobile phone.
For detailed information, refer to the
user manual of your mobile phone.
Tip
• The headset stores the last 4 devices in the
memory. If you try to pair more than 4 devices, the
earliest paired device is replaced by the new one.
The following example shows you how to
pair the headset with your mobile phone.
1 Activate the Bluetooth feature of your
mobile phone, select Onkyo W800BT.
2 Enter the headset password "0000" (4
zeros) if prompted. For those mobile
phones featuring Bluetooth 3.0 or
higher, no need to enter a password.
Onkyo W800BT

6EN
4 Use your
headset
Connect the headset to a
Bluetooth device
1 Turn on your mobile phone/Bluetooth
device.
2 Press and hold the power on/o button
for 2 seconds to turn the headset on.
The white LED light flashes.
The headset is reconnected
to the last connected mobile
phone/Bluetooth device
automatically.
Tip
• If you turn on the mobile phone/Bluetooth device
or activate the Bluetooth feature after turning on
the headset, you have to reconnect the headset and
mobile phone/Bluetooth device manually.
• If your mobile phone/Bluetooth device cannot
reconnect automatically, try to reconnect
manually by clicking the headset's name again
under the Bluetooth setting menu on your mobile
phone/Bluetooth device.
Note
• If the headset fails to connect to any Bluetooth
device within range in 5 minutes, it will switch o
automatically to save the battery life.
Operate your headset
On/o
Task Button Operation
Turn the
headset
on.
On/o,
call control
Press and hold for
2 seconds.
You hear a
power on
signal tone.
Turn the
headset
o.
on/o,
call control
Press and hold for
4 seconds.
The white
LED is on for
2 seconds
and then the
headset is o.
You hear a
power o
signal tone.
Call control
Task Button (right
headset)
Operation
Pick
up/hang
up a call.
On/o,
call control
Press once.
Reject an
incoming
call.
On/o,
call control
Press and
hold for 2
seconds.
Other headset indicator status
Headset
status
Indicator
(right
headset)
Signal
The battery
level is low.
The white
LED light of
the headset
flashes for
every 10
seconds.
Low battery
signal tone
will ring for
every minute.

7EN
The headset
is ready for
pairing.
The white
LED light of
the headset
flashes
rapidly.
N/A
The headset
is paired and
ready to use.
The white
LED light
flashes
every 2
seconds.
One short
beep.
The headset
are on but not
connected to
a Bluetooth
device.
The white
LED light
the headset
flashes
rapidly.
N/A
Wear your headset
1 Push your headset inward and rotate it
forward to ensure the winglet is nested
inside the cavity above the ear canal.
2 Rotate your headset forward and
backward accordingly for the best
personal fit.

8EN
5 Technical data
Headset
• Play time: up to 3 hrs (up to 15 hrs with
charging case)
• Standby time: 40 hrs (up to 200 hrs with
charging case)
• Charging Time: 70 mins
• Rechargeable Li-ion battery: 55mAh
• Bluetooth 4.1, Bluetooth mono support
(Headset profile - HSP, Hands-Free
Profile - HFP), Bluetooth stereo supported
(Advanced Audio Distribution Profile -
A2DP)
• Operating range : Up to 10 meters (33
feet)
• Digital noise and echo reduction
• Auto power o
Charging case
• Charging time: 2hrs
• Rechargeable Li-ion battery : 900mAh
• Number of recharges supported: 5
Note
• Specifications are subject to change without notice.

9EN
6 Notice
Declaration of conformity
Hereby, Gibson Innovations declares that
this product is in compliance with the
essential requirements and other relevant
provisions of Directive 2014/53/EU. You
can find the Declaration of Conformity on
www.onkyo-headphones.com
Disposal of your old product
and battery
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
This symbol on a product means that the
product is covered by European Directive
2012/19/EU.
This symbol means that the product
contains a built-in rechargeable battery
covered by European Directive 2013/56/EU
which cannot be disposed of with normal
household waste. We strongly advise you
to take your product to an ocial collection
point to have a professional remove the
rechargeable battery.
Inform yourself about the local separate
collection system for electrical and
electronic products and rechargeable
batteries. Follow local rules and never
dispose of the product and rechargeable
batteries with normal household waste.
Correct disposal of old products and
rechargeable batteries helps prevent
negative consequences for the environment
and human health.
Remove the integrated battery for
disposal
If there is no collection/recycling system for
electronic products in your country, you can
protect the environment by removing and
recycling the battery before disposing the
headset.
• Make sure the headset is disconnected
from the charging case before
removing the battery.
1
2
3

10 EN
• Make sure the charging case is
disconnected from the USB charging
cable before removing the battery.
Compliance with EMF
This product complies with all applicable
standards and regulations regarding
exposure to electromagnetic fields.
Environmental information
All unnecessary packaging has been
omitted. We have tried to make the
packaging easy to separate into three
materials: cardboard (box), polystyrene
foam (buer) and polyethylene (bags,
protective foam sheet.)
Your system consists of materials which
can be recycled and reused if disassembled
by a specialized company. Please observe
the local regulations regarding the disposal
of packaging materials, exhausted batteries
and old equipment.
Trademarks
Bluetooth
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by
Gibson Innovations Limited is under license.
Onkyo® is a registered trade mark of Gibson
Brands Inc. Other trademarks and trade
names are those of their respective owners.

My Bluetooth headset is connected to a
Bluetooth stereo enabled mobile phone,
but music only plays on the mobile phone
speaker.
Refer to the user manual of your mobile
phone. Select to listen to music through the
headset.

The audio quality is poor and crackling
noise can be heard.
The Bluetooth device is out of range. Reduce
the distance between your headset and
Bluetooth device, or remove obstacles
between them.

The audio quality is poor when streaming
from the mobile phone is very slow, or
audio streaming does not work at all.
Make sure your mobile phone not only
supports (mono) HSP/HFP but also supports
A2DP (see ‘Technical data’ on page 8). 

For further support, visit
www.onkyo-headphones.com
7 Frequently
asked
questions
My Bluetooth headset does not switch on.
The battery level is low. Charge the
headset.

I cannot pair my Bluetooth headset with a
mobile phone.
The Bluetooth is disabled. Enable the
Bluetooth feature on your mobile phone
and turn on the mobile phone before you
turn on the headset.

Pairing does not work.
Make sure the headset is in pairing mode.
• Follow the steps described in this
user manual (see ‘Charge and pair
your headset’ on page 4).
• Make sure that the LED light flashes
rapidly on the right side of the
headset.

The mobile phone cannot find the headset.
•The headset may be connected to a
previously paired device. Turn o the
connected device or move it out of
range.
•Pairing may have been reset or the
headset has been previously paired
with another device. Pair the headset
with the mobile phone again as
described in the user manual (see
‘Charge and pair your headset’ on
page 4).


QUICK START
GUIDE
H500BT
Quick start guide
EN
www.onkyo.com
[ 1.0 Charge the battery ]
1. Plug one end of USB cable into the charger (or into the USB port of a computer).
2. Plug the other end of the cable into the micro USB charging slot on the headset.
3. When the headset is charging, a white indicator light will be displayed.
4. When the headset is fully charged, the white light goes o.
1. Turn the headset on. Press and hold for 2 sec.
2. Turn the headset o. Press and hold for 4 sec. A white indicator light turns on for 1.5 sec. and then the headset will turn o.
Pair the headset with your phone manually or by using NFC. After successful pairing, the headset connects automatically to the
phone once the headset is turned on and within range.
Manual Pairing
1. Make sure your headset is turned on.
2. Press and hold until an alternating blue and white light flashes.
3. Turn on the Bluetooth function on your phone.
4. Your phone will start searching for Onkyo H500BT.
5. Follow the on-screen instructions to pair your phone. (Check your phone’s user manual for
details)
NFC Pairing
1. Make sure your headset is turned on.
2. Press and hold until an alternating blue and white light flashes.
3. Make sure you turn on the NFC function on your phone and that your phone’s screen
remains active.
4. Place your phone over the headset so that the NFC detection area of each device touch each
other.
5. Follow the pairing instructions of your phone. If a passcode is required, enter ‘0000’.
Remarks:
• Make sure your mobile phone has the NFC feature and that the NFC function has been switched on and your phone is not in standby mode.
• Pairing with NFC is suitable only for Android mobile operating system 4.2 or above.
[ 2.0 Turning the headset on and o ]
[ 3.0 Pair the headset with your phone ]
You can also use this headset with the audio cable provided when the battery is low. Make sure the headset is turned o before
using the audio cable.
Please refer to www.onkyo.com/welcome for the full user manual
A white light flashes slowly.
An alternating white and blue light flashes.
A blue light flashes at every 8 seconds interval.
A blue light flashes rapidly.
The battery is low.
The headset is in pairing mode.
The headset is switched on but not connected. If no connection
can be made, the headset will turn itself o after 5 minutes.
The headset is both paired & connected.
[ 5.0 LED Indicator light ]
[ 6.0 Corded audio connection ]
MUSIC CONTROLS VOICE/CALL CONTROLS
[ 4.0 Using music and call controls ]
Play/Pause Tap once
Volume up Slide up or
slide up and hold
Volume down Slide down or
slide down and hold
Skip forward Slide forward
Skip backward Slide backward
Siri/Google Now* Press once
Pick up call/Hang up Tap once
Reject incoming call Tap and hold
Mute/unmute the mic
while in a call
Press once
Switch caller while
in a call Slide forward
Micro USB
charging slot
Audio jack
(Left side)
Pairing additional devices
A total of 4 bluetooth devices can be paired with your headphones. (See step 3 for pairing). Two devices can be connected
simultaneously allowing you to switch between them both.
Switching between devices
The multipoint feature allows you to connect and switch between two devices simultaneously. Simply pause your music or video on
one device and press play on your second device, the headphone will automatically connect to the playing device.
When you receive a phone call the audio on the first device automatically pauses to receive the phone call on the second device, with
the audio resuming when the call has finished. (See step 4 for call controls)
[ 7.0 Multipoint ]
NFC
detection
area
2015 © Gibson Innovations Limited. All rights reserved.
This product has been manufactured by, and is sold under
the responsibility of Gibson Innovations Ltd., and Gibson
Innovations Ltd. is the warrantor in relation to this product.
Gibson Innovations Netherlands B.V. Building
A
A
B
B
‘0000’ not required for
some mobile phones
Settings
Select Back
Connectivity
10:32
Enter Password
****
0000
Settings
Devices Found
Select Back
10:31
Onkyo H500BT
Settings
Bluetooth
Select Back
Connectivity
10:30
Add
Bluetooth
device
A
B
* To use the voice control feature on your phone via Bluetooth please refer to
the user manual for the correct settings for your device.
LED indicator light
Power On/O
Microphone
Touch panel for:
Music/Call/Volume/
Track controls
Pairing/Mute (call)
A
A
2016 © Gibson Innovations Limited. All rights reserved.
This product has been manufactured by, and is sold under the
responsibility of Gibson Innovations Ltd., and Gibson Innovations
Ltd. is the warrantor in relation to this product.
Onkyo® is a registered trade mark of Onkyo Corporation. Other
trademarks and trade names are those of their respective owners.
