Onkyo HTP-940 User manual

HTP-940
SERVICE MANUAL
SERVICE MANUAL
7.1-CH HOMETHEATER SPEAKER PACKAGE
Black model
MODEL HTP-940(B)
120V AC, 60Hz
230-240V AC, 50Hz
B MDC
B MPP
Ref. No. 3961
062006
- - Front Speakers (L/R) - -
"SKF-940F"
- - Center Speaker - -
"SKC-940C"
- - Surround Speakers (L/R) - -
"SKM-940S"
- - Surround Back Speakers (L/R) - -
"SKB-940"
- - Powered Subwoofer - -
"SKW-940"
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

HTP-940
EXPLODEDVIEWS-1

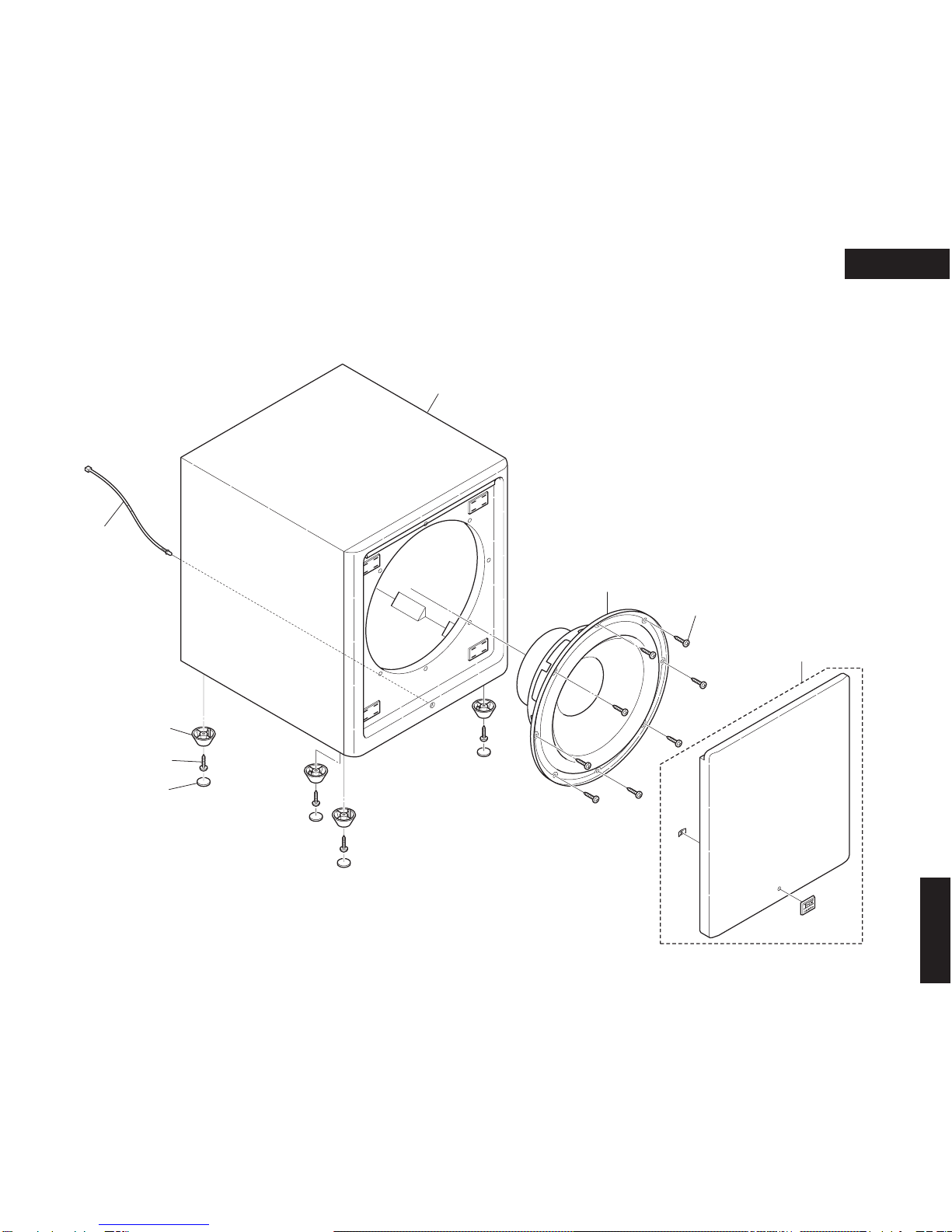

SKW-940 : POWERED SUBWOOFER
HTP-940
SP12
x 4 pcs.
A08
x 2 pcs.
SP11
x 10 pcs.
A05
x 2 pcs.
A05
x 2 pcs.
A05
x 5 pcs.
A103
A102
P901
SP13
x 2 pcs.
U03
A11
A01
U01
A07
A07
A101
A02
A02
U06
U05
A05
Q515
Q516
Q541
F901
T901
F901C
S901
A03
Refer to "EXPLODED VIEWS-2"
<Note>
S901 (POWER SWITCH) and U05 : MPP type only.
<Note>
F901C (LABEL) : MPP type only.
Part No. (SN) ---> Refer to
"PRINTED CIRCUIT BOARD PARTS LIST".

HTP-940
EXPLODED VIEWS-2
SKW-940 : POWERED SUBWOOFER
HTP-940
SP07
SP01a / SP01b
SP09
SP04
x 8 pcs.
SP02
x 4 pcs.
SP04
x 4 pcs.
SP03
x 4 pcs.
SP08

HTP-940
EXPLODED VIEWS-3
SKF-940F <L> / SKF-940F <R>
HTP-940
SP32a / SP32b
SP33a - SP33d
SP21a - SP21d
with Catching Holder (SP22) / without Terminal (SP32)
SP23
SP31
SP26
x 4 pcs.
SP22
x 4 pcs.
SP23
SP26
x 4 pcs.
SP24
SP34
SP27
x 4 pcs.
Lch
TERMINAL :
White / Black
Rch
TERMINAL :
Red / Black
INPUT
(Terminal)
WOOFER
WOOFER
TWEETER

HTP-940
EXPLODED VIEWS-4
SKC-940C
HTP-940
SP52
SP53a /
SP53b
SP41a / SP41b
with Catching Holder (SP42) / without Terminal (SP52)
SP51
SP42
x 4 pcs.
SP46
x 4 pcs.
SP43
SP46
x 4 pcs.
SP44
SP43
SP54
SP47
x 4 pcs.
TERMINAL :
Green / Black
INPUT
(Terminal)
WOOFER
WOOFER
TWEETER

HTP-940
EXPLODED VIEWS-5
SKM-940S <L> / SKM-940S <R>
HTP-940
SP73a - SP73d
SP72a / SP72b
SP61a - SP61d
with Catching Holder (SP62) / without Terminal (SP72)
SP74
SP64
SP71
SP63
SP75
SP66
x 4 pcs.
SP67
x 4 pcs.
SP76
x 2 pcs.
SP62
x 4 pcs.
SP65
INPUT
(Terminal)
WOOFER
TWEETER
Lch
TERMINAL :
Blue / Black
Rch
TERMINAL :
Gray / Black

HTP-940
EXPLODED VIEWS-6
SKB-940 <L> / SKB-940 <R>
HTP-940
SP93a - SP93d
SP92a / SP92b
SP81a - SP81d
with Catching Holder (SP82) / without Terminal (SP92)
SP94
SP84
SP91
SP83
SP95
SP86
x 4 pcs.
SP87
x 4 pcs.
SP96
x 2 pcs.
SP82
x 4 pcs.
SP85
INPUT
(Terminal)
WOOFER
TWEETER
Lch
TERMINAL :
Brown / Black
Rch
TERMINAL :
Tan / Black

HTP-940
SCHEMATIC DIAGRAM
SKW-940 : POWERED SUBWOOFER
HTP-940
A
1
2
3
4
5
BCDEFGH
+5.6V -56.5V +56.5V
P907A
P906A
J901
MD
J316
E801
Q301(2/2)
NJM4558LD
4
8
5
6
7
Q301(1/2)
NJM4558LD
3
2
1
8
4
Q602
KRC103M
Q606
KRA103M
P301
R651
12K (1/2W)
R951
3.3K
POWER NEED TO CONFIRM
(2W)
R952
3.3K (2W)
R901
820(1W)
R902
820(1W)
0
1
-0.6
1.6V
-1.6
-1
0
0.05
0.6
5.0
D901
D3SBA20
R544 100B
R528
390
(1/2W)
R628
330K
R629
NC
R701
NC
R904
1K
(1/2W)
R903
10K
R609
39K
R611
820K
R610
560K
R616
100K
R617
1K
R621
1K
R615
22K
R612
39K
R614
120K R613
470K
R619
22K
R620
100K
R624
100K
R623
100K R627
680K
R622
10K
R626
2.2M
R625
180K
S901
P901
P901
F901
5A/125V
F901
1.6A/250V
T901
NPT-1539D
T901
NPT-1539P
P903B P903B
J903A
P632A
RED
GREEN
D601
MTZJ2.7B
D602
MTZJ2.7B
D501
MTZJ5.6B
D952
MTZJ15C
D951
MTZJ15C
D904
MTZJ5.6B
Q516
2SA1987-O/R
Q519
2SA965-Y
Q517
2SA933S-S
Q507
2SA949-Y
Q505
2SA949-Y
Q509
2SA949-Y
Q514
2SA1930
Q604
2SA933S
Q605
2SA933S
Q607
2SA933S
Q541
2SC3423
Q506
2SC2229-Y
Q510
2SC2229-Y
Q503
2SC2240-BL
Q515 2SC5359-O/R
Q513
2SC5171
Q518
2SC2235-Y
Q502
2SC2240-BL
Q501
2SC2240-BL
Q609
NC
Q603
2SC1740S-S
Q608
2SC1740S-S
P902A
P906B
P902A
JL535A/B
P531
P501B
P633
P631
D651
1SS133
D603
1SS133
D606
1SS133 D903
RL1N4003
or GP104003E
D902
RL1N4003
or GP104003E
D605
1SS133
R302
20K
C301
C303
NC
C955
223J
C506
070
C502
NC
C514
101
C520
224
C519
224
C505
020
C503
224J
C950
104/50
C903
104J/100
(MPP TYPE)
C904
104J/100
(MPP TYPE)
C302
47/50
C527
1/50
C501
47/50
C517
10/50
C528
10/50
C526
10/50
C504
220/16
C951
220/16
C952
220/16
C909
22/50
C601
10/50
C603
470/16
C602
10/50
C604
33/35
C906
5600/71
C905
5600/71
R306
47K
R301
1K R307
220*
R305
8.2K*
R303
47K
R304
2.2K*
R531
0.22
(5W)
R533
3.3
(1W)
R508
47
(1/4W)
R511
82
(1/4W)
R512
68
(1/4W)
R514
82 (1/4W)
R513
82
(1/4W)
R516
12K
R515
12K
R502
47K
R510
100K
R543
180
R526
82
(1/2W)
R517
3.3K
R541
820
R542
150
R505
1K
(1/4W)
R506
1K
(1/4W)
R507
33K
R527
270
R509
1K
R504
2.2K
R503
5.6K
R522
220
R521
220
R501
1K
R603
150K
R601
5.6K
R605
22
R602
100K
R604
180
NAPS-8831
AC 230-240V / 50Hz
NAAF-8829
NAPS-8831
MDC
ONLY
MPP
ONLY
AC 120V / 60Hz
NASW-8833
(MPP) 224
NC
NC
AGAINST FIRE HAZARD, REPLACE
VA
FOR CONTINUED PROTECTION
AND RATING INDICATED.
ONLY WITH FUSE OF SAME TYPE
CAUTION
ATTENTION
ET CALIBRATION COMME INDIQUE.
D'INCENDIE, REMPLACER UNIQUEMENT
PERMANENTE CONTRE LES RISQUES
AFIN D'ASSURER UNE PROTECTION
PAR UN FUSIBLE DE MEME TYPE
VA
E LENT.POUR UNE PROTECTION PERMANENTE,N'UTILISER
INDIQUE LA QU LE PRESENT SYMBOL EST APPOSE.
QUE DES FUSIBLES DE MEME TYPE. CE DARNIER EST
CE SYMBOLE INDIQUE QUE LE FUSIBLE UTLISE EST
FOR CONTINUED PROTECTION AGAINST FIRE
RATING REFER TO THE MARKING ADJACENT TO THE SYMBOL.
HAZARD,REPLACE WITH SAME TYPE FUSE. FOR FUSE
THIS SYMBOL LOCATED NEAR THE FUSE INDICATES
THAT THE FUSE USED IS SLOW OPERATING TYPE
THE COMPONENTS IDENTIFIED BY MARK ARE CRITICAL FOR SAFETY
REPLACE ONLY WITH PART NUMBER SPECIFIED.
VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE.(NO INPUT SIGNAL).
ALL PNP TRANSISTORS ARE EQUIVALENT TO 2SA1015-GR UNLESS OTHERWISE NOTED.
ALL NPN TRANSISTORS ARE EQUIVALENT TO 2SC1815-GR UNLESS OTHERWISE NOTED.
ALL DIODES ARE EQUIVALENT TO 1SS133 UNLESS OTHERWISE NOTED.
ELECTROLYTIC CAPACITORS ( ) ARE IN uF/WV.
ALL CAPACITORS ARE IN pF/50WV UNLESS OTHERWISE NOTED.
EX) 030- 3pF 330- 33pF 331- 330pF 333- 0.033uF
ALL RESISTORS ARE IN OHMS 1/4WATTS UNLESS OTHERWISE NOTED.
THE THICK LINES ON PC BOARD ARE THE PRINTING SIDE OF THE PARTS.
EX) PRINTING SIDE
CIRCUIT IS SUBJECT TO CHANGE FOR IMPROVEMENT.
!
NOTE
POWER SWITCH
PC BOARD
U05
POWER TRANSFORMER
PC BOARD
U03
POWER TRANSFORMER
PC BOARD
U03
MAIN PC BOARD
U01
LINE INPUT
OUTPUT
LEVEL
POWER
SWITCH
SPEAKER
LED
MPP ONLY
ADJUST.
IDLING
<Note>
NC : No mount of parts.

HTP-940
SCHEMATIC DIAGRAM
SKW-940 : POWERED SUBWOOFER
HTP-940
A
1
2
3
4
5
BCDEFGH
+5.6V -56.5V +56.5V
P907A
P906A
J901
MD
J316
E801
Q301(2/2)
NJM4558LD
4
8
5
6
7
Q301(1/2)
NJM4558LD
3
2
1
8
4
Q602
KRC103M
Q606
KRA103M
P301
R651
12K (1/2W)
R951
3.3K
POWER NEED TO CONFIRM
(2W)
R952
3.3K (2W)
R901
820(1W)
R902
820(1W)
0
1
-0.6
1.6V
-1.6
-1
0
0.05
0.6
5.0
D901
D3SBA20
R544 100B
R528
390
(1/2W)
R628
330K
R629
NC
R701
NC
R904
1K
(1/2W)
R903
10K
R609
39K
R611
820K
R610
560K
R616
100K
R617
1K
R621
1K
R615
22K
R612
39K
R614
120K R613
470K
R619
22K
R620
100K
R624
100K
R623
100K R627
680K
R622
10K
R626
2.2M
R625
180K
S901
P901
P901
F901
5A/125V
F901
1.6A/250V
T901
NPT-1539D
T901
NPT-1539P
P903B P903B
J903A
P632A
RED
GREEN
D601
MTZJ2.7B
D602
MTZJ2.7B
D501
MTZJ5.6B
D952
MTZJ15C
D951
MTZJ15C
D904
MTZJ5.6B
Q516
2SA1987-O/R
Q519
2SA965-Y
Q517
2SA933S-S
Q507
2SA949-Y
Q505
2SA949-Y
Q509
2SA949-Y
Q514
2SA1930
Q604
2SA933S
Q605
2SA933S
Q607
2SA933S
Q541
2SC3423
Q506
2SC2229-Y
Q510
2SC2229-Y
Q503
2SC2240-BL
Q515 2SC5359-O/R
Q513
2SC5171
Q518
2SC2235-Y
Q502
2SC2240-BL
Q501
2SC2240-BL
Q609
NC
Q603
2SC1740S-S
Q608
2SC1740S-S
P902A
P906B
P902A
JL535A/B
P531
P501B
P633
P631
D651
1SS133
D603
1SS133
D606
1SS133 D903
RL1N4003
or GP104003E
D902
RL1N4003
or GP104003E
D605
1SS133
R302
20K
C301
C303
NC
C955
223J
C506
070
C502
NC
C514
101
C520
224
C519
224
C505
020
C503
224J
C950
104/50
C903
104J/100
(MPP TYPE)
C904
104J/100
(MPP TYPE)
C302
47/50
C527
1/50
C501
47/50
C517
10/50
C528
10/50
C526
10/50
C504
220/16
C951
220/16
C952
220/16
C909
22/50
C601
10/50
C603
470/16
C602
10/50
C604
33/35
C906
5600/71
C905
5600/71
R306
47K
R301
1K R307
220*
R305
8.2K*
R303
47K
R304
2.2K*
R531
0.22
(5W)
R533
3.3
(1W)
R508
47
(1/4W)
R511
82
(1/4W)
R512
68
(1/4W)
R514
82 (1/4W)
R513
82
(1/4W)
R516
12K
R515
12K
R502
47K
R510
100K
R543
180
R526
82
(1/2W)
R517
3.3K
R541
820
R542
150
R505
1K
(1/4W)
R506
1K
(1/4W)
R507
33K
R527
270
R509
1K
R504
2.2K
R503
5.6K
R522
220
R521
220
R501
1K
R603
150K
R601
5.6K
R605
22
R602
100K
R604
180
NAPS-8831
AC 230-240V / 50Hz
NAAF-8829
NAPS-8831
MDC
ONLY
MPP
ONLY
AC 120V / 60Hz
NASW-8833
(MPP) 224
NC
NC
AGAINST FIRE HAZARD, REPLACE
VA
FOR CONTINUED PROTECTION
AND RATING INDICATED.
ONLY WITH FUSE OF SAME TYPE
CAUTION
ATTENTION
ET CALIBRATION COMME INDIQUE.
D'INCENDIE, REMPLACER UNIQUEMENT
PERMANENTE CONTRE LES RISQUES
AFIN D'ASSURER UNE PROTECTION
PAR UN FUSIBLE DE MEME TYPE
VA
E LENT.POUR UNE PROTECTION PERMANENTE,N'UTILISER
INDIQUE LA QU LE PRESENT SYMBOL EST APPOSE.
QUE DES FUSIBLES DE MEME TYPE. CE DARNIER EST
CE SYMBOLE INDIQUE QUE LE FUSIBLE UTLISE EST
FOR CONTINUED PROTECTION AGAINST FIRE
RATING REFER TO THE MARKING ADJACENT TO THE SYMBOL.
HAZARD,REPLACE WITH SAME TYPE FUSE. FOR FUSE
THIS SYMBOL LOCATED NEAR THE FUSE INDICATES
THAT THE FUSE USED IS SLOW OPERATING TYPE
THE COMPONENTS IDENTIFIED BY MARK ARE CRITICAL FOR SAFETY
REPLACE ONLY WITH PART NUMBER SPECIFIED.
VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE.(NO INPUT SIGNAL).
ALL PNP TRANSISTORS ARE EQUIVALENT TO 2SA1015-GR UNLESS OTHERWISE NOTED.
ALL NPN TRANSISTORS ARE EQUIVALENT TO 2SC1815-GR UNLESS OTHERWISE NOTED.
ALL DIODES ARE EQUIVALENT TO 1SS133 UNLESS OTHERWISE NOTED.
ELECTROLYTIC CAPACITORS ( ) ARE IN uF/WV.
ALL CAPACITORS ARE IN pF/50WV UNLESS OTHERWISE NOTED.
EX) 030- 3pF 330- 33pF 331- 330pF 333- 0.033uF
ALL RESISTORS ARE IN OHMS 1/4WATTS UNLESS OTHERWISE NOTED.
THE THICK LINES ON PC BOARD ARE THE PRINTING SIDE OF THE PARTS.
EX) PRINTING SIDE
CIRCUIT IS SUBJECT TO CHANGE FOR IMPROVEMENT.
!
NOTE
POWER SWITCH
PC BOARD
U05
POWER TRANSFORMER
PC BOARD
U03
POWER TRANSFORMER
PC BOARD
U03
MAIN PC BOARD
U01
LINE INPUT
OUTPUT
LEVEL
POWER
SWITCH
SPEAKER
LED
MPP ONLY
ADJUST.
IDLING
<Note>
NC : No mount of parts.

HTP-940
PRINTED CIRCUIT BOARD VIEWS-1
SKW-940 : POWERED SUBWOOFER
MAIN PC BOARD (NAAF-8829)U01
Component side
R544
P502A
Q517
R543
R533
Q515
C502
R527
C514
J332
Q541
Q516
R522
R521
J322
R513
R511
J334
R516 R515 R507
R504
R510
C503
R651
R503
R509
R501
R502
C504
C951
R517
R542
R541
Q510
Q506
Q507
R514
R512
R508
C526
C517
C506
Q505
Q509
Q503
C505
J310
Q502
Q501
R505
R506
C501
C519 C520
J323
NCAF-8829
1
25138829A
P531
R531
J324
J308
C527
C903 C904
Q518
Q519
C528
J306
J311
J305
J312
R528
R526
J304
J303
J321
J313 J319
C952
J307
Q514
Q513
J330
J340
J333 D903
D902
R902
R901
C909
R903 D904
R605
C602
R604
R603
R602
R904
C604
R622
Q608
R626
R624
Q606
Q607
Q604
R619
R623
R621
Q603
Q605
D605
Q602
R610
C603
R601
J346
J331
D952
D951
J320
J314
J325
D651
P632A
J336 J335
JL535A
JL535B
P633
RED
BLACK
BC E CEB
BCE
E C B
E C B
1
-Vee
+Vcc
+Vcc
J352
J351
C601
D603
R304
R305
R303
R307
J316
R620
R614
R613
R612
R302
R302
P301
P301
C955
R627
Q609
R629
R628
D606
R625
J348 R611
J337
J327
J326
R616
J342
R301
J344
R617
J338
J347
R609
J341
J318
C950
R314
R311
C311
R315
R312
C316
R313
R316
81234567
R319
C314
R317
7654 3218
R320
J302
C303
J309
J329
R615
J349
J350
2345 678
P911
J301
D501
R545
Q504
P903A
RED REDBLK
Q301
Q302
Q303
R701
E701
C301
P631
P912
C906
C906
C905
C905
R952
J955
R951
E801
D601
D602
C302
R306
D901
J956
P301A
C312
C315
R321
C313
7
25
12
22
17
15
12
15
7
20
7
17
12
17
7
20
7
7
7
7
7
7
7
7
7
A
1
2
3
4
5
BCD

ADJUSTMENT PROCEDURE
SKW-940 : POWERED SUBWOOFER / ADJUSTMENT OF IDLING CURRENT
HTP-940

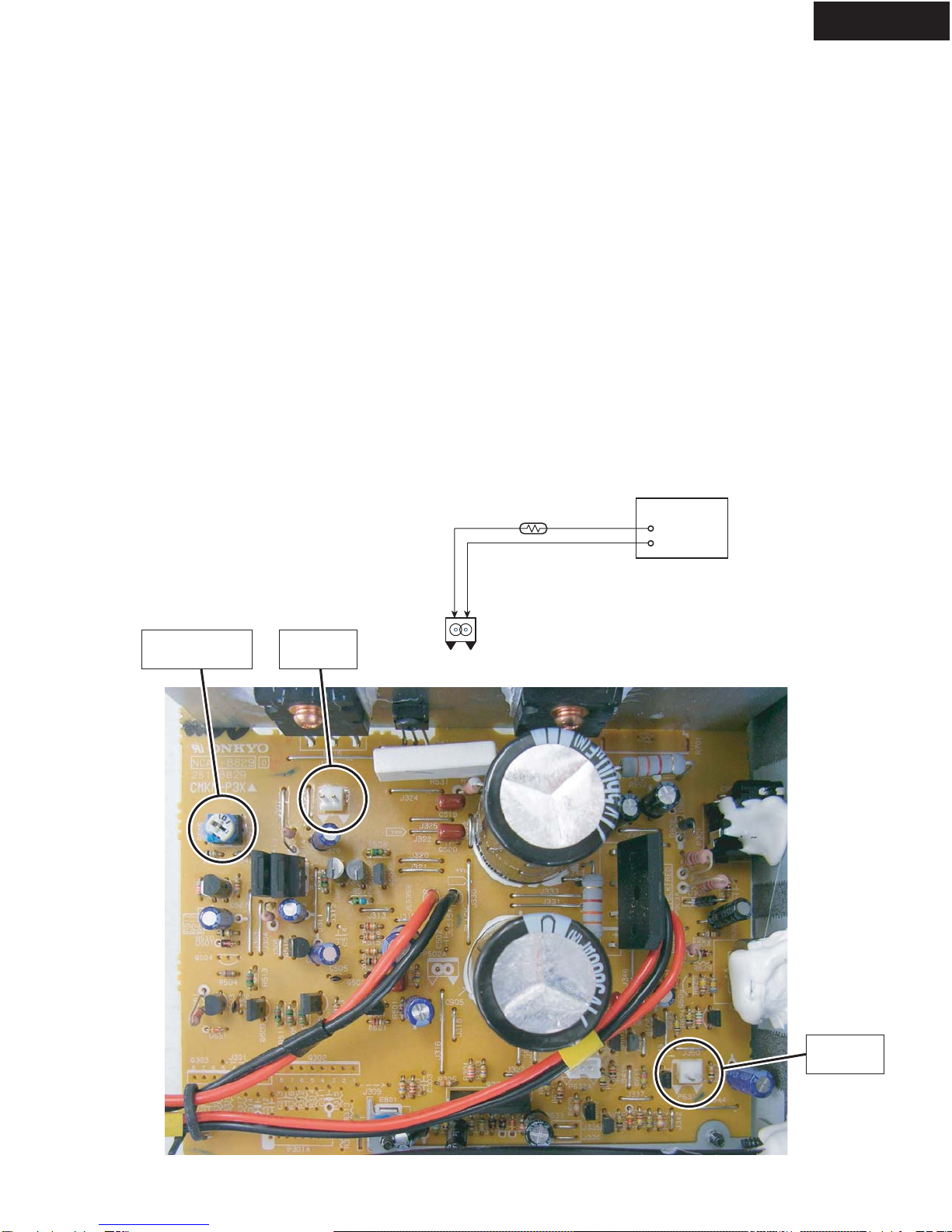

Test point
DC voltmeter
100 ohm
(1/4W)
P531
<Fig-1>
Test point
P631
MAIN PC board ass'y "NAAF-8829"
Test point
P531
Trimming resistor
R544
Short
[When]
1. Exchange transistors (Q505 - Q519).
2. Exchange MAIN PC board ass'y (NAAF-8829).
[Procedure]
<Note> No speaker load and No input signal.
1. Short test point P631 for amplifier is under active mode.
2. Adjust the trimming resistor R544 so that the reading of multimeter becomes 52 ohm to 53 ohm.
3. Connect the DC voltmeter to test point P531. <Fig-1>
4. Connect the AC power cord into a wall outlet.
5. Press POWER button to turn on the unit. (MPP type only)
6. Confirm the voltage of above point after 6 minutes to 8 minutes. (Heat running)
7. When less than 3.20 mV : Readjust the trimming resistor above so that the voltage becomes 4.5 mV to 5.0 mV.
When 3.30 mV to 5.20 mV : Not necessary to adjust.
When 5.21 mV to 10.0 mV : Readjust the trimming resistor above so that the voltage becomes 5.0 mV to 5.5 mV.
When 10.1 mV to 20.0 mV : Readjust the trimming resistor above so that the voltage becomes 5.6 mV to 6.0 mV.
8. Press POWER button to turn off the unit. (MPP type only)
9. Disconnect the DC voltmeter.
10. Disconnect the AC power cord from a wall outlet.

1/7 PAGE
HTP-940
EXPLODED VIEWS PARTS LIS
T
<Notes>
<L> : Lch
<R> : Rch
<MDC> : Canadian model only
<MPP> : European model only
REF. NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS
EXPLODED SKW-940 (B) : POWERED SUBWOOFER
EXPLODED AMPLIFIER SECTION
EXPLODED Q515 TR 2SC5359-R 1 2203082 !
EXPLODED Q515 or TR 2SC5359-O (1) 2203083 !
EXPLODED Q516 TR 2SA1987-R(Q) 1 2203072 !
EXPLODED Q516 or TR 2SA1987-O (1) 2203073 !
EXPLODED Q541 TR 2SC3423-Y 1 2202104
EXPLODED Q541 or TR 2SC3423-O (1) 2202103
EXPLODED <Note>
EXPLODED When replacement the following the transistor, made from the same HFE rank as the original type.
EXPLODED Q515, Q516, Q541
EXPLODED A01 HEAT SINK 230 1 27160591
EXPLODED A02 CUSHION --- 2 28141682
EXPLODED A03 CUSHION --- 1 28141691
EXPLODED A05 SCREW 3TTB+8B(3BC) 10 838430088GR
EXPLODED A07 ISO SHEET AC262 2 223025
EXPLODED A08 SCREW 3SMS8W.SW+14B(CU) 2 801634
EXPLODED A11 RETAINER (PCB) 1 27142025
EXPLODED A101 REAR PANEL (MDC) 1 27123587A <MDC>
EXPLODED A101 REAR PANEL (MPP) 1 27123588A <MPP>
EXPLODED A102 BUSHING S-RELIEF #2271 1 27300750 !
EXPLODED A103 KNOB (VOL) 1 28326463
EXPLODED F901 FUSE 5A-UL/T-233 1 252326GR !<MDC>
EXPLODED F901 FUSE 1.6A-SE-EAK IECFUSE 1 252073GR !<MPP>
EXPLODED F901 or FUSE 1.6A-SE-TL250V (1) 252273GR !<MPP>
EXPLODED P901 AC CORD AS-UC-2 1 253333VOL !<MDC>
EXPLODED P901 or AC CORD AS-UC-2 ( 1) 253368LTK !<MDC>
EXPLODED P901 or AC CORD AS-UC-2 ( 1) 253368YUN !<MDC>
EXPLODED P901 AC CORD AS-CEE 1 253336VOL !<MPP>
EXPLODED S901 RC SW NRC-11007P 1 25065620 !<MPP>
EXPLODED T901 P TRANS NPT-1539D 1 2301863 !<MDC>
EXPLODED T901 P TRANS NPT-1539P 1 2301864 !<MPP>
EXPLODED U01 MAIN PC BOARD ASS'Y NAAF-8829-1D 1 1B138529-1D <MDC>
EXPLODED U01 MAIN PC BOARD ASS'Y NAAF-8829-1C 1 1B138529-1C <MPP>
EXPLODED U03 POWER TRANS. PC BOARD ASS'Y NAPS-8831-1D 1 1B138531-1D <MDC>
EXPLODED U03 POWER TRANS. PC BOARD ASS'Y NAPS-8831-1C 1 1B138531-1C <MPP>
EXPLODED U05 POWER SWITCH PC BOARD ASS'Y NASW-8833-1C 1 1B138533-1C <MPP>
EXPLODED U06 HOLDER PC BOARD NAETC-8834 1 --- NSP
EXPLODED SPEAKER SECTION (SKW-940)
EXPLODED SP01a CABINET ASS'Y SKW-940 (B) MDC 1 000-SKW940BMDCSER <MDC>
NOTE : THE COMPONENTS IDENTIFIED BY THE MARK
!ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE ONLY WITH PART
NUMBER SPECIFIED.

2/7 PAGE
EXPLODED SP01b CABINET ASS'Y SKW-940 (B) MPP 1 000-SKW940SMPPSER <MPP>
EXPLODED SP02 FOOT (PLASTIC) 4 D249-W54001B-00
EXPLODED SP03 CUSHION Dia17.5 x 2T 4 442-902133-00
EXPLODED SP04 WOOD SCREW 4STT + 20A (FOR SPx8 / FOOTx4) 12 837440204
EXPLODED SP07 WOOFER 12 inch (30cm) (FPI) 1 300-DNS4243000
EXPLODED SP08 LED HARNESS ASS'Y --- 1 335-SKW540-02
EXPLODED SP09 CLOTH FRAME ASS'Y --- 1 113-06W940-10
EXPLODED SP11 WOOD SCREW 4STT + 20A (FOR AMPx10) 10 837440204
EXPLODED SP12 SCREW 4 x 25 W12-ED BLK (FOR P-TRANS) 4 412-DE40250B1
EXPLODED SP13 CUSHION RUBBER PAD 14 x 89 T2 RUBBER (FOR P-TRANS) 2 442-902123-00
EXPLODED SKF-940F (B) <L> / <R> : FRONT SPEAKERS
EXPLODED --- COMPLETE UNIT SKF-940F (B) <L> MDC 1 000-SKF940FLB <L> <MDC>
EXPLODED --- COMPLETE UNIT SKF-940F (B) <L> MPP 1 000-1KF940FLB <L> <MPP>
EXPLODED --- COMPLETE UNIT SKF-940F (B) <R> MDC 1 000-SKF940FRB <R> <MDC>
EXPLODED --- COMPLETE UNIT SKF-940F (B) <R> MPP 1 000-1KF940FRB <R> <MPP>
EXPLODED SP21a CABINET ASS'Y SKF-940F (B) <L> MDC 1 000-SKF940FLBSER <L> <MDC>
EXPLODED SP21b CABINET ASS'Y SKF-940F (B) <L> MPP 1 000-1KF940FLBSER <L> <MPP>
EXPLODED SP21c CABINET ASS'Y SKF-940F (B) <R> MDC 1 000-SKF940FRBSER <R> <MDC>
EXPLODED SP21d CABINET ASS'Y SKF-940F (B) <R> MPP 1 000-1KF940FRBSER <R> <MPP>
EXPLODED SP22 CATCHING HOLDER --- 4 D230-DN3X01B-01
EXPLODED SP23 WOOFER W1277C (ONKYO ELE M) 2 W1277C
EXPLODED SP24 TWEETER TW3208B 1 TW3208B
EXPLODED SP26 SCREW 4 x 20 HEX8 AB ED (For WF) 8 411-NE4020AB2
EXPLODED SP27 SCREW 4 x 16 HEX7 AB ED (For TW) 4 411-NE4016AB3
EXPLODED SP31 CROSSOVER NETWORK PCB ASS'Y 1 310-SKF940-00
EXPLODED SP32a TERMINAL WHITE / BLACK 1 332-H8107B-41 <L>
EXPLODED SP32b TERMINAL RED / BLACK 1 332-H8107B-01 <R>
EXPLODED SP33a SPEC LABEL (L) <L> <MDC> 1 600-KF940L-00 <L> <MDC>
EXPLODED SP33b SPEC LABEL (L) <L> <MPP> 1 600-1F940L-00 <L> <MPP>
EXPLODED SP33c SPEC LABEL (R) <R> <MDC> 1 600-KF940R-00 <R> <MDC>
EXPLODED SP33d SPEC LABEL (R) <R> <MPP> 1 600-1F940R-00 <R> <MPP>
EXPLODED SP34 CLOTH FRAME ASS'Y (WITH GRILLE CLOTH and LOGO) 1 D201-F94001B-90
EXPLODED SKC-940C (B) : CENTER SPEAKER
EXPLODED --- COMPLETE UNIT SKC-940C (B) MDC 1 000-SKC940CB <MDC>
EXPLODED --- COMPLETE UNIT SKC-940C (B) MPP 1 000-1KC940CB <MPP>
EXPLODED SP41a CABINET ASS'Y SKC-940C (B) MDC 1 000-SKC940CBSER <MDC>
EXPLODED SP41b CABINET ASS'Y SKC-940C (B) MPP 1 000-1KC940CBSER <MPP>
EXPLODED SP42 CATCHING HOLDER --- 4 D230-DN3X01B-01
EXPLODED SP43 WOOFER W1277C (ONKYO ELE M) 2 W1277C
EXPLODED SP44 TWEETER TW3208B 1 TW3208B
EXPLODED SP46 SCREW 4 x 20 HEX8 AB ED (For WF) 8 411-NE4020AB2
EXPLODED SP47 SCREW 4 x 16 HEX7 AB ED (For TW) 4 411-NE4016AB3
EXPLODED SP51 CROSSOVER NETWORK PCB ASS'Y 1 310-SKF940-00
EXPLODED SP52 TERMINAL GREEN / BLACK 1 332-H8107B-31
EXPLODED SP53a SPEC LABEL <MDC> 1 600-SKC940-00 <MDC>
EXPLODED SP53b SPEC LABEL <MPP> 1 600-SKC940-00 <MPP>
EXPLODED SP54 CLOTH FRAME ASS'Y (WITH GRILLE CLOTH and LOGO) 1 D201-C94001B-90
EXPLODED SKM-940S (B) <L> / <R> : SURROUND SPEAKERS
EXPLODED --- COMPLETE UNIT SKM-940S (B) <L> MDC 1 000-SKM940SLB <L> <MDC>
EXPLODED --- COMPLETE UNIT SKM-940S (B) <L> MPP 1 000-1KM940SLB <L> <MPP>

3/7 PAGE
EXPLODED --- COMPLETE UNIT SKM-940S (B) <R> MDC 1 000-SKM940SRB <R> <MDC>
EXPLODED --- COMPLETE UNIT SKM-940S (B) <R> MPP 1 000-1KM940SRB <R> <MPP>
EXPLODED SP61a CABINET ASS'Y SKM-940S (B) <L> MDC 1 000-SKM940SLBSER <L> <MDC>
EXPLODED SP61b CABINET ASS'Y SKM-940S (B) <L> MPP 1 000-1KM940SLBSER <L> <MPP>
EXPLODED SP61c CABINET ASS'Y SKM-940S (B) <R> MDC 1 000-SKM940SRBSER <R> <MDC>
EXPLODED SP61d CABINET ASS'Y SKM-940S (B) <R> MPP 1 000-1KM940SRBSER <R> <MPP>
EXPLODED SP62 CATCHING HOLDER --- 4 D230-DN3X01B-01
EXPLODED SP63 WOOFER W1367B (ONKYO ELE M) 1 W1367B
EXPLODED SP64 TWEETER TW3223A 1 TW3223A
EXPLODED SP65 S. ABSORBER 25t x 50 x 50 1 443-925404-00
EXPLODED SP66 SCREW 4 x 20 HEX8 AB ED (For WF) 4 411-NE4020AB2
EXPLODED SP67 SCREW 4 x 16 HEX7 AB ED (For TW) 4 411-NE4016AB3
EXPLODED SP71 CROSSOVER NETWORK PCB ASS'Y 1 310-SKM940-00
EXPLODED SP72a TERMINAL BLUE / BLACK 1 332-H8107B-81 <L>
EXPLODED SP72b TERMINAL GRAY / BLACK 1 332-H8107B-21 <R>
EXPLODED SP73a SPEC LABEL (L) <L> <MDC> 1 600-KM940L-00 <L> <MDC>
EXPLODED SP73b SPEC LABEL (L) <L> <MPP> 1 600-1M940L-00 <L> <MPP>
EXPLODED SP73c SPEC LABEL (R) <R> <MDC> 1 600-KM940R-00 <R> <MDC>
EXPLODED SP73d SPEC LABEL (R) <R> <MPP> 1 600-1M940R-00 <R> <MPP>
EXPLODED SP74 CLOTH FRAME ASS'Y (WITH GRILLE CLOTH and LOGO) 1 D201-M94001B-90
EXPLODED SP75 METAL BRACKET --- 1 427-SKM530-00
EXPLODED SP76 SCREW 3.5 x 12 BIND ED 2 411-BE3512AB1
EXPLODED SKB-940 (B) <L> / <R> : SURROUND BACK SPEAKERS
EXPLODED --- COMPLETE UNIT SKB-940 (B) <L> MDC 1 000-SKB940BLB <L> <MDC>
EXPLODED --- COMPLETE UNIT SKB-940 (B) <L> MPP 1 000-1KB940BLB <L> <MPP>
EXPLODED --- COMPLETE UNIT SKB-940 (B) <R> MDC 1 000-SKB940BRB <R> <MDC>
EXPLODED --- COMPLETE UNIT SKB-940 (B) <R> MPP 1 000-1KB940BRB <R> <MPP>
EXPLODED SP81a CABINET ASS'Y SKB-940 (B) <L> MDC 1 000-SKB940BLBSER <L> <MDC>
EXPLODED SP81b CABINET ASS'Y SKB-940 (B) <L> MPP 1 000-1KB940BLBSER <L> <MPP>
EXPLODED SP81c CABINET ASS'Y SKB-940 (B) <R> MDC 1 000-SKB940BRBSER <R> <MDC>
EXPLODED SP81d CABINET ASS'Y SKB-940 (B) <R> MPP 1 000-1KB940BRBSER <R> <MPP>
EXPLODED SP82 CATCHING HOLDER --- 4 D230-DN3X01B-01
EXPLODED SP83 WOOFER W1367B (ONKYO ELE M) 1 W1367B
EXPLODED SP84 TWEETER TW3223A 1 TW3223A
EXPLODED SP85 S. ABSORBER 25t x 50 x 50 1 443-925404-00
EXPLODED SP86 SCREW 4 x 20 HEX8 AB ED (For WF) 4 411-NE4020AB2
EXPLODED SP87 SCREW 4 x 16 HEX7 AB ED (For TW) 4 411-NE4016AB3
EXPLODED SP91 CROSSOVER NETWORK PCB ASS'Y 1 310-SKM940-00
EXPLODED SP92a TERMINAL BROWN / BLACK 1 332-H8107B-91 <L>
EXPLODED SP92b TERMINAL TAN / BLACK 1 332-H8107B-A1 <R>
EXPLODED SP93a SPEC LABEL (L) <L> <MDC> 1 600-KB940L-00 <L> <MDC>
EXPLODED SP93b SPEC LABEL (L) <L> <MPP> 1 600-1B940L-00 <L> <MPP>
EXPLODED SP93c SPEC LABEL (R) <R> <MDC> 1 600-KB940R-00 <R> <MDC>
EXPLODED SP93d SPEC LABEL (R) <R> <MPP> 1 600-1B940R-00 <R> <MPP>
EXPLODED SP94 CLOTH FRAME ASS'Y (WITH GRILLE CLOTH and LOGO) 1 D201-M94001B-90
EXPLODED SP95 METAL BRACKET --- 1 427-SKM530-00
EXPLODED SP96 SCREW 3.5 x 12 BIND ED 2 411-BE3512AB1

4/7 PAGE
HTP-940
PRINTED CIRCUIT BOARD PARTS LIS
T
<Notes>
<MDC> : Canadian model only
<MPP> : European model only
SKW-940
U01 MAIN PC BOARD (NAAF-8829-1C / -1D)
U03 POWER TRANS. PC BOARD (NAPS-8831-1C / -1D)
U05 POWER SWITCH PC BOARD (NASW-8833-1C)
CIRCUIT NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS
PWB <Note>
PWB When replacement the following the transistor, made from the same HFE rank as the original type.
PWB Q301 IC NJM4558L-D 1 22240293
PWB Q501 TR 2SC2240-BL(TPE2_F) 1 2211406T
PWB Q502 TR 2SC2240-BL(TPE2_F) 1 2211406T
PWB Q503 TR 2SC2240-BL(TPE2_F) 1 2211406T
PWB Q505 TR KTA1024-Y 1 2215844T
PWB Q505 or TR 2SA949-Y(TPE6_F) (1) 2211354T
PWB Q505 or TR 2SA949-O(TPE6_F) (1) 2211353T
PWB Q506 TR 2SC2229-Y(TPE6_F) 1 2211634T
PWB Q506 or TR 2SC2229-O(TPE6_F) (1) 2211633T
PWB Q507 TR 2SA949-Y(TPE6_F) 1 2211354T
PWB Q507 or TR 2SA949-O(TPE6_F) (1) 2211353T
PWB Q507 or TR KTA1024-Y (1) 2215844T
PWB Q509 TR KTA1024-Y 1 2215844T
PWB Q509 or TR 2SA949-Y(TPE6_F) (1) 2211354T
PWB Q509 or TR 2SA949-O(TPE6_F) (1) 2211353T
PWB Q510 TR KTC3206-Y 1 2215854T
PWB Q510 or TR 2SC2229-Y(TPE6_F) (1) 2211634T
PWB Q510 or TR 2SC2229-O(TPE6_F) (1) 2211633T
PWB Q513 TR KTD2061-Y 1 2203434
PWB Q513 or TR 2SC5171(ONK_Q) (1) 2203010
PWB Q514 TR KTB1369-Y 1 2203424
PWB Q514 or TR 2SA1930(ONK_Q) (1) 2203000
PWB Q517 TR 2SA933S-S 1 2213355T
PWB Q517 or TR 2SA933S-R (1) 2213354T
PWB Q517 or TR KTA1267-GR (1) 2215995T
PWB Q518 TR 2SC2235-Y(TPE6_F) 1 2211654T
PWB Q519 TR 2SA965-Y(TPE6_F) 1 2211644T
PWB Q602 TR KRC103M 1 2215810T
PWB Q602 or TR DTC124ES (1) 2213160T
PWB Q603 TR 2SC1740S-S 1 2213285T
PWB Q603 or TR 2SC1740S-R (1) 2213284T
PWB Q603 or TR KTC3199-GR (1) 2215864T
PWB Q604 TR 2SA933S-S 1 2213355T
PWB Q604 or TR 2SA933S-R (1) 2213354T
PWB Q604 or TR KTA1267-GR (1) 2215995T
NOTE : THE COMPONENTS IDENTIFIED BY THE MARK
!ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE ONLY WITH PART
NUMBER SPECIFIED.

5/7 PAGE
PWB Q605 TR 2SA933S-S 1 2213355T
PWB Q605 or TR 2SA933S-R (1) 2213354T
PWB Q605 or TR KTA1267-GR (1) 2215995T
PWB Q606 TR KRA103M 1 2215780T
PWB Q606 or TR DTA124ES (1) 2212600T
PWB Q607 TR 2SA933S-S 1 2213355T
PWB Q607 or TR 2SA933S-R (1) 2213354T
PWB Q607 or TR KTA1267-GR (1) 2215995T
PWB Q608 TR 2SC1740S-S 1 2213285T
PWB Q608 or TR 2SC1740S-R (1) 2213284T
PWB Q608 or TR KTC3199-GR (1) 2215864T
PWB D501 ZENER D MTZJ5.6B 1 224470562T
PWB D501 or ZENER D DZ-5.6BSB (1) 224850562T
PWB D601 ZENER D MTZJ2.7B 1 224470272T
PWB D601 or ZENER D DZ-2.7BSB (1) 224850272T
PWB D602 ZENER D MTZJ2.7B 1 224470272T
PWB D602 or ZENER D DZ-2.7BSB (1) 224850272T
PWB D603 DIODE 1SS133 1 223163T
PWB D603 or DIODE 1SS133(DS) (1) 223280T
PWB D605 DIODE 1SS133 1 223163T
PWB D605 or DIODE 1SS133(DS) (1) 223280T
PWB D606 DIODE 1SS133 1 223163T
PWB D606 or DIODE 1SS133(DS) (1) 223280T
PWB D651 DIODE 1SS133 1 223163T
PWB D651 or DIODE 1SS133(DS) (1) 223280T
PWB D901 DIODE D3SBA20 1 22380271F
PWB D902 DIODE RL1N4003 1 22380260T
PWB D902 or DIODE GP104003E (1) 22380035T
PWB D903 DIODE RL1N4003 1 22380260T
PWB D903 or DIODE GP104003E (1) 22380035T
PWB D904 ZENER D MTZJ5.6B 1 224470562T
PWB D904 or ZENER D DZ-5.6BSB (1) 224850562T
PWB D951 ZENER D MTZJ15C 1 224471503T
PWB D951 or ZENER D DZ-15BSC (1) 224851503T
PWB D952 ZENER D MTZJ15C 1 224471503T
PWB D952 or ZENER D DZ-15BSC (1) 224851503T
PWB C301 TF C ECQ-V50V-224J 1 374722244T <MPP>
PWB C302 VX C CE04W50V 47M(VX_BLK) 1 397384707T
PWB C501 VX C CE04W50V 47M(VX_BLK) 1 397384707T
PWB C503 TF C ECQ-V50V-224J 1 374722244T
PWB C504 VX C CE04W16V-220M(VX) 1 393342217T
PWB C505 CERA C CC45CH50V-020C 1 345340201T
PWB C506 CERA C CC45CH50V-070D 1 345340702T
PWB C514 TF C ECQ-B50V-101J 1 374721014T
PWB C517 VX C CE04W50V-10M(VX) 1 393381007T
PWB C519 TF C ECQ-V50V-224J 1 374722244T
PWB C520 TF C ECQ-V50V-224J 1 374722244T
PWB C526 VX C CE04W50V-10M(VX) 1 393381007T
PWB C527 VX C CE04W50V-1M(VX_BLK) 1 397380107T
PWB C528 VX C CE04W50V-10M(VX) 1 393381007T

6/7 PAGE
PWB C601 VR C CE04W50V-10M(VR) 1 394681007T
PWB C602 VR C CE04W50V-10M(VR) 1 394681007T
PWB C603 VR C CE04W10V-470M(VR) 1 394634717T
PWB C603 or VX C CE04W16V-470M(VX_BLK) (1) 397344717T
PWB C604 VR C CE04W35V-33M(VR) 1 394663307T
PWB C604 or ELECT C CE04W35V-33M (1) 354763309T
PWB C903 TF C ECQ-V100-104J 1 374731044T <MPP>
PWB C904 TF C ECQ-V100-104J 1 374731044T <MPP>
PWB C905 ELECT C CE62W71V5600M 1 3504444
PWB C906 ELECT C CE62W71V5600M 1 3504444
PWB C909 VR C CE04W50V-22M(VR) 1 394682207T
PWB C950 TF C ECQ-V50V-104J 1 374721044T
PWB C951 VR C CE04W16V-220M(VR) 1 394642217T
PWB C952 VR C CE04W16V-220M(VR) 1 394642217T
PWB C955 TF C ECQ-B50V-223J 1 374722234T
PWB R301 CARBON R R16J-1K 1 417341024T
PWB R302 VARI R N17RGL20KB15M 1 5151508
PWB R303 CARBON R R16J-47K 1 417344734T
PWB R304 CARBON R R16J-2.2K 1 417342224T
PWB R305 CARBON R R16J-8.2K 1 417348224T
PWB R306 CARBON R R16J-47K 1 417344734T
PWB R307 CARBON R R16J-220 1 417342214T
PWB R501 CARBON R R16J-1K 1 417341024T
PWB R502 CARBON R R16J-47K 1 417344734T
PWB R503 CARBON R R16J-5.6K 1 417345624T
PWB R504 CARBON R R16J-2.2K 1 417342224T
PWB R505 NF CARBON R R25J-1.0K 1 415471024T !
PWB R506 NF CARBON R R25J-1.0K 1 415471024T !
PWB R507 CARBON R R16J-33K 1 417343334T
PWB R508 NF CARBON R R25J-47 1 415474704T !
PWB R509 CARBON R R16J-1K 1 417341024T
PWB R510 CARBON R R16J-100K 1 417341044T
PWB R511 NF CARBON R R25J-82 1 415478204T !
PWB R512 NF CARBON R R25J-68 1 415476804T !
PWB R513 NF CARBON R R25J-82 1 415478204T !
PWB R514 NF CARBON R R25J-82 1 415478204T !
PWB R515 CARBON R R16J-12K 1 417341234T
PWB R516 CARBON R R16J-12K 1 417341234T
PWB R517 CARBON R R16J-3.3K 1 417343324T
PWB R521 CARBON R R16J-220 1 417342214T
PWB R522 CARBON R R16J-220 1 417342214T
PWB R526 METAL O R RS1/2WBJ-82 1 443528204T
PWB R527 CARBON R R16J-270 1 417342714T
PWB R528 METAL O R RS1/2WBJ-390 1 443523914T
PWB R531 METAL PR RF-5EGKR22 1 4000201
PWB R531 or METAL P R RGC55C 0.22 K (1) 4000157
PWB R531 or METAL PR RGC55 0.22 (1) 4000132
PWB R533 METAL R RNU1WCJ-3.3 1 453630334T
PWB R541 CARBON R R16J-820 1 417348214T
PWB R542 CARBON R R16J-150 1 417341514T

7/7 PAGE
PWB R543 CARBON R R16J-180 1 417341814T
PWB R544 TRIM R N06HR100BC 1 5210359T
PWB R601 CARBON R R16J-5.6K 1 417345624T
PWB R602 CARBON R R16J-100K 1 417341044T
PWB R603 CARBON R R16J-150K 1 417341544T
PWB R604 CARBON R R16J-180 1 417341814T
PWB R605 CARBON R R16J-22 1 417342204T
PWB R609 CARBON R R16J-39K 1 417343934T
PWB R610 CARBON R R16J-560K 1 417345644T
PWB R611 CARBON R R16J-820K 1 417348244T
PWB R612 CARBON R R16J-39K 1 417343934T
PWB R613 CARBON R R16J-470K 1 417344744T
PWB R614 CARBON R R16J-120K 1 417341244T
PWB R615 CARBON R R16J-22K 1 417342234T
PWB R616 CARBON R R16J-100K 1 417341044T
PWB R617 CARBON R R16J-1K 1 417341024T
PWB R619 CARBON R R16J-22K 1 417342234T
PWB R620 CARBON R R16J-100K 1 417341044T
PWB R621 CARBON R R16J-1K 1 417341024T
PWB R622 CARBON R R16J-10K 1 417341034T
PWB R623 CARBON R R16J-100K 1 417341044T
PWB R624 CARBON R R16J-100K 1 417341044T
PWB R625 CARBON R R16J-180K 1 417341844T
PWB R626 CARBON R R16J-2.2M 1 417342254T
PWB R627 CARBON R R16J-680K 1 417346844T
PWB R628 CARBON R R16J-330K 1 417343344T
PWB R651 METAL O R RS1/2WBJ-12K 1 443521234T
PWB R901 METAL O R RS1WBJ-820 1 443628214T
PWB R902 METAL O R RS1WBJ-820 1 443628214T
PWB R903 CARBON R R16J-10K 1 417341034T
PWB R904 METAL O R RS1/2WBJ-1K 1 443521024T
PWB R951 METAL O R RS2WBJ-3.3K 1 441723324F
PWB R952 METAL O R RS2WBJ-3.3K 1 441723324F
PWB F901A FUSE HOL NSCT-1P2506 1 25052609T !
PWB F901A or FUSE HOL NSCT-1P2031 (1) 25052133T !
PWB F901B FUSE HOL NSCT-1P2506 1 25052609T !
PWB F901B or FUSE HOL NSCT-1P2031 (1) 25052133T !
PWB F901C LABEL T1.6AL250V 1 29361769 <MPP>
PWB JL535A SOCKET AS NSAS-2P1639 1 2009991045UL
PWB P301 PIN JACK NPJ-1PDB556 1 25045774
PWB P301 or PIN JACK NPJ-1PDB581 (1) 25045801
PWB P531 PLUG NPLG-2P29 1 25055038
PWB P631 PLUG NPLG-2P29 1 25055038
PWB P632A PLUG NPLG-3P131 1 25055147
PWB P902A PLUG NPLG-2P632 1 25055676 !
PWB P903A SOCKET AS NSAS-6P1536 1 2009990969UL <MDC>
PWB P903A SOCKET AS NSAS-6P1333 1 2009990874UL <MPP>
PWB P903B PLUG NPLG-3P150 1 25055166
PWB P906A SOCKET AS NSAS-2P1554 1 20099800430UL !<MPP>
PWB P906B PLUG NPLG-2P631 1 25055675 !<MPP>
PWB P911 WS CLAMP CB-71683(L=50) 1 260261
PWB E801 RETAINER KANAGU(EARTH) 1 27141059

HTP-940
ONKYO EUROPE UK Office
Suite 1, Gregories Court, Gregories Road, Beaconsfield, Buckinghamshire, HP9 1HQ
UNITED KINGDOM Tel: [phone] Fax: [phone]
ONKYO U.S.A. CORPORATION
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
Tel: [phone] Fax: [phone] http://www.us.onkyo.com/
ONKYO EUROPE ELECTRONICS GmbH
Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY
Tel: [phone] Fax: [phone] http://www.eu.onkyo.com/
Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN
Tel: [phone] Fax: [phone]
ONKYO CORPORATION
http://www.onkyo.com/
HOMEPAGE
ONKYO CHINA LIMITED
Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung,
N.T., HONG KONG Tel: [phone] Fax: [phone]
http://www.ch.onkyo.com/
