At Onkyo, we’re on a mission to show the A/V
industry what high-definition home entertainment is really
all about.To get the most out of your movies, music,
gaming and broadcasting, we blend the best new
technologies with renowned Onkyo build quality and audio
expertise.The result is an emotive performance from A/V
products that remain intuitive and easy to use.
Leading our new A/V receiver range is the impressive
home-network entertainment center, theTX-NR905.
Backing it up,with the most advanced A/V processing
available, are the high-specTX-SR875 andTX-SR805. In the
popular mid-range category,theTX-SR705 andTX-SR605
are two highly capable receivers to anchor your high-
definition movies and music.And rounding out a stellar A/V
receiver line-up is our affordable entry-level model,the
TX-SR505E.
You are also invited to view the full suite of Onkyo
components, such as our quality-focused playback
components (pp.13-14); our versatile home theater
packages (p.15); and our complete range of audiophile hi-fi
components (pp.17-21).As well, you can peruse our
superb collection of CD receiver systems (pp.22-23),
home-style components/accessories (pp. 24-25) and
speaker systems (p.26).
Raising the Bar for
High-Definition
Entertainment
CONTENTS
HOMETHEATER COMPONENTS 4-14
HOMETHEATER PACKAGES 15
VL DIGITALTECHNOLOGY 16
PURE HI-FI COMPONENTS 17-21
SEPARATE COLLECTION 22-23
HOME STYLE COMPONENTS 24-25
iPod ACCESSORY 25
SPEAKER SYSTEMS 26
GLOSSARY 27
FEATURES 28-29
SPECIFICATIONS 30-31
2007-2008_EU.qxd 07.9.20 2:20 PM Page 2

2007-2008_EU.qxd 07.9.20 2:20 PM Page 3

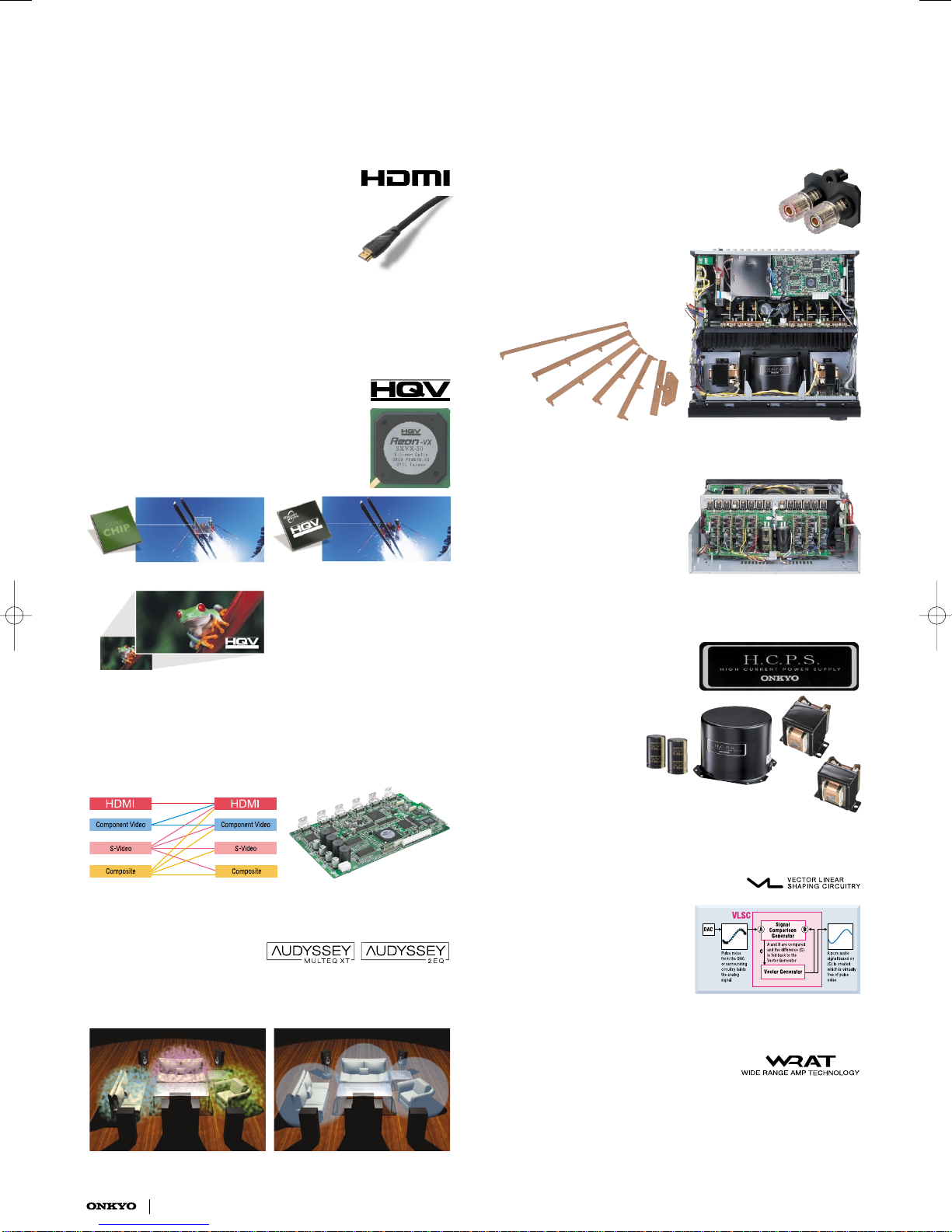

HQV Reon-VX Chip for High-PerformanceVideo
Processing
Representing the most sophisticated video processing to be
seen in home theater components, the HQV Reon-VX
chip provides the ultimate support for standard definition
and high-definition deinterlacing; 1080p reconstruction of
film sources;filtering of jaggies and artifacts; and the
reduction of random,“mosquito” and block (codec) noise.
HQV Reon-VX also enables color region enhancement
and the rendering of more than one billion colors.
High-Definition Multimedia Interface (HDMI) for Pure
Digital Delivery
All the Onkyo A/V receivers released in 2007
incorporate HDMI,enabling a pure,all-digital 1080p
video signal to be sent through one connection.Those
with the latest version of HDMI (version 1.3a) become
powerful control centers for high-definition media.Even
multichannel audio—including the studio master quality
of the latest Dolby®Digital and DTS®formats (see
glossary for definitions)—can be digitally received and
processed for up to five channels. HDMI 1.3a will also bring you greater
bandwidth, Deep Color™, lip-sync correction and high frame rates.
HomeTheater Components
4
Invigorating the 2007 A/V Receiver Line-Up—
CoreTechnologiesThat Make All the Difference
FreshApproach to Internal Construction and
Amplification Design
TheTX-NR905,TX-SR875 andTX-SR805 have been
designed so the power amplifier block and the pre-
amplifier coexist,but are perfectly isolated.Also, the power
supply parts of the left and right stages of each channel
are separated.The same receivers use a dual push-pull
amplification design with different
transistors on each channel to
separately amplify the positive and
negative halves of the waveform.The
whole design works to realize a highly
efficient drive capability.
Dual“Push-Pull”Amplification Design withThree-Stage
Inverted Darlington Circuitry
Dual push-pull amplification circuitry
uses different transistors on each
channel to separately amplify the
positive and negative halves of the
waveform.This circuitry has been
shown to improve the efficiency of the
relevant A/V receivers. Meanwhile,
three-stage inverted Darlington
circuitry helps reduce distortion.
Harnessing Power forAudio Performance
Onkyo’s High Current Power Supply
(H.C.P.S.) concept is based around
power transformers with the capability
to respond to the wide dynamics of
home theater. In the case of the
TX-NR905, a massive toroidal
transformer provides
efficiency and radiates less
noise into the surrounding
circuitry, while two separate
transformers cater specifically to audio
and video processing.You’ll also find two quality capacitors
(operating at up to 18,000 microfarads) that store the charge
demanded from an effective power supply.
Vector Linear Shaping Circuitry (VLSC™)
Onkyo’sVLSC employs a unique digital-
to-analog conversion circuit to mitigate
the effect of signal noise. Data is
converted between discrete sampling
points, which are then joined with
analog vectors in real-time to produce
a smooth output wave form.The
result—a noiseless, smooth analog
signal based on the digital source.
Wide RangeAmplifierTechnology (WRAT) Providing
Amplification Backbone
The cornerstone of any Onkyo A/V receiver,
WRAT supports high-quality audio
reproduction of the latest high-definition A/V
formats. It comprises three key components: (1) A low negative-feedback
design for cleaner audio across the frequency range; (2) Closed ground-loop
circuits to cancel individual circuit noise and keep the ground potential free of
distortion; and (3) A high instantaneous-current capability to handle speaker
reflex energy and impedance fluctuations.
1080pVideo Upscaling and Analog Signal Upconversion
TheTX-NR905 andTX-SR875 upscale the resolution of video signals all the
way to 1080p, to enable a single HDMI cable connection to a high-definition
display.Almost all Onkyo A/V receivers will upconvert video signals for output
via either HDMI or component video.
AudysseyTechnologies for RoomAcoustics Correction
Onkyo A/V receivers use Audyssey’s
MultEQ®XT or 2EQ™to counter
distortion in dedicated home
theaters.Both solutions focus on frequency response and time domain
(where most of the problems lie) across the entire listening area.The results
are immediately obvious—a clear, well-balanced and natural sound.
Sound stage is diffuse without Audyssey technologies. Audyssey technologies create a clearer sound stage.
HQV chips process pixels individually,
for enhanced pixel accuracy.
Standard chips process pixels in blocks,
creating unwanted artifacts.
Images scaled by Reon-VX contain 80% new
pixels to augment the original video data.
2007-2008_EU.qxd 07.9.20 2:21 PM Page 4

5
Highly Precise Onboard Digital-to-Analog Converters
Our high-end receivers use Burr-Brown 192 kHz/24-bit audio DACs
(PCM1796) to achieve excellent dynamic performance and improve
tolerance to clock jitter.TheTX-SR705, one of our mid-range models, draws
on the efficiency of Cirrus Logic DACs (CS4398) to handle the complexity of
multichannel sound.
Network for StreamingAudio Files and Internet Radio
TheTX-NR905’s network gives you access to digital music files (AAC,WMA,
MP3,WAV) via an Ethernet network between theTX-NR905 and your
computer or through a front-panel USB port.At the heart of the network is
Windows Media Connect orWindows Media Player (theTX-NR905 is
Microsoft PlaysForSure certified).For internet radio,
you can access stations that use MP3 orWMA
streaming.TheTX-NR905 network
also enables installation configuration
and set-up of Crestron and AMX
controllers with your home theater
system or network.
Bi-Amping and BTL (BridgedTransless) Connectivity
Like top-quality amplifiers in the high-end audio world,selected Onkyo A/V
receivers have bi-amping and BTL capabilities.Whether it’s home theater or
music, you have the luxury of a number of different home theater set-ups
beyond the standard surround sound configurations.
RIHD (Remote Interactive Over HDMI) for System
Control
Onkyo receivers with HDMI 1.3a offer integrated
system control with selected HDMI-compatible
high-definition displays, DVD recorders,HD DVD
and Blu-ray Disc players. RIHD lets you seamlessly integrate with other
leading brand-name devices, including those in the PanasonicVIERA Link and
Toshiba CE-Link™ranges.
RI (Remote Interactive) System Capability and the iPod
With Onkyo’s RI system, you can integrate and operate all
components through a single remote control. RI also enables
you to integrate virtually any iPod model with one of Onkyo’s
RI Docks for the iPod.
Texas Instruments Digital Signal Processing (DSP) Chips
An Onkyo A/V receiver incorporates up to three
Aureus™DSP chips in the audio processing
chain.They support the latest and most
innovative audio signal processing features and
help create a richer listening experience.
Faroudja DCDi Edge™(Directional Correlational
Deinterlacing)Technology
Deinterlacing chips featuring Faroudja DCDi Edge
technology convert interlaced video signals to
progressive scan signals.This technology helps
effectively eliminate video artifacts from HDTV images.
Neural-THX®Surround DecodingTechnology
Neural-THX Surround enables content to be
encoded into 5.1 or 7.1 channels and transmitted
to an Onkyo A/V receiver, where it is decoded
onboard.This technology reduces the bandwidth
needed by broadcasters to deliver sound content
and enables 7.1-channel support for gaming and movies.
Playback of DifferentA/V SourcesThroughout the Home
Powered Zone 2 and Zone 3 bring multi-zone
entertainment to your home through dedicated
line outs, pre outs and speaker connections.
Independent control of volume levels,speaker balance and bass/treble levels
for the separate zones is available on selected models.
Jaggies visible on diagonals. DCDi eliminates jaggies.
7.1 Surround Sound ExperienceUpmix to 7.1Downmix to 5.17.1 Encoded
Game ConsoleGame Content Neural-THX Surround
Enabled Receiver 7.1 HomeTheater System
5.1 or 7.1-Ch Speaker System
Zone 2
Stereo Speaker System Zone 3 Stereo Speaker System
ONKYO A/V receiver
with RIHD
RIHD-compatible
HDTV
RIHD-compatible
player / recorder
connect components
with
AUDIO/VIDEO CONTROL CHARGE ON-SCREEN
DISPLAY
TV
iPod integrated for easy system control.
White model is also available.
2007-2008_EU.qxd 07.9.20 2:21 PM Page 5

HomeTheater Components
6
BLACKSILVER
(April Issue 2005)

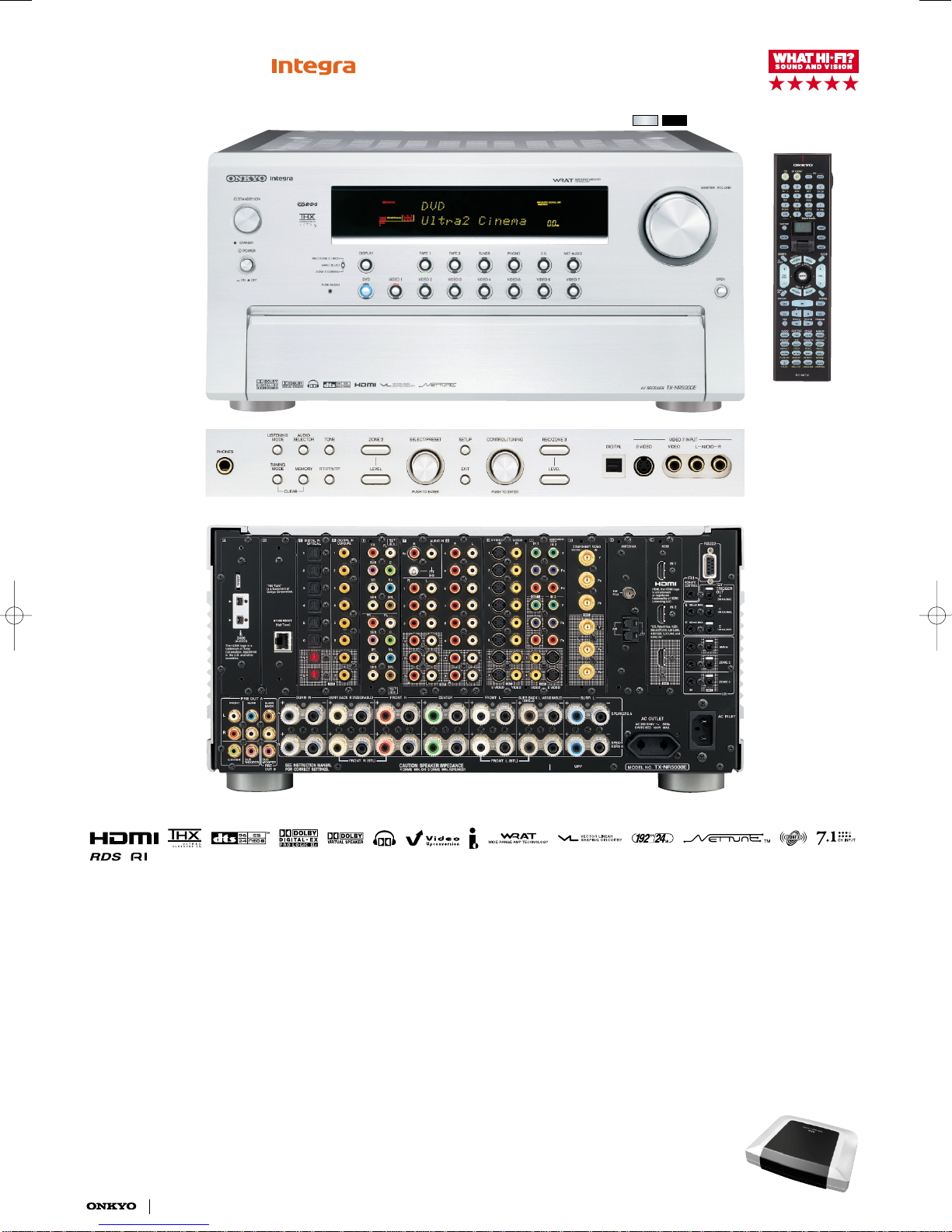

TX-NR5000E THX™Ultra2™Certified 7.1-Channel A/V Home Network Receiver
• 250W/Ch, Continuous 6 Ω,1 kHz, 1 Channel Driven,IEC
•THX™Ultra2™Certified (with THX Processing)
•THX™Surround EX™,DTS®-ES™Discrete/Matrix,DTS®Neo:6,
DTS®96/24,Dolby®Digital EX™,Dolby®Pro Logic®IIx,Dolby®
Headphone, Dolby®Virtual Speaker
•VLSC (Vector Linear Shaping Circuitry)
•WRAT (Wide Range AmplifierTechnology)
• Net-Tune™Function with MP3/WMA/WAV Playback
• Ethernet Cable Plug-in Capability*
• 2 HDMI Inputs and 1 Output
• 4 ComponentVideo Inputs (3 RCA/1 BNC) and
2 Outputs (RCA/BNC)
• HDMI and ComponentVideo Upconversion
•Time Base Corrector (TBC) for Upconversion
•
HDTV-Capable HDMI and ComponentVideo Switching (100 MHz)
• 2 i.LINK Digital Ports
• SpeakerA and B Mode for 7.1 Channels
• BTL and Bi-Wiring Connectable for FL/FR with SBL/SBR
• Dual 32-Bit Processing DSP Chips
• 192 kHz/24-Bit DACs forAll Channels
• Powered Zone 2 and Zone 3 (Audio andVideo)
• 5 12VTrigger Outputs and 3 IR Inputs and Outputs
• Bi-Directional RS232 Port for Interface Control
• 2 Sets of Color-Coded Heavy-Duty Dual Banana Plug-
CompatibleTransparent Speaker Posts
• Color-Coded 7.1 Multichannel Inputs (Receive 7.1 Surround
Sound from Compatible Blu-ray Disc and HD DVD Players)
and Pre Outs
•A/V Sync Control Function (Up to 300 ms)
• ElegantAluminum-Faced RI (Remote Interactive) Remote
Control with ScrollWheel and LCD Display
*For copyright protection purposes,it is not possible to make a digital output
signal from Ethernet input signals.
As Onkyo’s only module-based home network receiver,theTHX Ultra2 certifiedTX-NR5000E gives you the freedom to configure your home theater
exactly as you wish.It’s also the most powerful Onkyo receiver ever built,courtesy of its massive shielded toroidal transformer and high-capacity, low-
ESR filter capacitors.That’s enough power to drive a large home theater connected to multiple A/V sources with an advanced display or projector.You
can even assign 7.1-channel set-ups in two different rooms for two independent home theater environments.HDMI and i.LINK ports carry high-
resolution,high-bandwidth digital video and audio signals.These transports are ably supported by digital and multichannel analog inputs to handle all
surround sound formats,including Dolby®True HD and DTS-HD®MasterAudio.Also,an Ethernet port enables Onkyo’s exclusive Net-Tune client
processor to distribute digital music files on your PC—or internet radio—to up to 11 clients on the same network.
The lesser-used controls are neatly tucked away behind the drop-down panel.
RF-EX6 RF Receiver forTX-NR5000E
• RF Receiver for Use with Onkyo RF-Capable Remote Controller
• AllowsYour RF Remote to ControlYour Devices by Radio Frequency
• Up to 16 Units in One System
• Integrated IR-Blaster
• 4 Outputs for IR-Emitters
• Range up to 30 m
• 4 Selectable Channels
• Easy Installation
• ForTop Mounting and Stand Alone
2007-2008_EU.qxd 07.9.20 3:24 PM Page 6

7
The lesser-used controls are neatly tucked away behind the drop-down panel.

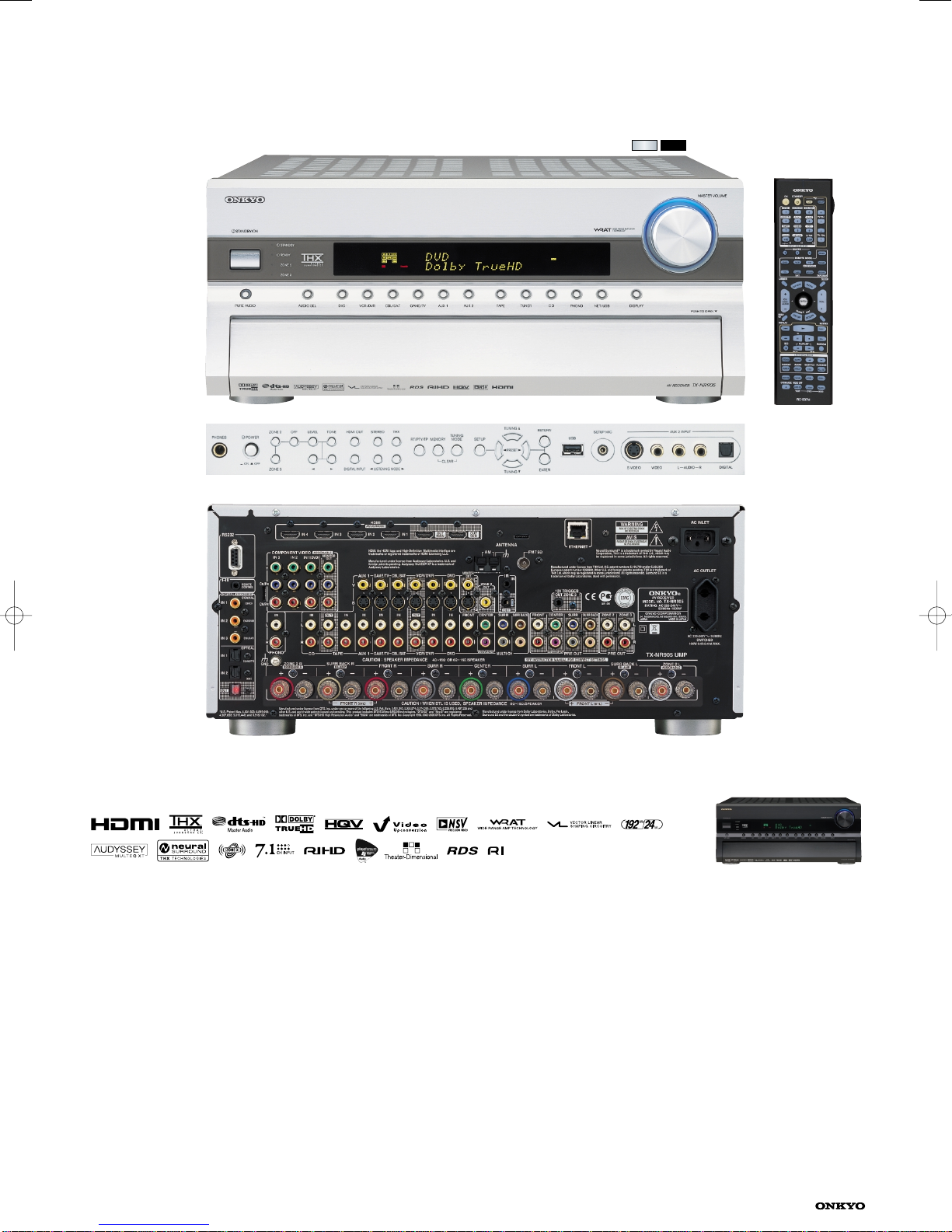

Meet the standout leader of Onkyo’s new range of home theater heroes.Embracing all of the technologies synonymous with the 2007 line-up—
including HDMI 1.3a,Dolby®TrueHD, DTS-HD®Master Audio,THX Ultra2 andAudyssey MultEQ®XT—theTX-NR905 7.1-channel home network
receiver has a number of advantages that propel it into the home theater super league. Look to theTX-NR905’s network (interfacing withWindows
Media Player andWindows Media Connect) to open up a huge reservoir of internet and computer-based audio resources.And enjoy the edge in high-
definition 1080p video processing from the world’s first receiver to incorporate HQV Reon-VX.In line with Onkyo’s impeccable track record,under
the hood of theTX-NR905 you’ll find an innovative power supply, remarkable amplification design,and high-performance parts from the likes ofTexas
Instruments.“Complete” is a tag not given lightly, but theTX-NR905 earns it in style.
• 220W/Ch, Continuous 6 Ω,1 kHz, 1 Channel Driven,IEC
•THX™Ultra2™Certified (with THX Processing)
• Network Capability for Streaming Internet Radio and Playing
Audio Content (via Ethernet and USB Port) (Microsoft
PlaysForSure Certified)
• DTS-HD®MasterAudio, DTS-HD®High-ResolutionAudio,
Dolby®TrueHD, Dolby®Digital Plus Decoding
• MassiveToroidalTransformer and Two SeparateTransformers
forAudio andVideo Processing
•VLSC (Vector Linear Shaping Circuitry) for All Channels
• Burr-Brown 192 kHz/24-BitAudio DACs (PCM1796) forAll
Channels
• HDMI 1.3aAudio andVideo Processing (4 Inputs and
2 Outputs)
• HQV Reon-VXVideo Processing with 1080p Upscaling ofAll
Video Sources via HDMI
• HDMI and ComponentVideo Upconversion
• HDTV-Capable HDMI Switching
• HDTV-Capable (100 MHz) ComponentVideo Switching
(3 Inputs and 1 Output)
• Dual Push-PullAmplifier Design with 3-Stage Inverted
Darlington Circuitry
•WRAT (Wide Range AmplifierTechnology)
•ThreeTI (Aureus™) 32-Bit DSP Chips forAdvanced Processing
•Audyssey MultEQ®XT to Correct RoomAcoustic Problems
and to Calibrate Speakers
• Neural-THX®SurroundTechnology for Gaming, Movies and
Broadcasting
• Powered Zone 2 (Audio andVideo); Zone 2 and Zone 3 Pre
Outs;Independent Control forVolume,Balance (Zone 2 and
Zone 3) and Bass/Treble (Zone 2 Only)
• RS232,IR and 12V Trigger Connectivity
• Onkyo RIHD (Remote Interactive Over HDMI) for System
Control
• Bi-Amping and BTL (BridgedTransless or Bridging) Capability
• Independent Crossover Adjustment for F/C/S/SB (40/50/60/
70/80/90/100/120/150/200 Hz)
• Customized Gold-Plated Speaker Posts
• Gold-PlatedA/V Inputs and Outputs
• SpeakerA/B Configuration
• Compatible with RI (Remote Interactive) Dock for the iPod
BLACKSILVER
TX-NR905 THX™Ultra2™Certified 7.1-Channel A/V Home Network Receiver
2007-2008_EU.qxd 07.9.20 3:24 PM Page 7

HomeTheater Components
8
The lesser-used controls are neatly tucked away behind the drop-down panel.

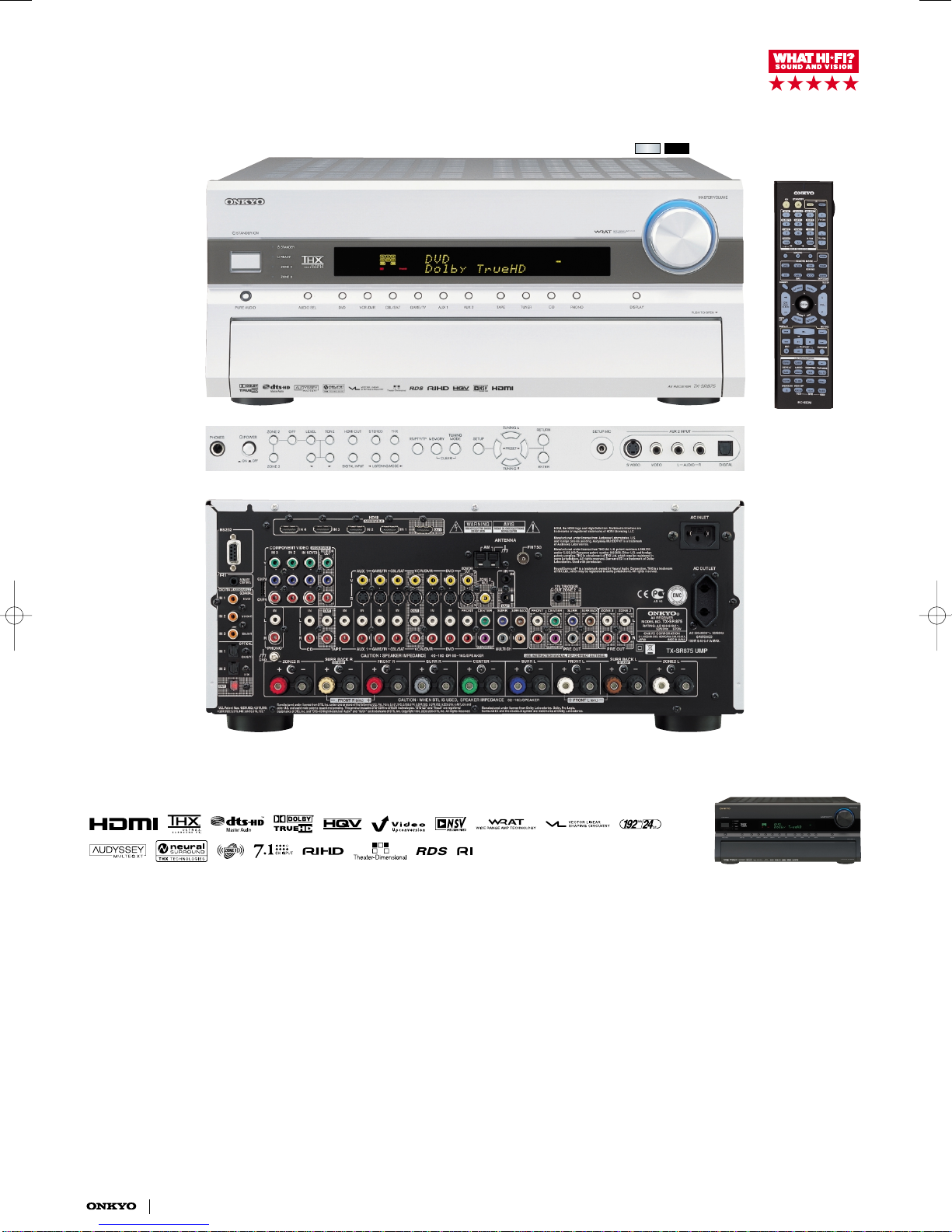

Performing beyond the highest expectations,theTX-SR875A/V surround home theater receiver deserves all the accolades it gets.The foundations of
theTX-SR875 are its isolated power amplifier block and preprocessor,which support a dual push-pull amplification design.In the engine room,you’ll
find a blend of onboard technologies to drive your home entertainment effortlessly into the high-definition realm.This HDMI-equipped Onkyo receiver
can take up to four components with 1080p video and master-quality audio.Even if your input device lacks HDMI,HQV Reon-VX will upscale the
resolution of any video signal to 1080p.THX,Audyssey andTexas Instruments lend the very best of their expertise to round out this high-quality
package.
• 200W/Ch, Continuous 6 Ω,1 kHz, 1 Channel Driven,IEC
•THX™Ultra2™Certified (with THX Processing)
• DTS-HD®MasterAudio, DTS-HD®High-ResolutionAudio,
Dolby®TrueHD, Dolby®Digital Plus Decoding
• H.C.P.S. (High Current Power Supply) Massive High Power
Transformer
•VLSC (Vector Linear Shaping Circuitry) for All Channels
• Burr-Brown 192 kHz/24-BitAudio DACs (PCM1796) forAll
Channels
• HDMI 1.3aAudio andVideo Processing (4 Inputs and
1 Output)
• HQV Reon-VXVideo Processing with 1080p Upscaling ofAll
Video Sources via HDMI
• HDMI and ComponentVideo Upconversion
• HDTV-Capable HDMI Switching
• HDTV-Capable (100 MHz) ComponentVideo Switching
(3 Inputs and 1 Output)
• Dual Push-PullAmplifier Design with 3-Stage Inverted
Darlington Circuitry
•WRAT (Wide Range AmplifierTechnology)
•ThreeTI (Aureus™) 32-Bit DSP Chips forAdvanced Processing
•Audyssey MultEQ®XT to Correct RoomAcoustic Problems
and to Calibrate Speakers
• Neural-THX®SurroundTechnology for Gaming, Movies and
Broadcasting
• Powered Zone 2 (Audio andVideo); Zone 2 and Zone 3 Pre
Outs;Independent Control forVolume,Balance (Zone 2 and
Zone 3) and Bass/Treble (Zone 2 Only)
• RS232,IR and 12V Trigger Connectivity
• Onkyo RIHD (Remote Interactive Over HDMI) for System
Control
• IntelliVolume
• Bi-Amping and BTL (BridgedTransless or Bridging) Capability
• Color-Coded 7.1-Multichannel Inputs and Pre Outs
• Independent Crossover Adjustment for F/C/S/SB (40/50/60/
70/80/90/100/120/150/200 Hz)
• Compatible with RI (Remote Interactive) Dock for the iPod
• Preprogrammed RI (Remote Interactive) Learning Remote
Control with Macros and Mode-Key LEDs
BLACKSILVER
TX-SR875 THX™Ultra2™Certified 7.1-Channel A/V Surround Home Theater Receiver
(September Issue 2007)
2007-2008_EU.qxd 07.9.20 3:26 PM Page 8
