Onn 100010113 User manual

Mar. 8, 2021_V2

For wood stud installation, follow STEP 2A
For concrete wall installation, follow STEP 2B
Wood Drill Bit
5/32" (4.0mm)
2.36" (60mm)
Center line
Pre-drill marked 4 holes by 5/32"
Wood Drill Bit to a depth of 2.36".
CAUTION: The wood stud minimum size is 2x4", and surface covering can't be
more than 5/8". Drill hole on the wood stud center line.
NEVER USE ANCHOR FOR WOOD STUD ASSEMBLY
16"/24"
5
Wood Stud Installation
Level
Hold Hanging template at desired
position, use a pencil to mark 4 hole
locations.
Fix Wall plate to the wall with
M7x55mm Lag bolts .
Stud
Finder
Confirm wood stud location with stud
finder.
Socket Set
1/2" (13 mm)

MIN: 5.5" (140mm)
2.36" (60mm)
6
Level
Hold Hanging template against
wall at desired position, use a pencil to mark
4 hole locations.
Pre-drill marked 4 holes by 3/8" size
Masonry Drill Bit to a depth of 2.36".
Insert Anchors into wall and use
hammer to lightly tap them into wall.
Fix Wall plate to the wall with
M7x55mm Lag bolts .
DANGER

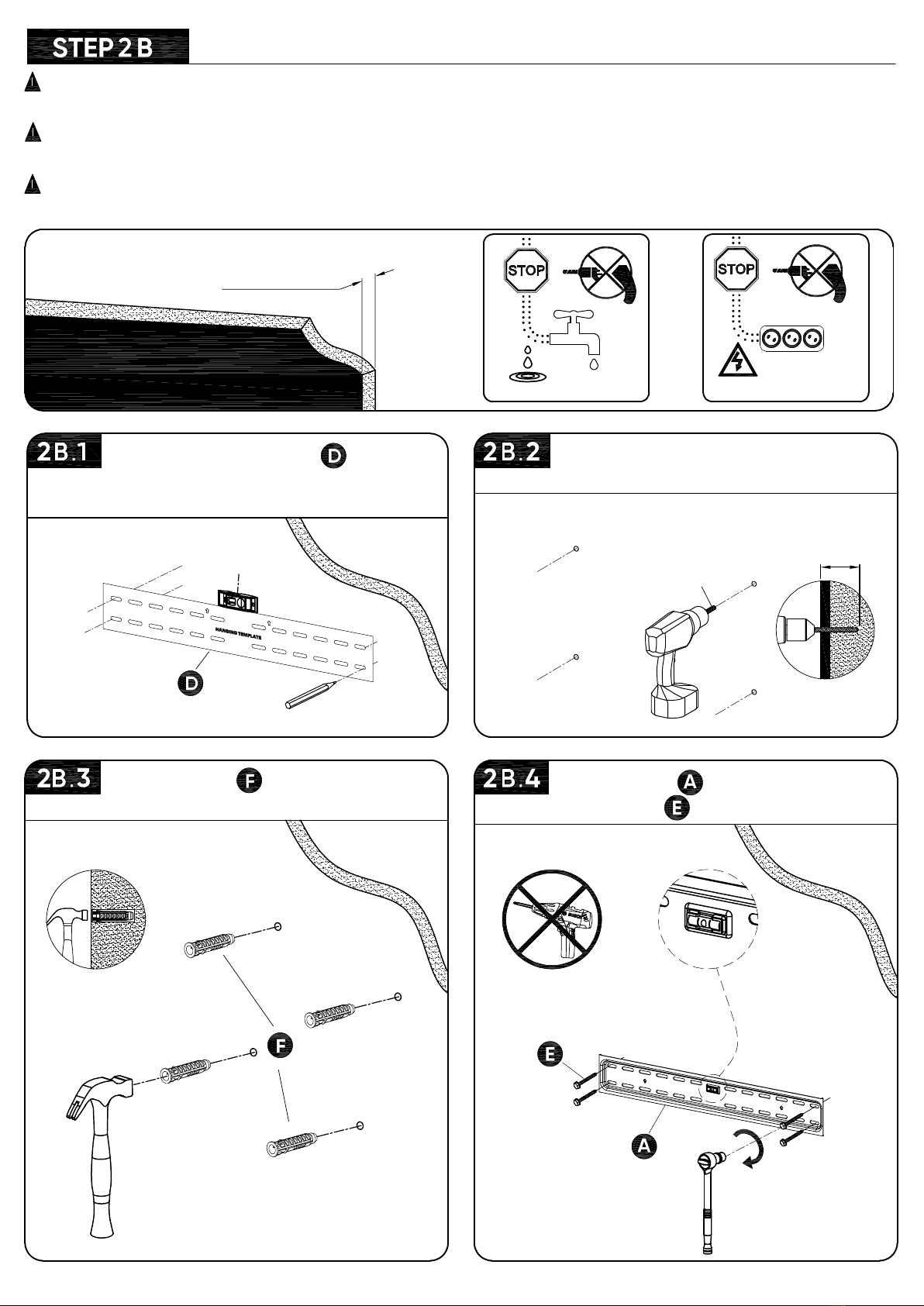

Concrete, Stone or Masonry Installation
CAUTION: The concrete wall minimum thickness is 5.5", and surface covering can't be more
than 3/8".
CAUTION: These anchors are for concrete, stone or masonry wall ONLY. Do not install into
wood stud.
CAUTION: This product can only be installed on a perpendicular wall. Do not install this
product on the ceiling.
Masonry Drill Bit
3/8" (10mm)
Socket Set
1/2" (13 mm)

48
6
1 1 3 1 3 0 8 4 3
6
8 1 1 3 1 3
