Onn 100010116 User manual

32" - 65" Swivel TV Base
PRODUCT GUIDE
Model: 100010116
Nov. 5, 2020_V1

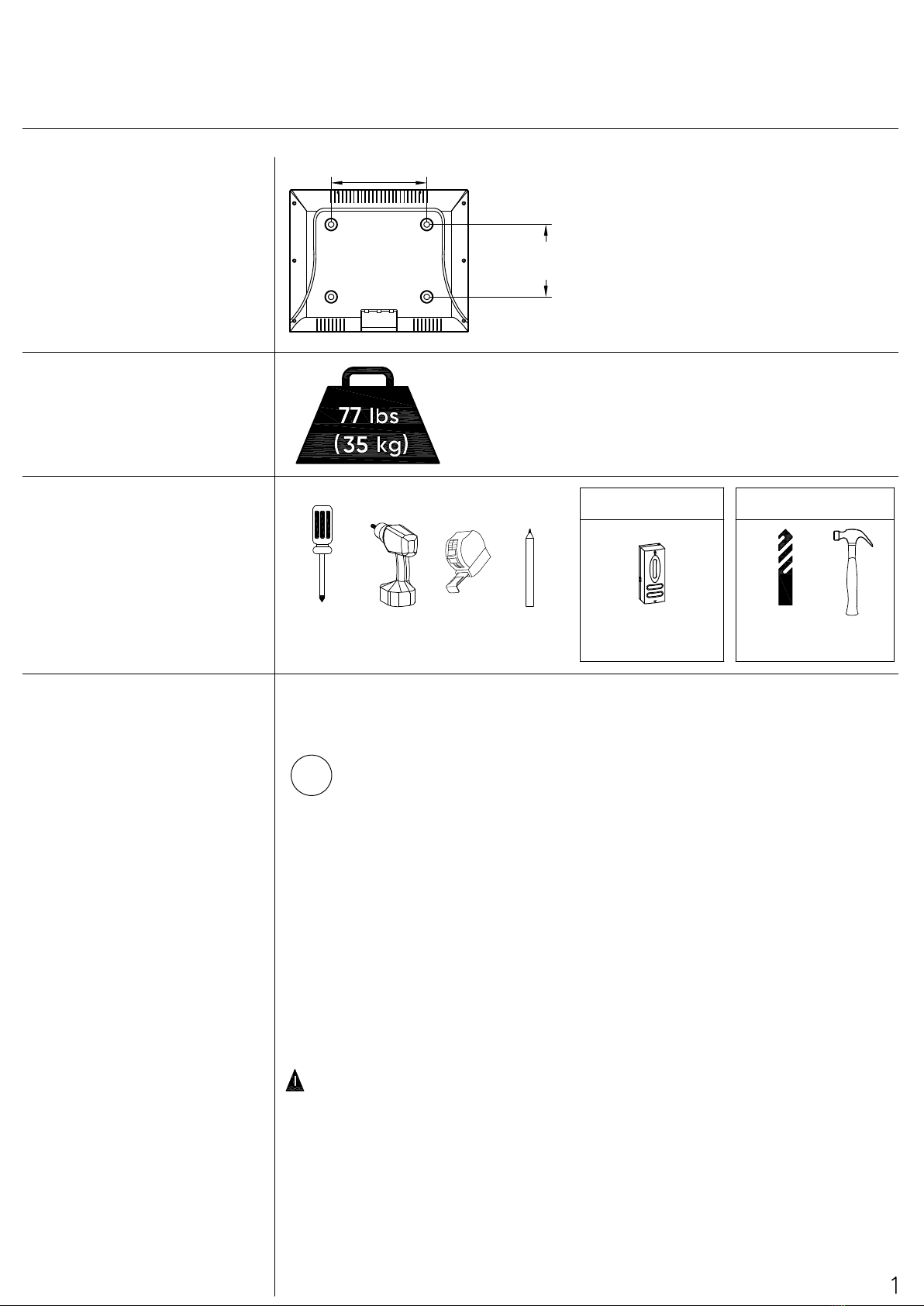

Before getting started, let’s make sure this mount is perfect for you!
Does your TV
(including accessories)
weigh less than
77 lbs (35 kg)?
Installation Tools
(not included)
Yes ― Perfect!
No ― This mount is NOT compatible
with your TV.
Yes ― Perfect!
No ― This mount is NOT compatible.
Safety Caution
MAX: 400mm/15.75"
(MIN: 75mm/2.95")
MAX: 400mm/15.75"
(MIN: 75mm/2.95")
SAFETY WARNING:
▪ Never let children climb on the product or play with product.
▪ Do not sit or stand on product.
▪ Do not fasten a TV that is heavier than the recommended load rating to the
mount.
▪ Improper installation may cause property damage and/or personal injury.
▪ Two people are recommended for this installation. The manufacturer is not
liable for damage or injury caused by incorrect mounting, assembly or use.
▪ Improper handling can result in cuts or lacerations.
Keep this Product Guide for future reference. Keep your original proof of
purchase (store receipt).
?Need help? We're here for you every day from 7 a.m. - 9 p.m. CST.
Give us a call at 1-888-516-2630
Phillips
Screwdriver
Tape
Measure
WARNING:
a) Death or serious injury may occur when children climb on audio and/or
video equipment furniture. A remote control or toys placed on the furnishing
may encourage a child to climb on the furnishing and as a result the
furnishing may tip over on to the child.
b) Relocating audio and/or video equipment to furniture not specifically
designed to support audio and/or video equipment may result in death or
serious injury due to the furnishing collapsing or over turning onto a child.
c) Risk of death or serious injury. For use with TVs 1-3 inches thick.
Is your TV VESA equal
to / greater than
75mm x 75mm
(2.95" x 2.95") and
equal to / less than
400mm x 400mm
(15.75" x 15.75") ?
Drill Stud
Finder
Wood Stud Installation
Hammer
1/4”
Masonry
Drill Bit
Concrete, Stone or
Masonry Wall Installation
Pencil

VESA INTERFACE
SIDE VIEW
FULLY ASSEMBLED MOUNT
TOP VIEW-SWIVEL
ASSEMBLY TIPS:
1. Carefully read the entire Product Guide before beginning your installation.
2. Make sure that all parts are in the box and in good condition.
3. Assemble the product on open flat carton or a rug to protect the product and your floor.
4. Do not install on sloping surface.
5. Two people are recommended for proper assembly.
±35° Swivel
PRODUCT OVERVIEW
① 24.41" / 620mm
② 26.77" / 680mm
① 18.50" / 470mm
② 20.87" / 530mm
17.72" (450mm)
24.41" / 620mm
26.77" / 680mm
4.72" (120mm)
MAX: 400mm (15.75")
MIN: 75mm (2.95")
MAX: 400mm (15.75")
MIN: 75mm (2.95")
16.93" (430mm)
①
②
35°
35°
CAUTION:
This swivel TV base is intended for use only with the maximum weights indicated. Used with products
heavier than the maximum weight indicated may result in collapse of the mount and its accessories causing
possible injury.

x2
x2 x2
Allen wrench
x1
TV Mounting Hardware
M4x12mm M6x12mm M8x20mm
M4x30mm M6x35mm M4 M6
M8x10mm
Washers
Spacers
TV Screws
x4 x4
x4
x4x4
M8x35mm
Parts List:
x1 x1
x1
TV Base Assembly Hardware:
TV plate
Column
Base
TV bracket
M8x30mm screw M6X38mm screw
x1
Plastic cable
management clip
x4 x4
x1
Anti-tip safety strap kit
x4 x4

Attach both TV Brackets
Screw and Washer
Spacer, Screw and Washer
Choose proper screws that fit your particular TV mounting holes. Use spacers and washers as
needed since they are not always required. You will have screws, spacers and washers
leftover. Discard all unused hardware after you have completed TV mount installation.
Select TV Screws
P
P
O
OO TV back
TV bracket Washer
TV bracket
Long Screw
Spacer
TV back
Need Spacer?
Short Screw
Washer
▪ No, go to below for detailed combination.
▪ Yes, go to below for detailed combination.
M4 M8
(actual size shown)
M6
P
CAUTION: Carefully lay your TV on its face on a flat, non-abrasive surface covered with
blanket or soft padding to help prevent damaging the screen.
CAUTION: Place left and right TV bracket in the appropriate position, make sure they are
CENTERED on the back of TV and LEVEL with one another.

A1
A1
Select appropriate holes at your desired height, then attach TV plate to Column
with Screws .
Assemble Column on Base with Screws .

CAUTION: This step requires 2 or more people to complete.
Choose proper TV bracket section to hang pre-assembled TV unit on TV plate at
your desired height, tighten TV brackets with safety screws as shown.
Option 1: Choose TV bracket section 1 to hang TV unit on TV plate .
Option 2: Choose TV bracket section 2 to hang TV unit on TV plate .
Option 1 Option 2
section 2
TV
section 1
2.36" (60mm)
screws by Phillips
Screwdriver
Tighten safety

TV height can be adjusted by choosing different holes on Column to assemble
TV plate .
TV plate

4 leveling screws
±4°
Make sure the TV unit is horizontal, you can level the TV plate ±4° by loosening 4
leveling screws with Allen wrench . When it is at your desired position, tighten the leveling
screws.
35°
35°
You can swivel the TV to your desired angle ±35° after assembly.

         
     
 
