Onway Sprocket-B User manual

Foldable Electric Scooter
Comply with safety standards
感谢选择此款电动自行车。
Thank you for purchasing ONWAY electric scooter.
If you have any questions, please contact us for help before
you decide to return the scooter.
User Manual
Model：ONWAY SPROCKET - B
SERIAL NO.:

Thank you for having chosen our product
Enjoy your new electric scooter.
Contents
1Device & Accessories.............................................................................
2Functions................................................................................................
3Device assembling.................................................................................
4Battery charging....................................................................................
5Driving instructions...............................................................................
6Safety recommendations......................................................................
7Folding & Transportation.....................................................................
8Daily maintenance and Storage............................................................
9Model specifications..............................................................................

1. DEVICE AND ACCESSORIES
Electric scooter
Accessories:
Fitting for wheels swap No. 2 screws Hex wrench Charging adapter

2. FUNCTIONS
Powerup instructions
The control panel is composed of four leds which show the level of battery charge of the electric scooter. Each time
the battery charge is lowering, one led at a time will start ickering and then will turn o. If the control panel shows
four lighting leds, the battery charge is fully 100% or 86%, if three leds are on, the battery charge is at 85%-71%.
The leds that indicate the level of the battery charge can be in blue or in green colour. During the normal activity of
the electric scooter all the leds are in blue but it is possible to turn the electric scooter into power saving mode, then
all the leds will turn into green colour. (Please note that the electric scooter can be used at a maximum speed of 16
km/h and the maximum speed is reached in more time than ordinary mode and that can be helpful for those who are
practicing for the rst time with this kind of vehicle).
Headlight
Speed lever
Control panel
Signal
Stand
Brake disc
Brake lights
Clamp
Brake compartment
Brake handle
Wheel motor
Folding mechanism
Charging port

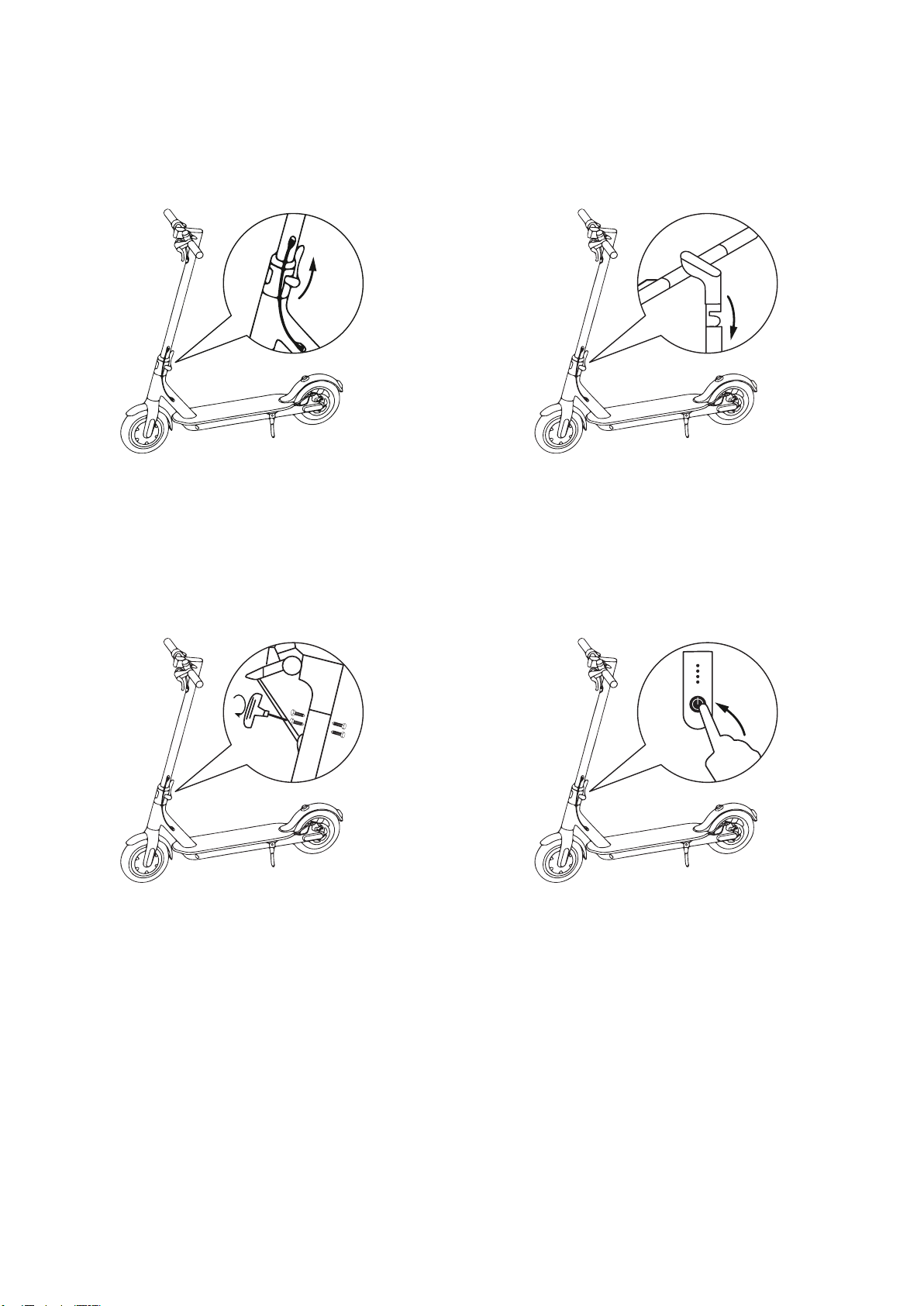

3. DEVICE ASSEMBLING
1) Fix the steering rod and open the parking bridge 2) Set the handle bar vertical
3) Use the hex wrench to tighten the screws to the handle bar 4) Test the power on after nishing device assembling
Power button
The electric scooter turns on by keeping the power button pressed for two seconds and viceversa to turn it o. By pressing the power button
twice the vehicle will turn into power saving mode.

4. BATTERY CHARGING
5. DRIVING INSTRUCTIONS
Open the cover Connect the charger Close the cover
We recommend you to wear the helmet and knee pads while
practicing for the rst time
1. Press the power button in order to turn the electric scooter on and
check whether the led lights are working properly by lighting themselves
2. Stand on the board of the
electric scooter with only one
leg and keep the balance with
the other one on the ground 3. While gradually accelerating by pressing the speed button, place the
leg which was previously on the ground on the board and start driving
the electric scooter (you should press the speed button only when the
cruise speed is less than 5km/h)
4. If you need to lower the speed you have to stop holding the
speed button.The energy recovery system of the electric
scooter will open itself to automatically slow down.
Press the left disc brake tightly if you need emergency brake
5. Lean your body slightly to the left if you need
to turn left and viceversa to the right if you
need to turn right, while doing that turn the
handlebar slowly to the chosen direction

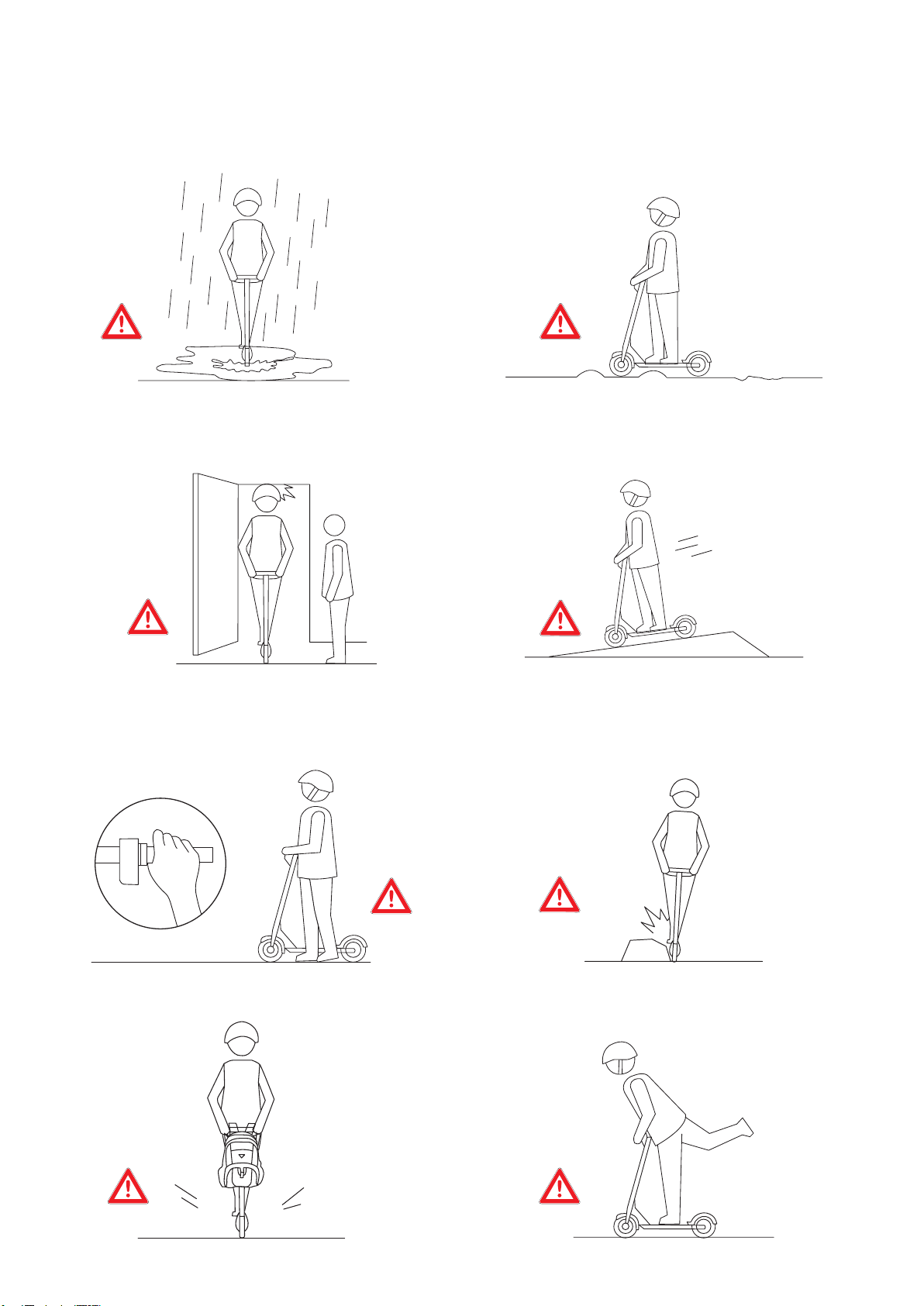

6. SAFETY RECOMMENDATIONS
It is recommended to not use the electric scooter on wet condi-
tions, such as rainy weather
It is recommended to slightly bend the knees and to lower the
speed to 5/10 km/h in order to drive on rough roads.
It is recommended to pay attention if you are driving the electric
scooter inside the buildings as you may get injured by driving
through door frames
It is recommended to not press the speed button while driving on
sloping surfaces
It is recommended to not press the speed button if you are not on
the board of the electric scooter or you are walking while pulling
the electric scooter only by holding the handle bar
It is recommended to pay particular attention to all the obstacles
on the ground
It is recommended to not hang backpacks or heavy bags on the
handle bar
It is recommended to always keep the balance while on the board
of the electric scooter

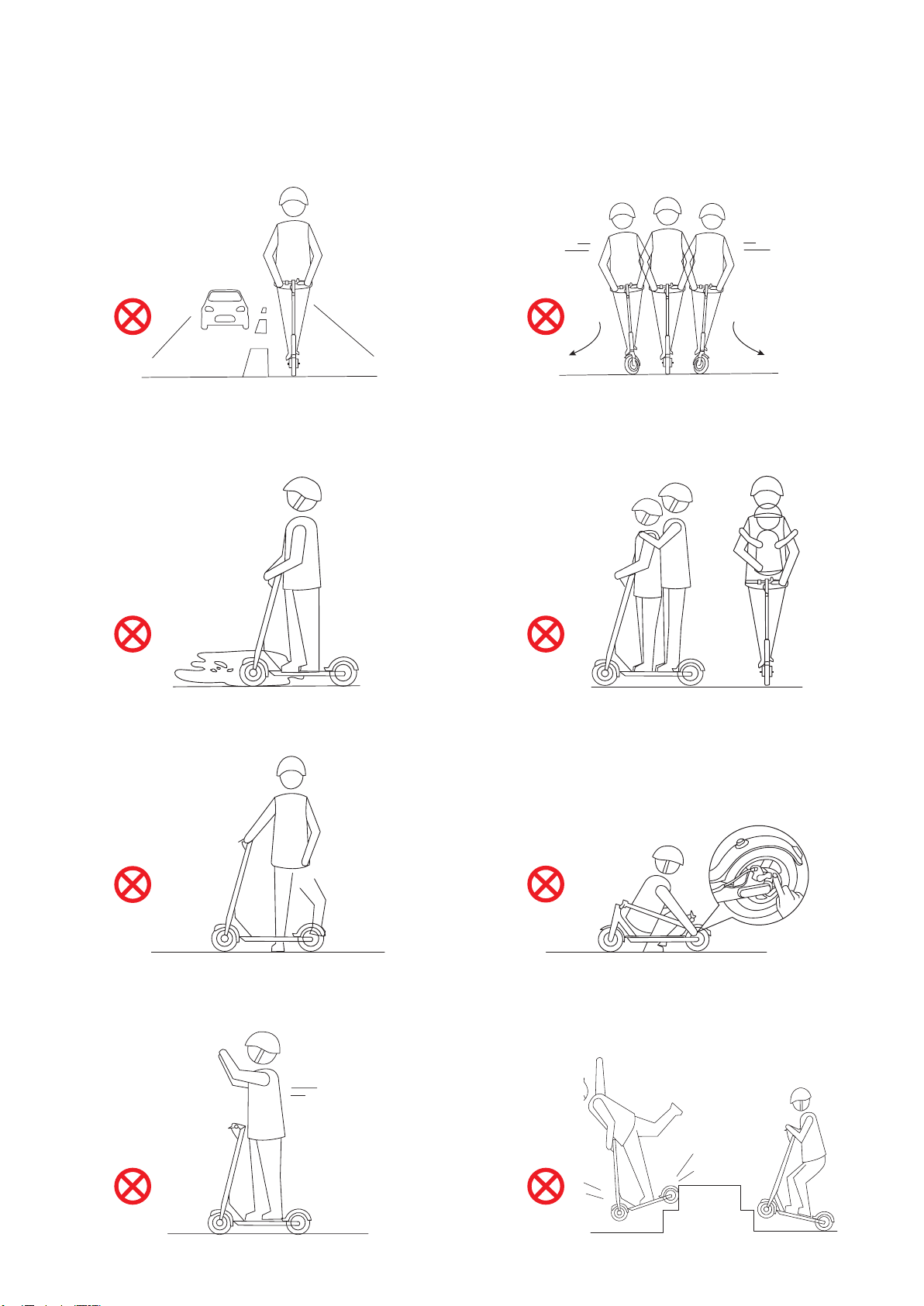

PREVENTING DANGEROUS DRIVING
It is forbidden to improperly drive the electric scooter at any speed
rate into the trac with any type of common vehicles
It is forbidden to drive the electric scooter on puddles
deeper than 2 cm
It is forbidden to carry more than one person on the electric scooter
It is forbidden to tread the back of the fender It is forbidden to touch the disc brake
It is forbidden to drive the electric scooter without holding the
handle bar with both hands
It is forbidden to drive the electric scooter on slopes or obstacles
nor driving the electric scooter balancing on one of the two wheels
It is forbidden to drive the electric scooter and/or sharply changing
direction on a crowded pedestrian street

SAFETY RECOMMENDATIONS
1) The electric scooter is not like the other vehicles, it is an entertaining device. If you are driving the electric scooter on a public area you
must be aware of the risks related to its drive and all the safety recommendations. In order to prevent you and the others from risks and
injuries related to the drive of the electric scooter, you must follow the instructions outlined in this manual
2) You must be aware that the improper usage of the electric scooter may cause accidents to the pedestrians leading to illegal conduct. By
using the electric scooter you must drive with care by keeping safe distance and being aware that the faster you drive, the longer will be
the braking distance.There are some cases which emergency brake causes slipping wheels leading to loss of balance and/or fall.Therefo
re, during the drive of the electric scooter you need to be vigilant. If you are driving on unfamiliar terrain, be vigilant and lower the speed rate.
3) Be aware of the pedestrians. Reduce the speed rate if you are approaching to them and if you are moving in their same direction, keep the
left side as much as possible (for right-hand trac countries). If you are moving in the opposite direction, keep the right side
and slow down
4) Follow the trac rules of your country and the recommandations previously mentioned in this manual. If you break the trac rules you
can be charged of administrative or penal fees. The company declines all the responsibilities directly or indirectly related to these
occured situations.
5) Do not lend the electric scooter to people who are not able to drive it without having rstly explained to them how to use it and which
kind of safety devices to involve before starting practicing.
6) Before using the electric scooter it is recommended to inspect it carefully. Do not use the electric scooter if it shows damaged parts,
battery charge gets low faster, low tyres pressure or with evident signs of tyre wearing, uncharacteristic sounds while using it or other
uncommon elements.

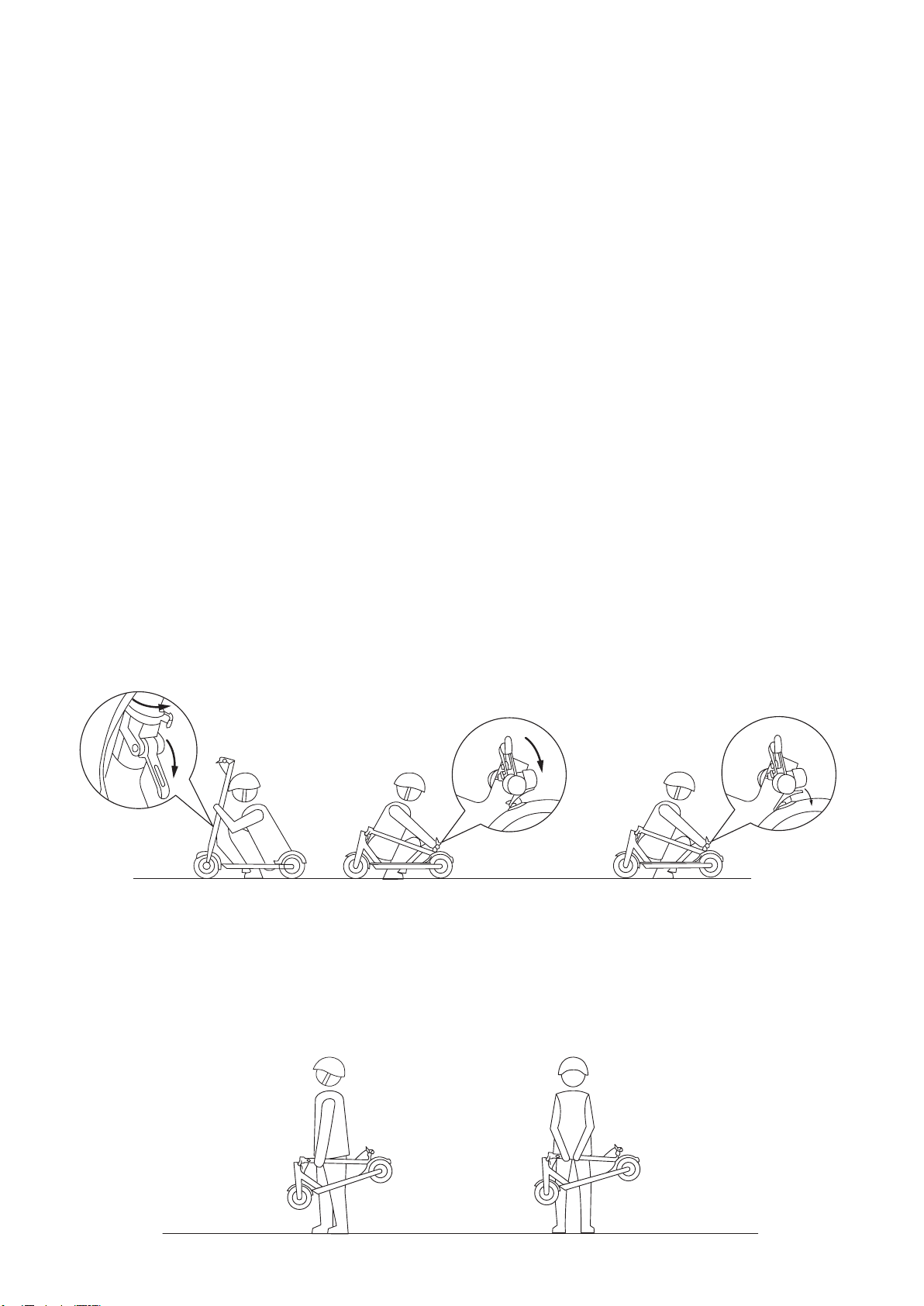

7. FOLDING & TRANSPORTATION
Fold
Make sure that the electric scooter is o, hold the front pole, loosen the lock lever and lower the steering rack. Place the steering rack in
horizontal position and lock it with the ring on the handle bar and the hook placed on the clamp. If you need to place the handle bar in vertical
position you can simply unhook the ring, place the handle bar in vertical and then lock the lever.
Transportation
Folded electric scooter can be carried with only one hand

8. DAILY MAINTENANCE AND STORAGE
Cleaning and storing the electric scooter
If there are stains on the electric scooter housing, use a soft damp cloth to clean it.You can use also toothpaste and toothbrush and then wipe it
with a soft damp cloth.
Warning: do not use alcohol, petrol, kerosene or other corrosive nor chemical solvents to clean the electric scooter. Otherwise it can cause
serious damages to the body of the electric scooter and it can disrupt its structure or its inner parts.
Do not wash the electric scooter with pressured water and make sure that it is o while you are cleaning it. Be sure that the charger cover is
closed while you are cleaning the electric scooter in order to prevent you from electric shocks caused by water inltration.
If you do not use the electric scooter, store it in a dry, cool place. Do not leave the electric scooter in the open air for long time as leaving the
electric scooter under direct sunlight, at high or low temperatures can cause damages and fast wear o of its components.
Maintenance of the electric scooter battery
1) Use only original batteries in order to avoid dangerous situations;
2) Do not open or disasseble the battery, it may cause electric shocks. Do not leave the battery in contact with objects made of metal as it
may cause short circuit, malfunctions or injuries;
3) It is recommended to use the AC adapter to congure the electric scooter in order to prevent it from damages or res;
4) The improper disposal of used batteries and accumulators may cause environmental pollution. Dispose the batteries according to the
local laws and regulations and do not throw them in the common waste.Take care of the environment!
5) Charge the batteries of the electric scooter after each usage in order to enhance the product life.
Do not store the batteries of the electric scooter in environments at temperatures of 20°C-50°C (for example: do not leave the electric scooter
nor the batteries in the car during the summer season under the direct sunlight) nor near the re. As a result the battery may deteriorate,
overheat or even inammate itself.
If you do not use the electric scooter for 30 days consecutively, charge the batteries before using it and keep it in a cool and dry place. If the
electric scooter is meant to be inactive for long time, we recommend you to charge the batteries every 60 days to prevent it from battery failu-
re, which is not subjected to warranty assistance.
Avoid full discharge of the batteries as it will extend the product life. At room temperature the electric scooter works at its best on performan-
ces concerning covering long distances and battery level. If you use the electric scooter at temperatures below 0°C, the vehicle performances
and permeability decrease.
At – 20°C the electric scooter is able to cover less distances than its normal conditions. If the temperatures increase, either the performances of
the electric scooter increase.You can check the distances and conditions of the electric scooter in the Model specications.
Note: the full charge battery works for 120-180 days. The battery contains a smart chip that stores information about the charge and the
discharge. If you do not charge the battery for long time, it may get damaged to the point that it would be impossible to charge it again.This
kind of damages are not included in the warranty assistance.Warning: do not get the electric scooter disassembled by unauthorized people as
it may cause electric shocks, serious injuries or short circuit)

Brake disc adjusting
If the brake is very tight use the M5 hex wrench and screw the screws of the brake disc tensioner pulley, shorten up the length tail of the brake
cable, then tighten up the tensioner pulley. If needed you can loosen the tension pulley, pull the brake cable in order to slightly increase the
length of the tail. Finally, tighten the tension pulley.
Handle bar adjusting
If you want to stagger the steering rack use the M5 hex wrench, tighten up the two screws which are near the folding mechanism
Using the connecting pipe to pump the wheels
If the rear tyre of the electric scooter is deated use the connecting pipe to inate it. First, remove the cap of the pin, connnect the pipe
and pump air to start inating the tyre.

9. Model SPECIFICATIONS
MODEL: SPROCKET-B
ENG
Material
Aluminium Alloy
Color
Green
Tyre
8.5’’ Inflatable Tyre
Brake
Front electro-magnetic brake,
Rear disc brake
Motor
350W, Magnet Steel
Battery
36V / 7.8Ah
Charger
100-240V Rated Power 2A 42V
Max. Speed
15MPH
Range
15 - 17 miles
Max. Load
55-220 lbs
Charging Time
3.5-4H
Max. Gradeability
20%
Net Weight
27 lbs
Gross Weight
35 lbs
Folded Size
42*17*19 Inch
Unfold Size
42*17*45 Inch

Caution:
Hex wrench, connecting pipe and other consumable
components parts are not subjected to warranty
Ⅲ. Non-warranty regulations
1. Unauthorized maintenance, misuse, collision, negligence, abuse,
intake,accident. Improper use of non-product accessories or tear
up the modified label, anti-counterfeit mark.
2. Warranty period cannot be extended.
3. Damages caused by force mejeure.
4. Electric scooter failure that interfere with the ordinary
operation of the electric scooter.
5. Failures that arise in connection with human factors(including
the use of the electric scooter under wet conditions, drilling, drop,
scratch and damage of the outer casing that may arise as a result
of normal product usage).
6. If the electric scooter is used for commercial purposes, all the
listed conditions are not in force.
