Oontz Angle User manual

The OontZ Angle
Guide
The Ultra Portable Wireless Bluetooth Speaker

Thank you very much for selecting the OontZ Angle. We hope that you will
love it! The OontZ Angle is designed to be simple to use, and this guide
was written to help you get started quickly. Please take a few minutes to
read through the guide, and try out the features on your OontZ Angle.

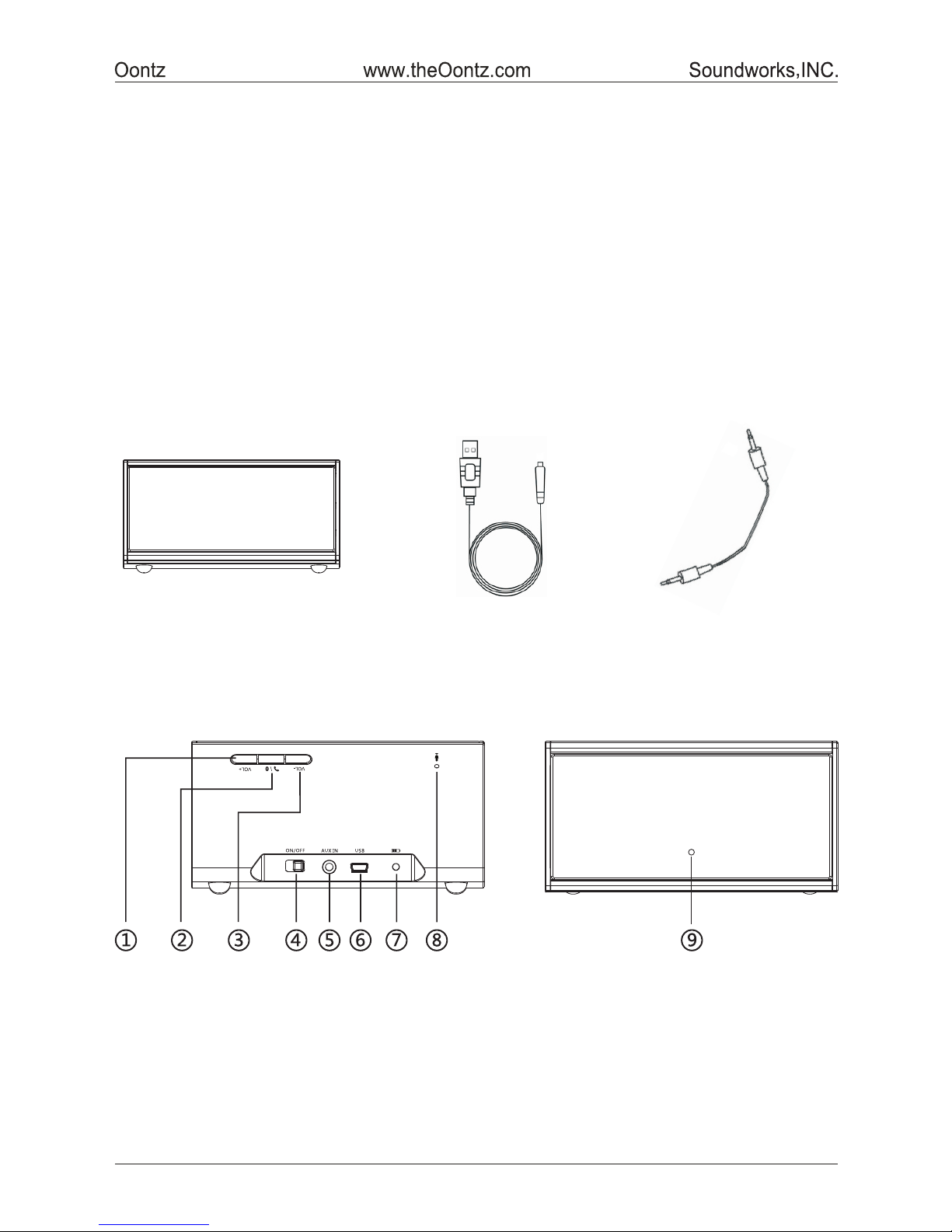

Contents：
·OontZ Angle Ultra Portable Wireless Bluetooth Speaker
·USB cable
·Line in cable (3.5mm plug)
USB cable Line in cable
The OontZ Angle
The OontZ Angle - Overview
①
② Bluetooth/Answer/Reject Call
/Play/Pause
③ Volume Down
④ Power on/off
Volume Up ⑤ AUX-IN Port
⑥ USB Port(for charging)
⑦ Charging indicator
⑧ MIC
⑨ Sync LED indicator
Page 1, Total 9

Page 2, Total 9
The OontZ Angle is compatible with most Bluetooth devices
that support A2DP
Most Devices with A2DP Bluetooth can use the OontZ Angle to play music
and receive calls.
The functionality and features that can be used on the OontZ Angle are
dependent on the Bluetooth device (iPhone, iPod, Mobile Phone, Mp3/
MP4 Player, PC, Mac, etc.) the OontZ Angle is to be paired with.
Devices without A2DP cannot play music wirelessly through the OontZ
Angle, but they can play music with the line-in cable plugged into the
Aux-in dort
For further instructions on Bluetooth connectivity, please check the user
guide for your A2DP Bluetooth device.
Compatibility (Bluetooth device)
Bluetooth 3.0 with A2DP/HFP/HSP
A2DP - Advanced Audio Distribution Profile
HSP - Headset Profile
HFP – Hands Free Profile
Using the OontZ Angle speaker with Non Bluetooth Devices
Non-Bluetooth devices can be connected to the OontZ Angle using the
supplied Line-in cable (3.5mm Stereo) for speaker use only.
Charging your OontZ Angle
The OontZ Angle has a built in rechargeable Lithium Ion battery.
To charge the OontZ Angle, connect the USB cable to an available USB
port on a PC or Mac or with a USB Power Adapter which has the official
USB logo.
When the OontZ Angle is charging, the LED indicator at the back of the
speaker will illuminate Blue and Red. Once the OontZ Angle is fully charged,
the LED will change color from Blue & Red to Red.
The OontZ Angle CAN be used while it is recharging.

Note: The unit default audio input is Bluetooth. The source will automatically
switch to AUX IN mode when the line in stereo audio cable is inserted, but
will not disconnect the connected Bluetooth input. The source will auto-
matically switch back to the Bluetooth input when the line in stereo audio
cable is unplugged.
Angle.
Note: To switch Bluetooth devices, turn off the Bluetooth connection on
your device, the OontZ Angle is now free to pair with the next device,
repeat steps 3-8 above to re-enter pairing mode.
Page 3, Total 9
Paring the OontZ Angle with a Bluetooth Device
1. Ensure the OontZ Angle is charged or that the OontZ Angle is connected
to a USB power source.
2. On the back of the OontZ Angle, slide power button to ON.

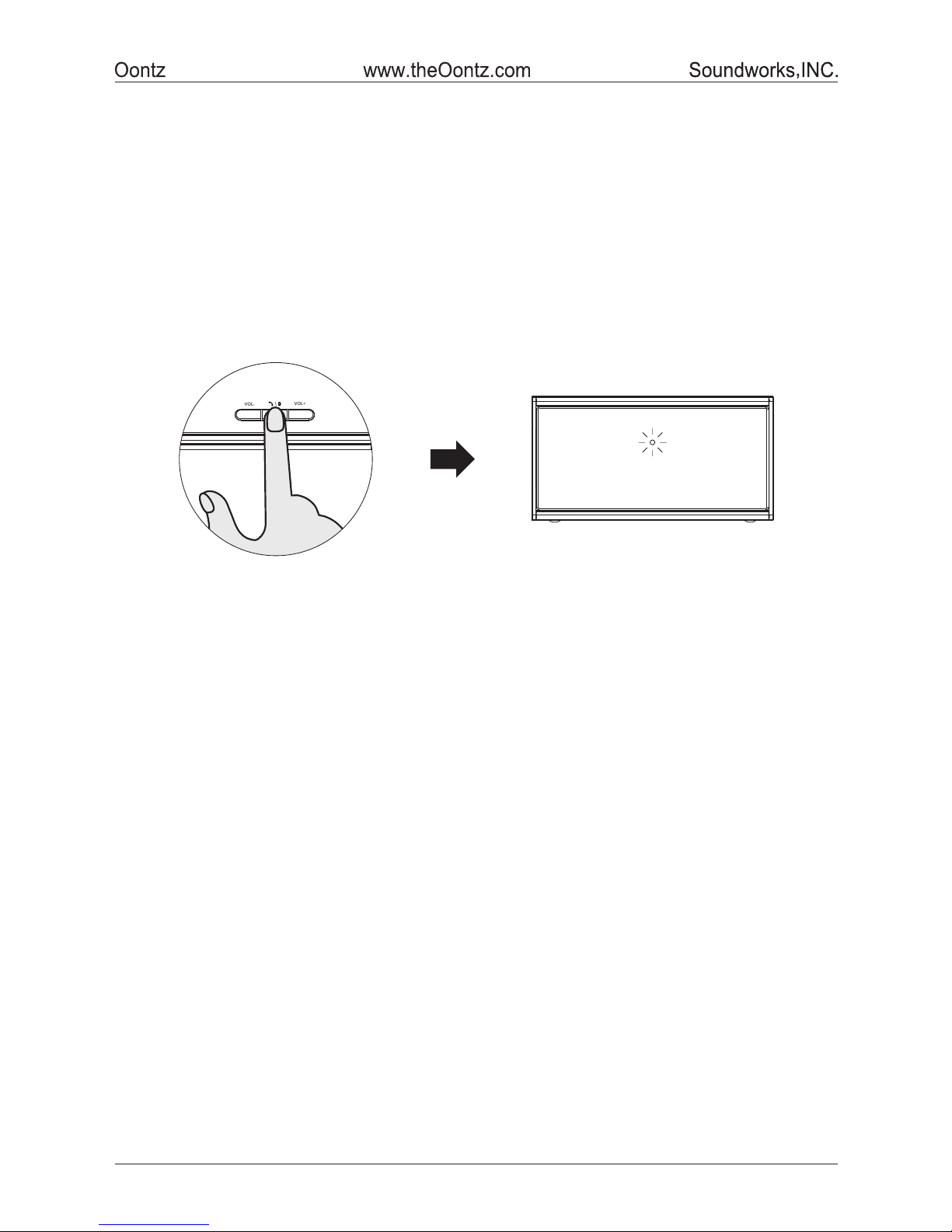

3. Press and hold the Bluetooth button on the back of the OontZ Angle
until the red/blue LED starts flashing on the front of the OontZ Angle.
4. Use your Bluetooth device to search for OontZ Angle and select it.
5. If a pin is required, enter "0000".
6.The LED on front of the OontZ Angle will stop flashing red/blue and will
return to blue. This confirms successful pairing.
7. Check your Bluetooth device to ensure that connection is successful.
8. You can now play your music wirelessly from your device to the OontZ

Page 4, Total 9
Playing music from a non-Bluetooth device
To use your OontZ Angle to play other portable audio devices such as iPod
shuffle, MP3, MiniDisc and Portable CD Players, connect your device to
the OontZ Angle with the line in cable.
CD
Using the OontZ Angle as a Speaker phone
1.To Answer a call - Press Bluetooth/Answer/Reject Call Button on the
back of the OontZ Angle.
2.To Reject a call - Press & Hold (3 Seconds) Bluetooth/Answer/Reject
Call Button on the back of the OontZ Angle
3.To hang up a call - Press & Hold Bluetooth/Answer/Reject Call Button
on the back of the OontZ Angle
4.To switch call signal between speaker mode and phone mode, press
Bluetooth/Answer/Reject Call Button on the back of the OontZ Angle.
Note: Where there is an incoming call if you answer the call directly on
your smartphone (for most types of smartphones) the call will go through
the smartphone and not through the OontZ Angle speaker phone.
You can switch back and forth between the call going through the smar-
tphone and the OontZ Angle by pressing the Bluetooth/Answer/Reject
button on the back of the OontZ Angle.
1.Plug in the line in cable into the AUX IN socket on the rear of the OontZ
Angle.
2.Connect the other end of the line in cable to your devices headphone
socket.
3.Set your device volume level to maximum and press play on your device.
Note: The unit default audio input is Bluetooth. The source will automatically
switch to AUX IN mode when a 3.5mm stereo audio cable inserted, but
will not disconnect the connected Bluetooth input this time. And the source

Ensure the Bluetooth device supports A2DP
Check that the device and the OontZ Angle are paired or
connected properly
Ensure the Power Switch at the back of the OontZ Angle is
switched ON
Ensure the OontZ Angle is fully charged or the OontZ
Angle is attached to a power source.
Music cannot be heard
through the OontZ
Angle
The OontZ Angle does
not power up
Adjust the volume lower on the OontZ Angle or the
Bluetooth device
Sound is distorting
Ensure your Bluetooth phone supports HSP/HFP
Check that the Bluetooth phone and the OontZ Angle are
properly paired
Cannot answer calls
Music does not resume
after hanging up a call Press Play to resume music
I cannot find the OontZ
Angle on my Bluetooth
device
Ensure the OontZ Angle is in pairing mode with the LED on
front flashing blue and red (See: Paring the OontZ Angle
with a Bluetooth Device)
Ensure the OontZ Angle is not already connected to another
Bluetooth device, the OontZ Angle can only connect to 1
Bluetooth device at a time. To switch Bluetooth devices,
turn off the Bluetooth connection on your device, the OontZ
will go into pairing mode and you can pair the next device.
Ensure you have turned on the Bluetooth on your device
Page , Total 95
LED Indicator
Power OFF – LED OFF
Power ON – LED ON (Blue)
Pairing Mode – LED Flashing Blue/Red
Paired – LED ON (Blue)
Aux in – LED ON (Blue)
Battery recharging – LED indicate Blue and Red
Battery fully recharged – LED indicate Red
Trouble Shooting
will automatically switch back to Bluetooth input when unplugged the
3.5mm audio cable

Page 6, Total 9
FCC Warning:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no g uarantee that in terferen ce will not occu r in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interfe-
rence by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party resp-
onsible for compliance could void the user's authority to operate this
equipment.
INDUSTRY CANADA
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate

using an antenna of a type and maximum (or lesser) gain approved for the
transmitter by Industry Canada. To reduce potential radio interference to
other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (e.i.r.p.) is not more than that
necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur
radio peut fonctionner avec une antenne d'un type et d'un gain maximal
(ou inférieur) approuvé pour l émetteur par Industrie Canada. Dans le
'
but de réduire les risques de brouillage radioélectrique à l intention des
'
autres utilisateurs il faut choisir le type d antenne et son gain de sorte
, '
que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas
l'intensité nécessaire à l établissement d'une communication satisfaisante.
'
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage,
et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Page 7, Total 9
safety
a.CAUTION: Danger of explosion if battery is incorrectly replaced.Replace
only with the same or equivalent type.
b.A warning that batteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, fire or the like.
c. Correct Disposal of this product. This marking indicates that this product
should not be disposed with other household wastes throughout the EU. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.

Page 8, Total 9
1. Read these instructions – All the safety and operating instructions
should be read before this product is operated.
2. Keep these instructions – The safety and operating instructions should
be retained for future reference.
3. Heed all warnings – All warnings on the appliance and in the operating
instructions should be adhered to.
4. Follow all instructions – All operating and use instructions should be
followed.
5. Do not use this apparatus near water – The appliance should not be
used near water or moisture – for example, in a wet basement or near
a swimming pool, and the like.
6. Clean only with dry cloth.
IMPORTANT SAFETY INSTRUCTIONS
7. Do not block any ventilation openings. Install in accordance with the
manufacture's instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding plug. A
into your outlet, consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or pinched particularly
at the plugs, convenience receptacles, and at the point where they
exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart or rack is used, use
caution when moving the cart/apparatus combi-
nation to avoid injury from tip-over.
plug has two blades and a third grounding prong. The wide blade or the
third prong is provided for your safety. If the provided plug does not fit
polarized plug has two blades with one wider than the other. A grounding

Page 9, Total 9
13. Unplug the apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified personnel. Servicing is required when
the apparatus has been damaged in any way, such as power supply
cord or plug is damaged, liquid has been spilled or objects have fallen
into the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.

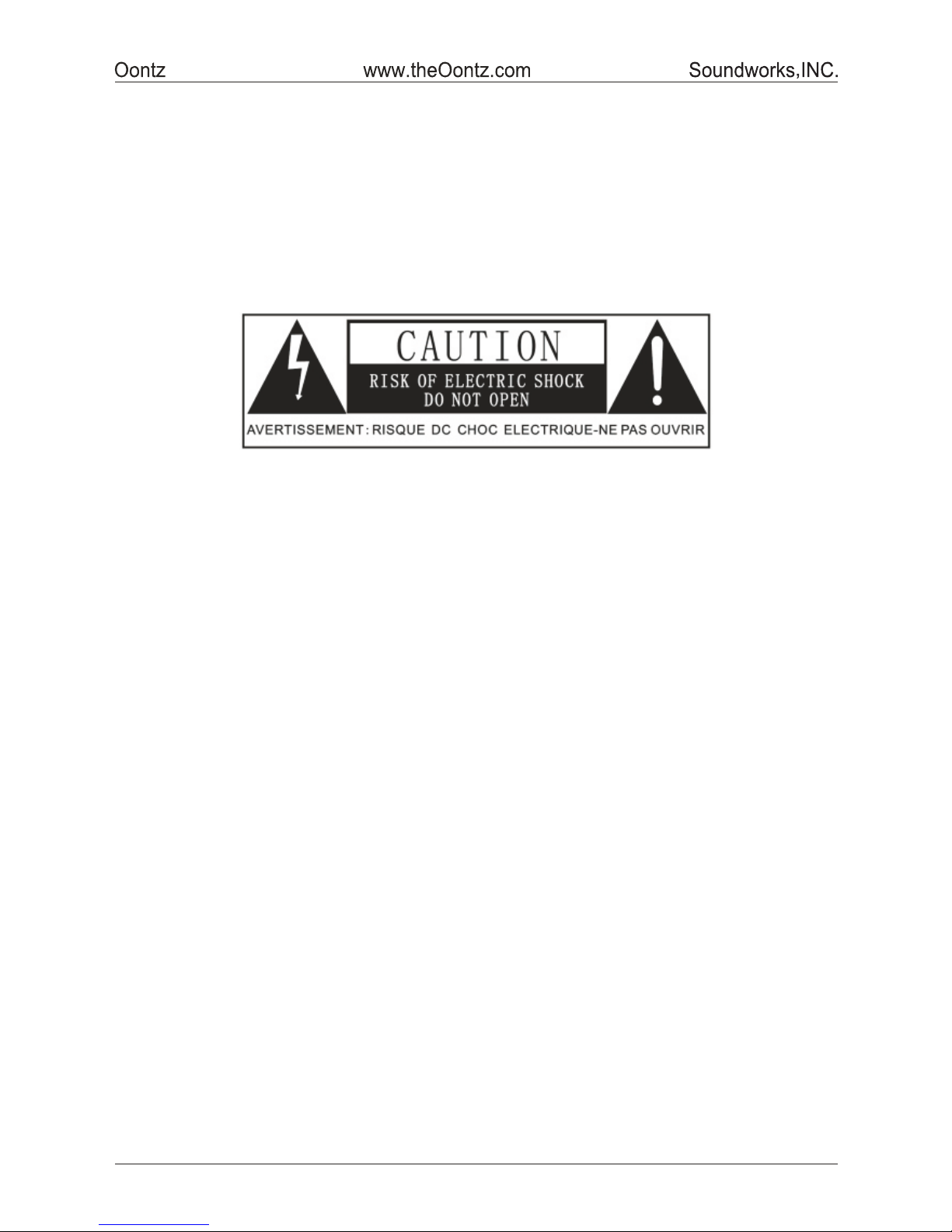

- This lightning flash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of non-insulated "dangerous
voltage" within the product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
- The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
instructions in the literature accompanying the appliance.

OontZ Angle is a registered trademark
of SoundWorks INC.
Visit us at TheOontZ.com and like us on Facebook
Tell your friends!
OontZ OontZ OontZ!
