opticis DPFX-100-TR User manual

ㅕ
Manual Contents
__________________________________________
Manual Contents 1-0
Welcome! Product Description 1-1
System Requirements for Setup 1-2
Installation 1-3
Troubleshooting 1-5
Maintenance, Technical Support, and Service 1-6
Product Specifications 1-7
Warranty Information 1-8
Regulatory Statements 1-9
Pictorials
Figure 1 –Overall Connection of DPFX-100-TR 1-1
Figure 2 –Position of the LED 1-3
Figure 3 –Fiber numbering & Caution on both fiber ports 1-3
Figure 4 –Connection of optical fiber 1-4
1-0 Manual Contents
User’s Manual for the
DPFX-100-TR
Two (2) fibers Detachable
DisplayPort Extender

Welcome!
Congratulations on your purchase of the two (2) fibers DisplayPort extender,
DPFX-100-TR. This manual contains information that will assist you in
installing and operating the product.
Product Description
New compact optical DisplayPort extender, DPFX-100-TR enables to transmit
WQXGA (2560x1600) at 60Hz signal up to 300m (985feet), avoiding any tricks
like scaling or data compression for lessening a burden of data transmission.
It provides total data throughput 10.8Gbps (2.7Gbps per lane).
The pure fiber connection by two (2) LC fibers connector between transmitter
and receiver, gives clean, secure and easy installation with perfect electrical
isolation, but without electrical hazard and interference. The DPFX-100-TR can
be operated by both USB power by plugging the USB cable and DC power
included as a shipping group.

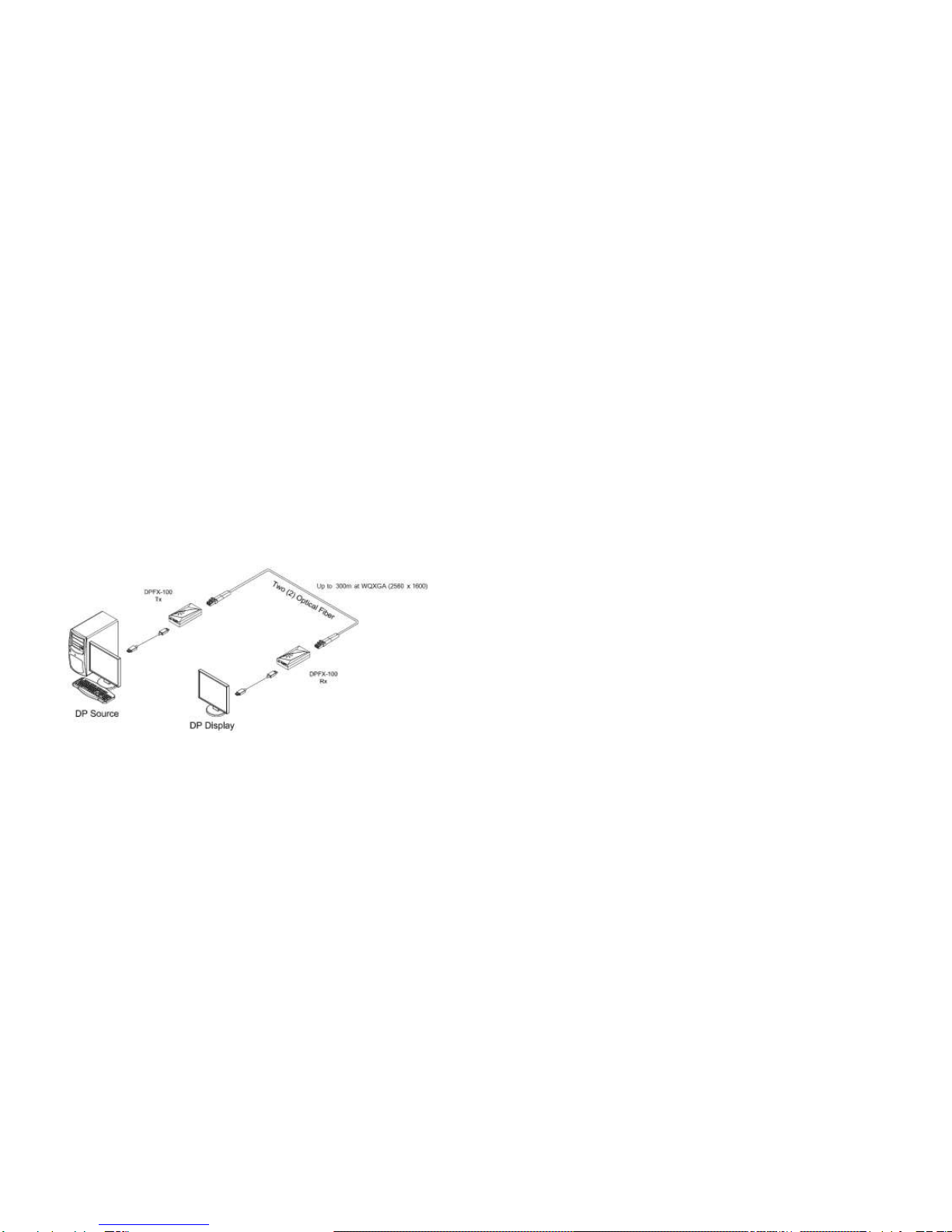

Figure 1 –Overall Connection of DPFX-100-TR
The Shipping Group of DPFX-100-TR;
One (1) Transmitter (Tx) and One (1) Receiver (Rx)
Two (2) DP copper cables (0.5m)
Two (2) USB to DP plug Cables
Two (2) DC +5V,1A power adapters
User’s Manual
Option Product: LC Multi-mode fiber
1-1 Welcome, Product Description
System Requirements for Setup
□Hardware requirements
▪You have to have a DisplayPort source and display. It should
support the maximum graphic resolution feature of displays to
be connected.
▪No special requirements of memory size, CPU speed and
chipsets, if you’ve already properly installed your DisplayPort
systems or graphic cards.
▪Proper initial trial of the entire platform with its application using
a short length copper cable is recommended prior to install with
the optical link.
□Software requirements
▪No special restrictions, if you’ve already properly installed your
Displayport systems.
□Power Technical Advisory
▪Enclosed Power Adaptors and USB cables supply power to both
Transmitter and Receiver.
□Connection Advisory
▪It is highly recommend that DisplayPort source is directly
connected into DisplayPort display output via DPFX-100-TR
without connection to incompatible distributor, switcher and
selector.
1-2 System Requirements for Setup

Installation
Important: Please keep the installation procedure below. Improper or no
operation may result if the start-up sequence is not correctly followed.
Step 1
Carefully unpack the contents in the shipping group.
Step 2
Power on the DisplayPort source and display. Power on both transmitter and
receiver by using USB power cable or DC power adapter.
Step 3
Then, the LED (Green color) will begin to blink once a second for three (3)
times regularly on both sides.

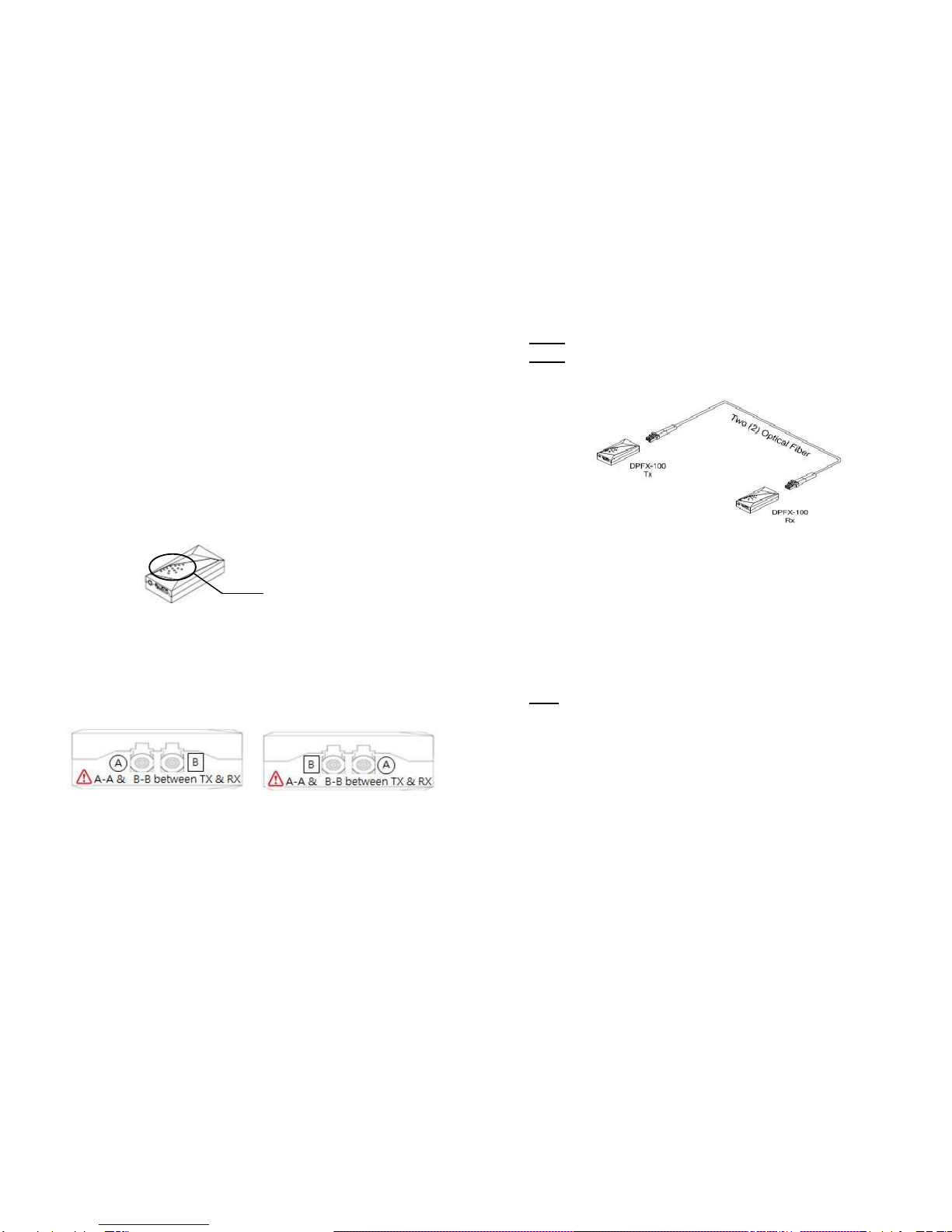

Figure 2 –Position of the LED
Step 4
Connect two (2) LC optical fibers between the transmitter and the receiver
and each fiber channel shall be connected as A to A and B to B carefully.
Ensure the duplex connectors are fully engaged and then, the top LED will
begin to blink regularly.
Fig Figure 3 –Fiber numbering & Caution on both fiber ports
1-3 Installation
Position of the LED
Note1: The maximum extension length by multi-mode fiber is 300 meters.
Note2: Be recommended NOT to use any intermediate cable or adapter
between them to avoid undesirable performance degradation.
Fig Figure 4 –Connection of optical fiber
Step 5
Connect the transmitter to the Displayport source over DisplayPort copper
cable.
Step 6
Connect the receiver to the Displayport source over Displayport copper cable.
Note: If the connectors are fully engaged, the bottom LED will turn on.
Step 7
If the system does not work properly, go to the page 1-5 trouble shooting.
1-4 Installation

Troubleshooting
The display shows only black screen.
- Ensure that all plugs and jacks used by USB power cables or external power
supplies are firmly connected. Ensure that the LED ON.
- Ensure that the DisplayPorts are firmly plugged in to the DisplayPort source and
display.
- Ensure that the transmitter and receiver modules plugged correctly to the source
and display, respectively.
- Check if the DisplayPort source and display are powered on and properly booted.
- Reset the system by de-plugging and re-plugging the transmitter DisplayPort or
receiver DisplayPort, or by de-plugging and re-plugging the USB power cables
that are plugged of transmitter and receiver module
- Re-boot up the system while connecting the module.
Screen is distorted or displays noises.
- Check if the graphic resolution is properly set. Go to the display properties and tap
the settings. Ensure that the resolution sets less than WQXGA (2560x1600) at
60Hz refresh ratio.
- Reset the system
- Power down, disconnect and reconnect the optical system cable or DC power
adaptors, and power up
1-5 Troubleshooting
Maintenance
No special maintenance is required for the optical system cables and power
supplies. Ensure that the cables and power modules are stored or used in a
benign environment free from liquid or dirt contamination.
There are no user serviceable parts. Refer all service and repair issues to Opticis
or its authorized distributor.
Technical Support and Service
For commercial or general product support, contact your reseller. For technical
service, contact Opticis by email [e-mail] or visit its website at
www.opticis.com.
1-6 Maintenance, Technical Support, and Service

Product Specifications
Compliance with DisplayPort standard: supports DP 1.1a
Extension limit: 300m (985feet) for WQXGA (2560x1600) at 60 Hz
refresh rate over two (2) LC multi-mode fibers (50/125um).
Graphic Transmission Bandwidth: Supports total data rate
10.8Gbps (2.7Gbps per lane).
Supports Dual-mode DP (DP++)
Supports auxiliary /l²C channel over fiber
Mechanical specifications of transmitter and receiver
Dimensions(WDH):35mm x 72mm x 16mm
Environmental Specifications
Operating temperature: 0°C to 50°C
Storage temperature: -30°C to 70°C
Humidity: 10% to 80%
AC/DC Power Adapter
Power Input: AC 100-240V, 50/60Hz.
Power Output: +5 V, 1A SMPS DC-power Adapter
Cord DC Jack: Core is + 5 V and outer is GND.
Certification:FCC, CE
1-7 Product Specifications
Warranty Information
1 (One) Year Warranty
Opticis warrants this optical DP module to be free from defects in workmanshi
p and materials, under normal use and service, for a period of one (1) year fro
m the date of purchase from Opticis or its authorized resellers.
If a product does not work as warranted during the applicable warranty period,
Opticis shall, at its option and expense, repair the defective product or part, d
eliver to customer an equivalent product or part to replace the defective item,
or refund to customer the purchase price paid for the defective product.
All products that are replaced will become the property of Opticis.
Replacement products may be new or reconditioned.
Any replaced or repaired product or part has a ninety (90) day warranty or the
reminder of the initial warranty period, whichever is longer.
Opticis shall not be responsible for any software, firmware, information, or me
mory data of customer contained in, stored on, or integrated with any product
s returned to Opticis for repair under warranty or not.
Warranty Limitation and Exclusion
Opticis shall have no further obligation under the foregoing limited warranty if
the product has been damaged due to abuse, misuse, neglect, accident,
unusual physical or electrical stress, unauthorized modifications, tampering,
alterations, or service other than by Opticis or its authorized agents, causes
other than from ordinary use or failure to properly use the product in the
application for which said product is intended.
Dispose of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate systems)
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
The recycling of materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
1-8 Warranty Information

FCC/CE Statement for regulation of Electro-magnetic
emission
This device complies with part 15 of FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation. This equipment has been
tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 and 2 of FCC Rules, EN 55022/55024/61000-3 for CE
certification. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and. if not installed and used in accordance with the instruction guide,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Re-orient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult a service representative for help.
Properly shielded and grounded cables and connectors must be used in order
to comply with FCC/CE emission limits. Changes or modifications not
expressly approved by the party responsible for compliance could void the
user s authority to operate the equipment.
1-9 Regulatory Statements
© 2013 Opticis Co., Ltd. All Rights Reserved
Revision 1.0. Feb. 2013
Opticis Locations
OPTICIS HQ
Opticis Co., Ltd.
# 16Fl, Kins Tower Jeongja 331,
8 Sungnam-daero, Bundang-gu
Sungnam-si, Gyunggi-do, 463-782
South Korea
Te l: [phone]
Fax: [phone]
www.opticis.com
For order support, please contact your Distributor or Reseller.
For technical support, check with the Opticis web site www.opticis.com or
contact [email protected]om
