DATA SHEET
One (1) fiber HDMI / Audio Extender,
HDFX-100-TR
OPTICIS HQ
Opticis Co., Ltd.
# 907, Byucksan Technopia, 434-6
Sangdaewon-Dong, Chungwon-Gu,
Sungnam City, Gyeonggi-Do, 462-716
South Korea
Te l: [phone]~8
Fax: [phone]
www.opticis.com
[email protected]

HDFX-100-TR (Ver.1.0)
Copyright © 2011, All rights reserved by Opticis Sep. 29, 2011
- 2 -
www.opticis.com
One (1) fiber HDMI / Audio Extender, HDFX-100-TR
Description
One (1) fiber HDMI (High Definition Multimedia Interface) / Audio extender, HDFX-100-TR is a
new member of the Opticis family of products that stretches your HDMI connectivity, offering a
benefit of detachable connection with one (1) SC fiber, which makes it easier to install.
The Optical HDMI/Audio extender, HDFX-100-TR offers extremely long-distance extension of
digital video of HDMI 1.3a and audio transmits all signals up to 1000 meters (3280 feet). It is an
all-fiber extension product, no copper connection like CAT5 or 6e between transmitter and
receiver, installed in one (1) SC optical fiber for connection.
Optical technology makes the HDMI transmission stretch the performance beyond limitation of
copper wire extension with various benefits of long distance, crystal-clear data, negligible RFI/EMI
and elimination of costly distribution amplifiers unlike in analog extension.
The HDFX-100-TR is consist of a transmitter and receiver boxes, which are designed to multiplex
and de-multiplex the HD video and offers Self-EDID Programming feature detecting from display
and restoring EDID to an EEPROM in the transmitter without any physical DDC connection and
High Definition Copy Protection (HDCP) so as to be linked over only one (1) optical fiber. All ports
are deployed on the back panel and only indicators on the front panel.
The product is certified to EMI Class A by for FCC or CE for home uses as well as industrial or
commercial uses.
The shipping group is shown as follows;
1) One (1) Transmitter (Tx) Box and One (1) Receiver (Rx) Box.
2) Two (2) DC +5V 2A power adapter
3) User’s Manual

HDFX-100-TR (Ver.1.0)
Copyright © 2011, All rights reserved by Opticis Sep. 29, 2011
- 3 -
www.opticis.com
Features
Supports HDMI 1.3a up to 24-bit in color depth
Extends all HD resolution up to 1080p (1920x1080) at 60Hz up to 1000 meters (3280 feet)
over one (1) SC single-mode fiber
Provides lossless and uncompressed image quality without frame dropping
Offers Self-EDID Programming feature detecting from display and restoring EDID to an
EEPROM in the transmitter without any physical DDC connection
Complies with HDCP
Includes two (2) +5V DC power adapters for the transmitter and receiver
Certifies FCC and CE standards for EMI/RFI emission
Not require S/W driver to install; just plug and play
Be rack mountable
Applications
Digital HD-TV of types of LCD, PDP, projection and projectors for Home or Commercial
Entertainments
Digital HD-TVs for industrial applications such as medical appliances, aero traffic control,
factory, conference room, auditorium and bank
Digital FPDs and projectors in conference room and auditorium
Kiosk with digital FPDs showing full motion graphic displays from remote systems
HD-TVs for information display in public sites
LED signboards in streets or in stadiums

HDFX-100-TR (Ver.1.0)
Copyright © 2011, All rights reserved by Opticis Sep. 29, 2011
- 4 -
www.opticis.com
Technical Specifications
-General Specifications
Parameter
Specifications
Components
Laser Diodes
1310/1550 FP laser diode
Photo Diodes
1550/1310 PIN type photo diode
Electrical
Input and Output Signals
TMDS Level
Data Transfer Rate (Graphic Data)
Max. 1.65Gbps
Total Jitter at the end of Rx output
Max. 300 ps
Skew inter-channels
Max. 6ns
Optical
Sensitivity
-19dBm
Link Power Budget
Connect
Optical Connector
SC Connector
Electric Connector Type from Modules
and to HDTVs
HDMI receptacle
Recommended Fiber
Standard single-mode fiber
-Absolute Maximum Ratings
Parameter
Symbol
Minimum
Maximum
Units
Supply Adaptor Voltage
VCC
-0.3
+7.0
V
Operating Temperature
Top
-10
65
C
Operating Relative Humidity
RHop
5
80*
%RH
Storage Temperature
Tsto
- 30
+ 85
C
Storage Relative Humidity
RHsto
5
95*
%RH
Note*: Under the condition of No drops of dew
Recommended Operating Conditions
Parameter
Symbol
Minimum
Typical
Maximum
Units
Ambient Operating Temperature
TA
0
+ 50
C
Data Output Load
RLD
50
Ω
Power Supply Rejection (Note1)
PSR
50
mVp-p
Supply Voltage
VCC
+ 4.5
+ 5.0
+ 5.5
V
Note1. Tested with a 50mVp-p sinusoidal signal in the frequency range from 500 Hz to 500 MHz on the VCC supply with
the recommended power supply filter in place. Typically less than a 0.25 dB change in sensitivity is experienced.
Electrical Power Supply Characteristics
(TA= 0 C to +50 C, unless otherwise noted)
Parameter
Symbol
Minimum
Typical
Maximum
Units
Supply Voltage
VCC
+ 4.5
+ 5.0
+ 5.5
V
Supply Current
TX
ITCC
650
700
750
mA
RX
IRCC
650
700
750
mA
Power Dissipation
TX
PTX
2.92
3.5
4.1
W
RX
PRX
2.92
3.5
4.1
W

HDFX-100-TR (Ver.1.0)
Copyright © 2011, All rights reserved by Opticis Sep. 29, 2011
- 5 -
www.opticis.com
-Optoelectronic Characteristics
Transmitter module : HDFX-100-T
Parameter
Symbol
Minimum
Typical
Maximum
Units
Power
Supply
Supply Adaptor Voltage
AVcc
4.5
5
5.5
V
Supply Voltage
Vcc
4.5
5
5.5
V
Supply Current
ITCC
650
700
750
mA
Power Dissipation
PTX
2.92
3.5
4.1
W
Power Supply Rejection (Note1)
PSR
50
mVp-p
TMDS
Data Output Load
RLD
50
Ω
Graphic Supply Voltage (Note2)
GVCC
+ 3.1
+ 3.3
+ 3.5
V
Single-Ended High Level
Input Voltage
GVIH
GVCC -
0.01
GVCC
GVCC +
0.01
V
Single-Ended Low Level
Input Voltage
GVIL
GVCC - 0.6
-
GVCC - 0.4
V
Single-Ended Input Swing
Voltage
GVISWING
0.2
-
0.8
V
Optical Link-TX-
(Note3)
Bit rate
4.25
Gbps
Output Optical Power
Po
-5
+2
dBm
Wavelength

1260
1360
nm
Spectral width in RMS

4.0
nm
Extinction Ratio
Ext
5
-
dB
Rising/Falling Time
Trise/Tfall
80% to
20%
140
ps
Optical output eye diagram
Comply with Bellcore TR-NWT-000253 and ITU G.957
Optical Link-RX
(Note3)
Bit rate
1.25
Gbps
Receiving Wavelength

1500
1600
nm
Maximum Input Power
Pmax
-4
dBm
Signal_Detect Good
SDg
-23
dBm
Signal_Detect Fail
SDf
-39
dBm
Sensitivity
Pmin
-
-23
dBm
Link Power Budget(Note4)
Pbgt
15.9
dB
Receiver module: HDFX-100-R
Parameter
Symbol
Minimum
Typical
Maximum
Units
Power Supply
Supply Adaptor Voltage
AVcc
+ 4.5
+ 5.0
+ 5.5
V
Supply Voltage
Vcc
+ 4.5
+ 5.0
+ 5.5
V
Supply Current
IRCC
650
700
750
mA
Power Dissipation
PRX
2.92
3.5
4.1
W
Power Supply Rejection
(Note1)
PSR
50
mVp-p
TMDS
Data Input Load
RLD
50
Ω
Graphic Supply Voltage
(Note2)
GVCC
+ 3.1
+ 3.3
+ 3.5
V
Single-Ended Output Swing
Voltage (Note5)
GVISWING
0.4
-
0.8
V
Optical
Link-RX
(Note3)
Bit rate
4.25
Gbps
Receiving Wavelength

1260
1360
nm

HDFX-100-TR (Ver.1.0)
Copyright © 2011, All rights reserved by Opticis Sep. 29, 2011
- 6 -
www.opticis.com
Maximum Input Power
Pmax
-4
dBm
Signal_Detect Good
SDg
-15
dBm
Signal_Detect Fail
SDf
-29
dBm
Sensitivity
-
-15
dBm
Link Power Budget(Note4)
Pbgt
8.9
dB
Optical Link-TX
(Note3)
Bit rate
1.25
Gbps
Output Optical Power
Po
-6
+1
dBm
Wavelength

1480
1600
nm
Spectral width in RMS

4.0
nm
Extinction Ratio
Ext
8.2
-
dB
Rising/Falling Time
Trise/Tfall
80% to
20%
300
ps
Optical output eye diagram
Comply with Bellcore TR-NWT-000253 and ITU G.957
Note1. Tested with a 50mVp-p sinusoidal signal in the frequency range from 500 Hz to 500 MHz on the VCC supply with the
recommended power supply filter in place. Typically less than a 0.25 dB change in sensitivity is experienced.
Note2. Graphic Supply Voltage is regulated reference voltage for signal processing in modules
Note3. Measure signals at the end of 2 meter 9um SMGOF
Note4. Measures 1km distance with 9um(SM) fiber
Note5. TMDS outputs are coupled in AC
-Recommended Specifications of Fiber-Optic Cables
Parameters
Conditions
Specifications
Fiber Type
Glass single-mode Fiber
9±/ 125±2m
Modal Bandwidth
= 1310nm, 1550nm
Min. 400 MHz km
Fiber Cable Attenuation
= 1310nm, 1550nm
>0.3dBdB/km
No. of Ferrules
SC Connector
1 ferrules
Maximum Cladding
Noncircularity
2%
Maximum Core/Cladding
Noncircularity
1.6%
Minimum Fiber Bending
Radius
30mm

HDFX-100-TR (Ver.1.0)
Copyright © 2011, All rights reserved by Opticis Sep. 29, 2011
- 7 -
www.opticis.com

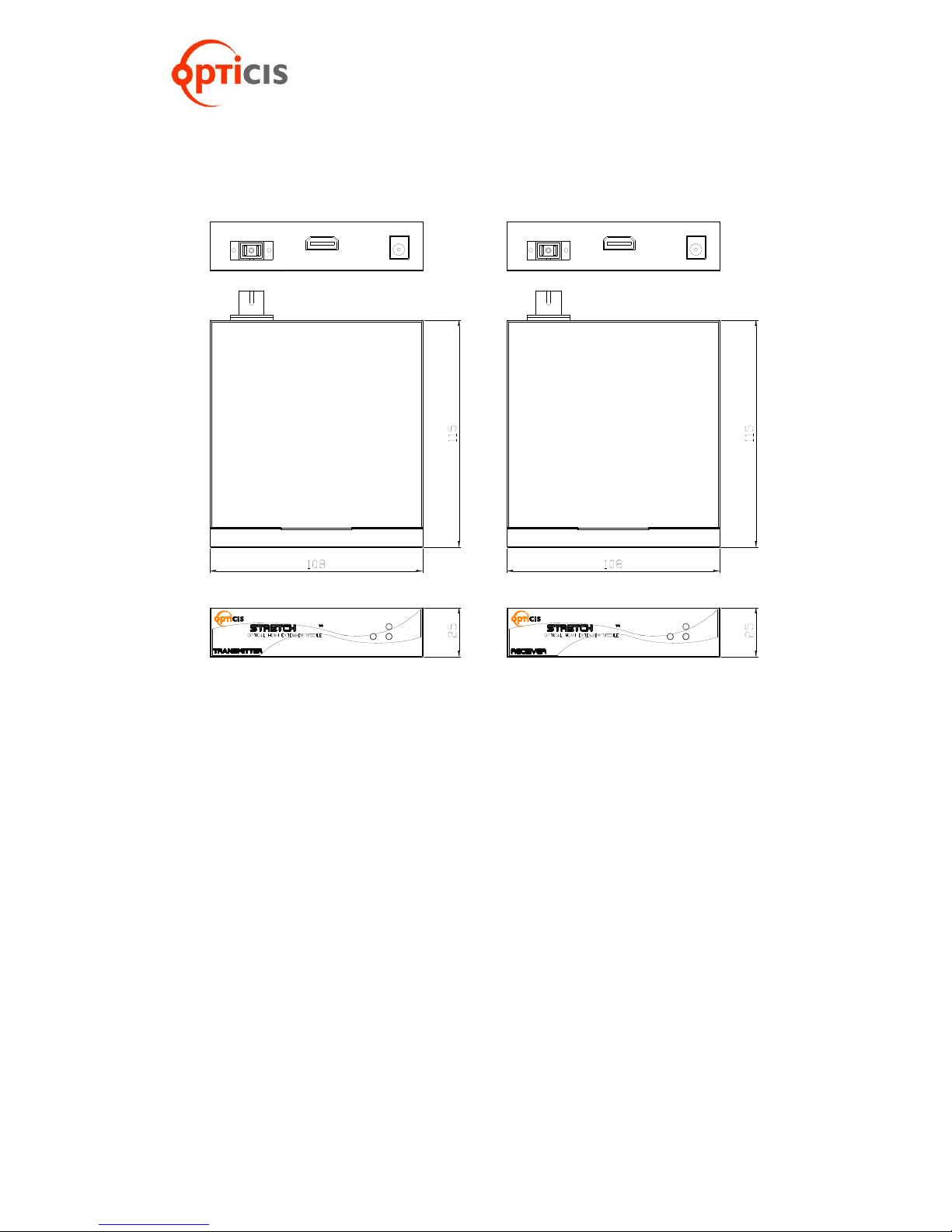

Drawing of Modules
Dimension [mm]
HDFX-100-TR
HDCP
Power
Status
+5V Optic
HDFX-100-TR
Power
+5V Optic
HDMI HDMI
HDCP Status
HDMI In
HDMI Out
Note: The transmitter, HDFX-100-T and the receiver, HDFX-100-R have the same mechanical
dimensions.

HDFX-100-TR (Ver.1.0)
Copyright © 2011, All rights reserved by Opticis Sep. 29, 2011
- 8 -
www.opticis.com
Drawing of Cable Connections
Up to 1000m at WUXGA
HDMI Source
HDMI Display
One (1) Optical Fiber

HDFX-100-TR (Ver.1.0)
Copyright © 2011, All rights reserved by Opticis Sep. 29, 2011
- 9 -
www.opticis.com
HDMI Pin Description
Pin
Symbol
Functional Description
1
CH2+
TMDS Data Signal Channel 2 Positive
2
GND
TMDS Data Signal Channel 2 Shield
3
Ch2-
TMDS Data Signal Channel 2 Negative
4
CH1+
TMDS Data Signal Channel 1 Positive
5
GND
TMDS Data Signal Channel 1 Shield
6
CH1-
TMDS Data Signal Channel 1 Negative
7
CH0+
TMDS Data Signal Channel 0 Positive
8
GND
TMDS Data Signal Channel 0 Shield
9
CH0-
TMDS Data Signal Channel 0 Negative
10
CLK+
TMDS Clock Channel Positive
11
GND
TMDS Clock Signal Shield
12
CLK-
TMDS Clock Channel Negative
13
CEC
Consumer Electronics Control
14
Reserved
Not used
15
SCL
HDCP/DDC communication clock
16
SDA
HDCP/DDC communication data
17
GND
DDC/CEC shield
18
5V
5 V Input for Transmitter from Host
5 V Output for Monitor from Receiver
19
Hot plug
Detect
Signal is driven by monitor to enable the system to identify the presence
of a monitor

HDFX-100-TR (Ver.1.0)
Copyright © 2011, All rights reserved by Opticis Sep. 29, 2011
- 10 -
www.opticis.com
Reliability Test
We have three kinds of test criteria for a reduction of variability and a continuous improvement of
the process by our FMEA (Failure Mode and Effective Analysis) program.
1) Mechanical test (Vibration, Shock)
2) Temp. & Humidity test
3) EMC test (FCC class A and CE Verification for M1-203H-TR)
Mechanical and Temp. & Humidity Test
Heading
Test
Conditions
Duration
Sample
Size
Remarks
Operating
Test
Operating at each
Temperature (See
Note)
-10~65℃(Interval:
10℃)
30 Min
(Each Temperature)
n=3
Note: Evaluate display
quality of Laser Beam
Projector connected to
Graphic Signal
Generator (Quantum
Data: GD-802B) at each
temperature.
1. TS: Storage
Temperature
2. RH: Relative Humidity
Storage
Test
Low Temperature
TS= -20℃
128 HR
n=3
High Temperature
TS= 65℃
128 HR
n=3
High Humidity /
High Temperature
TS: 65℃
RH: 85%
128 HR
n=3
Mechanical
Test
Mechanical Shock
Pulse: 11 ms
Peak level: 30 g
Shock pulse:
6times/Axis
-
n=3
Mechanical
Vibration
Peak acceleration: 5 g
Frequency: 10~55 ㎐
Sweep time: 5 Minutes
2 Times/Axis
-
n=3

HDFX-100-TR (Ver.1.0)
Copyright © 2011, All rights reserved by Opticis Sep. 29, 2011
- 11 -
www.opticis.com
EMC Test
1) EMI: Meet FCC class A or B (ICES-003) and CE class A or B
STANDARDS
CONDITIONS
EN 55 022 (CISPR22)
FCC; PART 15 SUBPART B
CE (Conducted Emission) &
RE (Radiated Emission)
Meet Class A or B
EN 61000-3-2 (IEC 61000-3-2)
Harmonics
Meet Class A or B
EN 61000-3-3 (IEC 61000-3-3)
Flickers
Meet Class A or B
2) EMS: Meet CE standards (EN 55024) and CISPR24 equivalents
STANDARDS
CONDITIONS
EN 61 000-4-2:1995
Electrostatic Discharge Immunity
(Air: 8kv, Contact: 4kv)
Meet Criterion A or B
EN 61 000-4-3:1996
Radiated RF E-Field (80~1000 MHz)
3V/m (AM 80%, 1kHz)
Meet Criterion A or B
EN 61 000-4-4:1995
Fast Transients (5kHz, 60Seconds)
Meet Criterion A or B
EN 61 000-4-5:1995
Surge Transients
Meet Criterion A or B
EN 61 000-4-6:1996
Conducted Susceptibility (CS)
Radiated Susceptibility (RS)
Meet Criterion A or B
EN 61 000-4-11:1994
Voltage Dips, Interruption & Variation
Meet Criterion A or B, and C
Terminology
HDMI High Definition Multimedia Interface. Digital connection only –no analog.
HDCP High-bandwidth Digital Content Protection. These parameters are part of the
2002 High Definition Multimedia Interface (HDMI) specification for Consumer
Electronics.
EDID Extended Display Identification Data. EDID parameters are sent over the DDC
link.
EMI Electro Magnetic Interference.
RFI Radio Frequency Interference.
EMS Electro Magnetic Susceptibility.
PDP Plasma Display Panel. Large HDTV panels up to 63” use this display technology.
TFT-LCD Thin Film Transistor Liquid Crystal Display –the technology of most computer
display panels with VESA resolutions up to 1600x1200 pixels.
.
