OPTICOM CV-11T - User manual

Accessories
Monitor Ceiling Mount
20” - 34” Adjustable
Max Load 66lbs
Model # 404CE
Simple Monitor Mount
Max Load 66 lbs
Model # 201S
Simple Monitor Mount
Max Load 66 lbs
Model # 201
Simple Monitor Mount
Max Load 33 lbs
Model # 103
Single Arm Monitor Mount
Max Load 33 lbs
Model # F587
Dual Arm Monitor Swing Mount
Max Load 33 lbs
Model # 101
VESA Standard Monitor Mounts

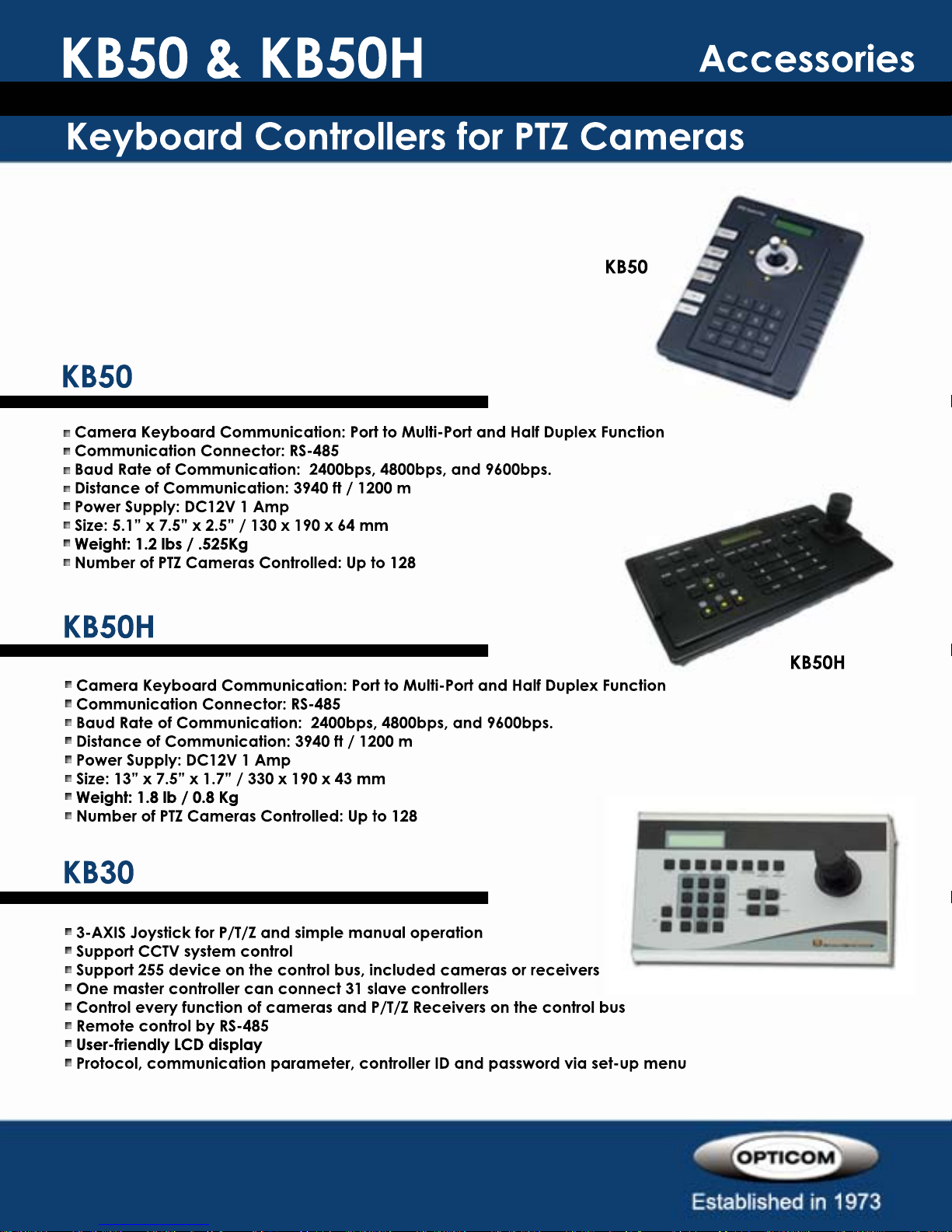

Keyboard Controllers for PTZ Cameras
KB50
KB50H
KB30
KB50H
KB50
KB50 & KB50H
Accessories
Camera Keyboard Communication: Port to Multi-Port and Half Duplex Function
Communication Connector: RS-485
Baud Rate of Communication: 2400bps, 4800bps, and 9600bps.
Distance of Communication: 3940 ft / 1200 m
Power Supply: DC12V 1 Amp
Size: 5.1” x 7.5” x 2.5” / 130 x 190 x 64 mm
Weight: 1.2 lbs / .525KgWeight: 1.2 lbs / .525Kg
Number of PTZ Cameras Controlled: Up to 128
Camera Keyboard Communication: Port to Multi-Port and Half Duplex Function
Communication Connector: RS-485
Baud Rate of Communication: 2400bps, 4800bps, and 9600bps.
Distance of Communication: 3940 ft / 1200 m
Power Supply: DC12V 1 Amp
Size: 13” x 7.5” x 1.7” / 330 x 190 x 43 mm
Weight: 1.8 lb / 0.8 KgWeight: 1.8 lb / 0.8 Kg
Number of PTZ Cameras Controlled: Up to 128
3-AXIS Joystick for P/T/Z and simple manual operation
Support CCTV system control
Support 255 device on the control bus, included cameras or receivers
One master controller can connect 31 slave controllers
Control every function of cameras and P/T/Z Receivers on the control bus
Remote control by RS-485
User-friendly LCD display User-friendly LCD display
Protocol, communication parameter, controller ID and password via set-up menu

Accessories
Power Supplies
Item:
16 Camera Distributed Power Supply, DC 12V, 8 Amp, UL Listed
8 Camera Distributed Power Supply, DC 12V, 4 Amp, UL Listed
4 Camera Distributed Power Supply, DC 12V, 2 Amp, UL Listed
8 Camera Distributed Power Supply, DC 12V, 8 Amp
16 Camera Distributed Power Supply, AC 24V, 8 AMP, UL Listed
8 Camera Distributed Power Supply, AC 24V, 4 Amp, UL Listed8 Camera Distributed Power Supply, AC 24V, 4 Amp, UL Listed
4 Camera Distributed Power Supply, AC 24V, 2 Amp, UL Listed
Item:
DC 12V, 300mA
DC12V, 500mA
DC 1V, 1000mA
DC 12V 1500mA
Model Number:
PS300
PS500
PS1000
PS1500
Part Number:
DC-16
DC-8
DC-4
DC-8-8
AC-16
AC-8AC-8
AC-4

Features
Specifications
4 Camera Color Quad Video Processor
QS02-2
Accessories
Title Generator
Real Time Clock
High Resolution
VCR Record Output
Video System: NTSC / Pal (auto-detect)
Refresh Rate: 60 fields/sec
Resolution: 860 x 525
Video Format: Full Screen / Quad / Auto Switch / PIP / POP
Title/Time Generator: 8 Characters for each Channel, Real-Time Clock
Picture Quality Adustable: Brightness, COntrast, Chroma, Sharpness, Hue
Motion Detection: YesMotion Detection: Yes
Buzzer: Video Loss & Motion Detection Alarm (alarm time adjustable)
Freeze: Yes (hold time adjustable)
Zoom Display: 2x2 Zoom in Playback and Freeze
Video Input: 4 Cameras, 1 VCR
Video Output: 1 Monitor, 1 Quad
Alarm Output: 1 Relay Out (NC or NO)
Power Supply: DC12VPower Supply: DC12V
Power Consumption: 6W max.
Dimensions: 8.7” x 1.7” x 8.3” / 220 x 44 x 210mm

Features
Specifications
8 Camera Color Quad Video Processor
QS2-8
Accessories
Real Time Refresh Rate
User-friendly Front Design
OSD Set-Up Menu
Smart Automatic Switcher
Video System: NTSC / Pal (auto-detect)
Refresh Rate: 60 fields/sec
Resolution: 860 x 525
Video Format: Full Screen / Quad / Auto Switch / PIP / POP
Title/Time Generator: 8 Characters for each Channel, Real-Time Clock
Picture Quality Adustable: Brightness, COntrast, Chroma, Sharpness, Hue
Motion Detection: YesMotion Detection: Yes
Buzzer: Video Loss & Motion Detection Alarm (alarm time adjustable)
Freeze: Yes (hold time adjustable)
Zoom Display: 2x2 Zoom in Playback and Freeze
Video Input: 4 Cameras, 1 VCR
Video Output: 1 Monitor, 1 Quad
Alarm Output: 1 Relay Out (NC or NO)
Power Supply: DC12VPower Supply: DC12V
Power Consumption: 6W max.
Dimensions: 8.7” x 1.7” x 8.3” / 220 x 44 x 210mm

Accessories
Camera Mounts and Housings
205
Aluminum Camera Housing
Bracket
245
Aluminum Camera Housing
Bracket (J Mount)
WM-1
Wall Mount Bracket for
Vandal Dome Camera
CM-1
Ceiling Mount Bracket for
Vandal Dome Camera
203
Black Adjustable
Camera Mount
202
Beige Camera Mount
360° Swivel Angle
605
Aluminum Camera Housing
605HB
Aluminum Camera Housing
with Heater/Blower

Accessories
DVR Lockboxes
DVR Lockbox with cooling fan: Made of super strong 16 guage steel with removable lid for
easy access, locking front door with cam lock and 2 keys, air vents, cooling fan and
power cord for superior cooling, rubber bumpers and durable textured powdercoat finish.
Sizes:
18” x 18” x 5”
21” x 21” x 8”
21” x 24” x 8”
Part Numbers:
LB18x18x5
LB21x21x8
LB21x24x8

CV-11T Accessories
1 Channel Video Server
