The OPERA™Voice/Audio Quality
Analyzer represents the latest
developments to objectively eva-
luate and assure the quality of
compressed voice and wide-band
audio signals, based on modeling
the human ear. With OPERA you
can achieve a comprehensive ana-
lysis of the end-to-end quality of
today's and next generation net-
works, such as 3G VoIP, VoDSL,
VoATM, ISDN, GSM, POTS, from
the caller to the callee. Also, you
can test the audio quality of com-
pression formats such as MP3,
AAC, AC3, Microsoft Windows
Media, from the studio source to
the receiver, or from the server to
the client.
For the test engineer, one of the
issues is how to apply a computer
model of the human ear to a test
circuit, or to a live network envi-
ronment. For this reason, OPTICOM
developed OPERA as an open, easy
to configure hardware platform
that can process perceptual
models, which are implemented

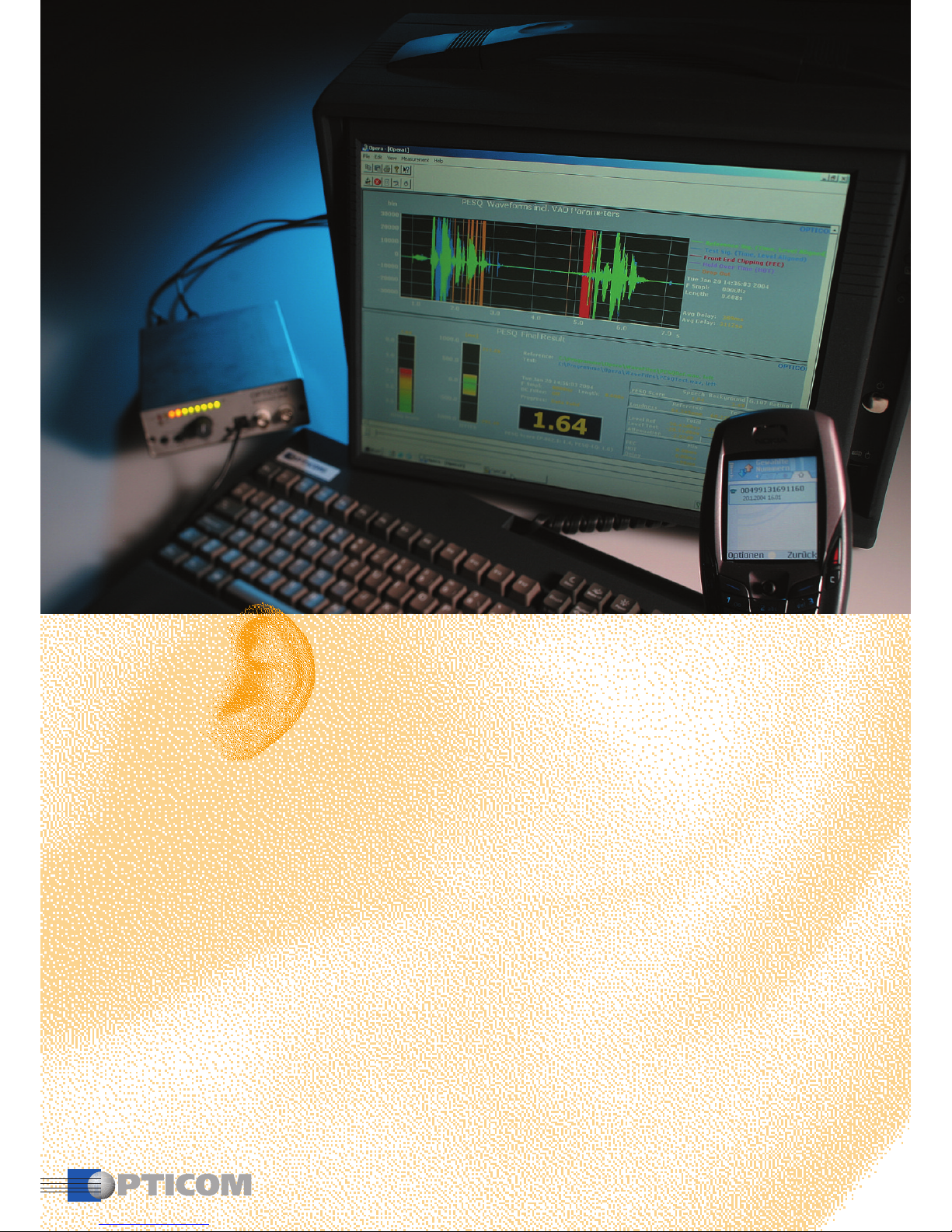

just by software. The basis of the
OPERA system is a portable 'lunch
box' type of PC host system. Four
slots can take various kinds of
interfaces. Alternatively, OPERA is
now also available in a rack-moun-
table form factor. For R&D and lab
applications, a cost effective soft-
ware-only version with reduced
functionality is offered, as well.
Supported Operating Systems
are Microsoft Windows NT™,
Windows™2000, Windows™XP,
Windows™2003.
OPERA
YOUR DIGITAL EAR! Voice/Audio Quality Analyzer
Comprehensive, end-to-end
quality analysis based on
perceptual measurement
The Objective Perceptual Signal Quality Analyzer setting the Standards

Voice Quality
Measurement
•PESQ, the new state-of-the-art
perceptual evaluation of speech
quality according to ITU-T rec.
P.862 [2001], combines PSQM
with PAMS, optimized for VoIP
and hybrid end-to-end applica-
tions, MOS and MOS-LQ calcu-
lations. PESQ wideband func-
tionality (PESQ-WB) is also
included.
•PSQM/IP, perceptual speech
quality measure according to
ITU-T rec. P.861 [1996], incl.
advanced delay compensation
for end-to-end measurements,
developed by OPTICOM
•PSQM+, advanced perceptual
speech quality measure accord-
ing to ITU-T COM 12-20 [1998]
•Echo measurement based on
real speech, Echo Return Loss
ERLpeak, ERL vs. delay
•Transmission Rating Factor R
according to ITU-T G. 107 (E-
Model), available with PESQ only
•One way delay measure-
ment, with PESQ also delay
jitter vs. time and delay
distribution
•Measurement under double
talk conditions
• One way and two way
measurements
•Bulk call generation
•H.323 interface functionality
using Windows NetMeeting™
and audio interfaces
•VAD analysis, Front-end
clipping FEC, hold-over time
HOT and dropout measurement
•Background noise
measurement
• Signal-to-noise SNR measure-
ment of speech and silent parts
of a test signal
•User definable state machines
supported for E1 MFC-R2,
E1 CAS-R2, T1 CAS
Audio Quality
Measurement
•PEAQ, perceptual evaluation
of audio quality according to
ITU-R rec. BS.1387 [1999],
Basic and Advanced Model
•48 kHz and 44.1 kHz sampling
rates supported
• Result logging functionality,
including user definable log
intervals and quality score
threshold
• Trigger functionality for
targeted analysis of on-line
or long duration test signals
Common Functionality
• Advanced delay compensation
for end-to-end measurements,
suitable for constant and vari-
able delays (VoIP), developed by
OPTICOM
•Delay measurement with real
speech/music. Results in sam-
ples as well as ms
• Attenuation measured in dB
• On-line real time acquisition
and analysis capability
• Comprehensive scripting inter-
face
•Remote Control over IP
•DDLC™improved timing
accuracy (Dynamic Driver
Latency Compensation)
• Play and record functionality
for wide band audio as well
as voice signals
• Easy-to-use graphical user
interface
•Extensive scripting and
command line options
OPERA™Control Center:
Easy Scheduling and
Remote Control
Functionality
• User friendly graphical interface
for setting up a schedule of test
calls between OPERA™systems
•Automated remote control
of a single or various OPERA™
systems via IP connection
• More than 3.000 measurements
per day, more than 20.000
BHCA (call attempts per hour)
• Automatic synchronisation and
allocation of the resources
•Commands may be automatically
repeated and rescheduled after
a certain time (e.g. every
Monday)
• Applicable to telecom and wide
band audio applications
• All result values as in the voice
and audio quality measurement
functionality are available
(except for graphical diagrams),
like PESQ, PSQM/IP, PSQM+,
PEAQ, Echo scores etc.
• PDD measurements (Post dial
delay)
• Total call duration measure-
ments
• Termination cause indicator
• All measurement results avail-
able at a glance
• Result view filtering by connec-
tions and/or QoS results (e.g.
only connections with poor
listening quality are shown)
• Measurement results may be
exported to any spread sheet,
data base program or network
management system for further
analysis
• Statistics and charts
Graphical Displays
• Time signal displays, zoomable
•FFT Spectra, zoomable
• Excitation and various psycho-
acoustic parameters, like NMR,
Masked Threshold and
Loudness
• Audible distortion measurement
• Result summary display with
MOV, PSQM MOS, PESQ MOS
and PEAQ ODG numerical
scores and bar graphs
• Delay Jitter vs. Time min/max
scores and graph (PESQ)
• Echo Return Loss vs. Delay
•and many other features (list
not comprehensive).
Interfaces
•Four port analog POTS inter-
faces
• Dual- or quad-port E1/T1 trunk
interfaces, fully software con-
figurable for a variety of proto-
cols: ISDN PRI, E1 MFC-R2 CAS,
E1 CAS-R2, T1 CAS/Robbed Bit,
both, FXO and FXS types. 120
Ohm RJ48C, optional adapter
kit for 75 Ohm Coax
•Professional stereo 24 bit ana-
log/digital audio interfaces, XLR
balanced, AES/EBU. With
optional multimedia adapter kit
also applicable to VoIP ter-
minal and IP phone testing
•Interfaces can be freely
combined in a system
Key Functionality at a Glance

Applications and Features Why
OPERA
sets the
Standards:
• Objective perceptual
evaluation of compressed
voice/audio signals modelling
recognized listening test
procedures, based on natural
speech/music
• Original reference imple-
mentations from the co-
developers and originators
of the ITU standards,
incl. KPN, BT, OPTICOM
•Direct relation of measured
QoS to customer’s satisfaction
•Efficient diagnostic tool
for next generations hard-
ware/networks design
A Flexible and Reliable Tool
to Assess a Large Variety
of Systems Under Test
• End-to-end voice quality testing
of 3G, VoIP, VoDSL, VoATM,
ISDN, GSM, POTS, based on
real world speech signals
• Measure VAD behaviour, echo
cancellers and signal enhancers
with any speech signal
• End-to-end wide band audio
quality testing of MP3, AAC,
AC3 and Microsoft™Windows
Media™
• Interactive or automated
unattended measurements
• Immediate overview of the QoS
of your network based on stan-
dardized metrics
•Plenty of detailed views and
graphs provided for further fault
analysis, incl. voice or wide
band audio quality, echo, delay,
jitter, VAD behaviour and call
timing
•Stress your network in order
to observe the effects on the
transmission quality (bulk call
generation)
• Monitor the QoS of any corpo-
rate, public or long distance
network
• Remote control a single or
numerous OPERA™analyzers via
an IP connection.
Share a pool of OPERA™
systems in your test lab with
other developers. Conveniently
control the pool from your
office PC
• Freely combine various inter-
face types in every measure-
ment (e.g. VoIP calls from POTS
to a VoIP terminal)
• Include the acoustical path in
the measurement using a head
and torso simulator (HATS)
• Monitor broadcast networks
on-line

Common System
Specifications:
OPR-1XX-XXX-P
Objective Perceptual Analyzer,
OPERA™
Basic portable framework system, incl.
• Dual Pentium IV Architecture
• 15" XGA TFT Display, 1024x768
• German, US or International
keyboard
• Integrated Trackpad
• Power Supply Unit 240/120 V
• Microsoft™Windows 2000
•OPERA Framework Software v3.5
• Control Center Light
• OPERA User's Manual
• Trolley Soft Case
•1 year extended maintenance
and support
•Alternatively available as
rackmounted version
Voice Testing Configurations:
OPR-101-ESQ-P
OPERA™voice quality tester,
incl.
•PESQ/P.862/P.862.1
•PSQM/P.861, PSQM+, PSQM/IP
•Echo return loss and delay
(w/ real speech)
•Four port analog POTS interface
•OPTICALL™Signal Acquisition
Software
OPR-111-ESQ-P
same as OPR-101-ESQ-P, add.
incl.
•2x 24 bit analog/digital audio I/O
interface option for multimedia
terminal testing (e.g. PC-to-phone)
OPR-121-ESQ-P
same as OPR-101-ESQ-P, add.
incl.
•2 x Stereo 24bit analog/digital
audio I/O interface option for
multimedia terminal testing
(e. g. PC-to-phone)
OPR-101-SQM-P
OPERA™voice quality tester,
incl.
• PSQM/P.861, PSQM+ , PSQM/IP
• Echo return loss and delay
(w/ real speech)
• Four port analog POTS interface
• OPTICALL™Signal Acquisition
Software
OPR-111-SQM-P
same as OPR-101-SQM-P, add.
incl.
• 2x 24 bit analog/digital audio I/O
interface option for multimedia
terminal testing (e.g. PC-to-phone)
Options for Voice Testing
Configuration
OPR-002-E1T-P
E1/T1 Option for OPERA
Voice Testing Configuration
• Dual Port E1/T1 Interface,
software configurable
• 120 Ohm RJ48C
OPR-000-EAQ-P
PEAQ s/w option for OPERA
Voice Testing Configuration
wide band audio testing algorithm
(software only)
•PEAQ/BS.1387 Advanced
• PEAQ/BS.1387 Basic Model
OPERA™Control Center server
software for automated use
incl.
Remote control OPERA systems over
TCP/IP
OPR-003-CTR-X
• 3-User license
OPR-010-CTR-X
• each user license from 4 up
to 10 users (others on request)
Audio Testing Configurations
OPR-120-EAQ-P
OPERA™audio quality tester,
incl.
•PEAQ/BS.1387 Advanced Model
• PEAQ/BS.1387 Basic Model
•2x Stereo 24bit analog/digital audio
interface option, sym. XLR, AES/EBU
Combined Voice+Audio Testing
Configurations
OPR-121-ASE-P
OPERA™voice+audio quality
tester, incl.
• PESQ/P.862/P.862.1
•PSQM/P.861, PSQM+ , PSQM/IP
• Echo return loss and delay
(w/ real speech)
• Four port analog POTS interface
•OPTICALL™Signal Acquisition
Software
• PEAQ/BS.1387 Advanced Model
• PEAQ/BS.1387 Basic Model
•2x Stereo 24bit analog/digital audio
interface option, sym. XLR, AES/EBU
OPR-121-ASQ-P
OPERA™voice+
audio quality tester, incl.
• PSQM/P.861, PSQM+ , PSQM/IP
•Echo return loss and delay
(w/ real speech)
•Four port analog POTS interface
• OPTICALL™Signal Acquisition
Software
• PEAQ/BS.1387 Advanced Model
•PEAQ/BS.1387 Basic Model
• 2x Stereo 24bit analog/digital
audio interface option, sym. XLR,
AES/EBU
Other Options for Voice and
Audio Testing Configuration
OPR-991-SUP-X
1 year extended maintenance and sup-
port, available to all OPR-xxx products
OPR-810-XXX-X
OPERA™multimedia adapter
set, 1 set
(e.g. for PC-to-phone, multimedia termi-
nal testing)
• incl. stereo XLR(m)-to-jack(3,5mm),
stereo XLR(f)-to-jack(3,5mm)
• incl. 2x XLR(m)-to-Cinch,
2x XLR(f)-to-Cinch
[Note: one set required, except for
OPR-x2x-xxx-x two sets required]
OPR-820-FMA-X
OPERA™fixed and mobile
phone adapter box (for connecting
the OPERA audio interface to hand-
sets, headsets, IP phones, etc.)
[Note: OPR-x1x-x or OPR-x2x-x required]
Software-only configurations
Common S/W Specifications
OPERA software suite v3.5, restricted
functionality (.wav) file-based only, no
real time/on line streaming, basic
framework system, incl.:
•installation guide
•OPERA User's Manual
•1 year support
Hardware Requirements for
OPERA software suite:
•Pentium III PC, 500MHz or above
•min. 128MB RAM,
256MB recommended
• OpenGL capable graphics adapter,
min. 8 MB required, nVIDIA RIVA,
TNT2 or similar;
optionally available with:
OPR-000-ESQ-S
• PESQ/P.862/P.862.1, includes also
• PSQM/P.861, PSQM+, PSQM/IP
or OPR-000-EAQ-S
• PEAQ/BS.1387
Advanced Model
• PEAQ/BS.1387 Basic Model
or OPR-000-ASQ-S
• PSQM/P.861, PSQM+, PSQM/IP,
includes also
• PEAQ/BS.1387 Advanced Model
• PEAQ/BS.1387 Basic Model
or OPR-000-ASE-S
• PESQ/P.862/P.862.1, includes also
•PSQM/P.861, PSQM+, PSQM/IP
• PEAQ/BS.1387 Advanced Model
•PEAQ/BS.1387 Basic Model
Configurations and Ordering Information
OPTICOM GmbH
Nägelsbachstraße 38
91052 Erlangen, GERMANY
Phone: +49 9131 / 5 30 20-0
Fax: +49 9131 / 5 30 20 - 20
EMail: [email protected]
Website: www.opticom.de
Further information also available
from www.pesq.org, www.peaq.org.
North America
Acterna U.S.
One Milestone Center Court
Germantown, MD 20876-7100, USA
Toll Free: 1 866 ACTERNA
Toll Free: 1 866 228 3762
Phone [phone] x 2850
Fax: [phone]
Western Europe
Acterna Germany GmbH
Mühleweg 5
72800 Eningen u.A., Germany
Phone: [phone]
Fax: [phone]
Latin America
Acterna do Brasil Ltda.
Av.Eng.Luis Carlos Berrini
936/8 °e 9 ° andares
04571-000 São Paulo
SP-Brazil
Phone: [phone]
Fax: [phone]
Eastern Europe,
Middle East & Africa
Acterna Austria GmbH
Aredstr.16-18
2544 Leobersdorf, Austria
Phone: [phone]
Fax: [phone]
Asia Pacific
Acterna Hong Kong Ltd.
Room 902,9th Floor
Bank of East Asia
Harbour View Centre
56 Gloucester Road
Wanchai, Hong Kong
Phone: [phone]
Fax: [phone]
CIS Countries
Acterna Moscow
Prospect Mira,26
stroenie 5
RF 129090 Moscow, Russia
Phone: [phone]
Fax: [phone]
Through our distributor network,
we are represented in more than
80 countries.
To find your local sales office,
please contact [email protected]
This information may be subject to change.
All brand and product names are trademarks
and/or registered trademarks of their respective
owners. All rights reserved. Copyright © 2005
OPTICOM GmbH – www.opticom.de
DEMO FOR EVALUATION
OPR-000-DEM-S
OPERA software suite v3.5,
limited trial demo version
•functionality as OPR-000-ASE-S
• limited number of trials
