Optimus SCP-101 User manual

Please read before using this equipment.
2:1(5¶6#0$18$/
SCP-101
$00)0#6WHUHR
$XWR#5HYHUVH
&DVVHWWH#
3OD\HU
14-1253.fm Page 1 Tuesday, July 27, 1999 12:50 PM

2
FEATURES
Your Optimus SCP-101 AM-FM Stereo Cassette Player
is lightweight, compact in size, convenient for carrying
anywhere, and easy to operate. It delivers excellent
sound through your stereo headphones or speakers and
includes these features:
Auto Reverse —automatically and continuously plays
the second side of a tape when the first side ends.
Extended Bass System — provides richer, fuller bass.
Full Scale Dial Pointer Tuning — lets you quickly find
your favorite station.
Three Power Sources —let you power the SCP-101
from AA batteries (not supplied), standard AC power (re-
quires an AC adapter, not supplied), or vehicle DC power
(requires a DC adapter, not supplied).
Removable Belt Clip — lets you take the SCP-101 any-
where you go.
Note: Your Optimus SCP-101 requires either external
speakers or headphones (neither supplied) for listening.
©1999 Tandy Corporation.
All Rights Reserved.
RadioShack, Optimus, and Adaptaplug are
registered trademarks used by Tandy Corporation.
14-1253.fm Page 2 Tuesday, July 27, 1999 12:50 PM

3
CONTENTS
Preparation .................................................................. 4
Connecting Power .................................................. 4
Using Internal Batteries 4
Using AC Power ..................................................... 6
Using Vehicle Battery Power .................................. 7
Connecting Headphones/Speakers ........................ 9
Listening Safely 10
Traffic Safety 10
Using the Belt Clip ................................................ 11
Radio Operation ........................................................ 12
Cassette Player Operation ....................................... 13
Playing a Cassette Tape ....................................... 13
Using Fast Forward/Rewind ................................. 15
Tape Tips ................................................................... 16
Storing Cassette Tapes ........................................ 16
Restoring Tape Tension and Sound Quality ......... 16
Care and Maintenance .............................................. 17
Cleaning the Tape-Handling Parts ........................ 17
FCC Information ................................................... 19
Specifications ........................................................... 20
14-1253.fm Page 3 Tuesday, July 27, 1999 12:50 PM

4
PREPARATION
CONNECTING POWER
The SCP-101 operates from any of these power sources:
• internal batteries (not supplied)
• standard AC power (using an optional AC adapter)
• vehicle battery power (using an optional DC adapter)
Using Internal Batteries
Your SCP-101 requires two AA batteries (not supplied for
power. For the best performance and longest life, we rec-
ommend RadioShack alkaline batteries.
Cautions:
• Use only fresh batteries of the required size and rec-
ommended type.
• Do not mix old and new batteries, different types of
batteries (standard, alkaline, or rechargeable) or
rechargeable batteries of different capacities.
14-1253.fm Page 4 Tuesday, July 27, 1999 12:50 PM

5
Follow these steps to install batteries.
1. Press and slide the battery compartment cover in the
direction of the arrow until it stops.
2. Lift the curved edge of the cover.
Caution: The battery compartment cover is hinged
and cannot be removed.
3. Place the batteries in the compartment and on top of
the attached ribbon, as indicated by the polarity sym-
bols (+ and –) marked on outside the compartment.
4. Close the cover.
When the sound gets distorted or weak, or the SCP-101
stops operating properly, replace the batteries.
Warning: Dispose of old batteries promptly and properly.
Do not burn or bury them.
Caution: If you do not plan to use the SCP-101 with bat-
teries for a week or more, or if you plan to use only stan-
14-1253.fm Page 5 Tuesday, July 27, 1999 12:50 PM

6
dard AC or vehicle power, remove the batteries. Batteries
can leak chemicals that can destroy electronic parts.
USING AC POWER
You can power the SCP-101 using a 3V, 300-mA AC
adapter and a size H Adaptaplug®(neither supplied).
Both are available at your local RadioShack store.
Cautions:
You must use a Class 2 power source that
supplies 3V DC and delivers at least 300
mA. Its center tip must be set to positive and
its plug must fit the SCP-101's DC 3V jack. Using an
adapter that does not meet these specifications could
damage the SCP-101 or the adapter.
• Always connect the AC adapter to the SCP-101 be-
fore you connect it to AC power. When you finish,
disconnect the adapter from AC power before you
disconnect it from the SCP-101.
!
14-1253.fm Page 6 Tuesday, July 27, 1999 12:50 PM

7
Follow these steps to power the SCP-101 from standard
AC power.
1. If the adapter has a voltage switch, set the switch to
3V.
2. Insert the Adaptaplug into the adapter’s cord so it
reads TIP +.
3. Insert the Adaptaplug into the SCP-101’s DC 3V jack.
4. Plug the adapter into a standard AC outlet.
Note: Connecting an adapter to the SCP-101's DC 3V
jack disconnects the internal batteries.
USING VEHICLE BATTERY POWER
You can power the SCP-101 from a vehicle’s 12V power
source (such as cigarette-lighter socket) using a 3V, 300-
mA DC adapter and a size H Adaptaplug (neither sup-
plied). Both are available at your local RadioShack store.
14-1253.fm Page 7 Tuesday, July 27, 1999 12:50 PM

8
Cautions:
You must use a power source that supplies
3V DC and delivers at least 300 mA. Its cen-
ter tip must be set to positive and its plug
must fit the SCP-101's DC 3V jack. Using an adapter
that does not meet these specifications could dam-
age the SCP-101 or the adapter.
• Always connect the DC adapter to the SCP-101 be-
fore you connect it to the power source. When you
finish, disconnect the adapter from the power source
before you disconnect it from the SCP-101.
Follow these steps to power the SCP-101 from DC power.
1. If the adapter has a voltage switch, set the switch to
3V.
2. Insert the Adaptaplug into the adapter's cord so it
reads TIP+.
!
14-1253.fm Page 8 Tuesday, July 27, 1999 12:50 PM

9
3. Insert the Adaptaplug into the SCP-101's DC 3V jack.
Note: Connecting an adapter to the SCP-101's DC
3V jack disconnects the internal batteries.
4. Plug the other end of the DC adapter into the vehi-
cle's cigarette-lighter socket.

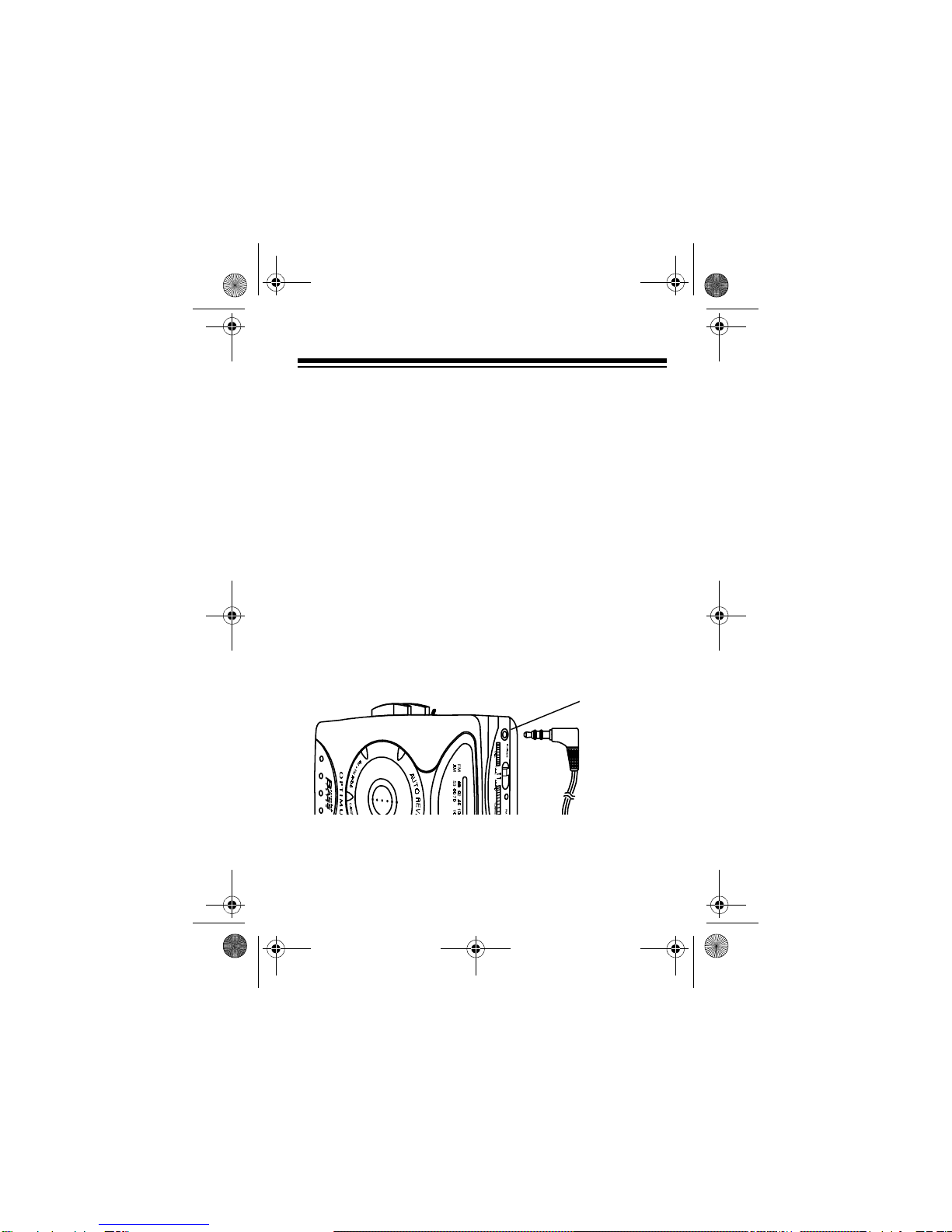

CONNECTING HEADPHONES/
SPEAKERS
To listen to the SCP-101, connect stereo headphones or
amplified speakers (neither supplied) equipped with a 1/8-
inch (3.5-mm) stereo plug to PHONES. Your local
RadioShack store sells a wide variety of stereo head-
phones and amplified speakers.
PHONES
14-1253.fm Page 9 Tuesday, July 27, 1999 12:50 PM

10
Listening Safely
To protect your hearing, follow these guidelines when
you use headphones.
• Set the volume to the lowest setting before you begin
listening. After you begin listening, adjust the volume
to a comfortable level.
• Do not listen at extremely high volume levels.
Extended high-volume listening can lead to perma-
nent hearing loss.
• Once you set the volume, do not increase it. Over
time your ears adapt to the volume level, so a volume
level that does not cause discomfort might still dam-
age your hearing.
Traffic Safety
• Do not wear headphones while operating a motor
vehicle or riding a bicycle. This can cause a traffic
hazard and could be illegal in some areas.
• Even though some headphones are designed to let
you hear outside sounds when you listen at normal
volume levels, they still can present a traffic hazard.
14-1253.fm Page 10 Tuesday, July 27, 1999 12:50 PM

11
USING THE BELT CLIP
For hands-free carrying, install the supplied belt clip.
To install the belt clip, place it below and between the two
guides on the back of the player. Then slide the clip in the
opposite direction of the arrow until it snaps into place.
To remove the belt clip, lift the tab at the point marked
LIFT, then slide the clip in the direction of the arrow.
14-1253.fm Page 11 Tuesday, July 27, 1999 12:50 PM

12

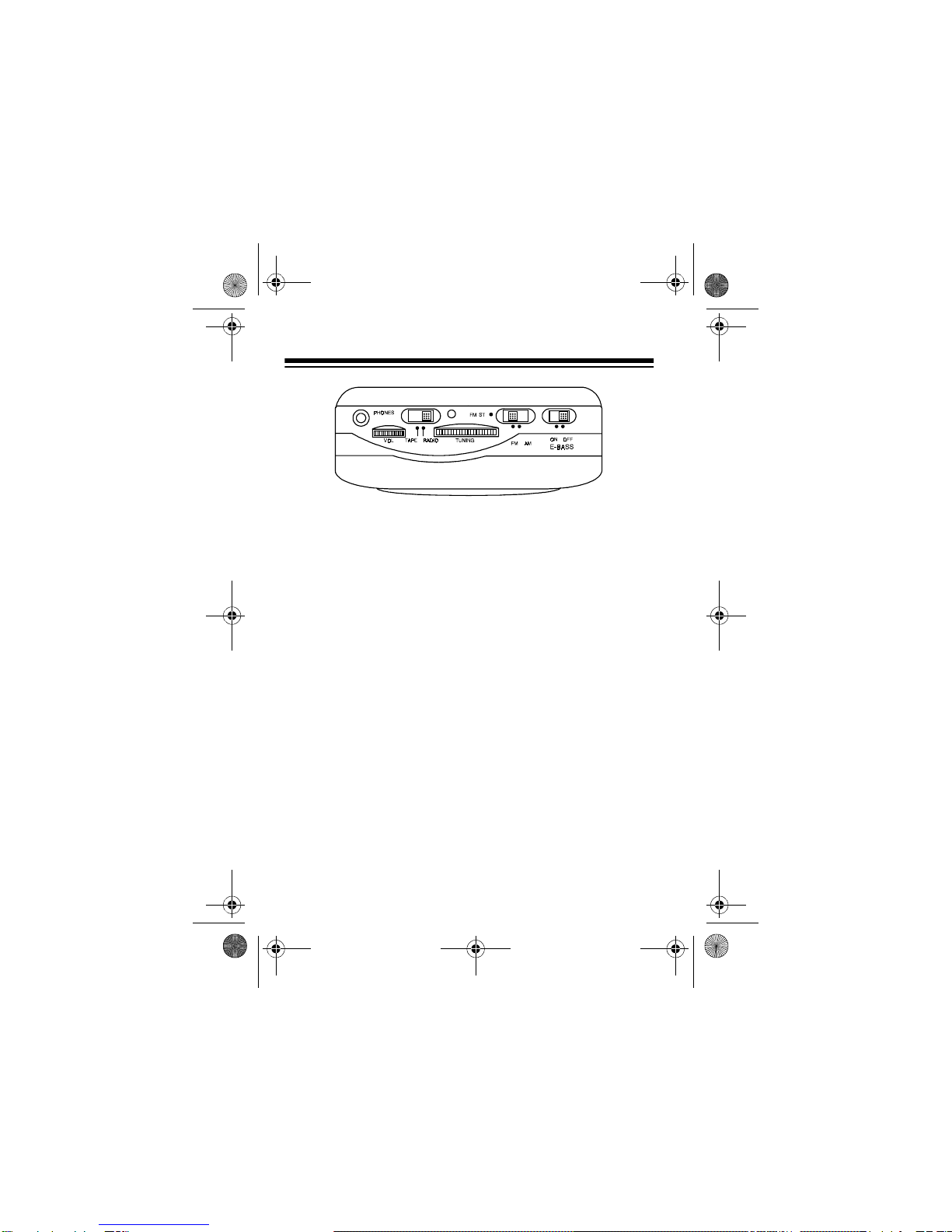

RADIO OPERATION
Follow these steps to set up, tune and play the radio.
1. Connect either headphones or amplified speakers to
PHONES.
2. Set TAPE/RADIO to RADIO.
3. Set FM ST/FM/AM to the desired band.
4. Adjust VOL to the desired listening level.
5. Turn TUNING to select the station.
Notes:
• If you set the radio to FMST, FM ST (FM Stereo)
lights when you receive a stereo FM broadcast.
• To improve the reception of a weak FM station, set
FM ST/FM/AM to FM. The signal changes from ste-
reo to monaural, and reception generally improves.
•Set
E-BASS to ON for an enhanced bass effect. Set
it to OFF for normal bass sound.
6. To turn off the radio, set TAPE/RADIO to TAPE.
14-1253.fm Page 12 Tuesday, July 27, 1999 12:50 PM

13
CASSETTE PLAYER OPERATION
PLAYING A CASSETTE TAPE
Note: A cardboard tab in the cassette compartment pro-
tects the tape-handling parts during shipping. Remove
the tab before you insert a cassette tape.
Follow these steps to play a cassette tape.
1. Connect either headphones or amplified speakers to
PHONES.
2. Take up any slack in the tape by turning the casette’s
hub with a pencil. Do not touch the exposed tape.
3. Lift open the cassette compartment door.
14-1253.fm Page 13 Tuesday, July 27, 1999 12:50 PM

14

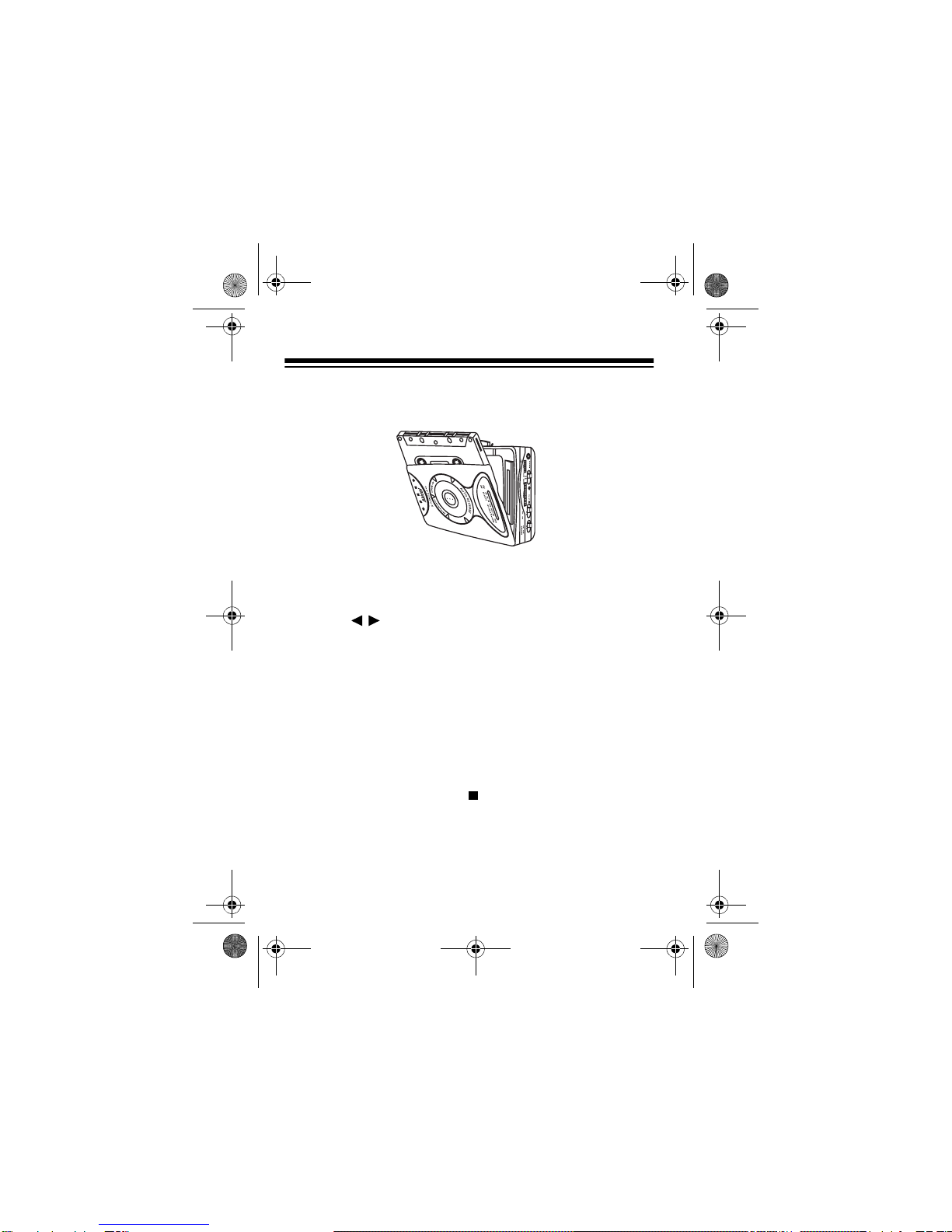

4. Insert the cassette tape into the cassette guides with
the open edge facing up.
5. Close the compartment door.
6. Set TAPE/RADIO to TAPE.
7. Press . The tape begins play.
Note: When the tape finishes playing side one, it
automatically reverses direction and plays side two.
To manually change the tape direction, slide DIREC-
TION to its other position.
8. Adjust VOL. to the desired listening level.
Note: Set E-BASS to ON for an enhanced bass effect.
Set it to OFF for normal bass sound.
9. To stop playback, press .
14-1253.fm Page 14 Tuesday, July 27, 1999 12:50 PM

15

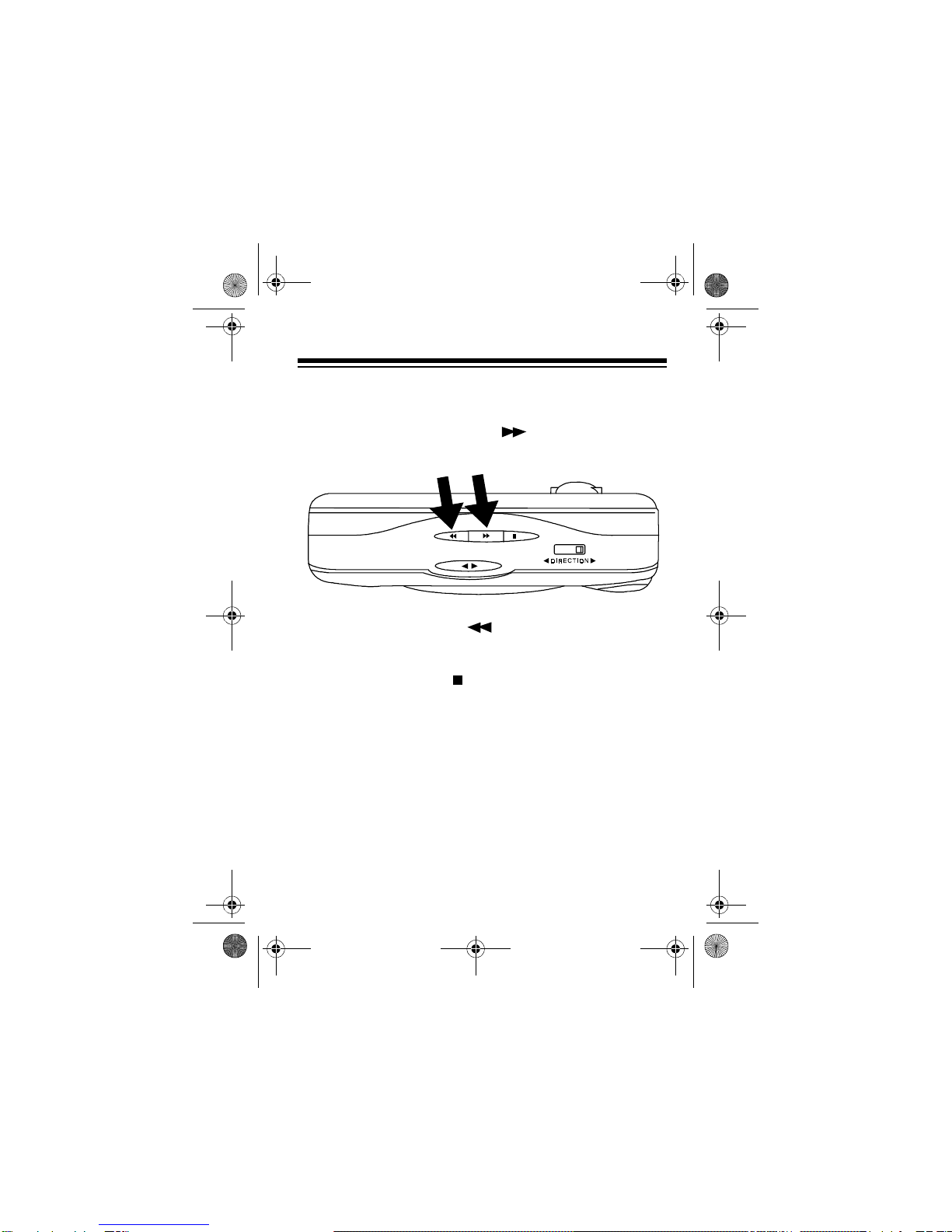

USING FAST FORWARD/REWIND
To fast forward the tape, press in the same direction
as the tape is playing.
To rewind the tape, press in the opposite direction of
play.
To stop the tape, press .
14-1253.fm Page 15 Tuesday, July 27, 1999 12:50 PM

16
TAPE TIPS
STORING CASSETTE TAPES
Do not expose cassette tapes to high temperatures, high
humidity, dust or dirt, or motors, transformers, or other
sources of strong magnetic fields.
RESTORING TAPE TENSION AND
SOUND QUALITY
After you play a cassette tape several times, the tape
might become tightly wound on the reels. This can cause
playback sound quality to deteriorate.
To restore the sound quality, fast forward the tape from
the beginning to the end of one side, then completely re-
wind it. Then loosen the tape reels by gently tapping each
side of the cassette’s outer shell on a flat surface.
Caution: Be careful not to damage the cassette when
tapping it. Do not touch the exposed tape or allow any
sharp objects near the cassette.
14-1253.fm Page 16 Tuesday, July 27, 1999 12:50 PM

17
CARE AND MAINTENANCE
Your Optimus SCP-101 AM-FM Stereo Cassette Player
is an example of superior design and craftsmanship. The
following suggestions will help you care for the SCP-101
so you can enjoy it for years.
• Keep the SCP-101 dry. If it gets wet, wipe it dry
immediately.
• Use and store the SCP-101 only in normal tempera-
ture environments.
• Handle the SCP-101 gently and carefully. Don’t drop
it.
• Keep the SCP-101 away from dust and dirt.
• Wipe the SCP-101 with a damp cloth occasionally to
keep it looking new.
Modifying or tampering with the SCP-101’s internal com-
ponents can cause a malfunction and might invalidate its
warranty. If your SCP-101 is not performing as it should,
take it to your local RadioShack store for assistance.
CLEANING THE TAPE-HANDLING
PARTS
Dirt, dust, or particles of the tape’s coating can accumu-
late on the tape head and other parts that the tape touch-
es. This can greatly reduce the SCP-101’s performance.
14-1253.fm Page 17 Tuesday, July 27, 1999 12:50 PM

18
After every 20 hours of tape player operation, follow
these steps to clean the tape-handling parts or use a Ra-
dioShack cassette deck cleaning kit.
1. Remove the batteries and disconnect any other
power source.
2. Open the cassette compartment door, remove any
cassette tape inside and set TAPE/ RADIO to TAPE.
3. Press to expose the tape head.
4. Use a cotton swab dipped in tape head-cleaning
solution or denatured alcohol to gently clean the cap-
stans, tape guides, pinch rollers, and tape head.
5. When you finish cleaning, press and close the
compartment door, then reconnect power.
Tape Head
Pinch Roller
Capstan
Swab
Capstan
Pinch Roller
Tape Guide (4)
14-1253.fm Page 18 Tuesday, July 27, 1999 12:50 PM

19
FCC INFORMATION
The SCP-101 complies with the limits for a Class B digital
device as specified in Part 15 of
FCC Rules . These limits
provide reasonable protection against radio and TV inter-
ference in a residential area. However, your SCP-101
might cause TV or radio interference even when it is op-
erating properly. To see if your SCP-101 is causing the
interference, turn it off. If the interference goes away,
your SCP-101 is causing it. To eliminate interference, try
the following:
• Increase the distance between the SCP-101 and the
radio or TV.
• Use outlets on different electrical circuits for the SCP-
101 and the radio or TV.
Consult your local RadioShack store if the problem still
exists.
14-1253.fm Page 19 Tuesday, July 27, 1999 12:50 PM

20
SPECIFICATIONS
RADIO
Frequency Range:
FM.......................................................... 88–108 MHz
AM....................................................... 530–1710 kHz
Antennas:
FM................................ Headphone or Speaker Wire
AM................................................................. Bar Coil
CASSETTE PLAYER
Tape System ...........................4-Track, 2-Channel Stereo
Frequency Response ........................ 125Hz–6,000 KHz
Wow and Flutter ...................................................... 0.4%
Tape Speed..................................17/8Inches per Second
Signal-to-Noise Ratio.............................................. 40 dB
GENERAL
Power Output ....................................10mW into 32 ohms
32ohms/1KHz/3% THD
14-1253.fm Page 20 Tuesday, July 27, 1999 12:50 PM
