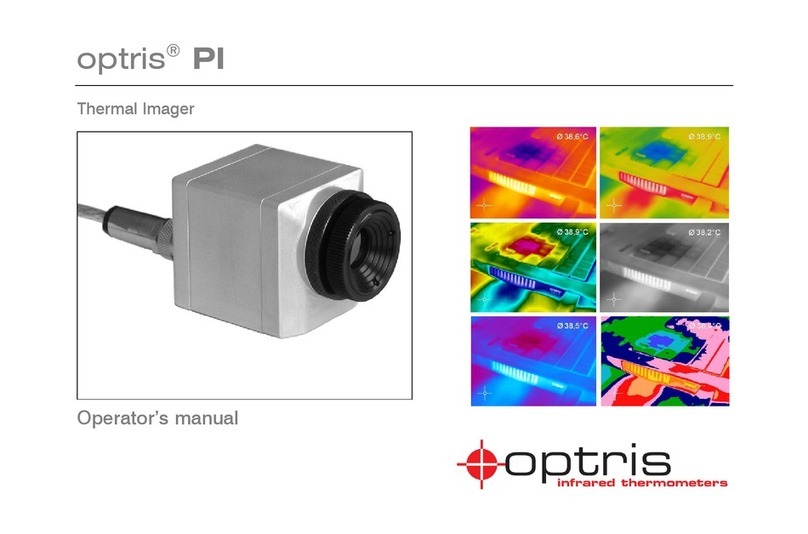

optris®PI
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Thermal Imager
Operators manual

optris PI – E2008-06-A
1
CE-Conformity Optris GmbH
Ferdinand-Buisson-Str. 14
D – 13127 Berlin
GERMANY
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
Internet: www.optris.com
The product complies with the following standards:
EMC: EN 61326-1
Safety Regulations: EN 61010-1:1993/ A2:1995
The product accomplishes the requirements of the EMC Directive
89/336/EEC and of the low-voltage directive 73/23/EEC.
Read the manual carefully before the initial start-up. The producer reserves the right to change the herein described
specifications in case of technical advance of the product.
Warranty
Each single product passes through a quality process. Nevertheless, if failures occur please contact the customer service at
once. The warranty period covers 24 months starting on the delivery date. After the warranty is expired the manufacturer
guarantees additional 6 months warranty for all repaired or substituted product components. Warranty does not apply to
damages, which result from misuse or neglect. The warranty also expires if you open the product. The manufacturer is not
liable for consequential damage. If a failure occurs during the warranty period the product will be replaced, calibrated or
repaired without further charges. The freight costs will be paid by the sender. The manufacturer reserves the right to
exchange components of the product instead of repairing it. If the failure results from misuse or neglect the user has to pay
for the repair. In that case you may ask for a cost estimate beforehand.

optris PI – E2008-06-A
2
Content
Page Page
Welcome! 3Settings 14
ScopeofSupply 3MeasurementFunctions 20
Maintenance 4 Basics of Infrared Thermometry 22
Cautions 4Emissivity 23
Factory Default Settings 4 Definition 23
Technical Data 5 Determination of unknown Emissivities 23
General Specifications 5 Characteristic Emissivities 24
Electrical Specifications 5 Appendix A – Emissivity Table Metals 25
Measurement Specifications 6 Appendix B – Emissivity Table Non Metals 26
Mechanical Installation 7
Electrical Installation 8
Process Interface 9
Start-Up 9
Software PI Connect 10
Installation 10
Overview 11
Menus 12

optris PI – E2008-06-A
3
Welcome!
Thank you for choosing the optris PI thermal imager!
The optris PI calculates the surface temperature based on the emitted infrared energy of objects [►Basics of
Infrared Thermometry]. The two-dimensional detector (FPA - focal plain array) allows a measurement of
160 x 120 pixels and will be shown as thermographic image using standardized palettes. The radiometric
processing of the picture data enables the user to do a comfortable detailed analysis with the software
PI Connect.
The optris PI is a precise instrument and contains a sensitive infrared detector and a high-quality
lens. The alignment of the camera to intensive energy sources (high power laser or reflexions of such
equipment, e.g.) can have effect on the accuracy of the measurement or can cause an irreparable
defect of the infrared detector.
The mounting should be made only via the mounting threads or tripod connection the housing is
providing.
Scope of Supply
optris PI Thermal Imager incl. one lens
USB cable (1 m)
Process interface cable
Table tripod
Thermographic software PI Connect
Operators manual

optris PI – E2008-06-A
4
Maintenance
Lens cleaning: Blow off loose particles using clean
compressed air. The lens surface can be cleaned with a soft,
humid tissue moistened with water or a water based glass
cleaner.
PLEASE NOTE: Never use cleaning
compounds which contain solvents
(neither for the lens nor for the housing).
Cautions
Avoid static electricity, arc welders, and induction heaters. Keep away from very strong EMF (electromagnetic
fields). Avoid abrupt changes of the ambient temperature.
In case of problems or questions which may arise when you use the infrared camera, please contact our service
department.
Factory Default Settings
The unit has the following presetting at time of delivery:
Temperature range -20...100 °C
Emissivity 0,970
Process interface (PIF) inactive
Interprocess Communication (IPC) inactive
Measurement function Cross hairs (3x3 pixels)

optris PI – E2008-06-A
5
Technical Data
General Specifications
Environmental rating IP65 (NEMA-4)
Ambient temperature 0...50 °C
Storage temperature -20...70 °C
Relative humidity 10...95 %, non condensing
Material (housing) aluminium, anodized
Dimensions 45 mm x 45 mm x 65 mm
Weight 250 g (incl. lens and 1 m USB cable)
Cable length (USB 2.0) 1 m (Standard), 5 m, 20 m
Vibration IEC 68-2-6: 3G, 11 – 200Hz, any axis
Shock IEC 68-2-27: 50G, 11ms, any axis
EMI 89/336/EWG
Electrical Specifications
Power Supply 5 VDC (powered via USB 2.0 interface)
Current draw max. 500 mA
Output
Process Interface (PIF out) 0-10 V (TObj, TInt or Flag status)
Input
Process Interface (PIF in) 0-10 V (Emissivity, Flag control)
Digital interface USB 2.0

optris PI – E2008-06-A
6
Measurement Specifications
Temperature ranges -20...100 °C
0...250°C
120...900 °C
Spectral range 7,5...13 µm
Lenses 31° x 23°/ 9° x 7°
System accuracy 1) ±2 °C or ±2 %
Temperature resolution (NETD) 0,08 K
Frame rate 100 Hz
Warm-up time 10 min
Emissivity 0,100…1,000 (adjustable via software)
Measurement functions Cross hairs (1x1, 3x3 or 5x5 pixels); free adjustable location
Measurement rectangle; Size scalable; free adjustable location
Both of these functions can be combined with the signal processing
features: Average, MAX, MIN value.
Software PIConnect
1) at ambient temperature 23±5 °C; whichever is greater

optris PI – E2008-06-A
7
Mechanical Installation
The PI is equipped with two metric M4 thread holes on the bottom side (6 mm depth) and can be installed either
directly via these threads or with help of the tripod mount (also on bottom side).
optris PI - drawing

optris PI – E2008-06-A
8
Electrical Installation
At the back side of the PI you will find two connector plugs. Please connect the supplied USB cable with the
right plug. The left connector plug is only used for the process interface.
Backside of camera with connectors

optris PI – E2008-06-A
9
Process Interface
The PI is equipped with a process interface, which can be programmed via the software as Input [PIF in] (to
control the camera) or as Output [PIF out] (to control the process).
PIF in PIF out
Emissivity Object temperature
Flag control Unit temperature
Flag status
The signal level is always 0-10 V.
Start-Up
Please install at first the software PIConnect from the CD, as described in the next chapter. The CD contains the
software application as well as the unit specific calibration data. These data will be installed also automatically.
Now you can connect the infrared imager to a free USB port (USB 2.0) of your PC.
After the software has been started, you should see the live image from the camera inside a window on your PC
screen.
The sharpness of the image can be adjusted by turning the exterior lens ring.

optris PI – E2008-06-A
10
Software PI Connect
Installation System requirements:
Windows XP
USB interface
Hard disc with at least 30 MByte free space
At least 256 MByte RAM
CD-ROM drive
Insert the installation CD into the according drive on
your computer. If the autorun option is activated the
installation wizard will start automatically.
Otherwise please start setup.exe from the CD-ROM.
Follow the instructions of the wizard until the
installation is finished.
The installation wizard will place a launch icon on the desktop and in the start menu:
[Start]\Programs\Optris GmbH\PI Connect.
If you want to uninstall the software from your system please use the uninstall icon in the start menu.
Main Features:
Display of the thermal image in real time (100 Hz) with a wide range of measurement functions
Recording function (video, radiometric video, snap shot)
Analysis and post processing of infrared images/ videos
Complete set up of parameters and remote control of the camera

optris PI – E2008-06-A
11
Overview
1 IR-Live picture from the
camera
2 Temperature profile:
Shows the temperatures
along max. 2 lines, which
can have any size and
position inside the picture.
3 Reference bar: Shows the
scaling of the palette.
4 Temperature of measure
area: Shows the
temperature according to
the selected measurement
function (cross hairs/
Rectangle) – this value is
shown also inside the IR
picture (above right).
5 Histogram: Shows the
statistic distribution of
single temperature values.
6 Control: Shows temperatures of different components of the PI; manual activation of the Flag by pressing
the Flag button.
7 Temp. at cursor: The temperature of each pixel can be shown by moving the cursor over the infrared image.

optris PI – E2008-06-A
12
Menus
The most important features of the software can be activated directly via the toolbar:
File Menu
Open is used for opening of all thermographic files (IR pictures in the radiometric JPG format, IR videos).
Save Captured Video is used for saving of thermographic video files (standard AVI format or radiometric RAVI
format). Reopen shows a list of recently opened files.
Play, Pause, Stop and Record are controlling the recording and play back of video files.
Snapshot is used for saving of single pictures (JPG).

optris PI – E2008-06-A
13
View Menu
This menu controls the display or fade out of the different software functions.
With the function Image information you can decide, which information you would like to see inside the infrared
image window.
Tools Menu
The menu item Options opens a selection screen for extensive
settings for the camera parameters as well as for the display of the
infrared images.

optris PI – E2008-06-A
14
Settings
The menu Tools\ Options\ General opens the following window:
Palette: Selection of a color palette for the display of the infrared image
Directory: Directory for saving of infrared image and video files

optris PI – E2008-06-A
15
Register: Device
Shut flag: Definition of the shut cycle of the flag
Emissivity: Setting of the emissivity
Temperature range: Selection of a temperature measurement range
Process interface (PIF in): Programming of the PIF as input (0-10 V) to control the emissivity setting or
flagremotely

optris PI – E2008-06-A
16
Process interface (PIF out): Programming of the PIF as output (0-10 V) to give out the object temperature,
the internal temperature or the flag status

optris PI – E2008-06-A
17
Register: Measuring
Measure area: Selection of the measurement function (cross hairs, rectangle)
Temperature profile: Definition of length and position of the temperature profile

optris PI – E2008-06-A
18
Register: Recording
Recording frame rate: Definition of the frame rate for recording
Recording time limit: Definition of a maximum recording time
Radiometric recording: If activated the recording will be done as *.ravi – file. Later this can be opened
with the software PI Connect only (no compatibility with media player software)
