Orbio 5000-Sc User manual

5000--Sc
*DM20001*
www.orbiotechnologies.com
DM20001
Rev. 02 (2-2012)
North America / International
Cleaning Solution Generator
Generador de soluciones de limpieza
Générateur de Solution de Nettoyage
English Operator Manual EN
Español Manual del operario ES
Français Manuel de l’Opérateur FR
Go To..
Home
Find...

This manual is furnished with each new model. It provides necessary operation and maintenance instructions.
Read this manual completely and understand
the machine before operating or servicing it.
This machine will provide excellent service. However, the best results will be obtained at minimum costs if:
SThe machine is operated with reasonable care according to instructions provided.
SThe machine is maintained regularly - per the machine maintenance instructions provided.
SThe machine is maintained with manufacturer supplied or equivalent parts.
PROTECT THE ENVIRONMENT
Please dispose of packaging
materials, old machine components,
and hazardous fluids in an
environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.
MACHINE DATA
Please fill out at time of installation for future reference.
Model No. --
Serial No. --
Sales Rep. --
Sales Rep. phone no. --
Customer Number --
Installation Date --
Orbio Technologies
701 North Lilac Drive
Minneapolis, MN 55440
Phone: [phone] or (763) 513--2850
www.orbiotechnologies.com
Specifications and parts are subject to change without notice.
Original Instructions, copyright E2011, 2012 Orbio Technologies from TENNANT COMPANY, Printed in U.S.A.
Home
Go To..
Find...

OPERATION EN
1
5000--Sc DM20001 (2--12)
CONTENTS
Page
Safety Precautions 2......................
Grounding Instructions 3..................
Operation 4...............................
Components 4..........................
Display Panel Indicators 5................
How The Machine Works 6...............
Moving The Machine 6...................
While Operating The Machine 6...........
Cleaning Solution 6......................
Dispensing With Dispensing Nozzle 7......
Dispensing With Bottle Fill Nozzle 7.......
Indicators 8.............................
Service Required Indicator 8...........
Power / Generating Indicator 8.........
No Water Flow Indicator 8.............
Service Input Filter Indicator 8.........
Add Salt Indicator 9...................
Dock The Dispensing Nozzle Indicator 9.
Solution Generated Indicator 9.........
Reset Button / Indicator 9.............
Water Temperature Too Hot Indicator
(Previous Display Panel) 10..........
Auxiliary Tank(s) (Option) 10...............
Troubleshooting 11.......................
Maintenance 12............................
Filling The Salt Reservoir 12...............
Carbon Filter 12..........................
Replace The Input Filter 13................
Dispensing Hose Shut--Off Knob 14.........
Testing The Cleaning Solution 14...........
Specifications 16..........................
Dimensions/Weight 16....................
General Performance 16..................
Generation System 16....................
Input Water Source 16....................
Power Source 17.........................
Consumables 17.........................
Dimensions 17...........................
Home
Go To..
Find...

EN OPERATION
5000--Sc DM20001 (4--11)
2
SAFETY PRECAUTIONS
The following precautions are used throughout
this manual as indicated in their description:
WARNING: To warn of hazards or
unsafe practices that could result in
severe personal injury or death.
CAUTION: To warn of unsafe practices
that could result in minor or moderate
personal injury.
FOR SAFETY: To identify actions that must be
followed for safe operation of equipment.
This machine is designed solely for creating,
storing, and dispensing 5000--Sc cleaning
solution.
The following information signals potentially
dangerous conditions to the operator or
equipment. Read this manual carefully. Know
when these conditions can exist. Locate all safety
devices on the machine. Then, take necessary
steps to train machine operators. Report machine
damage or faulty operation immediately. Do not
use the machine if it is not in proper operating
condition.
WARNING: Electrical Hazard.
-- Do not operate with damaged power
cord.
-- Unplug power cord before servicing
machine.
-- Do not modify plug. If the power cord
is damaged or broken, it must be
replaced by the manufacturer or its
service agent or a similarly qualified
person in order to avoid a hazard.
WARNING: Electrical Shock Hazard.
Do Not Use Outdoors. Do Not Expose
To Rain / Moisture. Store Indoors
FOR SAFETY:
1. When machine is installed:
-- Make sure it is installed on a stable
surface with a tilt of 5 degrees or less
in any direction.
2. Before operating machine:
-- Unless trained and authorized.
-- Unless operator manual is read and
understood.
-- Unless mentally and physically
capable of following machine
instructions.
-- If it is not in proper operating
condition.
-- Unless cord is properly grounded.
-- With damaged cord or plug.
3. Before operating machine:
-- Follow safety guidelines concerning
wet floors.
-- Make sure all safety devices are in
place and operate properly.
4. When using machine:
-- Do not unplug by pulling on cord.
-- Do not handle plug with wet hands.
-- Do not stretch cord.
-- Keep cord away from heated surfaces.
-- Report machine damage or faulty
operation immediately.
-- Never allow children to play on or
around machine.
5. When servicing machine:
-- Unplug cord from wall outlet.
-- All repairs must be performed by an
authorized service person.
-- Use manufacturer supplied or
approved replacement parts.
-- Do not modify the machine from its
original design.
6. When using cleaning solution:
-- Do not mix 5000--Sc cleaning solution
with conventional cleaning chemicals.
-- Do not drink cleaning solution.
-- Refer to MSDS (Material Safety Data
Sheet) for additional safety
information and precautions.
Home
Go To..
Find...

OPERATION EN
3
5000--Sc DM20001 (3--11)
GROUNDING INSTRUCTIONS
Equipment must be grounded. If it should
malfunction or break down, grounding
provides a path of least resistance for
electrical current to reduce the risk of
electrical shock. This equipment is equipped
with a cord having an equipment--grounding
conductor and grounding plug. The plug
must be plugged into a Ground Fault Circuit
Interrupter (GFCI)--protected outlet or adapter
that is properly installed in accordance with
all local codes and ordinances. Do not remove
ground pin; if missing, replace plug before
use.
Grounded 3
Hole Outlet
Ground Pin
120V 220V/230V/240V
Grounded Outlet
Grounding
Edge/hole
The safety labels appear on the equipment in the
locations indicated. Replace damaged labels.
FOR SAFETY: Do not
operate machine unless
operator manual is read
and understood.
WARNING: Electrical hazard. Do
not use with damaged cord.
Unplug cord before servicing
FOR SAFETY: Do not drink
cleaning solution.
Refer to MSDS (Material Safety
Data Sheet) for additional safety
information and precautions.
Home
Go To..
Find...

EN OPERATION
45000--Sc DM20001 (2--12)
OPERATION
COMPONENTS
B
C
A
F
E
I
G
K
N
D
H
L
M
M
J
356237
A. Display panel
B. Bottle fill nozzle
C. Bottle fill lever
D. Salt reservoir cover
E. Dispensing nozzle
F. Dispensing nozzle dock
G. Hose hook
H. Input filter assembly
I. Electrical box
J. Carbon filter (only Tennant authorized personnel)
K. Dispensing hose pump
L. Dispensing hose shut--off knob
M. Drain hoses
N. Power cord
Home
Go To..
Find...

OPERATION EN
5
5000--Sc DM20001 (2--12)

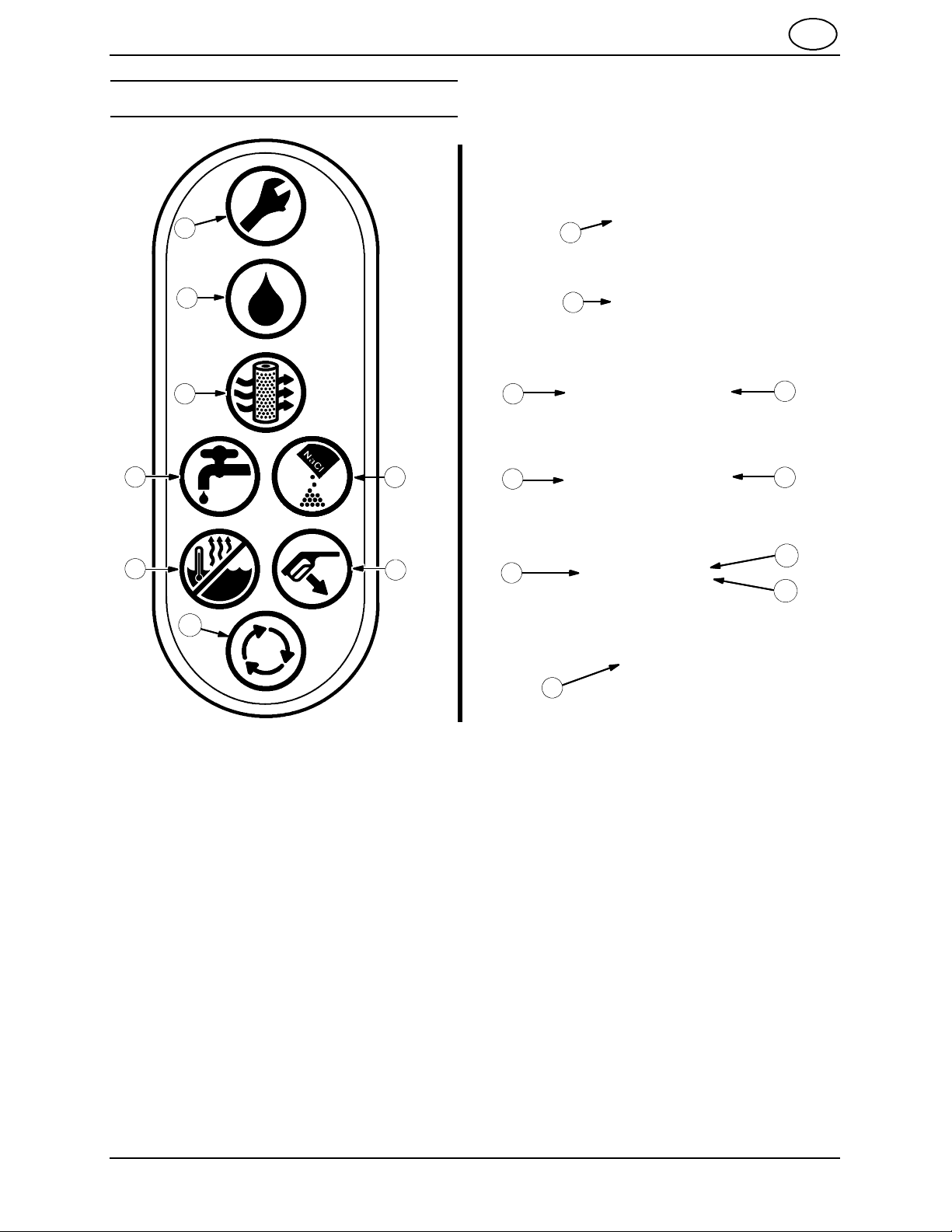

DISPLAY PANEL INDICATORS
H
B
E
A
C
D
FG
A
B
E
CD
F
Previous Display Panel Current Display Panel
GI
J
H
A. Service required
B. Power / Generating
C. Service input filter
D. No water flow
E. Add salt
F. Water temperature too hot
G. Dock dispensing nozzle
H. Reset button / indicator
A. Service required
B. Power / Generating
C. No water flow
D. Add salt
E. Service input filter
F. Dock dispensing nozzle
G. Solution generated indicator
H. Liter indicator
I. Gallon indicator
J. Reset button / indicator
Home
Go To..
Find...

EN OPERATION
65000--Sc DM20001 (3--11)
HOW THE MACHINE WORKS
The 5000--Sc is a cleaning solution generator that
electrically restructures water and salt to create a
safe concentration of sodium hydroxide (NaOH)
cleaning solution. This cleaning solution can
effectively replace most conventional cleaning
chemicals.
The 5000--Sc is very easy to use. The cleaning
solution can be dispensed from either the bottle fill
receptacle for bottles or smaller containers, or
from the dispensing nozzle for larger containers,
buckets, or machines.
MOVING THE MACHINE
Only TENNANT authorized personnel are
permitted to move the 5000--Sc.
WHILE OPERATING THE MACHINE
Periodically check the indicators on the display
panel to ensure there are no conditions that need
to be cleared. Any condition must be cleared
before the 5000--Sc can be used again.
Avoid running the system completely out of salt.
Water softener salt should be added to the salt
reservoir when the Add salt indicator flashes. Refer
to Filling the Salt Reservoir section of this manual.
CLEANING SOLUTION
The 5000--Sc cleaning solution will clean most
soiled or dirty surfaces (nylon and polyester
carpeting, glass, metal, ceramic, laminate, painted
surfaces, and other non--porous surfaces), but is
not recommended for cleaning heavy petroleum
based oils and greases. The 5000--Sc cleaning
solution also does not kill bacteria, so it must not
be used to sanitize or disinfect surfaces.
NOTE: Always check carpet manufacturer
specifications for color stability and shrinkage
properties before using a water--based solution on
carpeting.
Do not dilute the 5000--Sc cleaning solution with
water. Water will diminish the cleaning
effectiveness The 5000--Sc cleaning solution is
ready to use after dispensing.
FOR SAFETY: Do not mix 5000--Sc cleaning
solution with conventional cleaning
chemicals. Do not drink. Refer to MSDS
(Material Safety Data Sheet) for additional
safety information and precautions.
The 5000--Sc cleaning solution does not pose a
skin or eye hazard. The concentration of sodium
hydroxide in the cleaning solution is approximately
0.001%. For good hygiene practice, it is
recommended that personnel wear appropriate
protective gear when cleaning.
The 5000--Sc cleaning solution will remain
effective for 30 days or more when stored in a
clean sealed container. Test the cleaning solution
to verify the pH level is at the correct level if the
solution has been stored for longer than 30 days.
Refer to TESTING THE CLEANING SOLUTION
in MAINTENANCE for additional testing
information.
NOTE: The temperature for the room / location
where the 5000--Sc cleaning solution is stored
should be between 50--110°F (10--43°C).
Home
Go To..
Find...

OPERATION EN
7
5000--Sc DM20001 (3--11)
DISPENSING WITH DISPENSING NOZZLE
FOR SAFETY: Do not operate machine unless
operator manual is read and understood.
1. Remove the dispensing nozzle from the
dispensing nozzle dock.
2. Insert the dispensing nozzle into container to
be filled and squeeze the dispensing nozzle
lever to begin filling the machine / container.
3. Release the dispensing nozzle lever when
finished filling the machine / container.
4. Insert the dispensing nozzle into the
dispensing nozzle dock.
DISPENSING WITH BOTTLE FILL NOZZLE
FOR SAFETY: Do not operate machine unless
operator manual is read and understood.
1. Insert the bottle fill nozzle into the bottle.
FOR SAFETY: Do not drink cleaning solution.
Refer to MSDS (Material Safety Data Sheet) for
additional safety information and precautions.
2. Press the bottle against the bottle fill lever to
begin filling the bottle.
3. Pull the bottle away from the bottle fill lever
and nozzle when finished filling the bottle.
Clean with the solution as needed.
Home
Go To..
Find...

EN OPERATION
85000--Sc DM20001 (2--12)
INDICATORS
This machine is equipped with visual indicators to
alert the operator that there is a condition. If there
are multiple conditions, press the Reset button /
Indicator after each condition is eliminated.
SERVICE REQUIRED INDICATOR
The Service required indicator illuminates when
the 5000--Sc needs to be serviced. Stop using the
machine and call a TENNANT service
representative.
POWER / GENERATING INDICATOR
The Power / Generating indicator is solid blue
when the tanks are completely full of generated
cleaning solution and the 5000--Sc is ready to
dispense cleaning solution. The indicator flashes
when the machine is generating solution. Solution
can be dispensed while the Power / Generating
indicator is flashing.
NO WATER FLOW INDICATOR
The No water flow indicator illuminates when
there is no water supply to the cleaning solution
generator. Turn on the water to supply water to
the 5000--Sc and press the Reset button /
Indicator.
SERVICE INPUT FILTER INDICATOR
The Service input filter indicator illuminates when
the input filter needs to be replaced. Refer to
REPLACE INPUT FILTER in the MAINTENANCE
section for additional information. Press the Reset
button /Indicator after the filter has been
changed.
Home
Go To..
Find...

OPERATION EN
9
5000--Sc DM20001 (2--12)
ADD SALT INDICATOR
The Add salt indicator flashes when the supply of
salt in the salt reservoir is low and stays
illuminated when the salt is completely consumed.
The system shuts down when the salt supply is
completely consumed. Add salt to the salt
reservoir when the Add salt indicator flashes or
stays illuminated. Refer to FILLING THE SALT
RESERVOIR in MAINTENANCE for instructions
how to refill the salt reservoir and reset the
system.
DOCK THE DISPENSING NOZZLE INDICATOR
The Dock the dispensing nozzle indicator
illuminates when the dispensing nozzle is in use
or not placed back into the dispensing nozzle
dock after use. Place the dispensing nozzle back
into the dispensing nozzle dock. Press the Reset
button /Indicator if the Dock the dispensing
nozzle indicator remains illuminated after the
dispensing nozzle is returned to the dispensing
nozzle dock.
SOLUTION GENERATED INDICATOR
The Solution generated indicator displays the
amount of solution generated in both liters and
gallons. The display will periodically change
between the gallon and liter amounts displayed.
RESET BUTTON / INDICATOR
The Reset button / Indicator illuminates when the
cleaning solution generator needs to be reset.
Press the Reset button / Indicator to place the
generator into the reset mode. If there are
multiple conditions, press the Reset button /
Indicator after each condition is cleared.
Home
Go To..
Find...

EN OPERATION
10 5000--Sc DM20001 (2--12)
WATER TEMPERATURE TOO HOT INDICATOR
(PREVIOUS DISPLAY PANEL)
The Water temperature too hot indicator
illuminates when the water supply to the cleaning
solution generator is too hot. Turn off the hot
water and turn on the cold water. Press the Reset
button / Indicator after changing the water supply
to cold water.
AUXILIARY TANK(S) (OPTION)
The auxiliary tank provides additional cleaning
solution storage capacity. Dual auxiliary tanks are
available if more storage capacity is needed.
Turn the auxiliary tank valve to the open position
to fill the auxiliary tank and access cleaning
solution stored in the auxiliary tank.
Turn the auxiliary tank valve to the closed position
to prevent the auxiliary from filling and prevent
access to cleaning solution in the auxiliary tank.
Home
Go To..
Find...

OPERATION EN
11
5000--Sc DM20001 (2--12)
TROUBLESHOOTING
Problem Cause Remedy
Dispensing nozzle not
dispensing water Condition displayed on display panel Eliminate condition (See
INDICATORS)
Dispensing nozzle not returned to
dispensing nozzle dock after use Return dispensing nozzle to dock to reset the pump timer (Press Reset
button / Indicator if necessary)
Power cord not plugged into outlet Plug power cord into GFCI outlet
Dispensing nozzle on/off knob in
OFF position Turn Dispensing nozzle on/off knob to ON position
Add salt indicator flashing /
illuminated Fill tank with salt (See FILLING
THE SALT RESERVOIR)
Check for salt bridges in salt
reservoir. Break salt bridges loose
to provide salt to system
Bottle fill nozzle not
dispensing water Condition displayed on display panel Eliminate condition (See
INDICATORS)
Power cord not plugged into outlet Plug power cord into GFCI outlet
Dispensing tube plugged Clear dispensing tube
Add salt indicator flashing /
illuminated Fill tank with salt (See FILLING
THE SALT RESERVOIR)
Check for salt bridges in salt
reservoir. Break salt bridges loose
to provide salt to system
Solution leaking from the
5000--Sc Loose or damaged fitting. Damaged salt reservoir or solution storage
tanks
Unplug 5000--Sc power cable from
electrical outlet and contact a
TENNANT service representative
Home
Go To..
Find...

EN OPERATION
12 5000--Sc DM20001 (2--12)
MAINTENANCE
FILLING THE SALT RESERVOIR
Fill the salt reservoir with salt whenever the Add
salt indicator begins flashing or stays illuminated.
Use standard water softener salt pellets (solar or
evaporated). Do not use rock salt to fill salt
reservoir.
1. Remove the cover from the salt reservoir.
2. Pour the bag of salt into the salt reservoir. Fill
the salt reservoir to approximately 50 mm
(2 inches) below the salt reservoir opening
3. Reinstall the cover onto the salt reservoir.
4. If the Add salt indicator and Reset button /
Indicator stays illuminated, press the Reset
button /Indicator. Allow the system to
generate solution.
5. The 5000--Sc is ready for use when the Power
/ Generating indicator is flashing or stays
illuminated.
CARBON FILTER
The carbon filter requires no regular maintenance.
Unplug the machine power cable from the
electrical outlet and call a TENNANT service
representative if the drain line is disconnected
from the carbon filter.
Home
Go To..
Find...

OPERATION EN
13
5000--Sc DM20001 (2--12)
REPLACE THE INPUT FILTER
Replace the input filter when the Service input
filter indicator illuminates.
1. Turn off the water supply to the 5000--Sc.
H2O
2. Press the Pressure release button to release
the water pressure inside the input filter
assembly.
3. Use the filter wrench to remove the input filter
housing from the bracket.
4. Remove the input filter from the input filter
housing and discard the filter.
5. Insert the new input filter into the input filter
housing and tighten the input filter housing
back onto the bracket.
6. Turn on the water supply to the 5000--Sc.
7. Check for leaks around input filter housing
seal.
8. Press the Reset button /Indicator. Allow the
system to generate solution.
9. The 5000--Sc is ready for use when the Power
/ Generating indicator is flashing or stays
illuminated.
Home
Go To..
Find...

EN OPERATION
14 5000--Sc DM20001 (4--11)
DISPENSING HOSE SHUT--OFF KNOB
The Dispensing hose shut--off knob controls the
supply of water to the dispensing nozzle. Turn off
the water supply if performing maintenance on the
dispensing hose or nozzle.
Turn the knob counterclockwise to turn on the
water supply to the dispensing hose.
Turn the knob clockwisetoturnoffthewater
supply to the dispensing hose.
TESTING THE CLEANING SOLUTION
The cleaning solution can be tested to verify that
the pH level is adequate for solution that has been
stored for longer than 30 days.
1. Fill a small container with cleaning solution
and hold the pH test strip in the cleaning
solution for several seconds.
2. Compare the color of the pH test strip with the
colors on the chart included with the testing
kit.
3. Discard cleaning solution if the pH is lower
than 10.
Home
Go To..
Find...

OPERATION EN
15
5000--Sc DM20001 (2--12)
Home
Go To..
Find...

EN OPERATION
16 5000--Sc DM20001 (2--12)
SPECIFICATIONS
DIMENSIONS/WEIGHT
Item Dimension/capacity
Height 1778 mm (70 in)
Depth (with pump attached) 914 mm (36 in)
Depth (without pump attached / minimum door width for installation) 736 mm (29 in)
Width 1143 mm (45 in)
Dispensing Nozzle hose length 4572 mm (180 in)
Power cord length 2286 mm (90 in)
Weight (salt reservoir and solution tank empty) 170 kg (375 lbs)
Weight (salt reservoir and solution tank full) 658 kg (1450 lbs)
Installation ambient temperature range 10--43_C(50--110_F)
Salt reservoir capacity 18 Kg (40 lbs)
Dispensing Nozzle tank capacity 454 L (120 gallons)
Auxiliary tank height (Option) 1727 mm (68 in)
Auxiliary tank diameter (Option) 711 mm (28 in)
Auxiliary tank useable capacity (Option) 511 L (135 gallons)
Bottle fill solution tank capacity 7.5 L (2 gallons)
Operating temperature range (do not expose to freezing temperatures 10--43°C(50--110°F)
GENERAL PERFORMANCE
Item Measure
Dispensing Nozzle flow rate 58 lpm (15 gpm)
Bottle fill flow rate 2.8 lpm (0.75 gpm)
GENERATION SYSTEM
Item Measure
Solution generation rate 2.8 lpm (0.75 gpm)
Solution pH 10 -- 11.5
Drain solution rate 0.9 lpm (0.25 gpm)
Drain solution pH 2--3
INPUT WATER SOURCE
Item Measure
Water flow (minimum) 3.8 lpm (1 gpm)
Water pressure (minimum) 2 bar (30 psi)
Water pressure (maximum) 7 bar (100 psi)
Home
Go To..
Find...

OPERATION EN
175000--Sc DM20001 (3--11)
POWER SOURCE
Item Measure
Source power requirement 100V--240V 50--60 Hz
Power draw (maximum) 800 Watts
CONSUMABLES
Item Measure
Salt type Standard water softener salt pellets (solar or evaporated)
Salt usage (approximate) 18 kg/34,000 L solution (40 lb / 9,000 gallons solution)
Input filter life (approximate) 76,000 L solution (20,000 gallons solution)
DIMENSIONS
914 mm
(36 in)
1143 mm
(45 in)
1778 mm
(70 in)
736 mm
(29 in)
356237
Home
Go To..
Find...

ES FUNCIONAMIENTO
5000--Sc DM20001 (2--12)
18
Este manual se incluye en todos los modelos nuevos. Proporciona la información necesaria para suutilización
y mantenimiento.
Lea todo el manual detenidamente para comprender el funcionamiento de la
máquina antes de utilizarla o realizar tareas de mantenimiento.
Esta máquina ofrece un funcionamiento excelente. Puede obtener los mejores resultados con los mínimos
costes si:
SLa máquina se maneja con un cuidado razonable de acuerdo con las instrucciones adjuntas.
SRevisa la máquina periódicamente, de acuerdo con las instrucciones de mantenimiento adjuntas.
SRealiza el mantenimiento de la máquina con piezas suministradas por TENNANT o equivalentes.
PROTECCIÓN DEL MEDIO
AMBIENTE
Deseche el material de embalaje, las
piezas usadas de la máquina y fluidos
peligrosos de forma segura para el
medio ambiente, de acuerdo con las
normativas locales sobre desecho de
residuos.
No olvide reciclar.
DATOS DE LA MÁQUINA
Rellénelos durante la instalación de la máquina
para poder utilizarlos como referencia en el futuro.
Nº de modelo:
Nº de serie:
Vendedor: --
Nº de teléfono del vendedor:
Nº de cliente:
Fecha de instalación:
Orbio Technologies
701 North Lilac Drive
Minneapolis, MN 55440, EE.UU.
Teléfono: (800) 553--8033 o (763) 513--2850
www.orbiotechnologies.com
Las características técnicas y piezas están sujetas a modificaciones sin previo aviso.
Instrucciones originales, Copyright E2011, 2012 Orbio Technologies de TENNANT COMPANY. Impreso en EE.UU.
Home
Go To..
Find...
