OREC RABBIT RM60W User manual

INSTRUCTION MANUAL
GRASSLAND MOWER RABBIT RM60W
Read this instruction manual carefully before any use of the machine, keep it as a reference.For any question
about this manual, please report to your OREC dealer or to the distributor of your country.
OREC CO LTD
548-22 HIYOSHI HIROKAWA-MACHI YAME-GUN JAPON
http://www.orec-jp.com
Updated : June 2021

OREC RM60W
2
“only the English version of this maual can be used as a reference.”
INTRODUCTION
Forword to the user
Read this manual before any use of your mower, only the herein instructions shall help you to achieve an efficient
and safe work.
A safe use will only result from the manner you will use the machine in accordance with the restrictions described
in this manual. Thus, you must know and follow all the safety measures in this manual and those relating to the
use of your tractor.
The mower that you have just bought has been designed and manufactured for your entire satisfaction. As any
other mechanical machine, it requires a proper maintenance and must be kept clean. Grease the machine like
indicated. Follow the rules and safety indications as described in this manual and as showed on the preventive
instruction stickers.
About maintenance, always mind that your OREC dealer has the skills, the genuine parts and the necessary tools
to solve the possible problems.
Use only the OREC original parts : “ non genuine ” parts will not assure you of a correct and safe working and are
likely to make the guarantee null and void. Write the name and the serial number of your machine hereunder :
MODEL :..................................................................................
SERIAL NUMBER (refer to the pictures herein) :...................
Always mention these informations to your dealer in order to obtain the right parts.
Concerned about constant progress, OREC keeps the right to modify the machines without being compelled to
modify those already sold.
The illustrations and characteristics in this manual might lightely differ from your machine because of the constant
improvements made by our production department.
In this manual, the left and the right hand or the rear and the front position are determined according to the tractor
seat.
All along this manual the word IMPORTANT is used to indicate that a fault might cause damage to the machine.
The words DANGER, WARNING, and CAUTION are used with the “ safety/warning ” pictogram (triangle with an
exclamation mark) in order to indicate a hazard for your safety.
DANGER
Indicates danger that causes serious injury or death if the right precautions are not taken.
WARNING
Indicates risk that is likely to cause serious injury or death if the right precaution is not taken.
CAUTION
OREC CO.,LTD MADE IN JAPAN
YEAR
TYPE
SERIAL NO,
CE
POWER
WEIGHT

OREC RM60W
3
Indicates risk that might cause injury if the right precautions are not taken or that might cause damage on the
product.
TIP :
Indicates usuful hint for operation and maintenance of the product, and to avoid faulty operation.
CONTENTS
INTRODUCTION ................................................................................................................................................2
CONTENTS ........................................................................................................................................................3
SPECIFICATIONS..............................................................................................................................................3
CHECK LIST .......................................................................................................................................................3
SAFETY RULES .................................................................................................................................................4
SAFETY INSTRUCTION STICKERS .................................................................................................................6
MACHINE DESCRIPTION..................................................................................................................................7
CONTROLS ........................................................................................................................................................8
INSPECTION BEFORE USE............................................................................................................................10
OPERATION.....................................................................................................................................................12
MAINTENANCE OPERATIONS TO BE CARRIED OUT BY THE USER ........................................................18
BREAKDOWNS AND SOLUTIONS .................................................................................................................36
TIGHTENING TORQUES (Nm)........................................................................................................................37
EC CONFORMITY DECLARATION .................................................................................................................38
MEASUREMENT OF VIBRATIONS .................................................................................................................38
LIMITED WARRANTY ......................................................................................................................................39
NOTES..............................................................................................................................................................39
SPECIFICATIONS
Model
RMK60W
Engine
KAWASAKI FS541V
Transmission
Hydrostatic
Forward speed
0 - 9 km/h
Reverse speed
0 - 7 km/h
Cutting width
705 - 1155 mm
Height of cut
50 - 100 mm
Weight
310 kg
Fuel Tank
14 liters
Blade transmission
belt
Steering
Rack and pinion
Blade engagement
Belt tension
Width mm
1175
CHECK LIST
INSTRUCTIONS TO THE DEALER
The assembly, the installation and the first application of the machine is under the OREC dealer’s
responsability.
Read the instruction manual as well as the safety measures. Check that all the before delivery and at
delivery check points specified in the following lists have been verified and possibly modified before
delivering the machine to its owner.

OREC RM60W
4
CHECKS BEFORE DELIVERY
Check that all the shields, grids and safety guards are in place and in a good condition.
Check that the hydraulic hoses are in place and in a good condition. Replace them if necessary.
Check that there is no oil leak, repair if necessary.
Check that the safety instruction stickers are in place and in a good condition. Replace them if necessary.
Check that all the bolts and screws are properly tightened with the correct torque (refer to chart).
Protect the grease nipples by coating them with grease and lubricate the machine.
Check that the machine can work properly : check blade engagement and disengagement, check that the
safety switches work properly.
CHECKS ON DELIVERY
Show the user how to use the machine and perform the adjustments.
Explain to the user the importance of the lubrication and show him the different greasing points on the
machine.
Show him the safety devices, shields, guards and the optional equipments.
Give the instruction manual to the customer, ask him to read it carefully.
Explain to the customert that drive on the public roads is forbidden.
Explain to the customert how to use each control and how works the blade engagement. Explain to never
use the machine if the blade doesn’t disengage properly.

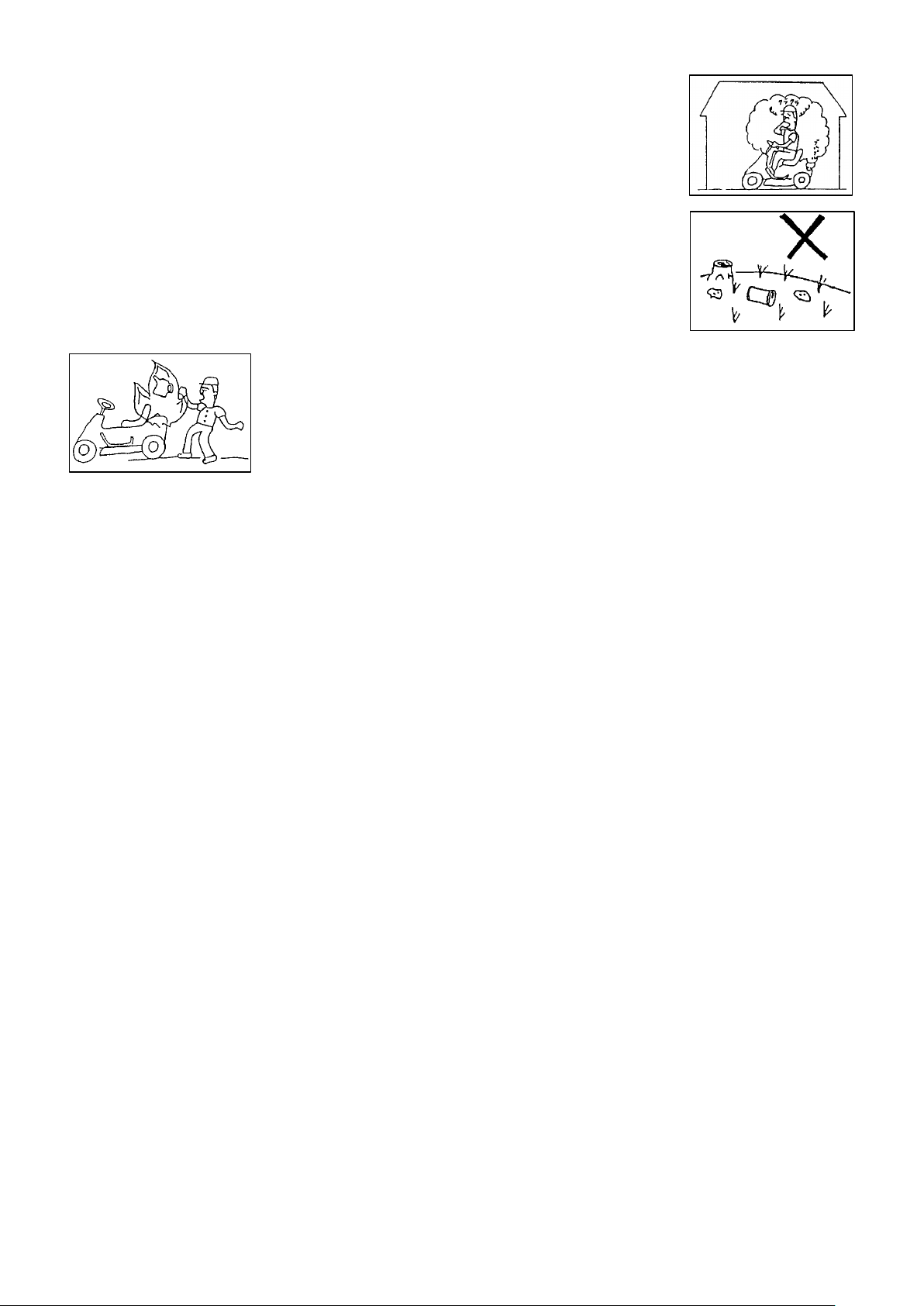

SAFETY RULES
CAUTION
Some of the illustrations show the machine with no guard, no shield. Never use
the machine without these devices.
Learn to stop the machine in case of emergency.
Read, understand and respect all the safety instructions of this manual.
Do not let anybody use the machine before having read and understood this manual.
Do not use the machine near bystanders : they can be hit by thrown objects
Do not let children use the machine.
Do not wear loose clothes. They might be grasped by moving parts.
Always wear protection equipments when using the machine.
Only work during daylight or with a good artificial light.
Check that the safety instruction stickers are in place and in a good state.
Keep the machine free from debris or mud.
Check that the machine can work properly before any use.
Check that all the shields, grids and safety guards are in place and in a good
condition.
It is strictly forbidden to carry persons or animals onto the machine during the work
or during the transportation.
Check that nobody stands behind the machine before moving back.
Never stop or start roughly when working on a slope. Never use the machine to work
on a stepping terrain.
Do not use machine on a slope more than 10°.
Reduce the ground speed when running on a slope and when turning straight in order
to prevent from any risk of losing control.
Be very careful when bordering ditches.
Stop the engine, apply the handbrake and remove the ignition key before any
intervention on the machine.
Never work under the machine or its parts when lifted, unless they are blocked and
maintained into position with sufficient security.
When running on a slope, always work going up or down but never across the slope.
Steer clear of unsteady embankments, holes or rocks. They might be dangerous during
manœuvres or transport.
Be careful when working on slopes.
Keep away from high-tension lines and obstacles. A contact with a high-tension line cause electrocution and
death.
Stop the machine progressively when travelling up and down slopes.

OREC RM60W
5
When stopping the work, stop the engine and put on the handbrake before leaving
the mower.
Engage all the safety equipments.
Move the controls only when the operator is correctly seat down in the operator seat
Visually check hydraulic leaks and if some parts are faulty or missing. Repair before
use.
A hydraulic oil jet due to a leak can penetrate under the skin causing serious injuries.
In this case you must immediately consult a doctor.
Never change the adjusment of the safety valve, it is set in the factory. Unsetting
this valve would cause failures.
Ensure that the user of the machine has already read and understood this manual
and that he is aware of all the safety instructions before any use.
Always use a chuck and bronze hammer when replacing or intervening on the pins
and bolts at the end of rams, rod … etc in order to avoid the projection of metal
fragments

OREC RM60W
6
SAFETY INSTRUCTION STICKERS
Note their location and replace them immediately if they are damaged or missing.
Remove the spark plusg wire be-
fore maintenance
Beware of thrown objects
Stay away from the machine
Read owner’s manual
Do not exceed 15° slope
Always wear protective equip-
ment against noise, dust
Keep hands and feet away from
rotating blades
Stay away from the machine
Beware of rotating parts under
the shields
Beware of thrown objects
Keep hands and feet away from
rotating blades
Beware of rotating parts under the
shields

OREC RM60W
7
MACHINE DESCRIPTION
Engine Switch
Throttle
Choke lever
Height of Cut lever
Blade Clutch Lever
Diff lock lever
Speed
Auto cruise lever
Brake Pedal
Seat
Driving clutch lever
Fuse BOX
Pilot lamp (GREEN)
Hour meter
Parking brake light
Steering wheel
Fuel Tank
Buttery BOX
Brake locking lever
Engine
Offset left
Offset Right
Offset open/close lever
Muffler

OREC RM60W
8
CONTROLS
ENGINE SWITCH
Insert ignition key to select start( ), ON(I), and Stop(O).
THROTTLE LEVER
Use throttole lever to adjust engine rpm between MAX and MINI.
CHOKE LEVER
Use choke lever when it is cold to start engine.
Pull to close the choke( ), and push to open( ).
There is no need to use choke lever when engine is warm enough.
HEIGHT OF CUT LEVER
Height of cut is adjustable between 50mm and 100mm.
Press the lock bottun, select the height and release the finger from lock
bottun. Height of cut is indicated on the label near the lever.
Engine is stated only when this lever is in transport position.
CAUTION
Push the lock botton completely while height of cut lever is adjusted. If not,
machine may be damaged. For your safety, select the transport position
when machine enter/exit the field and also when going reverse.
BLADE CLUTCH LEVER
Use the blade clutch lever to switch the blade rotation ON( ) or OFF( ).
Blade clutch lever cannot be activated when height of cut lever is in transport
position.
DIFFERENTIAL LOCK LEVER
Normally operate the machine with differential lock lever in OFF position.
Shift the differential lock lever to ON in case of light slope, soft ground, or
when single rear wheel slips too much to go straight. It is also recommended
to shift the differential lock lever to ON when machine is loaded/unloaded
to/from the track.
CAUTION
The diff lock shoud be used only in straight line : never use the diff lock
lever when turning. The damage to the transmission will not be covered by
the warranty
SPEED LEVER
Use the speed ever when driving, stopping, turning, and adjusting the speed.
AUTO CRUISE LEVER
Use the auto cruise lever to fix the driving speed. While auto cruise lever is in “ ” position, speed control lever
does not return to neutral position(except reverse speed).
Remember to activate the auto cruise only when machine is stopped. Auto cruise is cancelled when brake pedal
is pressed, then speed control lever returns to neutral position.
Height guideline
Lock button
Speed lever
R
F

OREC RM60W
9
PARKING BRAKE PEDAL
In case of emergency, when parking brake pedal is pressed, brake is activated
to stop the machine and speed control lever returns to N position. Normally use
the speed control lever to stop the machine.
While brake pedal is pressed, it is possible to use brake stopper to lock the
parking brake. Parking brake is cancelled when brake pedal is further pressed.
Engine is started only when parking brake is pressed.
BLADE COVER
It is possible to remove this cover in case of blade inspection or maintenance.
Normally operate the machine with this cover fixed.
WARNING
It is very dangerous to cut grass without blade cover because a lot of thrown
ojbect is expected. Except blade inspection or maintenance, make sure that
blade cover is properly fixed.
SEAT(SEAT SLIDE)
Seat slide is adjustable. Loosen the 2x knob bolt behind the seat, and slide the
seat as needed. Pay attention to securely tighten the knob bolt in order to avoid
unexpected movement during operation. After the engine is started, when
operator leave the seat, engine is stopped for safety(engien switch remains “I”).
CAUTION
Switch off the engine switch when engine is stopped. Or start the engine again.
If engine is left stopped, battery power may be lowered.
DRIVING CLUTCH LEVER
Normally operate the machine with this lever in ON position.
In case of low battery or transport in a closed room, it is not good to start engine, therefore shift the driving clutch
lever to OFF to manually push the machine.
FUSE BOX
Fuse box protect harness and electrical components in case of over current. It contains 10A(accessory),
20A(charge) and another 20A(spare). When fuse is cut, solve the problem and replace with spare fuse. Spare
fuse is only for emergency use, and replace it with genuine fuse.
PILOT LAMP(GREEN)
Pilot lamp is turned on when engine swtich is in “I” position.
HOUR METER
Hour meter shows rough hours of use. Refer it for maintenance.
PARKING BRAKE LAMP(RED)
Parking brake lamp is turned on when parking brake is activated.
OFFSET OPEN/CLOSE LEVER
It is possible to move the offset angle in 3 positions. When the lever is in MAX position, offset is fully open. When
the lever is in MINI position, offset is fully closed. Offset lever is located in both right and left. Right lever operates
offset R, and left lever operates offset L.
Brake stopper
Parking brake pedal
Lock
Knob bolt

OREC RM60W
10

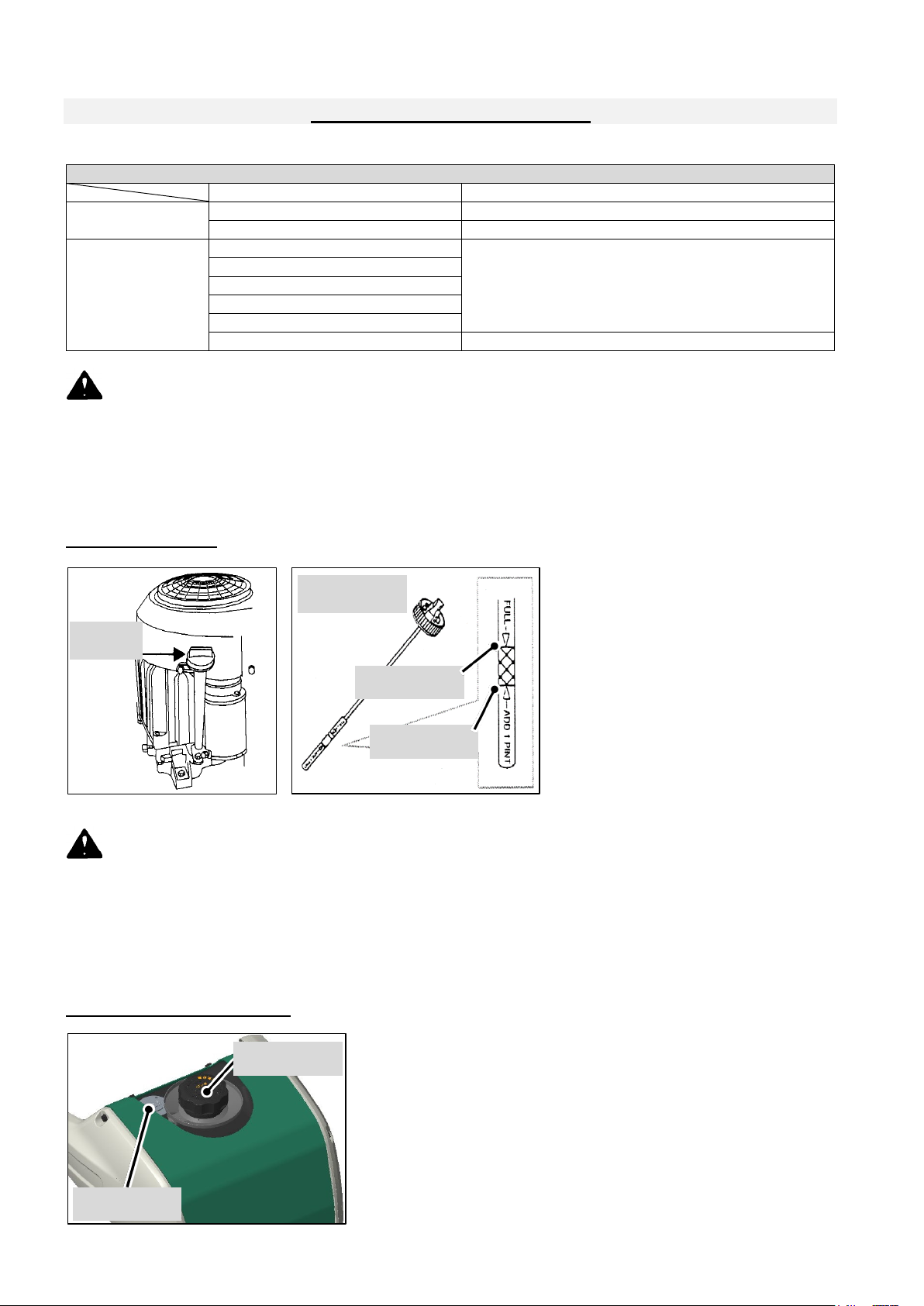

INSPECTION BEFORE USE
Before each use of machine, refer to table below and realize the inspection.
LIST OF PRE-USE INSPECTION
Where to check
Check point
Engine
Engine oil
Quantity and dirt of oil
Air cleaner
Dirt
Machine
Blade
(1) Looseness or loss of bolt
(2) Deformation, wear or contact
(3) Smooth movement or sticking
(4) Remove dust and grass
Brake(if equiped)
Tire
Lever(s)
Cover(s)
HST oil(if equipped)
Quantity and dirt of oil
WARNING
1) Always make inspection, re-fueling, adjustment and maintenance only after engine is stopped. ]
2) Make sure about position of each lever and safety around the machine, before to start engine and
check the movement of levers.
3) Check and read the safety labels on the machine.
ENGINE OIL INSPECTION
1) Place the machine on flat
surface and remove the oil gauge.
2) Edge of oil cap is designed
as oil gauge. Wipe the oil gauge with
cloth and insert it to check the oil level.
If oil level is not between upper and
lower limit, add engine oil until the
level comes between upper and
lower limit.
CAUTION
1) In case of checking engine oil after the work, wait more than 5 minutes to cool down the engine. Make sure
if muffler and engine is cooled enough.
2) Shortage of excess of engine oil cause engine trouble. Check the engine oil before every use.
3) Recommended engine oil type is 10W-30.
4) After the engine oil is filled up, securely fix the oil gauge. If the fixing is loose, engine oil may leak.
FUEL INSPECTION AND REFUELLING
1) Place the machine on flat surface and remove fuel cap. Check
the level of fuel through fuel mouth.
2) In case fuel gauge is close to “E”, it is necessary to refuel.
Oil cap
Oil gauge
Lower limit
Upper limit
Fuel cap
Fuel gauge

OREC RM60W
11

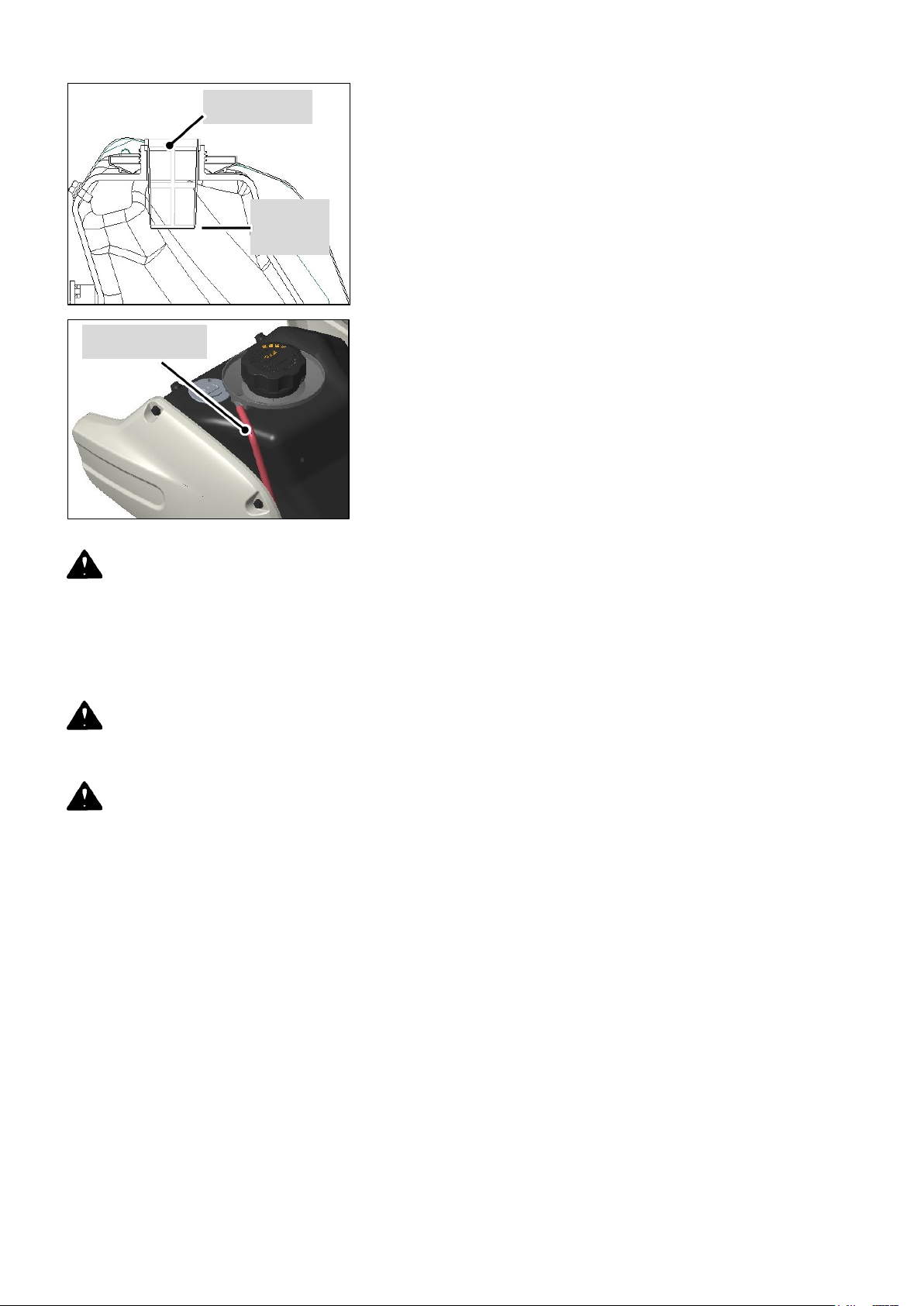

3) Do not put fuel higher than bottom level of fuel filter. Otherwise
fuel may spill out on uneven ground or on slope. Spiled fuel comes
out through the fuel drain hose and drained underneath the machine.
Wipe the spilled fuel.
4) After refuelling, place the fuel cap and tighten it.
Fuel gauge is only for reference. In case of slope operation, put less
fuel than bottom level of oil filter. Fuel may spill out dependng on
angle of slope.
DANGER
1) Never use fire while working with machine or while refueling. It causes catch fire or burn. Smoking and open-
air-fire is strictly prohibited near the machine.
2) Wait until the muffler is cooled enough for refueling.
3) Do not add fuel more than upper limit if it is indicated.
4) Do not refuel in case your body is charged. It may lead to catch fire.
WARNING
Work with fuel only on a flat surface well ventilated.
CAUTION
1) Do not let dust or grass to come inside the fuel tank. It leads to engine trouble.
2) Use only lead-free regular gasoline. Otherwise, engine might be damaged.
3) Gasoline degrades by time. In case of non-use for more than 1 month, replace gasoline to new one. Also, do
not use gasoline stored in polyethylene tank.
Fuel filter
Bottom
line
Fuel drain hose

OREC RM60W
12
OPERATION
WARNING
Remember to read the instruction before the use to understand the operation and work of this product.
STARTING THE ENGINE
TIP :
1) Make sure to be seated.
2) Make sure to press the parking brake pedal(=locked) to start engine. If brake pedal is not pressed, safety
switch works and engine cannot be started.
3) Make sure that height of cut lever is in tranport position. In other position, engine cannot be started.
4) Make sure that above 1) ~ 3) procedure is respected when starting the engine.
1) Open the fuel cock.
2) Stay on the seat.
3) Press the parking brake pedal and lock the brake stopper. If speed
control lever is not in N position, shift it to N position.
4) Adjust the height of cut lever to top(=transport position).
5) Make sure that speed lever is in N position, then pull the choke lever(pull
to close, push to open) if engine is not warm enough.
6) Move the throttle lever to intermediate position between MAX and
MINI(upper position is MAX and lower position is MINI).
Brake stopper
Parking brake pedal
on
off
Height of cut lever
Height guideline
Choke

OREC RM60W
13
7) Insert the ingition key to engine switch, then turn the key from “I” position
to “” to start engine.
8) When engine is started, leave hand from the key. Key automatically turns
back to “I” position.
9) After engine is started, push back the choke lever(to ) then move
the throttole lever to MINI to warm the engine for about 5 minutes.
WARNING
For your safety, make sure to keep parking brake pedal “locked” by brake
stopper, while warming the engine.
CAUTION
When starting the engine, do not keep ingnition key more than 5 seconds at “ ” position because big amount of
electricity runs into cell motor.
If engine cannot be started within 5 seconds, turn the key to “O” and wait more than 10 seconds, then try again.
While engine is running, do not turn the key to “” position. This may lead to trouble of cell motor. If engine is
warm enough, start the engine with throttle lever at intermediate position.
TIP :
Warming up the engine can circurate the oil inside the engine, and it is better for engine lifetime.
STOPPING THE ENGINE
1) Move the throttle lever to MINI.
2) After 2-3 seconds at MINI position, turn the key to “O” position to stop
engine.
3) Remove key from engine switch.
4) Close the fuel cock.
DRIVING
1) Start the engine.
2) Move the throttle lever to MAX to increase the engine rpm.
3) Press the parking brake pedal to unlock the brake stopper. Do not change
speed while parking brake pedal is locked. Driving the machine with parking
brake locked will bring overload on brake and transmission and cause the
breakdown.
4) Slowly shift the speed control lever forward and start drving.
TIP :
Driving speed is adjusted following the tilt angle of speed control lever. For
your safety, start driving in low speed.
Engine switch
MAX
MINI
MINI
MAX
Parking brake pedal
Brake stopper
Unlock

OREC RM60W
14
STOPPING(PARKING)
CAUTION
In case parking brake pedal is pressed during the driving, speed control lever quickly comes back to N position
and machine stops. Normally use speed control lever to stop the machine. Especially in high speed, sudden stop
may give physical shock on operator and overload on machine body.
1) Place the speed control lever to N position and stop the machine.
2) Move the throttle lever to MINI and decrease engine rpm.
3) After 2-3 seconds at MINI position, turn the key to “O” position to stop
engine.
4) Press the parking brake pedal, and lock it with brake stopper.
CAUTION
Machine should be parked on a flat and spacious area, without obstables
around the machine. If there is need to park on slope, make sure to use car
stopper. Remove key to avoid theft.
TIP :
Be sure to use engine switch to stop the engine. In case parking brake pedal is locked and height of cut lever is
in transport position, engine does not stop when opetator leave the seat. However, if the pedal and lever is in
other position, engine stops when operator leave the seat(pilot lamp remains ON and engine switch is in I position).
If the machine is left in such status, battery will get empty. Remember to lock the parking brake pedal, return the
height of cut lever to transport position and turn the key to O position.
After engine is started, engine does not stop if operator is seated regardless of parking brake and height of cut
lever positions.
DIFFERENTIAL LOCK LEVER CONTROL
1) Normally operate the machine with differential lock lever in OFF position.
In case of wet ground or steep slope, move the differential lock lever to ON
and lock it.
2) After the machine get out of wet place or steep slope, move back the
lever to OFF position.
PUSH MODE
On a flat ground, it is possible to push machine without engine power when
driving clutch lever is in OFF position. This is called “PUSH MODE” and it
is recommended in case of engine trouble.
WARNING
1) Except the use in PUSH MODE, alwayd place the driving clutch lever in ON position.
2) For safety, PUSH MODE is recommened for two person or more.
3) On the slope, do not place the driving clutch lever to OFF, because it may cause slipping accident.
Speed lever
N
F
R
Differential lock lever
OFF
ON
Driving clutch lever
ON
OFF

OREC RM60W
15

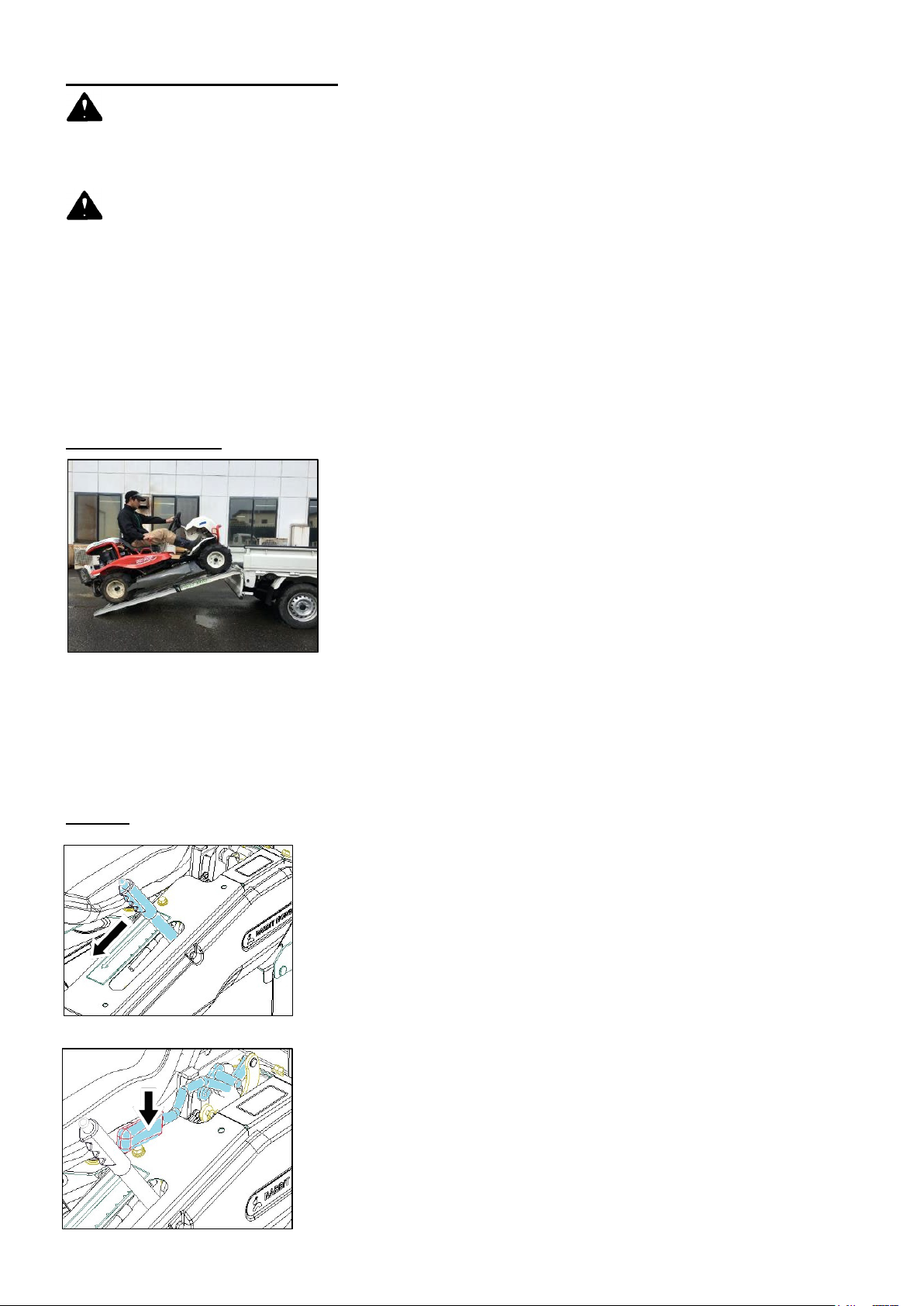

LOADING/UNLOADING/TRANSPORTING
DANGER
1) Stop the engine and close the fuel cock while transporting this machine. Otherwise, fuel may leak and may
cause fire accident.
2) Do not lean the machine more than necessary, because fuel may spill over.
WARNING
1) Always use the bridge for loading/unloading. In case of loading/unloading by hook, there is a risk of falling
and is very dangerous. Never use hook for loading/unloading.
2) Do not stop on the bridge. If the machine balance is heavier in the back, front of the machine may be lifted up
when driving is started again. Load/unload the machine only in slow speed.
3) Place the height of cut lever to transport position during loading/unloading. Otherwise blade may touch the
bridge and it may cause tipping over.
4) Keep the differential lock lever to ON, and do not move it on the bridge.
5) On the truck, keep the engine off and fuel cock closed, and remove the key. Fix the machine with rope/belt
which is strong enough.
LOADING/UNLOADING
1) Move forward for loading and move backward for unloading.
2) Use the bridge certified in safety.
3) Place differential lock lever to ON, height od cut lever in transport
position, and do not place into other positions.
TIP :
Recommended bridge : Use only certified bridge, which is strong enough.
Length : to be more than 3.5 times longer than height of truck.
Width : to be suitable for width of this machine.
Strength : to be strong enoguh against total weight of machine and operator.
MOWING
1) Start the engine.
2) Move the throttle lever to MAX and increase engine rpm.
3) Place height of cut lever at 100mm.
4) Push down the blade clutch lever forward.

OREC RM60W
16

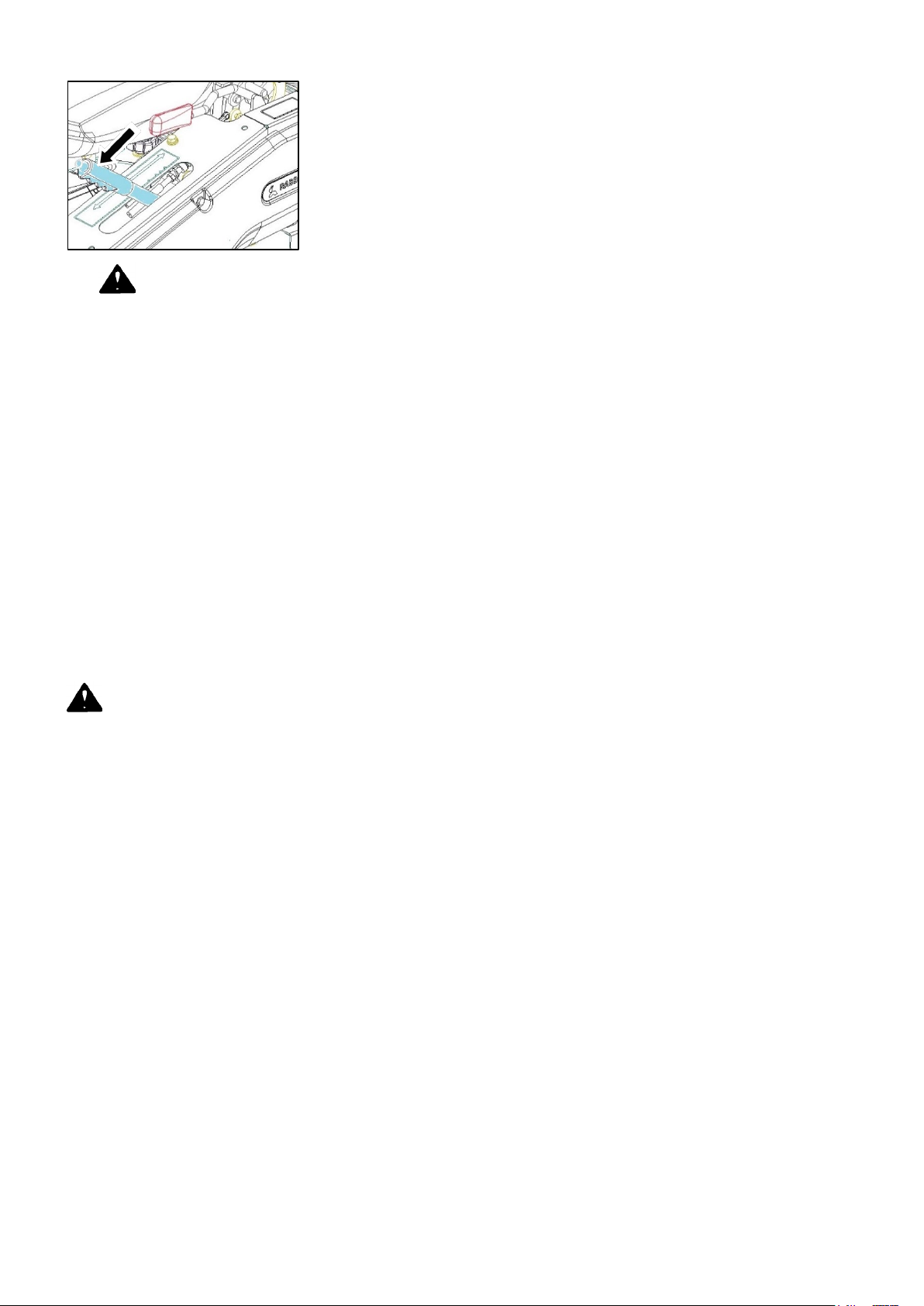

5) Adjust the height of cut lever as needed.
6) Start mowing.
7) Take reverse procedure to stop mowing.
8) Stop the engine.
WARNING
1) Regularly clean the grass around the engine and muffler, because it may cause fire or overheat. It is also
good to clearn inside of engine bonnet.
2) It is possible to get damaged by thrown object such as stone, wire, can and so on. Pay attention to remove
them before mowing. Also keep neighbors away from the machine.
3) Mud and dust near the cooling system may raise oil temperature in the engine and in the HST unit. Regularly
clearn the mud and dust away.
4) Do not mow toward building, river, cliff and person for the purpose to avoid fall or collision accident.
5) When mowing on slope, do not stand up in the mountain side, because there is risk of slliping down into the
mowing deck. It may lead to serious injury.
6) In case of removing grass or wire from the blade, make sure to stop engine first and check if blade is
completely stopped.
7) Before to start mowing, make sure that defective part in previous work is already repaired.
8) For your safety, inspect blade and blade disc rotary.
9) In case of hitting obstacle during mowing, stop the engine and repair if necessary. If mowing is started without
proper repair, it may lead to accident.
10) There is risk of slipping when grass is wet or it is rainy day. And grass may be stuck inside the mowing deck,
leaving the engine overworked. In such case, stop the work and wait until grass get dry.
11) Do not kick the grass into mowing deck because blade is rotating inside of blade cover. Do not use hand or
foot to let grass into mowing deck.
12) This machine is specially designed to cut grass around the tree. Do not use it in a field with stone or uneven
field to avoid thrown object. Check the field condition prior to the mowing work.
CAUTION
1) Wear protective cloth, boots, hat/helmet, protective grasses and gloves.
2) Check the field in advance, and remove stone, stamp, wire or cans away.
3) Use a bridge against the gap of more than 70mm. Crossing the gap in high speed may lead to tipping over or
machine damage. Cross the gap only in low speed.
4) In case front wheel stuck into the hole or ditch, do not try to turn the steering wheel. Stop the engine and
move up the machine to get away.
5) Pay attention to avoid accident to be pinched between tree and machine.
6) Pay attention to the blade that is rotating in high speed.
7) Pay attention to activate the blade clutch lever slowly.
8) Do not start mowing in lowest cutting height, because it may cause quick wear of blade belt.
9) When mowing is finished, move the blade clutch elver to OFF position, wait 2-3 seconds then move the height
of cut lever to transport position. This is to avoid thrown object before blade stops.
10) In case of too much grass to cut or in case engine frequestly stops, slow down the speed or mow twice in
high and low popsition.
TIP :
1) When this machine is used for the first time, use it in a field without stone, and mow straight slightly overlapped.
2) In case of work on slope, it is recommended that RH of machine looks toward the hillside so that engine plug
is heading up. Otherwise, engine oil may be burned and white smoke may appear.
3) In case height of cut lever is moved back to tranport position, blade clutch lever also returns back. However,
this way of use is not recommended because it may damage the lifetime of blade belt.
4) Blade clutch cannot be activated when heigh of cut lever is in transport position.
5) Basically use speed lever to stop the machine. In case of emergency situation, machine stops when parking
brake pedal is pressed. At same time, speed lever goes back to N position.
6) Remember to remove key and keep it when operator leave the machine.

OREC RM60W
17

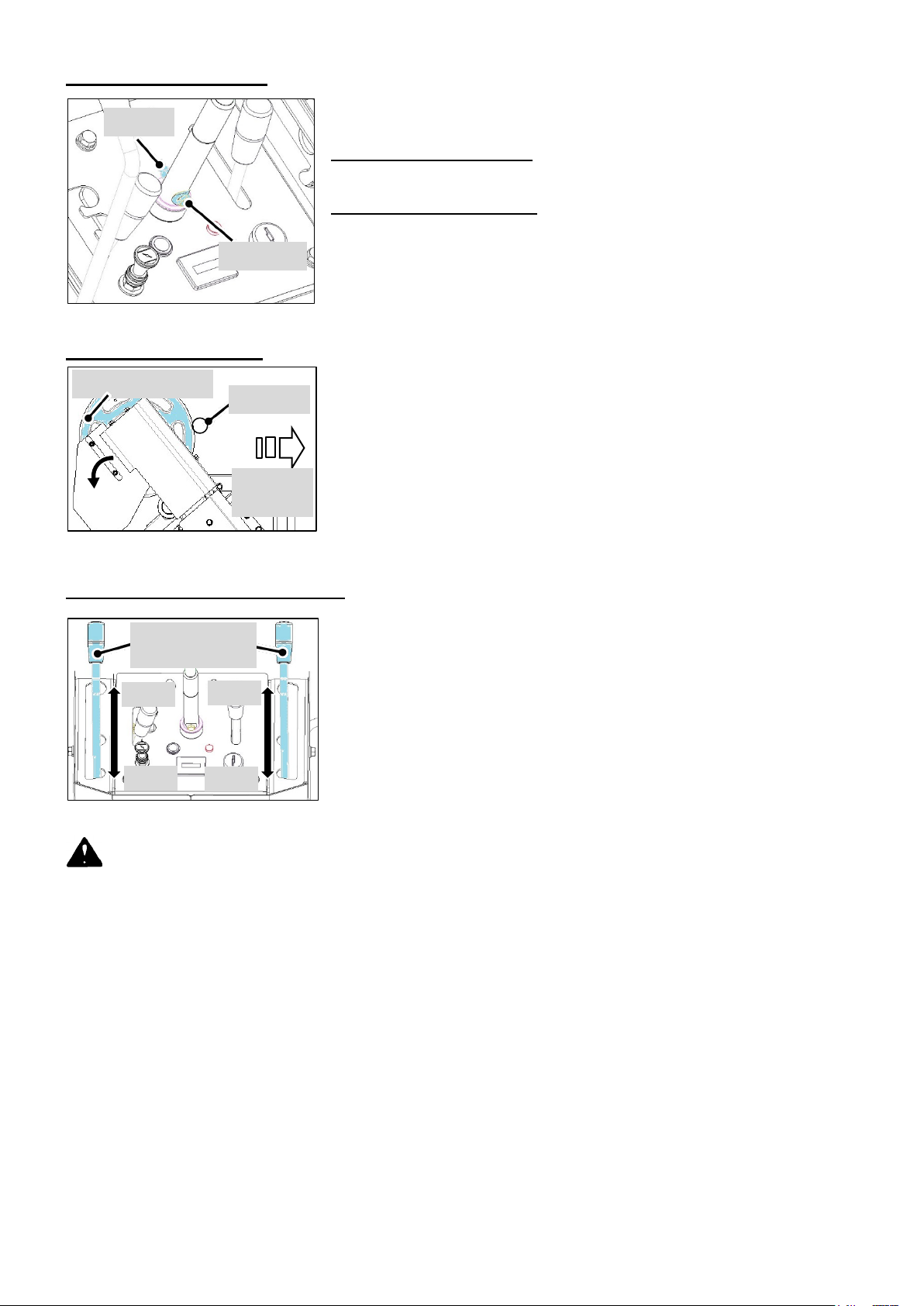

HANDLE/SEAT ADJUSTMENT
It is possible to adjust the handle in 3 position. And it is possible to adjust
the seat slide back and force.
Seat position(back and force)
Pull up the lever and select the seat position suitalble for operator.
Handle position(up and down)
Loosen the bolt, adjust the handle position, and fix it with bolt and U nut.
OFFSET DECK OPEN/CLOSE
Offset cover is closed when it contacts obstable(tree, etc.). In case of
mowing along the obstacles, keep the offset cover contacted with
obstacles and drive straight. Figure in left side shows offset L, and it is
same way for offset R.
OFFSET DECK OPEN/CLOSE MANUALLY
Offset lever enables to manually open/close the offset deck. Left lever
operate offset L, and right lever operate offset R. When lever is pulled,
offset will be closed. Offset lever is adjustable in 3 position(closed, half
open, and full open). Choose offset deck position suitable for the field.
CAUTION
1) Make sure if there is nobody between machine and offset deck, when offset deck is operated.
2) In case of mowing around the tree with offset blade cover(=option), do not drive faster than 2.0km/h, because
contacting point may be broken.
3) Pay attention not to place offset wing on the hill part to be lifted up, because blade belt may slip. When blade
belt slips with offset wing lifted up, disengage the blade clutch lever.
TIP :
Offset wing can mow up to 10 degee from main cutting deck. It is conveninet for mowing around the tree, which
is slightly hilly. Pay special attention for risk of thrown ojbect while offset wing is lifted up.
Fixing bolt
U nut
Offset blade cover
Obstacle
Driving
direction
Offset
open/close lever
MAX
MAX
MINI
MINI

OREC RM60W
18
MAINTENANCE OPERATIONS TO BE CARRIED OUT BY THE USER
OIL MAINTENANCE
CAUTION
1) Refer the hour meter on the control panel, to know the period for inspection, replacement and filling up the
oil.
2) Oil is filled up when it is shipped from factory. Before the first use of this machine, make sure if oil level is OK.
3) Regularly replace the oil in order to keep the machine in best condition.
4) Before to inpsect/replace the oil, place the machine on flat and spacious area. Stop the engine to leave the
machine to be cooled down for more than 5 minutes to be able to touch by hand.
In case maintenance is started just after engine is stopped,
-Engine is still too hot and it may cause burn.
-Correct oil volume is not indicated just after engine is stopped, becaseu oil still remain in each part of machine
5) For safety, remove the key during the maintenance operation.
TRANSMISSION (GEAR)OIL
Inpsection and filling up
It is possible to inspect the oil by removing the transmission plug behind
the transmission. If oil reach the lowest level of the plug, proper volume
is filled.
Replacement
1) Oil should be replaced at first 20 hours, and later at each 100
hours or every year whichever comes first. Prepare oil container and
remove the drain plug located in left side of transmission case.
Replacement guideline
First : at 20 hours
Later : at each 100 hours or 1 year whichever comes first
2) Place the drain plug in original position. Remove the transmission
plug and then put transmission oil.
Recommeneded oil : “SAE 90 “or “API GL-5“.
Oil quantity : 1.00L.
After the oil is filled, tighten the transmission plug securely to avoid the leak. Pay attention not to tighten the plug
too much. When the gasket(O ring) contact the position, turn the plug in 3/4 rotation to fix it.
ENGINE OIL
CAUTION
Excess or deficiency of engine oil will cause engine trouble. Add engine oil in case of deficiency and reduce it in
case of excess to maintain proper volume.
Inpsection and filling up
Transmission plug
HST
Drain plug

OREC RM60W
19
1) Use the oil gauge to inspect the volume and quality of engine oil
prior to every use.
2) Maintain the engine oil to be on maximum level on the indicator.
Replacement guideline
First : at 8 hours
Later : at each 100 hours or 1 year whichever comes first
In case of use in very hard or hot condition, it is recommended to replace
the engine oil earlier at 50 hours and to replace oil filter at 100 hours.
Replacement
1) Prepare oil container and loosen the oil cap. Then remove the
drain plug located in left front side of engine. Oil is drained smoothly when
oil cap is loosened.
2) When the oil is completely drained, place the drain plug and fix
it. Then remove the oil cap.
3) Put 1 liter of engine oil and run the engine for 30 seconds in low
engine rpm. Stop the engine and wait for 30 seconds, then add oil up to
FULL level.
4) After the engine oil is filled, make sure that oil cap is securely
fixed.
OIL FILTER REPLACEMENT
CAUTION
Do not use tool to fit oil filter, and fit it by hand.
Replace the oil filter one time against two replacement of engine oil, or replace oil filter every year.
After the engine oil is drained, follow the instruction below to replace the
oil filter.
1) Turn the filter A counterclockwise and remove it.
2) In order to avoid twisting, place new engine oil by finger around
the gasket(O ring) of new filter.
3) Turn the filter clockwise and screw it until the gasket touches part
B. And screw it in 3/4 rotation.
4) Put the requested amount of oil from oil cap.
5) Check the oil volume by level gauge, and securely tighten the oil
cap.
6) Run the engine for 2 minutes in low rpm, to check the leaking of
oil around the filter.
7) Stop the engine and check the oil volume again. Add oil in case
of deficiency.
Oil cap
Oil gauge
Drain plug
Oil filter
A
B

OREC RM60W
20

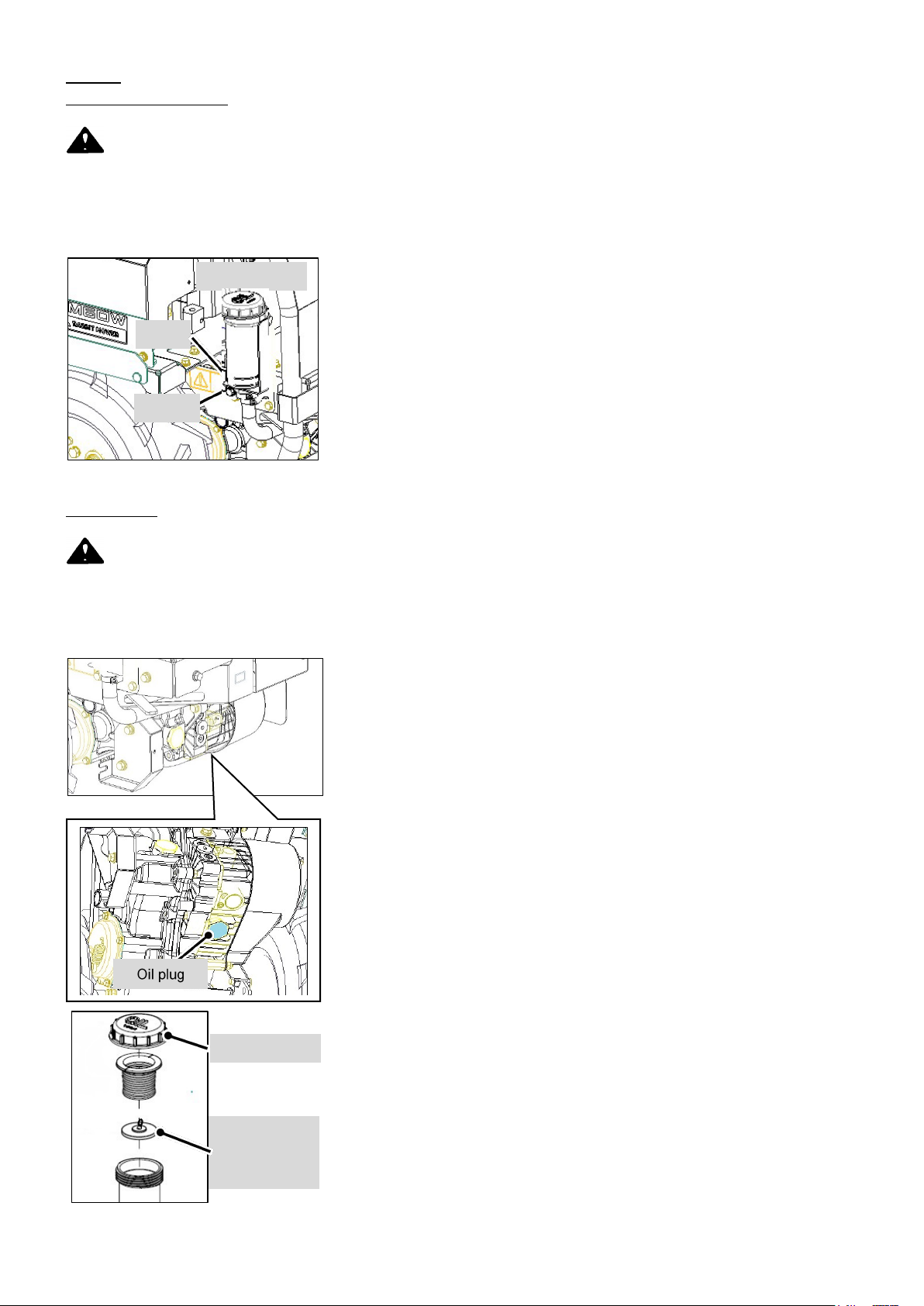

HST OIL
Inpsection and filling up
CAUTION
HST oil is clean in the beginning, however, after the hours of operation dust inside the HST unit is accumulated
and oil gets dirty, causing problem for smooth work of HST unit. For the safe and comfortable use of machine,
regularly replace the HST oil. Especially in the hard condition, first replacement is recommened in less than 20
hours. Otherwise, metal powder inside the HST unit will choke the oil filter and cause trouble in driving(especially
reverse driving).
1) Check HST oil tank and level of oil. If the level is not in between
the UP and LOW, open the oil cap and add oil as needed.
2) Moisture adsorption sheet is placed inside the HST oil tank, in
order to avoid HST trouble and also to adsorp the water caused by
condensation.
Replacement
CAUTION
1) In case of HST oil replacement, wait until HST oil tank and HST unit is cooled down. They are still very hot
just after the engine is stopped, and it may lead to burn.
2) HST oil is also called as hydraulic oil, which transmits the engine rotation into to driving. It also helps to
lubrication, anti-rust effect, and cooling down. However, if oil is not properly maintained, it gives problem for
driving. Always use recommended oil for replacement and adding.
1) Prepare oil container. Loosen the HST oil tank cap, and remove
the oil plug(Hexagonal, M22) located in under the HST unit.
2) When the oil is completely drained, place the oil plug and fix it.
Then remove the HST oil tank cap.
3) Put 500ml of HST oil and also relace the moisture adsorption
sheet at same time.
4) After the HST oil is filled, make sure that HT oil tank cap is
securely fixed.
HST oil tank
UP
LOW
HST tank cap
Moisture
Adsorption
sheet
