Oreck VENTURE User manual

OWNER’S
MANUAL
ORECK VENTURE™
ORECK VENTURE™ PRO
bagged canister
SK30075PC, SK30080PC, SK30085PC, SK30090PC #961151935 ID112860
Important: Read carefully before assembly and use.

THANK YOU
for purchasing an Oreck product
please register your product:
online at oreck.com or call 1.800.989.3535(U.S)
or 1.844.274.1773 (Canada) to register by phone

If you need assistance: visit our website at oreck.com, email us at [e-mail], or visit your local Oreck Store
TABLE of CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................................................................................. 4
FEATURES ................................................................................................................................... 8
OPERATION ...............................................................................................................................12
Assembly ..................................................................................................................................... 12
Using your machine .................................................................................................................... 14
Using your extension wand and tools ........................................................................................ 16
MAINTENANCE ........................................................................................................................18
Cleaning the filter bag ................................................................................................................. 18
Cleaning the secondary filter ......................................................................................................20
Cleaning the filter ........................................................................................................................ 22
Clearing blockages ...................................................................................................................... 24
TROUBLESHOOTING GUIDE .................................................................................................26
WARRANTY ..............................................................................................................................28
SPANISH ....................................................................................................................................29
FRENCH .....................................................................................................................................57
1
2
3
4
5
6
7
8

IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
This canister vacuum is intended for household use only and NOT for commercial or industrial use.
• Fully assemble before operating.
• Operate cleaner only at voltage specified on data plate on bottom of the cleaner.
• Do not leave appliance when plugged in. Unplug from outlet when not in use and before cleaning or servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close supervision is necessary when used near
children. To avoid injury or damage, keep children away from product, and do not allow children to place fingers or other objects into
any openings.
• Use only as described in this manual. Use only manufacturer’s recommended attachments and products.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped
into water, take it to a service center prior to continuing use.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not place product
on cord. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not handle plug or appliance with wet hands.
• Do not put any objects into openings. Do not use with any
opening blocked; keep free of dust, lint, hair and anything
that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body
away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs. To avoid personal
injury or damage, and to prevent the cleaner from falling,
always place cleaner at bottom of stairs or on floor. Do not
place cleaner on stairs or furniture, as it may result in injury
or damage.
• Do not use to pick up flammable or combustible liquids, such
as gasoline, or use in areas where they may be present.
• The hose contains wires. Avoid picking up sharp objects.
If hose appears to be damaged, cut, punctured, or wires are
exposed, unplug unit and discontinue use. Do not attempt to
repair damaged hose. Take to an authorized service center
for repair.
• Always turn off this appliance before connecting or
disconnecting either hose or motorized nozzle.
• Hold plug when rewinding onto cord reel. Do not allow plug
to whip when rewinding.
• Do not pick up anything that is burning or smoking, such
as cigarettes, matches or hot ashes.
• Do not use with filter bag and/or filters in place.
WARNING: To reduce the risk of electric shock, this appliance has a
polarized plug (one blade is wider than the other). This plug will fit in a
polarized outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified electrician to
install the proper outlet. Do not change the plug in any way.
WARNING: This product contains chemicals known to the State of
California to cause cancer, birth defects or reproductive harm.
WASH HANDS AFTER HANDLING.
5
CAUTION: To reduce the risk of damage:
• Avoid picking up hard, sharp objects with this product, as
they may cause damage.
• Store appropriately indoors in a dry place. Do not expose
machine to freezing temperatures.
• Do not use sharp objects to clean out hose as they can
cause damage.
• Do not allow power nozzle with brushroll running to sit in
one location for an extended period of time, as damage
to floor can result.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.

GROUNDING INSTRUCTIONS: This appliance must be
grounded. If it should malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of
electric shock. This appliance is equipped with a cord having an
equipment-grounding conductor (C) and grounding plug (A). The plug
must be inserted into an appropriate outlet (B) that is properly installed
and grounded in accordance with all local codes and ordinances.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Improper connection of the equipment-grounding
conductor can result in the risk of electric shock. Check with a qualified
electrician or service person if you are in doubt as to whether the
outlet is properly grounded. Do not modify the plug provided with the
appliance - if it will not fit the outlet, have a proper outlet installed by
a qualified electrician. This appliance is for use on a nominal 120-volt
circuit and has a grounding plug that looks like the plug (A) illustrated
in Fig. 1. A temporary adapter (D) may be used to connect this plug
to a 2-pole receptacle (E) if a properly grounded outlet is not available
(Fig. 2). The temporary adapter should be used only until a properly
grounded outlet (B) can be installed by a qualified electrician (Fig. 1). The
green colored rigid ear, lug, or the like (F) extending from the adapter
must be connected to a permanent ground (G) such as a properly
grounded outlet box cover (Fig. 2). Whenever the adapter is used, it
must be held in place by a metal screw. NOTE: In Canada, the use of
a temporary adapter is not permitted by the Canadian Electrical Code.
Fig. 1 Fig. 2

TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK DUE TO INTERNAL COMPONENT DAMAGE, USE
ONLY ORECK CLEANING PRODUCTS INTENDED FOR USE WITH THE APPLIANCE AS NOTED ABOVE.
WARNING!
!
!
7
TECHNICAL SPECIFICATIONS
I
SK30080PC
Name
Venture™ and Venture™ Pro
Wattage
1350
Cord Length
23 ft.
Weight
20.5 lbs.
Remove all parts from carton and identify each item shown. Ensure all parts are located before disposing of packing materials. Subject to technical change without notice.

Hose Handle
Extension Wand
Telescoping Wand Release Button
Nozzle
Carry Handle
Filter Bag Door Latch

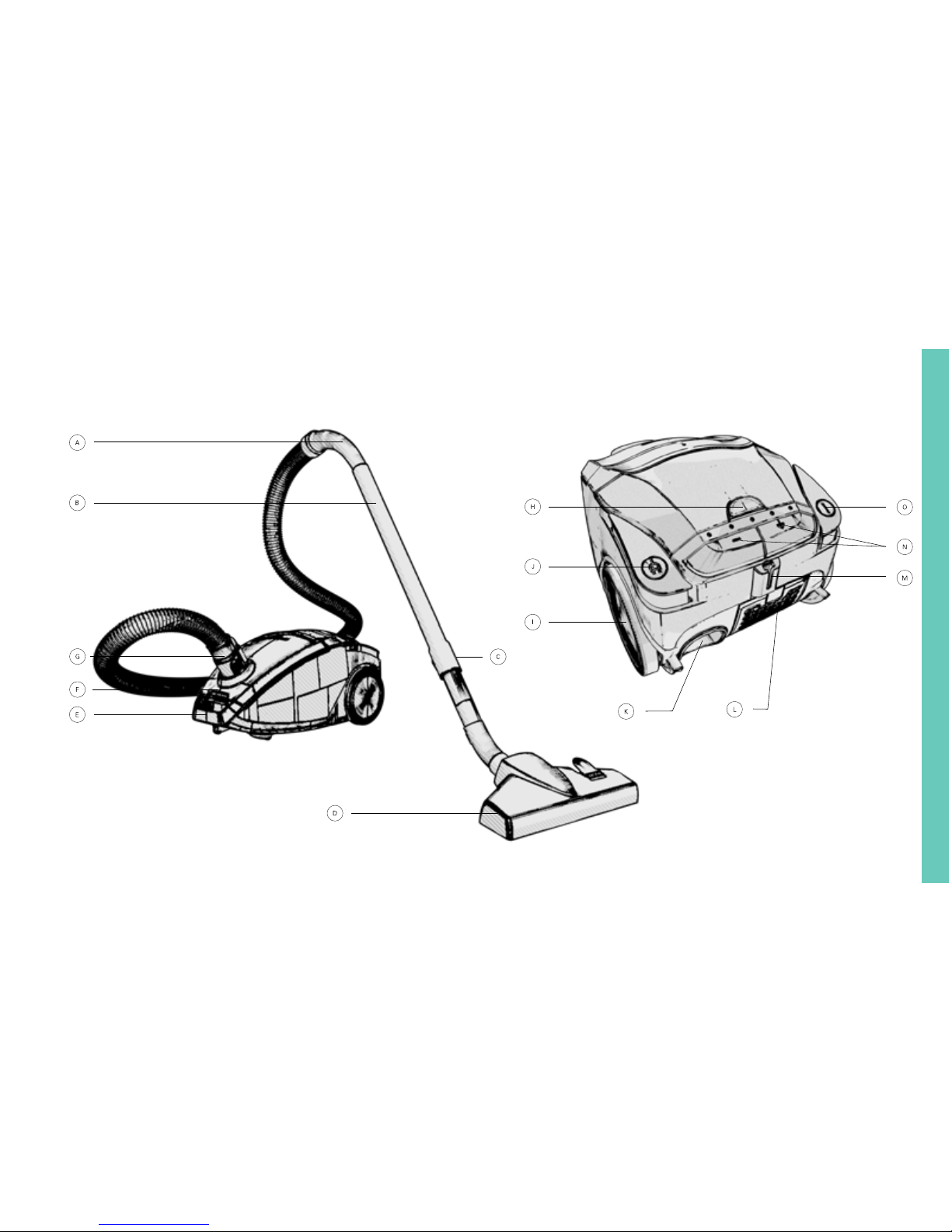

CARTON CONTENTS: VENTURE™ ONLY
A
B
C
D
E
F
G
H
Hose Connector
System Check Indicator
Wheel
Cord Rewind Pedal
Power Cord
Filter Door
Wand Holder Slot
Suction Speed Control
On/Off Pedal
I
J
M
N
O
K
L
2. FEATURES

9
VENTURE™

Hose Handle
Power Nozzle On/Off Switch
Suction Regulator
Extension Wand Release Button
Extension Wand
Telescoping Wand Release Button

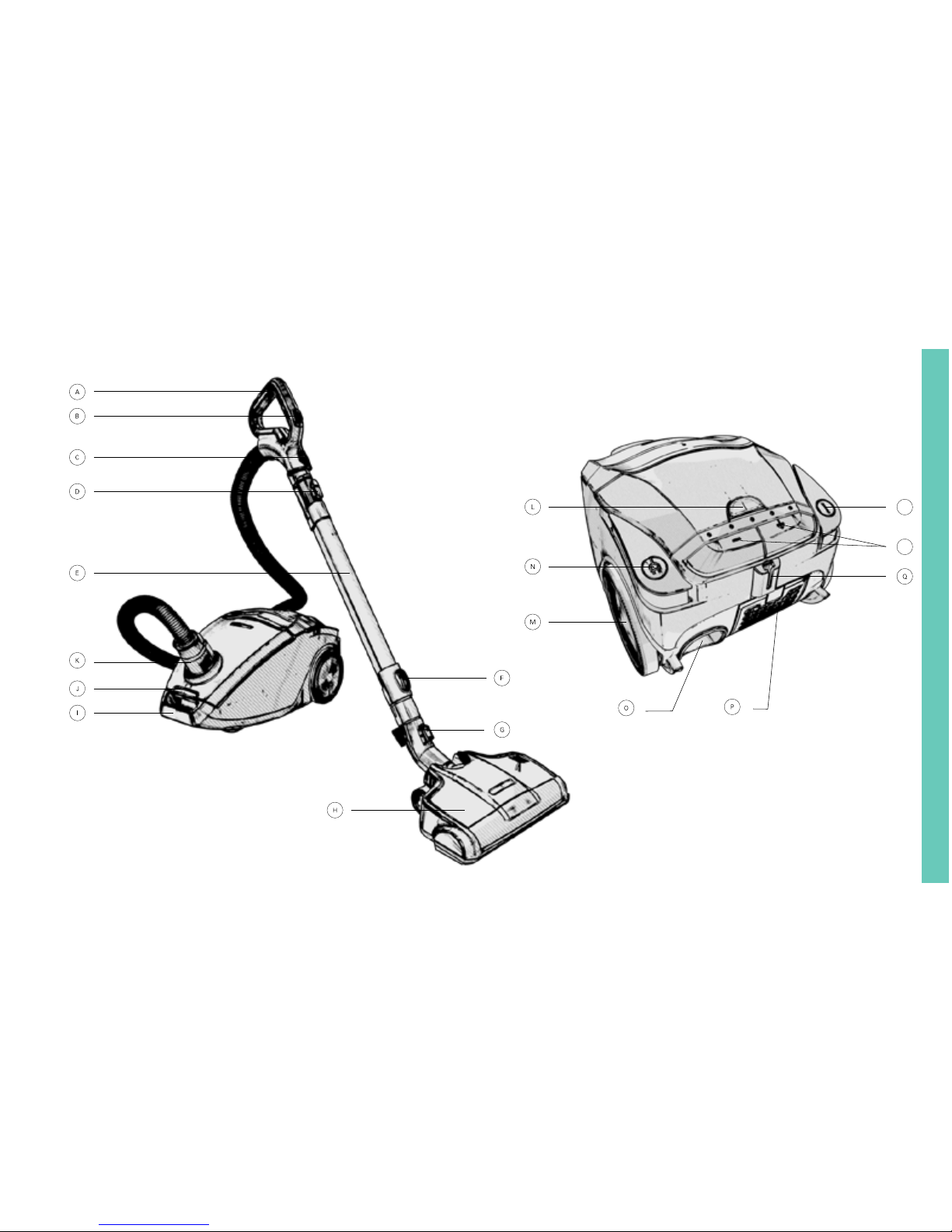

CARTON CONTENTS: VENTURE™ PRO ONLY
A
B
C
D
E
F
G
H
Power Nozzle Release Button
Power Nozzle
Carry Handle
Filter Bag Door Latch
Hose Connector
System Check Indicator
Wheel
Cord Rewind Pedal
Power Cord
Filter Door
Wand Holder Slot
Suction Speed Control
On/Off Pedal
I
J
M
N
O
P
Q
R
S
K
L
2. FEATURES

11
R
S
VENTURE™ PRO

3. OPERATION
Please read “IMPORTANT SAFETY INSTRUCTIONS” before use (pg. 4).
TO REDUCE THE RISK OF PERSONAL INJURY–UNPLUG BEFORE CLEANING OR SERVICING.
Insert hose connector into the opening on the
front of the canister. Press release buttons on
hose connector and pull out to remove.
Push handle firmly onto the end of the wand
until it clicks. Press release button on the wand
and pull apart to remove.
VENTURE™VENTURE™
Push the opposite end of the wand firmly into
the power nozzle. Press release button on the
nozzle and pull to disconnect the wand.
WARNING!
!
!
ASSEMBLY
VENTURE™ PRO
VENTURE™ PRO

HOLD PLUG WHEN REWINDING ONTO CORD REEL. DO NOT ALLOW PLUG TO WHIP WHEN REWINDING.
Pull the plug to release the cord. Press the cord
rewind button while holding the plug to return
the cord for storage.
Important: When pulling on the cord, yellow tape will identify when the cord is almost fully extended. The cord has reached its
full length when red tape is visible. Do not pull the cord past the red tape.
WARNING!
!
!
13

3. OPERATION
USING YOUR MACHINE
Use the handle on top of the canister to
carry the vacuum from room to room.
Press the On/Off pedal on the back of the
canister to turn on. Press again to turn off.
Step on the power nozzle and pull handle back
to lower into operating position.
Venture™Pro Only

15
Use the speed controls on the back of the
canister to adjust suction power. Choose a
lower setting for curtains or area rugs and
a higher setting for carpet.
Shut the suction regulator on the handle for
maximum suction. Slide it open if the power
nozzle is hard to push.
Venture™Pro Only
Press brushroll on/off button on the handle
to control the brushroll. Turn the brushroll off
when cleaning hard floors.
Venture™Pro Only

3. OPERATION
USING YOUR EXTENSION WAND AND TOOLS
Firmly push the desired tool onto the
telescoping extension wand or handle.
Twist the tool slightly to tighten or
loosen connection.
Press the button on the telescoping extension
wand and slide wand to the desired length.
To remove the tool, twist and gently pull apart.
VENTURE™VENTURE™ VENTURE™ PRO VENTURE™ PRO

17
The crevice tool allows you to clean tight
spaces, corners and edges with precision.
Crevice Tool: Dusting Brush:
The dusting brush is perfect for cleaning
tabletops, lamps, vents, blinds and more.
The upholstery tool makes it easy to clean dust,
lint and hair off of furniture or carpeted stairs.
Upholstery Tool:

4. MAINTENANCE
CHANGING THE FILTER BAG
Note: The filter bag door will not close without a bag in place.
TO REDUCE THE RISK OF PERSONAL INJURY–UNPLUG BEFORE CLEANING OR SERVICING. DO NOT USE CLEANER WITHOUT BAGS OR FILTERS IN PLACE.
WARNING!
!
!
Remove hose from the canister. Lift up latch on the filter bag door to open. Pull the filter bag collar up and remove bag.
Discard.

19
VERY FINE MATERIALS, SUCH AS FACE POWDER OR CORNSTARCH MAY SEAL THE FILTER BAG AND CAUSE IT TO BURST
EVEN THOUGH IT IS ONLY PARTIALLY FULL. CHANGE THE BAG OFTEN WHEN CLEANING THIS TYPE OF MATERIAL.
Slide a new bag collar firmly into frame. Close the filter bag door and reattach the hose.
CAUTION!
!
!

4. MAINTENANCE
CLEANING THE SECONDARY FILTER
Locate secondary filter in the back of the
filter bag compartment.
When the filter is dirty, lift it up and out
of the frame.
Rinse filter under running water to clean.
TO REDUCE THE RISK OF PERSONAL INJURY–UNPLUG BEFORE CLEANING OR SERVICING. DO NOT USE CLEANER WITHOUT BAGS OR FILTERS IN PLACE.
WARNING!
!
!
