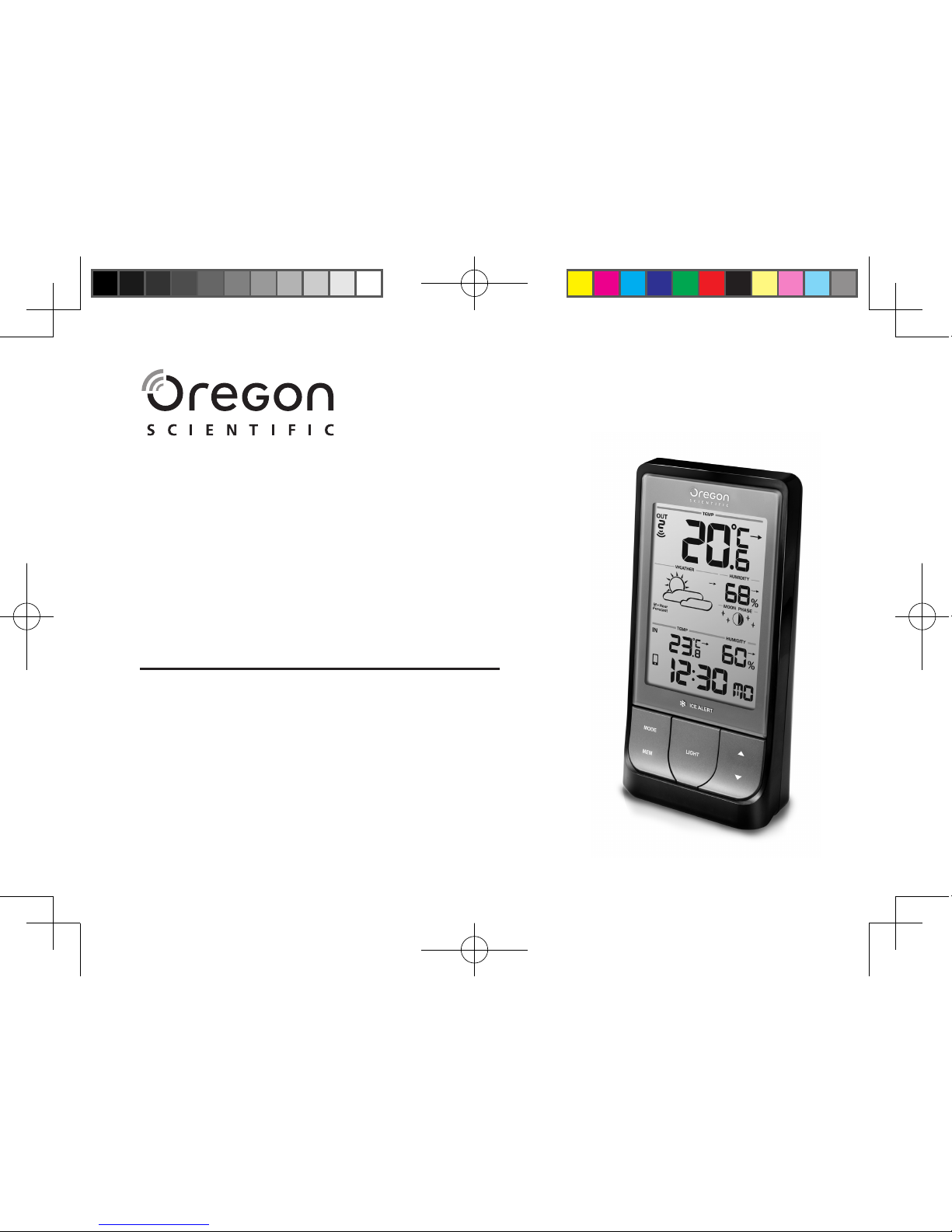

Oregon Scientific BAR218HGX User manual

Weather@Home
Bluetooth-enabled
Weather Station
USER MANUAL
BAR218HGX
BAR218HGX-UM-EN-Cover.indd 1 2019/2/14 下午12:15

1
EN
Weather@Home
Bluetooth-enabled Weather Station
Model: BAR218HGX
User Manual
TABLE OF CONTENT
Introduction-----------------------------------------------------------------3
Overview---------------------------------------------------------------------3
Front view----------------------------------------------------------------3
Rear view ----------------------------------------------------------------4
Remote sensor (THGR511) -----------------------------------------4
Getting started-------------------------------------------------------------5
Insert batteries----------------------------------------------------------5
Remote sensor ------------------------------------------------------------5
Sensor data transmission--------------------------------------------5
Clock--------------------------------------------------------------------------6
Manually set clock-----------------------------------------------------6
Weather forecast----------------------------------------------------------6
Weather warning message --------------------------------------------6
Temperature and humidity---------------------------------------------6
Ice warning --------------------------------------------------------------7
Weather trends ---------------------------------------------------------7
Moon phase-----------------------------------------------------------------7
Backlight---------------------------------------------------------------------7
Reset--------------------------------------------------------------------------7
Connect with your mobile device -----------------------------------8
Pairing your weather station ----------------------------------------8
Settings-------------------------------------------------------------------9
View current readings ------------------------------------------------10
View history readings-------------------------------------------------10
Precautions-----------------------------------------------------------------11
Specications--------------------------------------------------------------12
About Oregon Scientic------------------------------------------------12
Eu-Declaration of conformity-----------------------------------------12
Disposal Information for Users --------------------------------------13
FCC & IC statement ------------------------------------------------------13
Declaration of conformity --------------------------------------------14
BAR218HGX-UM-EN-R14.indd 1 2019/2/14 下午12:19

EN
2
INTRODUCTION
Thank you for selecting our Oregon ScienticTM
Weather@Home Bluetooth-enabled Weather Station.
In addition, it is also carried out the changeable display
between indoor and outdoor temperatures.
NOTE Please keep this manual handy as you use
your new product. It contains practical step-by-step
instructions, as well as technical specications and
warnings you should know about.
OVERVIEW
FRONT VIEW
1. Remote sensor reception indicator and outdoor
channel selected
2. : Outdoor remote sensor battery low
3. : Next 12 hour Weather forecast and
pressure trend
4. / / / / : weather
warning message
5. Indoor temperature reading (current/MAX/MIN)
with temperature trend
6. BLE connection indicator
7. : Main unit battery low
8. Ice alert LED indicator
9. MODE: Change settings / display
10. MEM: View current, maximum and minimum
temperature / humidity
11. LIGHT: Activate backlight
12. / : Increase / decrease value of the settings;
toggle only button to select outdoor channels
(1-5); activate / deactivate pairing mode.
13. AM/PM : Morning/afternoon
BAR218HGX-UM-EN-R14.indd 2 2019/2/14 下午12:19

3
EN
MD/DM/Yr: Calendar / clock with weekday (hour :
minute with second display)
14. Indoor humidity reading (current / MAX / MIN) with
humidity trend
15. Moon phase display
16. Outdoor humidity (current /MAX/MIN) with
humidity trend
17. Outdoor temperature reading (current/MAX/MIN) with
temperature trend
REAR VIEW
1. °C / °F: Select temperature unit
2. RESET: Reset the unit to default settings
3. Battery compartment
REMOTE SENSOR (THGR511)
1
3
4
5
2
1. LED status indicator
2. Wall mount hole
3. Battery compartment
4. RESET hole
5. CHANNEL switch
BAR218HGX-UM-EN-R14.indd 3 2019/2/14 下午12:19

EN
4
GETTING STARTED

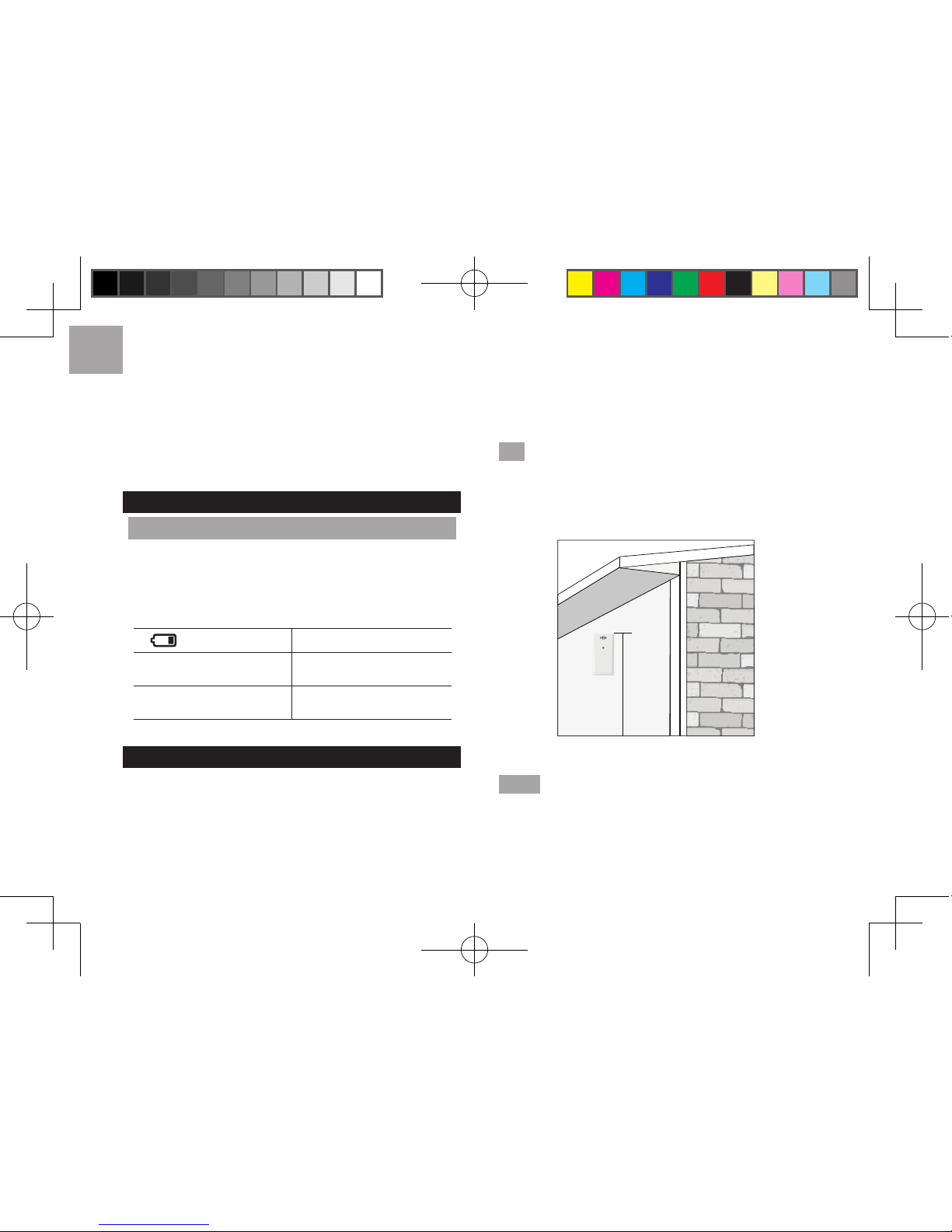

INSERT BATTERIES
1. Remove the battery compartment.
2. Insert the batteries, matching the polarities (+/-).
3. Press RESET after each battery change.
LOCATION MEANING
Clock / alarm area Main unit batteries low
Outdoor temperature
area Sensor batteries low
REMOTE SENSOR
The main unit can collect data from up to 5 sensors.
To set up the sensor:
1. Open the battery compartment.
2. Select a channel then press RESET.
3. Close the battery door.
4. Place the sensor within 98 ft (30 m) of the main unit
using the table stand or wall mount.
TIP Ideal placements for the sensor would be in any
location on the exterior of the home at a height of not
more than 5 ft (1.5 m) and which can shield it from direct
sunlight or wet conditions for an accurate reading.
150cm(5ft)
NOTE Use alkaline batteries for longer usage and
consumer grade lithium batteries in temperatures
below freezing.
SENSOR DATA TRANSMISSION
To search for a sensor:
Press and hold and MODE at a time.
The sensor reception icon in the remote sensor
area shows the status:
ICON DESCRIPTION
Main unit is searching for sensor(s).
A channel has been found.
The sensor cannot be found.
BAR218HGX-UM-EN-R14.indd 4 2019/2/14 下午12:19

5
EN
TIP
The transmission range may vary depending
on many factors. You may need to experiment with
various locations to get the best results.
CLOCK
MANUALLY SET CLOCK
1. Press and hold MODE.
2. Press or to change the settings.
3. Press MODE to conrm.
4. The settings order is: 12/24 hour format, hour,
minute, year, calendar format (day-month / month-
day), month, day and language.
The language options are English (E), German (D),
French (F), Italian (I), and Spanish (S).
To select display mode:
Toggle MODE to choose among clock with seconds /
weekday / calendar / moon phase.

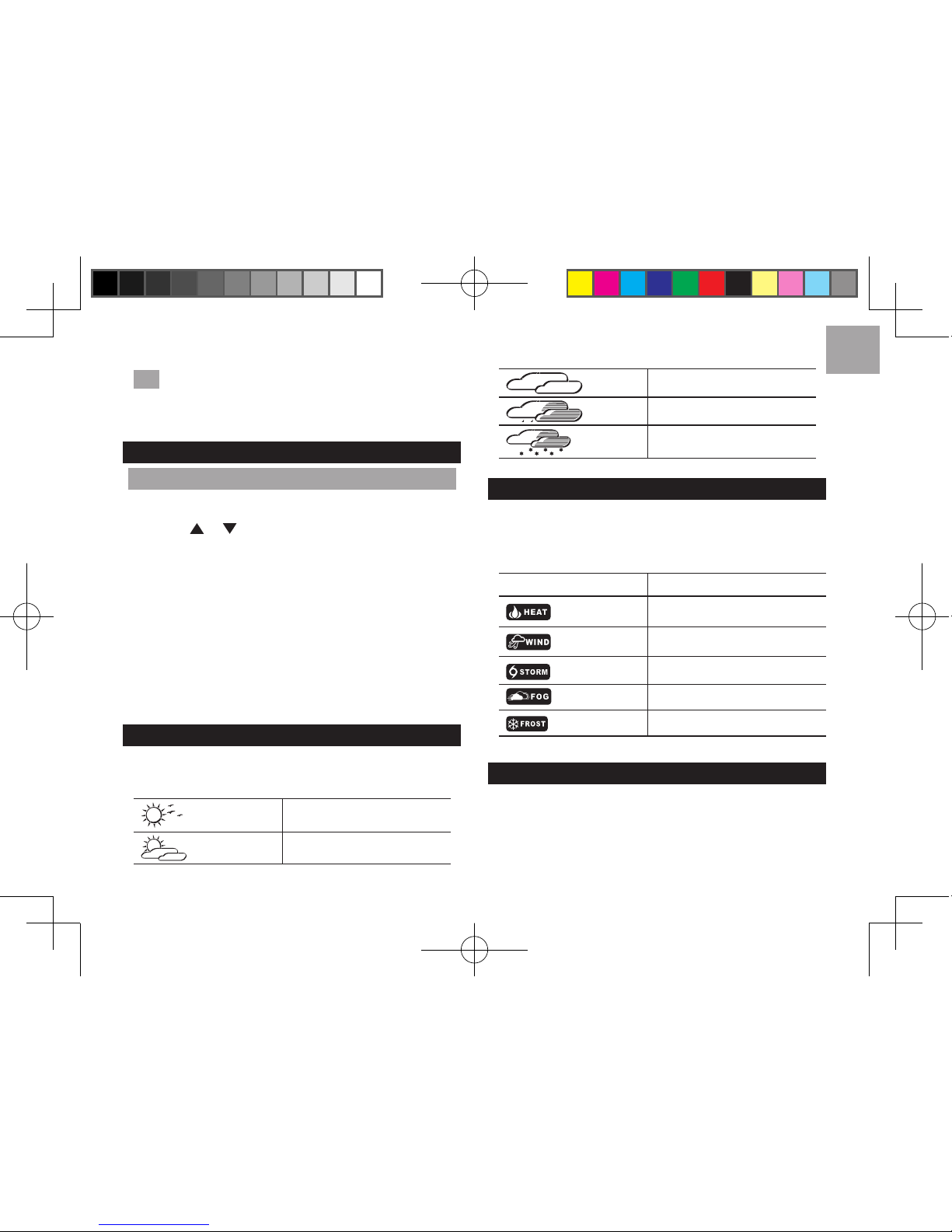

WEATHER FORECAST
This product forecasts the next 12 hours of weather
within a 19-31 mile (30-50 km) radius.
Sunny
Partially Cloudy
Cloudy
Rainy
Snowy
WEATHER WARNING MESSAGE
The weather warning messages provide indications of
probable circumstances that may arise based on the
weather station’s calculations. The meanings for the
warnings are illustrated below:
WARNING MESSAGE
Risk of high temperatures
Risk of fast wind speeds
Risk of a storm
Risk of foggy conditions
Risk of icy conditions
TEMPERATURE AND HUMIDITY
To select temperature unit:
• Select °C or °F for temperature readings by a pin
or the top of a pen.
BAR218HGX-UM-EN-R14.indd 5 2019/2/14 下午12:19

EN
6
To select an outdoor sensor’s readings:
• Toggle to select your desired sensor reading.
To auto-scan among sensors:
•Press and hold and MEM at a time to display
each sensor’s data for 3 seconds.
• To end, press .
To display current, minimum and maximum
records of the day from a selected sensor:
• Toggle MEM.
To clear the records:
• Press and hold MEM.
ICE WARNING
If the channel 1 sensor falls from 37°F to 28°F (3°C to
-2°C), LED indicator will ash, and will stop ashing
once the temperature is out of this range.
• Press and at the same time to disable the ice
alert warning.
NOTE
As ice alert is only applicable to channel 1,
to prevent ashing of LED, select channel 2 or 3 on
outdoor sensor.

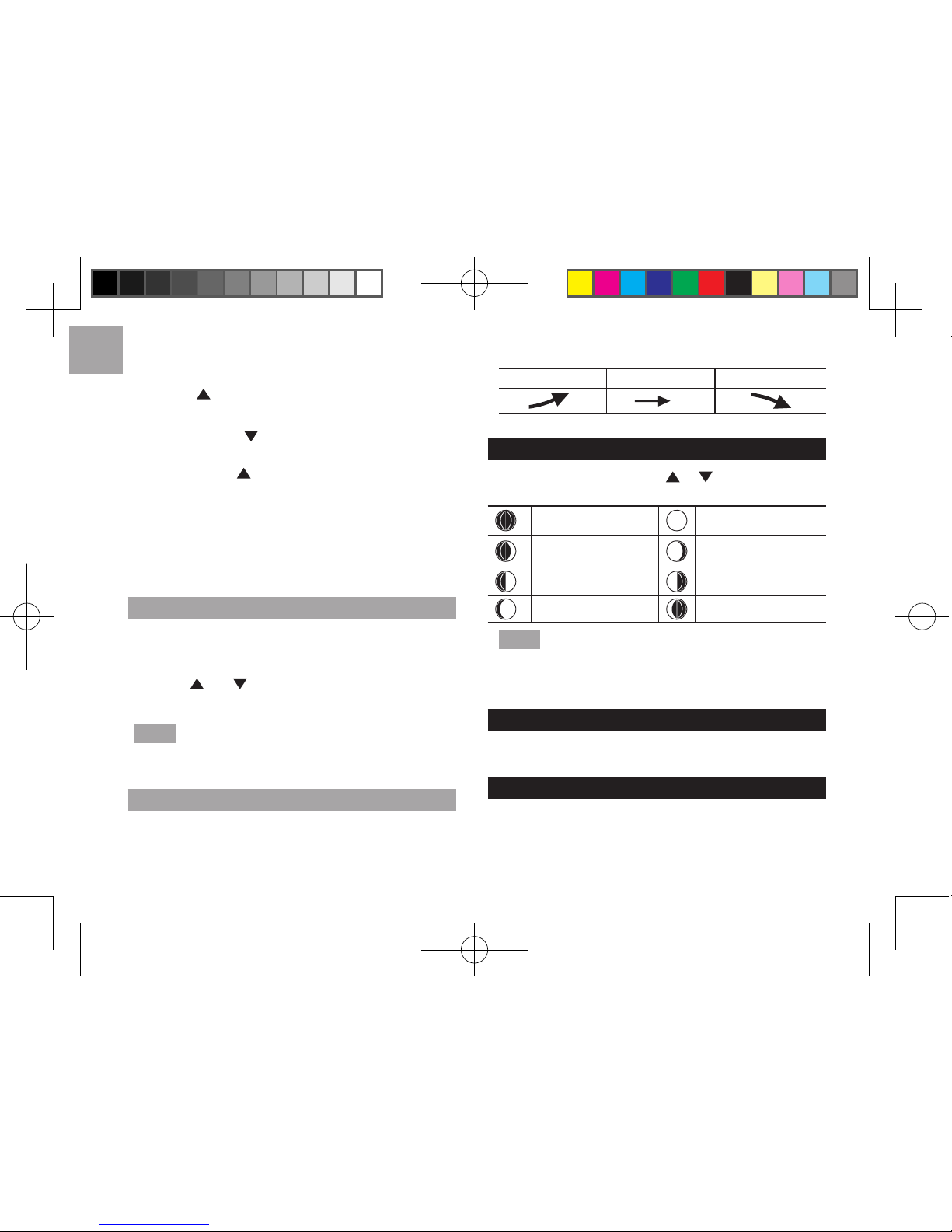

WEATHER TRENDS
The temperature, humidity and pressure trend icons
are based on recent sensor readings.
RISE STEADY FALL
MOON PHASE
In moon phase mode, press or to scan through
the years (2001 to 2099).
New moon Full moon
Waxing crescent Waning gibbous
First quarter Third quarter
Waxing gibbous Waning crescent
NOTE
Star icons around the moon phase will be
displayed from 6 o’clock in the evening to 6 o’clock the
next morning.
BACKLIGHT
Press LIGHT to activate backlight for 5 seconds.
RESET
Press RESET to return to the default settings.
BAR218HGX-UM-EN-R14.indd 6 2019/2/14 下午12:19

7
EN
CONNECT WITH YOUR MOBILE DEVICE
You can remotely set the
weather station and read the
weather information through
Bluetooth®4.0 using your mobile
device with the downloaded
application from the Apple Store
and the Google Play Store. To
quickly nd the application, type
‘Weather@Home’ as keyword in
the search engine.
Ensure your mobile device is
compatible with iOS 8 or Android 4.4 with Bluetooth®4.0.
PAIRING YOUR WEATHER STATION
First of all, you need to pair your weather station with
your mobile device. will
ash on the screen of the
weather station while pairing
and be on after successful
pairing.
Press and hold to enable a pair-up for the main unit
for 30 seconds.
1. Open the App, tap Connect. It will search the
weather station automatically.
2. Once the pairing is successful, the station and
channel numbers will display.
3. Tap on each channel to rename it. (Up to 20
characters including space are allowed). Tap
if completed. Tap to exit.
To remove the weather station:
Tap Remove Station on STATION screen, the
weather station will be unpaired and its data will be
removed from the App.
BAR218HGX-UM-EN-R14.indd 7 2019/2/14 下午12:19

EN
8

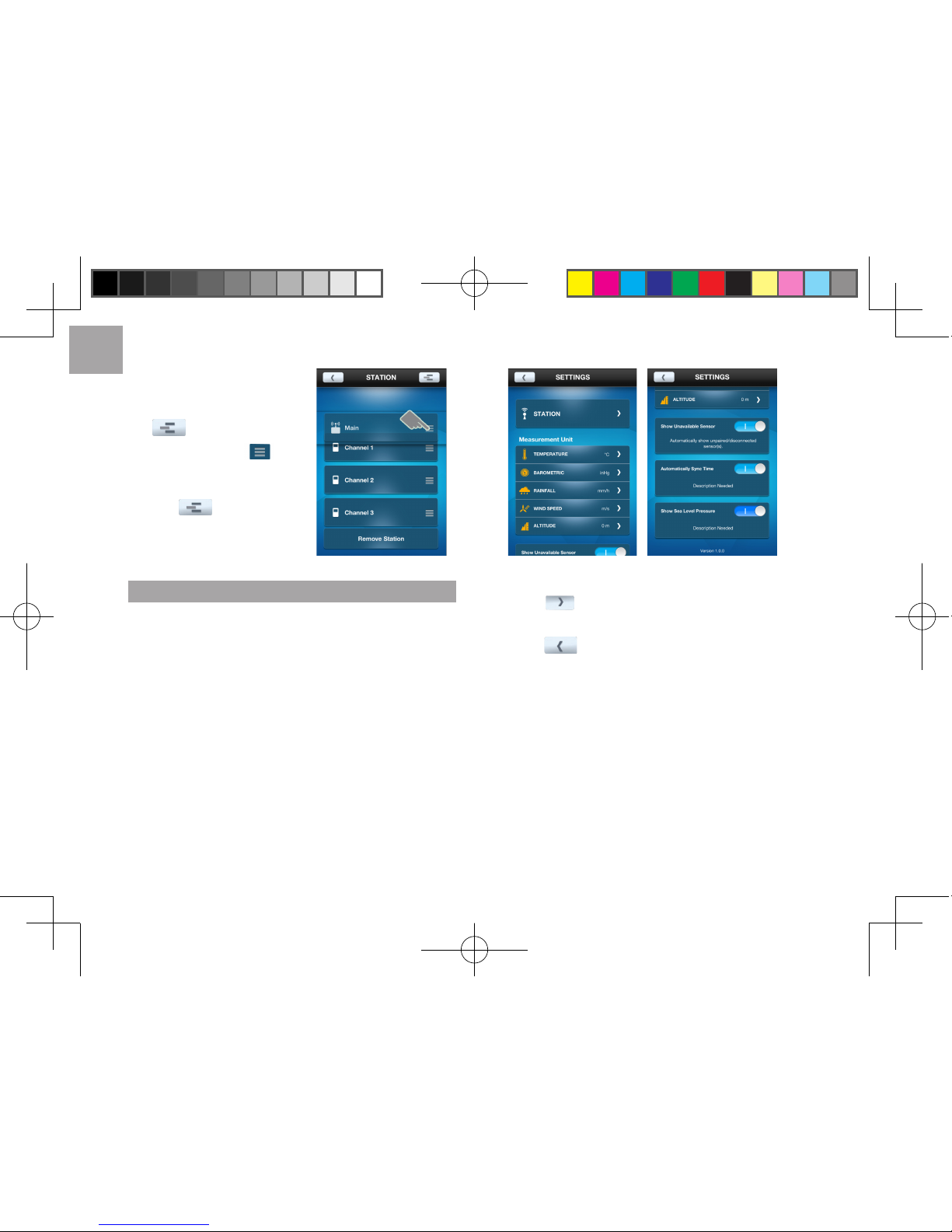

To reposition the sensors
on screen:
1. On STATION screen, tap
.
2. Press and hold at the
right side of a sensor. Drag
it to your desired position.
3. Tap to conrm.
SETTINGS
You can set your weather station through the
application, such as measurement units.
The settings are as follows:
• Temperature
• Barometric
• Rainfall (not available in BAR218HGX)
• Wind speed (not available in BAR218HGX)
• Altitude
• Show Unavailable Sensor
• Automatically Sync Time
• Show Sea Level Pressure
To select the measurement unit:
1. Tap to view the measurement unit options.
2. Tap on your desired unit.
3. Tap to go back to the previous screen.
To set altitude:
The altitude reects the distance from sea level at
your position.
1. Fill in the altitude of your main unit in the blank.
2. Tap Done.
BAR218HGX-UM-EN-R14.indd 8 2019/2/14 下午12:19

9
EN

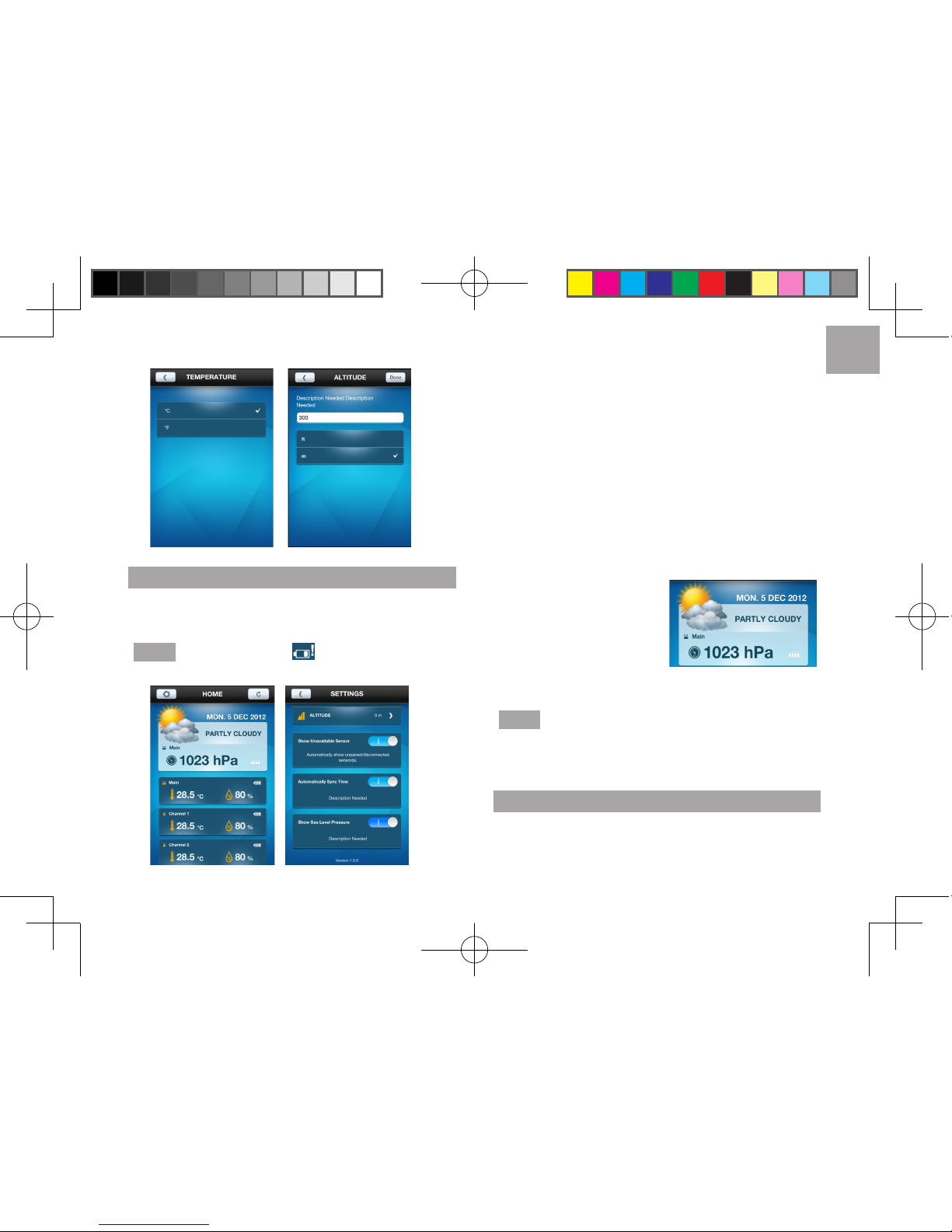

VIEW CURRENT READINGS
You can directly view all the weather readings from
different sensors through the application at a time. The
readings are in HOME screen.
NOTE If low battery icon displays on the screen,
please replace the batteries for the corresponding device.
To show unavailable sensor:
If the sensor is out of range, the readings are
interrupted and ￣ (dash mode) displays on the screen.
If you do not want to show the unavailable sensor:
• On SETTINGS screen, touch and slide the button to
right to turn on the function, or sliding to left to turn it off.
To automatically synchronize time:
Time and date on your weather station could be
automatically synchronized by your mobile device.
• On SETTINGS screen, touch and slide the button to right
to turn on the function, or sliding to left to turn it off.
To show sea level pressure:
After the altitude is input,
you can view the sea level
pressure on the HOME
screen.
• On SETTINGS screen,
touch and slide the
button to right to turn on the function, or sliding to
left to turn it off.
NOTE When altitude is set to 0 meter, the pressure
reading is the local pressure. If the altitude is set to
the current location, the new pressure reading will be
displayed as a sea level pressure.
VIEW HISTORY READINGS
You can view history through the application. The
history could also be presented in graphs (past 24
hours or past 7 days).
BAR218HGX-UM-EN-R14.indd 9 2019/2/14 下午12:19

EN
10
To view the history:
1. Tap on your desired sensor area on the screen.
2. Tap to select your desired data or tap
to sort the data by date.
PRECAUTIONS
• Do not subject the unit to excessive force, shock,
dust, temperature or humidity.
• Do not cover the ventilation holes with any items
such as newspapers, curtains etc.
• Do not immerse the unit in water. If you spill liquid
over it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive
materials.
• Do not tamper with the unit’s internal components.
This invalidates the warranty.
• Only use fresh batteries. Do not mix new and old batteries.
• Images shown in this manual may differ from the
actual display.
• When disposing of this product, ensure it is
collected separately for special treatment and not
as household waste.
• Placement of this product on certain types of wood
may result in damage to its nish for which Oregon
Scientic will not be responsible. Consult the furniture
manufacturer's care instructions for information.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal
waste. Collection of such waste separately for
special treatment is necessary.
• Please note that some units are equipped with
a battery safety strip. Remove the strip from the
battery compartment before rst use.
NOTE The technical specications for this product and
the contents of the user manual are subject to change
without notice. To download an electronic version of the
user manual, please visit
http://global.oregonscientic.com/customerSupport.php.
NOTE
Features and accessories will not be available
in all countries. For more information, please contact
your local retailer.
BAR218HGX-UM-EN-R14.indd 10 2019/2/14 下午12:19

11
EN
ABOUT OREGON SCIENTIFIC
Visit our website www.oregonscientic.com to learn
more about Oregon Scientic products.
For any inquiry, please contact our Customer Services
at info@oregonscientic.com.
Oregon Scientic Global Distribution Limited reserves
the right to interpret and construe any contents, terms
and provisions in this user manual and to amend it, at
its sole discretion, at any time without prior notice. To
the extent that there is any inconsistency between the
English version and any other language versions, the
English version shall prevail.
EU-DECLARATION OF CONFORMITY
Hereby the manufacturer, Oregon Scientific Global
Distribution Limited, declares that the radio equipment
type Weather@Home Bluetooth-enabled Weather
Station (Model: BAR218HGX) is in compliance
with 2014/53/EU Directive. The full text of the EU
Declaration of Conformity is available at the following
internet address:
http://global.oregonscientic.com/customerSupport.php
COUNTRIES RED APPROVED COMPLIED
All EU countries, Switzerland CH
and Norway N
SPECIFICATIONS
TYPE DESCRIPTION
MAIN UNIT
L x W x H 7.32 x3.7 x 2.13 in
186 x 94 x 54 mm
Weight 223 g without battery
Temperature range -5°C to 50°C (23°F to 122°F)
Signal frequency 433 MHz
Humidity range 25% - 95%
Power 3 x UM-3 (AA) 1.5V batteries
Temperature range
for ice alert 3°C to -2°C
REMOTE UNIT (THGR511)
L x W x H 96 x 50 x 22 mm
(3.78 x 1.97 x 0.87 in)
Weight 49 g (1.7 ounces)
Transmission
range
30 m (98 ft) unobstructed
Temperature range -20°C to 60°C (-4°F to 140°F)
Power 2 x UM-4 (AAA) 1.5 V batteries
BAR218HGX-UM-EN-R14.indd 11 2019/2/14 下午12:19

EN
12
Abusive disposal of the product by the user involves
application of the administrative sanctions according
to the laws in force.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
WARNING Changes or modifications to this unit
not expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
NOTE This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
DISPOSAL INFORMATION FOR USERS
Pursuant to and in accordance with
Article 14 of the Directive 2012/19/EU
of the European Parliament on waste
electrical and electronic equipment
(WEEE), and pursuant to and in
accordance with Article 20 of the Directive 2013/56/
EU of the European Parliament on batteries and
accumulators and waste batteries.
The barred symbol of the rubbish bin shown on the
equipment indicates that, at the end of its useful life, the
product must be collected separately from other waste.
Please note that the batteries/rechargeable batteries
must be removed from the equipment before it is given
as waste. To remove the batteries/accumulators refer
to the specifications in the user manual. Therefore,
any products that have reached the end of their
useful life must be given to waste disposal centers
specializing in separate collection of waste electrical
and electronic equipment, or given back to the dealer
when purchasing a new WEEE, pursuant to and in
accordance with Article 14 as implemented in the
country.
The adequate separate collection for the subsequent
start-up of the equipment sent to be recycled, treated
and disposal of in an environmentally compatible way
contributes to preventing possible negative effects
on the environment and health and optimizes the
recycling and reuse of components making up the
apparatus.
BAR218HGX-UM-EN-R14.indd 12 2019/2/14 下午12:19

13
EN
declare that the product
Product No.: BAR218HGX
Product Name: Weather@Home
Bluetooth-enabled Weather Station
Manufacturer: Oregon Scientic
Global Distribution Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1, 41 Man Yue St.,
Hung Hom, Kowloon,
Hong Kong
is in conformity with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: 1) This device
may not cause harmful interference. 2) This device must
accept any interference received, including interference
that may cause undesired operation.
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio / TV
technician for help.
DECLARATION OF CONFORMITY
The following information is not to be used as contact for
support or sales. Please call our customer service number
(listed on our website at www.oregonscientic.com), or on
the warranty card for this product) for all inquiries instead.
We
Name: Oregon Scientic Inc.
Address: Brea Corporate Park
3020 Saturn St. Suite 200
Brea, CA 92821
Telephone No.: 1 [phone]
BAR218HGX-UM-EN-R14.indd 13 2019/2/14 下午12:19

1
IT
Weather@Home
Stazione meteorologica con connessione
Bluetooth
Model: BAR218HGX
Manuale utente
INDICE
Introduzione ----------------------------------------------------------------2
Panoramica -----------------------------------------------------------------2
Vista anteriore ----------------------------------------------------------2
Vista posteriore---------------------------------------------------------3
Sensore remoto --------------------------------------------------------3
Come iniziare---------------------------------------------------------------4
Inserire le batterie -----------------------------------------------------4
Sensore remoto -----------------------------------------------------------4
Trasmissione dati del sensore--------------------------------------5
Orologio----------------------------------------------------------------------5
Impostazione manuale dell’orologio ------------------------------5
Previsioni del tempo-----------------------------------------------------5
Messaggio avviso meteo-----------------------------------------------5
Temperatura e umidità --------------------------------------------------6
Allarme gelo-------------------------------------------------------------6
Tendenze atmosferiche ----------------------------------------------6
Fase lunare -----------------------------------------------------------------6
Retroilluminazione -------------------------------------------------------7
Reset (Ripristino) ---------------------------------------------------------7
Collegamento al vostro Dispositivo mobile ---------------------7
Sincronizzazione della vostra Stazione meteo-----------------7
Impostazioni-------------------------------------------------------------8
Visualizzazione dei dati attuali -------------------------------------9
Visualizzazione dello storico dei dati -----------------------------10
Precauzioni -----------------------------------------------------------------11
Speciche -------------------------------------------------------------------12
Informazioni su Oregon Scientic ---------------------------------12
Dichiarazione di conformitá ue --------------------------------------12
Informazione Agli Utenti -----------------------------------------------13
BAR218HGX-UM-IT-R11.indd 1 2019/2/14 下午4:41

IT
2
INTRODUZIONE
Grazie per aver scelto il nostro Oregon Scientic
Weather@Home Stazione meteorologica con
connessione Bluetooth e indicazione della temperatura
interna ed esterna.
NOTA Si consiglia di tenere questo manuale a
portata di mano durante l’utilizzo del prodotto. Il
manuale contiene pratiche istruzioni dettagliate, dati
tecnici e avvertenze che è necessario conoscere.
PANORAMICA
VISTA ANTERIORE
1. Indicatore ricezione sensore remoto e canale
esterno selezionato
2. : batteria scarica del sensore remoto esterno
3. : Previsioni meteorologiche per le prossime
12 ore e tendenza pressione
4. / / / / : messaggio
avviso meteo
5. Visualizzazione temperatura interna (corrente/
MAX/MIN) con andamento temperature
6. Indicatore connessione Bluetooth
7. : batteria scarica unità principale
8. Indicatore LED per allarme ghiaccio
9. MODE(MODALITÀ): modica impostazioni /
visualizzazione
10. MEM: visualizzazione valori attuali, massimi e minimi
di temperatura / umidità
BAR218HGX-UM-IT-R11.indd 2 2019/2/14 下午4:41

3
IT
11. LIGHT (LUCE): attivazione retroilluminazione
12. / : aumento / diminuzione valore delle
impostazioni; selezionare canali esterni (1-5);
attivazione / disattivazione MODE (MODALITÀ) di
accoppiamento.
13. AM/PM: mattina/pomeriggio.
MM-GG / GG-MM / AA: calendario / orologio
con giorno della settimana (ora: minuti con
visualizzazione secondi)
14. Visualizzazione umidità interna (valori attuali/MAX/
MIN) con andamento umidità
15. Visualizzazione fase lunare
16. Visualizzazione umidità esterna (valori attuali/MAX/
MIN) con andamento umidità
17. Visualizzazione temperatura esterna (corrente/
MAX/MIN) con andamento temperatura
VISTA POSTERIORE
1. °C / °F: selezionare unità di misura temperatura
2. RESET (RIPRISTINO): ripristino dell’unità alle
impostazioni di default
3. Compartimento batterie
SENSORE REMOTO
1
3
4
5
2
BAR218HGX-UM-IT-R11.indd 3 2019/2/14 下午4:41

IT
4
1. Indicatore LED di stato
2. Foro per ssaggio a parete
3. Vano batterie
4. Foro RESET
5. Selettore CHANNEL
COME INIZIARE
INSERIRE LE BATTERIE
1. Rimuovere il compartimento batterie.
2. Inserire le batterie, rispettando le polarità (+/-).
3. Premere RESET (RIPRISTINO) dopo ogni
sostituzione di batterie
UBICAZIONE SIGNIFICAT
Area orologio / sveglia Batterie scariche unità
principale
Area temperatura
esterna
Batterie sensore
scariche
SENSORE REMOTO
L’unità principale può raccogliere dati da no a 5 sensori.
Per impostare il sensore:
1. Aprire il compartimento batterie.
2. Selezionare un canale quindi premere RESET
(RIPRISTINO).
3. Chiudere il coperchio delle batterie.
4. Mettere il sensore entro 98 piedi (30 m) dall’unità
principale usando il supporto da tavolo oppure il
montaggio a parete.
TIP
La posizione ideale per il sensore sarebbe
qualsiasi posizione all’esterno della casa ad un’altezza
non superiore a 5 piedi (1.5 m) ed al riparo dalla luce
solare diretta o dall’umidità per una lettura accurata.
150cm(5ft)
NOTA Usare batterie alcaline per un funzionamento più
lungo e batterie al litio d’uso comune per temperature al disotto
del punto di congelamento.
BAR218HGX-UM-IT-R11.indd 4 2019/2/14 下午4:42
