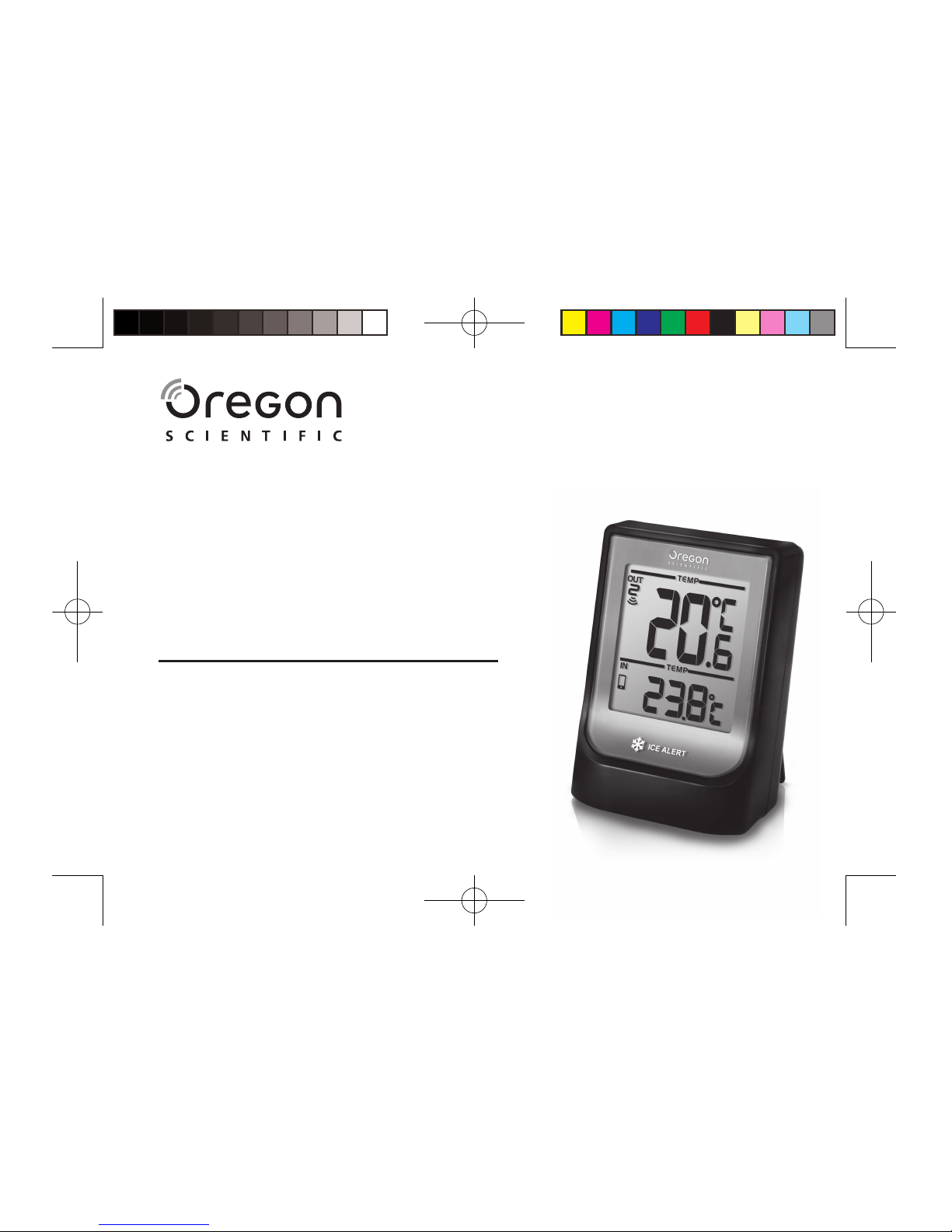

Oregon Scientific EMR211X User manual

Weather@Home
Thermo Bluetooth-enabled
Thermometer
USER MANUAL
EMR211X
BAR218HG-18-UM-EN-R1.indd 1 2018/4/13 下午12:14

EN
1
Weather@Home Thermo
Bluetooth-enabled Thermometer
Model: EMR211X
USER MANUAL
CONTENTS
Introduction .............................................................. 2
Overview ................................................................... 2
Front view .............................................................. 2
Rear view............................................................... 2
Remote Sensor (THN132N)................................... 3
Getting started.......................................................... 3
Insert batteries ....................................................... 3
Remote sensor.......................................................... 3
Sensor data transmission ...................................... 4
Temperature.............................................................. 4
Ice warning............................................................. 4
Reset.......................................................................... 4
Connect with your mobile device ........................... 5
Paring your Thermometer ...................................... 5
Settings.................................................................. 6
View current readings ............................................ 7
View history readings .............................................. 7
Optional sensor for additional information ........... 7
Precautions............................................................... 8
Specifications........................................................... 8
About oregon scientific ........................................... 9
Eu-Declaration of Conformity ................................. 9
Disposal Information for Users............................... 9
FCC statement........................................................ 10
EMR211X_M_EU_EN_R7.indd 1 2018/8/15 下午4:29

EN
2
INTRODUCTION
Thank you for selecting our Oregon ScientificTM
Weather@Home Bluetooth-enabled Thermometer,
which has changeable display on indoor and outdoor
temperature.
NOTE Please keep this manual handy as you use
your new product. It contains practical step-by-step
instructions, as well as technical specifications and
warnings you should know about.
OVERVIEW
FRONT VIEW
1
2
3
4
5
6
7
8
1. Outdoor temperature reading (°C/°F)
2. Sensor channel indicator
3. : Sensor reception indicator
4. : outdoor remote sensor battery low
5. Indoor temperature reading (°C/°F)
6. : indoor remote sensor / main unit battery low
7. : BLE connection indicator
8. Ice alert LED indicator
REAR VIEW
1. 2. 3.
4
5
1. SET: select temperature unit (°C/°F); pair up
Bluetooth function
2. : select outdoor channels (1-5); search remote sensor
3. : select outdoor channels (1-5); auto-scan among sensors
4. RESET: reset the unit to default settings
5. Battery compartment
EMR211X_M_EU_EN_R7.indd 2 2018/8/15 下午4:29

EN
3
REMOTE SENSOR (THN132N)
1
2
3
4
5
1. LED status indicator
2. Wall mount hole
3. Battery compartment
4. RESET hole
5. CHANNEL switch
REFERENCE Visit our website www.oregonscientific.com
to learn more about the compatible sensors.
GETTING STARTED
INSERT BATTERIES
1. Remove the battery compartment.
2. Insert the batteries, matching the polarities (+/-).
3. Press RESET after each battery change.
LOCATION MEANING
Outdoor temperature area Outdoor sensor batteries low
Indoor temperature area Indoor sensor batteries
low / main unit batteries low
REMOTE SENSOR
The main unit can collect data from up to 5 sensors.
To set up the sensor:
1. Open the battery compartment.
2. Select a channel then press RESET.
3. Close the battery door.
4. Place the sensor within 98 ft (30 m) of the main unit
using the table stand or wall mount.
TIP
Ideal placements for the sensor would be in any
location on the exterior of the home at a height of not
more than 5 ft (1.5 m); and can shield it from direct
sunlight or wet conditions for an accurate reading.
1.5 m (5 ft)
EMR211X_M_EU_EN_R7.indd 3 2018/8/15 下午4:29

EN
4
NOTE Use alkaline batteries for longer usage and consumer
grade lithium batteries in temperatures below freezing.
SENSOR DATA TRANSMISSION
To search for a sensor:
1. Press or to select among 5 different outdoor
channels of remote sensors.
2. Press and hold for 2 seconds to enforce
researching for the selected sensor.
To auto-scan among sensors:
• Press and hold for 2 seconds to enable auto-scan
function for all 5 channels. The temperatures will be
displayed automatically in sequential order (Channel
1,2,3,4,5)
The sensor reception icon at the front of the main
unit shows the status:
ICON DESCRIPTION
Main unit is searching for
sensor(s).
A channel has been found.
The sensor cannot be found.
TIP The transmission range may vary depending on
many factors. You may need to place the sensor(s) in
different locations to get the best result(s).
TEMPERATURE
To select temperature unit:
• Press SET to select °C or °F for temperature readings.
ICE WARNING
If the channel 1 sensor falls from 37°F
to 28°F (3°C to -2°C), LED indicator in the front of the
main unit will ash continuously, and will stop ashing
once the temperature is out of this range.
• Press and at the same time to deactivate the
ice alert warning.
• The ice alert warning will be disable/enable again
when the temperature falls again from 37°F to 28°F
(3°C to -2°C).
NOTE As ice alert is only applicable to channel 1, to
prevent flashing of LED, select channel 2-5 on outdoor sensor.
RESET
Press RESET at the rear of the main unit to return to
the default settings.
EMR211X_M_EU_EN_R7.indd 4 2018/8/15 下午4:29

EN
5
CONNECT WITH YOUR MOBILE DEVICE
You can remotely set the thermometer and read the
weather information through Bluetooth®4.0 using your
mobile device with the downloaded application from
the Apple Store. To quickly find the application, type
‘Weather@Home’ as keyword in the search engine.
Ensure your mobile device is compatible with iOS 5 or
Android 4.3 with Bluetooth®v4.0.
PAIRING YOUR THERMOMETER
First of all, you need to pair your thermometer with your
mobile device. will ash on the screen of the weather
station while pairing and be on after successful pairing.
To pair up a sensor:
At the rear of the main unit, press and hold SET for
2 seconds to enable a pair-up for the main unit.
1. Tap to enter SETTINGS screen.
2. Tap on STATION area.
3. Tap Pair Up. Searching… displays. If you want to
cancel the pairing, tap Cancel.
4. Once the pairing is successful, it will return to
STATION screen.
5. Tap on each channel to rename it. (Up to 20
characters including space are allowed). Tap
if completed. Tap to exit.
To remove sensor:
To remove any sensor from the weather station, Tap
Remove station on STATION screen, all the sensors
will be removed at the same time.
EMR211X_M_EU_EN_R7.indd 5 2018/8/15 下午4:29

EN
6
To reposition the sensors on screen:
1. On STATION screen, tap .
2. Press and hold at the right side of a sensor. Drag
it to your desired position.
3. Tap to conrm.
SETTINGS
You can set your weather station through the application,
such as measurement units.
The settings are as follows:
• Temperature
• Barometric (not available in EMR211X)
• Rainfall (not available in EMR211X)
• Wind speed (not available in EMR211X)
• Altitude (not available in EMR211X)
• Show unavailable sensor
• Automatically sync time
• Show Sea Level Pressure (not available in EMR211X)
To select the measurement unit:
1. Tap to view the measurement unit options.
2. Tap on your desired unit.
3. Tap to go back to the previous screen.
EMR211X_M_EU_EN_R7.indd 6 2018/8/15 下午4:29

EN
7
VIEW CURRENT READINGS
You can directly view all the
temperature readings from
different sensors through the
application at a time. The
readings are on the HOME
screen.
NOTE If low battery icon
displays on the screen,
please replace the batteries for
the corresponding device.
To show unavailable sensor:
If the sensor is out of range, the readings are interrupted
and - - (dash mode) displays on the screen. If you do
not want to show the unavailable sensor:
• On SETTINGS screen, touch and slide the button to
right to turn on the function, or sliding to left to turn it off.
To automatically synchronize time:
Time and date on your weather station could be
automatically synchronized by your mobile device.
• On SETTINGS screen, touch and slide the button to
right to turn on the function, or sliding to left to turn it off.
VIEW HISTORY READINGS
You can view history through the application. The history
could also be presented in graphs (past 24 hours or
past 7 days).
To view the history:
1. Tap on your desired sensor area on the screen.
2. Tap to select your desired data or tap
to sort the data by date.
OPTIONAL SENSOR FOR ADDITIONAL
INFORMATION
By applying the sensor (Model: BTH Sensor) at the same
time, you can also view the following information using
your mobile device.
• Weather Forecast
• Air Pressure
• Outdoor Humidity
EMR211X_M_EU_EN_R7.indd 7 2018/8/15 下午4:29

EN
8
USEFUL REFERENCE The optional sensor (Model:
BTH Sensor) can be purchased from Oregon Scientific.
PRECAUTIONS
• Do not subject the unit to excessive force, shock,
dust, temperature or humidity.
• Do not cover the ventilation holes with any items
such as newspapers, curtains etc.
• Do not immerse the unit in water. If you spill liquid
over it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive materials.
• Do not tamper with the unit’s internal components.
This invalidates the warranty.
• Only use fresh batteries. Do not mix new and old batteries.
• Images shown in this manual may differ from the
actual display.
• When disposing of this product, ensure it is
collected separately for special treatment and not
as household waste.
• Placement of this product on certain types of wood
may result in damage to its nish for which Oregon
Scientific will not be responsible. Consult the
furniture manufacturer’s care instructions
for information.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
• Donotdisposeoldbatteriesasunsortedmunicipalwaste.
Collectionof suchwasteseparately for specialtreatment
is necessary.
• Please note that some units are equipped with a
battery safety strip. Remove the strip from the battery
compartment before rst use.
NOTE The technical specifications for this product and
the contents of the user manual are subject to change
without notice.
NOTE Features and accessories will not be available
in all countries. For more information, please contact
your local retailer.
SPECIFICATIONS
TYPE DESCRIPTION
MAIN UNIT
L x W x H 93 x 68 x 30 mm
(3.66 x 2.68 x 1.18 in)
Weight 96g (3.39 ounces) include battery
Temperature range -5°C to 50°C (23°F to 122°F)
Signal frequency 433 MHz
Power 2 x AAA batteries
EMR211X_M_EU_EN_R7.indd 8 2018/8/15 下午4:29

EN
9
Temperature range
for ice alert 3°C to -2°C
REMOTE THERMO SENSOR (THN132N)
L x W x H 96 x 50 x 22 mm
(3.78 x 1.97 x 0.87 in)
Weight 62g (2.22 ounces)
Transmission range 30 m (98 ft) unobstructed
Temperature range -20°C to 60°C (-4°F to 140°F)
Power 1 x UM-3 (AA) 1.5V batteries
ABOUT OREGON SCIENTIFIC
Visit our website www.oregonscientific.com to learn more about
Oregon Scientific products.
For any inquiry, please contact our Customer Services at
[email protected].
Oregon Scientific Global Distribution Limited reserves the right to
interpret and construe any contents, terms and provisions in this
user manual and to amend it, at its sole discretion, at any time
without prior notice. To the extent that there is any inconsistency
between the English version and any other language versions,
the English version shall prevail.
EU-DECLARATION OF CONFORMITY
Hereby the manufacturer, Oregon Scientic Global Distribution
Limited, declares that the radio equipment type Weather@Home
Thermo Bluetooth-enabled Thermometer (Model: EMR211X) is
in compliance with 2014/53/EU Directive. The full text of the EU
Declaration of Conformity is available at the following internet address:
http://global.oregonscientific.com/customerSupport.php
COUNTRIES RED APPROVED COMPLIED
All EU countries, Switzerland CH
and Norway N
DISPOSAL INFORMATION FOR USERS
Pursuant to and in accordance with Article 14 of the
Directive 2012/19/EU of the European Parliament on
waste electrical and electronic equipment (WEEE),
and pursuant to and in accordance with Article 20 of
the Directive 2013/56/EU of the European Parliament
on batteries and accumulators and waste batteries.
The barred symbol of the rubbish bin shown on the equipment
indicates that, at the end of its useful life, the product must be
collected separately from other waste.
Please note that the batteries/rechargeable batteries must be
removed from the equipment before it is given as waste. To
remove the batteries/accumulators refer to the specifications in
the user manual. Therefore, any products that have reached the
end of their useful life must be given to waste disposal centers
EMR211X_M_EU_EN_R7.indd 9 2018/8/15 下午4:29
