Oregon Scientific RGR202 User manual

EN
1
Rain and Temperature Station
with Rainfall History
Model: RGR202
USER MANUAL

EN
1
Rain and Temperature Station
with Rainfall History
Model: RGR202
USER MANUAL
CONTENTS
Overview.....................................................................2
Front View ..............................................................2
Back View ...............................................................2
Remote Sensor .....................................................3
Getting Started...........................................................3
Insert Batteries .......................................................3
Remote Sensor .........................................................3
Sensor Data Transmission .....................................4
Rain Gauge ................................................................4
Overview ................................................................4
Set up Rain Gauge .................................................5
Signals ...................................................................6
Clock ..........................................................................6
Manually Set Clock ................................................6
Rainfall .......................................................................7
Rainfall History ........................................................7
Total Rainfall............................................................7
Rainfall Alert ............................................................7
Temperature ..............................................................7
Reset ..........................................................................8
Precautions ...............................................................8
Specications ...........................................................9
About Oregon Scientic ..........................................9
EU-Declaration of Conformity .................................9
FCC Statement .......................................................10
Declaration Of Conformity ....................................10

EN
2
OVERVIEW
FRONT VIEW (FIG. 1)
1. Remote rain collector reception indicator
2. Rainfall alert indicator
3. Remote sensor reception indicator
4. Outdoor temperature
5. MODE: Change settings / display
6. / HIST: Toggle between past 9 days rainfall
history / today’s rainfall; increase setting
7. Today’s rainfall
8. Total rainfall
1
3
4
2
5
6
7
8
9
10
11
12
9. Clock with weekday
10. SINCE: Toggle clock with seconds / day / month;
display total annual rainfall
11. SEARCH / : Search remote rain collector;
decrease setting
12. Rainfall alert LED indicator
BACK VIEW (FIG. 2)
1. RESET : Reset unit to default settings
2. °C / °F : Select temperature unit

EN
3
3. RAIN ALERT : Toggle between rain alert / enable
alert / disable alert; enter rain alert setting mode
4. IN / MM : Select rainfall unit

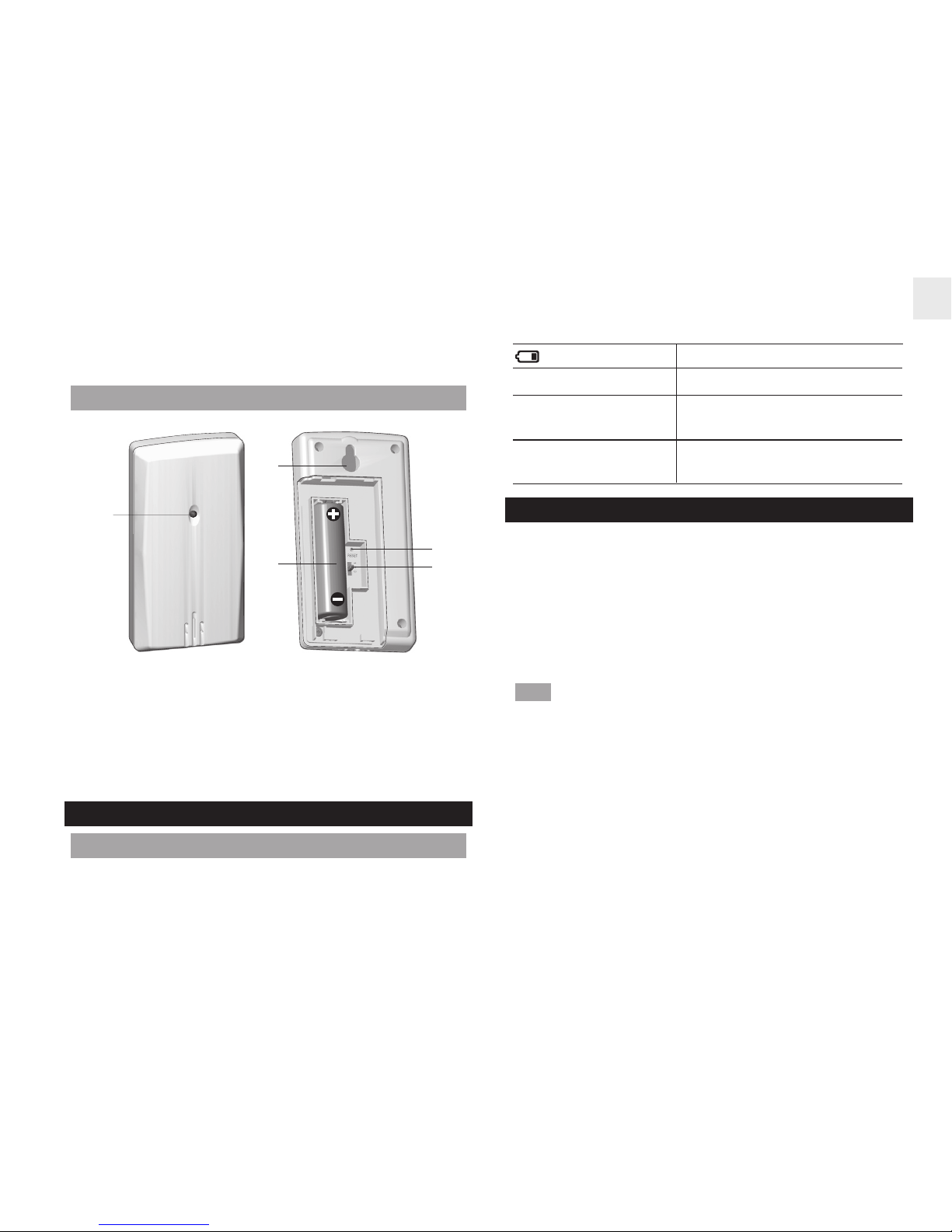

REMOTE SENSOR (FIG. 3)
1. LED status indicator
2. Wall mount hole
3. Battery compartment
4. RESET hole
5. CHANNEL switch
GETTING STARTED
INSERT BATTERIES
1. Remove the battery compartment.
2. Insert the batteries, matching the polarities (see
FIG 2).
3. Press RESET after each battery change.
LOCATION MEANING
Clock area Main unit batteries low
Outdoor temperature Sensor batteries low
and humidity area
Rainfall area Rain collector sensor
batteries low
REMOTE SENSOR
To set up the sensor:
1. Open the battery compartment (see FIG 3).
2. Select Channel 1 then press RESET.
3. Close the battery door.
4. Place the sensor within 30 m (98 ft) of the main unit
using the table stand or wall mount.
TIP Ideal placements for the sensor would be in any
location on the exterior of the home at a height of not
more than 1.5 m (5 ft) and which can shield it from direct
sunlight or wet conditions for an accurate reading.
2
3
4
5
1

EN
4
NOTE Use alkaline batteries for longer usage and
consumer grade lithium batteries in temperatures below
freezing.
SENSOR DATA TRANSMISSION
To search for a sensor:
Press and hold / HIST + MODE.
The sensor reception icon in the remote sensor area
shows the status:
ICON DESCRIPTION
Main unit is searching for
sensor(s).
A channel has been found.
The sensor cannot be
found.
TIP The transmission range may vary depending on
many factors. You may need to experiment with various
locations to get the best results.
RAIN GAUGE
OVERVIEW
Base and funnel:
12
3
1. Rain gauge
2. Battery compartment
3. RESET button
1.5m(5ft)
OUT OUT
OUT OUT OUT OUT
OUT

EN
5
1
2
1. Funnel
2. IndicatorRA
IN COLLECTOR SETUP
SET UP RAIN GAUGE
The rain gauge collects rain and takes readings of
rainfall rate and the total rainfall over a period of time.
The sensor can remotely transmit data to the base
station.
The base station and rain gauge should be positioned
within an effective range: about 100 meters (328 feet)
in an open area.
The rain gauge should be mounted horizontally about
1 meter (3 feet) from the ground in an open area away
from trees or other obstructions to allow rain to fall
naturally for an accurate reading.

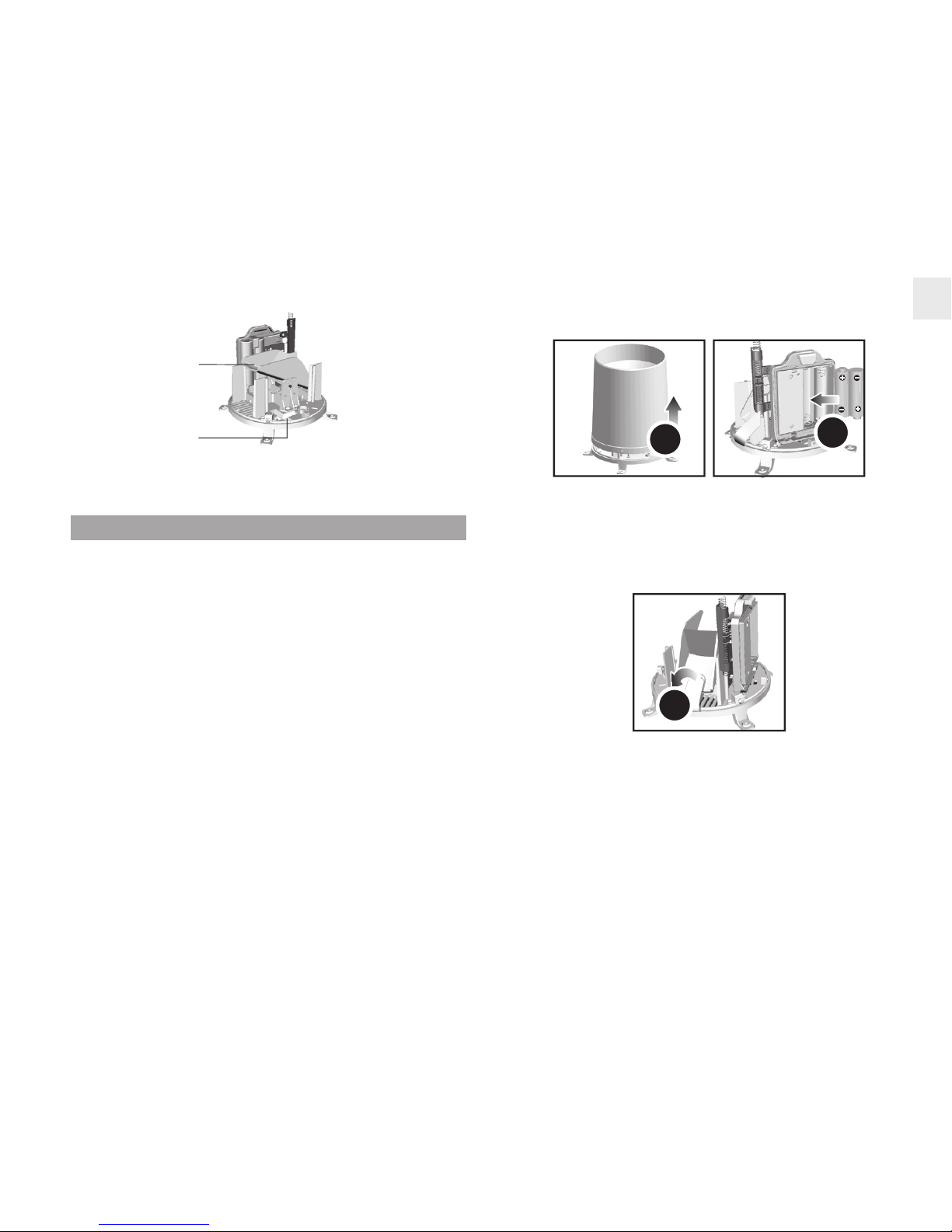

To set up the Rain Gauge:
2
1
1. Remove screws and slide the cover off in an
upwards motion.
2. Insert the batteries (2 x UM-3 / AA), matching the
polarities (+ / -). Press RESET after each battery
change.
3
3. Removethebretape.

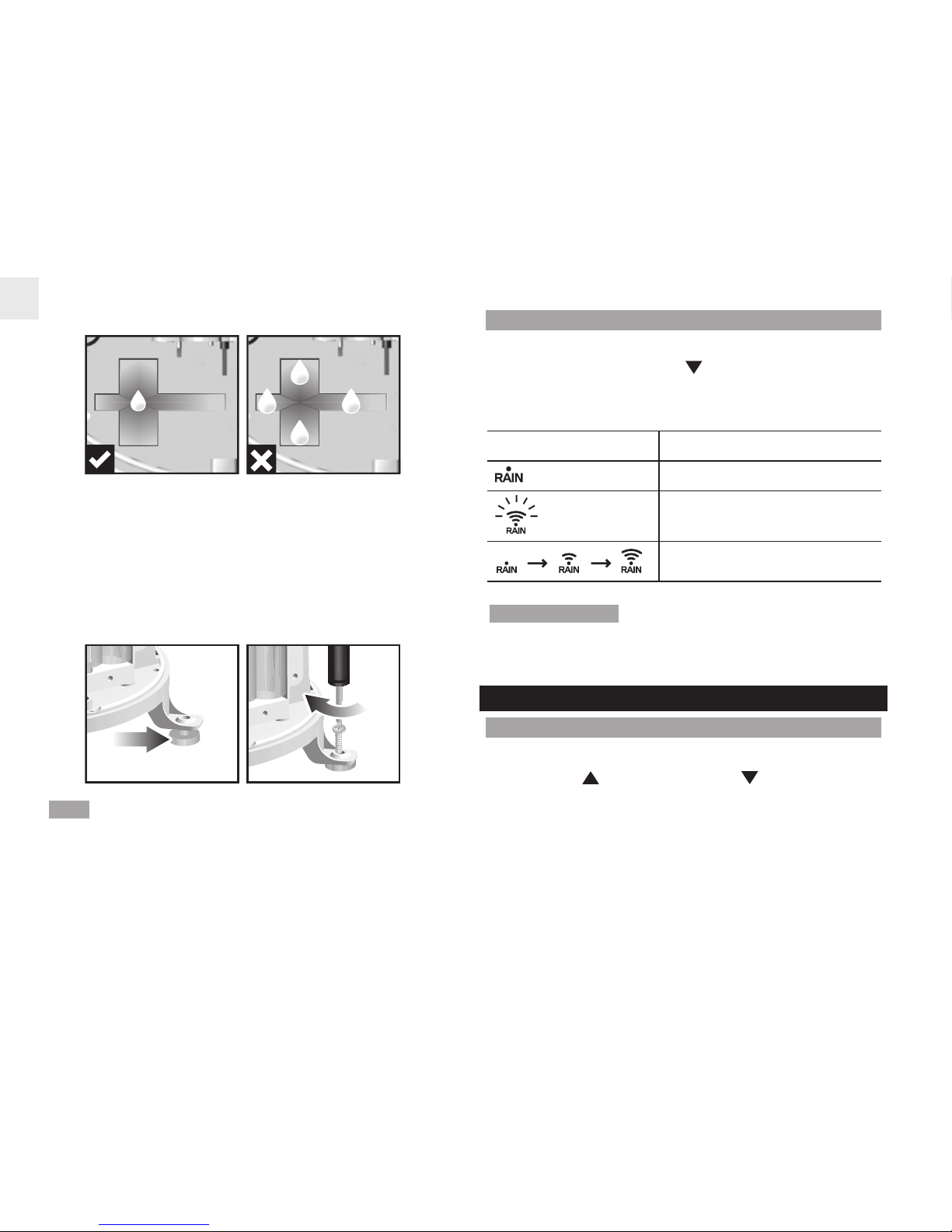

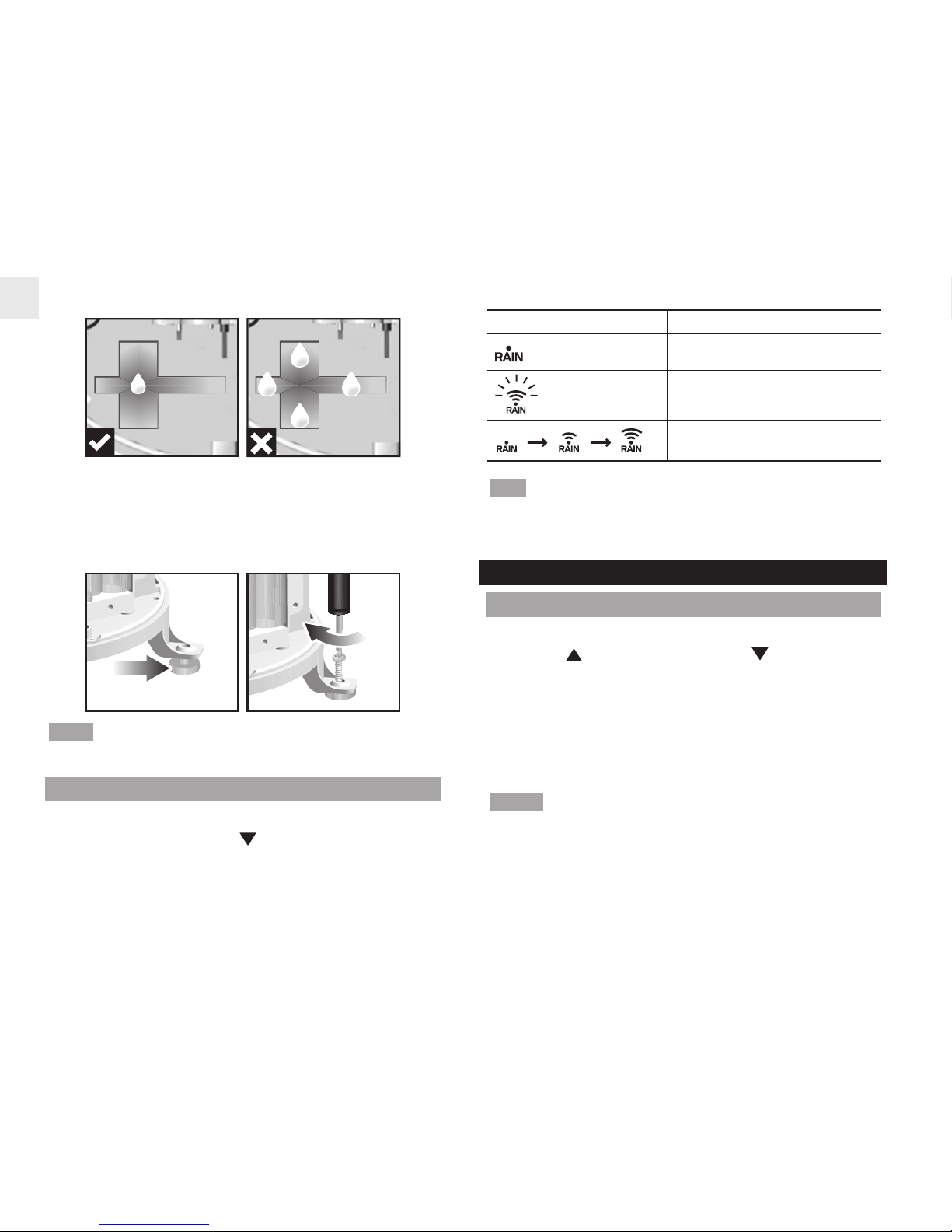

To ensure a level plane:
Put a few drops of water on the cross at the base of the
funnel to check the horizontal level.

EN
6
1
23
4
Water will pool to the center of the cross when the rain
gauge is level.
If water remains on 1-4, the gauge is not horizontal.
If necessary, adjust the level using the screw.
NOTE For best results, ensure the base is horizontal to
allow maximum drainage of any collected rain.
SIGNALS
To search for the rain collector:
Press and hold SEARCH / .
The remote rain collector reception indicator in the
rainfall area shows the status:
ICON DESCRIPTION
No signal.
Searching for signal.
Signal connected.
TIP The transmission range may vary depending on
many factors. You may need to experiment with various
locations to get the best results.
CLOCK
MANUALLY SET CLOCK
1. Press and hold MODE.
2. Press / HIST or SEARCH / to change the
settings.
3. Press MODEtoconrm.
4. The settings order is: 12/24 hr format, hour, minute,
year, calendar mode (day – month / month – day),
month, day and language.
NOTE The language options are English (E), German
(D), French (F), Italian (I), and Spanish (S).
To select display mode:
Press MODE to choose between clock with seconds /
weekday / calendar.

EN
7
RAINFALL
Today’srainfallappearsontherstlineofthedisplay.
Press IN / MM to toggle between inches and
millimeters.
RAINFALL HISTORY
The rainfall history is displayed on the second line of the
display. The main unit can record and store up to nine
days of rainfall.
To display the record for a particular day:
Press / HIST to toggle between daily rainfall and
rainfall history over the past nine days. The day of the
record will be displayed with a minus (-) sign at the top
left hand corner. “TODAY” means the record is for the
current day.
To clear the current day’s rainfall record:
Press and hold SINCE for two seconds. Note that this
will also clear the total rainfall record.
CAUTION Other sensors using the 433 MHz
transmission frequency may inuence the rainfall
reading. Please avoid placing those sensors too close
to the unit.
TOTAL RAINFALL
The total rainfall is displayed on the second line of the
display.
To display the commencing date of the total rainfall
record:
Press SINCE. The date will appear on the bottom line
of the display.
To clear the existing commencing date and reset it
to start again:
Press and hold SINCE. The total rainfall and today
rainfall will be reset to zero and the unit will start again
to collect the rainfall data.
RAINFALL ALERT
To set the rainfall alert value:
1. Press and hold RAIN ALERT to enter setting mode.
2. Press / HIST or SEARCH / to toggle values.
3. Press RAIN ALERTtoconrm. indicates rainfall
alert function is enabled.
To deactivate rainfall alert:
• The rainfall alert will be activated when the rainfall is
equal to or more than the rainfall alert value; and
LEDindicatorwillashcontinuously.
• To deactivate the rainfall alert, press RAIN ALERT
or increase the rainfall alert value.
TEMPERATURE
To toggle temperature unit:
Press °C / °F.

EN
8
RESET
Press RESET to return to the default settings.
PRECAUTIONS
• Do not subject the unit to excessive force, shock,
dust, temperature or humidity.
• Do not cover the ventilation holes with any items
such as newspapers, curtains etc.
• Do not immerse the unit in water. If you spill liquid
over it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive
materials.
• Do not tamper with the unit’s internal components.
This invalidates the warranty.
• Only use fresh batteries. Do not mix new and old
batteries.
• Images shown in this manual may differ from the
actual display.
• When disposing of this product, ensure it is collected
separately for special treatment.
• Placement of this product on certain types of
woodmayresultindamagetoitsnishforwhich
Oregon Scientic will not be responsible. Consult
the furniture manufacturer’s care instructions for
information.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal
waste. Collection of such waste separately for
special treatment is necessary.
• Please note that some units are equipped with a
battery safety strip. Remove the strip from the
batterycompartmentbeforerstuse.
NOTE Thetechnicalspecicationsforthisproductand
the contents of the user manual are subject to change
without notice.
NOTE Features and accessories will not be available
in all countries. For more information, please contact
your local retailer.

EN
9
SPECIFICATIONS
TYPE DESCRIPTION
MAIN UNIT
L x W x H 89 x 41.6 x 116.5 mm
(3.50 x 1.64 x 4.59 in)
Weight 241 g (8.5 oz) without battery
Temperature range -5°C to 50°C (23°F to 122°F)
Resolution 0.1°C (0.2°F)
Signal frequency 433 MHz
Power 2 x UM-4 (AAA) 1.5 V batteries
REMOTE UNIT (THN132N)
L x W x H 96 x 50 x 22 mm
(3.78 x 1.97 x 0.87 in)
Weight 62 g (2.22 ounces)
Transmission range 30 m (98 ft) unobstructed
Temperature range -20°C to 60°C (-4°F to 140°F)
Power 1x UM-3 (AA) 1.5 V batteries
REMOTE RAIN GAUGE
Dimensions 114 x 114 x 145 mm
(L x W x H) (4.5 x 4.5 x 5.7 inches)
Weight 241 g (8.5 oz) without battery
Transmission range 100 m (328 ft) unobstructed
Power 2 x UM-3 (AA) 1.5V
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientic.com) to learn
more about Oregon Scientic products. If you’re in
the US and would like to contact our Customer Care
department directly, please visit: www2.oregonscientic.
com/service/support.asp
For international inquiries, please visit:
www2.oregonscientic.com/about/international.asp
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Scientic, declares that this Rain
and Temperature Station with Rainfall History
(Model: RGR202) is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC. A copy of the signed and dated Declaration
of Conformity is available on request via our Oregon
ScienticCustomerService.
COUNTRIES RTTE APPROVAL COMPLIED
All EU countries, Switzerland CH
and Norway N
