Oregon Scientific RAR502SX User manual

RAR502SX
Colour LCD Multi-zone
weather station
USER MANUAL

EN
1
Colour LCD Multi-zone
weather station
Model: RAR502SX
USER MANUAL
INDEX
Overview ................................................................... 2
Front view .............................................................. 2
Back view............................................................... 2
Side view................................................................ 3
Sensor.................................................................... 3
Getting started.......................................................... 4
Remote sensor installation..................................... 4
Main unit installation .............................................. 4
Connect AC Adapter .............................................. 4
Sensor Location And Sync and placing sensors.... 4
Name tags.............................................................. 5
Weather forecast ...................................................... 5
Temperature and humidity ...................................... 6
Mold alert ............................................................... 6
Troubleshooting ..................................................... 6
Reset.......................................................................... 6
Specifications........................................................... 6
Precautions............................................................... 7
About Oregon Scientific .......................................... 8
EU-Declaration of conformity.................................. 8
FCC statement.......................................................... 8
Disposal Information for users ............................. 10

EN
2

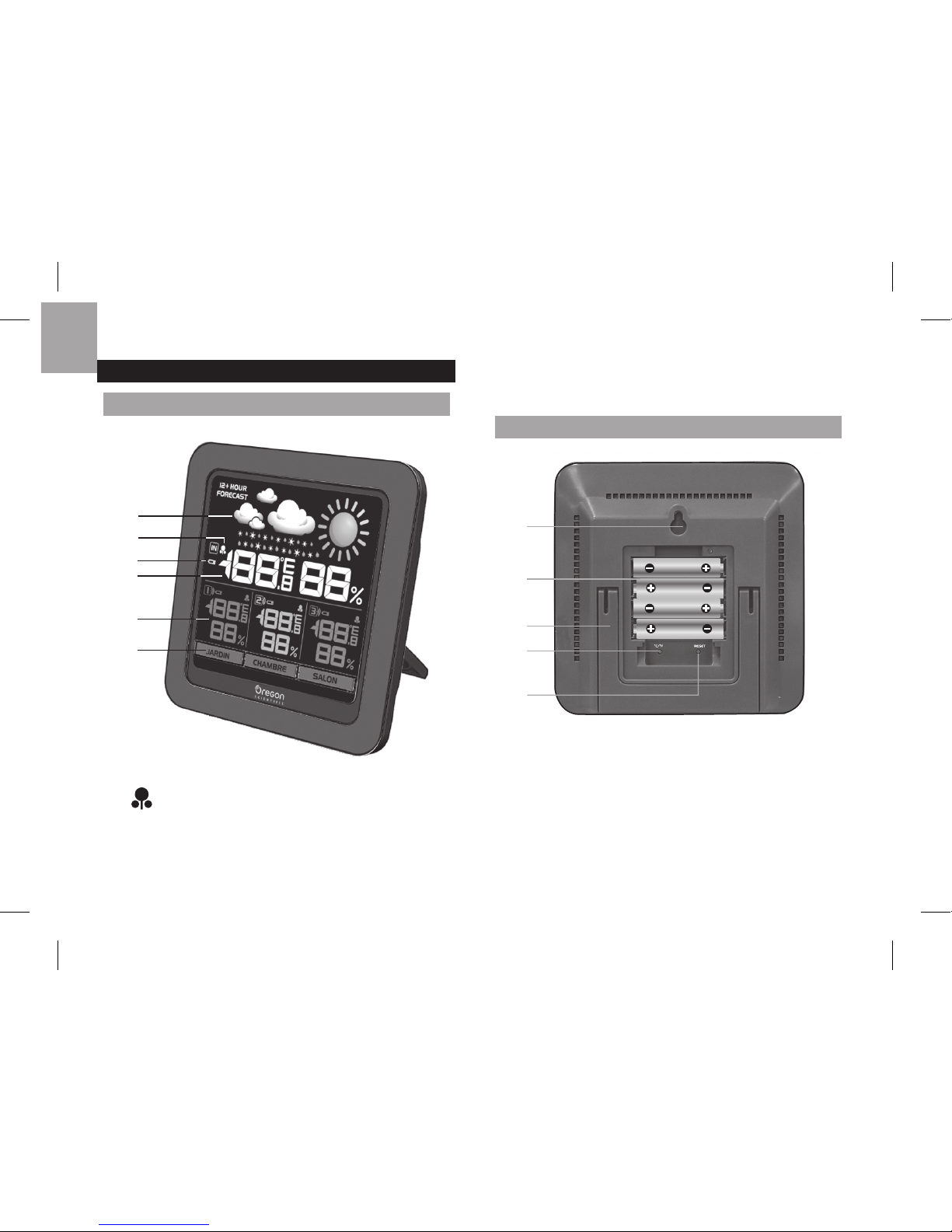

OVERVIEW
FRONT VIEW
6
5
4
3
2
1
1. Weather forecast
2. : mold alert
3. Main unit batteries low
4. Temperature and humidity for location where main
unit is placed
5. Temperature and humidity for remote sensor
6. Customizable name tags
BACK VIEW
1
4
5
2
3
1. Wall mount hole
2. Battery compartment
3. Collapsible table stand
4. °C / °F: select temperature unit
5. RESET: reset unit to default settings

EN
3

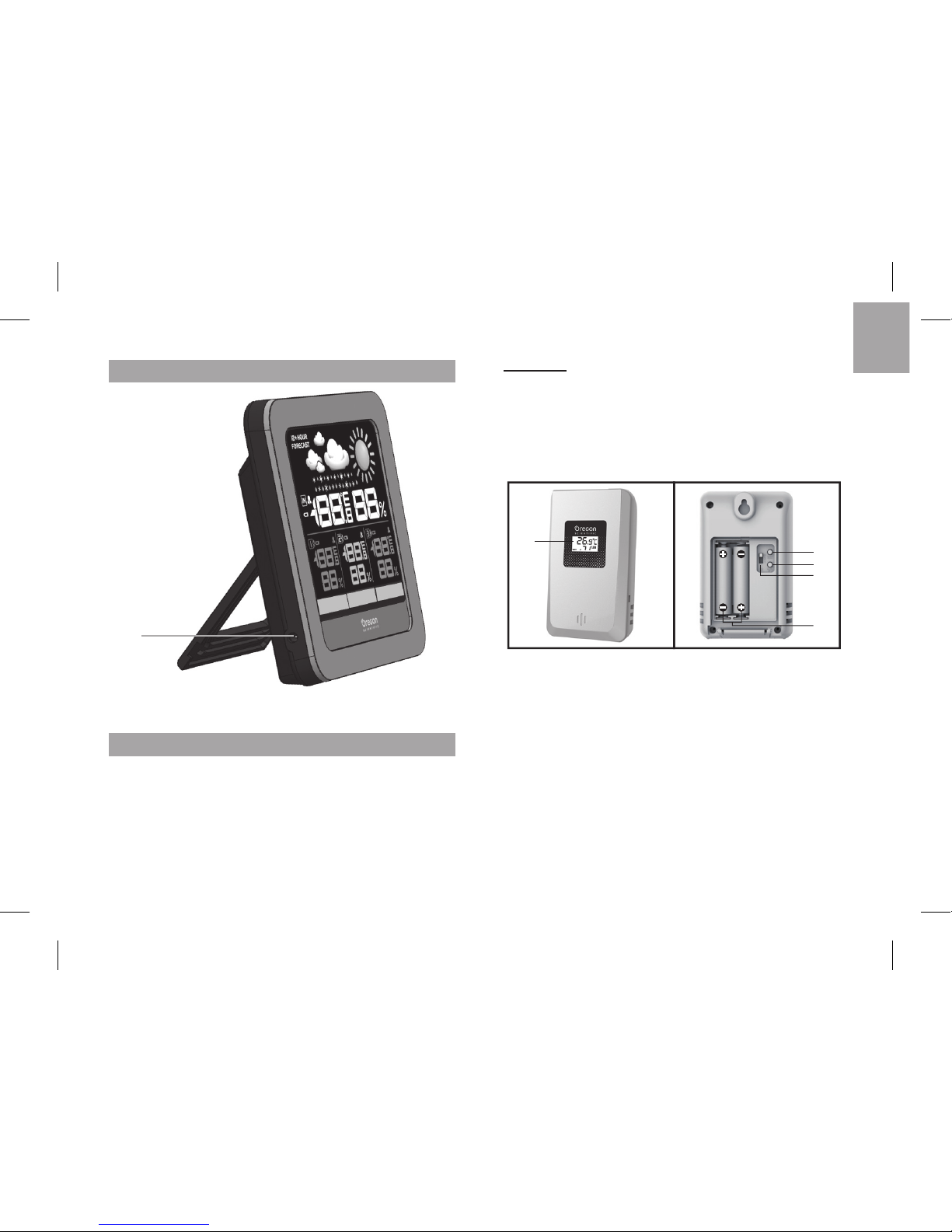

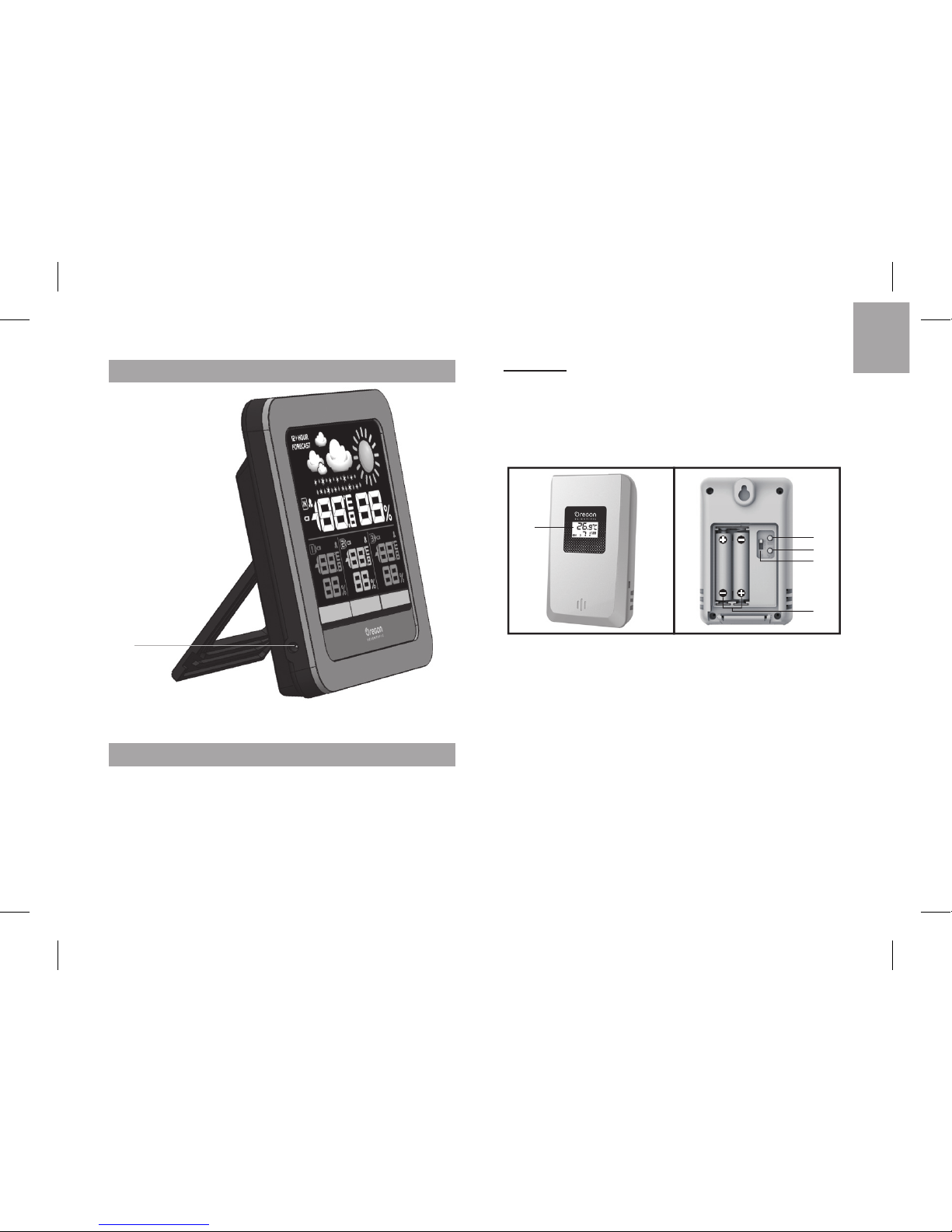

SIDE VIEW
1
1. AC power adapter jack
SENSOR
This product can work with up to 3 sensors at any one time
to capture temperature and relative humidity readings in
various locations around the home.
A complete set of 3 sensors are provided in this package,
while replacement wireless remote sensors can be
purchased separately.
THGR221
This sensor conveniently displays the temperature /
humidity which makes it especially suited for locations
where you would like to see this data at a glance without
having to refer each time to the main unit, such as
children’s room.
1
2
3
4
5
1. LCD display: Shows the channel number,
temperature and humidity readings.
2. TEST: Searches for weather station
3. °C / °F: Select temperature unit
4. CHANNEL switch
5. Battery compartment

EN
4
GETTING STARTED
REMOTE SENSOR INSTALLATION
1. Step applicable only to THGR221:
Open the battery compartment cover.
2. Slide channel switch to select channel 1. Ensure
you use a different channel for the other sensors
(2, 3).
3. Insert the batteries, matching the polarities.
4. Press TEST after each battery change.
5. Replace the battery compartment cover.
MAIN UNIT INSTALLATION
1. Remove the battery compartment.
2. Insert the batteries, matching the polarities.
3. Press RESET after each battery change.
The battery icon may appear in the following
areas:
AREA MEANING
Main unit
environment area Main unit batteries low
Remote sensor
environment area
Remote sensor batteries
low
NOTE
• We recommend that you use alkaline batteries with
this product for longer usage and lithium batteries in
temperatures below freezing.
• Batteries should not be exposed to excessive heat
such as sunshine or fire.
CONNECT AC ADAPTER
Connect the supplied power adapter to the power jack,
then plug into a standard AC outlet.
NOTE
•The batteries are only for back-up use.
• Make sure the adapter is not obstructed and is
easily accessible to the unit.
•The base station and adapter should not be exposed
to wet conditions. No objects filled with liquid, such
as vases, should be placed on the base station and
adapter.
SENSOR LOCATION AND SYNC AND
PLACING SENSORS
The main unit will automatically search for new sensor
reset within the last 30 minutes. If main unit failed to
synchronise with remote sensor, reset both the main
unit and sensor or try selecting a different channel, then
reinstall the batteries and press TEST.

EN
5

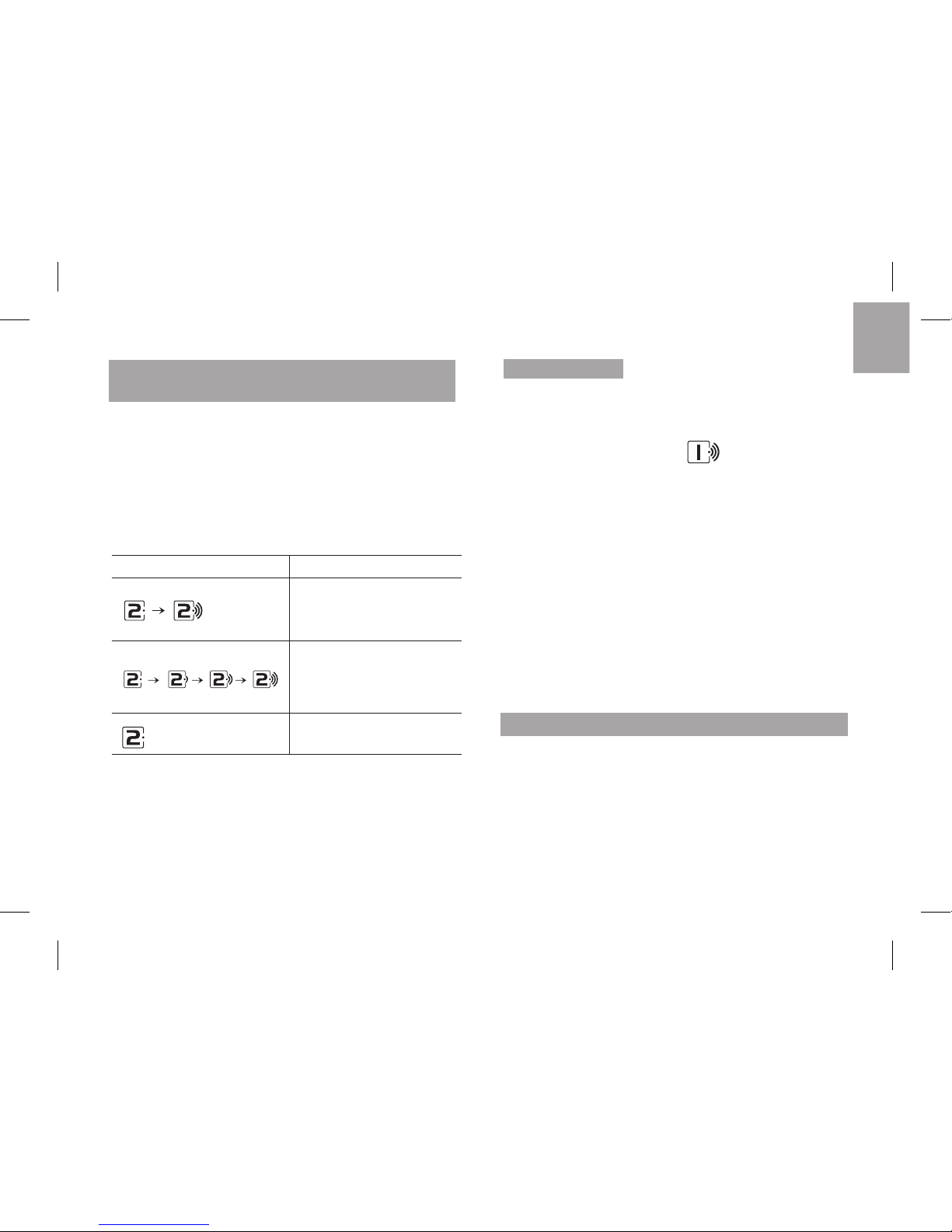

The remote sensor reception icons will show the following
status:
ICONS MEANING
Main unit is searching
for sensor(s),time
interval (4 minutes)
A sensor has been
found and logged on
(normal working model).
and “--.-“No sensor found
Place the remote sensor within 100 m (328 ft) from the
main unit.
TIP
• When placing sensors, remember the intended
location for each sensor. Refer to channel switch
position (1, 2, 3) and match with channel icon
displayed directly above name tag.
• The transmission range may vary depending on
many factors. You may need to experiment with
various locations to get the best results.
For best results:
• Place the sensor out of direct sunlight and moisture.
• Position the sensor so that it faces the main unit,
minimizing obstructions such as doors, walls and
furniture.
• Place the sensor in a location with a clear view to
the sky, away from metallic / electronic objects.
NAME TAGS
Name tags can be inserted in the main unit (see front
view diagram).
There are 3 blank name tags provided in this package.
You can write on the blank tags the name of the locations
where the sensors are being installed.

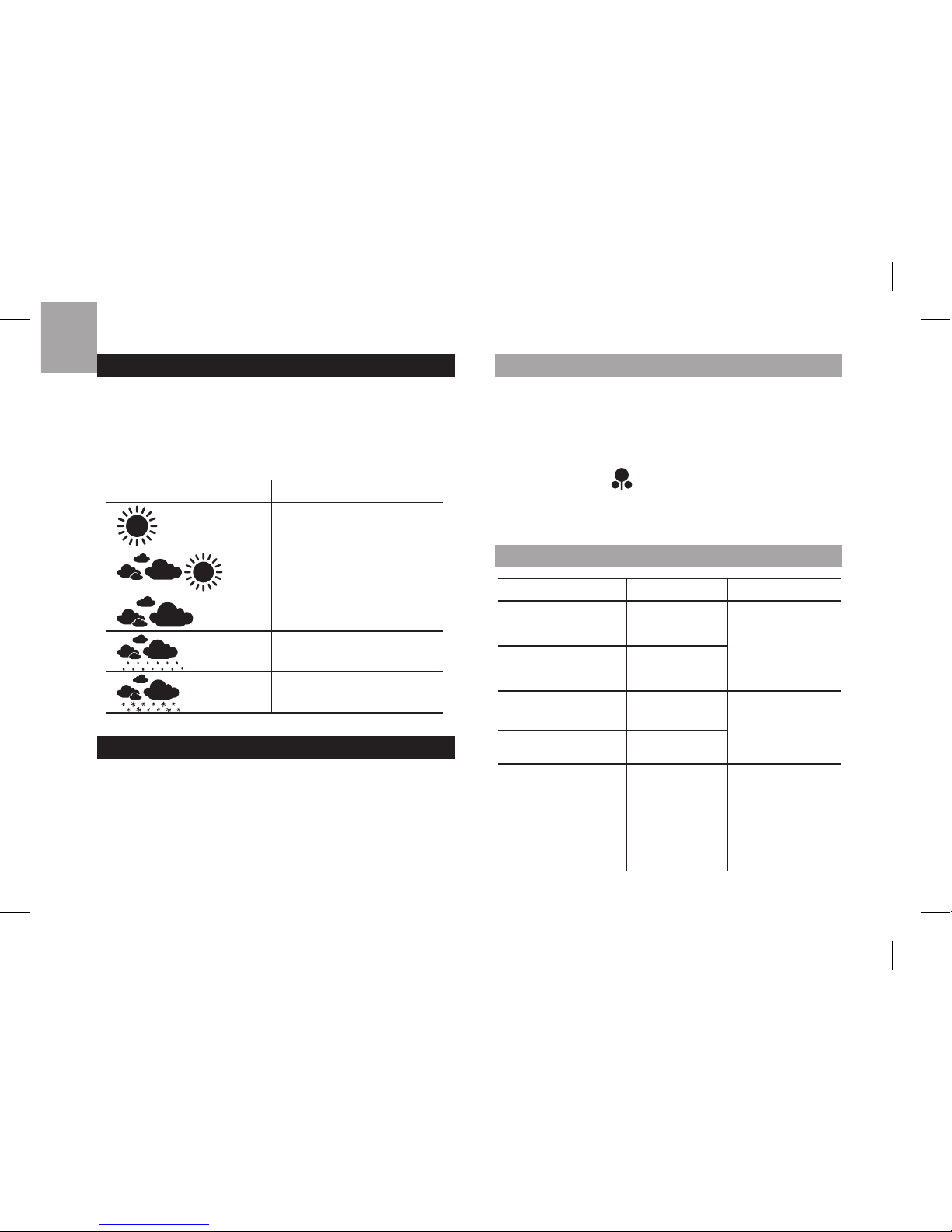

WEATHER FORECAST
This product forecasts the next 12 to 24 hours of weather
forecast within a 30-50 km (19-31 mile) radius.
Weather forecast area
ICON DESCRIPTION
Sunny
Partly cloudy
Cloudy
Rainy
Snowy

EN
6
TEMPERATURE AND HUMIDITY
To toggle temperature unit:
• Using a thin blunt instrument, press °C / °F to toggle
between °C / °F.
MOLD ALERT
This product features moisture alert function to inform
users that there is a high risk of mold forming and should
therefore take preventive measures.
The mold alert icon will flash when humidity is 60%
or above and will stop flashing and disappear when the
humidity falls below 60%.
TROUBLESHOOTING
DISPLAY AREA PROBLEM
LL.L Temperature Reading is below
range
LL Humidity
HH.H Temperature Reading is above
range
HH Humidity
--.- or --% Temperature
and Humidity
Sensor is not
logged or does
not have humidity
function
RESET
Main unit: Using a thin blunt instrument, press RESET
to return to default settings.
Sensor: Reinstall the batteries and press TEST.
SPECIFICATIONS
MAIN UNIT
TYPE DESCRIPTION
L x W x H 134 x 27 x 134 mm
(5.3 x 1.1 x 5.3 in)
Weight 240 g (8.46 oz)
without battery
Signal frequency 433 MHz
Temperature range -5°C to 50°C
(23°F to 122°F)
Humidity range 25% - 95%
Power
4 x UM-4 (AAA) 1.5 V
batteries
DC 5 V 100 mA adapter
REMOTE SENSOR (THGR221)
TYPE DESCRIPTION
Dimensions
(L x W x H)
95 x 60 x 27 mm
(3.74 x 2.4 x 1.06 in)

EN
7
Weight 50 g (1.76 oz) without battery
Humidity range 20% - 95%
Humidity display
range 2% - 98%
Humidity accuracy
20% - 40%: +/- 7%
40% - 80%: +/- 5%
80% - 95%: +/- 7%
Temp. unit °C / °F
Temperature
outdoor range -20°C to 60°C (-4°F to 140°F)
Temperature display
range -50°C - 70°C (-58°F -158°F )
Temperature
accuracy
-20°C to 0°C (-4°F to 32°F):
+/- 2.0°C (+/- 4.0°F)
0°C to 40°C (32°F to 104°F):
+/- 1.0°C (+/- 2.0°F)
40°C to 60°C
(104°F to 140°F):
+/- 2.0°C (+/- 4.0°F)
RF frequency 433 MHz
Transmission Up to 100 meters (328 feet)
with no obstructions
Channel no. 3
Batteries 2 x UM-4 (AAA) 1.5V
PRECAUTIONS
• Use only fresh batteries of the required size and
type. Do not mix old and new batteries, different
types of batteries.
• Do not dispose old batteries as unsorted municipal
waste. Collection of such waste separately for
special treatment is necessary.
• If you do not plan to use the product for a long time,
remove the batteries. Batteries can leak chemicals
that can damage electronic parts.
• Do not subject the device to excessive force, shock,
dust, temperature or humidity.
• Do not immerse the device in water. If you spill
liquid over it, dry it immediately with a soft, lint-free
cloth.
• Do not clean the device with abrasive or corrosive
materials.
• Do not tamper with the device’s internal
components. Doing so invalidates the warranty.
• Images shown in this manual may differ from the
actual display.
• When disposing of this product, ensure it is collected
separately for special treatment.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.

EN
8
EU-DECLARATION OF CONFORMITY
Hereby the manufacturer, Oregon Scientic Global
Distribution Limited, declares that the radio equipment
type Colour LCD Multi-zone weather station (Model:
RAR502SX) is in compliance with 2014/53/EU Directive.
The full text of the EU Declaration of Conformity is
available at the following internet address:
http://global.oregonscientic.com/customerSupport.php.
COUNTRIES RED APPROVED COMPLIED
All EU countries, Switzerland
and Norway
N
CH
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
WARNING: Changes or modications to this unit
not expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
NOTE The technical specifications for this product and
the contents of the user manual are subject to change
without notice.
NOTE Features and accessories will not be available in
all countries. For more information, please contact your
local retailer. To download an electronic version of the
user manual, please visit
http://global.oregonscientific.com/customerSupport.php.
ABOUT OREGON SCIENTIFIC
Visit our website www.oregonscientific.com to learn
more about Oregon Scientific products.
For any inquiry, please contact our Customer Services
at [email protected].
Oregon Scientific Global Distribution Limited reserves
the right to interpret and construe any contents, terms
and provisions in this user manual and to amend it, at
its sole discretion, at any time without prior notice. To
the extent that there is any inconsistency between the
English version and any other language versions, the
English version shall prevail.
