PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION & LEAVE
A COPY FOR THE END USER/ MAINTANANCE ENGINEER FOR FUTURE REFERENCE.

liniLED strip front view:
Warning
This product comes with a 5year warranty.
Warranty void if:
1. The installation guide has not been consulted (installation mistake).
2. The installation is not done by a certified installer.
3. Local rules and guidelines are not respected.
4. The invoice cannot be shown and/or has been altered.
5. Damage is caused by negligence, abnormal use or improper handling, use, maintenance and/or cleaning
of the product.
This product is intended for professional use only! This product must be installed by a qualified and
certified installer according to local rules and guidelines. Organic Lighting Systems, Inc. cannot
be held liable for (consequential) damage and/or injuries due to unintended use and/or installation
errors.
Product Information
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com
7.87 in
liniLED strip top view; cuttable sections:
Deco, Power:
Maximum bending radius is 0.79 in. Solely bend up or downward. Do not compress, stretch or bend the
LED strip.
Bending Radius
3.94 in
Photon:
1.97 in
0.47 in
High Power:
2
User Manual | liniLED® PCB Deco, Power, High Power, Photon
The liniLED® LED strip (IP40) is a high quality, flexible LED strip with a unique co-extrusion technology.
Designed for an endless range of indoor and outdoor applications.
* For use in wet environments, use mirror welded connectors or IP68 waterproof kits.

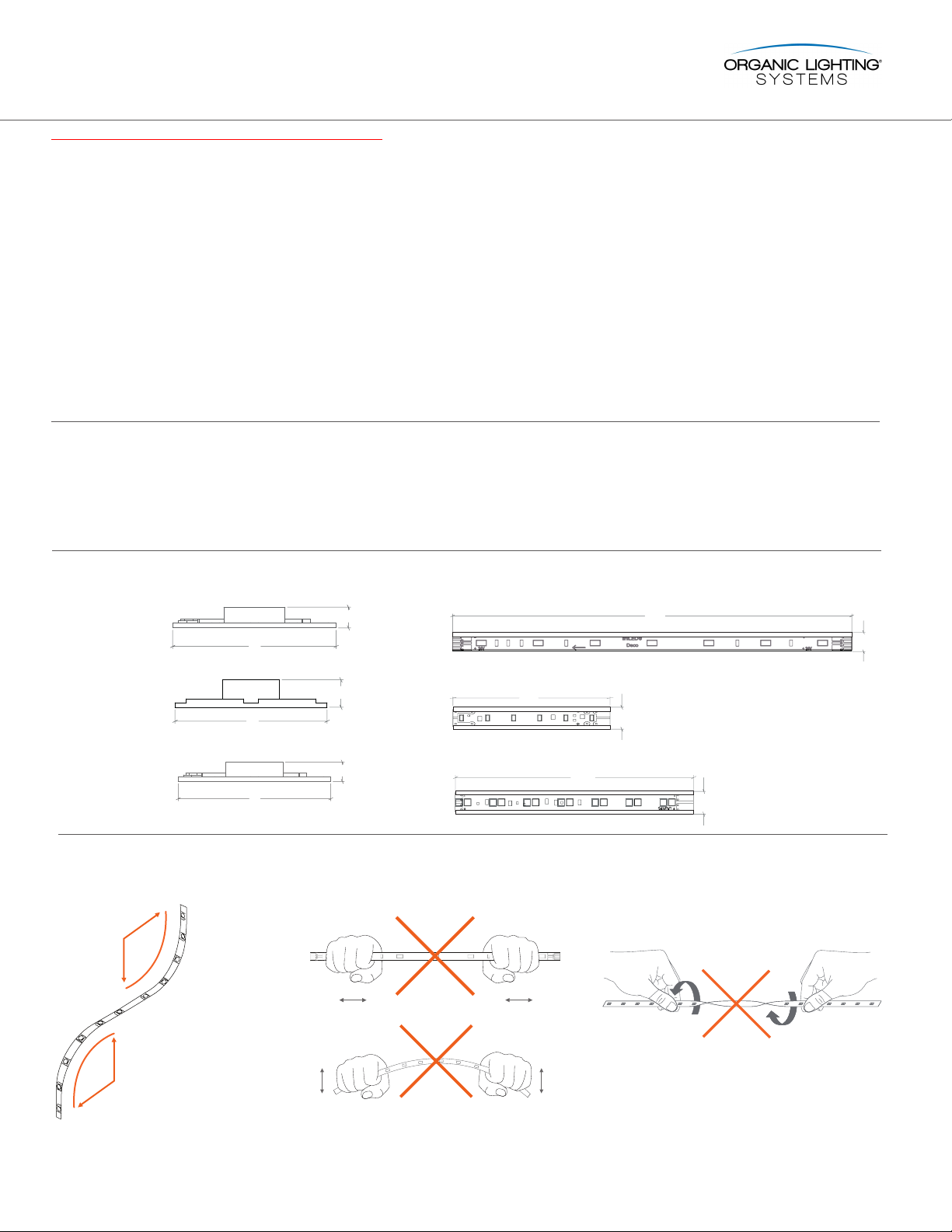

Product Dimensions
0.05 in
0.31 in
0.043 in
0.055in
0.31 in
0.31 in
0.47 in
0.47 in
0.79 in
0.79 in

Cutting Instructions
Top view | Make sure the cut is vertical as
illustraded in the image above. Only cut on the
dotted lines to prevent damaging the LED strip.
3
2
1

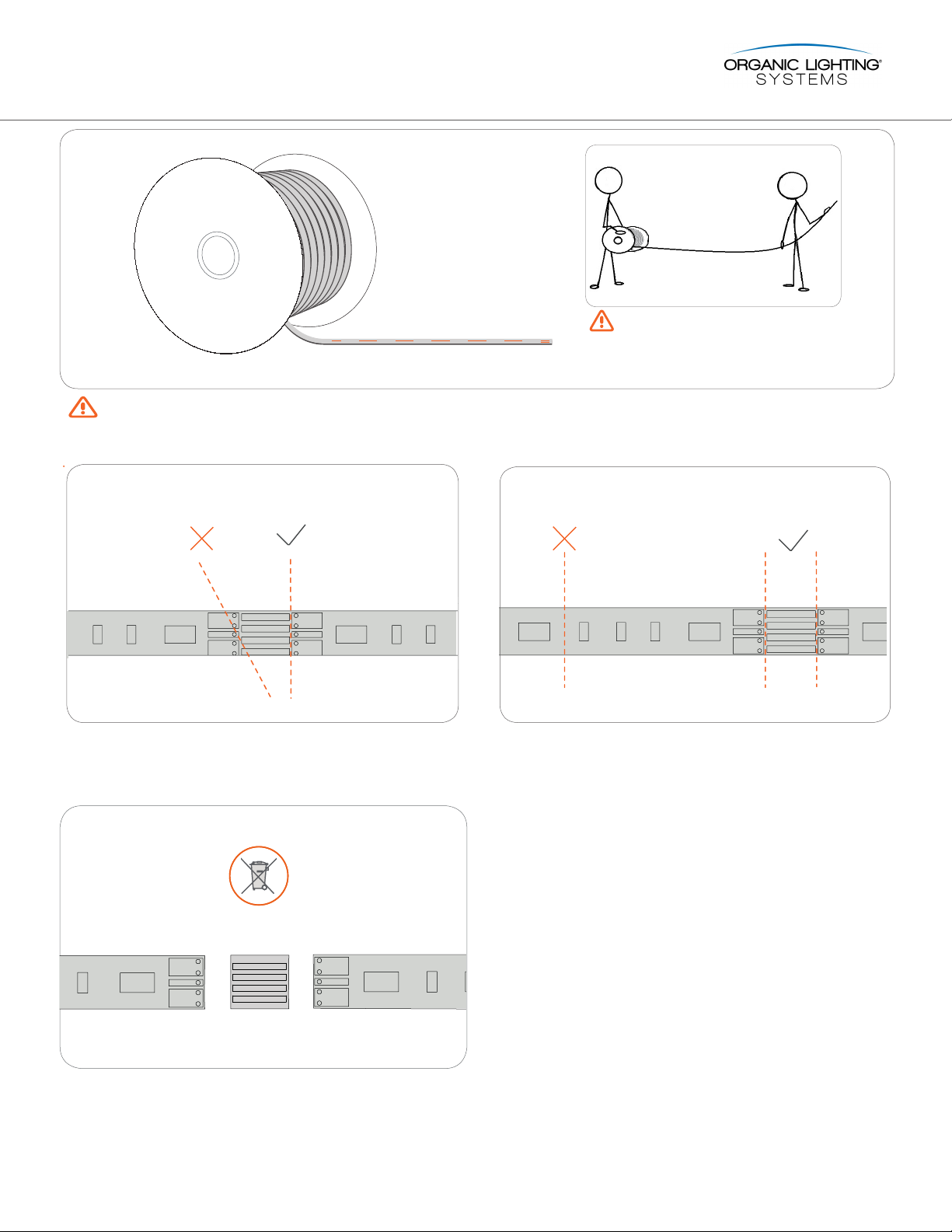

The LED strip has to be unreeled on a horizontal surface at the time of installation. Do not unreel the
spool of LED strip before installation. Lengths over 10ft should be installed with the help of a second
person to support the strip to ensure that the connector is not stressed.
10ft lengths require a second
person's assistance.
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com 3
Top view | Only cut on the dotted lines to prevent
damaging the LED strip.
Dispose of the unnecessary material through
waste recycling of electrical and electronic
equipment.
User Manual | liniLED® PCB Deco, Power, High Power, Photon
+
_

Choose your Connector - IP20
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com
4
User Manual | liniLED® PCB Deco, Power, High Power, Photon
Depending on the area where the liniLED® LED strip is installed we off er a range of solutions to cope with
external factors. The product portfolio for the liniLED® PCB LED strip includes a IP20 connector.liniLED
PCB requires either an IP20 connector or a soldered connection. (pg.5)
Indoor environment | (IP00) Solder
Indoor environment | (IP20) | liniLED® PCB
Connector Set

Solder Connection Assembly (IP20)
0.02 in
2
0.31 in
12
4
662°F
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com 5
Solder the wires to the PCB. We advise to use a
cable with an area not bigger then 0.5 mm2.
Pre-solder the connector pads.
Pre-solder the wires. Solder the wires to the connector pads.
User Manual | liniLED® PCB Deco, Power, High Power, Photon

Read the instructions and safety precautions before installation, usage and storage of the products to secure
safety of the user and reliability of the product. Hand over the instructions to the end-user and/or those
responsible for installation, maintenance and usage.
- Organic Lighting Systems, Inc. cannot be held responsible for improper handling, product installation,
usage or storage.
Handling
- Handle with care.
- The product may not be modifi ed or converted otherwise than prescribed.
- Products are transported in proper packaging. Products should remain packed until installation.
Installation
- Attention: The power has to be switched off the main power supply or the connection before installation.
Not doing so may damage the product.
- Use a suitable LED power supply/driver: 24 V DC constant voltage. Do not drive the product on other
voltages than described in their datasheet/products specifi cations.
- Installation has to be done by a certifi ed professional with knowledge of electrical circuits or a specialised
maintenance person known with valid directives.
- General and local construction, safety- and installation regulations should be respected.
- Use only supplied parts, accessories and required tools as prescribed in the installation manual to
guarantee a safe installation and use of the product.
- Products may solely be installed in the areas according to their prescribed IP-rating, IK-rating,
temperature range and chemical resistances.
- Do not fasten anything on the product, same applies for hanging.
- Do not install the product in the following cases:
- Damage is visible on the product or its cables.
- The inside of the product is moistened or dirty.
- The product or its cables have been modifi ed. It could lead to an electrical shock or a short circuit
may occur.
- Children may not play unsupervised with electrical products as they cannot judge the dangers in dealing
with electrical circuits correctly.
Operation and Use
Solely use the productwhen its working correctly. If not, switch the power offimmediately and advise
an electrical specialist in the following c-ase.
-Damage is visible on the product.
-The product does not function.
-Smoke or steam rises from the product.
-Crackling sounds are noticeable.
-The product is overheating.
-Repairs on the installation may only be performed by qualifi ed electricians. Product repairs may solely
be done by Organic Lighting Systems, Inc.
Cleaning and Maintanence
- Attention: Disconnect the power before maintenance and cleaning.
- Dust and dirt accumulated over time should be removed from the light-emitting surface to assure
optimal functioning of the product.
- Paints, solvents and corrosive cleaning chemicals may not contact and thus aff ect the product.
Environment and Waste
- Exterior decorative lighting should only be used after sunset.
- This product may not be treated as household waste. Dispose of the material through the waste
recycling of electrical and electronic equipment.
General
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com 6
User Manual | liniLED® PCB Deco, Power, High Power, Photon

Power Supply
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com 7
L
N
Power
Supply
24 V
DC
-+
120-277V AC
Control
IP20
User Manual | liniLED® PCB Deco, Power, High Power, Photon

Cable Selection

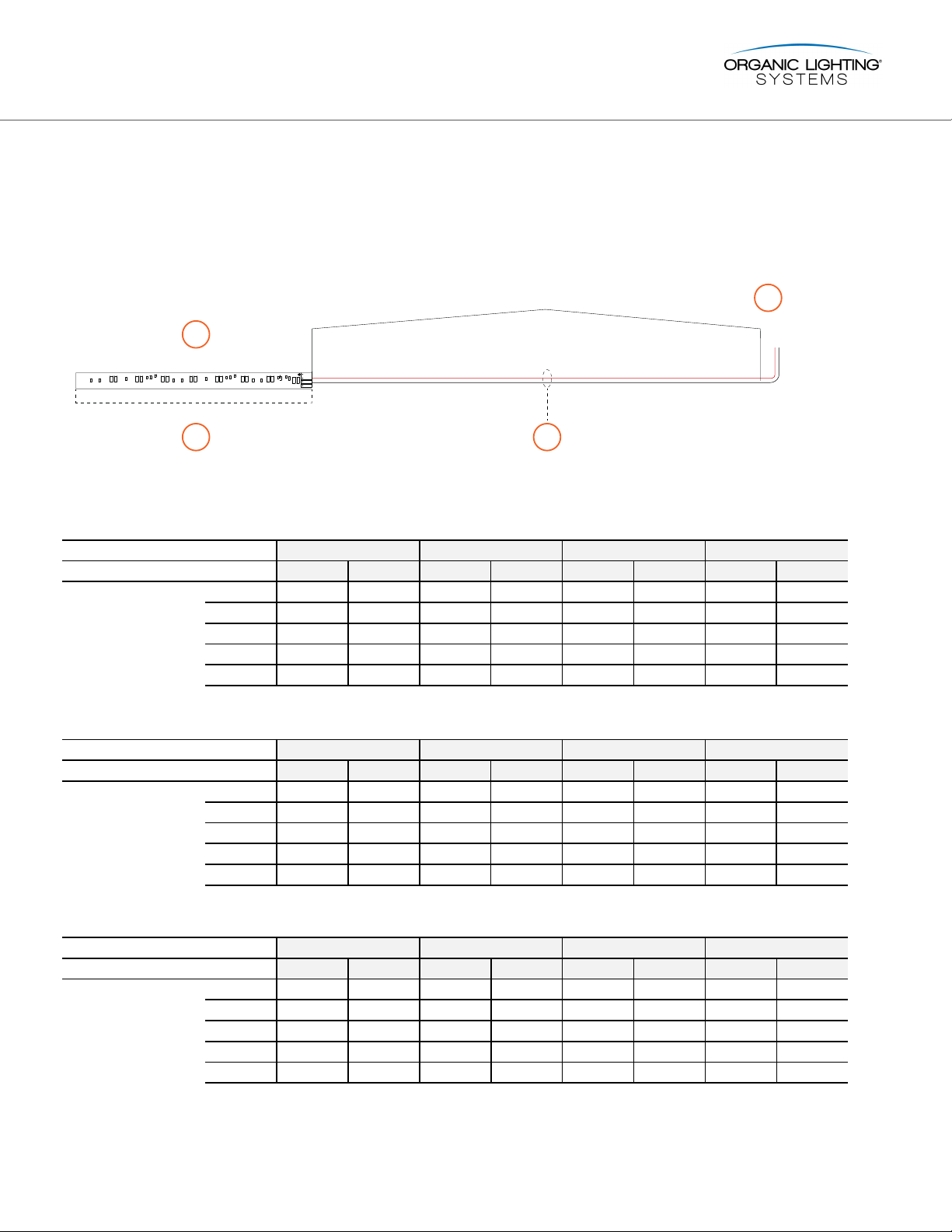

The following chart gives the maximum 24V supply cable run lengths based on 22AWG, 20AWG, 18AWG,
16AWG and 14AWG wire gauge to avoid voltage drop to the strips, with a 3ft liniLED connector cable
length.
A wiring plan with branches from a single power supply connection cannot exceed the maximum
connector strip length shown on the charts and if complex will require special electrical calculations to
ensure adequate power to maintain full LED output.
Result = Maximum cable length based on the cable thickness and power supply voltage.
1. Color Temperature
2. LED Strip Length
3. Voltage 24V DC 25V DC 24V DC 25V DC 24V DC 25VDC 24V DC 25V DC
4. Cable Size 22 AWG 304' 587' 57' 114' 27' 55' 11' 25'
20 AWG 457' 883' 86' 172' 40' 82' 17' 38'
18 AWG 608' 1174' 114' 228' 53' 110' 22' 51'
16 AWG 914' 1767' 173' 343' 80' 165' 33' 76'
14 AWG 1521' 2940' 287' 571' 133' 275' 56' 127'
1. Color Temperature
2. LED Strip Length
3. Voltage 24V DC 25V DC 24V DC 25V DC 24V DC 25VDC 24V DC 25V DC
4. Cable Size 22 AWG 227' 439' 42' 84' 19' 40' 7' 18'
20 AWG 341' 661' 63' 127' 28' 60' 11' 27'
18 AWG 453' 879' 84' 169' 38' 80' 14' 36'
16 AWG 682' 1322' 127' 254' 57' 121' 22' 54'
14 AWG 1135' 2200' 210' 423' 95' 201' 37' 90'
DECO RED & AMBER
3' 16' 33' 66'
3' 16' 33' 66'
DECO 2400 - 6500K
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com 8
+-
1
2
3
4
Result
1. Color Temperature
2. LED Strip Length
3. Voltage 24V DC 25V DC 24V DC 25V DC 24V DC 25VDC 24V DC 25V DC
4. Cable Size 22 AWG 402' 776' 77' 152' 36' 74' 16' 35'
20 AWG 605' 1168' 116' 228' 55' 111' 24' 52'
18 AWG 805' 1553' 154' 304' 73' 148' 32' 70'
16 AWG 1210' 2336' 233' 457' 110' 222' 48' 105'
14 AWG 2015' 3888' 386' 761' 182' 370' 81' 174'
DECO BLUE & GREEN
3' 16' 33' 66'
User Manual | liniLED® PCB Deco, Power, High Power, Photon

Cable Selection
1. Color Temperature
2. LED Strip Length
3. Voltage 24V DC 25V DC 24V DC 25V DC 24V DC 25VDC 24V DC 25V DC
4. Cable Size 22 AWG 118' 231' 57' 113' 20' 43' 8' 19'
20 AWG 178' 347' 86' 170' 31' 64' 12' 29'
18 AWG 236' 462' 114' 227' 40' 86' 16' 38'
16 AWG 356' 695' 172' 341' 61' 129' 24' 58'
14 AWG 592' 1156' 285' 567' 101' 214' 40' 96'
1. Color Temperature
2. LED Strip Length
3. Voltage 24V DC 25V DC 24V DC 25V DC 24V DC 25VDC 24V DC 25V DC
4. Cable Size 22 AWG 137' 267' 66' 131' 24' 50' 10' 23'
20 AWG 206' 401' 100' 197' 36' 75' 15' 34'
18 AWG 274' 534' 133' 262' 48' 100' 20' 46'
16 AWG 412' 803' 199' 395' 72' 150' 30' 69'
14 AWG 686' 1336' 332' 657' 119' 250' 50' 114'
3' 6' 16' 33'
3' 6' 16' 33'
POWER BLUE & GREEN
POWER RED & AMBER
1. Color Temperature
2. LED Strip Length
3. Voltage 24V DC 25V DC 24V DC 25V DC 24V DC 25VDC 24V DC 25V DC
4. Cable Size 22 AWG 221' 429' 109' 213' 41' 82' 18' 39'
20 AWG 333' 646' 163' 320' 61' 124' 28' 59'
18 AWG 443' 859' 217' 425' 82' 165' 37' 78'
16 AWG 667' 1292' 327' 640' 123' 248' 55' 118'
14 AWG 1110' 2150' 544' 1065' 205' 413' 92' 196'
POWER 2400 - 6500K
3' 6' 16' 33'
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com 9
1. Color Temperature
2. LED Strip Length
3. Voltage 24V DC 25V DC 24V DC 25V DC 24V DC 25VDC 24V DC 25V DC
4. Cable Size 22 AWG 121' 236' 58' 116' 21' 44' 10' 22'
20 AWG 182' 356' 88' 175' 31' 66' 14' 34'
18 AWG 242' 473' 117' 232' 42' 88' 19' 45'
16 AWG 365' 712' 176' 350' 63' 132' 29' 68'
14 AWG 607' 1185' 293' 582' 104' 220' 49' 113'
PHOTON 2400-6500K
3' 6' 16' 29'
1. Color Temperature
2. LED Strip Length
3. Voltage 24V DC 25V DC 24V DC 25V DC 24V DC 25VDC 24V DC 25V DC
4. Cable Size 22 AWG 110' 215' 53' 105' 18' 39' 7' 18'
20 AWG 165' 324' 79' 158' 28' 59' 11' 27'
18 AWG 220' 430' 106' 211' 37' 79' 14' 35'
16 AWG 331' 647' 159' 317' 56' 119' 22' 53'
14 AWG 551' 1077' 265' 528' 93' 198' 36' 89'
HIGH POWER 2400 - 6500K
3' 6' 16' 33'
User Manual | liniLED® PCB Deco, Power, High Power, Photon

Cable Selection
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com 10
Depending on the area where the liniLED® LED strip is installed we off er a range of solutions to cope with
external factors. The product portfolio for the liniLED® PCB LED strip includes a IP20 connector.
Indoor environment | (IP00) Solder
Indoor environment | (IP20)
User Manual | liniLED® PCB Deco, Power, High Power, Photon

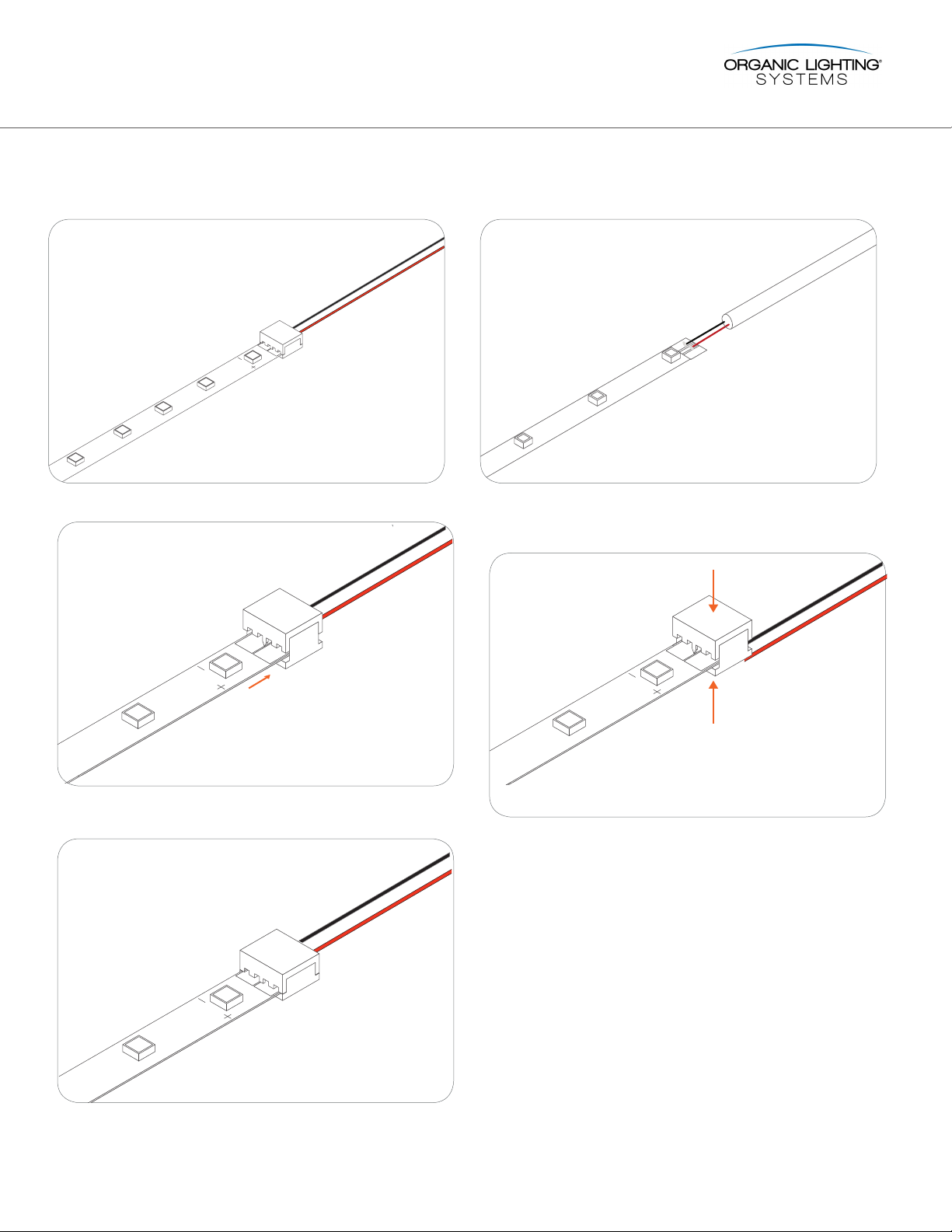

Open the PCB connector.
Push the liniLED® PCB LED strip into the connector.
Make sure the + is above.

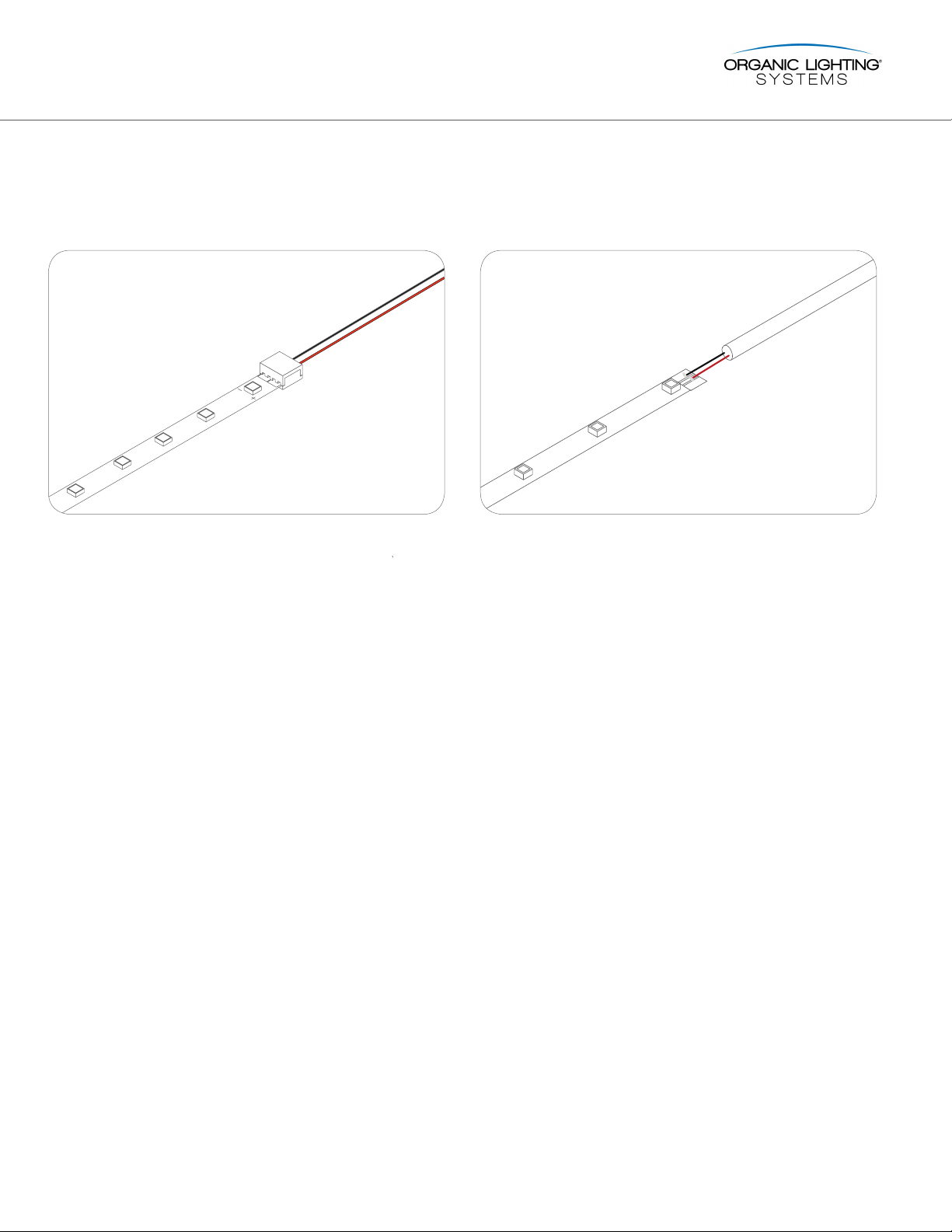

Close the PCB connector.

Product Specifications - Deco White
Power (25 V DC)
CRI
Number of LEDs
Max. connection length
Operation voltage
Max. operation voltage
Dimmable
Weight
Expected lifetime
Degree of protection (IP)
Storage temperature
Operation temperature
Minimal bending radius
0.33 W/ft
> 80
7 per section / 10.6 per ft
65.6 ft
24 V DC
25 V DC
PWM dimming, 0-10V dimming
0.8 oz/ft
B50/L70 > 50,000 hours @ 104 °F
IP20
-4 °F - 131 °F
-22 °F - 131 °F1
1.2 in
Max. connection length between -4 °F and -22 °F is 46 ft
2400K
0.33 W/ft
2700K
0.33 W/ft
4000K
0.33 W/ft
3000K
0.33 W/ft
6500K
0.67 W/ft
Binning ± 50K
Spool length
Section length
LED
Max. 164 ft
7.9 in
Duris™ E 5
0.33 W/ft 0.33 W/ft 0.33 W/ft 0.7 W/
> 80 > 80 > 80 > 80
Product code
Luminous flux
Luminous efficiency
Beam angle
012197
27 lm/ft
105 lm/W
120º
012174
32 lm/ft
120 lm/W
012186
34 lm/ft
128 lm/W
012180
31 lm/ft
115 lm/W
012185
34 lm/ft
60 lm/W
Power (24 V DC)
0.31 x 0.043 in
Deco White PCB
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com 11
Dimensions
User Manual | liniLED® PCB Deco, Power, High Power, Photon

Product Specifications - Deco Color
Power (24 V DC)
Power (25 V DC)
Wave length
Spool length
Section length
LED
Number of LEDs
Max. connection length
Operation voltage
Max. operation voltage
Dimmable
Weight
Expected lifetime
Degree of protection (IP)
Storage temperature
Operation temperature
Minimal bending radius
Max. 164 ft
7.9 in
Top LED® long life
7 per section / 10.6 per ft
65.6 ft
24 V DC
25 V DC
PWM dimming, 0-10V dimming
0.8 oz/ft
B50/L70 > 50,000 hours @ 104 °F
IP20
-4 °F - 131 °F
-22 °F - 131 °F1
1.2 in
Max. connection length between -4 °F and -22 °F is 46 ft
1.3 W/ft
1.4 W/ft
617 nm
0.7 W/ft
0.8 W/ft
469 nm
1.3 W/ft
1.4 W/ft
587 nm
0.5 W/ft
0.5 W/ft
525 nm
Binning ± 50K
CRI > 80 > 80 > 80
> 80
Product code
Red
012182
Green
012183
Amber
012181
Blue
012184
Deco Color PCB
Luminous flux
Luminous efficiency
16 lm/ft 41 lm/ft 12 lm/ft8 lm/ft
11 lm/W 49 lm/W 9 lm/W15 lm/W
Beam angle
Dimensions
120°
0.31 x 0.09 in
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com 12
User Manual | liniLED® PCB Deco, Power, High Power, Photon

Product Specifications - Power White
Dimmable
Expected lifetime
Degree of protection (IP)
PWM dimming, 0-10V dimming
Binning ± 50K
Weight 0.8 oz/ft
B50/L70 > 50,000 hours @ 104 °F
IP20
Storage temperature -4 °F - 131 °F
Operation temperature -22 °F - 131 °F1
Minimal bending radius 1.2 in
Max. connection length between -4 °F and -22 °F is 23 ft
1.2 W/ft
1.3 W/ft
1.3 W/ft
1.3 W/ft
1.2 W/ft
1.3 W/ft
1.3 W/ft 1.4 W/ft
Power (24 V DC)
Power (25 V DC)
CRI
1.4 W/ft 1.4 W/ft
Spool Length Max. 164 ft
Section length 7.87 in
LED Duris™ E 5
Number of LEDs 7 per section / 10.6 per ft
Max. connection length 32.8 ft
Operation voltage 24 V DC
Max. operation voltage 25 V DC
2400K
011857
2700K
011598
4000K
011599
3000K
011600
6500K
011609
Power White PCB
Product code
Luminous flux
Luminous efficiency 85 lm/W 126 lm/W 125 lm/W116 lm/W 104 lm/W
146 lm/ft 146 lm/ft 155 lm/ft147 lm/ft 152 lm/ft
Beam angle
Dimensions
120°
0.31 x 0.039 in
>80 >80 >80 >80 >80
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com 13
User Manual | liniLED® PCB Deco, Power, High Power, Photon

Product Specifications - Power Color
Power (24 V DC)
Power (25 V DC)
Spool length
Section length
LED
Number of LEDs
Max. connection length
Operation voltage
Max. operation voltage
Dimmable
Weight
Expected lifetime
Degree of protection (IP)
Storage temperature
Operation temperature
Minimal bending radius
Max. 32.8ft
3.93 in
Top LED® long life
5 per section / 15.2 per ft
32.8 ft
24 V DC
25 V DC
PWM dimming, 0-10V dimming
0.8 oz/ft
B50/L70 > 50,000 hours @ 104 °F
IP20
-4 °F - 131 °F
Max. connection length between -4 °F and -22 °F is 23 ft
2.5 W/ft
2.6 W/ft
1.5 W/ft
1.5 W/ft
625 nm
2.5 W/ft
2.6 W/ft
587 nm
2.2 W/ft
2.2 W/ft
525 nm
Binning ± 50K
CRI
Wave length
> 80
467 nm
> 80 > 80
> 80
Product code
Red
012176
Green
012178
Amber
012179
Blue
012177
Power Color PCB
Luminous flux
Luminous efficiency
43 lm/ft 59 lm/ft 35 lm/ft 20 lm/ft
12 lm/W 31 lm/W 11 lm/W9 lm/W
Beam angle
Dimensions
120°
0.31 x 0.09 in
-22 °F - 131 °F
1.2 in
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com 14
User Manual | liniLED® PCB Deco, Power, High Power, Photon

Product Specifications - High Power
Expected lifetime
Degree of protection (IP)
PWM dimming, 0-10V dimming
B50/L70 > 50,000 hours @ 104 °F
IP20
Storage temperature -4 °F - 131 °F
Operation temperature -22 °F - 131 °F1
Minimal bending radius 1.2 in
Max. connection length between -4 °F and -22 °F is 23 ft
> 80> 80 > 80
± 50K
0.8 oz/ft
2.6 W/ft
2.7 W/ft
2.5 W/ft
2.6 W/ft
2.6 W/ft
2.7 W/ft
2400K 2700K 4000K 3000K 6500K
012199 012192 012194012193 012195
223 lm/ft
70 lm/W
254 lm/ft
79 lm/W
263 lm/ft
83 lm/W
228 lm/ft
74 lm/W
251 lm/ft
81 lm/W
2.7 W/ft 2.7 W/ft
2.8 W/ft 2.8 W/ft
>80 >80
Max. 164 ft
2 in
Duris™ E 5
High Power PCB
Product code
Luminous flux
Luminous efficiency
Beam angle
Dimensions
Power (24 V DC)
Power (25 V DC)
CRI
Spool length
Section length
LED
Number of LEDs 6 per inch / 36.5 per ft
32.8 ft
Max. connection length
Operation voltage 24 V DC
Max. operation voltage 25 V DC
Dimmable
Binning
Weight
120°
0.31 x 0.055 in (W x L)
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com 15
User Manual | liniLED® PCB Deco, Power, High Power, Photon

Product Specifications - Photon 1200
Power (24 V DC)
Power (25 V DC)
CRI
Spool length
Section length
LED
Number of LEDs
Max. connection length
Operation voltage
Max. operation voltage
Dimmable
Weight
Expected lifetime
Degree of protection
Storage temperature
Operation temperature
Minimal bending radius
Max. connection length between -4 °F and -22 °F is 23 ft
Binning
Max. 29.5 ft
3.93 in
Nichia
7 per section / 21.3 per ft
29.5 ft
24 V DC
25 V DC
PWM dimming, 0-10V dimming
± 50K
0.8 oz/ft
B50/L70 > 60,000 hours @ 104 °F
IP20
-40 °F - 131°F
-22 °F - 131 °F2
1.2 in
3.2 W/ft
3.3 W/ft
3.2 W/ft
3.3 W/ft
2.7 W/ft
2.8 W/ft
2.4 W/ft
2.5 W/ft
2.7 W/ft
2.8 W/ft
2.4 W/ft
2.5 W/ft
> 80 ( >90 available in 27, 30 and 40K)
Product code
2000K
012147
2400K
012148
2700K
012149
4000K
012151
3000K
012150
6500K
012152
Photon 1200 PCB
Luminous flux 305 lm/ft 356 lm/ft 368 lm/ft 372 lm/ft375 lm/ft 373 lm/ft
Beam angle
Dimensions
120°
0.31 x 0.05 in
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com 16
User Manual | liniLED® PCB Deco, Power, High Power, Photon

Product Specifications - Photon 2000
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com 17
User Manual | liniLED® PCB Deco, Power, High Power, Photon
Power (24 V DC)
Power (25 V DC)
CRI
Spool length
Section length
LED
Number of LEDs
Max. connection length
Operation voltage
Max. operation voltage
Dimmable
Weight
Expected lifetime
Degree of protection
Storage temperature
Operation temperature
Minimal bending radius
Max. connection length between -4 °F and -22 °F is 23 ft
Binning
Max. 14.8 ft
3.93 in
Nichia
7 per section / 21.3 per ft
14.8 ft
24 V DC
25 V DC
PWM dimming, 0-10V dimming
± 50K
0.8 oz/ft
B50/L70 > 60,000 hours @ 104 °F
IP20
-40 °F - 131°F
-22 °F - 131 °F2
1.2 in
5.5 W/ft
5.6 W/ft
5.5 W/ft
5.6 W/ft
4.6 W/ft
4.7 W/ft
4.1 W/ft
4.2 W/ft
4.6 W/ft
4.7 W/ft
4.1 W/ft
4.2 W/ft
> 80 ( >90 available in 27, 30 and 40K)
Product code
2000K
012153
2400K
012154
2700K
012155
4000K
012157
3000K
012156
6500K
012158
Photon 2000 PCB
Luminous flux 468 lm/ft 521 lm/ft 548 lm/ft 558 lm/ft
548 lm/ft 558 lm/ft
Beam angle
Dimensions
120°
0.31 x 0.05 in

Product Specifications - Photon 3000
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com 18
User Manual | liniLED® PCB Deco, Power, High Power, Photon
Power (24 V DC)
Power (25 V DC)
CRI
Spool length
Section length
LED
Number of LEDs
Max. connection length
Operation voltage
Max. operation voltage
Dimmable
Weight
Expected lifetime
Degree of protection
Storage temperature
Operation temperature
Minimal bending radius
Max. connection length between -4 °F and -22 °F is 23 ft
Binning
Max. 9.8 ft
3.93 in
Nichia
7 per section / 21.3 per ft
9.8 ft
24 V DC
25 V DC
PWM dimming, 0-10V dimming
± 50K
0.8 oz/ft
B50/L70 > 60,000 hours @ 104 °F
IP20
-40 °F - 131°F
-22 °F - 131 °F2
1.2 in
8.8 W/ft
8.9 W/ft
8.8 W/ft
8.9 W/ft
7.2 W/ft
7.3 W/ft
6.6 W/ft
6.7 W/ft
7.2 W/ft
7.3 W/ft
6.6 W/ft
6.7 W/ft
> 80 ( >90 available in 27, 30 and 40K)
Product code
2000K
012159
2400K
012160
2700K
012161
4000K
012163
3000K
012162
6500K
012164
Photon 3000 PCB
Luminous flux 699 lm/ft 776 lm/ft 802 lm/ft 812 lm/ft
849 lm/ft 797 lm/ft
Beam angle
Dimensions
120°
0.31 x 0.05 in

Product Specifications - Photon 4000
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com 19
User Manual | liniLED® PCB Deco, Power, High Power, Photon
Power (24 V DC)
Power (25 V DC)
CRI
Spool length
Section length
LED
Number of LEDs
Max. connection length
Operation voltage
Max. operation voltage
Dimmable
Weight
Expected lifetime
Degree of protection
Storage temperature
Operation temperature
Minimal bending radius
Max. connection length between -4 °F and -22 °F is 23 ft
Binning
Max. 9.8 ft
3.93 in
Nichia
7 per section / 21.3 per ft
9.8 ft
24 V DC
25 V DC
PWM dimming, 0-10V dimming
± 50K
0.8 oz/ft
B50/L70 > 60,000 hours @ 104 °F
IP20
-40 °F - 131°F
-22 °F - 131 °F2
1.2 in
8.8 W/ft
8.9 W/ft
8.8 W/ft
8.9 W/ft
8.8 W/ft
8.9 W/ft
8.8 W/ft
8.9 W/ft
> 80 ( >90 available in 27, 30 and 40K)
Product code
2000K
012167
4000K
012169
3000K
012168
6500K
012170
Photon 4000 PCB
Luminous flux 1006 m/ft 1041 lm/ft
1037 lm/ft 1038 lm/ft
Beam angle
Dimensions
120°
0.31 x 0.05 in

Symbols
RoHS
5
System
F
IP40/IP68
BEND RADIUS
R
1.2"
CRI
80+
MAC
ADAM
2
S D C M
UV
CLEANING
FROST
SEA
POOL CL
POOL
CL
UL is a world leader in product safety testing and certification. UL sets standards and tests products to make sure
they meet standards.
The ETL Listed mark indicates that your product has been tested by Intertek and found in compliance with
accepted UL standards.
Electro Static Discharge (ESD) sensitive device, apply standard ESD precautions when handling the product.
Manufacturer’s declaration that the product meets the applicable EC directives.
Suitable for mounting on all surfaces and suitable to cover with insulating material.
Restriction of Hazardous Substances (RoHS): product complies with the RoHS directive and each homogeneous
material does not exceed the limits for the materials mentioned under the RoHS directive (Pb, Hg, Cd, Cr6+, PBB and
PBDE).
This product can be both IP40 and IP68 depending on the configuration and application. See the documentation for
the exact IP rating.
Bending of the LED strip is possible with a radius of ≥ 1.2 inches in the specified direction.
Electrical appliance class III: this product is designed to be supplied from an extra-low voltage (≤ 60.0 V DC or ≤ 42.4 V
AC).
System guarantee of 5 years when the complete system consist of liniLED® products with the 5 year system warranty
logo.
Product is resistant against ultraviolet (UV) light or sunlight. Non-UV resistant products can degrade or discolor fast
when exposed to UV.
Product can be cleaned with normal cleaning agents as specified in the datasheet under 'chemical compliances.'
This product can be stored and used below 32 degrees Fahrenheit. Verify the minimum storage and operation
temperature in the datasheet for the lowest temperature allowed.
This product can be applied in seawater and its environment. Elements in seawater will have no harmful effect on the
product. For chemical specifications see datasheet. Verify the IP rating for proper use.
This product can be applied inside swimming pool environments. Elements in the air will have no harmful effect on
the product. For chemical specifications of these elements see datasheet. Verify the IP rating for proper use.
This product is available on request and can be submerged n swimming pools and their environments. Disinfectants
will have no harmful effect on product. For chemical specifications of these elements see datasheet. Verify the IP
rating for proper use.
The CRI value of this product is 80 or higher.
The binning tolerance of this product is 2 MacAdam.
Disclaimer
The published information is checked to be as accurate as possible, however Organic Lighting, or any reseller of liniLED® cannot be
held liable for any damages resulting from errors or outdated information. Organic Lighting reserves the right to modify the
information without informing the costumers. When this document is printed or downloaded, please check for the latest version on
the internet, the most up to date information will be published on www.organiclighting.com. This product should not be used in
applications, devices or systems where incorrect operation of the product may result in personal injury (includes emergency lighting)
without written permission from the board of Organic Lighting. If nevertheless used in such applications, devices or systems Organic
Lighting cannot be held liable for any resulting injury.
Organic Lighting, 205 W. Blueridge Avenue, Orange, CA 92865 | 626.969.6140 | www.organiclighting.com
