Origin 21 WR4KIT-16-W User manual

ITEM #5141849
MODEL #WR4KIT-16-W
4ft Wire Starter Kit
ORIGIN 21 and logo design are trademarks or
registered trademarks of LF, LLC. All rights
reserved.
Français p. XX
Español p. XX
1
Français p. XX
Español p. 20
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 888-251-1026, 8 a.m. - 8 p.m., EST, Monday - Sunday.
Serial Number Purchase Date
You may also contact us anytime at www.lowespartsplus.com.
ATTACH YOUR RECEIPT HERE
SS22152

2
TABLE OF CONTENTS
Package Contents ..........................................................................................................................3
Hardware Contents .........................................................................................................................4
Safety Information .........................................................................................................................5
Preparation ....................................................................................................................................5
Assembly Instructions ....................................................................................................................6
Operating Instructions ..................................................................................................................17
Care and Maintenance ..................................................................................................................18
Warranty .......................................................................................................................................18
Replacement Parts List ................................................................................................................19

PACKAGE CONTENTS
3
EE Universal Wall Clip 6
FF Bottom Mount Wall Clip 3
GG Clothing Rod End Cap 8
HH Clothing Rod Spacer Connector
4
PART DESCRIPTION QUANTITY
Horizontal Top Track
Horizontal Top Track Cover
Vertical Standard
Clothing Rod
Right Arm Bracket
Left Arm Bracket
Right Clothing Rod Bracket
Left Clothing Rod Bracket
Wire Shelf
1
1
3
4
4
4
4
4
4
A
B
C
D
E
F
G
H
I
PART DESCRIPTION QUANTITY
A
B
C
C
C
D
I
I
I
I
D
D
D
E
EE
EE
E
E
E
F
F
F
F
GGGG
GG
GG
FF
FF FF
GG
G
G
H
EE
H
HH
HH
HH

M4 x 8
Screw
HARDWARE PACK B (Step 6,14-15,18-20)

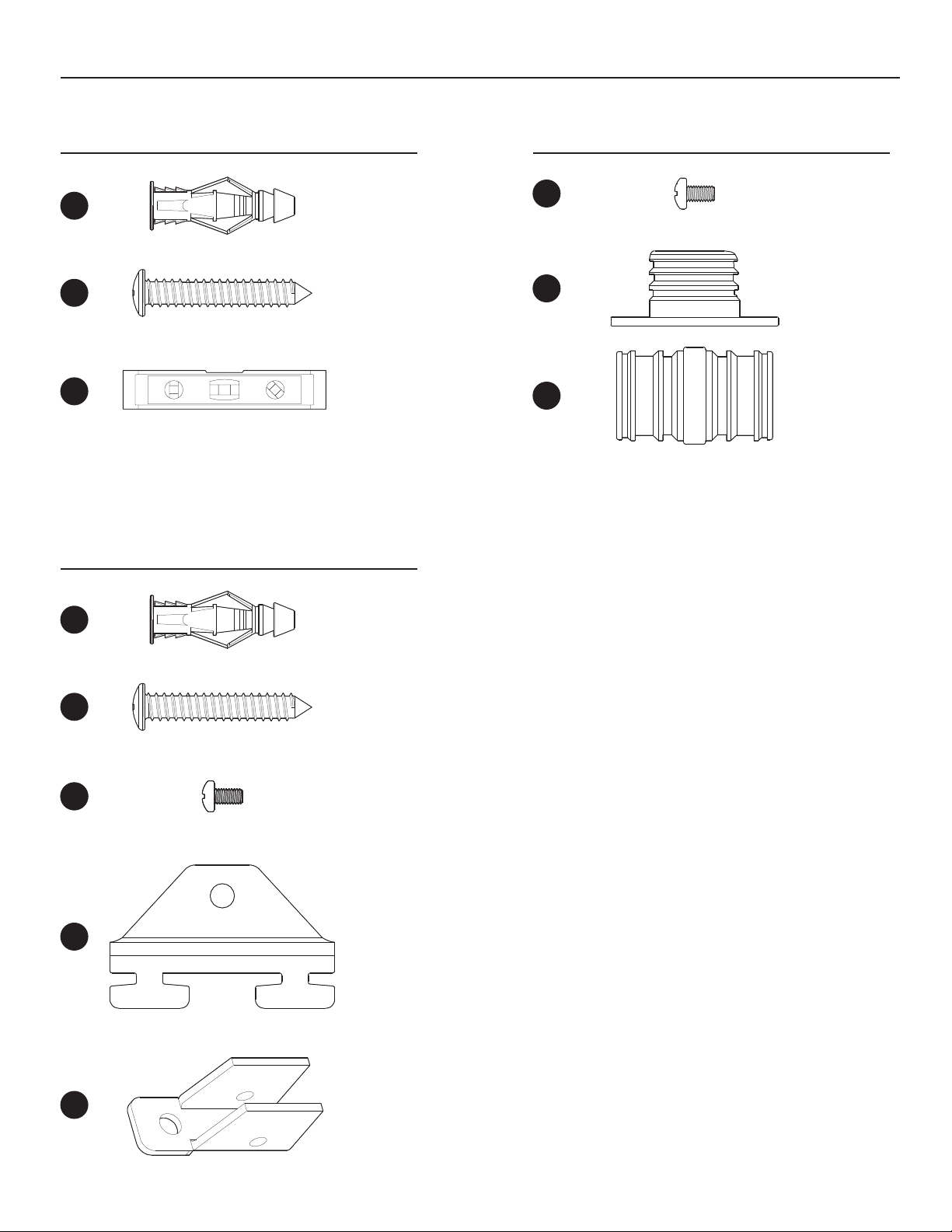

HARDWARE CONTENTS (shown actual size)
4
M4 x 8
Screw
Qty. 8
DD
Clothing Rod
End Cap
Qty. 8
GG
Clothing Rod
Spacer
Connector
Qty. 4
HH
Magnetic
Level
Qty. 1
CC
4.8 x 38
Panhead Screw
Qty. 5
BB
Wall Anchor
Qty. 5
AA
Qty. 6
DD
Universal
Wall Clip
Qty. 6
EE
Bottom Mount
Wall Clip
Qty. 3
FF
DD
Wall Anchor
Qty. 9
AA
4.8 x 38
Panhead Screw White
Qty. 9
II
HARDWARE PACK A (Step 4-5) HARDWARE PACK C (Step 10-11)

SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Please confirm all parts are correct before starting the assembly process.
• Please read all instructions carefully before beginning.
5
• Do not allow children to climb or play in, on, or around this product.
• Do not alter this product in any manner.
• Failure to obey installation instructions and warnings can result in injury or death.
• Use correct hardware for your specific wall type, the hardware provided is intended for 1/2 inch
drywall.
• Horizontal and Vertical Standards must be firmly secured to the wall.
• Do not overload.
WARNING
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 1 hour
Tools Required for Assembly (not included):
Tape Measure, #2 Phillips Screwdriver, Pencil, Drill Bits (1/8” & 5/16”), Drill
PREPARATION
Find helpful install videos and tips at lowes.com
Tools Recommended for Assembly (not included):
Step Ladder, Stud Finder, Rubber Mallet

ASSEMBLY INSTRUCTIONS
6

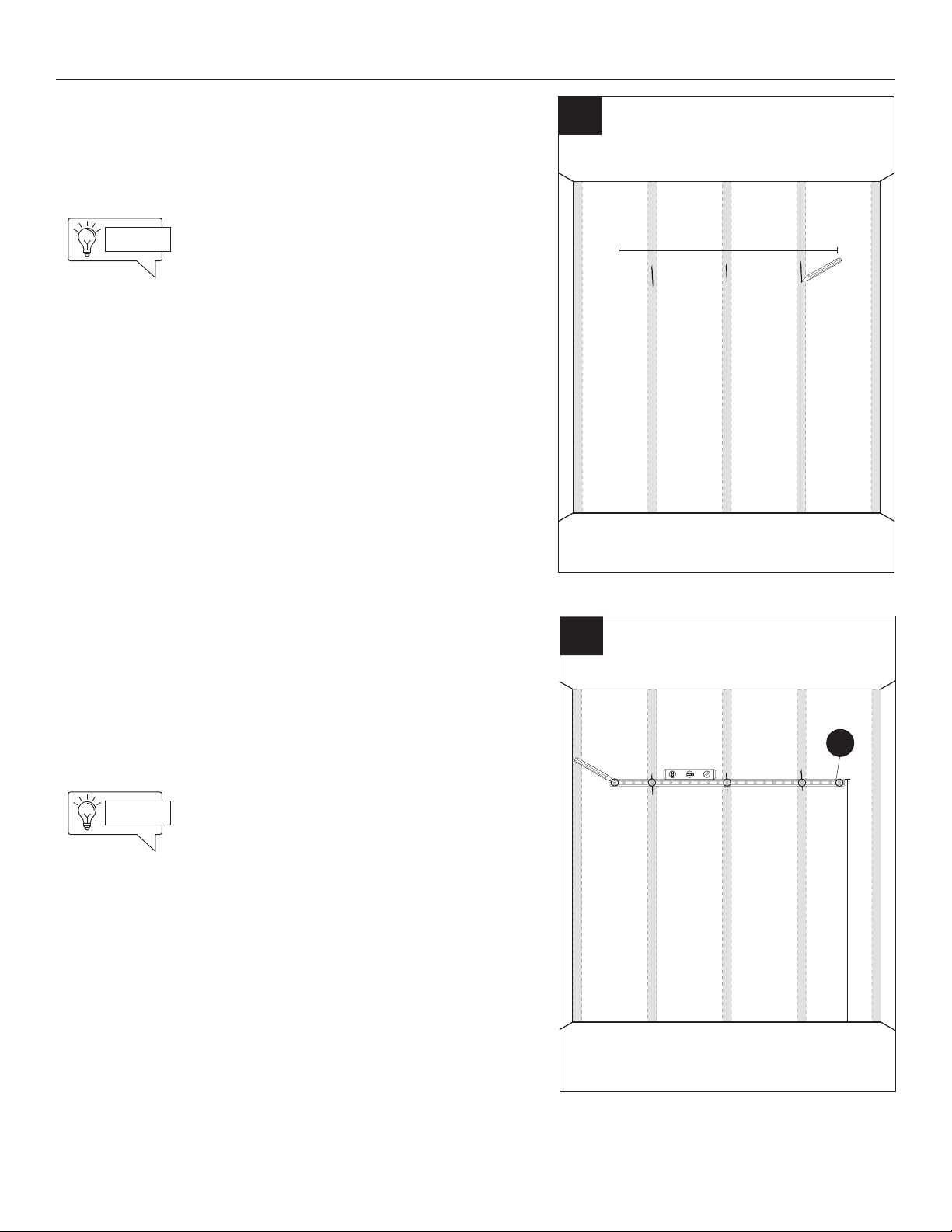

1. Chose your preferred mounting location for the
system. Locate and mark the center of all studs within a
50 inch span on the installation wall.
2. Place the Horizontal Top Track (A) against the wall
at a recommended 84 inches from the floor. Use the
Magnetic Level (CC) to make sure Top Track (A) is
straight. Mark center, furthest left, furthest right, and 2
more holes (hitting as many studs as possible).
1
2
50”
Find helpful install videos and tips at lowes.com
Use a stud finder to help locate
the center of all studs.
PRO TIP
You can customize your system and
hanging height to fit your needs.
Check
out the “OPERATING INSTRUCTIONS”
section for configuration examples
PRO TIP
A
84”

ASSEMBLY INSTRUCTIONS
7
3. Use 1/8” drill bit to pre-drill holes into studs and
use 5/16” drill bit to pre-drill holes into drywall.
4. Install Drywall Anchors (AA) into pre-drilled
drywall holes. Drywall Anchors (AA) are only used
for drywall holes, extra Drywall Anchors (AA) may
be leftover.
4
3
If you are unsure if a stud is located
behind markings, use 1/8" drill bit to
drill all holes. If no stud is present,
then use 5/16" drill bit to make holes
larger for drywall anchors.
PRO TIP
Use a rubber mallet to lightly tap
Drywall Anchors (AA) into the drywall.
PRO TIP
Hardware Used (Pack A)
x 5
AA Drywall Anchor
AA
2x - 5x

ASSEMBLY INSTRUCTIONS
8
5. Attach Horizontal Top Track (A) with 4.8 x 38mm
Panhead Screws (BB).
Hardware Used (Pack A)
x 5
BB
4.8 x 38
Hardware Used (Pack B)
DD x 6
M4 x 8
6. Insert the Bottom Mount Wall Clip (FF) into the
Vertical Standard (C) with tab facing down. Fasten
the Bottom Mount Wall Clip with M4 x 8 screws (DD). 6
ABB
5x
3x
DD
DD
FF
C
FF
Bottom Mount
Wall Clip
x 3
NOTE:
If using 26-IN Vertical Standard Kit (sold
separately), refer to the instructions provided
with the 26-IN Vertical Standard Kit at this step.
Find helpful install videos and tips at lowes.com
3x
5
To prevent damage only use a
screwdriver when screwing into
Drywall Anchors (AA).
PRO TIP
For simple installation, loosely secure
center screw first to help hold Top
Track to wall, then secure outer screws
ensuring Top Track remains level.
Tighten all screws after all are installed.
PRO TIP

For easier alignment of the
arm brackets, slide all vertical
standard to the center of the
horizontal top track and install
all arm brackets at your
desired height.
PRO TIP
ASSEMBLY INSTRUCTIONS
9

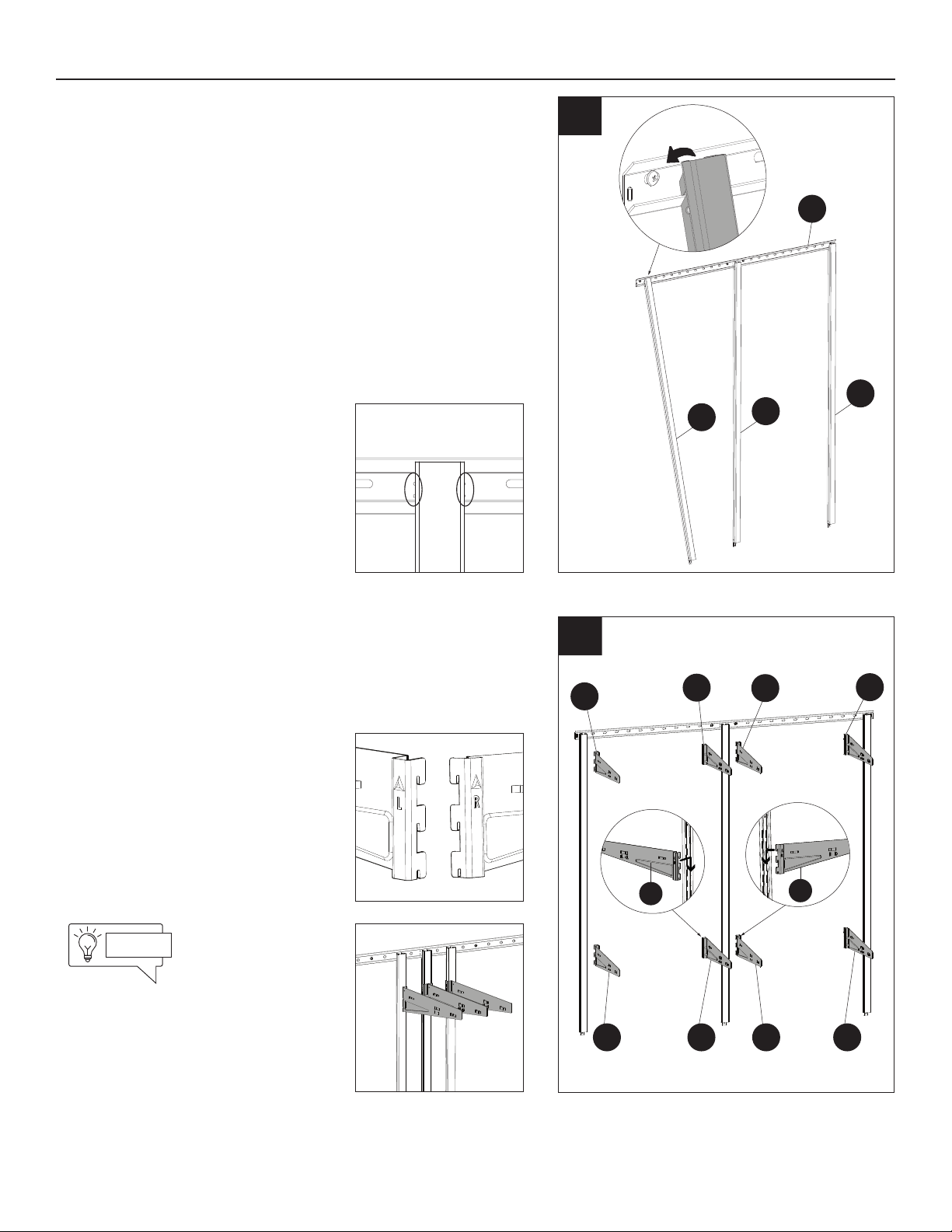

7. Hang Vertical Standards (C) to Horizontal Top
Track (A) as shown.
NOTE:
Line up the center Vertical
Standard (C) In between the dot
marks on the Horizontal Top
Track (A)
8. I nsert Left & Right Arm Brackets (F&E) into the
Vertical Standards (C) at desired shelf heights. Each
shelf requires 1x Left Arm Bracket (F) and 1x Right
Arm Bracket (E).
8
73x
CC
C
A
F
EE
EE FF
F
NOTE:
Arm Brackets are stamped with
L and R for easy identification
as well and an “UP” orientation
arrow.
4x
F
4x
E

ASSEMBLY INSTRUCTIONS
10
9. Ensure the Vertical Standards (C) are aligned to
the left, right, and center of Horizontal Top Track (A).
10. Hook Left Clothing Rod Bracket (H) into the
middle tab of Left Arm Bracket (F). Hook Right
Clothing Rod Bracket (G) into the middle tab of
Right Arm Bracket (E).
9
10
HG
GG
G
G
HH
HH
4x 4x

ASSEMBLY INSTRUCTIONS
11

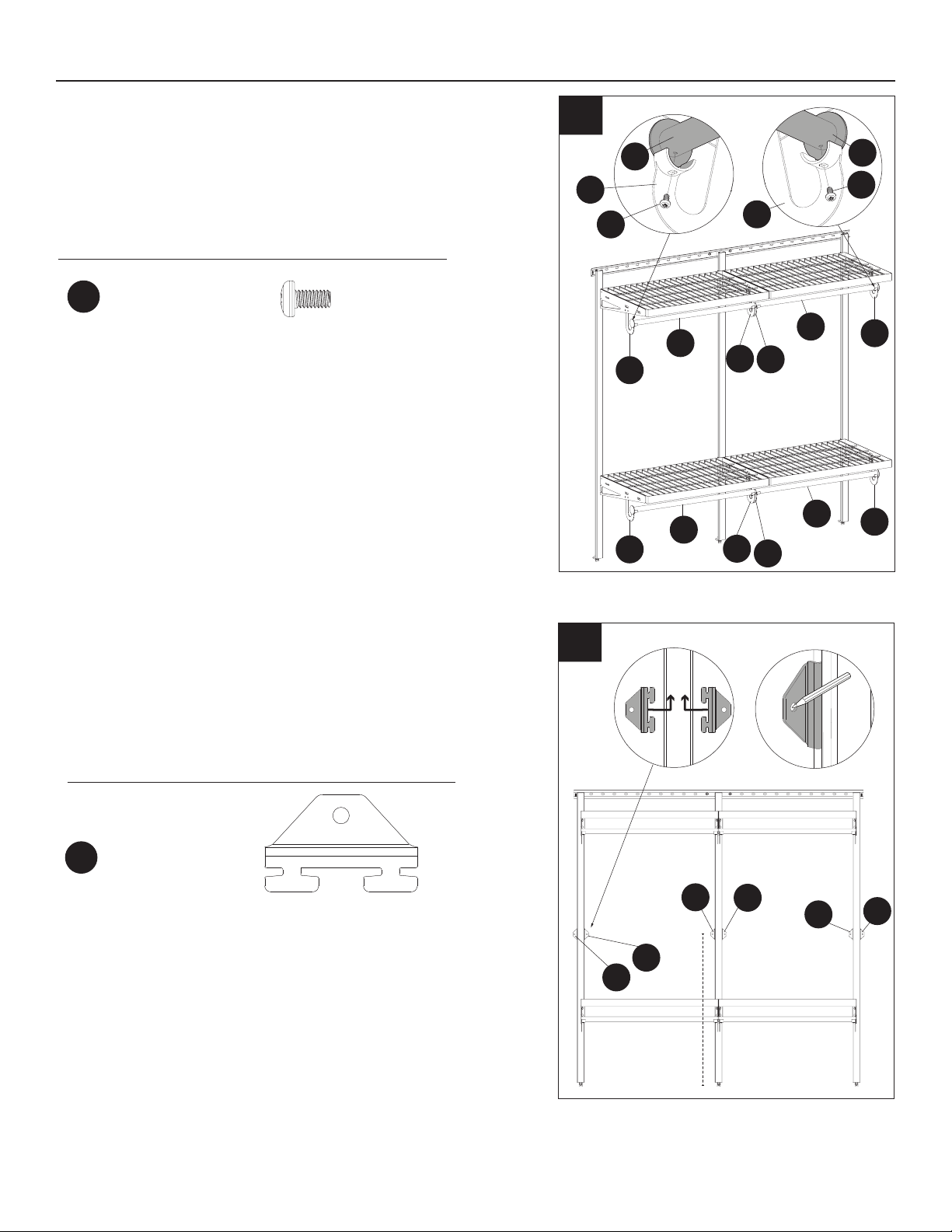

11. Install Wire Shelves (I) by hooking in the back
tabs into the Left (F) and Right (E) Arm Brackets.
Then push the front of the shelf down, inserting the
front tabs into the Arm Brackets.
12. Use the Magnetic Level (CC) to make sure
Vertical Standards (C) are straight. Then mark hole
locations of the
Bottom Mount Wall Clips (FF).
12
11
II
I
I
FRONT
BACK
FF

ASSEMBLY INSTRUCTIONS
12
13. Move the Vertical Standards (C) to the side to
reveal the marks made in the previous step. Using
5/16” drill bit to pre-drill holes into drywall. Use a
1/8" drill bit if this is in a stud. Do not drill through
the metal brackets.
Hardware Used (Pack B)
14. While the standards are shifted to the side,
install
Drywall Anchors (AA) into pre-drilled drywall
holes.
13
14
x 3
AA Drywall Anchor
If you are unsure if a stud is located
behind markings, use 1/8" drill bit to
drill all holes. If no stud is present,
then use 5/16" drill bit to make holes
larger for drywall anchors.
PRO TIP
Use a rubber mallet to lightly tap
Drywall Anchors (AA) into the drywall.
PRO TIP
3x
AA

ASSEMBLY INSTRUCTIONS (Pack B)
16. Insert Clothing Rod End Caps (GG) into the
ends of each Clothing Rod (D). Combine 2 Clothing
Rods (D) together with Clothing Rod Connector
(HH).
16
4x
2x
GG
GG
HH
D
D
GG
D
D
HH
Hardware Used (Pack C)
GG x 4 - 8
Clothing Rod
End Cap
HH x 2 - 4
Clothing Rod
Connector

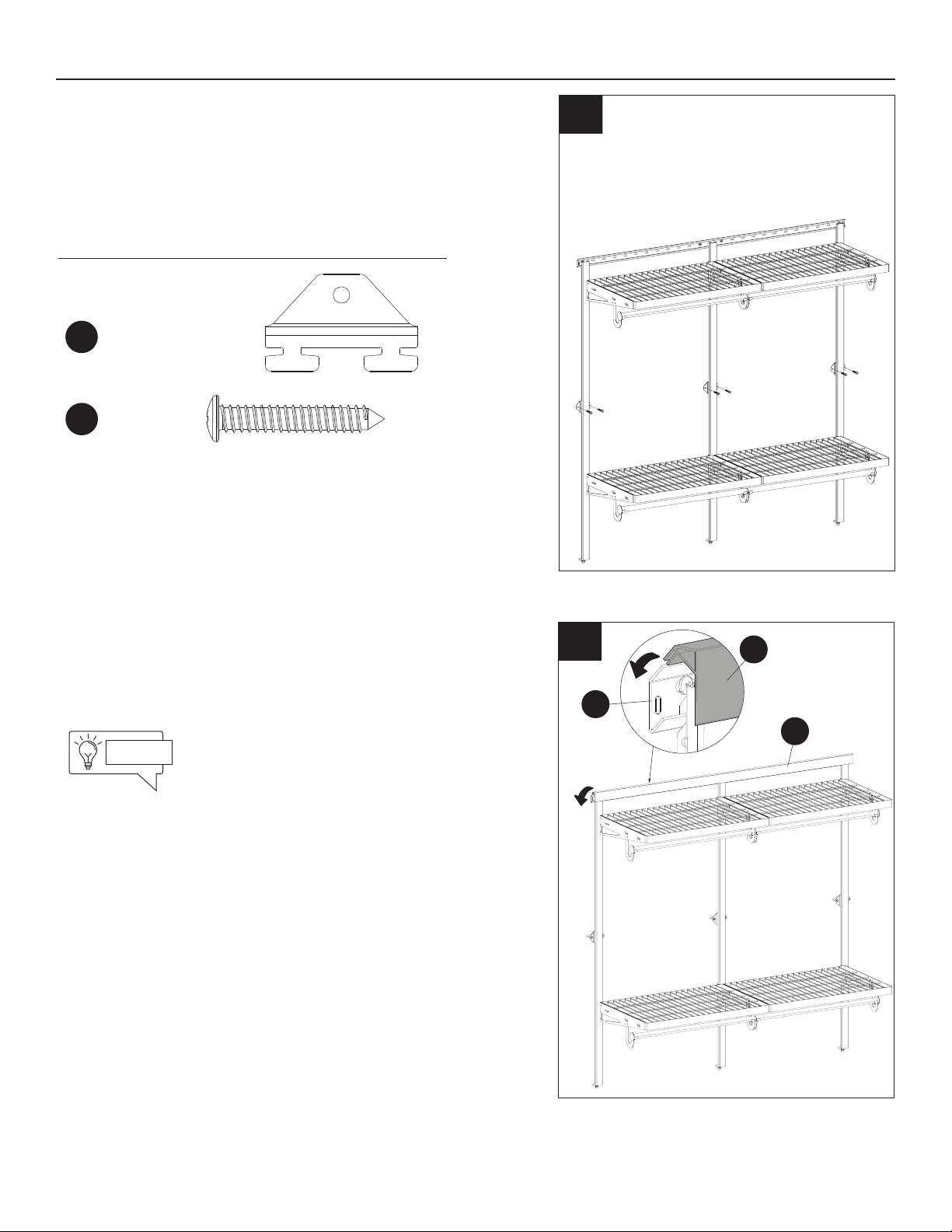

15. Secure each Vertical Standard (C) to wall
through the Bottom Mount Wall Clip (FF) using 4.8
x 38 Panhead Screw White (II).
15
Hardware Used (Pack B)
13
II
4.8 x 38
x 3
AA II
FF
You can customize your system and
hanging configurations to fit your
needs.
Check out the “OPERATING
INSTRUCTIONS” section for
configuration examples
PRO TIP

14
17. Using a Phillips Head Screwdriver, fasten the
Clothing Rod Assembly to the Left & Right Clothing
Rod Brackets (H&G) with M4x8 Screws (DD).
17
G
G
G
G
HH
HH
H
G
DD
DD
DD
DD
DD
Hardware Used (Pack C)
DD x 8
M4 x 8
ASSEMBLY INSTRUCTIONS
18. Insert the Universal Wall Clip (EE) into both
sides of the Vertical Standards (C) near its center
point. Once inserted push clips up and mark the
hardware hole locations.
18
EE
EE
EE EE EE EE
3x
Hardware Used (Pack B)
EE
Universal Wall
Clip
x 6
25”
6x
NOTE:
Ensure Universal Wall Clip is installed in upward
direction for maximum support.

Hardware Used (Pack B)
20. Install
Drywall Anchors (AA) into pre-drilled
drywall holes.
x 6
AA Drywall Anchor
Use a rubber mallet to lightly tap
Drywall Anchors (AA) into the drywall.
PRO TIP
ASSEMBLY INSTRUCTIONS
15
20
19. Remove Universal Wall Clip (EE) and using
5/16" drill bit, pre-drill marked hole locations into
drywall. Do not drill through the metal brackets.
19
If you are unsure if a stud is located
behind markings, use 1/8" drill bit to
drill all holes. If no stud is present,
then use 5/16" drill bit to make holes
larger for drywall anchors.
PRO TIP
6x
AA

EE
Universal Wall
Clip
x 6
21. Re-install each Universal Wall Clip (EE) into
Vertical Standard (C) at marked hole locations and
secure Clip to wall using 4.8 x 38 Panhead Screw
White (II).
21
Hardware Used (Pack B)
ASSEMBLY INSTRUCTIONS
22. Press channel of Horizontal Top Track Cover
(B) onto fin of the Horizontal Top Track (A).
22
A step ladder may make this
step a bit easier to complete.
PRO TIP
B
B
A
II
4.8 x 38
x 6
16

OPERATING INSTRUCTIONS

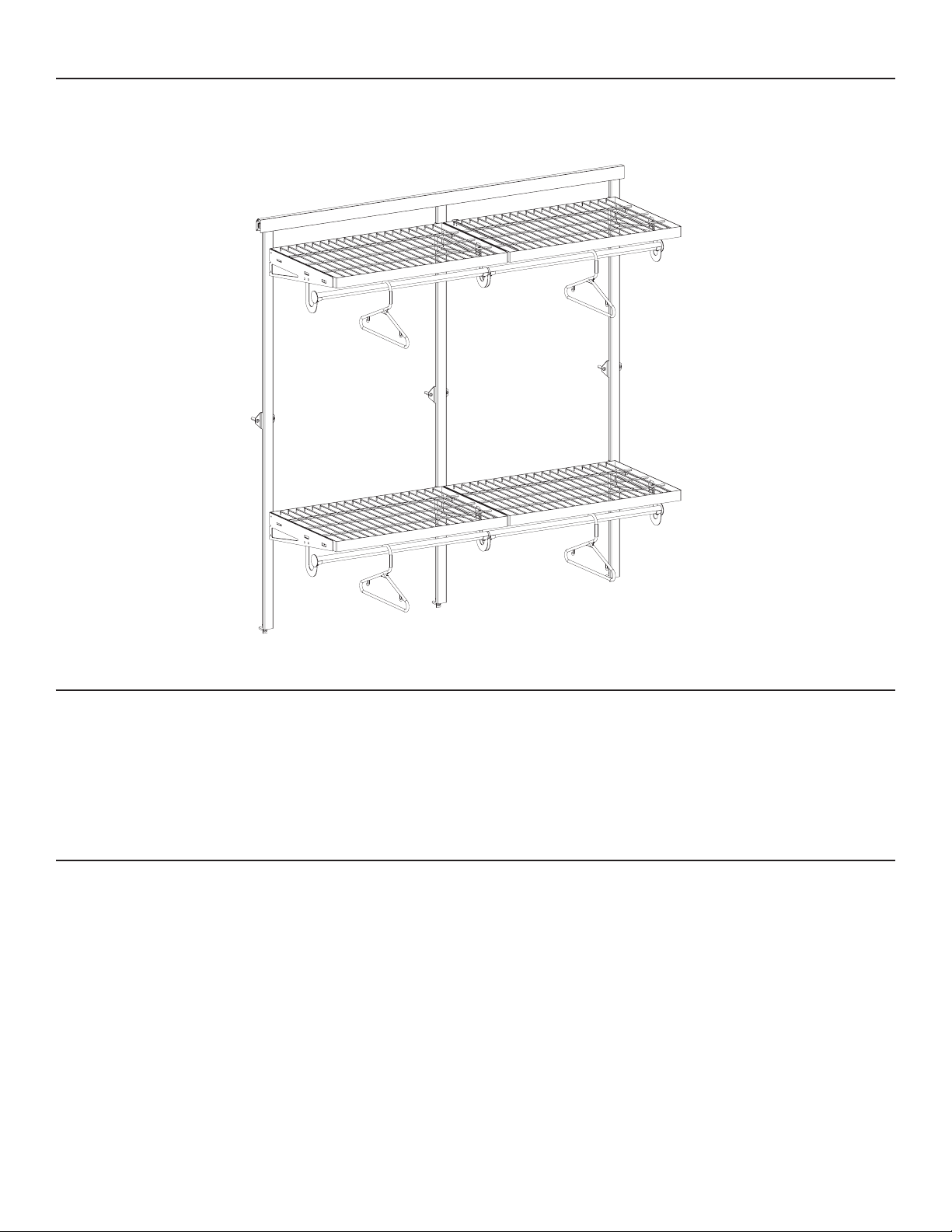

Example 4ft Wood Closet Kit Layouts
17

18
OPERATING INSTRUCTIONS
This kit has been designed to support the maximum loads as shown.
Exceeding these load limits could cause sagging, instability,
product collapse, and/or serious injury.
WARRANTY
This limited warranty covers the original purchase of this product used for normal personal or
household us. Origin 21 warrants its products will be free from defects in materials and
workmanship (normal wear and tear excepted), for a period of one (1) year from the date of
purchase, except as provided below. As the exclusive remedy under this warranty, Origin 21 will
repair or replace any defective component.
This warranty does not apply to damage caused by fire, accident, negligence, misuse, use other
than as stated in product instructions, improper cleaning or other circumstances not directly
attributable to defects in materials and workmanship.
Materials are warranted for one year from date of purchase. Proof of purchase is required in the
form of a receipt (copy or original) to validate the warranty.
CARE AND MAINTENANCE
• Use a soft, clean cloth that will not scratch the surface when dusting.
• Make sure all bolts/screws are tightly fastened before the unit is used, check bolts/screws
periodically and tighten them if necessary.
88 lbs (40 kg)
88 lbs (40 kg)
88 lbs (40 kg)
88 lbs (40 kg)
88 lbs
40kg
40kg
40kg
40kg
88 lbs
88 lbs
88 lbs

EE Universal Wall Clip 5141848-EE
FF Bottom Mount Wall Clip 5141848-FF
GG Clothing Rod End Cap 5141848-GG
HH Clothing Rod Spacer Connector 5141848-HH
19
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 888-251-1026, 8 a.m. - 8 p.m.,
EST, Monday - Sunday. You could also contact us at [email protected].
Printed in China
PART DESCRIPTION PART #
A Horizontal Top Track 5141848-A
B Horizontal Top Track Cover 5141848-B
C Vertical Standard 5141848-C
D Clothing Rod 5141848-D
E Right Arm Bracket 5141848-E
F Left Arm Bracket 5141848-F
G Right Clothing Rod Bracket 5141848-G
H Left Clothing Rod Bracket 5141848-H
I Wire Shelf 5141848-I
PART DESCRIPTION PART #
A
B
C
C
C
D
I
I
I
I
D
D
D
E
EE
EE
E
E
E
F
F
F
F
GGGG
GG
GG
FF
FF FF
GG
G
G
H
EE
H
HH
HH
HH

ARTÍCULO #5141849
MODELO #WR4KIT-16-W
Kit para empezar
de alambre de 1,21 m
Français p. XX
Español p. XX
20
Français p. XX
Español p. 20
ADJUNTE SU RECIBO AQUÍ
SS22152
Origin21® y el diseño del logotipo son marcas
comerciales o marcas comerciales registradas de
LF, LLC. Todos los derechos reservados.
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro
Departamento de Servicio al Cliente al 888-251-1026, de lunes a domingo, de 8 a.m. a 8
p.m., hora estándar del Este. También puede comunicarse con nosotros en cualquier
momento en www.lowespartsplus.com.
Número de serie Fecha de compra
