Original BTC DAVEY LIGHTING 2467/E14 User manual

Instruction Manual
v1.3-06.19 2467/E14
Safety & Installation Instructions
1. If you are in any doubt consult a qualified electrician as to the installation of the fitting. Install in accordance with current
IEE wiring regulations. It is recommended that this fitting is installed by a qualified electrician.
2. Ensure that the electrical supply is OFF. Disconnect the electrical supply at the fuse-board.
3. If removing an existing fitting first, note all wiring connections: record which of the house wires is connected to the live,
neutral and earth terminals.
4. Carefully identify where the supply cable is (and check there are no other cables in the area) to avoid damage to concealed
wiring during installation.
5. Position the light where desired ensuring that there is suitable support adjacent to where you will connect to the house
supply and mark position of fixing holes, before drilling appropriate holes as below.
6. a. Brick or masonry: Drill holes into which the wall plugs tightly fit, then insert wall plugs.
b. Wood: No hole necessary (unless small pilot hole required), screws can be screwed directly into the timber.
c. Plaster/Cavity: Special cavity wall fittings are required, rather than provided fixings. These are widely available from
good hardware or DIY store and should come with their own instructions that must be followed. It may be easier to
relocate the fitting so that you screw directly into a timber joist or beam.
7. Support the fitting so that no strain is applied to the wiring when making the electrical connections.
8. Electrical connection: the E14 version of this light fitting must be earthed. Make connections following the diagram below.
A small flat-head screwdriver is required.
9. Double check all the connections are secure and that no loose strands of wire are left out of the connector and that the lid
of the terminal block is closed securely after making the connections.
10. Check that no wires are trapped behind or within the fitting and complete the installation, referring to the Installation
diagram inside.
11. Fit the correct type and wattage of lamp (or less). Be careful not to overtighten the lamp.
12. Switch on at the fuse-board. Your light fitting is now ready for use.
Other Important Information
Switch off at mains before changing lamp(s). Never fit a lamp of greater wattage than recommended. Ensure children do not
play with the light fitting. Dispose of old lamps carefully. Never leave a fitting without a lamp in position (or someone can
accidently touch the contacts). Adjust fitting only when power to the fitting is off and has been left to cool. If the electrical flex
or electrical components become damaged at any point, power to the fitting should be disconnected immediately and not
operated until the damaged parts are fixed/replaced. For use in dry, indoor environment only. Ensure the fitting does not come
into contact with any liquids.
These instructions are provided for your safety in order to prevent the risk of Fire, Electric shock or Injury. It is vitally
important that they are read in their entirety before installing your fitting. Please retain for future reference.
MADE IN BRITAIN
ORIGINALBTC.COM
[phone]
UNIT 21 / 22 AVENUE ONE, STATION LANE, WITNEY, OX28 4XZ, ENGLAND

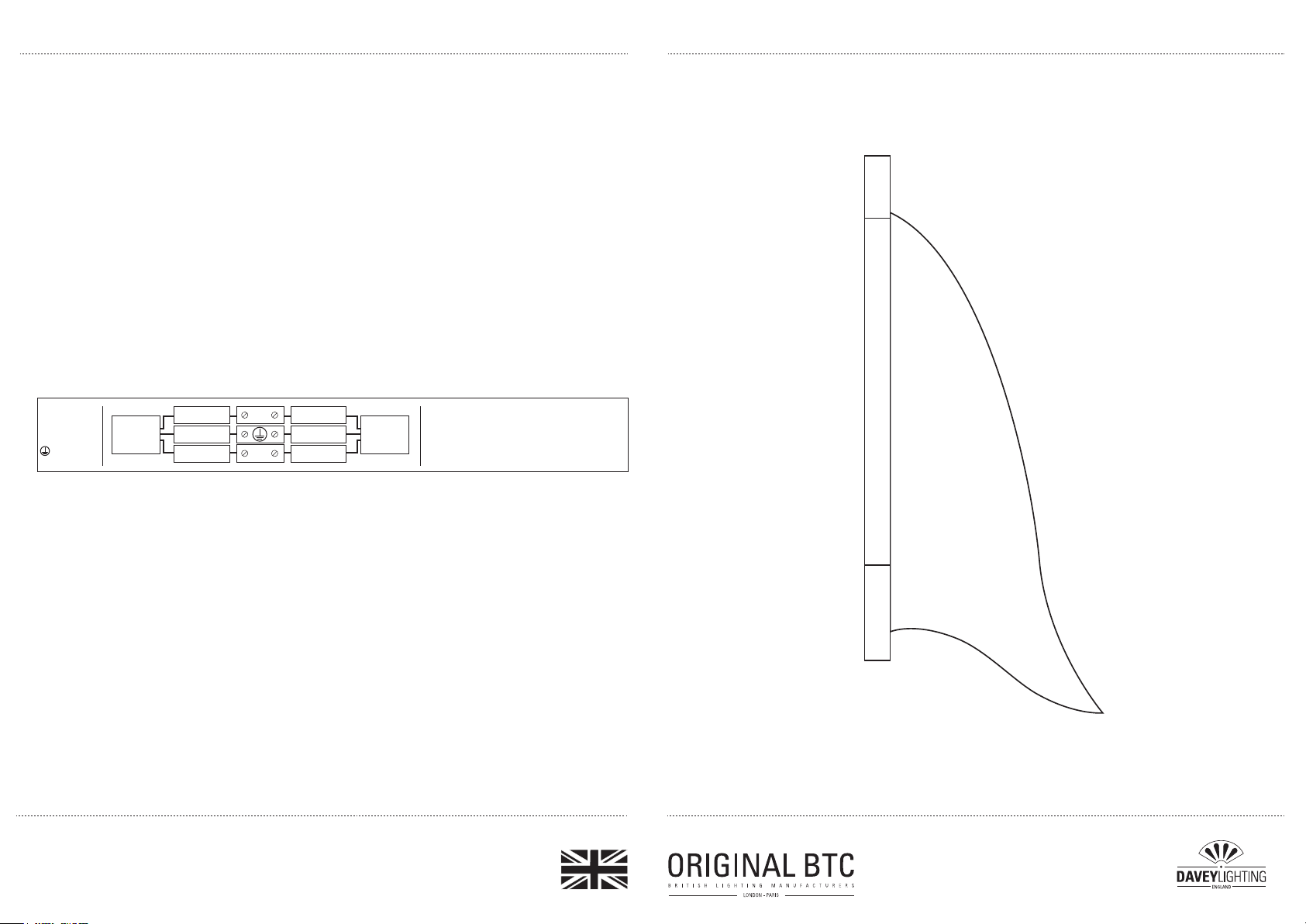

L
N
Live
KEY
Neutral
Earth
L =
N =
=
*Mains
Supply
Fitting
*After 2004, wiring installation colours changed:
LIVE Brown replaces Red
EARTH Green/Yellow sleeving
NEUTRAL Blue replaces Black
BROWN
GRN/YEL
BLUE
BROWN
GRN/YEL
BLUE
Established in 1990, Original BTC manufactures relaxed, familiar lighting for traditional and contemporary homes.
All products are hand-assembled in Oxford from high quality components, produced in the UK.
Cleaning and Maintenance
Metal finishes should only be cleaned with a soft, dry cloth. Do not use polishes or abrasives. Switch off power to the fitting
before cleaning. Spare parts are available for this product, please contact us on the details below.
Motorboat Ventilator Cover

2467 Installation Diagram
Installation Diagram
Contents
230V ac 50Hz IP20E14
Contents
1 - 2467 Casting
2 - E14 Lampholder/fixing plate
3 - 3 x Cover fixing screws
4 - 2 x Lampholder fixings
5 - 5 x Rawl plugs
6 - Connector (E14 ONLY)
Required for Installation
-Screwdriver, flat-head
- Small screwdriver, flat-head
- Drill (if holes are required)
1
2
5
3 4
STEP 1
Make electrical connection to the supply before fixing the lampholder/fixing plate to the mounting surface.
Alternatively, this can be fixed to a standard junction or besa box.
STEP 2
When electrical connection has been made and lampholder/fixing plate installed, position the cover over the
fitting in desired position, ensuring lamp faces direction of cover opening.
E14
STEP 1 STEP 2
B
C
A
E
A
B
C
Fixing Screw (lampholder)
Connector Block (supplied E14 only)
Main Supply
D
E
12V Transformer (not supplied)
Fixing Screw (cover)
Key
PLEASE READ THE INSTRUCTIONS ON THE REVERSE BEFORE YOU BEGIN INSTALLING YOUR LIGHT
6
Motorboat Ventilator Cover
E14 APPLIANCE
LAMP GUIDANCE
TYPE WATTAGE* BASE SHAPE




INCANDESCENT
CFL
ECO-HALOGEN
LED
15W MAX
n/a
n/a
n/a
** Wattage value provided as a guide to suitable lamps. Lower wattage than stated may be used.
