Original Tractor Cabs 30340 User manual

SUNSHADE #30340 For: John Deere
EZtrack 225, 245, 425, 445 & 465
PARTS LIST – ASSEMBLY INSTRUCTIONS
IMPORTANT
READ THIS MANUAL CAREFULLY AND KEEP FOR FUTURE REFERENCE
CAUTION
REMOVE THE SUNSHADE FOR TRANSPORT IN AN OPEN TRUCK OR TRAILER
! WARNING!
THIS SUNSHADE WILL NOT PROTECT OPERATOR FROM INJURIES CAUSED BY
ROLLOVER, COLLISION, OR OTHER ACCIDENTS
30340107
1

Carton Contents for Sunshade #30340
Key # Part # Qty Description
1 30341P 1 Receiver, RH
2 30342P 1 Receiver, LH
3 30376P 1 Receiver Brace
4 30282P 2 Post
5 30070P 1 Front Bow Reduced End
6 30071P 1 Front Bow
7 30065P 1 Top Bow
8 30067P 1 Rear Bow
9 9311P 1 Brace, RH
10 9312P 1 Brace, LH
9295-Y 1 Vinyl Top
30228 1 Rear Screen Panel
30343 1 Hardware Package (Contents Listed Below)
786 6 1/4”-20 x 5/8” Cap Screw
2186 2 1/4”-20 x 1 1/4” Cap Screw
1514 2 1/4” Flat Washer
730 8 1/4”-20 Two Way Lock Nut
317 2 5/16” Flat Washer
7787 5 M8-1.25 x 25mm Cap Screw
9404 2 M8-1.25x 35mm Cap Screw
9443 2 M8-1.25 Flange Nut
STEP 1; SEE FIGURE 1:
Figure 1
Install Receiver Right (1)
A. Remove the bolts at Reference A and B on
the right side. Place the right Receiver in place
as shown. Insert two M8 x 25mm bolts down
through the holes at Reference A. Replace the
nuts. Do not tighten at this time.
1
B. Insert an M8 x 35 mm bolt with flat washer
inwards through the hole at Reference B then
through the hole in the tab. Add an M8 locknut
and tighten all bolts.
B
C. Some models have a corresponding hole to
Reference B on the left side. On these units
attach both Receivers in the same way and
tighten all bolts. For models that do not have
the hole on the left side follow step 2.
A
2

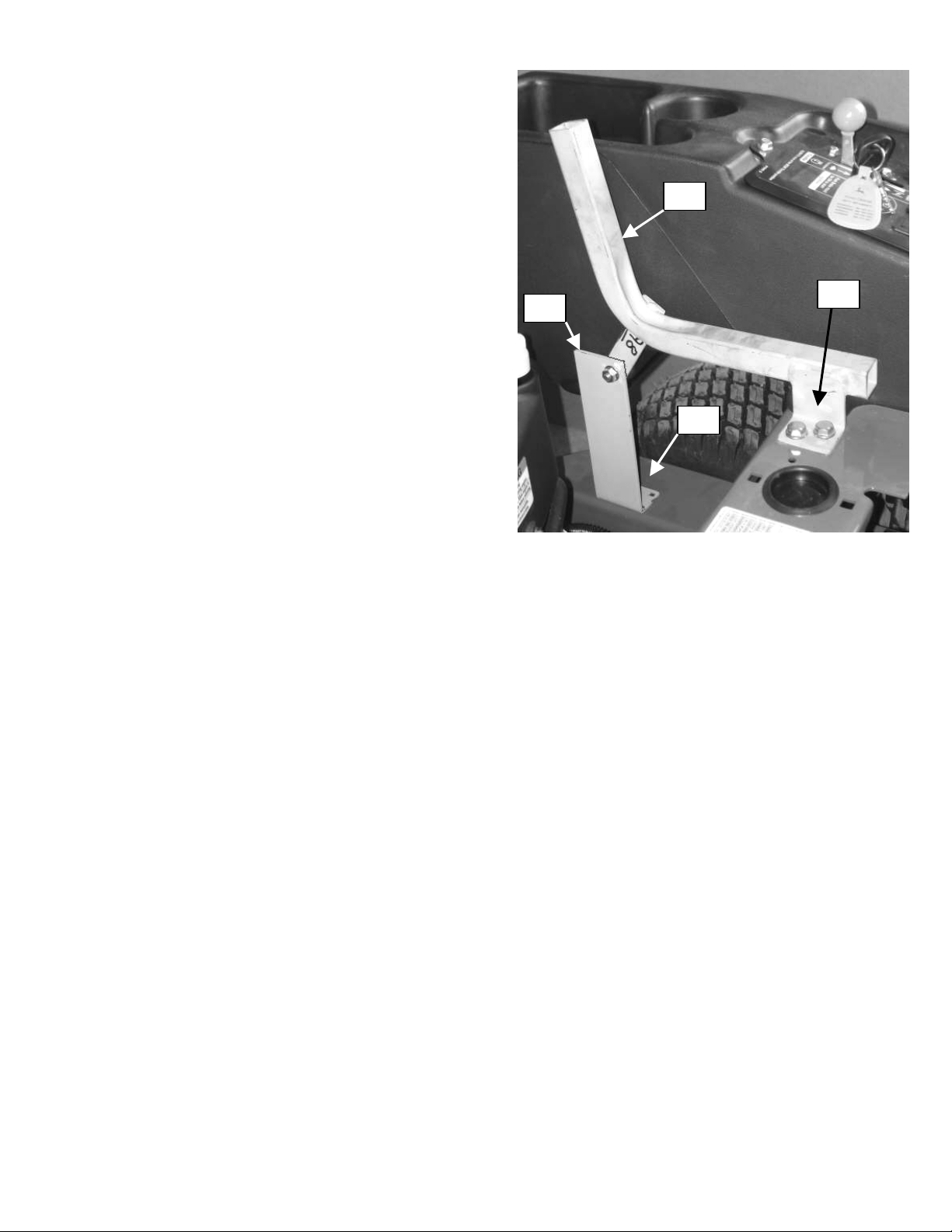

STEP 2; SEE FIGURE 2:
Install Receiver Left & Receiver Brace (2 & 3)
A. Remove the bolts at Reference A as done
on the right side. Place the left Receiver in
place as shown. Insert two M8 x 25mm bolts
down through the holes. Replace the nuts.
Do not tighten at this time.
B. Remove the nut at Reference C. Place
the Receiver Brace on the mower frame as
shown and replace the nut.
C. Connect the Receiver to the Receiver
Brace with a M8 x 25mm bolt and M8 lock nut
as shown. Tighten all bolts on both sides.
2
A
3
C
FIGURE 2
3

STEP 3; SEE FIGURE 3:
Assemble Frame
A. Connect the Front Bow Halves (5 & 6). Lay the Front Bow and Rear Bow (8) on a flat surface.
Place the ends of the front bow on the outside of the ends of the rear bow. Insert four bolts
outwards through the ends of the bows. Place the ends of the Top Bow (7) over the two forward
bolts of the assembly. Add two locknuts and tighten keeping the top of the center bow leaning
about 4” forward of vertical.
B. Refer to the illustration to attach the Posts (4) and right and left Braces (9 & 10) to the
assembled frame. Use 1/4” x 1 1/4” bolts with 1/4” flat washers placed under the nuts at
Reference A. Do not tighten the bolts at this time.
C. Insert the square ends of the posts into the receivers on the mower. Tighten all bolts while
keeping the framework level.
D. Snap the Rear Screen around the Rear Bow and fasten to the posts with the Velcro tabs.
E. Slip the front of the Vinyl Cover over the front bow. Pull the rear of the cover down over the
rear bow. Push the center bow up to tighten the cover if needed.
4
5
8
7
NOTE: Apply some wax to the square
ends of the posts to ease insertion and
removal of the Sunshade from the
receivers.
IMPORTANT: Remove the sunshade
before transport in an open truck or
trailer.
6
10
4
4
9
A
Figure 3

For Replacement Parts and
Accessories Contact:
Original Tractor Cab Co., Inc.
P.O. Box 97 6849 W. Front St.
Arlington, IN 46104
Phone [phone]
Fax [phone]
Email [email protected]
Visit us on the web to see our other
products.
www.originalcab.com
Cabs for Lawn Tractors, Garden Tractors,
Compact Tractors, Snow Blowers, Utility
Vehicles
Sunshades for Tractors, Mowers, & Utility
Vehicles
Storage Covers for Lawn and Garden
equipment.
