ORIGO ED20W User manual

www.origoelec.com
Document Information
Version
Time
Description
Remark
V1.0.0
2020-05-07
Preliminary version
Mike
V1.0.0
ED20W
LoRaWAN Smart Watch User Manual

ED20W Smart Wristband_datasheet_V1.0.0
Origo Electronic www.origoelectronic.com
- 1 -
Table of contents
1. Description .................................................................................................................................................................................... - 1 -
2. Features .......................................................................................................................................................................................... - 1 -
3. Interface ......................................................................................................................................................................................... - 2 -
4. Specification ................................................................................................................................................................................. - 3 -
5. Operation guide .......................................................................................................................................................................... - 5 -
5.1 Power on ............................................................................................................................................................................ - 5 -
5.2 Join the Network ............................................................................................................................................................ - 5 -
5.3 Check system menu ....................................................................................................................................................... - 5 -
5.4 Switch screen .................................................................................................................................................................... - 5 -
5.5 SOS ........................................................................................................................................................................................ - 5 -
5.6 Charging ............................................................................................................................................................................. - 5 -
5.7 Device positioning ......................................................................................................................................................... - 5 -
5.8 Motion detection ............................................................................................................................................................ - 5 -
5.9 Power off ............................................................................................................................................................................ - 5 -
6. Package .......................................................................................................................................................................................... - 5 -

ED20W Smart Wristband_datasheet_V1.0.0
Origo Electronico Co.,LTD www.Origo.com
- 1 -

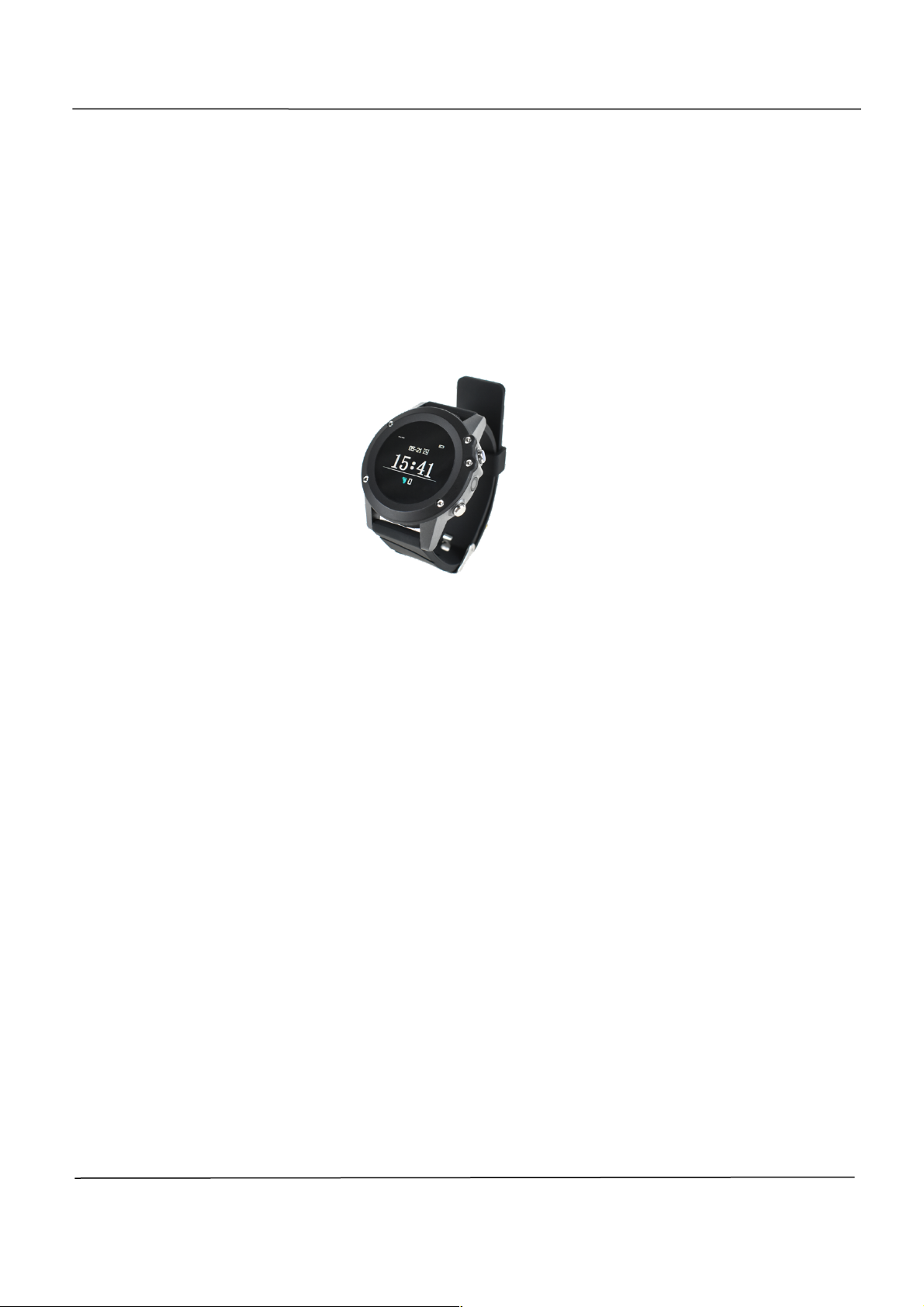

1. Description
ED20W is a smart wristband based on LoRaWAN communication. Build in GNSS and Bluetooth module, can
achieve indoor and outdoor real-time positioning combined with motion sensors. With wearing detection, it
can realize real-time collection of health data such as heart rate, number of steps and sleep. The data will be
transmitted to the platform through the LoRaWAN Network.
Application
l Smart safety solution for people working in industrial companies. Such as large oil&gas company, Power
station company, chemistry company.
l Smart senior care, Isolating people from airport, hospital.
2. Features
ü Communication via LoRa : communication range up to 1.5KM line-of-sight , 500～1000Meters in dense
urban , compatible with any LoRaWANTM network.
ü Build in GNSS+ Bluetooth chip, Indoor &outdoor real-time tracking
ü Heart rate, number of steps: the measurements are made at a configured frequency and automatically
send to the LoRaWANTM network.
ü Real-time Alarm: When the heart rate exceeds the standard, an alarm is sent.
ü SOS in emergency
ü Long Battery Life: Battery life as long as 7 days @ 15mins uplink duty cycle, a notification is sent when
the battery power falls below 10%.

ED20W Smart Wristband_datasheet_V1.0.0
Origo Electronico Co.,LTD www.Origo.com
- 2 -

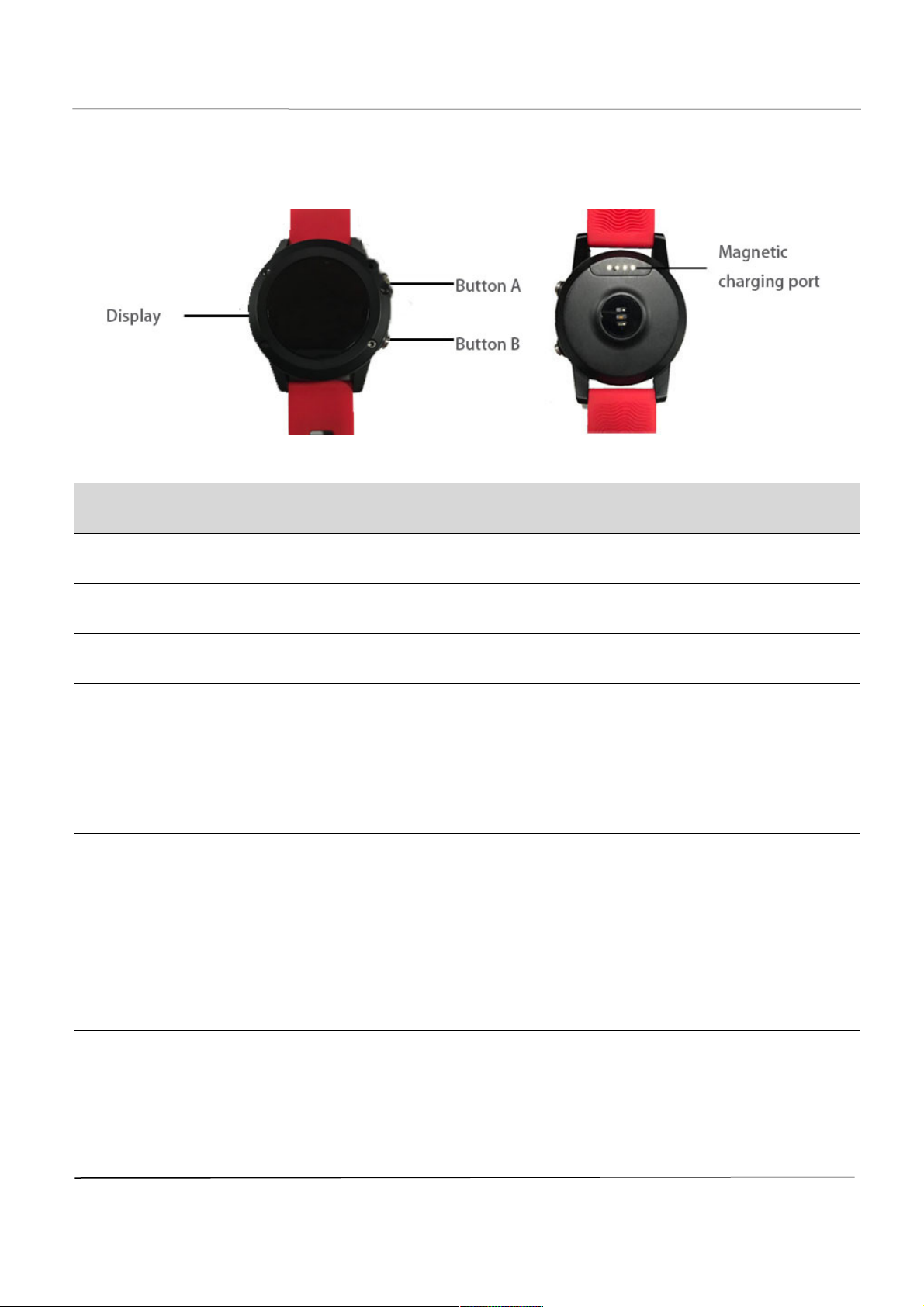

3. Interface
Function
Description
Display
Display detection parameters
Power On
Press and hold button A 3 seconds
Power Off
Press and hold button A 10 seconds
Switch the screen
When the screen is off or in host interface, Press button A to switch the screen
Check system
manual
Press button B to view the system menu and turn the page
SOS
Press and hold Button B 3 seconds to trigger SOS, the SOS alarm will display
on host interface if sent successfully to the platform.
Charging
Use the standard magnetic charging cable to charge the device, can be fully
charged within 2 hours

ED20W Smart Wristband_datasheet_V1.0.0
Origo Electronic www.origoelec.com
- 3 -
4. Specification
Parameters
Specification
Modem
ISM Band LoRa®
Frequency
AS923MHz, US915Mhz, EU868MHz
Tx Power
Max +20dBm
Communication range
500~1000M in dense urban,1.5KM los
Positioning
Build in GNSS, Bluetooth and accelerometer, Positioning accuracy:5~20
Meters（Indoor positioning accuracy varies depending on Beacon
density）
Operating mode
1、The default positioning interval is 15mins, supports wear detection
2、Automatically send a uplink message when power on the device,
platform will send a downlink message.
3、The default downlink interval≧15s
4、Trigger SOS will not change the positioning logic
5、The wristband uplink positioning data, power information data and
heart rate information according to the uplink cycle
6、The watch automatically detects the heart rate when wearing the
wristband and it’s on the heart rate detection page, It will displays the
latest detection information after the detection is completed
Bluetooth
Low power consumption Bluetooth for indoor positioning
Display
240*204 TFT Display

ED20W Smart Wristband_datasheet_V1.0.0
Origo Electronic www.origoelec.com
- 4 -
Rubber strap
22mm standard size (Replaceable)
Buttons
Function button A and B
Battery capacity
Polymer battery，400mAh， 3.8V
Charging
Magnetic charging cable
Operation time
7 days standby;
Enclosure
IP67(IP65 opt.)
Electronic tags
Support RFID& NFC (not equipped by default)
Health data
Heart rate,steps detection
SOS
Support
Alarm
SOS alarm，Low power alarm
Operation
temperature
-20~60℃
Operation humidity
10%～90%，Non-condensing
Dimensions
TYP. 48*52*14.5mm (W*L*H)
Weight
50g
Table 4.1 specification

ED20W Smart Wristband_datasheet_V1.0.0
Origo Electronic www.origoelec.com
- 5 -
5. Operation guide
5.1 Power on
l In the shutdown state, the device automatically turns on when connected to the charging cable.
l Press and hold button A 3 seconds to power on the device.
5.2 Join the Network
After turning on the device, it starts to search the LoRaWAN network and register to the network, when
successfully connected to the LoRaWAN Network, the device will request UTC time synchronization from the
server. The host interface will display the network signal, time and other information in the current environment.
5.3 Check system menu
Press button B to view the system menu and switch the page
Host interface-Message-Heartrate -Steps-Themes-System Version
5.4 Switch screen
When the screen is off or in host interface, Press button A to switch the screen
5.5 SOS
Press and hold Button B 3 seconds to trigger SOS, the SOS alarm will display on host interface if sent successfully
to the platform. Press and hold again to exit. It will automatically quit after 20 minutes
5.6 Charging
Use the standard magnetic charging cable to charge the device, The smart wristband needs to be fully charged
for the first time, and it takes about 2 hours.
5.7 Device positioning
The default GPS/Bluetooth positioning interval is 15mins, can be adjusted. You also can set the positioning interval
in different period, no more than 4 period.
5.8 Motion detection
The equipment regularly detects the current position of the person, and when the movement is detected, the
current location is updated to the platform in real time.
5.9 Power off
Press and hold button A 10 seconds to power off the device.
6. Package
Item
Model No.
QTY
尺寸
N.W
Accessories
Smart
wristband
ED20W
1pcs/Box
109*75*59*MM
190g
charging cable*1，User manual*1，Warranty
card*1
