Ormazabal velatia cpg.0 Instruction manual

LIB
cpg.0
GIS medium-voltage switchgear, gas
insulated, up to 40.5 kV, in accordance
with IEC Standard
General instructions
IG-123-EN, version 11, 23/07/2021

In view of the constant evolution in standards and design, the characteristics of the elements contained in this manual are subject
to change without prior notice. These characteristics, as well as the availability of components, are subject to confirmation by
Ormazabal.
CAUTION!
When medium-voltage equipment is operating, certain components are live, other parts may be in movement and some may
reach high temperatures. Therefore, the use of this equipment poses electrical, mechanical and thermal risks.
In order to ensure an acceptable level of protection for people and property, and in compliance with applicable environmental
recommendations, Ormazabal designs and manufactures its products according to the principle of integrated safety, based on
the following criteria:
• Elimination of hazards wherever possible.
• Where elimination of hazards is neither technically nor economically feasible, appropriate protection functions are
incorporated in the equipment.
• Communication about remaining risks to facilitate the design of operating procedures which prevent such risks,
training for the personnel in charge of the equipment, and the use of suitable personal protective equipment.
• Use of recyclable materials and establishment of procedures for the disposal of equipment and components so
that once the end of their service lives is reached, they are duly processed in accordance, as far as possible, with the
environmental restrictions established by the competent authorities.
Consequently, the equipment to which the present manual refers complies with the requirements of section 11.2 of Standard
IEC 62271-1. It must therefore only be operated by appropriately qualified and supervised personnel, in accordance with the
requirements of standard EN 50110-1 on the safety of electrical installations and standard EN 50110-2 on activities in or near
electrical installations. Personnel must be fully familiar with the instructions and warnings contained in this manual and in other
recommendations of a more general nature which are applicable to the situation according to current legislation[1].
The above must be carefully observed, as the correct and safe operation of this equipment depends not only on its design but also
on general circumstances which are in general beyond the control and responsibility of the manufacturer. More specifically:
• The equipment must be handled and transported appropriately from the factory to the place of installation.
• All intermediate storage should occur in conditions which do not alter or damage the characteristics of the equipment
or its essential components.
• Service conditions must be compatible with the equipment rating.
• The equipment must be operated strictly in accordance with the instructions given in the manual, and the applicable
operating and safety principles must be clearly understood.
• Maintenance should be performed properly, taking into account the actual service and environmental conditions in
the place of installation.
The manufacturer declines all liability for any significant indirect damages resulting from violation of the guarantee, under any
jurisdiction, including loss of income, stoppages and costs resulting from repair or replacement of parts.
Warranty
The manufacturer guarantees this product against any defect in materials and operation during the contractual period. In the
event that defects are detected, the manufacturer may opt either to repair or replace the equipment. Improper handling of this
equipment and its repair by the user shall constitute a violation of the guarantee.
Registered Trademarks and Copyrights
All registered trademarks cited in this document are the property of their respective owners. The intellectual property of this manual
belongs to Ormazabal.
[1] For example, in Spain the “Regulation on technical conditions and guarantees for safety in high-voltage electrical installations” – Royal Decree
337/2014 is obligatory.

IG-123-EN version 11; 23/07/2021 3
General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
Contents
Contents
1. General description ...................................................4
1.1. Models ......................................4
1.2. Standards applied............................4
1.3. Main components ...........................5
2. Technical characteristics..........................................12
2.1. Electrical characteristics .....................12
2.1.1. Name plate .................................14
2.2. Mechanical ratings ..........................15
2.2.1. Dimensions.................................15
2.3. IP rating ....................................16
3. Normal service conditions(a) ....................................17
4. Handling and transport...........................................18
4.1. Transport conditions ........................18
4.2. Lifting means ...............................18
5. Storage......................................................................20
6. Installation ...............................................................21
6.1. Unpacking the equipment ..................21
6.2. List of assembly materials supplied ..........21
6.3. Minimum installation distances..............22
6.4. Cable connection trench ....................22
6.4.1. Recommended dimensions .................23
6.5. Fixing to floor...............................23
6.6. Joining the cubicles .........................24
6.6.1. cpg.0-v 24 kV 630 A .........................25
6.6.2. cpg.0-v 1250 A and 1600 A/cpg.0-pt/
cpg.0-vl. ....................................25
6.6.3. cpg.0-v 2500 A..............................26
6.6.4. cpg.0-c .....................................26
6.6.5. cpg.0-s .....................................27
6.6.6. cpg.0-f/cpg.0-fl .............................27
6.6.7. cpg.0-rb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
6.7. Equipment earthing ........................29
6.8. Cable connection ...........................30
6.9. Installing the gas duct to outside the cubicle
room .......................................36
7. Operations sequence...............................................38
7.1. Operating and commissioning sequence ....38
7.1.1. Disconnector function operating sequence
(cpg.0-s) ....................................38
7.1.2. Circuit-breaker operating sequence
(cpg.0-v/cpg.0-vl)...........................44
7.1.3. Busbar coupling function operating
sequence (cpg.0-c)..........................55
7.1.4. Busbar riser cubicle (cpg.0-rb) ...............60
7.1.5. Busbar earthing operating sequence
(cpg.0-pt)...................................60
7.1.6. Fuse protection operating sequence
(cpg.0-f/cpg.0-fl)............................63
8. Safety elements........................................................73
8.1. ekor.ivds voltage detectors .................73
8.2. Locking with padlock .......................73
8.2.1. Locking with key lock .......................73
8.3. Interlocks ...................................74
9. Maintenance.............................................................75
9.1. Voltage indicator test .......................75
9.2. Preventive maintenance of circuit-breakers ..75
10. Spares and accessories ............................................76
11. Environmental information ....................................77
11.1. Sulphur hexafluoride SF6....................77
11.2. Recyclability ................................77

IG-123-EN version 11; 23/07/2021
4
General description General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
1. General description
The cpg.0 switchgear is made up of a series of gas-lled
GIS cubicles for primary distribution in medium-voltage
networks up to 40.5 kV.
1.1. Models
Model Function
cpg.0-v Circuit-breaker
cpg.0-vl Circuit-breaker with side connection on the left
cpg.0-c Longitudinal busbar coupling
cpg.0-s Disconnector
cpg.0-f Fuse protection
cpg.0- Fuse protection with side connection on the right
cpg.0-rb Busbar rise
cpg.0-pt Busbar earthing
cpg.0-rc Cables side riser
Table 1.1. cpg.0 cubicle models
1.2. Standards applied
Standard Description
IEC 62271-1 Common specications for high-voltage switchgear standards
IEC 62271-200 Alternating current metal-enclosed switchgear and controlgear for rated voltages above 1 kV and up to and
including 52 kV
IEC 62271-100 Alternating current circuit-breakers
IEC 62271-103 High-voltage switches for rated voltages above 1 kV and below 52 kV
IEC 62271-102 Alternating current disconnectors and earthing switches
IEC 62271-105 Alternating current fuse combination switch for rated voltages above 1 kV and up to and including 52 kV
IEC 62271-206/IEC 61243-5 Live voltage indicating systems
IEC 60529 Protection rating provided by enclosures
IEC 60282-1 Current-limiting fuses
Table 1.2. Standards applied

IG-123-EN version 11; 23/07/2021 5
General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
General description
1.3. Main components

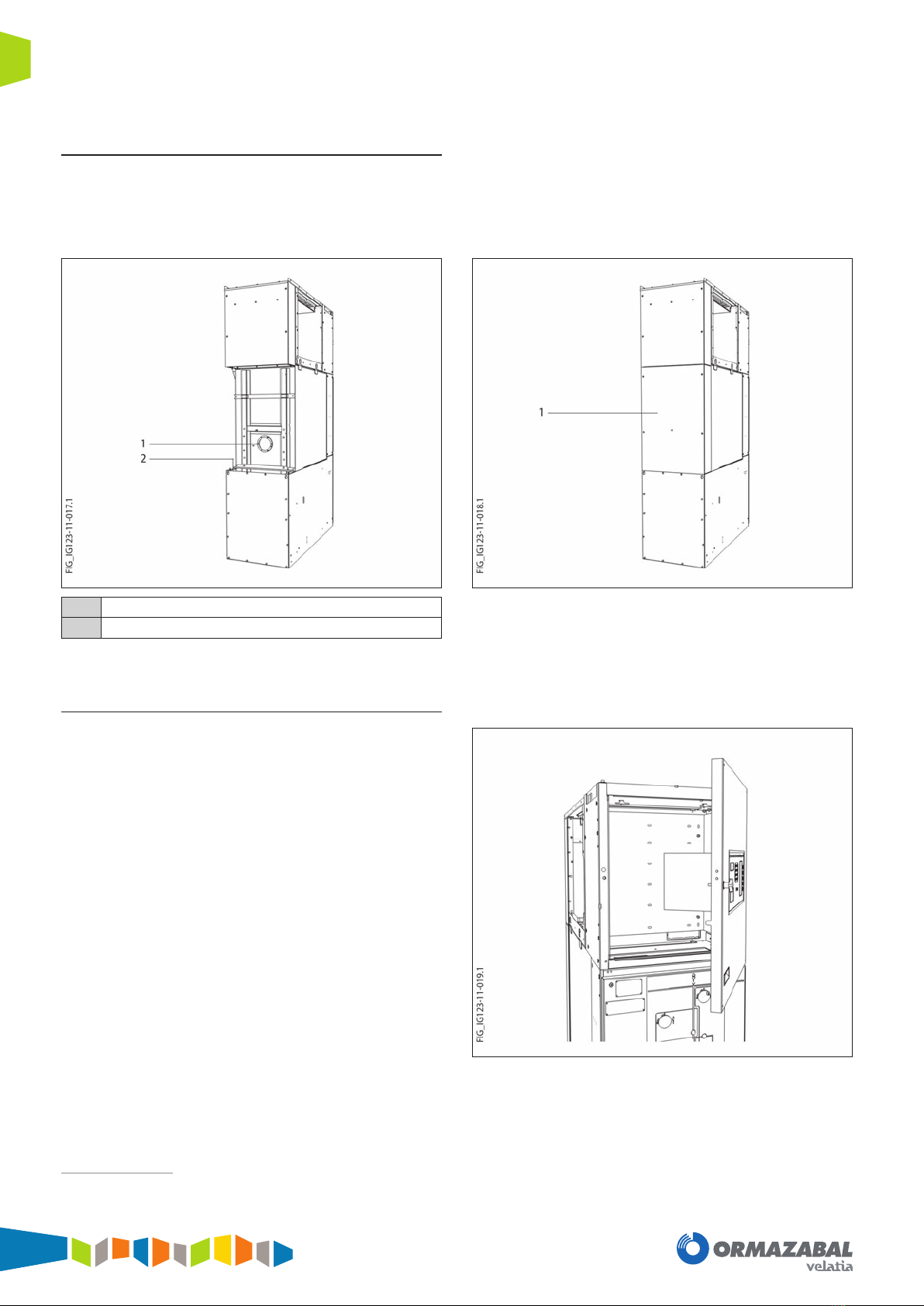

1Busbar compartment
2Gas tank
3Gas pressure relief duct
4Cable compartment
5Control compartment
6Driving mechanisms compartment
Figure 1.1. Main elements of cpg.0 cubicles

IG-123-EN version 11; 23/07/2021
6
General description General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
Gas tank
This is a sealed compartment, made of stainless steel and
sealed for life, which houses the switching and breaking
switchgear, with gas as the insulating medium.
Depending on the function the cubicle was designed for, it
may contain some of the following components inside:
• Disconnector.
• Earthing switch.
• Internal busbar and connections.
• Vacuum circuit-breaker.
• Switch-disconnector.
• Fuse holders.
Connection to the busbar is possible via top bushings.
Connection to the medium-voltage cables is made with the
bottom and/or side bushings.
The gas pressure is tested in each cubicle by means of a
temperature-compensated pressure switch with a volt-
free contact, allowing it to be used as aremote alarm or
blocking/trip for the position.
Figure 1.2. Example of bushing position in gas tank (1)
Busbar compartment
The busbar compartment, designed to withstand an
internal arc inside (optional), meeting the criteria of Annex
A of Standard IEC 62271-200, class IAC: AFL/AFLR, is located
at the top of the cubicle, separate from the gas tank. It is
made from sheet metal, oering the degree of protection
necessary for the connecting device.
It comprises a fully assembled, tested unit, separated by
phases, by way of earthed metal plates, with solid, screened
insulation, earthed through an earth collector at bar
specic to the compartment.
Toroidal-core current transformers and/or plug-in voltage
transformers can also be installed, thus avoiding the need
for metering cubicles.
Figure 1.3. Phase segregation in the busbar (optional)

IG-123-EN version 11; 23/07/2021 7
General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
General description
Cable compartment
[2] There are four or six in the case of cubicles with rated outgoing current of 2500 A.
Located in the bottom part of the cubicle, this has a cover,
interlocked with the earthing circuit, which allows front
access to the medium-voltage cables. This compartment is
prepared to withstand an internal arc in cable connectors
up to 31.5 kA - 1 s, meeting the criteria of Annex AA of
Standard IEC 62271-200, class IAC: AFL/AFLR.
In the most complete case, the base can house the following
components:
• Phase segregation assembly (optional) consisting of the
main box and the segregating cover.
• Three[2] symmetrical screened cable connectors with
reinforced connection (screwable) by phase or four
asymmetric ones.
• Cable clamps for the medium-voltage cables.
• Earthing bars.
• Toroidal-core current transformers.
• Voltage transformers connectable through medium-
voltage cable or plug-in/disconnector.
All the elements making up the enclosure are earthed
by means of a conductor consisting of a copper at
bar, sized to withstand the rated short-time current.
This is located in the base, meaning it does not need to
be dismantled in order to insert or remove a cable and
its corresponding termination.

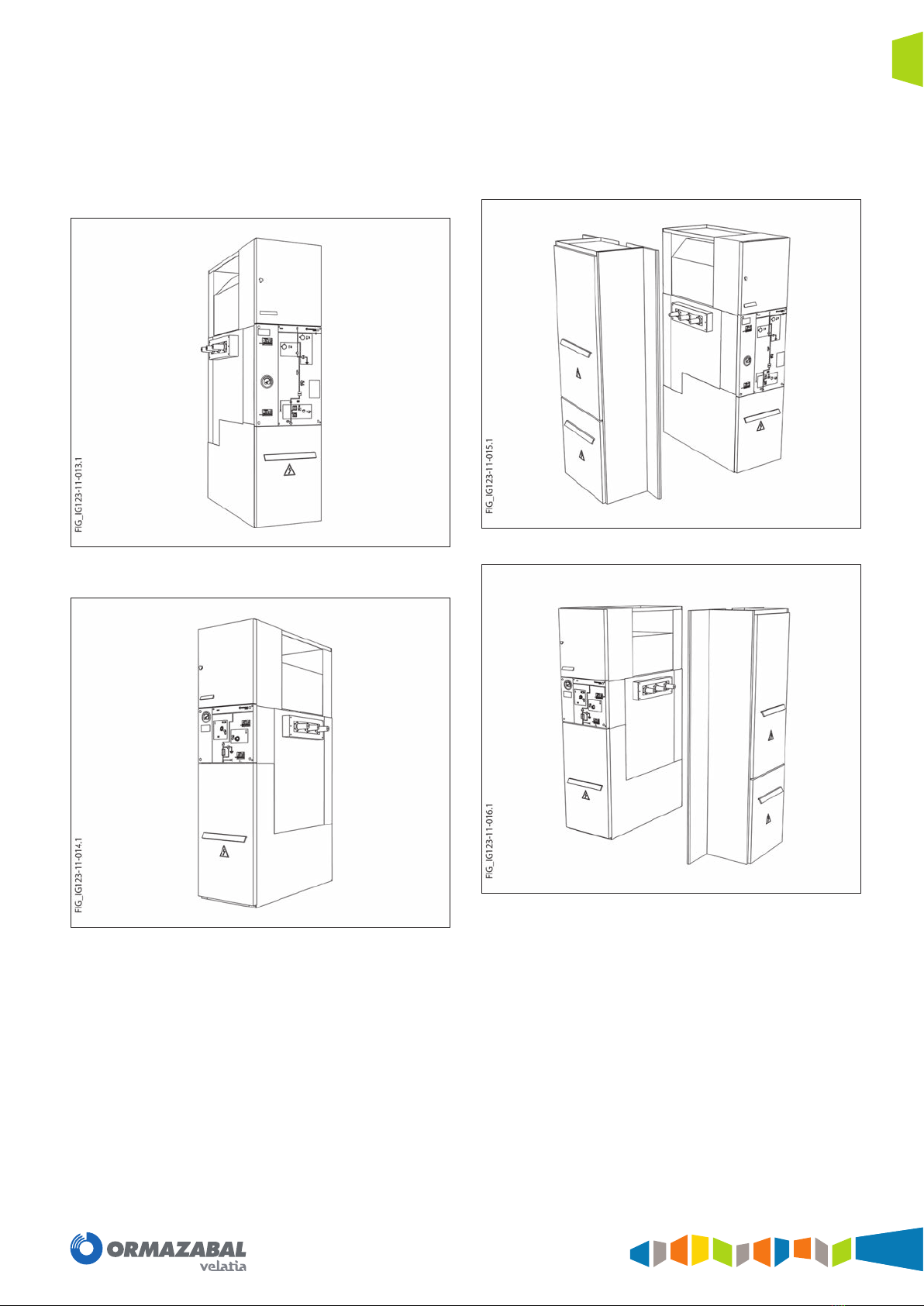

Figure 1.4. Voltage transformers connected by medium-voltage cable
Figure 1.5. Plug-in/disconnectable voltage transformers
Figure 1.6. Main box and segregation cover detail

IG-123-EN version 11; 23/07/2021
8
General description General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
Fuse compartment
The cpg.0-f fuse-protected cubicle has independent fuse
holders to house limiting medium-voltage fuses.
The compartments are pipe-shaped and are fully positioned
in the gas tank, meaning they are insensitive to pollution.
A carriage is used to extract and introduce the fuses in the
fuse carriers, thus simplifying operation and ensuring the
correct positioning of the fuse.
The pipe seal consists of an elastic membrane with the
following functions:
• To maintain the sealtight integrity of the fuse carriers
from ooding, and therefore avoid pollution and interior
degradation.
• Additional isolation provided by the isolation of the fuse
holder carriage itself.
• To transmit the movement of the fuse striker to the
switch tripping mechanism, while maintaining the
sealing of the fuse carrier.
By the very nature of its construction, this sealed solution
is subject to the internal overpressure caused by abnormal
overheating of the interior air. The trigger device can, in
this case, act as protection against overheating, preventing
damage both to the fuse and to the fuse carrier.
Figure 1.7. Fuses compartment detail
Exterior cable connections (bushing)
cpg.0 cubicles have bushing on the front for medium-
voltage cable connection. These are made of epoxy resin
and can, thanks to their conguration, withstand the
current transformers. They are duly screened and designed
in line with Standard EN 50181, type "C".
They allow conductors to be connected via screwable
T-type connectors of any manufacturer.
The cable clamps in the cable compartment hold the
cables at their input to the cubicle and prevent the
connector and bushing combination from supporting
the weight of the cable.
If cable input/output is via a trench over 2 m deep,
the cables must be fastened with additional cable
clamps, depending on the depth of the trench and the
cable cross-section (weight), in order to prevent the
connector and bushing combination from supporting
the weight of the cable.
Figure 1.8. Cable compartment

IG-123-EN version 11; 23/07/2021 9
General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
General description
The cpg.0-vl and cpg.0- models have side bushing to
connect up to two medium-voltage cables per phase, up to
800 mm2. These side bushings do not allow it to withstand
current transformers.
Figure 1.9. Side bushings in cpg.0-vl for connection of medium-voltage
cables
Figure 1.10. Side bushings in cpg.0- for connection of medium-voltage
cables
The cpg.0-rc model (side cable riser) protects the side
cable connection in cpg.0-vl (cpg.0-rci, left cable riser) and
cpg.0- (cpg.0-rcd, right cable riser) models.
Figure 1.11. Left-side cable riser cubicle (cpg.0-rci) for cpg.0-vl cubicle
Figure 1.12. Right-side cable riser cubicle (cpg.0-rcd) for cpg.0- cubicle

IG-123-EN version 11; 23/07/2021
10
General description General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
Gas pressure relief duct (optional)
[3] In accordance with model; see the unit's Name Plate.
The entire cubicle is prepared to withstand an internal arc in
the tank up to 31.5 kA - 1 s[3], meeting the criteria of Annex
AA of Standard IEC 62271-200, accessibility class IAC: AFLR.
1Gas pressure relief membrane
2Gas vent from cable compartment
Figure 1.13. Pressure relief membrane and gas vent detail
A ue made of metal sheet, which conducts the gases
produced by an internal arc towards the top of the cubicle,
from any of the three compartments: gas tank, cable
compartment and busbar compartment.
Figure 1.14. Gas pressure relief duct (1)
Control compartment
Placed at the top of the cubicle and separate from the
medium-voltage area, this is ready for installation of the
metering equipment and protection relays. It contains
the terminal block with the control signals duly identied
in accordance with the wiring diagram provided with
the equipment. All the connections between the driving
mechanisms compartment and the control box are made
via connectors, which makes the assembly more exible,
and allows the control box to be assembled and connected
on site in a straightforward, direct way.
Figure 1.15. Control compartment detail

IG-123-EN version 11; 23/07/2021 11
General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
General description
Driving mechanism
In addition to a mimic diagram customised for each type of
function, this has the driving elements in its middle section:
disconnector/earthing switch and circuit-breaker driving
mechanisms, circuit-breaker opening/closing pushbuttons,
status indicators, groove for access of the spring charging
lever, etc.
Figure 1.16. Example of driving mechanism area

IG-123-EN version 11; 23/07/2021
12
Technical characteristics General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
2. Technical characteristics
2.1. Electrical characteristics
Functions
cpg.0-v
cpg.0-vl(1)
cpg.0-c
cpg.0-s
cpg.0-f(1)
cpg.0-(1)
cpg.0-rb
cpg.0-pt
cpg.0-rc(1)
Rated voltage [Ur]kV 24 36 40.5(1)
Power frequency [Ud]
Between phases kV 50 70 95
Isolating distance kV 60 80 118
Lightning impulse [Up]
Between phases kV 125 170 185
Isolating distance kV 145 195 215
(1) Models cpg.0-vl, cpg.0-f, cpg.0- and cpg.0-rc are not available for 40.5 kV rated voltage models.
Table 2.1. Table of electrical characteristics common to cpg.0 family
For rated voltage
24 kV cpg.0-v cpg.0-vl cpg.0-c cpg.0-f cpg.0- cpg.0-s cpg.0-pt cpg.0-rb cpg.0-rc
Rated current [Ir]
General busbar A
1250
1600
2000
2500
1250
1600
2000
2500
1250
1600
2000
2500
1250
1600
2000
2500
1250
1600
2000
2500
1250
1600
2000
2500
1250
1600
2000
2500
1250
1600
According
to side
cable con-
nection
Outgoing A
630
1250
1600
2000
≥ 2500*
1250** NA 200 1250**
1250
1600
2000
2500
NA 1250 630/1250
Short-circuit [Ik] tk= 1 or 3 s kA 25/31.5 25/31.5 25/31.5 25/31.5 25/31.5 25/31.5 25/31.5 25/31.5 25/31.5
(*) With forced ventilation as of 2250 A.
(**) Also for side outgoing.
Table 2.2. Specic electrical characteristics for the 24 kV series

IG-123-EN version 11; 23/07/2021 13
General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
Technical characteristics
For 36 kV voltage cpg.0-v cpg.0-vl cpg.0-c cpg.0-s cpg.0-f cpg.0- cpg.0-pt cpg.0-rb cpg.0-rc
Rated current [Ir]
General busbar A
1250
1600
2000
2500
1250
1600
2000
2500
1250
1600
2000
2500
1250
1600
2000
2500
1250
1600
2000
2500
1250
1600
2000
2500
1250
1600
2000
2500
1250
1600
According
to side
cable con-
nection
Outgoing A
630
1250
1600
2500*
1250** NA
1250
1600
2000
2500*
200 1250** NA 1250 630/1250
Short-circuit [Ik] tk= 1 or 3 s kA 25/31.5 25/31.5 25/31.5 25/31.5 25/31.5 25/31.5 25/31.5 25/31.5 25/31.5
(*) With forced ventilation as of 2250 A.
(**) Also for side outgoing.
Table 2.3. Specic electrical characteristics for the 36 kV series
For 40.5 kV voltage cpg.0-v cpg.0-c cpg.0-s cpg.0-pt cpg.0-rb
Rated current [Ir]
General busbar A1250
1600 1250 1250 1600 1250 1250 1600
Outgoing A630
1250 NA 1250 NA 1250
Short-circuit [Ik] tk= 1 or 3 s kA 25/31.5 25/31.5 25/31.5 25/31.5 25/31.5
Table 2.4. Specic electrical characteristics for the 40.5 kV series
Other characteristics: cpg.0-v/cpg.0-pt/
cpg.0-vl cpg.0-c cpg.0-s/cpg.0-rb/ cpg.0-rc cpg.0-f/cpg.0-
Automatic reclosing sequence O - 0.3 s - CO - 15 s - CO
O - 0.3 s - CO - 3 min - CO NA
Motorised spring charging time s < 15 NA
Rated short-circuit breaking current kArms 25/31.5 NA
With fuse:
25/31.5*
(*): up to 36 kV only
Rated short-circuit making current kApeak 65/82 NA
With fuse:
63/82*
(*): up to 36 kV only
Opening time ms < 45 NA With fuse:
< 72
Short-circuit break-time ms < 50 NA
Rated no-load feeder current A 10 NA
Rated no-load cable current A 31.5 50 31.5 50 NA 50
Rated transfer current A NA NA NA 820 A
Capacitor bank rated current A 400 NA
Rated internal fault current kA 65/82peak - 25/31.5rms
Rated internal fault time s 1
Electrical endurance
Circuit-breaker E2
Feeder disconnector: E0
Earth switch: E2
Feeder disconnector:
E0
Earth switch: E2
(cpg.0-rb NA,
cpg.0-rc NA)
Breaker: E3
Earth switch: E2
Mechanical endurance
Circuit-breaker M2
Feeder disconnector: M1
Earth switch: M1
M1
(cpg.0-rb NA),
cpg.0-rc NA
Breaker: M1
Earth switch: M0
Internal arc classication in
accordance with IEC 62271-202 AFL[R] 25/31.5 kA 1
NA: Not applicable.
Table 2.5. Additional electrical ratings

IG-123-EN version 11; 23/07/2021
14
Technical characteristics General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
2.1.1. Name plate
Each unit has a name plate, with some of the following data,
showing the particular electrical ratings of each cubicle:
Figure 2.1. Example of name plate
Name plate
N° Cubicle serial number(*)
Type Ormazabal switchgear system.
Designation Cubicle model
Standard Standards applied to the equipment
UrEquipment rated voltage (kV)
UpLightning impulse withstand voltage (kV)
UdPower frequency withstand voltage (kV)
frEquipment rated frequency (Hz)
IrEquipment rated current (A)
Ik/IpShort-time withstand current/short-time withstand peak value
tkShort-time withstand current time
Pre Gas pressure inside the gas tank (MPa)
Pme Minimum operating gas pressure (MPa)
SF6Weight of insulating uid (g)
Year Year of manufacture
TC Thermal class
IAC Internal arc classication
(*) This number should be reported to Ormazabal in the event of incident.
Table 2.6. List of information shown on the name plate

IG-123-EN version 11; 23/07/2021 15
General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
Technical characteristics
2.2. Mechanical ratings
2.2.1. Dimensions
Figure 2.2. cpg.0 dimensions
Model Ioutgoing a ap h hp f Weight
v
630 600 - 2425 665 1365* 500/800
1250 600 - 2425 665 1365* 850
1600 700 - 2425 665 1365* 900
2000/2500 1000 - 2425 665 1365* 1100/1200
vl 1250 600 789 2425 665 1365* < 1200
f 200 600 - 2425 665 1402** 550
 200 600 789 2425 665 1402** 850
s
1250 600 - 2425 665 1365* 550
1600 700 - 2425 665 1365* 600
2000/2500 1000 - 2425 665 1365* 1100/1200
c
1250 1200 - 2425 665 1365* 1300
1600 1400 - 2425 665 1365* 1550
2000/2500 2000 - 2425 665 1365* 2300/2500
rb 1250 600 - 2425 665 1365* 500
pt - 600 - 2425 - 1365* 850
rci - 500 - 2425 - 1365* 260
rcd - 430 - 2425 - 1365* 250
(*) 1410 mm in the case of cubicles with IAC AFLR rating.
(**) 1447 mm in the case of cubicles with IAC AFLR rating.
Table 2.7. Dimensions and weights of cpg.0

IG-123-EN version 11; 23/07/2021
16
Technical characteristics General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
2.3. IP rating
All power circuit elements are installed inside a stainless
steel gas tank, providing a IP65 rating. The standard degree
of protection for the cubicle assembly, in all designations, is
IP3X, optionally reaching IP4X.

IG-123-EN version 11; 23/07/2021 17
General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
Normal service conditions(a)
3. Normal service conditions(a)
Installation Indoor
Maximum ambient temperature + 40 °C
Minimum ambient temperature - 5/- 15/- 25 °C
Maximum mean ambient temperature, measured over a 24-hour period + 35 °C
Maximum mean relative humidity, measured over a 24-hour period < 95%
Maximum mean vapour pressure, measured over a 24-hour period 22 mbar
Maximum mean vapour pressure, measured over a 1-month period 18 mbar
Maximum height above sea level 1000 m
Solar radiation Negligible
Ambient air pollution (dust, smoke, corrosive and/or ammable gases, vapours or salt) Insignicant
Vibrations caused by causes external to the switchgear or by seismic movements Insignicant
(a) For special service conditions (ambient temperature above +40°C, installation, storage or transport altitude over 1000m above sea level, signicant
pollution level, or others dierent to those described), check with Ormazabal.
Table 3.1. Normal service conditions
The specications refer to the section "Normal
service conditions for indoor cubicles" in Standard
IEC 62271-1 "Common specications for high-voltage
cubicles".

IG-123-EN version 11; 23/07/2021
18
Handling and transport General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
4. Handling and transport
4.1. Transport conditions
During transport, the switchgear must be perfectly seated
and xed so that it cannot move about and possibly
damage the equipment. Always in upright position, directly
on the ground or on a timber pallet, depending on the
type of handling to be carried out. Check that the cubicle is
perfectly balanced at all times.
4.2. Lifting means
cpg.0 cubicles can be handled either by lifting (with slings)
or using a forklift truck (with pallet):
Figure 4.1. Lifting a cpg.0 cubicle with chains Figure 4.2. Lifting a cpg.0-c cubicle with a forklift truck

IG-123-EN version 11; 23/07/2021 19
General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
Handling and transport
Ormazabal provides a specic tool for lifting the cpg.0-c
coupling cubicle during installation:
Figure 4.3. Lifting a cpg.0-c cubicle with a specic tool
Figure 4.4. Lifting a cpg.0-c cubicle using a forklift truck and specic tool
Elevating castor wheels can be used to put the cubicles in
their nal position.
Optional supply. Please check with Ormazabal.
Figure 4.5. Wheel anchors in the cubicle
Figure 4.6. Positioned wheel detail

IG-123-EN version 11; 23/07/2021
20
Storage General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
5. Storage
If it needs to be stored, the material must be placed on dry
ground or damp-proof insulating material, still in its original
packing, in order to prevent any damage during storage.
After prolonged storage, clean all the insulating parts
carefully before commissioning the equipment. The
enclosure should be cleaned with a clean, dry lint-free cloth.
Figure 5.1. Storage conditions detail
Storage must always be INDOORS, with the following
conditions recommended:
1. Ambient air temperature should not exceed 40 ºC
and its mean value, measured in a period of 24 hours,
should not exceed 35 ºC.
2. The ambient air temperature should not drop below
- 5°C. There are also cubicles with storage temperature
up to -15°C and up to -25ºC.
3. The switchgear must be protected from direct solar
radiation.
4. Maximum altitude is 1000 m.
5. The environmental air must not have any signicant
contamination from dust, smoke, corrosive and/or
inammable gases, vapours or salt.
6. The switchgear must be protected from the rain, and
the humidity conditions must be as follows:
a. The average relative humidity value, measured over
a period of 24 hours, must not exceed 95 %.
b. The average water vapour pressure value, measured
over a period of 24 hours, must not exceed 2.2 kPa.
c. The average relative humidity value, measured over
a period of one month, must not exceed 90 %.
d. The mean water vapour pressure value, measured
over a period of one month, must not exceed
1.8 kPa.
7. During transport, vibrations caused by external factors
or seismic movements must be insignicant.
Any other conditions must be notied beforehand, since
the equipment must be factory-adjusted to atmospheric
pressure at the destination. If this is not the case, the
manometer needle may indicate an incorrect value, even if
the equipment's internal pressure is correct.
