Ortho-Clinical Diagnostics MTS Centrifuge 5150-60 User manual

MTS Centrifuge
Model 5150-60
Service Manual
PK101.doc
OCD CTS part number: 50000104
Cat Number: 6902119

Table of Contents
Section 1. General Information 1
1.1 Centrifuge Application 2
1.2 Contents 2
1.3 Specifications 2
1.4 Safety Procedures 3
1.5 Parts List and Exploded View 4
1.6 Troubleshooting: 7
Front Panel: LED 7
Front Panel: Time Display 7
Front Panel: RPM Display 8
General 9
Section 2. Equipment Installation 11
2.1 Choice of Location 12
2.2 Unpacking and Installation 12
Section 3. Diagrams 13

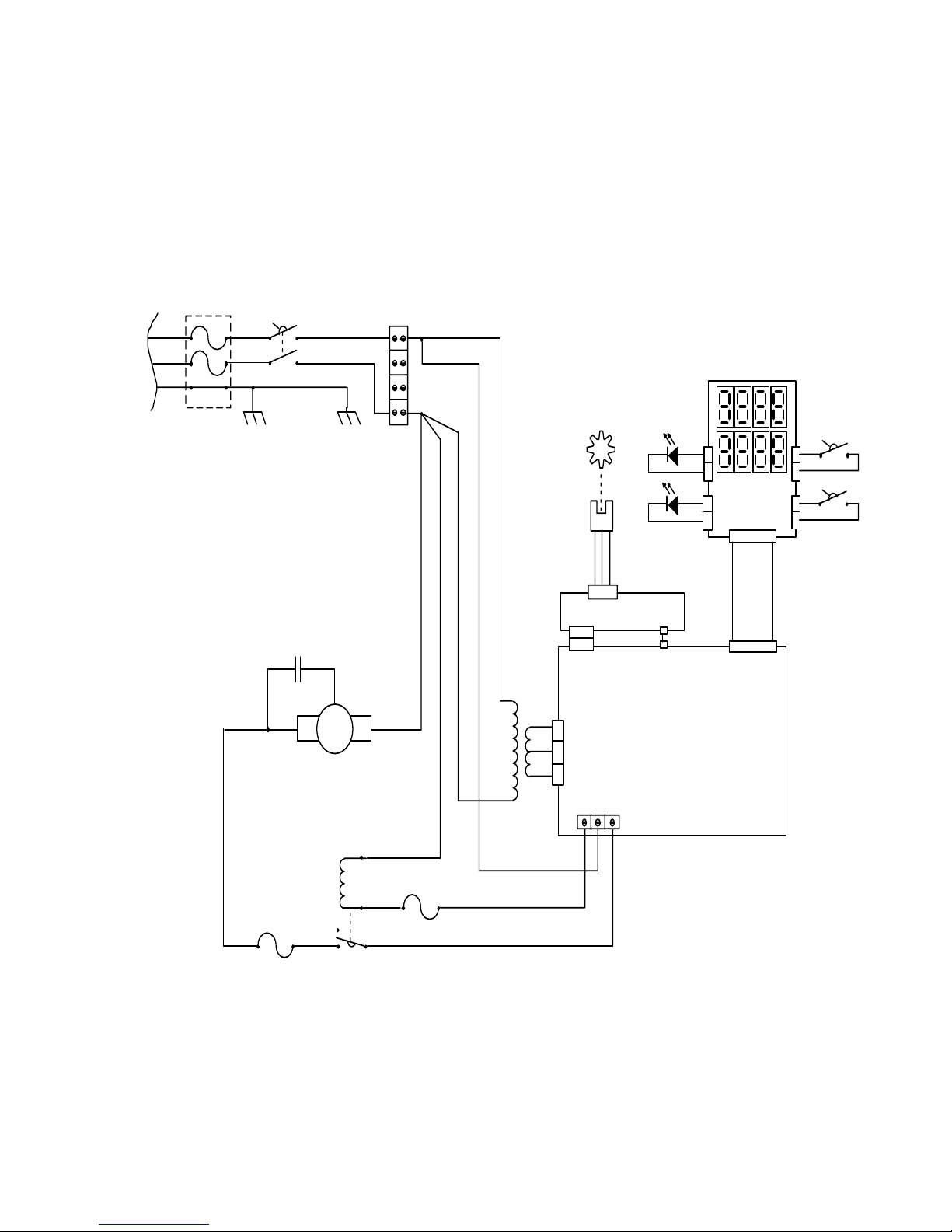

3.1 Centrifuge Schematic 14
3.2 Main PCB Schematic 15
3.3 Display PCB Schematic 16
3.4 Main Wiring Diagram 17
3.5 Back Panel Wiring Diagram 18
Section 4. Removal Instructions 19
4.1 Drawer 19

Section 5. Removal Instructions - 20
Front Panel
5.1 Membrane Switch Removal 20
5.2 LED Assembly Removal 20
5.3 Display PC Board Removal 20
5.4 Display Bezel Removal 21
Section 6. Removal Instructions - 22
Spindle / Pulley Assemblies
6.1 Belt Removal 22
6.2 Motor Pulley Removal 23
6.3 Rotor Pulley Removal 23
6.4 Spindle Assembly Removal 24
Section 7. Removal Instructions - 25
Main Electronics
7.1 Ribbon Cable Removal 25
7.2 Main Board Assembly Removal 25
7.3 Motor Removal 26
7.4 Capacitor Removal 26
7.5 Transformer Removal 27
7.6 Latch Mechanism Removal 27
7.7 Terminal Block Connector Removal 28
7.8 Retractile Cable Removal 29
7.9 Cable Hanger Removal 31
Section 8. Removal Instructions - 32
Back Panel
8.1 Latch Strike Removal 32
8.2 Power Inlet / Power Switch Removal 33
8.3 Retractile Cable Removal
(Back Panel Side)
33
8.4 Retractile Cable Plate Removal 34

Section 9. Removal Instructions - 35
Cabinet
9.1 Tachometer Cap Removal 35
9.2 Rubber Feet Removal 35
9.3 Rubber Seal Removal 35
Section 10. Centrifuge Quality Control 36
10.1 Speed Quality Control 36
10.2 Centrifuge Time Quality Control 36

This page intentionally blank.

1
1. General Information
Applications
Contents
Specifications
Safetypointers
Partslist
Troubleshooting guide

2
1.1 Centrifuge Application
The MTS Centrifuge Model 5150-60 is a table top centrifuge controlled by solid state electronics which has been
designed for the required centrifugation of MTS Gel Cards.
Notice: Only MTS Gel Cards manufactured by Micro Typing Systems may be used in this Centrifuge.
This device centrifuges the MTS Gel Cards for 10 minutes at an RPM of 895 + 25. Recommendations for the
verification of RPM and centrifugation time can be found in Chapter 10: Centrifuge Quality Control.
1.2 Contents of original shipment
1 MTS Centrifuge Model 5150-60
1 MTS 24 place Rotor Head
1 Power Cord
1 Operating Manual
1 MTS 515060 Belt / Fuse Spares Kit
1.3 Specifications
Please find below the specifications of the MTS Centrifuge Model 5150-60
Measurements:
Height = 5.75 in (14.37 cm)
Width = 13.50 in (33.75 cm)
Depth = 19.25 in (48.12 cm)
Weight: 14 lb. (6.36 Kg)
Nominal Voltage: 110-120 60 Hz
Fuse: 3.0 A 250 VAC
Speed: 895 rpm + 25rpm (80 - 90 RCF)
Centrifugation time: 10 Minutes + 10 seconds
LED Displays: Time Remaining and RPM
MTS Gel Card Capacity: 24 Cards
Operating Temperature: Temperature 5 - 40oC
Color: PMS Gray 400U

3
1.4 Safety Procedures
MTS can only ensure safety, reliability and efficiency of the MTS Centrifuge when the following safety measures
are followed.
* Read the Operating Manual before installing the Centrifuge.
* Instrument repair and service should only be performed by authorized and qualified servic engineers
designated by the manufacturer.
* After each repair, complete the Quality Control checks located in section 10 of this manual.
* The electrical safety of the equipment can only be ensured when plugged into a grounded
receptacle that has been installed in the building which meets the national standards and when the
equipment is used in an area designed for normal laboratory functioning. It should not be used in an
oxygen rich area.
* Do not allow liquid to enter the instrument.
* The centrifugation of materials other than MTS Gel Cards is strictly prohibited.
* The MTS Centrifuge should not be combined with other devices. However, the MTS Incubator can be
placed on top of the centrifuge cabinet.
* Only spare parts from Micro Typing Systems, Inc. may be used.
* Never attempt to open the drawer while the rotor is spinning. Personal injury and machine damage is
possible if this centrifuge is operated with a head not specified by Micro Typing Systems, Inc.

4
1.5 Parts List
Ref. # Item Key # Description Qty U/M
1 492-155050 Cover, Cabinet Silk-screened 1 ea
2 765-435760 Hanger, Rubber Seal (3 Part) 1 set
3 771-782200 Seal, Rubber 19.5 in
4 750-731000 Rail, Drawer Glide 2 ea
5 771-125810 Cap, Tachometer Hole 1 ea
6 750-285790 Feet, rubber suction 4 ea
8 454-123745 S/A Retractile Cable 1 ea
9 765-798540 Strike, Latch 1 ea
11 731-485020 Inlet, Power 1 ea
12 731-333152 Fuse, 3 Amp, 5 x 20 mm 2 ea
14 750-285820 Rubber Protector 1.5 in
15 762-410000 Label, Ground 2 ea
17 750-731000 Drawer Glide Male 2 ea
18 731-805220 Switch, Membrane 1 ea
19 460-545740 S/A LED, red 1 ea
20 741-337609 Screw, 4-40 x 7/16 ph ph ss 24 ea
27 736-786801 Screw, Set 6-32 x ¼alloy, cup point 3 ea
28 741-418833 Screw, 6-32 X 3/16, fh slotted undercut ss 8 ea
42 742-401059 Screw, 4 x 10mm 2 ea
52 460-445400 S/A LED, green 1 ea
53 767-062190 Bezel, Display Board 2 ea
54 781-192001 PC Board, Display 1 ea
55 731-789020 Solenoid, Latch 1 ea
56 725-320015 Capacitor, Motor for 60HZ 1 ea
57 731-830080 Transformer, 120 vac, 12 vac, 2 AMP 1 ea
63 728-080000 Connector, Terminal Block 2x 1 ea
64 765-435740 Hanger, Retractile Cable 1 ea
65-66 454-123755 S/A Ribbon Cable 1 ea
65 * Cable, Ribbon
66 * Connector, 34 Pin
67 489-571000 S/A, Main PC Board 1 ea
69 460-588050 S/A Motor 1 ea
70 765-791240 Spindle, For 24 Place 1 ea
71-75 475-798050 S/A Spindle for 24 Place 1 ea
71 * Housing, Spindle 1 ea
72 * Bearing, .375 ID x .875 OD 2 ea
73 * Bushing, spindle 1 ea
74 765-454790 Spacer, spindle housing 1 ea
75 736-789700 Snap Ring Internal .875 ID 1 ea
76 765-695583 Pulley, Motor 1.045" for 24 Place 110V 1 ea
77 765-695750 Pulley, Rotor 2" 1 ea

5
Ref. # Item Key # Description Qty U/M
78 765-930250 Wheel, Encoder 1 ea
79 489-660000 S/A PC Board, Opto 1 ea
80 712-073050 S/A Belt, Round 22 1/8" Circumference 1 ea
81 771-068000 Bezel, Tach Wire 1 ea
82 789-155242 Cover, Front Panel Electronics 1 ea
83 789-155240 Cover, Electronics 1 ea
84 762-927000 Label, warning 1 ea
85 789-155690 Cover, Pulley 1 ea
86 789-155096 Cover, Bottom Cable 1 ea
87-94 475-758050 S/A Rotor 5150 1 ea
87 * Rotor for 24 Place 1 ea
88 771-175240 Cups, for 24 Place 24 ea
89 736-927424 Washer, for 24 Place Rotor 24 ea
90 742-301244 Screw, 3 x 12 mm hex head 24 ea
92 767-466750 Hub, for 24 Place Rotor 1 ea
93 * Pin, Dowel for Rotor Hub 1 ea
94 * Tubing, tygon 1/8" ID X 3/16" OD X 1/32" wall
thickness
1 in
95 712-688000 Cable, Power 1 ea
96 762-780810 Label, Serial Tag 1 ea
N/A 769-130050 Manual, operations 1 ea
N/A 609-139055 Packaging Kit-MTS Centrifuge Model 5150 1 ea
* Components marked with an * are available only in the preceding sub-assembly.

6

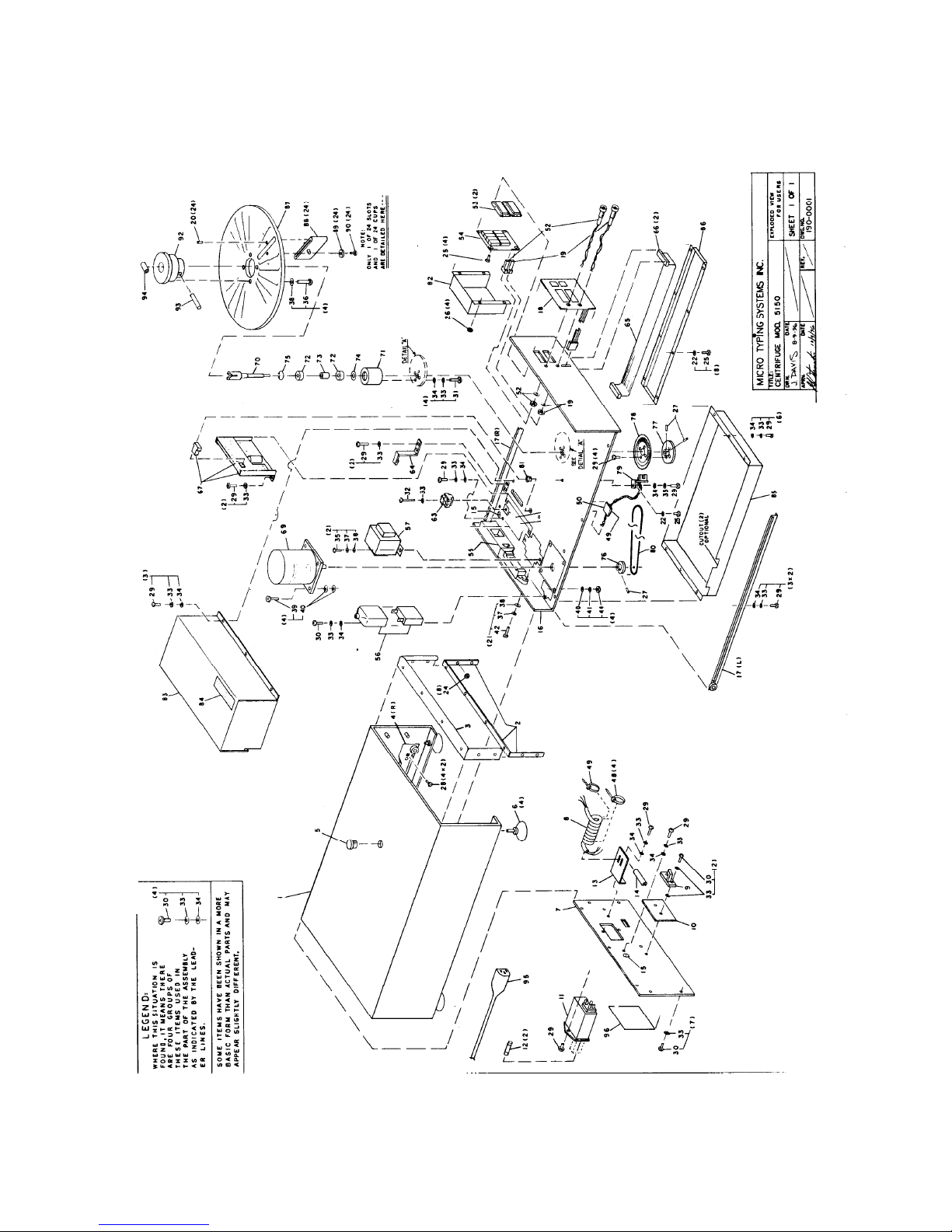

Refer to Section 1.5 Parts List for Item Key Number

7
1.6 Troubleshooting
Front Panel
LED
Green Power LED does not come Check that the centrifuge is connected to a live power outlet.
on when switch is turned on.
Checkmainpower.
Check power cord.
Check fuse contained in power inlet housing.
Remove front panel cover and check that connector is
connected properly.
Replace the connector and/or LED.
Time Display
Time does not display while Remove front panel cover and check ribbon cable
centrifuge is spinning. connection.
Remove electronics cover and check ribbon cable
connection.
Replace ribbon cable.
Replace display board.
Replace main PC board.
Timer starts at a time other than Replace main PC board
9:59.

8
RPM Display
RPM does not display while Check opto sensor adjustment.
centrifuge is spinning.
Remove front panel cover and check ribbon cable
connection.
Check connections of opto assembly on tach PC board.
Check connection of tach PC board to main PC board.
Remove electronics cover and check ribbon cable
connection.
Replace opto assembly.
Replace main PC board.
RPM flashes erroneous numbers Check opto sensor adjustment.
Check connections of opto assembly to tach PC board.
Replace opto assembly.
Replace main PC board.

9
General
When start button is pressed the Make sure drawer is fully closed and latched.
timer begins countdown, but
centrifuge does not spin. Check belt.
Verify function of latch motor power switch. Replace
latch if required.
When start button is pressed the Check main power.
timer does not begin and the
centrifuge does not spin. Wait 1-2 seconds to ensure rotor is not moving, then press start again.
Open front panel cover and check membrane switch
connections.
Replace membrane switch.
Check ribbon cable connections.
Replace ribbon cable.
Replace main board.
When the stop button is pressed Open front panel and check membrane switch
the centrifuge continues to run. connections.
Replace membrane switch.
Check ribbon cable connections.
Replace ribbon cable.
Replace main board.
Motor runs, but red LED does Check connection of LED on display PC board.
not light.
Check LED assembly by switching with the green LED
assembly. If it does not work in this place, replace connector
and/or LED. Otherwise replace display PC board.

10
Machine is "noisy". Check rotor pulley to be sure the encoder wheel
is not rubbing on the optical interrupter.
Check both pulleys to make sure they have not come
loose.
Check belt for frayed pieces.
Note: Some instruments will be noisier than others due to noisy bearings. Once all of the above have been checked
and nothing has been found, it can be assumed that the instrument is going to run a little loud.
Cell buttons are not flat Cups need to be adjusted.
If the centrifuge rotor head has set screws installed for cup adjustment, these screws may have loosened or fallen
out. If any of the 24 set screws have loosened or fallen out, all 24 set screws should be completely removed with a
hex head screwdriver. The set screws can be replaced with 4-40 x 7/16" pan head philips ss screws and # 4 split
lock washers. Install all twenty-four 4-40 x 7/16" screws from the top of the rotor with the # 4 split lock washer
between the head of the screw and the rotor plate.The combination of this length screw and washer will produce a
flat cell button.

11
2. Equipment Installation
Choice of location
Unpacking

12
2.1 Choice of Location
Choose a location convenient for routine use which is stable, level and close enough to the power supply so that no
extension cord is necessary. It should also be away from direct sunlight and air drafts.
(Attention: As with any other electrical device this centrifuge must not be placed near a water faucet. If the
machine is placed in the proximity of a water faucet an electrical danger exists.)
The MTS Centrifuge is designed for indoor use only. Operating temperatures should be between 5oC and 40oC
(Normal ambient room temperature). The main supply voltage should not exceed + 10% of the nominal voltage.
2.2 Unpacking and Installation
Carefully unpack your MTS Centrifuge by following these steps:
1. Remove the rotor head box from the centrifuge box. Carefully open the rotor head box and remove the rotor
head.
2. Remove power cord and place next to rotor head on table.
3. Remove top foam insert from box.
4. Remove centrifuge from box and place on table next to rotor head and power cord.
5. Install the rotor head.
Installation
The MTS Centrifuge should be placed on a stable and level surface in the designated work area. For best results,
the surface of the area should be clean and dry.
Attach power cord to centrifuge and plug into power receptacle with the appropriate voltage and frequency.
Power line voltage and frequency requirements are shown on the data plate at the rear of the centrifuge.
WARNING: Grounding - The MTS Centrifuge is equipped with a three-prong plug for safety purposes. If
the intended wall outlet is a grounded (three-wire) type, the instrument will be grounded automatically. If
the intended wall outlet is not the grounded type, an approved and properly grounded adapter should be
used. Make sure the grounding lead on the adapter is firmly attached to a grounded receptacle box before
operating the instrument. Extension cords should also be three-wire type.

13
3. Diagrams
Centrifuge Schematic
MainPCBSchematic
DisplayPCBSchematic
MainWiringDiagram
BackPanelWiringDiagram

14
3.1 Centrifuge Schematic
M
120 VAC
Input
IEC Connector
Chassis Ground
Power Switch
Door Latch Solenoid
Power Dsitribution
Connector
Micro Typing Systems, Inc. Centrifuge Schematic
Starting Capacitor
2.3 uF 250V 50/60Hz
Tachometer PCB
Display PCB
Opto-Sensor
Tachometer
Wheel
Main PCB
Stop
Start
