Controls 58-C0181/DGT User manual

MANUALE DI ISTRUZIONI
INSTRUCTION MANUAL
58-C0181/DGT
Digital Concrete Hammer

Manuale di Istruzioni
Instruction Manual
58-C0181/DGT Rev. 2 EN 04/02/2015
i
Index
1. INTRODUCTION 1
1.1 Icons appearing in the manual.............................................................................................2
1.2 Manual revision history.......................................................................................................3
1.3 Symbols used.......................................................................................................................4
1.4 Intended use and improper use............................................................................................5
1.5 Safety information...............................................................................................................6
1.6 Environmental risks and disposal........................................................................................8
1.7 CE declaration .....................................................................................................................9
2. DESCRIPTION 10
2.1 Instrument description.......................................................................................................10
2.2 Working prenciple.............................................................................................................11
2.3 Main characteristics...........................................................................................................12
2.4 Identification plate.............................................................................................................13
2.5 Commands and controls ....................................................................................................14
2.6 Technical specifications.....................................................................................................15
3. USE OF THE EQUIPMENT 16
3.1 Charging the batteries........................................................................................................17
3.2 Turning ON the unit and MENUs description...................................................................19
3.2.1 UNIT menu.................................................................................................................... 20
3.2.2 STRENGTH menu......................................................................................................... 20
3.2.2.1 CONVERSION CURVE menu...................................................................................... 21
3.2.2.2 Menu SPECIMEN SHAPE FACTOR ........................................................................... 23
3.2.2.3 AGE FACTOR Menu .................................................................................................... 24
3.2.2.4 CORRECTION FACTOR menu.................................................................................... 25
3.2.3 STANDARD menu........................................................................................................ 26
3.2.3.1 USER menu ................................................................................................................... 27
3.2.4 TEST menu.................................................................................................................... 28
3.2.4.1 SPARE MEASUREMENTS menu................................................................................ 28
3.2.4.2 SET OF MEASUREMENTS menu............................................................................... 29
3.2.5 MEMORY menu............................................................................................................ 31
3.2.5.1 VIEW............................................................................................................................. 32
3.2.5.2 ERASE........................................................................................................................... 32
3.2.5.3 ERASE ALL.................................................................................................................. 32
3.2.6 SERVICE menu............................................................................................................. 33
3.2.7 SETTINGS menu........................................................................................................... 33
3.2.7.1 LANGUAGE ................................................................................................................. 33
3.2.7.2 KEYBOARD SOUND................................................................................................... 33
3.2.7.3 DATE AND TIME......................................................................................................... 34

Manuale di Istruzione
Instruction Manual
04/02/2015 58-C0181/DGT Rev. 2 EN
ii
3.3 Test execution................................................................................................................... 35
3.3.1 Criteria to select the impact point...................................................................................35
3.3.2 Surface preparation ........................................................................................................35
3.3.3 Uso of the test hammer...................................................................................................36
3.4 PC connection................................................................................................................... 38
3.4.1 Installing the program ....................................................................................................38
3.4.2 Use of the software program C0181/DGT Manager ......................................................40
3.4.2.1 Main screen....................................................................................................................40
3.4.2.2 DOWNLOAD MEASUREMET menu..........................................................................41
3.4.2.3 DATE AND TIME UPDATE menu ..............................................................................42
3.4.2.4 SAVE menu ...................................................................................................................42
3.4.2.5 OPEN menu ...................................................................................................................43
3.4.2.6 GENERATE REPORT menu.........................................................................................43
3.4.2.7 FIRMWARE UPDATE menu........................................................................................44
3.4.2.8 ADVANCED .................................................................................................................44
4. MAINTENANCE 45
4.1 Preventive maintenance .................................................................................................... 46
4.2 SERVICE menu................................................................................................................ 47
4.2.1 HAMMER CHECK menu..............................................................................................47
4.2.2 ANVIL CHECK menu...................................................................................................48
4.2.3 TILT SENSOR CHECK menu.......................................................................................49
4.2.4 RESET TO FACTORY menu........................................................................................49
4.3 Cleaning of mechanical parts............................................................................................ 50
5. DIAGNOSTICS & TROU LESHOOTING 51
5.1 Troubleshooting................................................................................................................ 52
This instruction manual is an integral part of the machine and should be read before using the machine and be
safely kept for future reference.
CONTROLS reserves all rights of this manual, no part or whole can be copied without the written permission of
CONTROLS .
The proper use of this machine must be strictly adhered to, any other use must be considered as incorrect.
The manufacturer cannot be held responsible for damage caused by incorrect use of the machine.
The machine must not be tampered with for any reason. In case of tampering, the manufacturer declines any
responsibility of functioning and safety of the machine.
This Manual is published by CONTROLS.
CONTROLS reserves the right to update its manuals without notification in order to correct possible typing
errors, mistakes, updating of information and/or updating of programs and/or accessories.
Such changes will be inserted in the latest edition of the current manual
.
This present in English is the original version of the manual. Printed in Italy

Manuale di Istruzioni
Instruction Manual
58-C0181/DGT Rev. 2 EN 04/02/2015
1
1. INTRODUCTION
NOTE:
The present manual is updated for the product it is sold with in order to grant an adequate
reference in operating and maintaining the equipment.
The manual may not reflect changes to the product not impacting service operations.
The rebound number determined by this method can be used to assess the uniformity of
concrete in situ, to delineate zones or areas of poor quality or deteriorated concrete in
structures.
This NDT test method is not intended as an alternative for the compressive strength
determination of concrete, but with suitable correlations already saved in the instrument,
it can provide an estimate of in situ compressive strength. The EN 13791 suggests the
procedure for a specific correlation to the concrete under test.
The hammer may be used for comparative testing, referenced against a concrete with
known strength or against a concrete verified as conforming to a particular strength class.

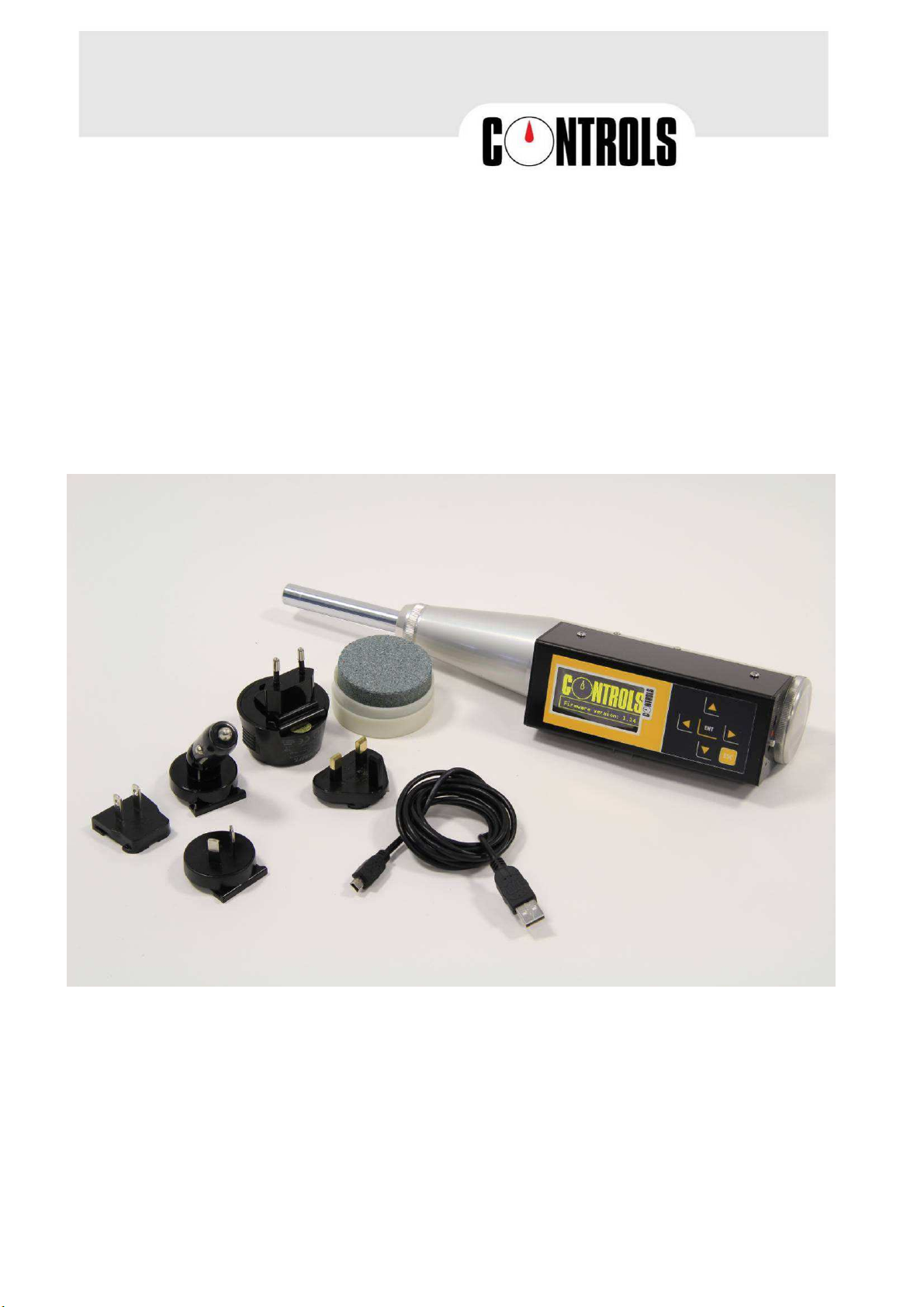

The test hammer 58-C0181/DGT is supplied complete with:
•Multi-voltage/frequency battery charger / with interchangeable plugs compatible
with the mote common electrical sockets
•USB cable for PC connection
•Dedicated PC software
•Grinding stone
•Carrying case.
The present manual is valid for units having firmware version 1.22 or higher.


Manuale di Istruzione
Instruction Manual
04/02/2015 58-C0181/DGT Rev. 2 EN
2
1.1 Icons appearing in the manual
This icon indicates a NOTE; please read thoroughly the items marked by this picture.
This icon indicates a WARNING message; the items marked by this icon refer to the
safety aspects of the operator and/or of the service engineer.


Manuale di Istruzioni
Instruction Manual
58-C0181/DGT Rev. 2 EN 04/02/2015
3
1.2 Manual revision history
Revision/Date Change description
Rev. 1
15 January 2015 Manual release
Rev. 2
04 February 2015
•
Updated declaration of conformity
•Re-phrased chapter 2.2

Manuale di Istruzione
Instruction Manual
04/02/2015 58-C0181/DGT Rev. 2 EN
4

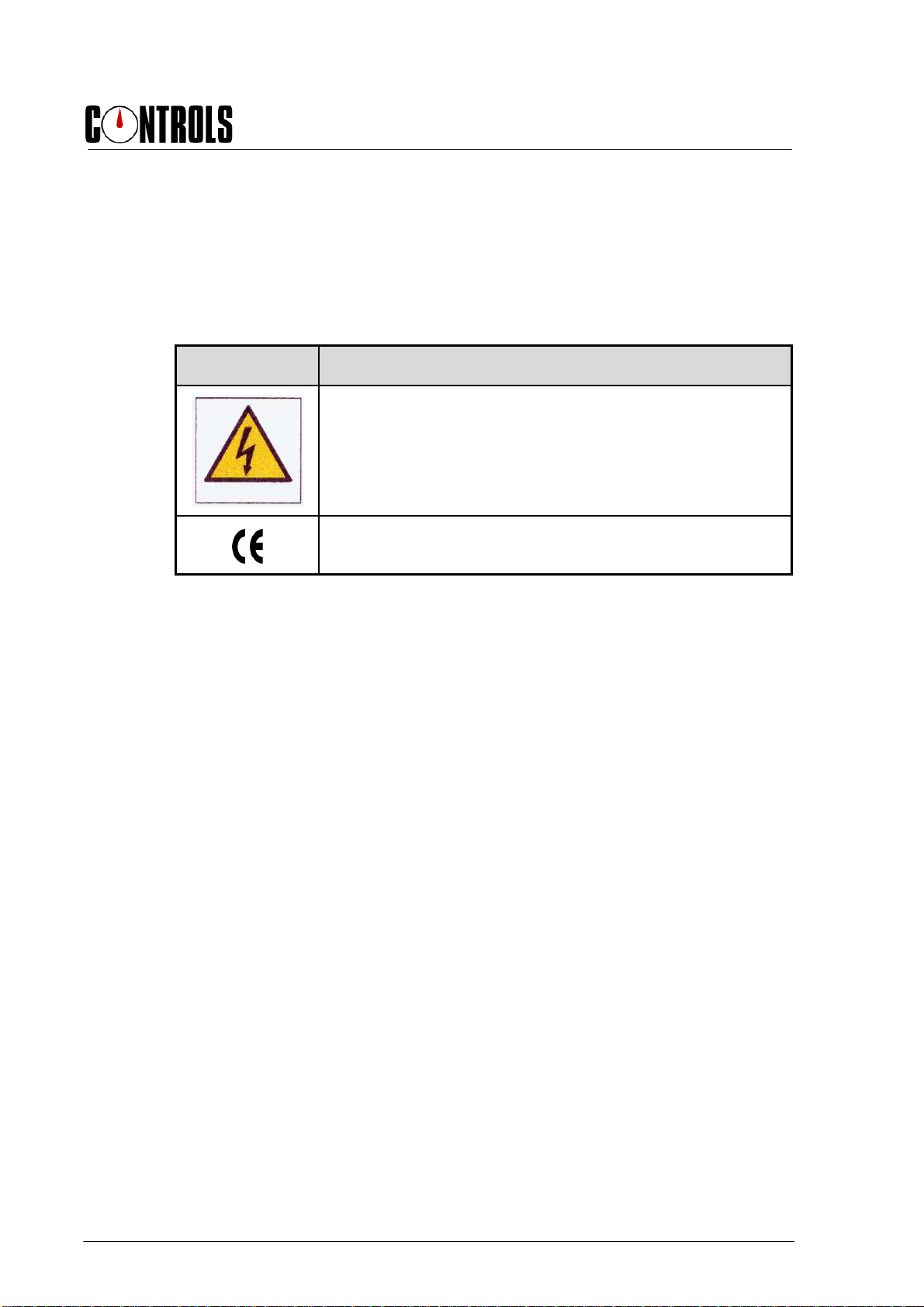

1.3 Symbols used
In this manual and on the equipment itself, apart from the symbols indicated on the
control panel, the following icons are also used:
Symbol Description
Dangerous voltage
Conformity to the CE Directive

Manuale di Istruzioni
Instruction Manual
58-C0181/DGT Rev. 2 EN 04/02/2015
5
1.4 Intended use and improper use
The Digital Test Hammer 58-C0181 / DGT must be exclusively used for the quality
control of concrete. This method of non-destructive test is not intended as an alternative
to the compression test of concrete for the determination of resistance, but with
appropriate correlations already stored in the instrument, can provide an estimate of the in
situ compressive strength.
The equipment is designed and built to be used by an operator, who must perform the
measurement on the sample to be analyzed in accordance with the instructions provided
in this manual.
The operator is responsible of starting-up the equipment, performing the test sequence,
shutting down the equipment and eventually stopping it in case any emergency conditions
are met.
The operator must be trained on the correct use of the machine and the relative safety
aspects of its use.
The machine should be used following the procedures described in this manual.
Never use the machine for reasons other than those for which it was designed and
manufactured. Any other use of the machine is to be considered improper, not foreseen
and hence dangerous.
CONTROLS will not be responsible for improper use of the machine.

Manuale di Istruzione
Instruction Manual
04/02/2015 58-C0181/DGT Rev. 2 EN
6
1.5 Safety information
WARNING:
Please read this chapter thoroughly.
CONTROLS designs and builds its devices complying with the related safety
requirements; furthermore it supplies all information necessary for correct use and the
warnings related to use of the equipment.
CONTROLS will not to be held responsible for:
•use of the equipment different than the intended use,
•damages to the unit, to the operator, caused both by installation and maintenance
procedures different than those described in this manual supplied with the unit, and
by wrong operations,
•mechanical and/or electrical modifications performed during and after the
installation, different than those described in this manual
The unit is not designed to be used in an explosive atmosphere.
Installation and any technical intervention must only be performed by qualified
technicians authorized by CONTROLS.
Only authorised personnel can remove the covers and/or have access to the components
under voltage.
During normal use, if the operator detects irregularities or damages, he/she should
immediately inform the authorized technical personnel.
Maintenance and service activities can only be performed by skilled authorized technical
personnel that have been properly trained on the residual risks of the equipment.
It is responsibility of the purchaser to make sure that the operators have been properly
instructed concerning the safety issues and the residual risks related to the equipment.

Manuale di Istruzioni
Instruction Manual
58-C0181/DGT Rev. 2 EN 04/02/2015
7
Here follows a list of all WARNINGs present in the manual; please see relevant chapters
for full details on each related safety issue.
WARNING:
We recommend the operator to perform the checks listed in the Maintenance
section at the beginning of each working session.
If you encounter anomalies, notify your authorized technicians
WARNING:
The present menu is reserved to CONTROLS technical personnel. This procedure shall
not be activated unless specifically authorized by the CONTROLS technical personnel.
CONTROLS will not be held responsible for damages caused by the unauthorized use of
these functions. This will also void the warranty.
WARNING:
Failing to perform the recommended maintenance actions or maintenance performed by
unauthorized people can void the warranty.
CONTROLS will not be responsible for maintenance and service actions performed by
unauthorized people.
WARNING:
Avoid pouring water, even accidentally, or other liquids into the device, as this could
cause short circuits. Before cleaning the device, disconnect it from the mains line.
WARNING:
Refer to qualified service organization authorized by CONTROLS to carry out service
and maintenance procedures. CONTROLS has not to be held responsible for damages to
the equipment and/or injuries to personnel in case the above is not strictly followed.

Manuale di Istruzione
Instruction Manual
04/02/2015 58-C0181/DGT Rev. 2 EN
8
1.6 Environmental risks and disposal
INFORMATION TO THE OWNER OF THE EQUIPMENT
The above symbol, when attached to the equipment or to the relevant packaging, indicates
that the product must be disposed of separately from other rubbish at the end of its useful
life.
Therefore, at the end of its useful life, the owner should dispose of the product in a
suitable collection point for electrical and electronic products provided by the local
authorities.
The correct disposal of this product and the subsequent treatment encourages the
manufacture of products using re-cycled materials and limits the environmental impact of
the product caused by improper disposal.
Improper disposal of the product is subject to penalties as foreseen by the local
regulations.

Manuale di Istruzioni
Instruction Manual
58-C0181/DGT Rev. 2 EN 04/02/2015
9
1.7 CE declaration
This page shows a copy of the CE declaration. The original is supplied with the
equipment as a separate document.

Manuale di Istruzione
Instruction Manual
04/02/2015 58-C0181/DGT Rev. 2 EN
10
2. DESCRIPTION
The following chapter describes the instrument, the operation principle and the related
technical details.
2.1 Instrument description

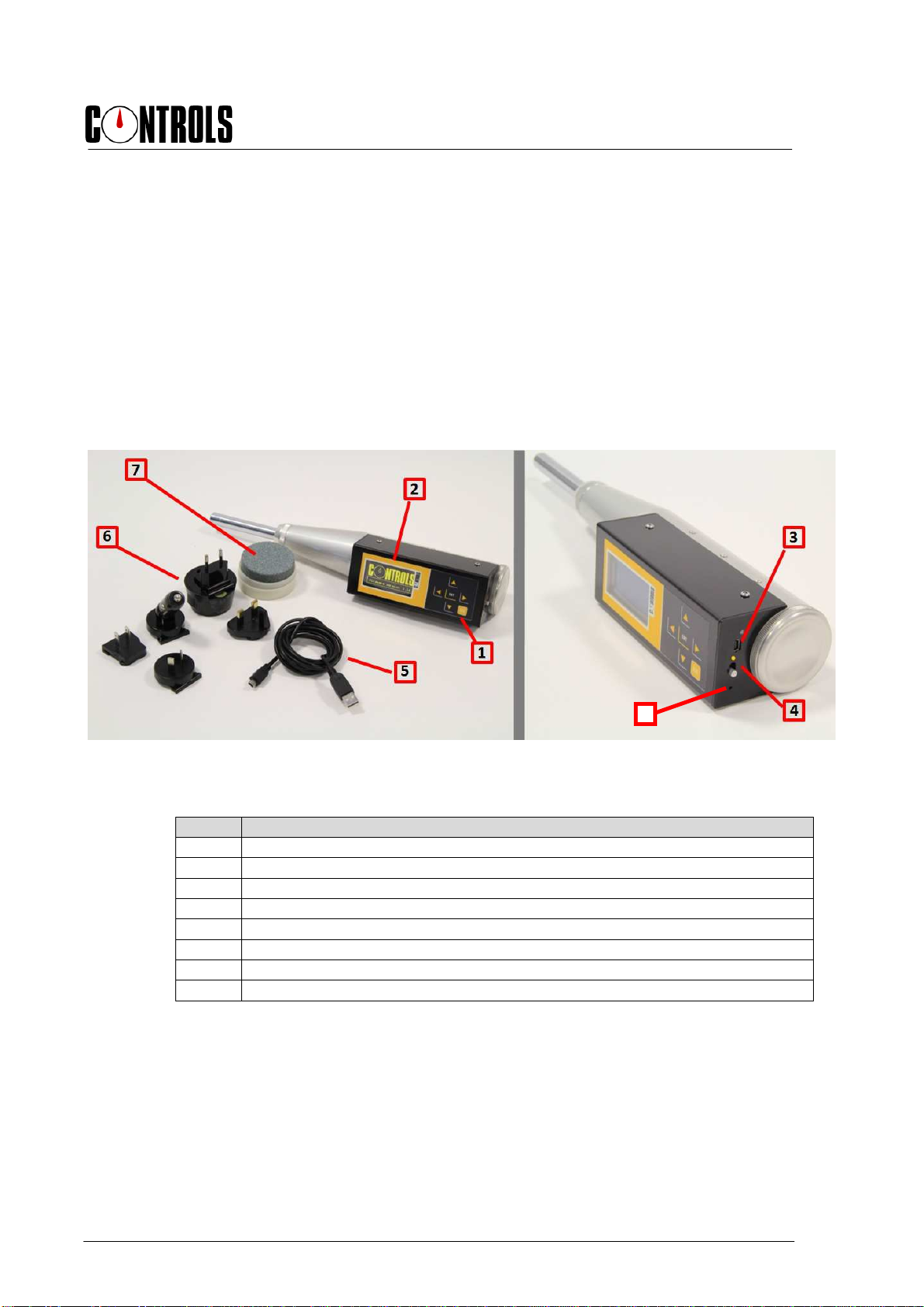

Refer to the next pictures to identify the main parts of the equipment:
Fig. 2-1
Ref Description
1 6-key keyboard
2 128x64 pixel display
3 Micro USB port
4 ON/OFF switch
5 Cable for power supply and USB connection to PC
6 Multi-voltage/frequency battery charger
7 Grinding stone
8 Reset button
8

Manuale di Istruzioni
Instruction Manual
58-C0181/DGT Rev. 2 EN 04/02/2015
11
2.2 Working prenciple
With the new digital rebound hammer 58-C0181/DGT the rebound number is calculated
with an innovative technology taking into account the anvil speed before and after the
impact.
This new working principle is equivalent to the traditional measurement of maximum
spring length after the impact, but it provides the following benefits:
•higher accuracy and stability of the readings not affected by wear and tear
•setting of the impact angle no longer required
•a check of the device reliability can be performed during each impact, even without
the calibration anvil.
Pressing the rod of the hammer against the surface to be examined will charge the spring.
When the rod is completely retracted within the body of the hammer it will automatically
release a mass which strikes the rod in the inner end and, through this, the surface of the
concrete. The harder/more compact is the concrete, the higher the rebound of the mass.
The instrument complies with EN 12504-2 and ASTM C805.

Manuale di Istruzione
Instruction Manual
04/02/2015 58-C0181/DGT Rev. 2 EN
12
2.3 Main characteristics
•Impact energy: 2.207 Nm
•Measurement range: da 10 a 100 N / mm2
•High contrast graphic display 128x64 pixel and 6-key keyboard
•Test results in numerical and graphic format
•Test procedure according to EN 12504-2 and ASTM C805
•Test procedure can be customized by the user
•Memory storage capacity: 2 Mb
•Data saving and download to PC via USB port
•PC software included
•Integrated ion-lithium battery 1600 mAh capacity
•Measure and display of the test angle thanks to the integrated triaxial inclinometer
•Correlation curves between rebound index and compression resistance user-
selectable
•Correlation curves between index and compressive strength user customizable
•Automatic conversion of rebound index and compressive strength equivalent MPa;
N / mm2; kg / cm2, psi
•Calculation of means, standard deviations and discard of non significant values
•Verification of compliance with the standard in use
•Battery charger multi-voltage / multi-frequency: 110-240V / 50-60Hz / 1Ph
•Battery charge time: 4 hours. We recommend charging the battery even in case of
limited use or after prolonged inactivity.

Manuale di Istruzioni
Instruction Manual
58-C0181/DGT Rev. 2 EN 04/02/2015
13

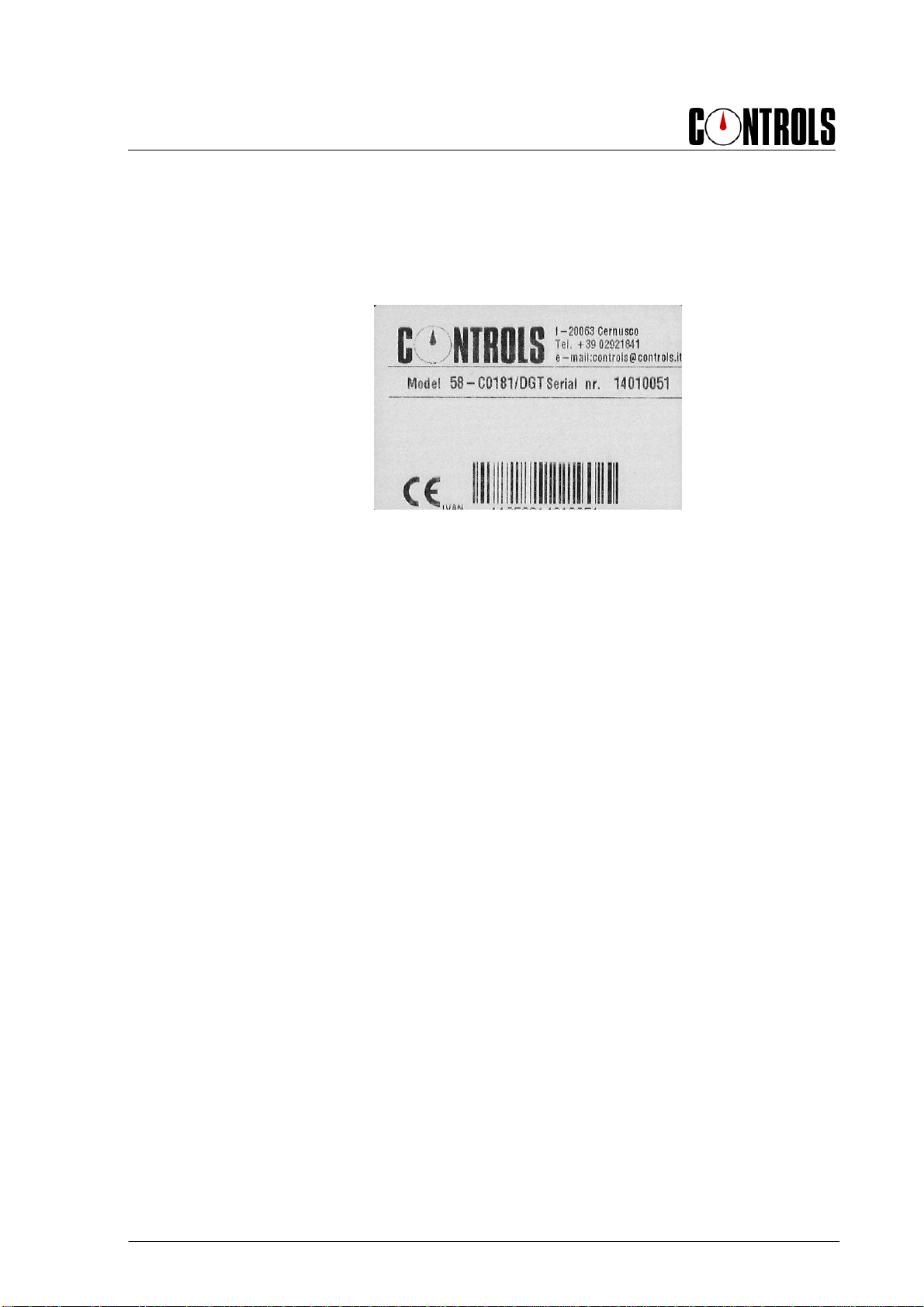

2.4 Identification plate
The identification plate is located on the rear side of the isntrument.
Fig. 2-2

Manuale di Istruzione
Instruction Manual
04/02/2015 58-C0181/DGT Rev. 2 EN
14
2.5 Commands and controls
This chapter describes the commands and controls of the equipment.
Use the following buttons to move among the different menus:
• ▲ to select the previous item in the menu
• ▼ to select the next item in the menu
•ENT to activate the selected item and access the submenus
•ESC to return to the previous menu.
Buttons ► and ◄ allows moving horizontally among the rows and/or select the
different buttons on the screen.
Fig. 2-3

Manuale di Istruzioni
Instruction Manual
58-C0181/DGT Rev. 2 EN 04/02/2015
15
2.6 Technical specifications
Main characteristics
Product Digital Concrete Hammer
Manufacturer CONTROLS Cernusco s/N (MI) Italy
Product code 58-C0181/DGT
Power supply voltage 110-240V / 50-60Hz / 1Ph
Frequancy 50/60 Hz
Method of power entry External multirange charger with dedicated cable
Battery Ion-Lithium 1600mAh
Impact energy 2.207 Nm
Measuring range From 10 to 100 N/mm2
Internal memory 2 Mb
Display Monochrome 128x64 pixel
Keyboard Membrane– 6-key
Net weight (approx.) 1.3 Kg
Overal dimension with estende rod (approx.) 360 x 80 x 60 mm
Environmental conditions
Operating temperature 0 ÷+ 40°C
Operating humidity 0-90%RH

Manuale di Istruzione
Instruction Manual
04/02/2015 58-C0181/DGT Rev. 2 EN
16
3. USE OF THE EQUIPMENT
This chapter describes the operator’s interface and the execution of a test.
WARNING:
We recommend the operator to perform the checks listed in the Maintenance
section at the beginning of each working session.
If you encounter anomalies, notify your authorized technicians
