ORTOLED ORTOLED-81-720 User manual

Prodotto e consigli per l'utilizzo
Cod. Modello ORTOLED-81-720
Dimensioni 900x900x85mm
Consumo
720W
Applicazione Serre indoor
Distanza minima
40-50cm
Cod. Modello ORTOLED-82-720V
Dimensione 1100X1100X85mm
Consumo
720W
Applicazione
Vertical farming
Distanza minima
15-25cm
Cod.Modello ORTOLED-83-960
Dimensione 1100x1100x85mm
Consumo
960W
Applicazione Serre indoor
Distanza minima
40-50cm

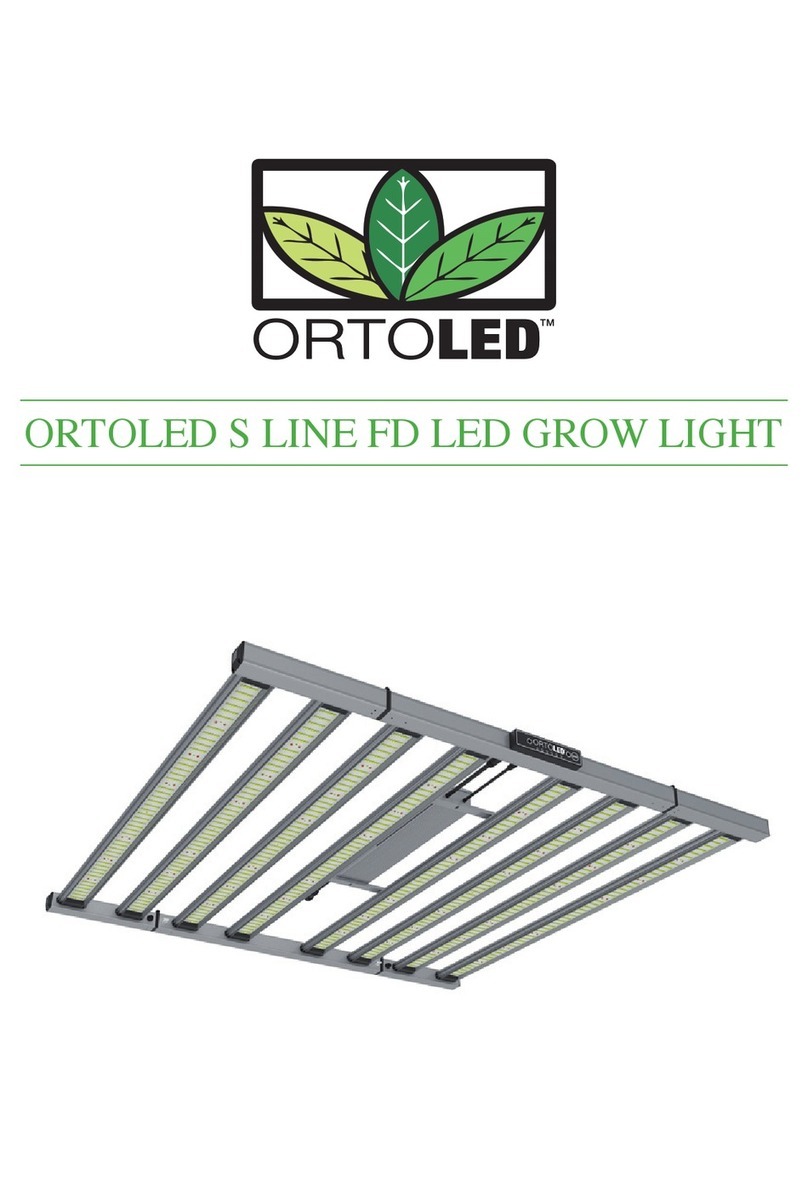

ORTOLED S LINE

Delivery contents
- 6/8 x LED bars
- 1 x driver box
- 1 x power cable
- 1 x 3m long RS485 cable
- 2 x Adjustable hanging kits
Please keep the instruction manual and desist from throwing it away. It might come in handy with
future troubleshooting.
1. Product Structure
Aluminum driver box
Aluminum LED bar
Power input cable

3. Product Datasheet:
3.1 Product specifications
Item
ORTOLED-82-720V ORTOLED-83-960
LED bar qty.
6x LED bars
6x LED bars
8x LED bars
Product Size
900*900*85mm
1100*1100*85mm
1100*1100*85mm
N.W./ G.W.
14.25KG/16.10KG
16.50KG/18.00KG
19.75KG/22.25KG
Power consumption
720W
720W
960W
LED source
Seoul 1872pcs
xSMD5630/2835
+144pcs xSMD3535
Seoul 1872pcs
xSMD5630/2835
+144pcs xSMD3535
Seoul 2496pcs
xSMD5630/2835
+192pcs x SMD3535
Packing size
975x265x220mm
1175x265x220mm
1175x265x220mm
Application
Warehouse grow
Vertical farming
Warehouse grow
Recommended height
40cm-50cm
15cm-25cm
40cm-50cm
Driver
Meanwell driver
Waterproof level
IP65
AC input
100-277V AC
Working tempt.
-20°~ 40°
Control
Control by external controller
Life span
50000H
Fixed bracket
Plastic part
ORTOLED-81-720

3.2 Spectrum
4. Control
4.1 control diagram:
4.2 Control function:
- Timer setting
- Dimming control
- High Temp Protection
- For Large Application up to 252units
- Perfect simulation of sunrise and sunset

5. Preparation
•Transportation
Improper transportation may harm or can even cause damage to LED lamp and power housing box). In case
of obvious damage or incomplete scope of supply, please refer to your vendor and Haulage company
immediately.
•Unboxing
Please handle and unbox the LED lamp with care! Check the delivery contents for completeness first. A
detailed list of the product range is contained on the inner cover in this manual.
Through transport or due to a long storage time, the LED-modules might get a little polluted.
Therefore we recommend to clean the modules before each use with a dry and soft tissue.
6. Installation Instruction
Step 1: Put driver box on flat table / ground upside down;
Step 2: Slide first single bar into bracket, plastic part can be fixed together with Bracket tightly by buckle;
Step 3: Connect power cable to each and every LED Bar
Step 4: Same steps for other bars.
Last Step : Hanging the lights and then connecting the power supply.

7. DC distribution DIAGRAM
S-8-960：
S-6-720:
Caution:
Do not remove single bar from one group of one driver while S-720/960 is still powered on, rest bar (s) of the group
may get burnt by current overloading.

8. Operation
8.1 Safety measures & precaution
Warning! This LED fixture is powered with electricity (AC100-277V)! To prevent injury, we ask you to
desist from improper use!
•• Never open the case of the device! Health hazards await the consumer and the warranty of the device
expires.
8.2 Putting into service
Operate the LED fixture only horizontally, while hanging or slightly angled (approx. about 20°). Deploy the
LED lamp fixture about 15-50cm (at least 10cm!) above the top of the plants;
8.3 Proper use
Do not use the LED fixture vertically or as illumination device upside-down (direct eye contact and long
exposure over time may cause permanent damage to your eyesight!).
We don’t advise you to deploy the device as a room illuminant. It is exclusively designed and developed for
plant breeding, cultivation and hibernation. Please ensure that the LED fixture is being operated out of sight
and out of reach of children and animals to protect their eyes!
