Ortopedia TOURING 926 User manual

1
OperatingManual
S T A Y M O B I L E
Electric Wheelchair
TOURING 926

32
Table of contents
1. Foreword ......................................................................................................................... 7
2. Legal requirements ....................................................................................................... 8
2.1 Legal requirements for Germany ....................................................................................... 8
2.1.1 Electric wheelchairs with a top speed of 6 km/h ................................................... 8
2.1.2 Electric wheelchairs with a top speed of 10 km/h ................................................. 8
3. Overview ........................................................................................................................ 9
3.1 Model TOURING 926 ......................................................................................................... 9
4. Handling the wheelchair ............................................................................................ 10
4.1 Use ................................................................................................................................... 10
4.2 Tips for accident prevention............................................................................................. 10
4.2.1 Initial driving practice ......................................................................................... 10
4.2.2 Driving on public highways .................................................................................11
4.2.3 Functional check ................................................................................................... 11
4.2.4 CE requirements .................................................................................................. 11
4.2.5 Safety information................................................................................................ 12
4.3 Drive/push mode..............................................................................................................13
4.3.1 Selecting the push mode ..................................................................................... 14
4.3.2 Selecting the drive mode .................................................................................... 15
4.4 Preparing for driving........................................................................................................ 16
4.4.1 Charging the battery........................................................................................... 17
4.4.2 Charging procedure ............................................................................................ 18
4.5 Driving behaviour............................................................................................................. 19
4.5.1 Safety information................................................................................................ 19
4.6 Brakes ............................................................................................................................... 20
4.6.1 Driving brake ....................................................................................................... 20
4.6.2 Parking brake ....................................................................................................... 20
4.6.3 Decelerating/stopping the wheelchair................................................................ 20
4.6.4 Braking distance................................................................................................... 20
4.7 Handling the control unit ................................................................................................. 21
4.7.1 Functional description.......................................................................................... 21
4.7.2 Positioning of the control unit .............................................................................. 21
4.7.3 Detaching the control unit ................................................................................... 22
4.7.4 Attaching the control unit .................................................................................... 22
4.7.5 Swivelling the control unit to the side ................................................................. 23
4.8 Loading and transport .....................................................................................................23
4.8.1 Safety information................................................................................................ 23
4.8.2 Transport in vehicles............................................................................................. 24
4.8.3 Securing devices .................................................................................................. 24

54
5.5.6 Electrically height-adjustable legrests ................................................................. 39
5.5.6.1 Detaching the legrests ....................................................................... 39
5.5.6.2 Hanging in the legrests ...................................................................... 39
5.5.6.3 Adjusting the height of the foot plate ................................................ 39
5.5.6.4 Adjusting the height of the foot plate ................................................ 39
6. Options .......................................................................................................................... 40
6.1 Seatbelt............................................................................................................................ 40
6.1.1 Putting on the seatbelt with Velcro fastener ....................................................... 40
6.1.2 Putting on the seatbelt with catch ...................................................................... 41
6.1.3 Opening the seatbelt .......................................................................................... 41
6.1.4 Adjusting the belt length..................................................................................... 41
6.2 Headrest........................................................................................................................... 42
6.2.1 Adjusting the headrest ........................................................................................ 42
7. Maintenance ................................................................................................................. 43
7.1 Cleaning........................................................................................................................... 43
7.2 Repairs.............................................................................................................................. 45
7.3 Customer service .............................................................................................................. 45
7.4 Spare parts....................................................................................................................... 45
7.4.1 Disposal................................................................................................................ 46
7.5 Batteries ........................................................................................................................... 46
7.5.1 Unsealed batteries............................................................................................... 46
7.5.2 Sealed batteries................................................................................................... 46
7.5.3 Battery charging .................................................................................................. 46
7.5.4 Battery replacement ............................................................................................ 47
7.5.5 Safety information................................................................................................ 47
7.5.6.1 Exposing the batteries ........................................................................ 48
7.5.6.2 Checking the acid level: ..................................................................... 49
7.5.6.3 Measuring the acid density: ............................................................... 49
7.6 Fuses/connections ............................................................................................................. 50
7.6.1 Replacing fuses ........................................................................................................ 50
7.6.2 Fuses ..................................................................................................................... 50
7.6.3 Other connections ................................................................................................ 50
7.7 Lighting............................................................................................................................... 51
7.7.1 Headlight............................................................................................................. 51
7.7.1.1 Removal: ............................................................................................. 51
7.7.1.2 Fitting: ................................................................................................ 51
7.7.2 Front indicator ..................................................................................................... 52
7.7.2.1 Removal: ............................................................................................. 52
7.7.2.2 Fitting: ................................................................................................ 52
7.7.3 Rear indicator ...................................................................................................... 53
7.7.3.1 Removal: ............................................................................................. 53
4.9 Ramps and lifting platforms............................................................................................. 25
4.9.1 Special safety information:................................................................................... 25
5. Components................................................................................................................. 26
5.1 Seat .................................................................................................................................. 26
5.1.1 Seat cushion ......................................................................................................... 26
5.1.2 Adjusting the seat depth ..................................................................................... 26
5.1.3 Swivelling up the seat ......................................................................................... 27
5.1.4 Swivelling down the seat..................................................................................... 27
5.2 Backrest ............................................................................................................................ 28
5.2.1 Attaching/detaching the ERGOpor backrest element ......................................... 28
5.2.1.1 Detaching the ERGOpor backrest element......................................... 28
5.2.1.2 Attaching the ERGOpor backrest element ......................................... 28
5.2.1.3 ERGOpor backrest cushion ..................................................................28
5.2.2 Standard backrest................................................................................................ 29
5.2.2.1 Folding down the backrest ................................................................. 29
5.2.2.2 Folding upright the backrest .............................................................. 29
5.2.3 30° backrest ......................................................................................................... 30
5.2.3.1 Adjusting the backrest angle.............................................................. 30
5.2.3.2 Detaching the 30° backrest ................................................................ 31
5.2.3.3 Attaching the 30° backrest ................................................................. 31
5.2.4 Electrically height-adjustable backrest ................................................................ 31
5.2.4.1 Detaching the backrest element ........................................................ 32
5.2.4.2 Attaching the backrest element ......................................................... 32
5.2.4.3 Folding down the electric backrest .................................................... 32
5.2.4.4 Folding up the electric backrest ......................................................... 32
5.3 Armrests ........................................................................................................................... 33
5.3.1 Adjusting to suit the seat depth .......................................................................... 33
5.3.2 Height adjustment............................................................................................... 34
5.3.3 Detaching the armrest......................................................................................... 34
5.4 Clothing protector ...........................................................................................................35
5.5 Legrests ............................................................................................................................ 35
5.5.1 Calf strap ............................................................................................................. 36
5.5.2 Detaching the legrests ......................................................................................... 36
5.5.3 Attaching the legrests .......................................................................................... 36
5.5.4 Adjusting the height of the foot plate ................................................................. 36
5.5.5 Height-adjustable legrests .................................................................................. 37
5.5.5.1 Detaching the legrests ....................................................................... 37
5.5.5.2 Hanging in the legrests ...................................................................... 37
5.5.5.3 Adjusting the height of the foot plate ................................................ 37
5.5.5.4 Adjusting the height of the legrests ................................................... 38
5.5.5.5 Positioning the calf pad ...................................................................... 38

76
1. Foreword
We thank you for the confidence you
have placed in our company by choos-
ing an electric wheelchair from the
TOURING 926 series.
The electric wheelchair can be adapted
to your individual needs by way of the
equipment variants and the accessories.
Theelectric wheelchair canbe equipped
with, for example, an electrically-adjust-
able backrest and legrests.
Like every other vehicle, the electric
wheelchair is a technical aid. It needs
explanation, a small amount of mainte-
nance and can be a source of danger
when incorrectly used. The correct han-
dling must therefore be learned.
This operating manual in combina-
tion with the
'Operating Manual for
ControlUnits'
andthe 'SafetyInforma-
tion for Electric Vehicles'
brochure
must be read before the first use of
the wheelchair, they are intended to
help you in the handling of the wheel-
chair and to prevent accidents.
Children should read this operating
manual,the
'OperatingManualforControl
Units'
andthe 'SafetyInformation forElec-
tric Vehicles'
brochure together with the
parents or a supervising/accompanying
person before the first journey with the
wheelchair.
☞Note:
Pleasenote thatthe illustrated equip-
ment variants can deviate from your
model.
7.7.3.2 Fitting: ................................................................................................ 53
7.7.4 Rear light ............................................................................................................. 54
7.7.4.1 Removal: ............................................................................................. 54
7.7.4.2 Fitting: ................................................................................................ 54
7.8 Wheel change .................................................................................................................. 54
7.8.1 Disassembling the drive wheels .......................................................................... 55
7.8.1.1 Tyre change ........................................................................................ 55
7.8.2 Dismantling the steering wheels ......................................................................... 56
7.8.2.1 Tyre change ........................................................................................ 56
7.9 Preventive maintenance (annual service) .......................................................................... 57
7.9.1 List of annual maintenance work ......................................................................... 58
7.9.2 Fault correction .................................................................................................... 59
8. Technical data ............................................................................................................. 60
8.1 Kilometric performance ................................................................................................... 60
8.1.1 Hill-climbing ability............................................................................................. 60
8.2 Fuses ................................................................................................................................. 61
8.3 Model Touring 926 ........................................................................................................... 62
8.6 Meaning of the labels on the wheelchair......................................................................... 64
9. Service record ................................................................................................................ 66
10. Notes ............................................................................................................................ 68
11. Guarantee.................................................................................................................... 70

98
3. Overview
3.1 Model TOURING 926
The overview (Fig. 1 + 2) shows the important components and control
devices of the TOURING 926.
➀Drive mode push mode selection le-
ver for the steering mechanism
➁Push handle
➂Control unit
➃Selection lever for drive mode push
mode
➀Foot plate
➁Calf strap
➂Seat upholstery
➃Armrest
➄Backrestupholstery
➅Steering wheel
➆Lighting unit
➇Drive wheel
12
Push modeDrive mode
2
1
3
45
6
7
8
1
23
4
2. Legal require-
ments
Please comply with the legal require-
mentsof thecountry inwhichthe wheel-
chair is used.
2.1 Legal requirements
for Germany
2.1.1 Electric wheelchairs with a top
speed of 6 km/h
A driving licence is not required for elec-
tric wheelchairs with a top speed of 6
km/h. Pavements may only be driven
onat walking speed.A liabilityinsurance
is not mandatory but recommendable.
The minimum age for driving this vehi-
cle is 15 years. An exemption certificate
for younger persons can be applied for
at the relevant administrative authority.
2.1.2 Electric wheelchairs with
a top speed of 10 km/h
Incontrast tothemodel witha topspeed
of 6 km/h, the German traffic regula-
tions (StVZO) require the following for
the model with a top speed of 10 km/h:
▲A valid liability insurance.
▲The registration of the vehicle at the
local vehicle registration centre.
The type approval report required for
the vehicle registration is a part of the
documentationsupplied withthe wheel-
chair. First contact your insurance com-
pany. They will provide you with an in-
surance plate that must be attached to
the rear cover of the vehicle with two
screws.
The electric wheelchair can then be
taken to the local vehicle registration
centre. The vehicle registration centre
will check that the type approval report
conforms with the vehicle and then
stamp it. The handling can vary from
place to place. Some registration cen-
tres do not insist on seeing the vehicle.
A telephone call beforehand can save
you an unnecessary journey. The vehi-
cle can then be driven on public high-
ways in accordance with the German
Highway Code (StVO). You must have
the type approval report with you at all
times when driving on public highways.
☞Note:
Allmodifications of thevehicle invali-
date the type approval.

1110
4.2.2 Driving on public high-
ways
The Highway Code must be complied
with when driving on public highways.
Check the functioning of the lighting
system before the start of each journey.
Carry out a short braking and steering
test at a very low speed immediately af-
ter the start of motion.
4.2.3 Functional check
The functions and safety of the electric
wheelchair must be checked before the
start of each journey.
!
Attention:
Comply with the contents of the
'Safetyinformationfor electricvehicles'
brochure!
• The frame, cables and the batteries
should be checked for damage after
a collision with an obstacle. – Have
any visually identified damage re-
paired immediately by an authorised
workshop.
4.2.4 CE requirements
☞Note:
Thetechnology ofthis electricwheel-
chaircomplies withthe requirements
ofthe EEC93/42 directiveon electro-
magneticcompatibility.However,the
possibility of interference from high-
frequency radiation from other elec-
tricalequipment cannotbe excluded.
High-frequency radiation occurs, for ex-
ample, in the proximity of radar and
transmitting systems, all types of radio
equipmentand cellulartelephones. Stop
the electric wheelchair immediately,
switch off the control unit and pull out
the security plug at the front of the con-
trol unit if the electric wheelchair reacts
uncontrollably due to interference or
causes interference to other electronic
devices.
Theconnection ofotherelectrical devices
can also cause malfunctions.
!
Attention:
Never drive the electric vehicle in the
proximity of electronic medical
equipment with a high danger po-
tentialand/or life-supportingfunction
or in the proximity of diagnostic
equipment.
4. Handling the
wheelchair
4.1 Use
The electric wheelchair, with attached
legrests and armrests, serves exclusively
for the conveyance of one sitting per-
son. Other pulling or transporting uses
donot complywithits intendedpurpose.
!
Attention:
Comply with the contents of the
'Safetyinformationfor electricvehicles'
brochure!
The TOURING 926 is a wheelchair de-
signed primarily for outdoor use. The
model has been assigned the 'Use Class
C' as per the EN12184 standard. It has
limited suitability for indoor use.
Depending on the foot plate height
adjustment, the electric wheelchair can
cross obstacles with a max. height of
110mm.
4.2 Tips for accident
prevention
4.2.1 Initial driving practice
A low maximum speed must be pre-se-
lected on the control unit for the initial
driving practice. Make yourself familiar
with the driving behaviour of the elec-
tric wheelchair in small steps. The elec-
tric wheelchair should not be used out-
side of the familiar environment or on
public highways before you have a safe
control of the vehicle.

1312
4.3 Drive/push mode

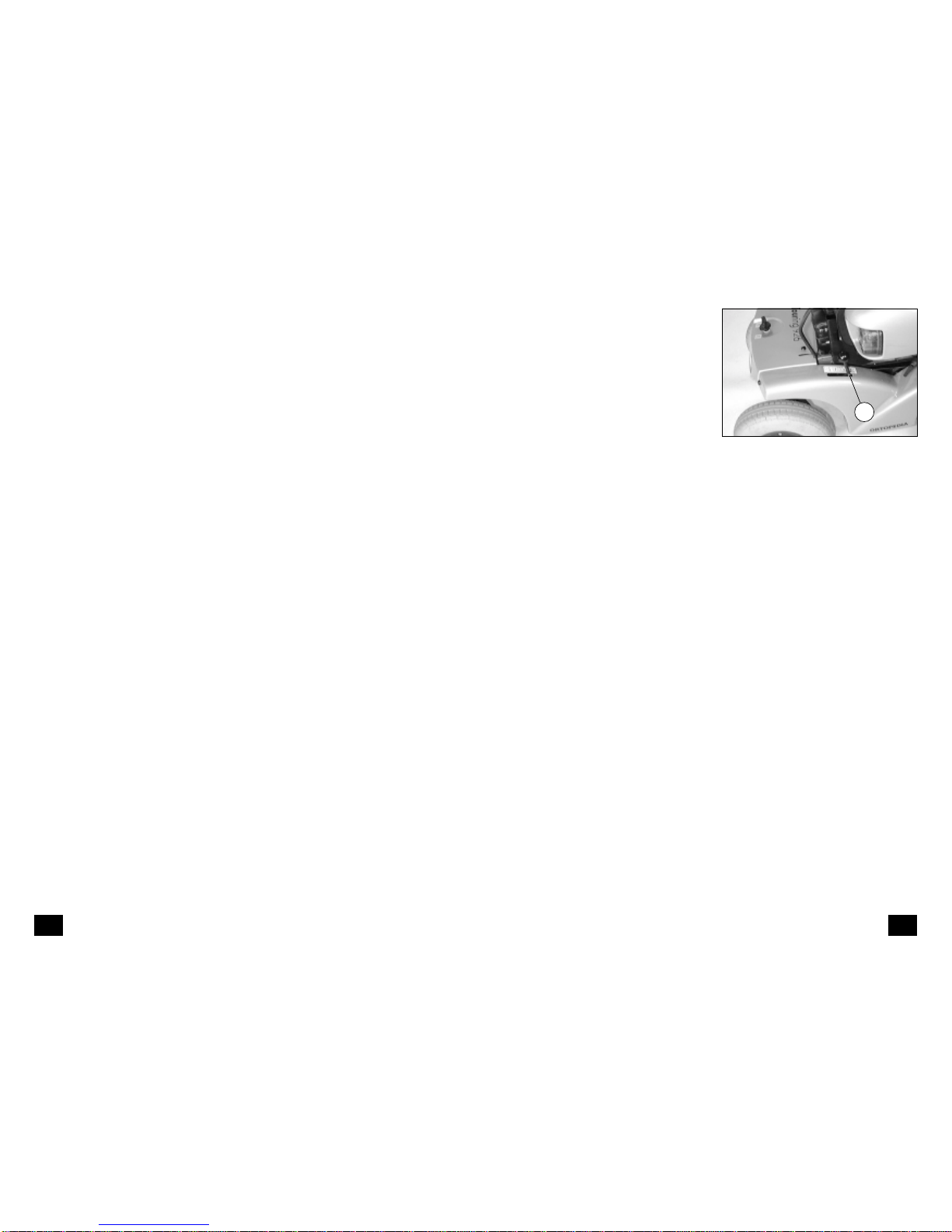

The lever (Fig. 5/ ➀) for switching the
drive motors between the drive mode
and push mode is located on the right
side of the wheelchair (optional: lever
on the left side.
!
Caution:
The wheelchair should only be
switched into the push mode for
manoeuvring when it is standing on
a level surface.
Before selecting the push mode in an
emergency case and on slopes, a helper
should hold the wheelchair in order to
stop an unwanted movement of the
wheelchair.
– The electric magnetic brakes are
switched off in the push mode. A
braking of the vehicle is then only
possible by switching back into the
drive mode.
▲Comply with the contents of the
'Safetyinformationfor electricvehicles'
brochure.
5
1
4.2.5 Safety information
▲Donotpull outthe securityplugwhilst
still in motion. Do not press the ON/
OFF key whilst still in motion. Press-
ing the key will then switch off the
electric wheelchair and cause it to
stop immediately.
▲A danger of tipping over always ex-
ists when driving with a backrest re-
clined to the rear or a seat raised at
the front: A danger of tipping over
always exists when driving with a
backrest reclined to the rear or a seat
raisedat the front.Bring theseat into
its lower position and the backrest
into the upright position before the
start of the journey.
▲Do not adjust the seat or backrest
angle on rising/falling gradients.
– Danger of tipping over!
▲Lean the upper body forwards when
crossing an obstacle.
▲The attachment/detachment of ac-
cessories/componentsalters thedriv-
ing behaviour.
▲Tyres are made of a rubber mixture
and can leave permanent or difficult-
to-remove marks on some surfaces
(e.g. plastic, wooden or parquet
flooring, carpets, mats).
▲An exposure to high temperatures
from lamps, the sun or other heat or
light sources can damage the uphol-
stery. Protect the upholstery with a
cover and/or park the wheelchair in
a protected area.
▲Never expose the electric wheelchair
to extreme weather conditions.

1514
4.3.2 Selecting the drive mode
1. Push the selection lever (Fig. 10/ ➀)
to the front until it audibly latches.
2. Turn the selection lever for the steer-
ing (Fig. 11/ ➁) in an anticlockwise
direction to the drive mode position.
☞Note:
To engage the steering mechanism,
align the steering wheels to point to
the front (Fig. 11) and then make
small steering and push movements!
3. Switching on the control unit. The
vehicle is now ready for driving
again.
☞Remark:
A lit-up brake symbol (Fig. 12/ ➂)
indicates that the steering mecha-
nism is not yet engaged! Switch off
the control unit and then repeat
items 2. and 3..
12
2
11
1
3
(o)
10
8
6
3
4.3.1 Selecting the push mode
Switch off the control box because the
pushing will otherwise be made difficult
by the electric system.
1. Turn the selection lever for the steer-
ingina clockwisedirection tothepush
mode position (Fig. 6/ ➂).
2. Press down the selection lever to un-
lockthe lockingmechanism andthen
move the selection lever to the rear
(Fig. 8).

1716
4.4.1 Charging the battery
The batteries should be charged imme-
diatelyafter theuse ofthe electricwheel-
chair in order to have the full driving
range available at any time.
Every battery has a normal 'self-dis-
charge'. The batteries should be re-
charged once a month when the elec-
tric wheelchair is not used for a long
period of time. This keeps the electric
wheelchair ready for use.
Batteries should only be charged with a
battery charger that is suitable for the
type and rating of the batteries. The
guarantee is only preserved to its full
extent when the battery chargers sup-
pliedand recommendedby ORTOPEDIA
are used. Your ORTOPEDIA authorised
dealerwill bepleased tohelp youchoose
the correct battery charger.
Charge the batteries:
– before long tours
– before a long journey.
– whenever the use permits.
– immediately if the charge capacity
indicator is lit or blinks (see the
'Op-
eratingManual forControl Units'
).
▲Comply with the contents of the
'Safetyinformationfor electricvehicles'
brochure .
▲Observe the contents of the operat-
ing manual for the battery charger.
4.4 Preparing for driv-
ing
!
Attention:
The functions and safety of the elec-
tric wheelchair must be checked be-
fore the start of each journey.

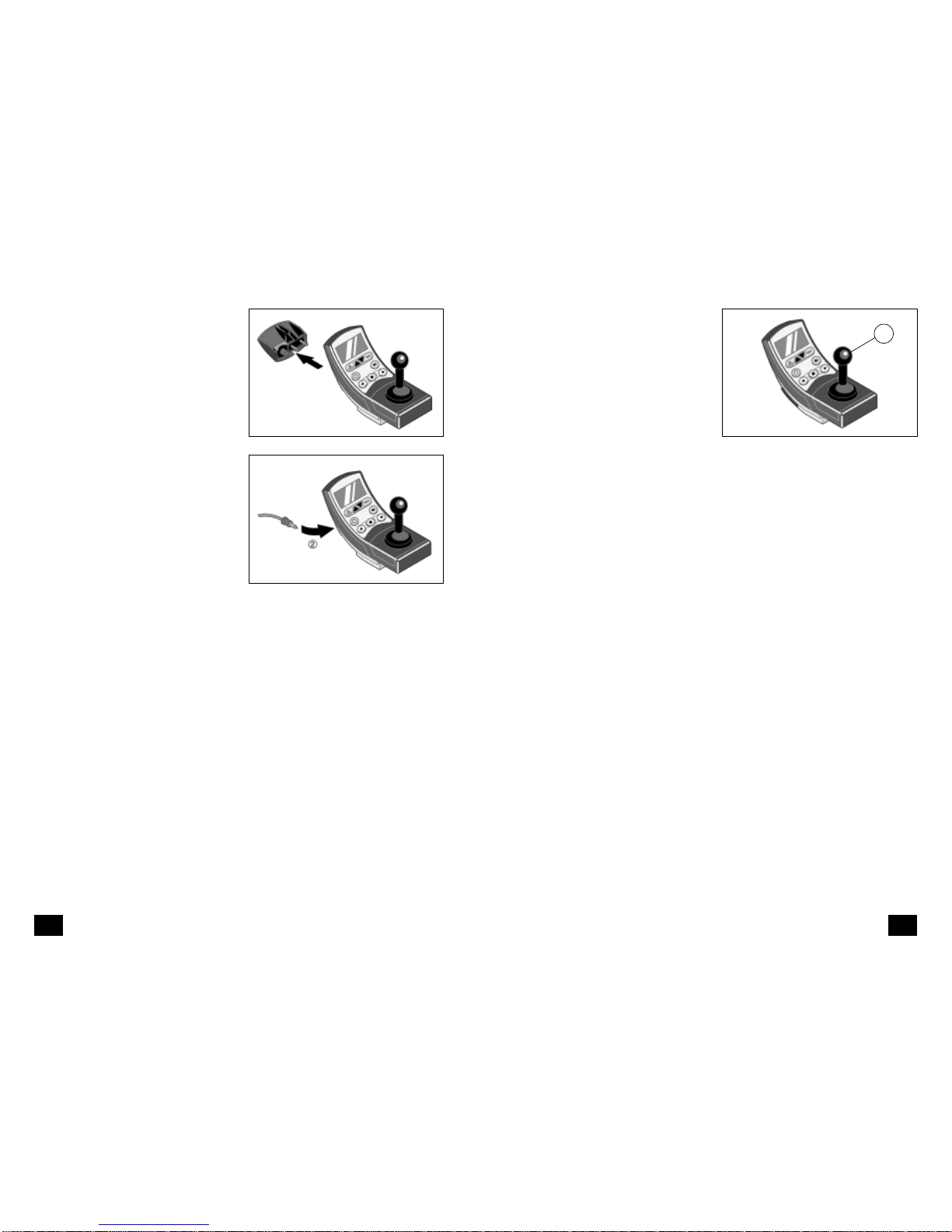

– Charge the batteries via the control
unit before the first journey (Fig. 13).
1. Switch the steering mechanism into
the drive mode. Do this by turning
theselection lever anticlockwise(Fig.
14/ ➀). Small steering and push
movementsallow thesteering mech-
anism to engage.
2. Switch the drive motors to the drive
mode. Do this by pushing the selec-
tion lever to the front (Fig. 14/ ➁)
until it audibly latches.
3. Plug the security plug (Fig. 16) into
the control unit (at the front).
!
Attention:
Do not insert any object other than
the security plug into the battery
chargingsocket. –Danger of short-
circuit!
– Always pull out the security plug af-
ter you have switched off the wheel-
chair with the ON/OFF key. This dis-
ables the wheelchair and prevents
an unauthorised use.
14
1
13
Charging plug
Charging plug
2
16

1918
4.5 Driving behaviour
You determine the speed and the travel
direction through the movement of the
joystick (Fig. 19/ ➀). You can preset the
maximum speed of your wheelchair.
!
Attention:
Drive especially carefully during the
first journeys.
Do this by setting the pre-selected
speed to the lowest level.
4.5.1 Safety information
!
Attention:
Comply with the contents of the
op-
erating manual for CONTROL UNITS
and the 'Safety information for elec-
tric vehicles'
brochure!
– Donotpull outthe securityplugwhilst
still in motion. A switch-off will then
causean abruptbraking ofthewheel-
chair.
– Comply with the max. permitted ris-
ing gradient value specified in the
'Technical data’ section.
– Startoff slowly.Carryouta shortbrak-
ing and steering test after starting
off.
– Lean the upper body forwards when
crossing an obstacle.
19
1
– Avoid jerky adjustments to driving
status when negotiating hills, trans-
verse slopes and obstacles.
– Donot getinto/out ofthe wheelchair
unless it is switched off and the se-
lection lever has been set to drive
mode!
An unintentional contact with the
joystick can otherwise cause an un-
controlled movement of the wheel-
chair! – Danger of accidents!
– For safety reasons, use mobile tel-
ephones or other radio devices only
with a switched-off wheelchair.
4.4.2 Charging procedure
The charging process for gel batteries
takes longer than that for batteries with
liquidelectrolyte dueto physicalreasons.
If the battery display indicates that the
batteryis fully charged,this corresponds
to 95% of nominal capacity.
1. Switch off the control unit. The se-
lection lever should be in the drive
mode position.
2. Pull out the security plug (Fig. 17).
3. Plugthebattery chargerplug intothe
battery charging socket on the con-
trol unit (Fig. 18).
4. Switch on the battery charger, re-
spectively, plugthe mainsplug ofthe
battery charger into a convenient
mains socket. The battery is now
charging.
The charging process only runs with in-
tact main and battery fuses!
Charge preferably during the night. A
full charging of the batteries takes ap-
proximately 10 hours.
5. At the end of the charging, switch
off the battery charger, respectively
disconnect the charger from the
mains, and pull the charging plug
out of the control unit.
17
18

2120
4.7 Handling the con-
trol unit
The position of the control unit can be
adapted to the lower arm length of the
user. The control unit can also be de-
tached for transportation or storage and
can be laid on the seat or stored sepa-
rately.
!
Attention:
Switch off the control unit and pull
out the security plug before adjust-
ing/detaching the control unit (Fig.
22).
4.7.1 Functional description
Youwill finda detaileddescription ofthe
keysandsymbols inthe
operatingmanual
forcontrol units
.
4.7.2 Positioning of the control
unit
Slacken the clamping screw (Fig. 23/ ➀)
under the armrest by approx. one turn.
Move the control unit into the desired
position. Tighten the clamping screw
(Fig. 23/ ➀).
22
23
3
1
21
Deceleration/
stopping
Joystick in the
centre position
4.6 Brakes
!
Attention:
Have the brakes repaired immedi-
ately by an authorised dealer if they
work one-sided or if the braking ef-
fect is reduced.
– Comply with the contents of the
'Safetyinformationfor electricvehicles'
brochure!
4.6.1 Driving brake
The motor works electrically as a driving
brake and decelerates the wheelchair
softly and jerk-free to a standstill.
4.6.2 Parking brake
The parking brakes only work when the
selection lever is in the drive mode posi-
tion.They disengageautomaticallywhen
the wheelchair starts off. They are dis-
engaged manually by moving the se-
lection lever to the push mode position.
See also section 4.3.
4.6.3 Decelerating/stopping the
wheelchair
The wheelchair stops when you let go
of the joystick (Fig. 21).
Movethe joystickslowly backto thecen-
tre position for a dosed braking. Take
into account the braking distance of the
wheelchair for a timely braking. Always
ensure an adequate braking distance
when applying the wheelchair brakes.
20
1
4.6.4 Braking distance
The braking distance is dependent on
the driving surface condition and the
speed, the shortest braking distance is
approx. imately 1.0 m for the 6 km/h
version and
approx.imately 2mfor the10 km/h-ver-
sion.
!
Attention:
Brake early enough when approach-
ing persons or obstacles.

2322
4.7.5 Swivelling the control unit
to the side
The control unit can be swivelled to the
side into a position where it is parallel to
the armrest (Fig. 24.1). This makes it
possible to, for example, drive closer to
a table. For normal driving, swivel the
controlunit forwardagain over thepres-
sure point until it latches into place.
4.8 Loading and trans-
port
4.8.1 Safety information
For the transport in vehicles, you must
leave the wheelchair and sit in a suit-
able seat in the vehicle. – The wheel-
chair is not designed to withstand the
forces which are generated in accidents,
which exposes the user to considerable
risks.
!
Attention:
– Observe the
'Safety information for
electricvehicles'
.
24.1
4.7.3 Detaching the control
unit
Open the cable clip (Fig. 24/ ➃) and
slacken the clamping screw (Fig. 23/
➀). Push the control unit to the rear.
Slacken the clamping screw (Fig. 23/ ➂)
and pull off the entire armrest unit in
an upward direction.
The control unit can now be pulled out
to the front. Carefully route the cable
whenmoving thecontrol unit.Retighten
the clamping screw.
4.7.4 Attaching the control unit
Insert the control unit into its clamping
device. Mount the entire armrest unit
and secure with the clamping screw.
Correctly route the connecting cable
again. Tighten the clamping screw (Fig.
23/ ➀) after having positioned the con-
trol unit.
22
23
3
1

2524
4.9 Ramps and lifting
platforms
The wheelchair can be loaded with the
aid of ramps or lifting platforms. The
following safety information must be
observed:
▲The
'Safetyinformation forelectric ve-
hicles'
.
▲The operating manual for the trans-
port vehicle.
▲The manufacturer's information for
the ramp or lifting platform.
!
Attention:
The maximum bearing height speci-
fied for the ramp must be greater
than the height 'h' from the ground
to the loading surface, e.g. of the car
(Fig. 30).
4.9.1 Special safety informa-
tion:
▲For safety reasons, the wheelchair
mustbe unloaded (withoutbaggage
and without user) during its loading
into a car or when split ramps are
used.
▲Note that when driving on an in-
clined ramp the wheelchair can roll
back a short distance after coming
to a standstill and before the initial
motion (idle zone).
30
h
▲Park the car or van on level and firm
ground and engage the brake in
order to prevent the vehicle from
moving.
▲Ramps should be placed on the
groundand vehicleinsuch away that
they cannot slip.
▲Use only a dry, clean and undam-
aged ramp or lifting platform.
▲Position the ramps so that there is
sufficient space for steering correc-
tions with the wheelchair and no
wheel projects over the ramp edge.
▲Pre-select the lowest maximum
speed.
▲Only approved ramps or lifting plat-
forms may be used.
!
Attention:
Theloading capacity perramp orlift-
ing platform must be greater than
150 kg without driver and greater
than280 kgwithdriver (fixedramps)!
4.8.2 Transport in vehicles
The following items may be necessary
for the transport in vehicles (Fig. 25).
1. Taking off the legrests.
2. Detaching the control unit.
3. Detaching the armrest units.
4. Folding over or detaching the
backrest.
The parts detached for the transport
must be carefully stowed and carefully
attached again before the next journey.
!
Attention:
Do not use the wheelchair without
attached legrests and armrest units!
4.8.3 Securing devices
Use the front eyes (Fig. 26) and the rear
U-shaped securing tube (Fig. 27) for se-
curing the wheelchair.
25
26
27

2726

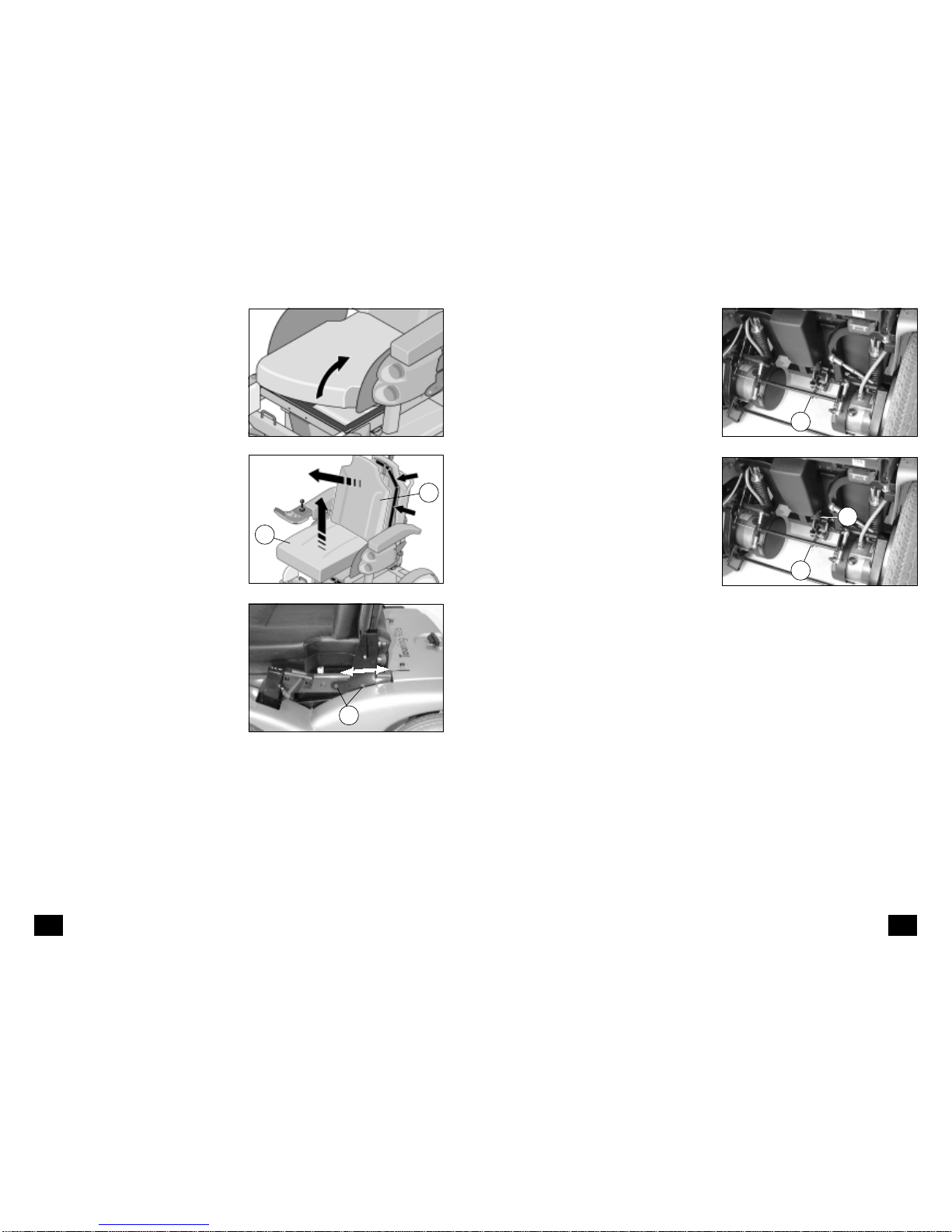

5.1.3 Swivelling up the seat
Theseat mustbe swivelledup tothe rear
for maintenance work and for access to
the batteries and the fuses.
!
Attention:
– Park the wheelchair on a level sur-
face and move the selection lever
into the drive mode position.
– Drive down the electrically-oper-
ated seat-angle adjusting device.
– Switchoff thecontrol unitand then
pull out the security plug.
– Detach the legrests.
– Bring the backrest into the upright
position.
– Remove the backrest strap. (Only
necessaryif thebackrest isattached
at the rear screw-on position).
Pressdown the lever(Fig. 38/➁).Swivel
the seat up to the end stop!
5.1.4 Swivelling down the seat
!
Attention:
Carefully swivel down the seat.
– Danger of squashing between the
seat and the chassis/covers.
38
2
38
1
2
Swivel the seat down onto its mount in
a controlled manner by holding with
one hand on the adjusting element (see
Fig. 38/ ➀which shows the electric ver-
sion). Press on the front edge of the seat
with the other hand until the locking
device (Fig. 38/➁)latches.
5. Components
5.1 Seat
5.1.1 Seat cushion
The standard seat cushion (Fig. 31) is
secured to the seat plate with Velcro fas-
teners and can be pulled off.
The ERGOpor seat cushion (Fig. 32/ ➀)
is secured to the seat shell with Velcro
fasteners and can be pulled off.
5.1.2 Adjusting the seat depth
The seat depth can be changed by
moving the backrest to a different posi-
tion.
☞Note:
The attaching must be carried out by
an authorised dealer.
The securing screws (Fig. 33/ ➀) must
be removed to reposition the backreast.
Then remove the spacer sleeves from
the holes and insert them into the holes
for the new position of the backrest
mount. Attach the backrest mount with
the securing screws.
31
32
2
1
33
1

2928

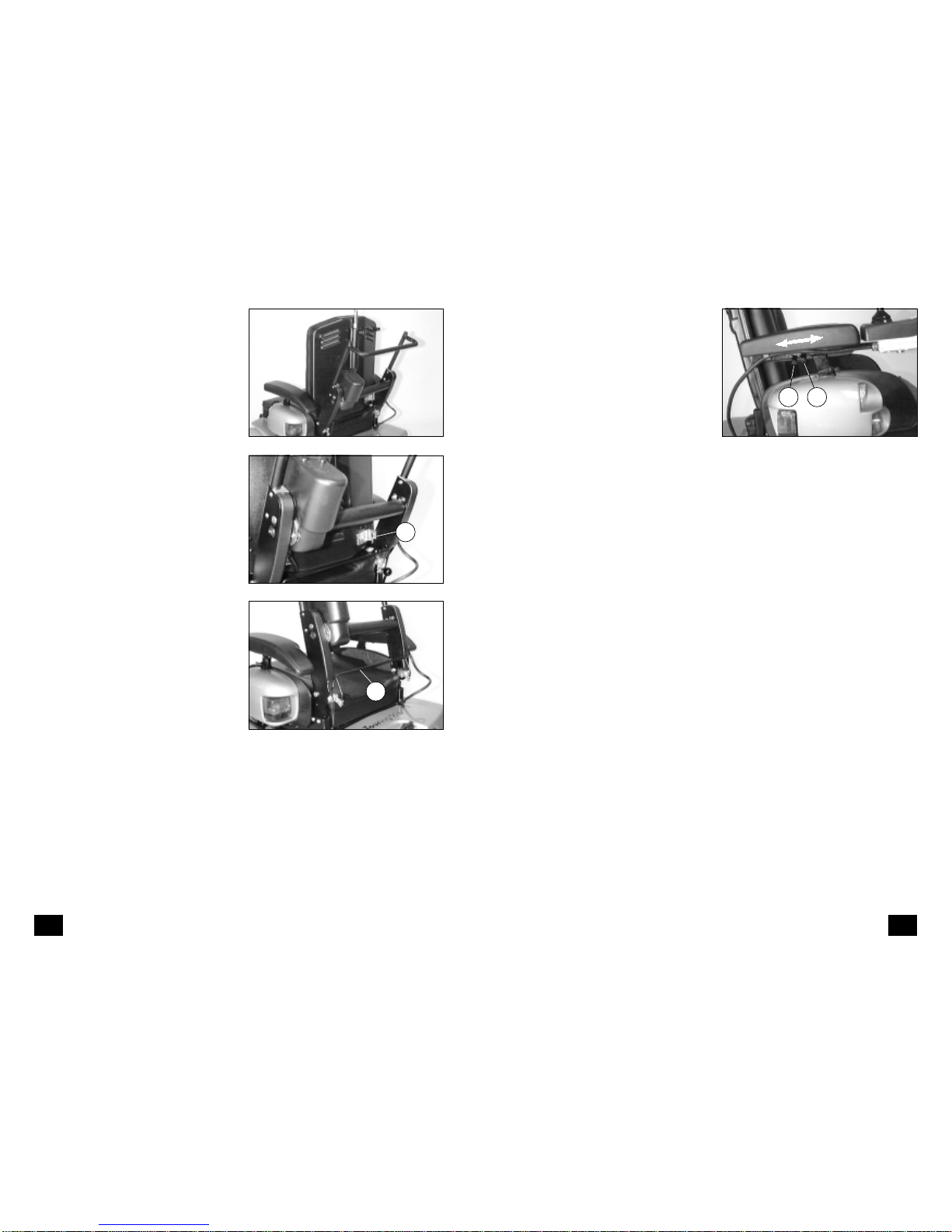

5.2.2 Standard backrest
Tools:
1 x 13 mm open-end or ring spanner
1x hexagonal stud wrench WW* 6
The angle of the standard backrest (Fig.
42/ ➀) can be infinitely adjusted be-
tween approx. 0° to 5° with the adjust-
ment screw and the lock nut.
5.2.2.1 Folding down the
backrest
Screw far out the clamping screw (Fig.
43/➂)at bothsides. Pullup thebackrest
and then fold it forwards.
5.2.2.2 Folding upright the
backrest
Bring the backrest into the upright posi-
tion, thenpress itfully downandtighten
the clamping screws (Fig. 43/ ➂).
WW* = Wrench width (mm)
3
43
42
5.2 Backrest
5.2.1 Attaching/detaching the
ERGOpor backrest element
5.2.1.1 Detaching the ERGOpor
backrest element
Slacken the securing screws (Fig. 40/ ➀)
of the clamps and push them inwards.
Then push the backrest element for-
wards out of the backrest frame (Fig.
41).
5.2.1.2 Attaching the ERGOpor
backrest element
Press the backrest element, left and
right, onto the backrest frame (Fig. 41).
Push the securing screws (Fig. 40/ ➀)of
the clamps outwards and then tighten
them.
5.2.1.3 ERGOpor backrest cush-
ion
The ERGOpor backrest cushion (Fig.
41.1/ ➁) is secured to the backrest shell
with Velcro fasteners and can be pulled
off.
40
41
2
41.1
11

3130
46
47
1
1
5.2.3.2 Detaching the 30°
backrest
The 30° backrest can be detached for
transport or storage. Screw out the se-
curing screw (Fig. 46/ ➀) on both sides
and then pull off the backrest in an up-
ward direction.
5.2.3.3 Attaching the 30°
backrest
Insert the tubes of the backrest, from
above, into the rear frame tubes until
the end stop is reached and then
tighten the securing screw (Fig. 47/ ➀)
on both sides.
5.2.4 Electrically height-adjust-
able backrest
See the
'Operating Manual for Control
Units'
for information on how to adjust
the electrically-adjustable backrest.
5.2.3 30° backrest
The angle of the 30° backrest (Fig. 59)
can be infinitely-adjusted between
approx. -5° and 30°.
Theadjustable backrestiscombined with
the sloped armrest (Fig. 44/➀) to pre-
vent a trapping between the backrest
and armrest.
5.2.3.1 Adjusting the backrest
angle
You unlock the backrest by simultane-
ously pulling both levers (Fig. 45/ ➀)on
the push bar. Then move the backrest
to the desired angle (Fig. 45/ ➁) and
release both levers. The backrest is then
locked in this position.
!
Attention:
Only incline the backrest to the rear
when the wheelchair is standing on
a level surface. Danger of tipping
over when the backrest is inclined to
the rear.
44
1
45

3332
5.3 Armrests
The armrests can be adjusted in height
and depth to suit the needs of the user.
!
Attention:
Donot usethe armreststo liftor carry
the wheelchair.
Do not drive without the armrests!
5.3.1 Adjusting to suit the seat
depth
Tools:
1 x 13 mm open-end or ring spanner
Slacken the securing screw (Fig. 51/ ➀),
bring the armrest into the desired hori-
zontal position and then retighten the
securing screw.
☞Note:
Slacken the securing screw (Fig. 51/
➁) to adjust the depth of the control
unit. Retighten the securing screw
after the depth adjustment.
SW* = Schlüsselweite (mm)
51
1 2

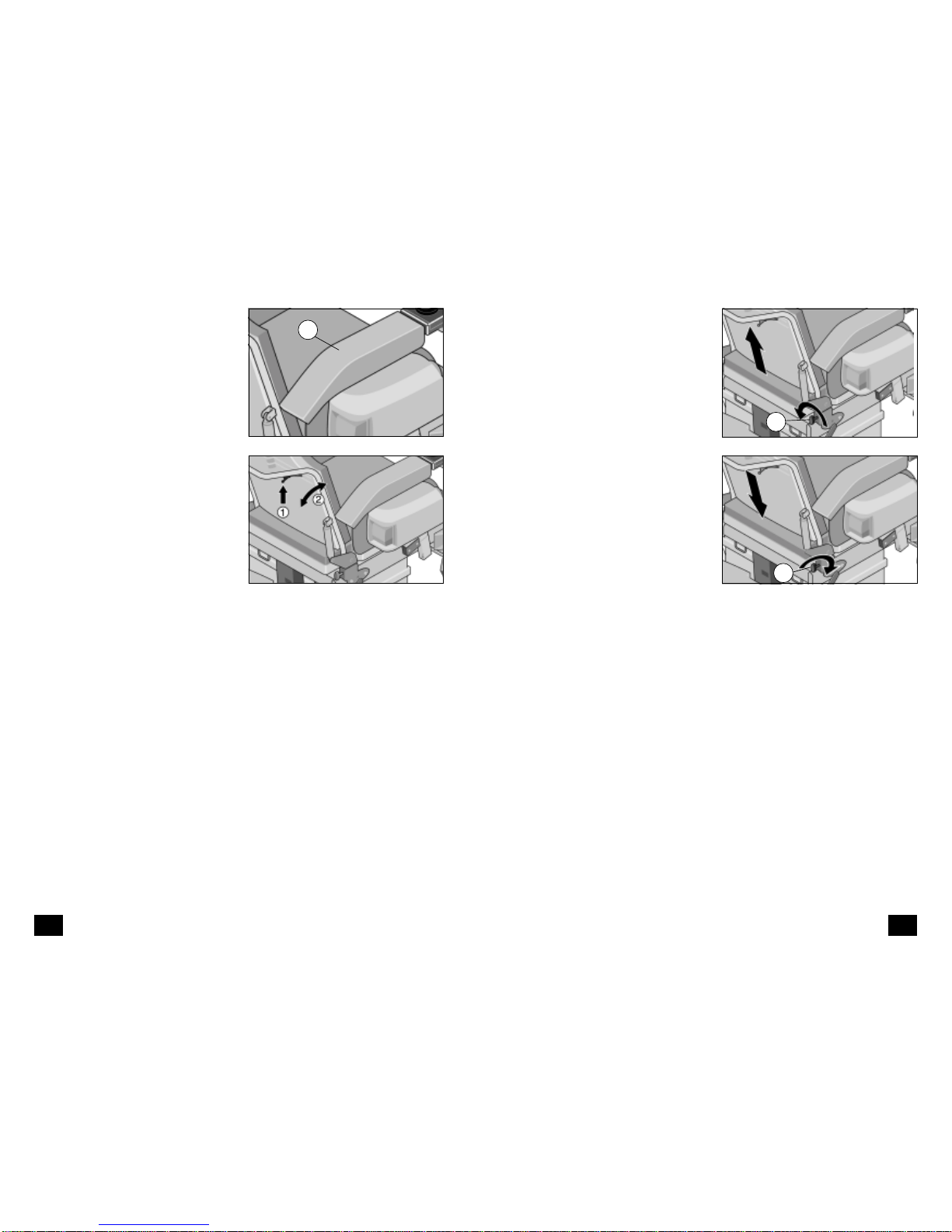

5.2.4.1 Detaching the backrest
element
Pull the upper holders off the backrest
frame (Fig. 48) and then lift off the
backrest element in an upward direc-
tion.
5.2.4.2 Attaching the backrest
element
Place the lateral guides onto the pins
(Fig. 49/ ➀) and then press the upper
holdersof thebackrest elementonto the
frame at the left and right side.
5.2.4.3 Folding down the electric
backrest
The backrest can be folded down to the
front for storage or transport. Press
down the U-shaped bar (Fig. 50/ ➁)
and then fold down the backrest to the
front.
5.2.4.4 Folding up the electric
backrest
Pullon thepush bartobring thebackrest
into the upright position and then pull
to the rear with a jerk so that the lock-
ing device audibly latches. – Check for
the correct functioning of the locking
device!
48
49
1
2
50

3534
5.4 Clothing protector
The clothing protector can be horizon-
tally displaced. You do this by slacken-
ing the securing screws (Fig 55/ ➄).
Bringing the clothing protector to the
desired position and then retightening
the securing screws.
5.5 Legrests
Various legrest models for the wheel-
chair are available. The foot plates can
be folded up to the side.
!
Attention:
– Do not use the legrests to lift or
carry the wheelchair.
– Always place the feet on the foot
plates before a wheelchair motion!
55
5
5.3.2 Height adjustment
Tools:
1 x 13 mm open-end or ring spanner
Slacken the securing screw (Fig. 52/ ➂)
, bring the backrest into the desired
vertical position and then retighten the
securing screw.
!
Attention:
Hold the armrest with one hand in
order to stop it falling. - Danger of
squashing.
5.3.3 Detaching the armrest
Slacken the clamping lever (Fig. 53/ ➂)
and pull off the armrest in an upward
direction.
☞Note:
The control unit must be detached
first if the armrest on the control side
is to be detached. To do this, open
the cable clip (Fig. 54/ ➃) and
slacken the securing screw (Fig. 53/
➀). Push the control unit to the rear.
Slacken the clamping screw (Fig. 53/
➂) and pull off the entire armrest
unit in an upward direction.
52
3
53
1
54
4
3
2
The control unit can now be pulled out
to the front. Carefully route the cable
whenmoving thecontrol unit.Retighten
the clamping screw.
WW* = Wrench width (mm)

3736
5.5.5 Height-adjustable legrests
774-2 and 774-2 AL-E
5.5.5.1 Detaching the legrests
Pull down the locking knob (Fig. 60/ ➀)
and then pull off the legrest.
Thecontacts will separateautomatically.
5.5.5.2 Hanging in the legrests
Insert the mount of each legrest into the
respective tube until it latches (Fig. 61).
The contacts will make automatically. –
Check for the correct functioning of the
locking device!
5.5.5.3 Adjusting the height of
the foot plate
Hold the foot plate and then unscrew
the clamping screw (Fig. 62/ ➁) by
about ½ a turn.
Movethe footplate tothedesired height
and then tighten the clamping screw.
!
Attention:
The marking (crease) shows the
maximum extension.
60
1
61
62
2
2

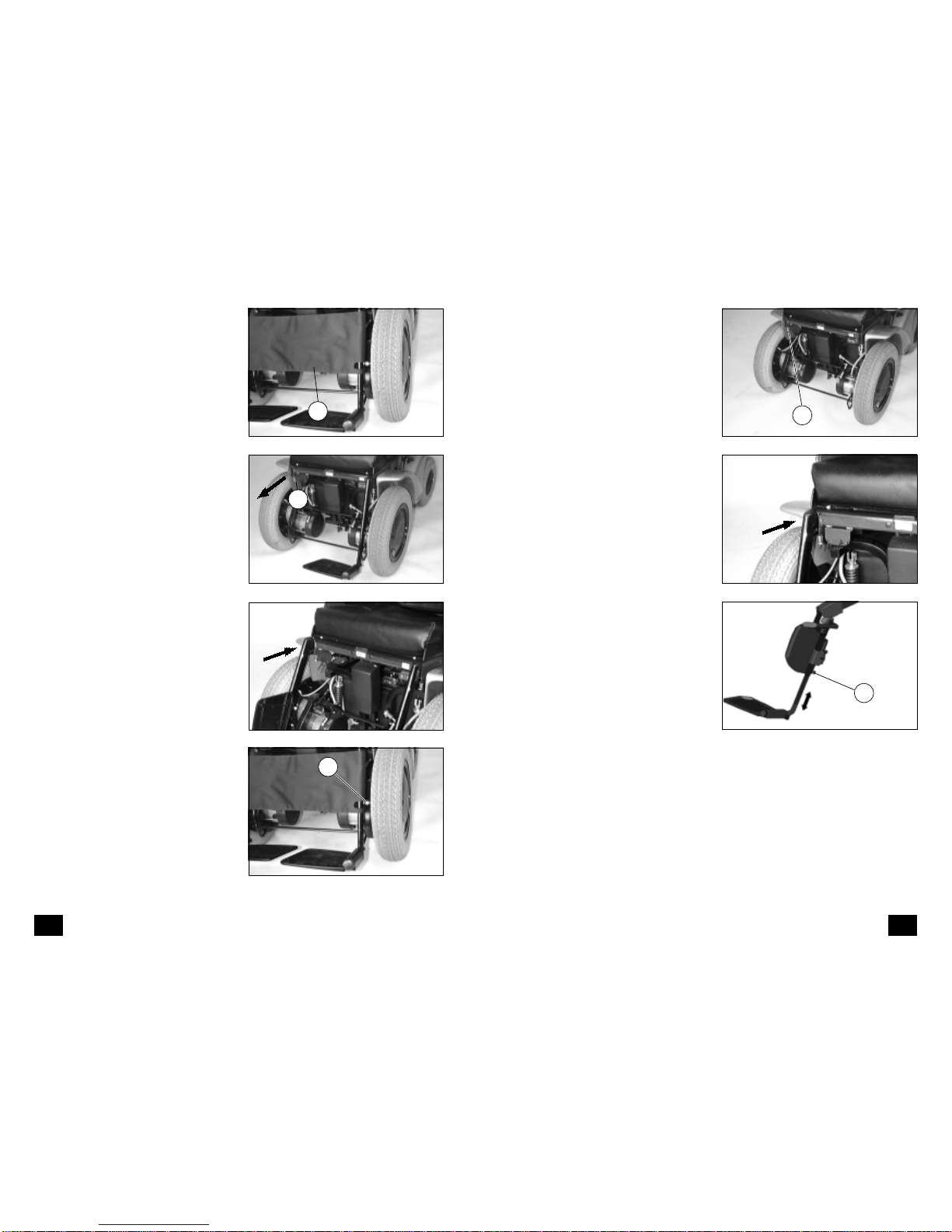

5.5.1 Calf strap
The calf strap is wrapped around the
left and right legrest and secured with
Velcro fasteners (Fig. 56/ ➀). The calf
strap is detached by opening the Velcro
fastener.
5.5.2 Detaching the legrests
Pull down the locking knob (Fig. 57/ ➁)
and then pull off the legrest.
5.5.3 Attaching the legrests
Insert the mount of each legrest into the
respective tube until it latches (Fig. 58).
– Check for the correct functioning of
the locking device!
5.5.4 Adjusting the height of
the foot plate
Hold the foot plate and then unscrew
the clamping screw (Fig. 60/ ➁) by
about ½ a turn.
Movethe footplate tothedesired height
and then tighten the clamping screw.
!
Attention:
The marking shows the maximum
extension.
56
1
57
58
60
2

3938
5.5.6 Electrically height-adjust-
able legrests
See the
'Operating Manual for Control
Units'
for information on how to adjust
theelectrically height-adjustablelegrests.

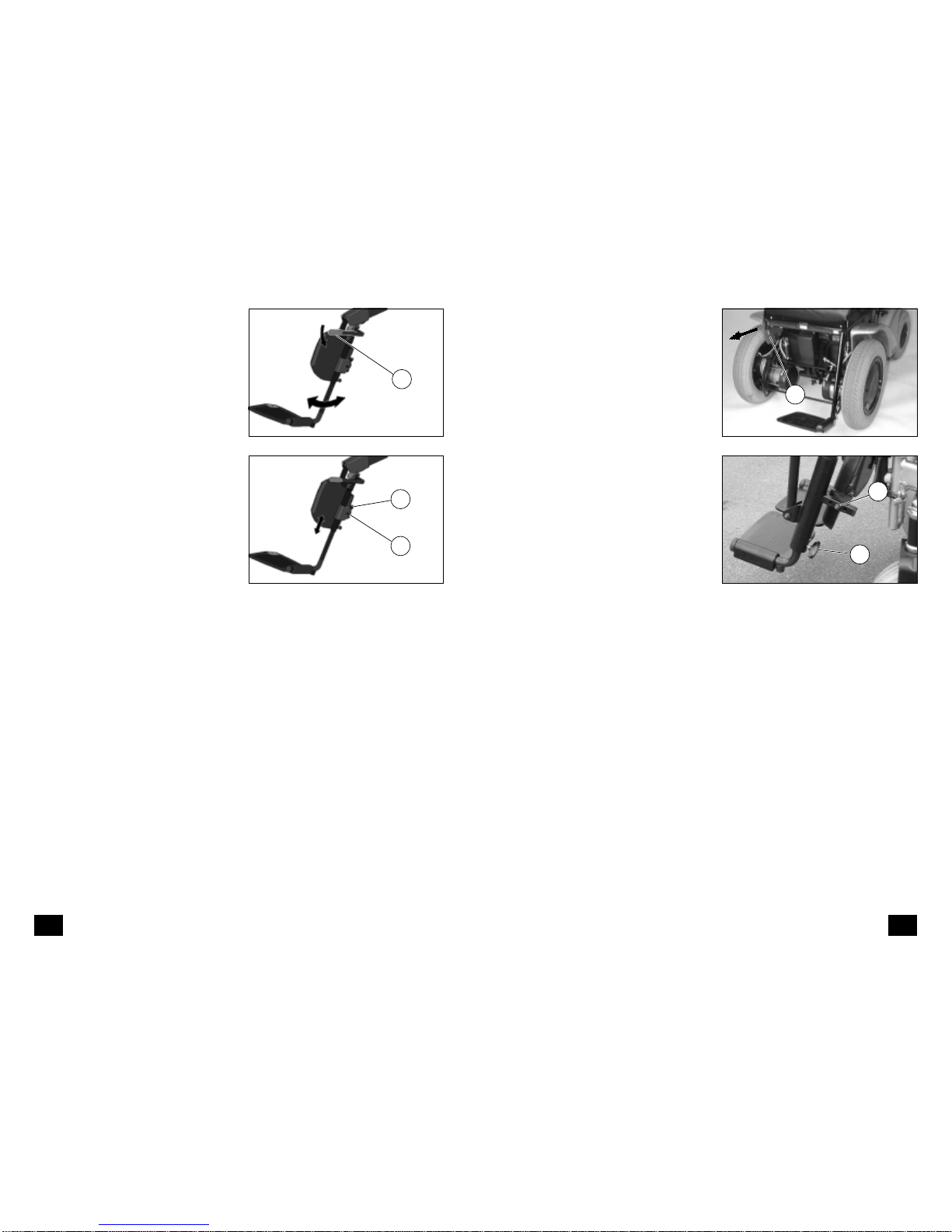

5.5.6.1 Detaching the legrests
Pull down the locking knob (Fig. 64.1/
➀) and then pull off the legrest.
Thecontacts will separateautomatically.
5.5.6.2 Hanging in the legrests
Insert the mount of each legrest into the
respective tube until it latches. The elec-
trical contacts will make automatically. –
Check for the correct functioning of the
locking device!
5.5.6.3 Adjusting the height of
the foot plate
Hold the foot plate and then unscrew
the clamping screw (Fig. 64.2/➁) by
about ½ a turn.
Movethe footplate tothedesired height
and then tighten the clamping screw.
!
Attention:
The marking (crease) shows the
maximum extension.
5.5.6.4 Adjusting the height of
the foot plate
The calf plate can be fixed at one of
three different depth positions after the
securing screw (Fig. 64.2/ ➂) has been
removed.
64.1
1
64.2
2
3
5.5.5.4 Adjusting the height of
the legrests
You raise the legrest by simply pulling it
up to the desired height. To lower the
legrest, hold the legrest and then press
down the lever (Fig. 63/ ➀).
5.5.5.5 Positioning the calf pad
To adjust the height, slacken the se-
curing screw (Fig. 64/ ➁), move the calf
pad up or down to the desired position
and then retighten the securing screw.
To adjust the depth, (thinor thickcalf)
slackenthe securingscrews (Fig. 64/➂),
movethe calf padforwards orrearwards
to the desired position and then
retighten the securing screws.
63
1
64
2
3
