SORG Mio Move 604 User manual

Instructions for use Mio Move 1 of 44
2019-08-16
Mio Move
Instructions for use
Unique people, unique solutions.
Instructions for use Mio Move
ENG

2 of 44 Instructions for use Mio Move 2019-08-16
Imprint
SORG Rollstuhltechnik GmbH+Co.KG
Benzstraße 3-5
68794 Oberhausen-Rheinhausen / Germany
Tel. [phone]
Fax [phone]
E-Mail [e-mail]
Web www.sorgrollstuhltechnik.de
Revision status
2019-07-02
Technical status
Technical changes and misprints reserved. The
pictures in this Instructions for use can differ
from the actual equipment components. How-
ever, a corresponding conduction is possible.
Copyright
All texts, pictures and graphics underlie co-
pyright protection. All rights, including co-
pying, publishing, editing and translating,
remain reserved. © by SORG Rollstuhltech-
nik GmbH+Co. KG Benzstraße 3-5, 68794
Oberhausen-Rheinhausen / Germany.
Our terms and conditions can be found
on our order forms and at www.sorgrollstuhl-
technik.de/impressum.

Instructions for use Mio Move 3 of 44
2019-08-16
Table of content
1 Wheelchair overview 5
2 General Information 6
2.1 Preamble 6
2.2
General use indications 6
2.2.1 Signs and Symbols 7
2.2.2 Intensions 8
2.2.3 Indication 8
2.2.4 Counterindication 8
2.3 General safety instructions 9
2.3.1
Transporting without user 11
2.3.2 Transporting the wheelchair with
user in a vehicle 11
2.3.3 Other important indications 13
3 Handling 16
3.1 Handling rear wheels 16
3.1.1 General indications 16
3.1.2 Tire pressure 16
3.1.3 Axle wheels 16
3.1.4 Double hand rim wheels 17
3.2 Handling casters 18
3.2.1 General indications 18
3.2.2 Caster track lock on taurus frame 18
3.3 Handling seat and back 19
3.3.1 General indications 19
3.3.2 Seat tilt 19
3.3.3 Back with raster
20
3.3.4 Back extensions 21
3.4 Handling push aids 22
3.4.1 General indications 22
3.4.2 Push handles 23
3.4.3 Push bail 24
3.4.4 Single hand push handle 25
3.5 Handling leg support 26
3.5.1 General indications 26
3.5.2 Continuous foot plate with lock 26
3.5.3 Divided foot plate 27
3.6 Handling brake 28
3.6.1 General indications 28
3.6.2 Drum brake 30
3.7 Handling anti-tipper 31
3.7.1 General indications 31
3.8 Handling head rest 32
3.8.1 General indications 32
3.9 Handling abduction wedge 33
3.9.1
General indications 33
3.10 Handling side truss pads 33
3.10.1
General indications 33
3.11 Handling therapy table 34
3.11.1
General indications 34
3.12 Handling outdoor-front-end 35
3.12.1 General indications 35
3.13 Handling sun shade 36
3.13.1
General indications 36
4 Repairs and maintenance 38
4.1 Repairs 38
4.2 Spare parts 38
4.3 Maintenance 38
4.4 Disinfection 38
4.5 Storage 38
4.6 Reinstatement 39
4.7 Disposal 39
4.8 Maintenance/Inspection 39
5 Technical data 41
5.1 Data and measurements 41
5.2 Meaning of labels 42
5.3 Declaration of conformity 42
6 Verication of yearly inspection 43

4 of 44 Instructions for use Mio Move 2019-08-16

Instructions for use Mio Move 5 of 44
2019-08-16
1 Wheelchair overview
1height adjustable push bail
2back cushion
3side guard
4wheel cover
5brake lever
6seat cushion
7seat plate
8frame
9foot plate
10 caster fork
11 caster
12 brake pressure bolt
13 rear wheel
14 axle
15 hand rim
16 push bail
17 lever for seat tilt
18 angle adjustment for
push bail
19 curved back plate
20 eccentric clamp for push bail
21 anti-tipper
8
16
7
17
6
18
5
4
19
3
20
2
21
1
9101112131415

6 of 44 Instructions for use Mio Move 2019-08-16
2 General information
2.2 General use indications
This Instructions for use contains safety instructions which are needed for the proper use of our
product.
All adjustments, repairs and annual inspections beyond these instructions must be carried out by
a qualied specialist retailer.
Before use, the user and rehab technician must have read and understood these instructions. In
this Instructions for use you will nd all equippment possibilities of the product. Have yourself
be instructed on the safe handling of the wheelchair, on an even surface, and its idividual equip-
ment possibilities by your specialist adviser.
Visually impaired people will nd this manual as a PDF and audio le on our website
www.sorgrollstuhltechnik.de.
Should questions or suggestions come up then please contact your medical supply store or our
team ([phone]).
Keep this manual in a safe place. All yearly inspections done must be documented by your spe-
cialist retailer.
2.1 Preamble
Welcome to the SORG family - thank you for your trust in us and for choosing our product.
This wheelchair has been individually made to measure your particular needs.
In order to be able to use the wheelchair in everyday life, you receive the following
usage and setting instructions which can be done without tools. Please take note
of these intructions and handle the wheelchair carefully so that it gives you pleasure for a long
time.
If you have any questions about this or any other product, please contact us.
We hope you enjoy using your SORG product.
Your SORG-Team

Instructions for use Mio Move 7 of 44
2019-08-16
2 General information

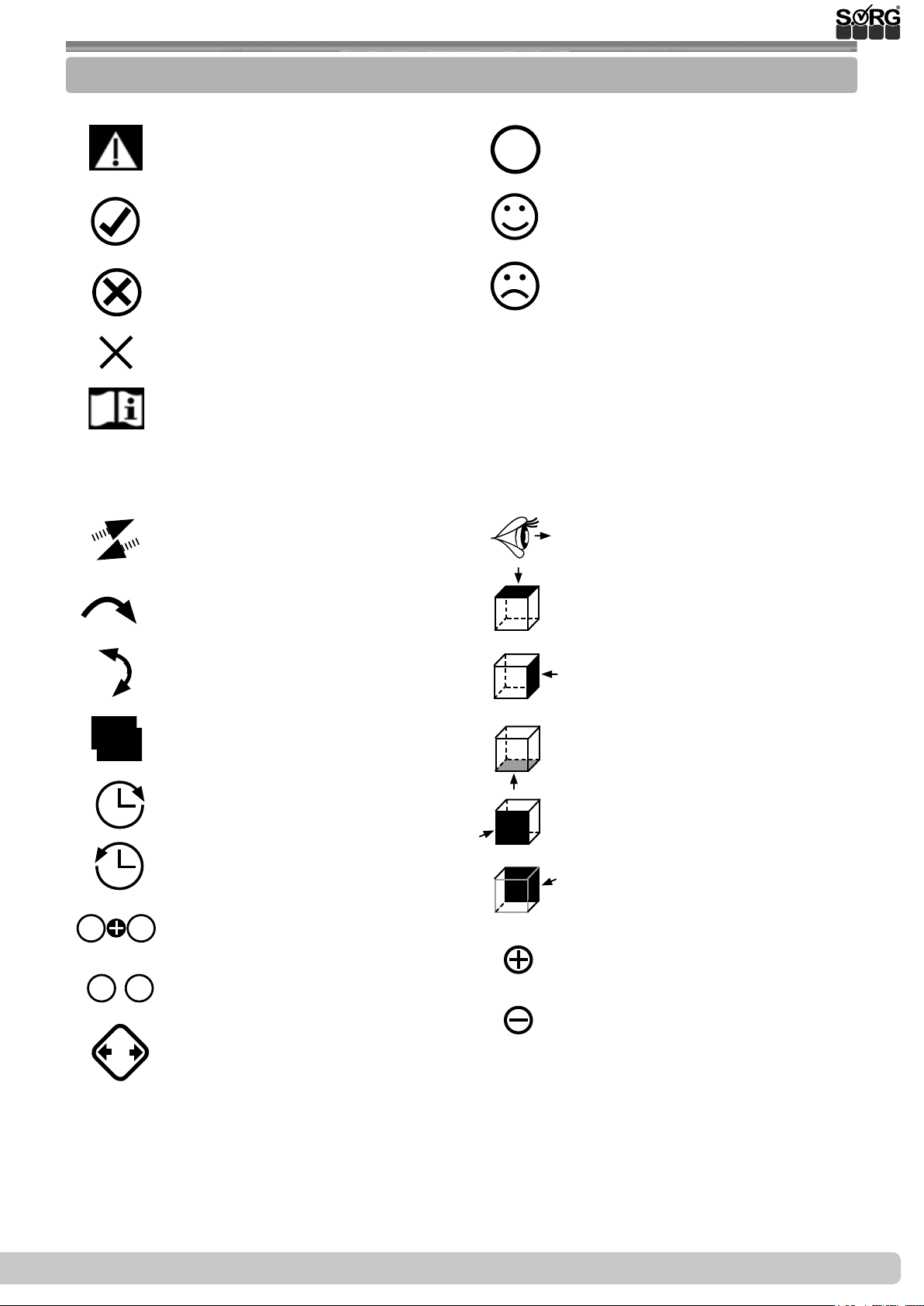

2.2.1 Signs and symbols
ATTENTION! Warnings for perso-
nal Safety aspects that are of the
utmost importance.
CORRECT safety adjustment/ use
WRONG adjustment/ use
NOT ALLOWED
References to additional/conti-
nuing reading.
Setting or adjusting the angle
open/ close
Turn clockwise
Turn counter-clockwise
steps to be done at the same time
steps to be done after each other
steps to be done on both sides
Use
(A); (B)
1. 1.
1. 2.
;
2x
push/ pull/ insert / move/
Push in specic direction
important detail
correct or proper use/setting
incorrect or improper use/setting
reference from text to detail
point of view
view from top
view from the side
view from the bottom
view from the front
view from the back
fasten parts
remove parts

8 of 44 Instructions for use Mio Move 2019-08-16
2 General information
8
km/h
2.2.2 Intensions
Mio Move is a growable tiltable wheelchair for children and adolescents for indoors and out-
doors.
The wheelchair only serves to carry the person for whom it has been adapted, by a qualied
specialist retailer.
In the case of children or persons with impaired ability to act, the parents or authorized caregi-
vers must ensure that the instructions in the Instructions for use are followed.
The most secure use of the tool is only possible on a level, rm and dry ground with activated
anti-tipper with the help of a caregiver.
Any further use involves many dangers that can only be assumed on the user's own res-
ponsibility. This requires sufcient competence of hazard detection and prevention and safe
handling of the user with the aid! Increased risk potential must be taken into account especially
in wet conditions, ice, loose ground, inclines, obstacles, proximity to water, road trafc, tight
spaces, etc.
Use the wheelchair only according to its purpose. Any improper use entails signicant
risks and will void the product liability.
Due to the great variety of combinations for seat and wheel positions, settings can be
possible which are outside of the safety and application area.
2.2.3 Indication
Mio Move is indicated by the following:
• all therapy forms of change position and bearing,
• to stimulate/strengthen the whole metabolism, the autonomic nervous system and/or the
whole cardiovascular system,
• to preserve, rebuild and to activate the whole muscle tone or individual muscle groups,
• to build and to strengthen the whole bone structure,
• to slow the process of progressive scoliosis,
• to slow or restrict dystrophic or atrophic muscle changes,
• to regulate all forms of dyskinesia,
• by all forms of Paresis and/or neuromuscular sicknesses,
• to reactivate after a severe concussion,
• all therapy forms in regard to cerebral dominance.
2.2.4 Counter indications
The use is not suitable for:
• tonicity deregulation,
• sever impaired perception and sense of balance,
• limb loss on both arms,
• joint contractures/joint damages on both arms,
• unable to sit,

Instructions for use Mio Move 9 of 44
2019-08-16
2 Allgemeine Informationen
-10 bis + 41°C
30 - 70%
x y
Do not use the footplate(s) to get in and
out. The wheelchair could tip forward.
x >700 mm
y > x + 50 mm
!
2.3 General safety instructions
Before each use be sure to check:
• frame, back tubes, attachments and accessories for visible damage, bends, cracks or mis-
sing/loose scews,
• wheels/quick release axles for rm t ,
• sufcient tire pressure, tire tread,
• functionality of the brakes,
• rm t of the angle adjustment elements/ eccentric clamps,
• rm t of the seat plate/ the back/ the foot plate,
• functionality of the anti-tipper/ seat and back straps,
• if all previously disassembled parts are re-inserted or rmly locked.
There is a risk of injuries (e. g. such as bruising) on all rotating or folding parts, including
adjustments, repairs and transport.
danger of tipping and ipping over
Getting in and out can only occur on a at surface and with activated wheel lock.
• not enough eyesight.
We cannot be taken accountable for damages done to people or objects originating from
the use of the Mio Move under the conditions described above.

10 of 44 Instructions for use Mio Move 2019-08-16
2 General information
max 7°
90°
Overcome stairs only with the help of experienced helpers. For this, the anit-tipper must
be deactivated. Only carry the wheelchair by holding the frame, never the seat shell, the push
handles/push bail, the leg support and/or the foot plate/s!
90°
90°
max 7°/ 12% max 7°/ 12%
We generally recommend the use of the
anti-tipper.
inclines, downhill and obstacles
When driving off of curbsides the anti-
tipper must be deactivated.
When dimsantling the parts/accessories listed below, the risks listed as examples may
occur:
• cushion: lack of hygiene/pressure points
• leg support: getting legs stuck when transporting
• head rests: loss or missing head rest during transport
• rm back extension: loss or missing during transport
• rear wheels: loss of wheels - use is no longer possible
• push bail: loss or missing during transport

Instructions for use Mio Move 11 of 44
2019-08-16
2 General information
2.3.1 Transporting without user
Make the desired packing size and secure the wheelchair and all disassembled parts with ade-
quate load securing. Before transporting a wheelchair, nd out about suitable load securing
measures.
Carrying points:
• seat tubes in a folded position
• front frame tubes le/ri
• back frame tubes le/ri
• however not on the detachable leg supports and/or foot plates
2.3.2 Transporting the wheelchair with user in a vehicle
Wheelchairs can never achieve the stable characteristics of a mounted seat system due to
their purpose. Whenever possible, we recommend using a xated vehicle seat to transport a
person in the vehicle.
Only wheelchairs that have successfully passed a crash test in accordance with
ISO 7176-19 may be used as a seat in a motor vehicle. Successfully tested wheelchairs
are marked with the symbol for the attachment points on the attached type plate.
Mio (Design 2018) has been successfully tested according to ISO 7176-19 and
thus approved as a seat in a vehicle if it has the necessary restraint devices.
Please check if the wheelchair is a special construction and, therefore, cannot
be used as a seat in a vehicle. In this case, the symbol for the attachment point
is missing on the nameplate and the wheelchair is provided with a warning, repre-
sented by the negated symbol for the attachment point.
You can nd further information in the crash test brochure at www.sorgrollstuhltechnik.de/
downloadportal.
We can recommend the following manufacturers of restraint brackets:
• SORG-restraint brackets on the wheelchair
• AMF-BRUNS GmbH & Co.KG
• Q‘Straint Europe

12 of 44 Instructions for use Mio Move 2019-08-16
2 General information
90°
(B)
(A)
(3)
(4)
(D)
(C)
When the wheelchair is equipped with a back angle adjustment or seat tilt, ensure that the
occupant sits in an upright position at 90° back angle during transport (3). Swing-up leg rests
must be brought into the lowest possible position.
(2)
Securing points/methods for the transport in a vehicle
When using the wheelchair as a seat in the vehicle, use only the points marked
with the symbol for the attachment points. These can be found in the back left and
right (1) and front left and right. (2)
The wheelchair must be secured using a
vehicle-anchored 4-point wheelchair restraint
system according to ISO 10542. These may be
carabiner hooks, S-shaped hooks or snap fas-
teners. The wheelchair restraint system must
be securely fastened and used in accordance
with the manufacturer's instructions. (3A+B)
In order to reduce the risk of head in-
juries and upper body injuries as much as
possible, the user must additionally be se-
cured with a xated lap belt (4C) approved
for transport according to ISO 10542 and a
vehicle-anchored shoulder strap (4D).
The seat belts must not be twisted during use, nor be led over components and thereby
kept away from the body. They need to be tight without compromising user comfort. The lap
belt lock must be located between the pelvic bones (as close to the center as possible). The
latches on the lap belt for attaching the shoulder strap should be as far to the outside on the
pelvis as possible.
All belts used for transport must be checked for damage in regular intervals.
You must use a headrest that is permissible for transport.
The wheelchair my only be used as a front facing seat in vehicles in accordance with ISO
7176-19. No transport with lateral alignment!
After a collision, contact your retailer immediately to check the chassis, frame and brakes,
and have them repaired immediately.
(1)

Instructions for use Mio Move 13 of 44
2019-08-16
2 General information
> 42°C
°C
Corrosion protection
The product is already designed for corrosion protection when selecting materials (for example:
plastic, aluminum, stainless steel). All materials susceptible to corrosion are surface-treated and
thus protected.
Should the wheelchair get wet, it needs to thoroughly dry.
2.3.3 Other important indications
The standard-compliant resistance to inammation of textile materials was tested and en-
sured. Nevertheless there is a risk of ignition of the ammable textile components. Keep igniti-
on sources away from the wheelchair..
The wheelchair must not be exposed to excessive moisture or contact with salt water.
Pelvic restraints (pelvice belts as positioning help) can be ordered as an option in the wheelchair
conguration via the SORG order forms or by ordering via spare parts catalogues. The assembly
is carried out by your retailer.
In some cases, the product may interact with electromagnetic elds (e.g., anit-theft device in
stores). There is no danger for the user and/or the companion.
Due to the wide range of settings, it is not possible to comply with all limit values for all possible
congurations under the EU Interoperability Technical Regulations with regard to the accessibili-
ty of the Untion rail system for persons with disabilities and persons with reduced mobility.
In the case of incidents involving the wheelchair, please contact your specialized retailer or us
as manufacturer. Product recalls etc. are published on our website www.sorgrollstuhltechnik.de.
There you will also nd the respective contact persons.
Please operate the existing brakes on the wheelchair additionally to transport the
wheelchair in a vehicle.

14 of 44 Instructions for use Mio Move 2019-08-16
Combination with products from other manufacturers
The wheelchair may only be combined with the electrical auxiliary drives approved by the
manufacturer. The responsibility of restrictions or adjustmens as well as the attachment itself
lies with the supplier of the additional system or the specialized retailer. Please ask about the
conditions with the manufacturer of the auxiliary drives.
In combination of wheelchair and electric auxiliary drive, certain strains occur that can
lead to damage to the wheelchair. Slowly approach abstacles and carefully overcome them so
that little force is applied to the casters, rear wheels and the wheelchair as a whole.
2 General information

Instructions for use Mio Move 15 of 44
2019-08-16

16 of 44 Instructions for use Mio Move 2019-08-16
(2) After inserting, the locking ball (A) must protrude visibly. After each insertion, pull at
least 1x to test whether the quick release axle is engaged. The wheels should not be able to
pull out.
3.1 Handling rear wheels
(1) (2)
(2)
(A)
1. 1.
(1)
(1)
By braking the wheels with the hand rims, friction heat occurs.
Hand rim covers can expand from heat and can come off the hand rims.
3.1.2 Tire pressure
The appropriate operating pressure can be
found on the tire casing - usually 3-10 bar. (1)
When you get a at tire, please contact your
retailer.
3.1.3 Axle wheels
remove:
put on:
3.1.1 General indications

Instructions for use Mio Move 17 of 44
2019-08-16
3.1 Handling rear wheels
(4)
(3a)
90°
1.
2.
(1)
(3b)
(1) (2b)
(2a)
(2)
2x
2x
2x
3.1.4 Double hand rim wheels
put on:
Remove: Proceed analogously in reverse order

18 of 44 Instructions for use Mio Move 2019-08-16
3.2 Handling casters
lock:
(3)
(3)
90°
(2)
1.
2.
90°
(2) 1.
2.
(1)
(1)
(1)
3.2.1 General indications
Incorrectly adjusted casters or driving too fast can causethe casters to utter. At the rst
sign of utter, slow down the drive immediatley and have the casters readjusted by a specialist
retailer.
3.2.2 caster track lock
unlock:
(1)

Instructions for use Mio Move 19 of 44
2019-08-16

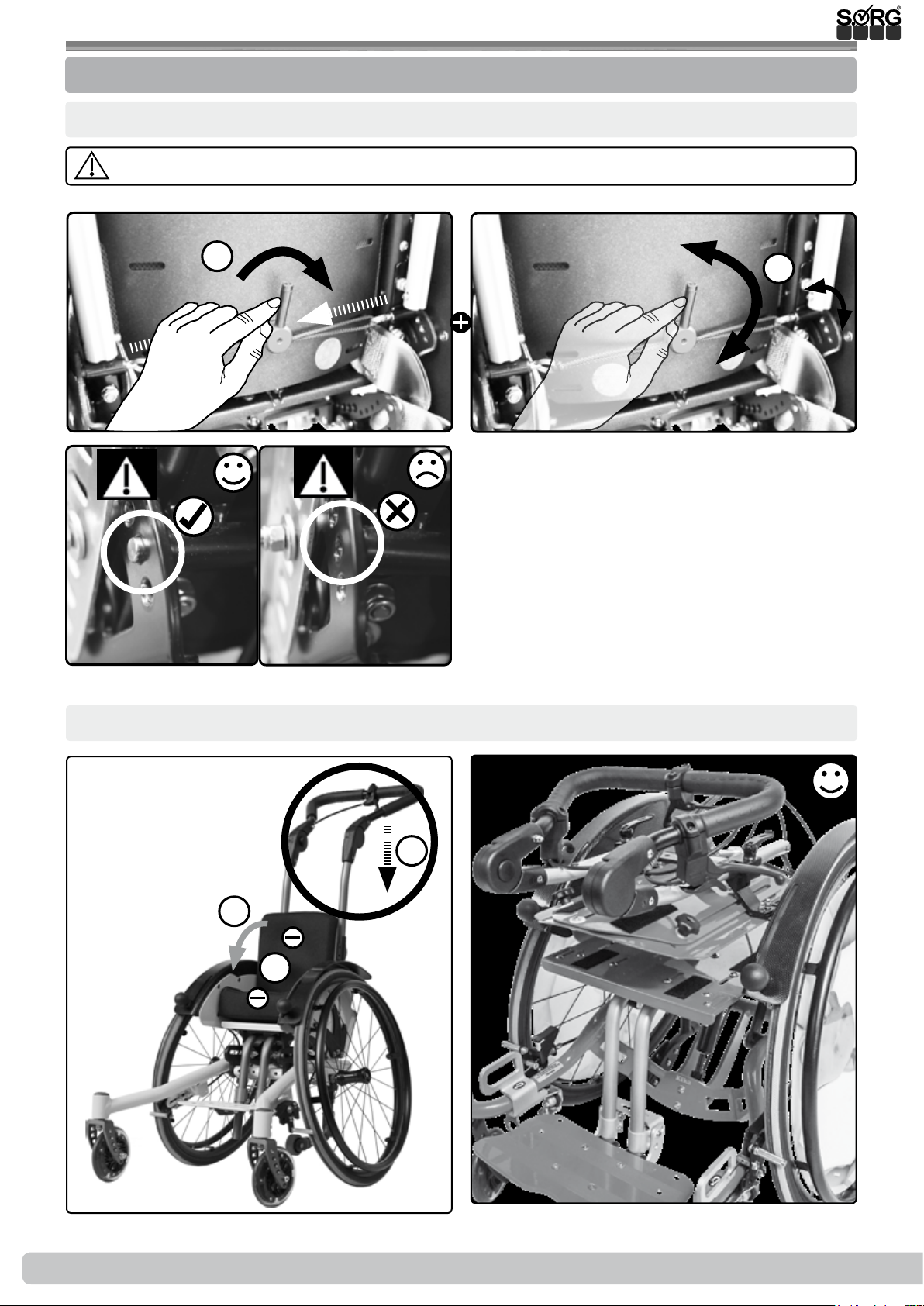

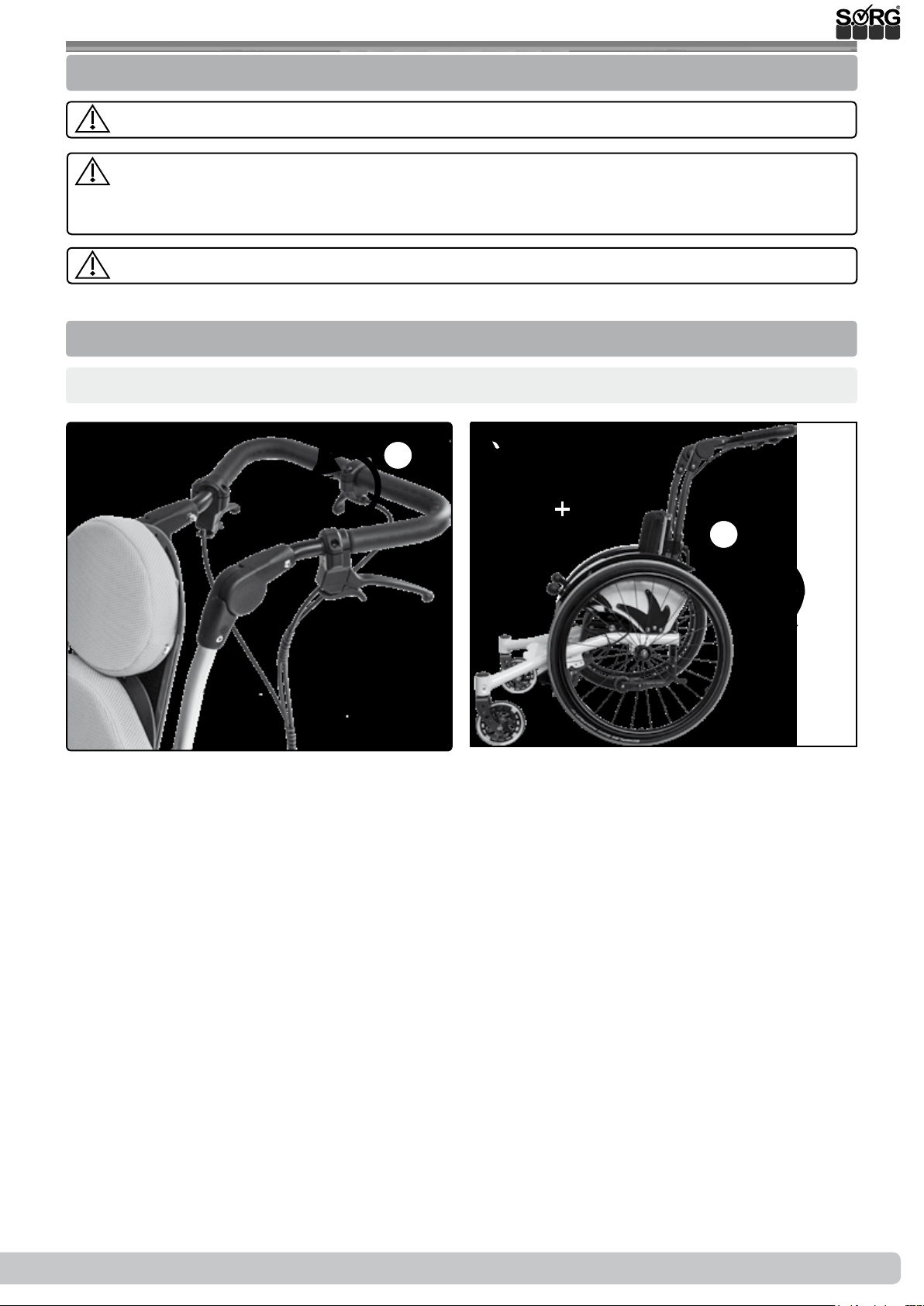

3.3 Handling seat and back
Check the rm t of the back after every adjustment.
For angle-adjustable back or seat tilts above a setting of >90°, it is essential to activate
the anti-tipper. When adjusting the back angle or tilting, the head must be supported (e.g. by
a head rest)..
Activate the seat tilt or angle adjustment only with activated brakes..
3.3.1 General indications
tilting:
1.
1.
(2)
(1)
3.3.2 Seat tilt

20 of 44 Instructions for use Mio Move 2019-08-16
3.3 Handling seat and back
(2)
(1) (2)
(3a)
adjust:
(3b)
(1)
1.
2.
3.
3.3.3 Back with raster
Always activate the anti-tipper before using a new back angle position.
fold down (fold up: proceed analogously in reverse order):
1. 1.
