Osprey Ace Series User manual

ospreypacks.com
OWNER'S MANUAL
ACE SERIES
ACE 75
(ages 11-18*)
ACE 50
(ages 8-14*)
ACE 38
(ages 6-11*)
The Ace Series are technical backpacks for young outdoor enthusiasts ages 10-18
with the same features and fit as Osprey's adult backpacks. An ultra-adjustable
torso and hipbelt allows the pack to grow with the user providing years of value
and comfort. The Ace 75 provides the capacity and organization required by
outdoor education groups.
* Recommended age range. Height and weight may vary from child to child.
OSPREY KIDS'

ACE SERIES 2
OVERVIEW

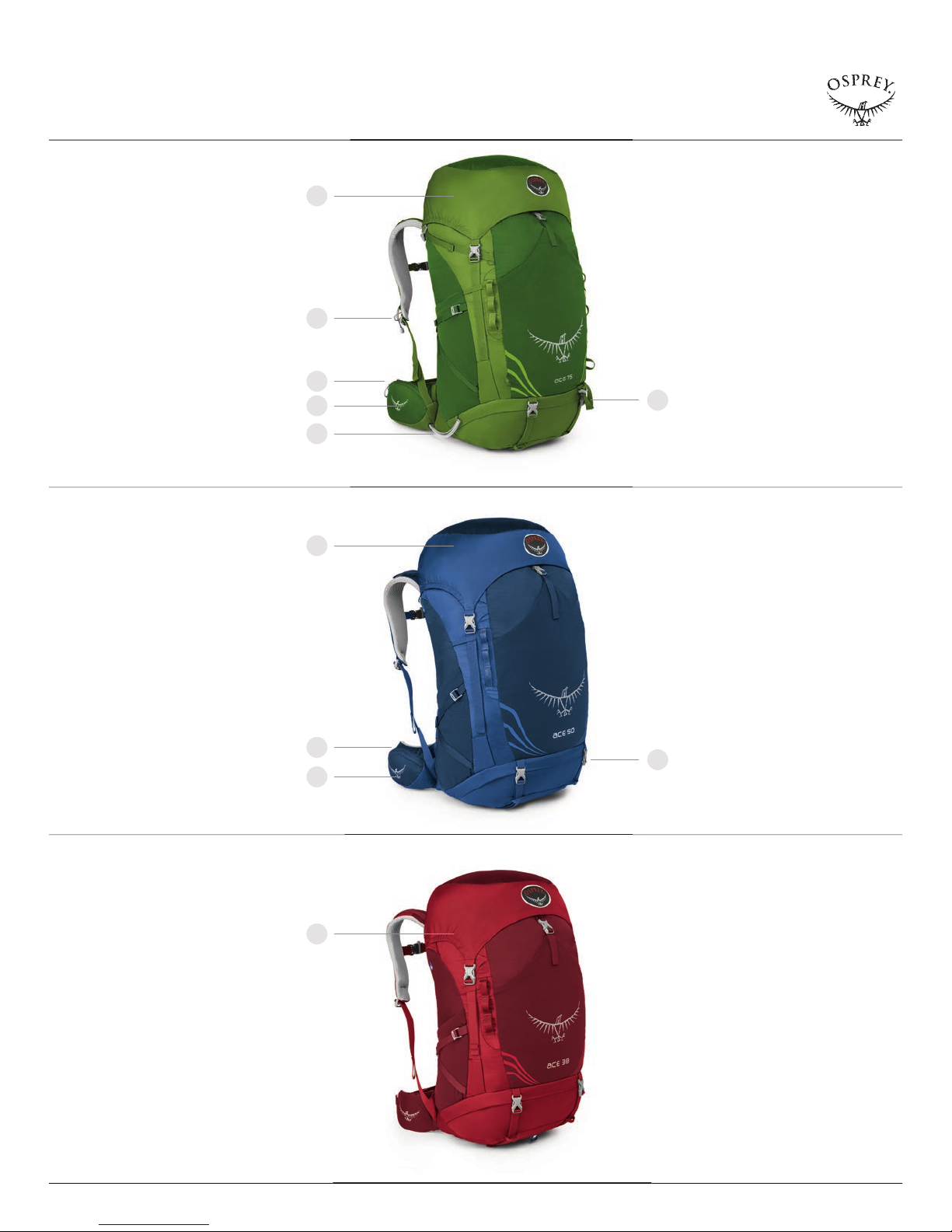

SHARED FEATURES
1 Top load access to main compartment
2 Zippered under lid pocket
3 Upper side release buckle compression straps
4 Daisy chain
5 Lower InsideOut™ side compression straps
6 Dual stretch mesh side pockets
7 Lower zippered sleeping bag compartment with divider
8 Large stretch mesh front pocket
9 Sleeping pad straps
10 Integrated raincover
11 Zippered top lid pocket
12 Internal reservoir sleeve
FABRIC
MAIN 210D Nylon Double Diamond Ripstop
ACCENT 420HD Nylon Packcloth
BOTTOM 420HD Nylon Packcloth
2
1
3
5
4
6
7
8
9
10
11
12

ACE SERIES
ACE 50 (AGES 8–14*)
SPECS ONE SIZE
Cubic Inches 3051
Liters 50
Lbs/Ounces 2/15
Kilograms 1.34
Inches 26h x 13w x 12d
Centimeters 67h x 33w x 30d
KIDS' LOAD RANGE
15-20 % body weight
KIDS' TORSO RANGE
Inches 13" – 18"
Centimeters 33 – 46
ACE 75 (AGES 11–18*)
SPECS ONE SIZE
Cubic Inches 4577
Liters 75
Lbs/Ounces 3/9
Kilograms 1.61
Inches 31h x 13w x 14d
Centimeters 79h x 34w x 35d
KIDS' LOAD RANGE
15-20 % body weight
KIDS' TORSO RANGE
Inches 14" – 19"
Centimeters 35.5 – 48
ACE 38 (AGES 6–11*)
SPECS ONE SIZE
Cubic Inches 2319
Liters 38
Lbs/Ounces 2/6
Kilograms 1.09
Inches 23h x 12w x 11d
Centimeters 58h x 31w x 28d
KIDS' LOAD RANGE
15-20 % body weight
KIDS' TORSO RANGE
Inches 11" – 15"
Centimeters 28 – 38
3
5
4
2
2
3
1
4
3
2
1
1
UNIQUE FEATURES
1 Removable floating top lid
2 Stow-on-the-Go™ trekking pole attachment
3 Fit-on-the-Fly™ hipbelt
4 Zippered hipbelt pockets
5 Adjustable ice tool or fishing rod loop
+ Internal compression strap
UNIQUE FEATURES
1 Removable floating top lid
2 Fit-on-the-Fly™ hipbelt
3 Zippered hipbelt pockets
4 Adjustable ice tool or fishing rod loop
+ Internal compression strap
OVERVIEW
UNIQUE FEATURE
1 Fixed top lid
* Recommended age range. Height and weight may vary from child to child.

ACE SERIES 4
OVERVIEW
SIZING / FIT

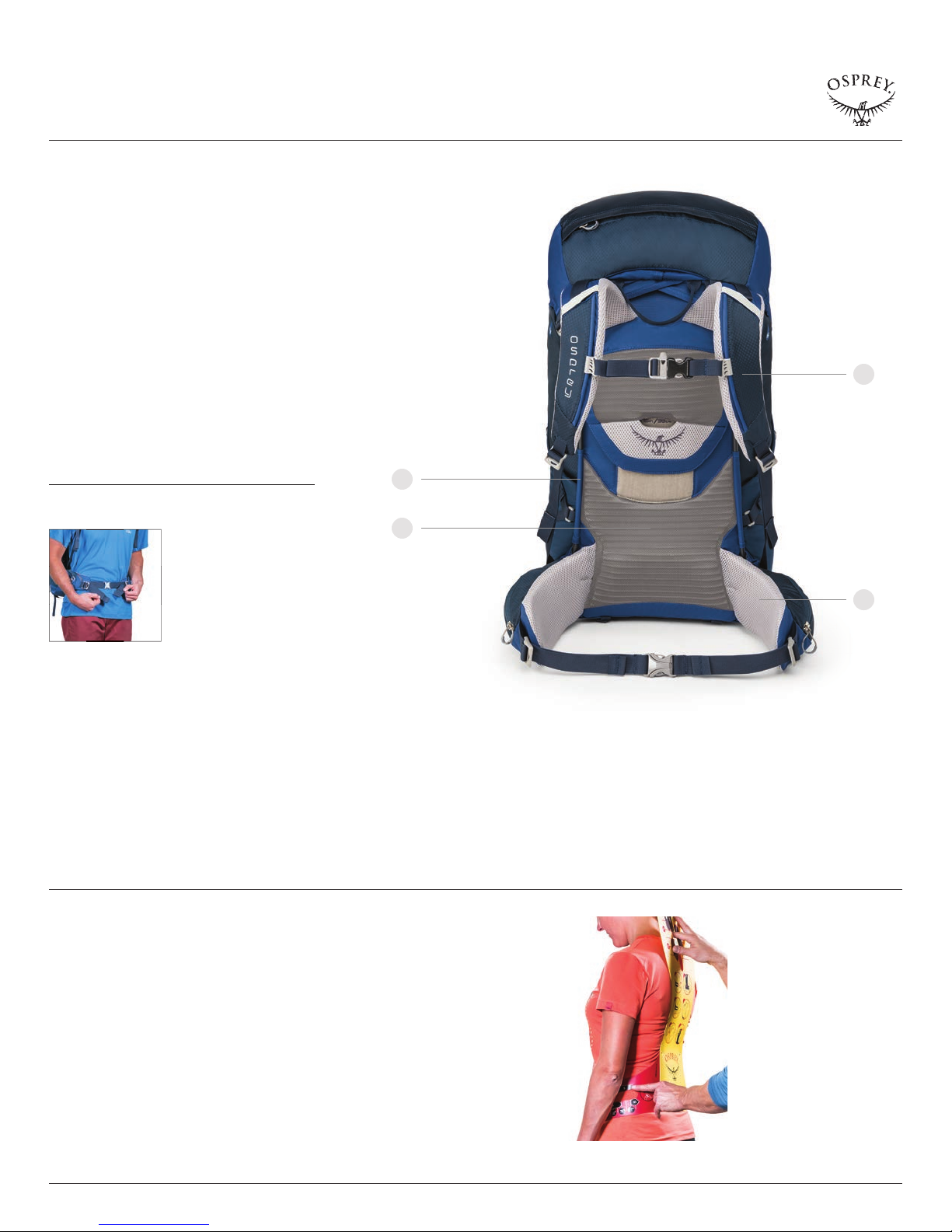

SUSPENSION
1 SUSPENSION
+ LightWire™ frame and 1.2mm HDPE framesheet
2 AIRSCAPE™ BACKPANEL
+ Mesh covered ridged foam
3 SPACERMESH HARNESS
+ Adjustable seamless spacermesh harness
+ Adjustable sternum strap with rescue whistle buckle
4 SPACERMESH HIPBELT
+ Fit-On-the-Fly™ adjustable hipbelt (75L / 50L)
+ Fixed spacermesh padded hipbelt (38L)
4
3
1
2
MODIFIED ERGOPULLTM HIPBELT
75L / 50L
Osprey's ErgoPullTM design creates extra leverage when cinching down the hipbelt.
A Loosen the hipbelt webbing so the hipbelt is loose enough to be buckled
around the waist.
B Grab the loose ends of the webbing on both sides and pull in and across the
body evenly with both hands at the same time.
KIDS' SIZING AND FIT
Correct fit and sizing is vital for kids heading out on the trail. Kids, like adults, need to
have their hips and torso measured to determine the appropriate size pack. The Ace
Series' adjustable harness system and Fit-on-the-Fly™ hipbelt offers a wide range of
sizing options. This allows each liter version of the Ace to fit a wide variety of users as
well as to adjust in size for kids as they grow. Along with fit and sizing, it is recommended
to limit the pack load to 15-20% of the user’s body weight. More than this could put
excessive weight on the spine and back muscles and cause injury. Please help make the
experience enjoyable and safe for the future generations of the outdoor community.
For more information on Osprey's custom fit and sizing visit ospreypacks.com.

ACE SERIES 5
SIZING / FIT
B E
A
C
D
A

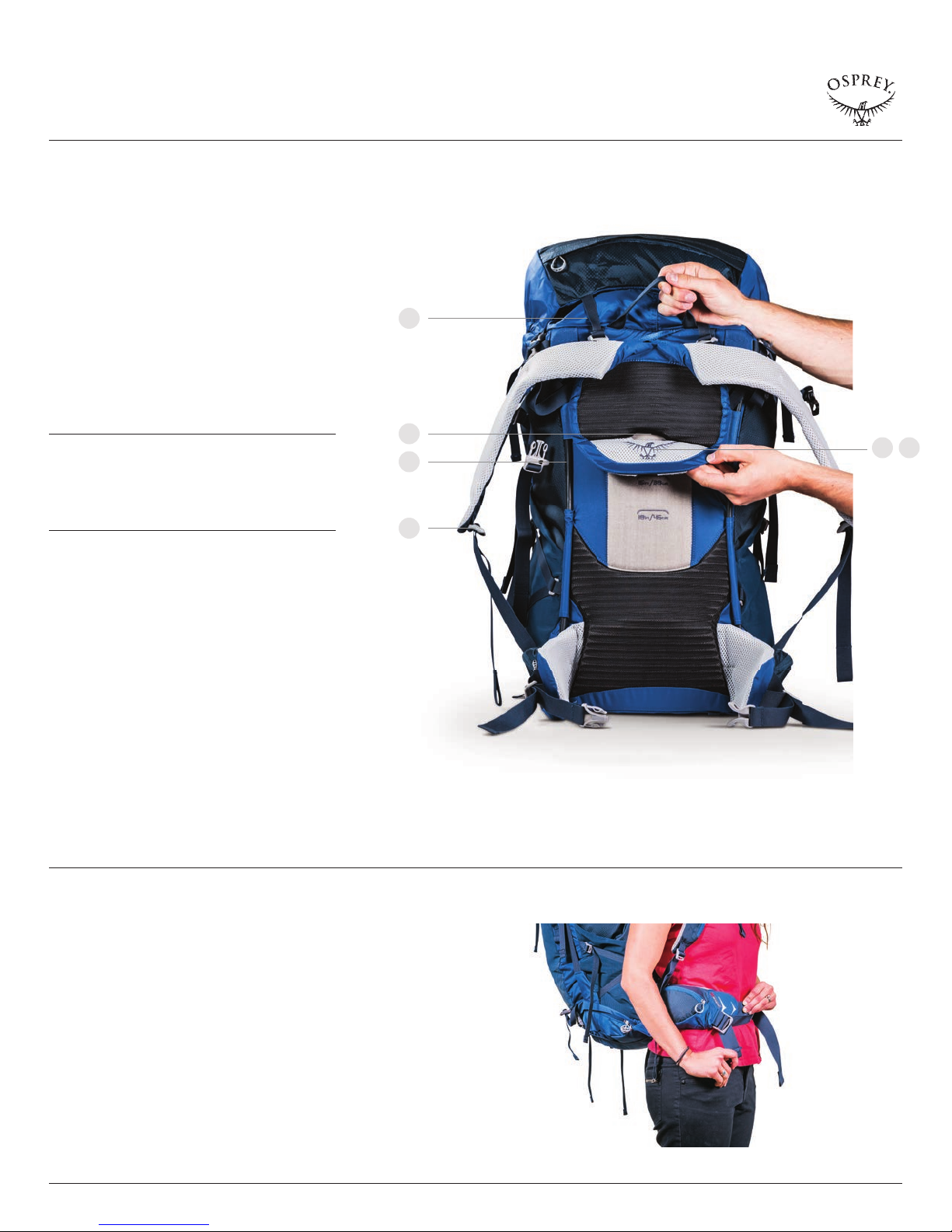

ADJUSTABLE HARNESS
The harness is adjustable up to 5"/13cm, providing a stable and
comfortable carry for a variety of users. To adjust the harness:
A Completely loosen the load lifters and harness straps.
B Located on the backpanel of the pack is a flap with the Osprey
bird icon. Flip up the flap disengaging the hook and loop
closure.
C Slide the harness into place along the LightWire™ frame.
D The measurements shown in the window, located above the
Osprey bird icon, are a fit guide to help with adjusting the
harness to the right size.
E Once the harness is adjusted to the appropriate size push down
the flap to reengage the flap's hook and loop closure.
TORSO SIZING
ACE 75 (AGES 11–18*)
O/S 14-20" / 35-51 cm
ACE 50 (AGES 8–14*)
O/S 1 3-18 " / 33-46 cm
ACE 38 (AGES 6–11*)
O/S 1 1-1 5" / 29-38 cm
* Recommended age range. Height and weight may vary from child to child.
LOAD RANGE
Children should not carry more than 15-20% of their body weight.
FIT-ON-THE-FLY™ HIPBELT
75L / 50L
The-Fit-on-the-Fly™ hipbelt pad extends up to 5” /15cm to accommodate
diff erent hip sizes providing a custom fi t. To adjust the hipbelt:
A Locate the adjustment icon on the hipbelt and slide a hand between the fi xed
hipbelt and the adjustable pad to separate the hook and loop closure.
B Slide the hipbelt insert pad into position so that it wraps around your hipbones.
C Press fi rmly to reengage the hook and loop closure.
D Extend the pads the same distance on both hipbelt wings so the pack weight is
distributed evenly.

ACE SERIES 6
FEATURE DETAILS
REMOVABLE SLEEPING PAD STRAPS
75L / 50L / 38L
Sleeping pad straps allow for quick, secure external gear
attachment. They can be fully removed to save weight.
DAISY CHAIN ATTACHMENT POINTS
75L / 50L / 38L
Dual front panel daisy chains provide multiple
attachment points for external gear storage options.

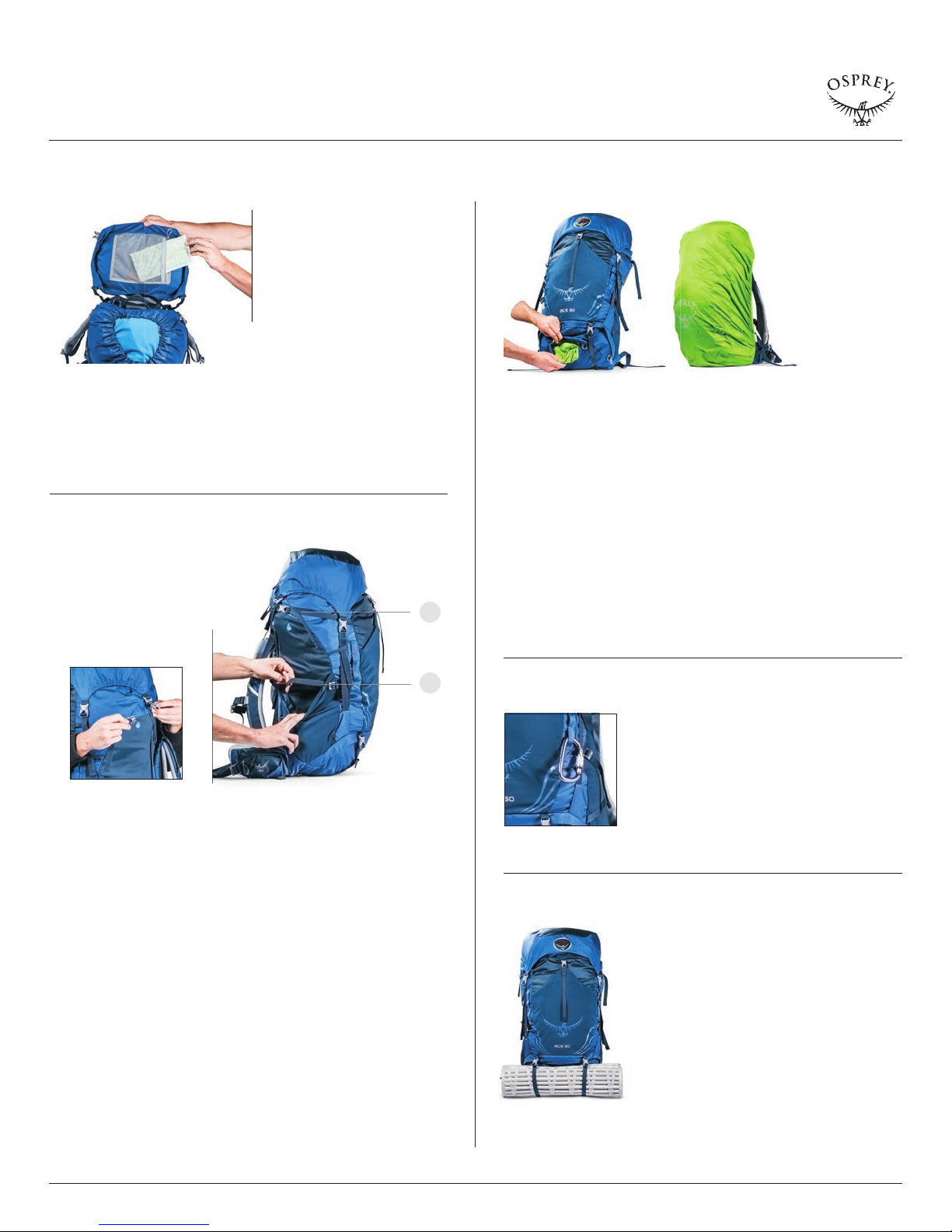

INTEGRATED RAINCOVER
75L / 50L / 38L
The integrated, removable raincover provides pack protection in
adverse conditions.
A Locate the raincover icon near the base of the pack and unzip the
raincover compartment.
B Pull the raincover from the compartment and slip it over the top and
bottom of pack using the peripheral elastic to hold it in place.
C Reverse this process to return raincover to compartment.
D To remove the raincover altogether, unfasten the toggle from the cord
loop and remove.
Note: To prevent mildew, allow the raincover to dry entirely before storing.
TOP LID POCKET
75L / 50L / 38L
A zippered top pocket with an underlid zippered mesh pocket and internal
key clip provides storage for often needed items.
1 DUAL SIDE COMPRESSION STRAPS
75L / 50L / 38L
Dual upper side compression/carry straps with a quick release buckle aid in
compressing and stabilizing loads for optimal carry.
2 INSIDEOUT™ COMPRESSION STRAPS
75L / 50L / 38L
Osprey’s InsideOut™ compression straps allow you to create tension and easily
secure loads in the dual stretch mesh side pockets. To route the InsideOut™
compression straps:
A Locate the duckbill buckle at the top and side of each side pocket and
unthread the webbing.
B Route the webbing by positioning the slider buckle inside or outside of the
side pocket and reverse the process.
1
2

ACE SERIES 7
FEATURE DETAILS

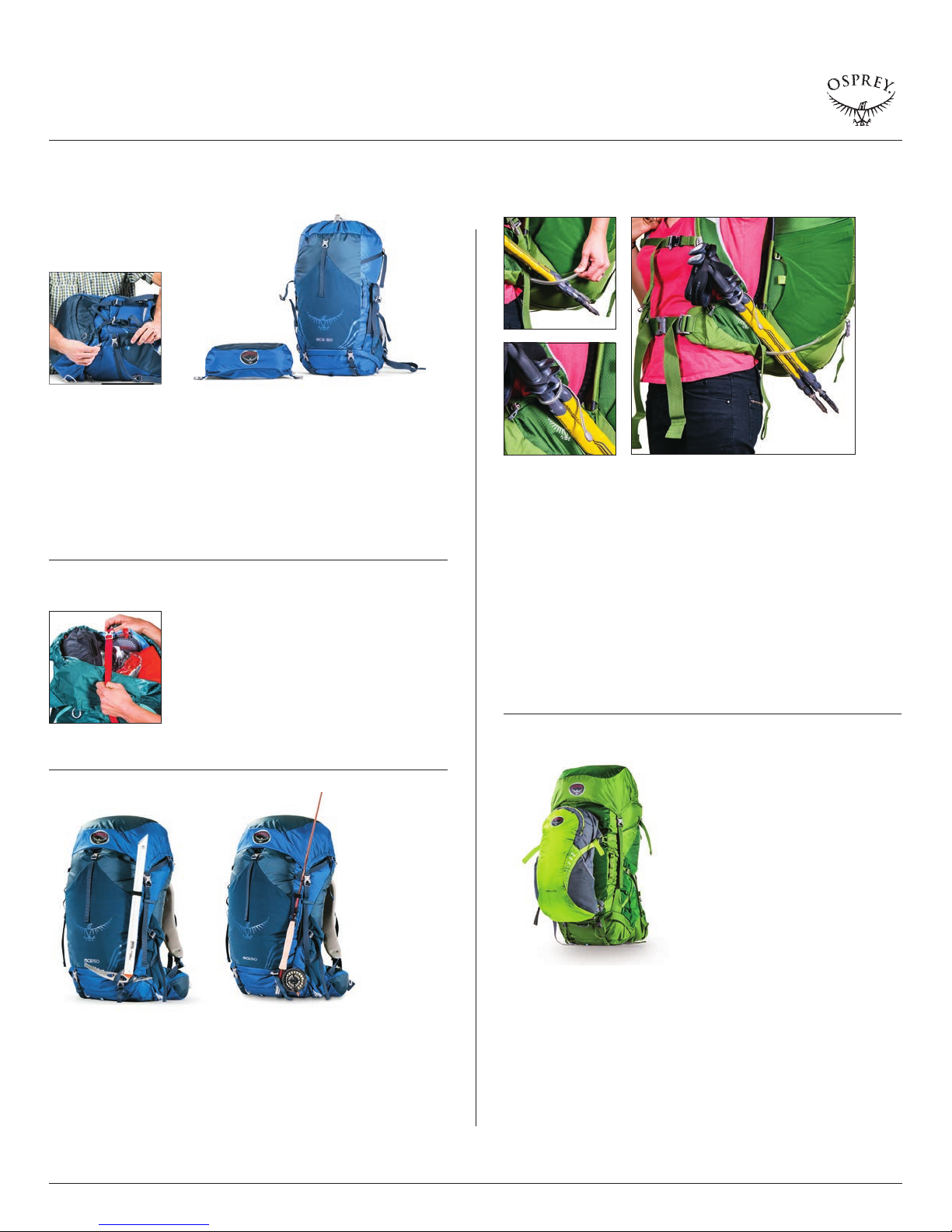

REMOVABLE FLOATING TOP LID
75L / 50L
The fl oating top lid can extend to accept oversized loads or can be removed from
the pack body. The top lid is attached to the pack body using a three-point vector
strap system for easy adjustment with variable loads. Unthread the side ladder
buckle and slide the strap through the sewn-in slider buckles on the backpanel. To
reattach, reverse this process.
INTERNAL COMPRESSION STRAP
75L / 50L
Once your pack is loaded, clip and tighten the red
internal compression strap to stabilize the load.
ICE TOOL/FISHING ROD LOOP
75L / 50L
The single gear loop located at the base of the front panel of the pack is provided
for fi shing rod or ice tool carry and works in conjunction with your own rigging to
provide stable, secure carry.
STOW-ON-THE-GO™ TREKKING POLE ATTACHMENT
75L / 50L
Osprey's Stow-on the-Go™ trekking pole attachment is designed to
quickly attach and carry trekking poles while wearing a pack.
A Adjust the trekking poles to their minimum length.
B Locate the elasticized loop on the lower left side of pack. While
pulling the loop out from the pack, insert the basket end of the
trekking poles into the loop.
C On the left harness strap locate the trekking pole icon. Pull up on the
cord to open, place pole handles in the loop and tighten with the cord
lock to secure.
D Reverse these steps to remove the trekking poles.
DAYLITE PACK / ALPINE POCKET ATTACHMENT
75L
There are four cord loops on the front of the pack for attaching an Osprey
Daylite pack or Alpine Pocket.
A Locate the four sliders on the upper and lower straps of the Daylite.
B Align the sliders with the four cord loops on the larger pack.
C Push each slider through the cord loop.
D Tighten the straps to secure.

8
ACE SERIES
PACK / RESERVOIR MAINTENANCE
Your Osprey pack is an extremely durable product and is built for years of use.
However, some basic pack maintenance will help ensure your pack lasts a lifetime.
For complete instructions on cleaning your Osprey pack,
visit: ospreypacks.com/PackTech/PackCare.
OSPREY PACKS
STANDARD MAINTENANCE
+ After each trip be sure to clean out your pack thoroughly.
+ Clean the zippers regularly using mild soap, warm water and soft brush. This will
help keep them in proper working condition.
+ If your pack is wet, hang it to dry out of direct sunlight.
+ Loosen all the straps.
+ Wash your pack if dirt, sweat, salt and stains have worked their way into fabrics,
webbing or mesh.
(Do not immerse travel packs in water with our HighRoad™ Wheeled Chassis.)
WASHING YOUR PACK
A Empty the pack including any food, dirt or spilled contents.
B If your pack has a removable harness and hipbelt, remove them from the pack body.
C Do NOT wash your pack in a washing machine. Clean your pack and components
in a bathtub or large sink using a mild detergent and warm water.
D Agitate the pack gently. Scrub the inside and outside of all compartments
including the pockets with a soft brush.
E Clean the zippers using a mild soap, warm water and a soft brush. Flush water
and soap through the buckles. Keeping dirt and debris out of the zippers and
buckles will help keep them in proper working condition.
F Drain the dirty water from the bathtub or sink and refi ll with cool clean non-
soapy water. Rinse the pack thoroughly. Repeat this step as neccessary.
G Hang your pack to dry outside or in a well ventilated area, out of direct sunlight.
WHEELED TRAVEL LUGGAGE
(Do not immerse travel packs in water with our HighRoad™ Wheeled Chassis.)
A After each trip, empty the pack including any food, dirt or spilled contents.
B Clean the zippers regularly using mild soap, warm water and soft brush. This will
help keep them in proper working condition.
C Wipe the exterior of the chassis with a damp cloth or sponge.
D Clean the pack fabric by scrubbing stains and dirt with warm water, mild
detergent and a soft brush or sponge.
E Use a wet towel with clean non-soapy water to wipe away any soap residue on
the pack.
F Hang your pack to dry outside or in a well ventilated area, out of direct sunlight.
RECOMMENDED CLEANING PRODUCTS
Osprey recommends Nikwax® products for pack care. Be sure to read
label directions carefully before applying any product to your pack.
Tech Wash® - Use this with warm water for washing and cleaning your
packs or luggage.
Tent & Gear Solar Proof® - Use this spray-on product to protect your packs from
UV exposure and to improve water repellency.
OSPREY RESERVOIRS
RESERVOIR STANDARD MAINTENANCE
+ Our reservoir’s anti-microbial formula prevents most mold and bacteria growth.
+ Rinsing out your reservoir after each use should keep your reservoir fresh,
especially when using sugary drink mixes.
+ Periodically use Osprey's Hydraulics™ Cleaning Tablets to clean your reservoir.
+ Iodine or other purifying tablets used in your reservoir will not aff ect the quality
of your reservoir. However these tablets may stain the reservoir over time.
+ Freezing your reservoir will not eff ect the quality of the reservoir. However if the
reservoir is fi lled with water, be aware that water expands when it freezes and
can damage your reservoir if it is overfi lled.
+ Do NOT pour boiling water into the reservoir. This can damage the reservoir and
will void your warranty.
+ Watch “Cleaning an Osprey Hydraulics™ Reservoir” video on Osprey Packs
YouTube® page.
CLEANING YOUR RESERVOIR (WITH OSPREY HYDRAULICS™ CLEANING TABLETS)
A Fill reservoir with warm water. Do not use bleach or boiling water.
B Add one cleaning tablet to reservoir and close the cap.
C Let tablet dissolve for 5 minutes with the reservoir laying on its back.
D Shake the reservoir for 30 seconds to mix and spread the solution.
E Pinch the bite valve and squeeze the reservoir to remove air and fi ll the
reservoir hose and bite valve with solution.
F Let the reservoir sit for 15 minutes and then pour out solution.
G Rinse the reservoir and tube with clean cool water.
H Hang your reservoir to dry in a well ventilated area.
DEEP CLEANING YOUR RESERVOIR (WITH OSPREY HYDRAULICS™ CLEANING KIT)
1 Rinse out the reservoir and fi ll it with warm water and a mild dish detergent.
Do not use bleach or boiling water.
2 With the large cleaning brush from Osprey's Hydraulics™ Cleaning Kit scrub the
interior of the reservoir.
3 Remove the hose from the reservoir and the bite valve from the hose and use
the small brush from Osprey's Hydraulics™ Cleaning Kit to scrub the interior of
the hose.
4 Remove the silicone bite valve cover and clean it and the bite valve with warm
soapy water.
5 Rinse the interior and exterior of the reservoir, hose and bite valve parts with
cool clean water.
6 Let the hose and bite valve dry in a well-ventilated area.
7 Insert Osprey's Hydraulics™ Cleaning Kit drying rack into the reservoir and
hang to dry in a well ventilated area.
For complete instructions on cleaning your Osprey reservoir watch,
“Cleaning an Osprey Hydraulics™ Reservoir” at youtube.com/ospreypacks.

ospreypacks.com
OWNER'S MANUAL
OSPREY ACCESSORIES
Customize and protect your pack with Osprey’s full line of accessories.
For the full lineup, please visit your local Osprey retailer or visit:
ospreypacks.com.
PACK YOUR PACK
Loading your pack correctly optimizes comfort while
you are carrying it. For complete information visit:
ospreypacks.com/PackTech/HowToPackYourPack
GUARANTEE
At Osprey, sustainability is designed into our packs, which are built to
last a lifetime and backed by a superb guarantee, no matter how hard
you are on your gear. Visit ospreypacks.com for details.
QUESTIONS?
Contact Osprey Customer Service. Real help from real people.
Scroll over the customer service tab at ospreypacks.com.
OSPREY PACKS, INC.
115 PROGRESS CIRCLE
CORTEZ, CO 81321 USA
866-284-7830
S15 - UPDATED 11/14
www.ospreypacks.com/PackTech/OwnersManuals
에서 사용자 설명 서를다운로드하세요
KR
ospreypacks.com/PackTech/OwnersManuals
