OTS XB-OTS-80 User manual

THERMAL SHOCK CHAMBER
THREE-BOX TYPE
XB-OTS-80
** Thank you for your esteemed company to buy our products
** The operation is simple to use, but the wrong operation will cause the accidents and shorten the life of the
device or reduce its performance. Therefore, please be sure to familiarize yourself with this manual before
use.
** Please keep this manual.

CONTENTS
I. Product Overview............................................................................................................................... 1
II. Operation Instruction....................................................................................................................... 2
Operation Screen.............................................................................................................................. 3
Detailed monitoring screen...............................................................................................................5
Function set.......................................................................................................................................6
Programme set.................................................................................................................................. 8
III. Thermal Shock Type...................................................................................................................... 10
Type 1: H→L MODE..................................................................................................................... 10
Type 2: L→H MODE..................................................................................................................... 11
Type 3: N→H→N→L MODE........................................................................................................11
Type 4: N→L→N→H MODE....................................................................................................... 12
IV. Programme Link.............................................................................................................................12
Curve Diagram............................................................................................................................... 13
Data.................................................................................................................................................14
Reservation set................................................................................................................................15
Display set...................................................................................................................................... 15
Signs............................................................................................................................................... 16

Dongguan Xin Bao Instrument Co., Ltd
Add: The 3rd Industrial Zone, Chashan Town, Dongguan. Tel: [phone] www.ots-testequipment.net
1
I. Product Overview
Model
XB-OTS-80
Temp Range
-40~150℃
Internal Size
40*50*40cm (WHD)
External Size
150*175*165cm(WHD)
Power
AC 3Ø 480V 60Hz
Weight
900KG
Material
Internal: SUS304 stainless board;
External: High precision Japanese technology painting
Pic 1

Dongguan Xin Bao Instrument Co., Ltd
Add: The 3rd Industrial Zone, Chashan Town, Dongguan. Tel: [phone] www.ots-testequipment.net
2

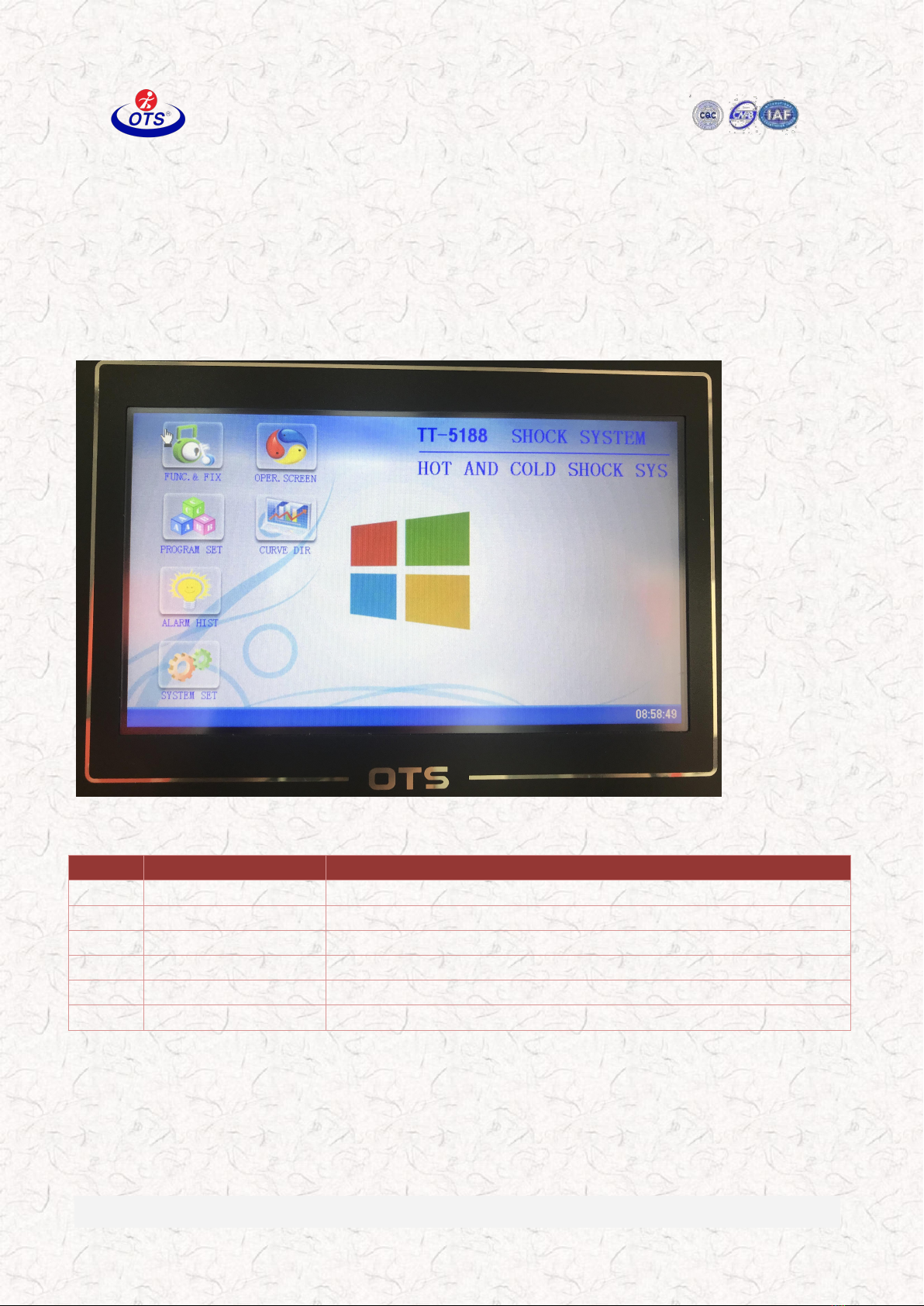

II. Operation Instruction
TT-5188 Programmable Thermal Shock Controlling System
Menu:
NO.
Name
Spec
1
FUNC. & FIX
Enter the operation interface
2
OPER. SCREEN
Observation interface.
3
PROGRAM SET
Enter to set parameters. 3 pages total.
4
CURVE DIR
Enter to display real time curve
5
ALARM HIST
Check all alarm time, recovery time and alarm content
6
SYSTEM SET
System set
Pic 2

Dongguan Xin Bao Instrument Co., Ltd
Add: The 3rd Industrial Zone, Chashan Town, Dongguan. Tel: [phone] www.ots-testequipment.net
3
Operation Screen
Pic 3
Pic 3-1 Pic3-2
Pic 3-3 Pic 3-4



④
③
⑤
⑥
⑦
⑧
⑨
⑮

Dongguan Xin Bao Instrument Co., Ltd
Add: The 3rd Industrial Zone, Chashan Town, Dongguan. Tel: [phone] www.ots-testequipment.net
4
1
Display current temp of test chamber
See Pic 3
2
Program is optional from NO. 1~ NO. 127. It can not be set under testing
See Pic 3-1
3
SP value: Set temperature in thermal shock
See Pic 3
4
MV value: PID output value in tetsing
See Pic 3
5
CYCLE: set/ actual cycle
See Pic 3
6
RUN TIME: Thermal shock time of current phase
See Pic 3
7
SEG TIME: Set time for current phase
See Pic 3
8
PRS TIME: Total running time since the machine starts operating.
See Pic 3
9
KEEP: Click this button the test will stop timing.
See Pic 3
10
STEP: 3 conditions to skip the segment
1. Press ‘STEP’ and enter run statement when machine is saving energy.
2. The machine do not time if the temp is not reached to requirement in testing.
Press ‘STEP’ it starts timing.
3. Press ‘STEP’ to enter the next segment when the machine is under testing and
timing.
See Pic 3
11
Cold shock→Hot shock /Red part is running time
See Pic 3-2
12
Hot shock→Cold shock
See Pic 3-3
13
Cold shock→RT→Hot shock
See Pic 3-4
14
Hot shock→RT→Cold shock
See Pic 3-5
15
NEXT: Enter detailed monitoring screen
See Pic 3
Pic 3-5

Dongguan Xin Bao Instrument Co., Ltd
Add: The 3rd Industrial Zone, Chashan Town, Dongguan. Tel: [phone] www.ots-testequipment.net
5

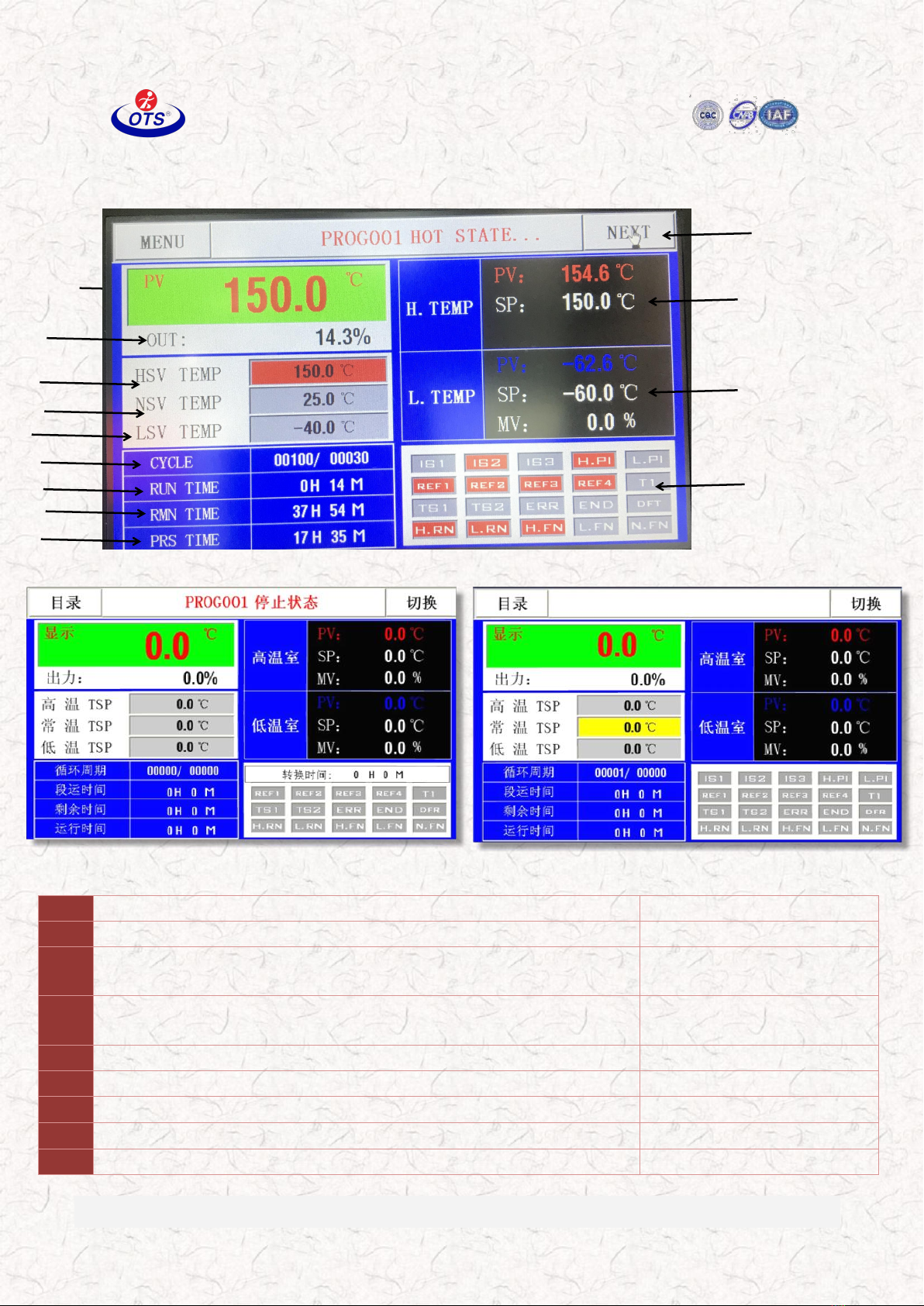

Detailed monitoring screen
⑦
1
Actual temp of current test.
See pic 4
2
OUT: PID output value in tetsing
See pic 4
3
H. TEMP
1. PV: Present value 2. SP: Set value 3. MV: PID output value
See pic 4
4
L. TEMP
1. PV: Present value 2. SP: Set value 3. MV: PID output value
See pic 4
5
HSV TEMP: Set value of high temp
See pic 4
6
NSV TEMP: Normal temp (related with room temperature)
See pic 4
7
LSV TEMP: Set value of low temp
See pic 4
8
CYCLE: Set/Actual running cycle
See pic 4
9
RUN TIME: Current shock time
See pic 4
①
Pic 4
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬
Pic 4-1 Pic 4-2

Dongguan Xin Bao Instrument Co., Ltd
Add: The 3rd Industrial Zone, Chashan Town, Dongguan. Tel: [phone] www.ots-testequipment.net
6
Function set
10
RMN TIME: The time remaining for the current program, such as the
execution of a jump segment or maintenance during execution, may be
different from the actual one.
See pic 4
11
PRS TIME: Total running time since the machine motivates.
See pic 4
12
Monitoring of current output
See pic 4
13
NEXT: Enter the current curve monitoring
See pic 4
14
Running time of segment

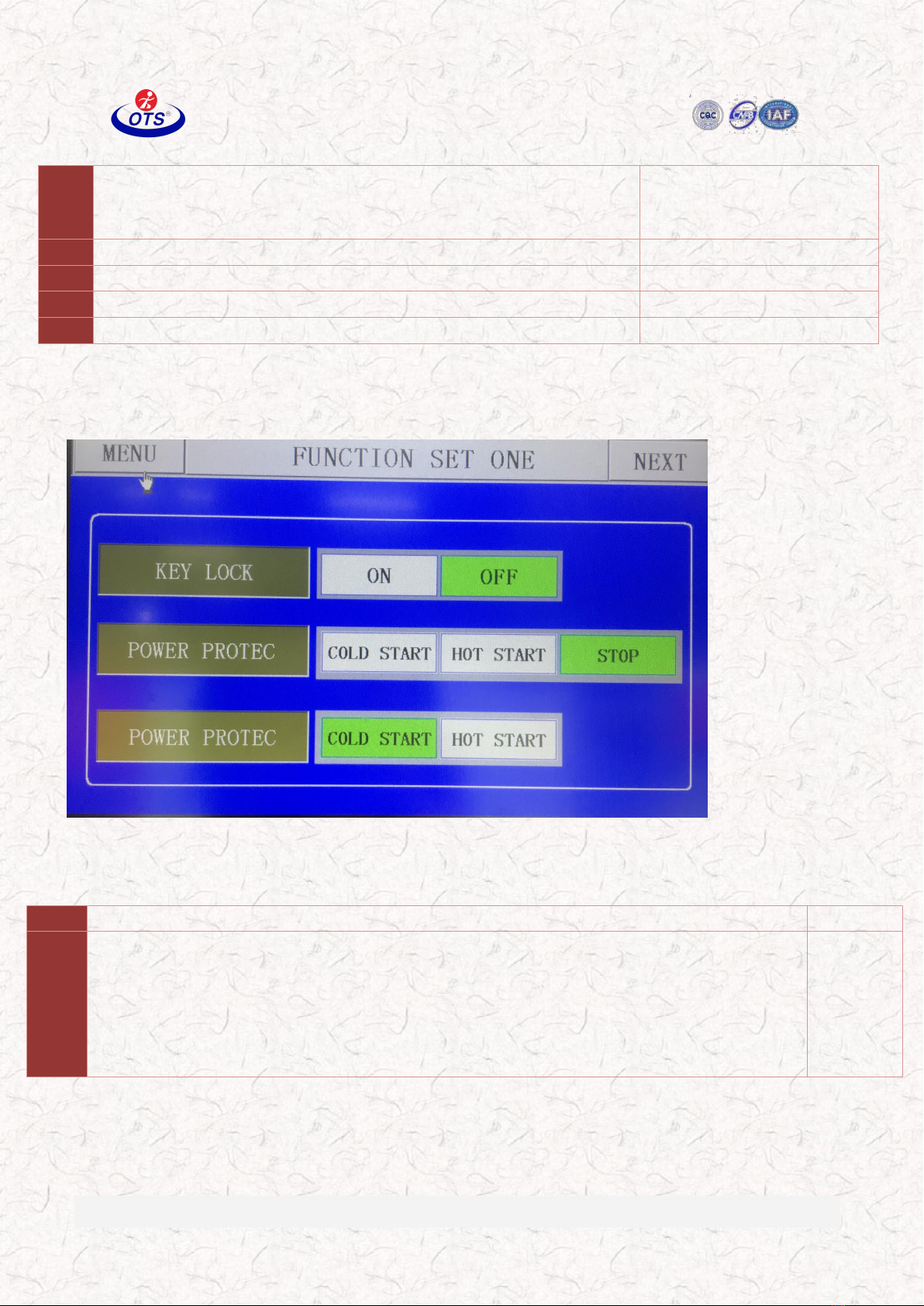

1
KEY LOCK: All operations locked in the ‘ON’, press ‘OFF’ to unlock it.
See pic 5
2
POWER PROTECT:
COLD START: Automatic start from segments and move to the next segment if the power
stops accidentally.
HOT START: Automatic start from segments and move to the next segment if the power stops
accidentally.
STOP: No automatic running if the power stops accidentally.
See pic 5
Pic 5-1

Dongguan Xin Bao Instrument Co., Ltd
Add: The 3rd Industrial Zone, Chashan Town, Dongguan. Tel: [phone] www.ots-testequipment.net
7
1
DEFROST TEMP: Low temp in defrosting.
See pic 5-2
2
DEFROST TIME: Time set. Unit: Minutes
See pic 5-2
3
CYC SV/PV: Defrost cycles
See pic 5-2
4
DEFROST: MAN DEFROST
See pic 5-2
5
NEXT: Press to enter the monitoring interface.
See pic 5-2
Pic 5-2

Dongguan Xin Bao Instrument Co., Ltd
Add: The 3rd Industrial Zone, Chashan Town, Dongguan. Tel: [phone] www.ots-testequipment.net
8

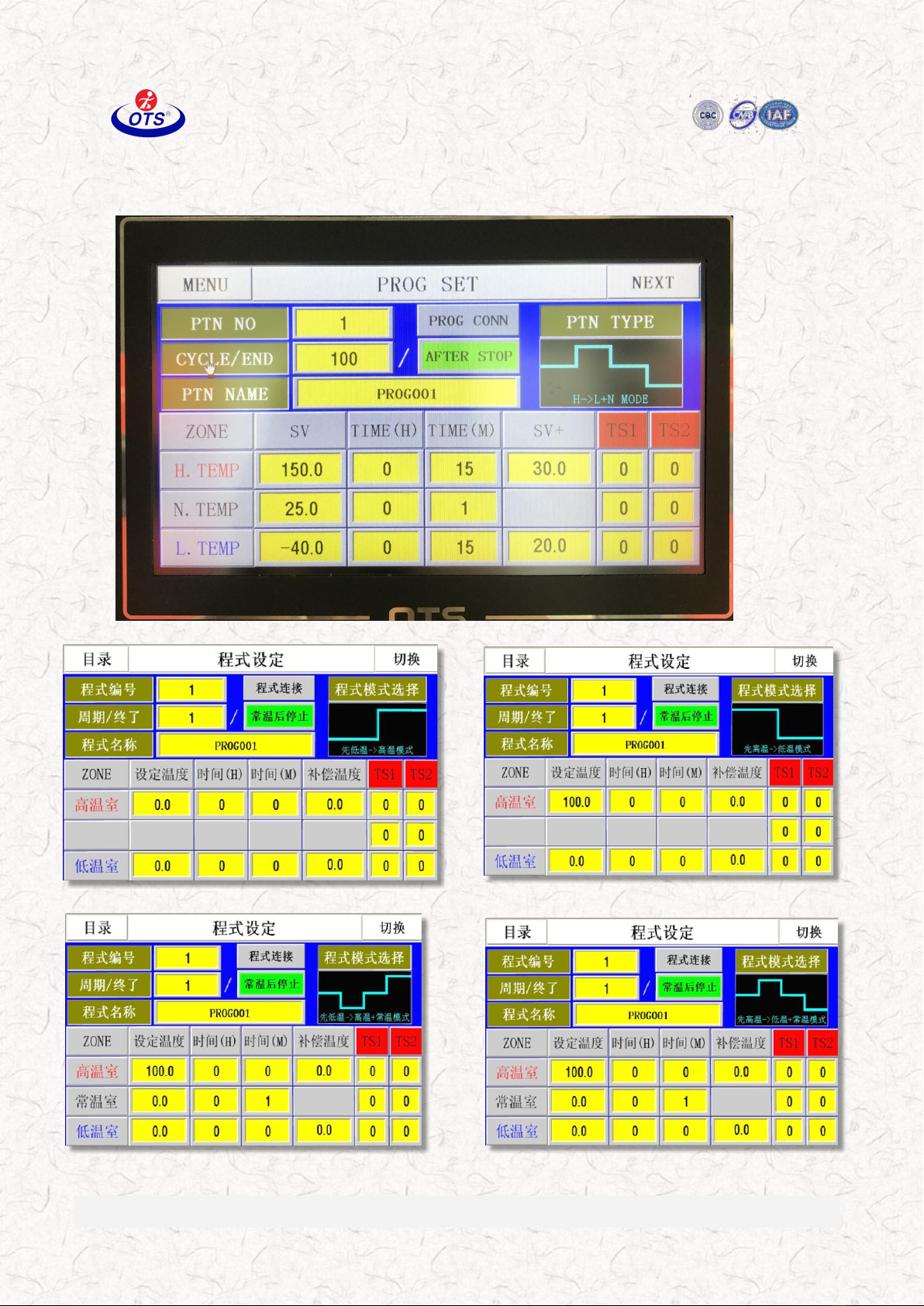

Programme set
Pic 6
Pic 6-1 Pic 6-2
Pic 6-3 Pic 6-4

Dongguan Xin Bao Instrument Co., Ltd
Add: The 3rd Industrial Zone, Chashan Town, Dongguan. Tel: [phone] www.ots-testequipment.net
9
1
PTN NO: NO. 1~127 optional
See pic 6
2
PTN NAME: Set name in Chinese/English
See pic 6
3
PTN TYPE: 4 modes optional
See pic 6-1~4
4
CYCLE/END:
Total circles of the segment/Operation function after ending the segment.
Stops after normal temp shock
Stops after defrosting
Machine is in hot and cold energy storage state.
Stops after the last shock test
See pic 6-1~4
5
SV: Set value of each segment
See pic 6
6
TIME(H): Set time of each segment. Unit: Hours
See pic 6
7
TIME(M): Set time of each segment. Unit: Minutes
See pic 6
8
SV+: Compensation temp of each segment. Such us:
1. High temp set value is 100 ℃, compensation temp is 10 ℃. Total
storage value is 110℃.
2. Low temp set value is -20℃, compensation temp is 5℃. Total storage
value is -25℃.
See pic 6
9
TS1,TS2: Set output type of each segment. Press TS1/TS2
See pic 6-1~4
10
NEXT: Enter PROG SET 2
See pic 6
AFTER STOP
AFTER STOP
READY
STOP

Dongguan Xin Bao Instrument Co., Ltd
Add: The 3rd Industrial Zone, Chashan Town, Dongguan. Tel: [phone] www.ots-testequipment.net
10

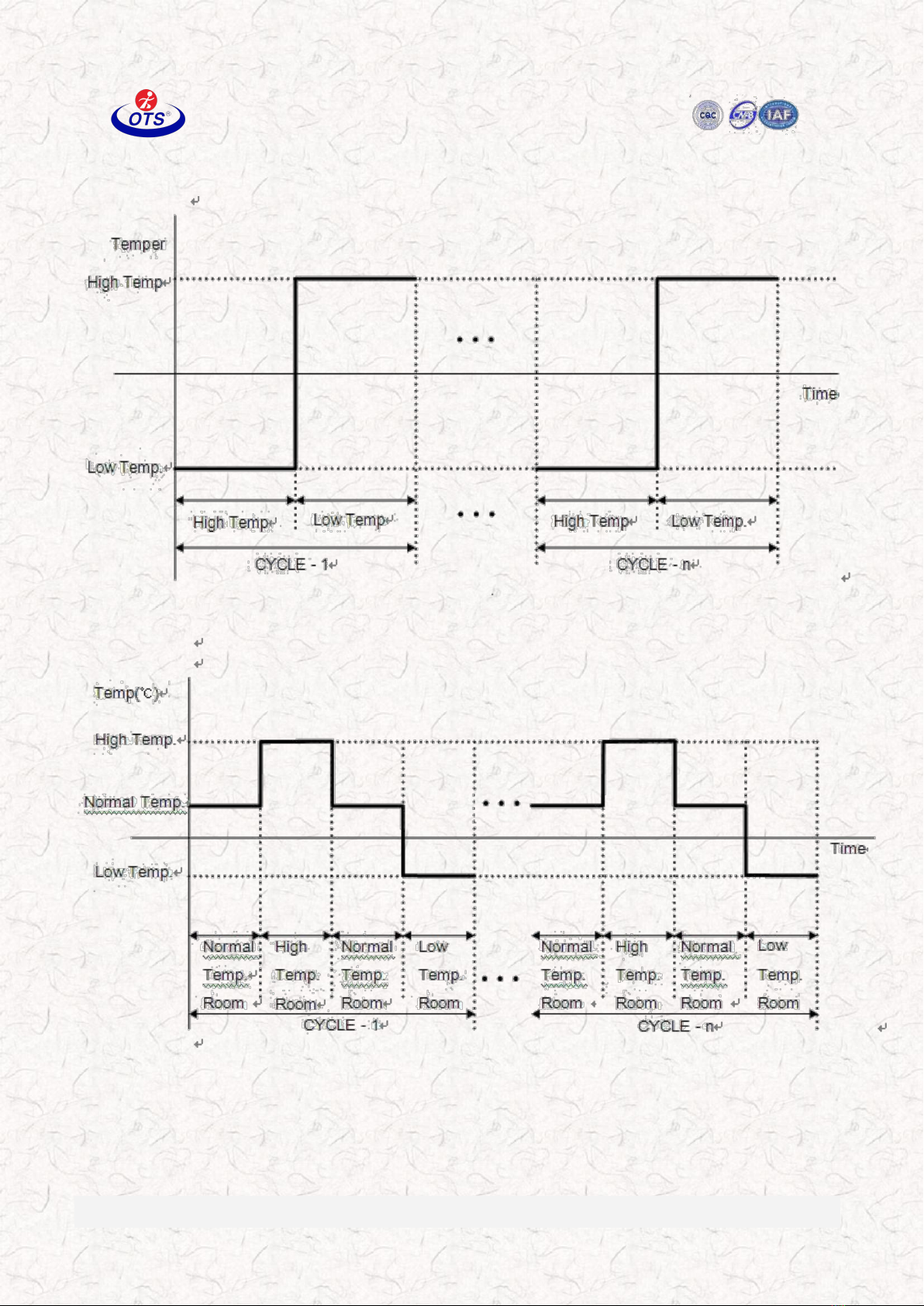

III. Thermal Shock Type
Thermal shock types:
Type 1: H→L MODE

Dongguan Xin Bao Instrument Co., Ltd
Add: The 3rd Industrial Zone, Chashan Town, Dongguan. Tel: [phone] www.ots-testequipment.net
11
Type 2: L→H MODE
Type 3: N→H→N→L MODE

Dongguan Xin Bao Instrument Co., Ltd
Add: The 3rd Industrial Zone, Chashan Town, Dongguan. Tel: [phone] www.ots-testequipment.net
12
Type 4: N→L→N→H MODE
IV. Programme Link

Dongguan Xin Bao Instrument Co., Ltd
Add: The 3rd Industrial Zone, Chashan Town, Dongguan. Tel: [phone] www.ots-testequipment.net
13
1
OFF-ORDER: Don’t enter the next programme when current one finishes.
ON-ORDER: Enter the next programme when current one finishes.
2
PROG CONN CYC SV: ‘0’ means no to enter the next programme when current finishes.
3
NOW: Total cycles.
Curve Diagram
1
Press to display or hide the curve
See pic 7-1
2
SAMPL: Sample time, 60S is original set.
See pic 7-1
3
RANGE: Curve range. Y axis can be changed.
See pic 7-1
4
TIME: Time range of each page can be changed.
See pic 7-1
5
Press the curve to display time and value of this part.
See pic 7-1
6
DOWN: Download the current curve diagram.
(Insert USB disk →press DOWN and wait for 20S→Exit and pull the USB
disk)
See pic 7-2
7
CHOOS: Press to check start and end time of the curve.
See pic 7-1
Pic 7-1 Pic 7-2

Dongguan Xin Bao Instrument Co., Ltd
Add: The 3rd Industrial Zone, Chashan Town, Dongguan. Tel: [phone] www.ots-testequipment.net
14

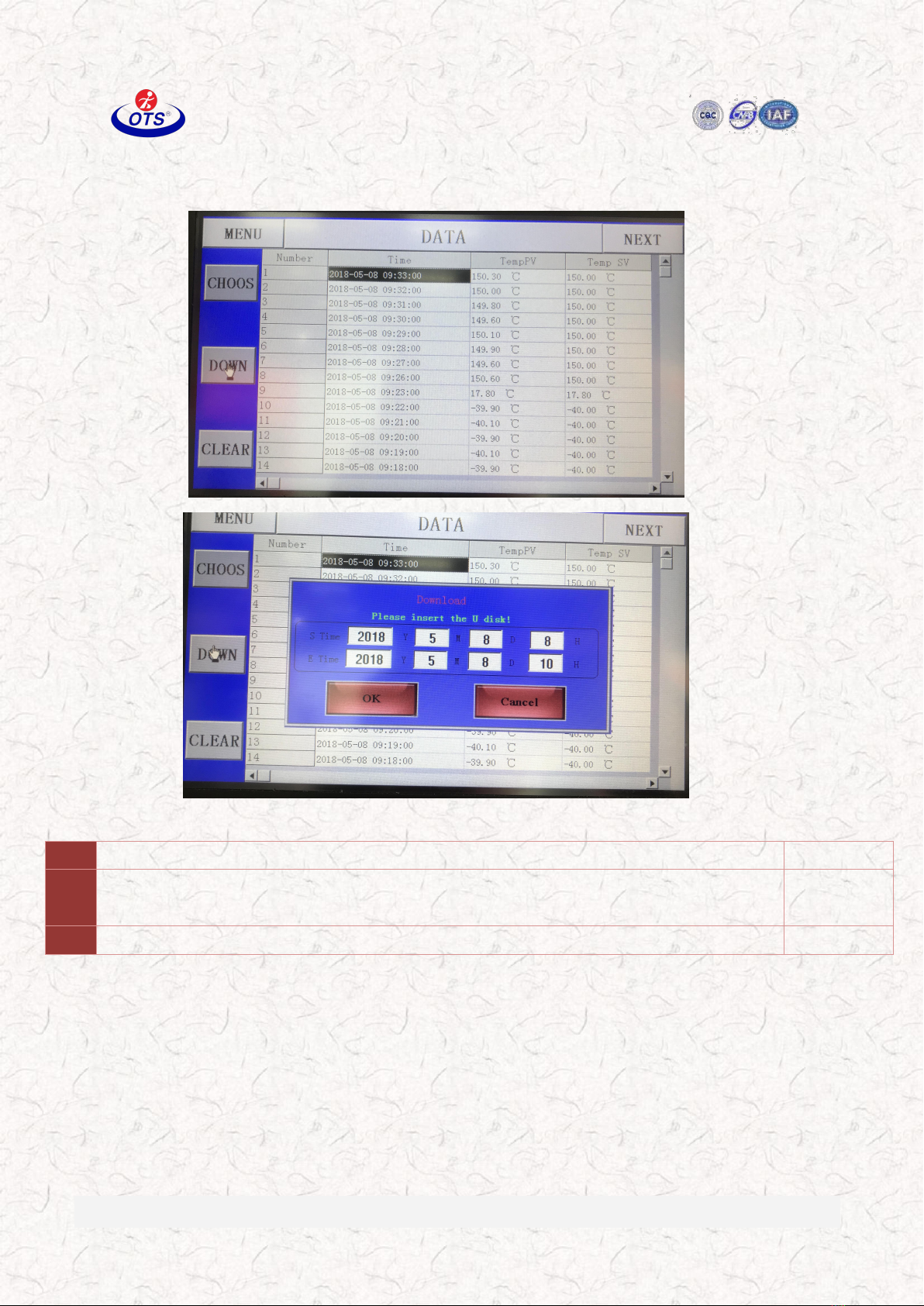

Data
1
CHOOS: Press to check start and end time of the data.
See pic 8-1
2
DOWN: Download the data.
(Insert USB disk →press DOWN and wait for 5 minutes →Exit and pull the USB disk)
See pic 8-2
3
CLEAR: Clear all data.
See 8-1
Pic 8-1
Pic 8-2

Dongguan Xin Bao Instrument Co., Ltd
Add: The 3rd Industrial Zone, Chashan Town, Dongguan. Tel: [phone] www.ots-testequipment.net
15
Reservation set
Display set
1
CURRENT TIME: When system time is incorrect, adjust the right time here.
See pic 8
2
RESERVA SET: Set the time in advance, the machine will automatically motivate when
reach it on the basis of right power connection.
See pic 8
1
LANGUAGE: Chinese/English optional
See pic 9
2
TUNING KEY: ON: The set button will appear on the monitoring interface
See pic 9
3
LIGHT OFF: Automatic screen protection time.
See pic 9
Pic 8
Pic 9

Dongguan Xin Bao Instrument Co., Ltd
Add: The 3rd Industrial Zone, Chashan Town, Dongguan. Tel: [phone] www.ots-testequipment.net
16

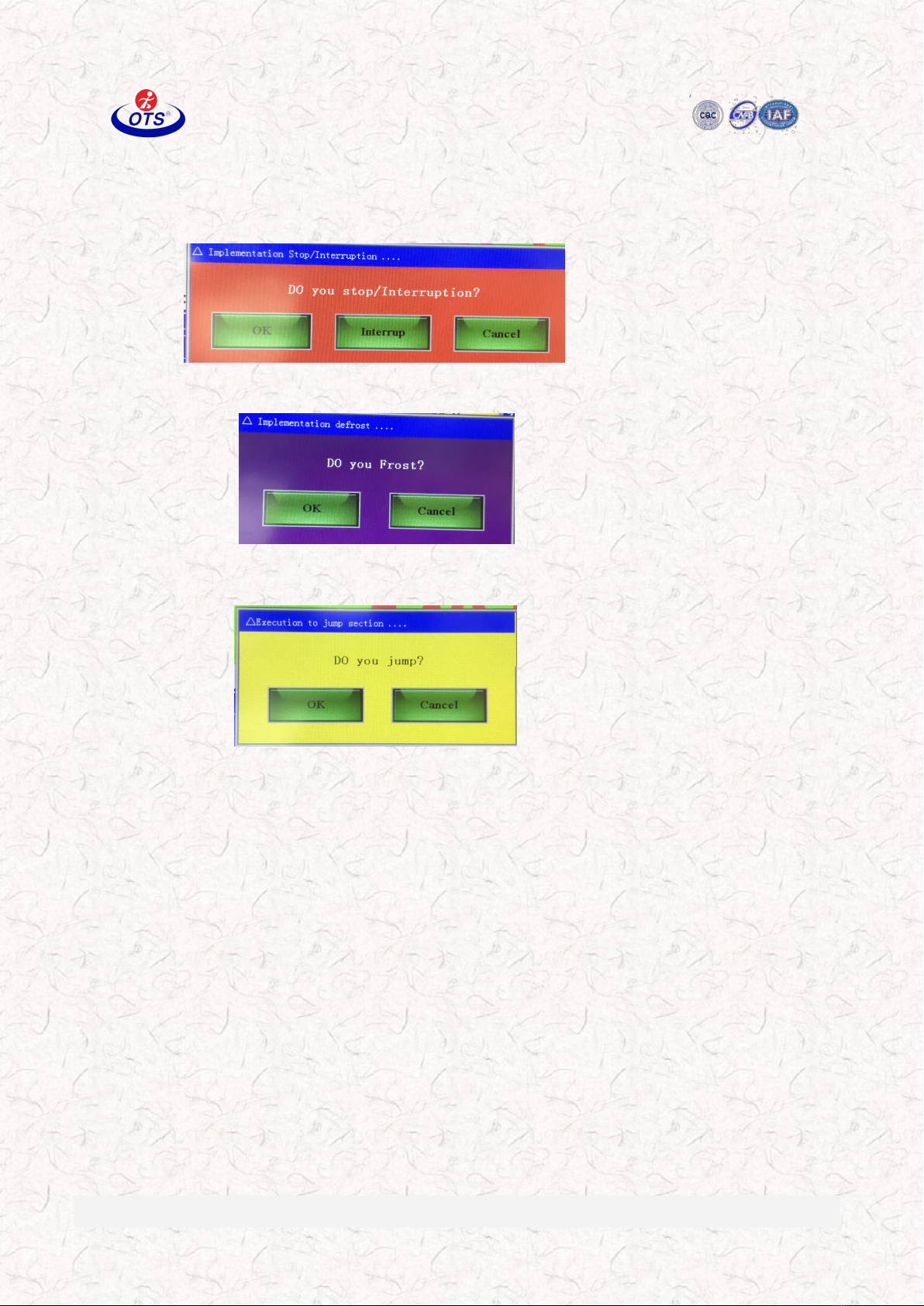

Signs
Stop a programme
Manually defrost
Step a programme
