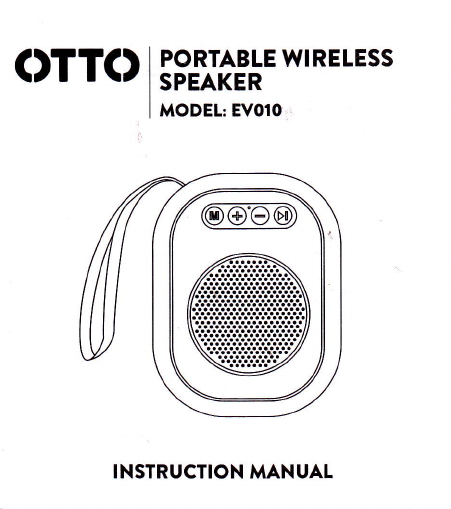

Otto EV010 User manual

PORTABLE WIRELESS
SPEAKER
MODEL: EY01O
INSTRUCTION MANUAT

ffi
711-mll
u/ \\w,y//
Front \---27
@ Play/pause/call button
O Previous track/volume down
@Microphone
@Change mode
@Next tracUvolume up
@USB Flash drive port
@MicroSD card port
@On/off button
@Micro USB charging port
@Status light
@Carrying strap
. Model: EV010
. fficeworks product code: OTEV010B/OTEV010C/OTEV010NB
. Bluetooth version: 5.0
. USB charging voltage: DC 5V 1A
. Built-in 300mAh rechargeable lithium battery
. Operating distance: up to'10 metres
. Output:40, 3W
. Play time: Up to 3 hours
. Stand by time: Up to 10 hours
. Charging time: 1.5 hours 1

Bluetooth pairing
. Tum on the Bluetooth speaker by sliding the power switch
to the left. Speaker plays "Power On". Enable the Bluetooth
feature on the device and initialise the search function.
Select Bluetooth lD 'EV010' and confirm to pair with. (To
disconnect the []luetooth connection, disable the Bluetooth
feature on the connected device.)
Power on/off
. Slide the power switch to the left to power on the speaker.
Agreeting tone "Power On" will play.
. Slide the power switch to the right to power off the speaker.
Playing music
'After pairing, launch music app on mobile device,
press >[ key to start playing music and press again to
pause.
Skipping music track
. Press once on $ button to skip to the next track.
. Press once on - button to skip to the previous track.
Volume up / down
. Press and hold either - orS button to adjust the volume
to the desired level.

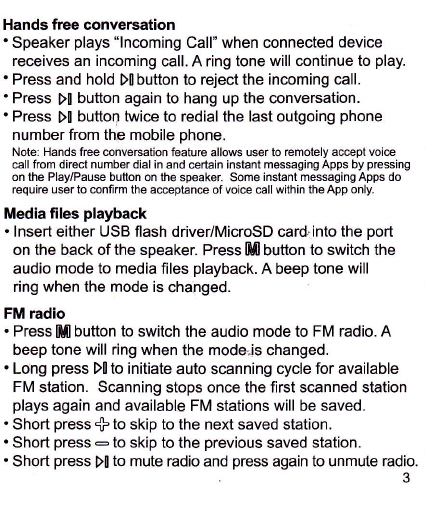

Hands free conversation
'Speaker plays "lncoming Call" when connected device
receives an incoming call. A ring tone will continue to play.
' Press and hold D[ button to reject the incoming call,
'Press D[ bufton again to hang up the conversation.
'Press D[ button twice to redial the last outgoing phone
number from the mobile phone.
Note: Hands free conveEation feature allows user to remotely ac@pt voi@
€ll from direct number dial in and certain instant messaging Apps by pressing
on the Play/Pause button on the speakel Some instant messaging Apps do
require user to @nfirm the acceptance of voie €ll within the App only.
Media files playback
. Insert either USB flash driver/MicroSD card,into the port
on the back of the speaker. Press lM button to switch the
audio mode to media files playback. A beep tone will
ring when the mode is changed,
FM radio
. Press frfl bufton to switch the audio mode to FM radio. A
beep tone will ring when the modeis changed.
. Long press D[ to initiate auto scanning cycle for available
FM station. Scanning stops once the first scanned station
plays again and available FM stations will be saved.
. Short press $ to skip to the next saved station.
. Short press - to skip to the previous saved station.
. Short press >[ to mute radio and press again to unmute radio.
3

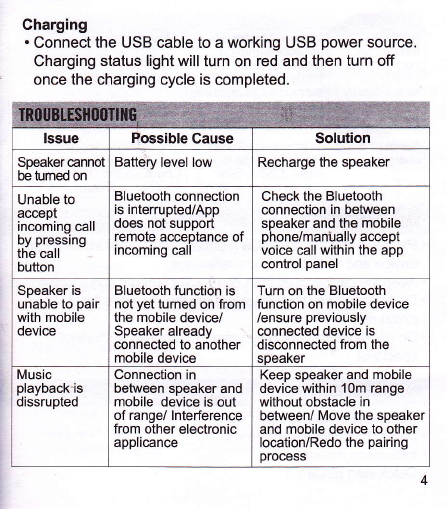

Charging
. Connect the USB cable to a working USB power source
Charging status light will turn on red and then turn off
once the charging cycle is completed.
Possible Cause Solution
Speaker cannot
be tumed on Batlery level low Recharge the speaker
Unable to
accept
incoming call
by pressing
the call
bufton
Bluetooth connection
is interruptediApp
does not support
remote acceptance of
incoming call
Check the Bluetooth
connection in between
speaker and the mobile
phone/mantually accept
voice call within the app
control panel
Speaker is
unable to pair
with mobile
device
Bluetooth function is
not yet turned on from
the mobile device/
Speaker already
connected to another
mobile device
Turn on the Bluetooth
function on mobile device
/ensure previously
connected device is
disconnected from the
Music
playback"is
dissrupted
Connection in
between speaker and
mobile device is out
of range/ lnterference
from other electronic
applicance
Keep speaker and mobile
device within 10m range
without obstacle in
between/ Move the speaker
and mobile device to other
location/Redo the pairing
process

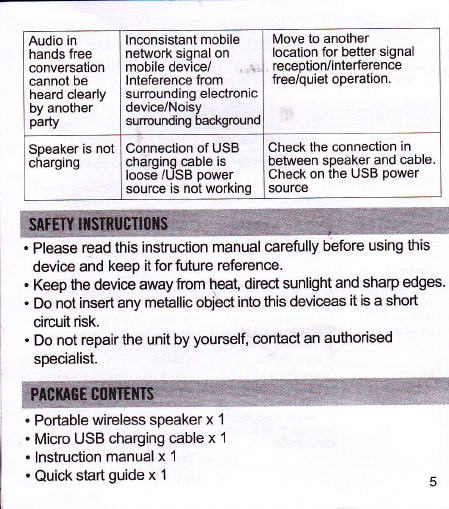

Audio in
hands free
conversation
cannot be
heard clearly
by another
party
Inconsistant mobile
network signal on
mobile device/
lnteference from
surrounding electronic
device/Noisy
sunounding background
Move to another
location for better signal
Speaker is nol
charging Connection of USB
charging cable is
loose /USB power
source is not working
Check the connection in
between speaker and cable.
Check on the USB power
source
. Please read this instruction manual carefully before using this
device and keep it for future reference.
. Keep the device away fom heat, direct sunlight and sharp edges.
. Do not insert any metallic object into this deviceas it is a short
circuit risk.
. Do not repair the unit by yourself, contact an authorised
specialist.
. Portable wireless speaker x 1
. Micro USB charging cable x 1
. lnstruction manual x 1
. Quick start guide x 1

fficeworks Ltd wanants that this product will be free from
defects and work as intended for 3 years fom the date of
purchase by the original customer.
lf the product has any defects or does not work as specified
during the Wananty Period, Officeworks will, at its election
and at its expense, repair or replace the product.
This wananty does not apply:
. to cosmetic damage;
. to damage caused by consumables used in connection with
the product (such as batteries);
. where the product has not been used in accordance with all
provided instructions;
. to damage arising from fair wear and tear;
. where the product has not been subject to reasonable use;
. where the product has been intentionally or negligently
damaged; and/or
. if the customer has attempted to repair the product.
To make a claim under this wananty, please retum your
product with your receipt or proof of purchase to your nearest
Officeworks store or contact 1300 633 423.

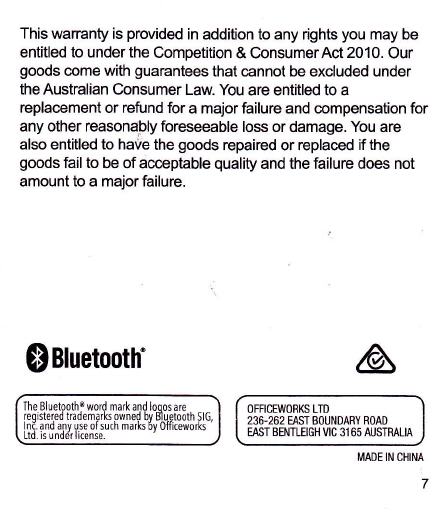

This wananty is provided in addition to any rights you may be
entitled to underthe Competition & ConsumerAct2010. Our
goods come with guarantees that cannot be excluded under
theAustralian Consumer Law. You are entitled to a
replacement or refund for a majorfailure and compensation for
any other reasonAply foreseeable loss or damage. You are
also entitled to havb the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not
amount to a major failure.
SHuetooth'
The Bluetootho word markand looos are
reoistered trademark owned bv Bluetooth 5lc.
lni.andanvuseof such marksbv0ffi(eworks'
Ltd. is unddr license.
OFFICEWOR(S LTD
236-262 EAST BOUNDABY ROAD
EAST BEN'ILEIGH VIC 3165 AUSTMLIA
MADE IN CHINA
