Otto REVO NC2 V2-R2BT1213 User manual

SPEAKER MICROPHONE
The Bluetooth®Revo NC2
brings wireless convenience
and HD Voice audio to
a speaker mic. It offers
hands-free listening, a
noise-canceling mic and
clear, convenient, push-to-
talk audio transmissions for
Bluetooth®-enabled two-way
radios, mobile phones and
tablets.
BLUETOOTH®REVO NC2
Models V2-R2BT1513 and V2-R2BT1213

2
SAFETY PRECAUTIONS
Please read these safety warnings and cautions carefully
to ensure your personal safety and prevent property damage.
USE AND SAFETY CAUTIONS
• Do not drop, disassemble, open, crush, bend, deform, puncture, shred,
microwave, incinerate, paint, or insert foreign objects in to the OTTO
Bluetooth®Revo NC2 Speaker Microphone. Such actions could result in
electric shock.
• Do not expose your the speaker microphone to extremely high or low
temperatures or leave in direct sunlight for extended periods of time.
• Do not leave your speaker microphone near open flames such as cooking
burners, candles, or fireplaces. Do not dispose in a fire. The battery could
explode, causing injury or death.
• Do not block any ventilation openings, which could cause battery hazard.
• Do not immerse in water. If accidentally immersed, wait until the speaker
microphone is completely dry before attempting to power on.
• Do not attempt to repair, modify or disassemble your speaker
microphone; it does not contain any user serviceable components.
• Dispose of the speaker microphone and the battery in accordance with
local regulations.
ELECTRIC SHOCK CAUTIONS
• Only charge the battery in temperatures between 32°F - 113°F (0°C -
45°C).
• Do not attempt to disassemble the speaker microphone or force open the
built-in battery.
• Do not charge the unit in damp areas.
• Do not attempt to replace your speaker microphone battery; it is built-in
and is not changeable.
• Be sure the USB port is dry before plugging in the charging cable.

3
Bluetooth®REVO NC2
INTRODUCTION
The Bluetooth®Revo NC2 features an ergonomic design ideal for
demanding public safety, disaster recovery and emergency response
teams, or teams using Bluetooth®-enabled two-way radios, phones and
tablets to extend its communications network.
Compatible with selected two-way radios and mobile apps like ESChat®
and Zello, the Bluetooth®Revo NC2 wireless connects to Bluetooth®-
enabled devices to allow hands-free listening and clear, convenient,
push-to-talk voice transmissions.
It may also be used to wirelessly receive phone calls and listen to music
on mobile devices.
• Built-in HD-Voice audio ensures transmission clarity.
• Top-mounted microphone offers unparalleled passive noise-
canceling performance.
• Integrated rechargeable battery provides up to 12 hours of
service. Charges easily via the included USB cable.
• Built-in debris screen keeps dust and dirt from impacting
transmission clarity.
• Meets MIL-STD-810G for high performance in harsh
environmental conditions including 40 mph blowing rain.
• Compatible with selected Bluetooth®-enabled two-way radios.
smartphones and tablets.

4

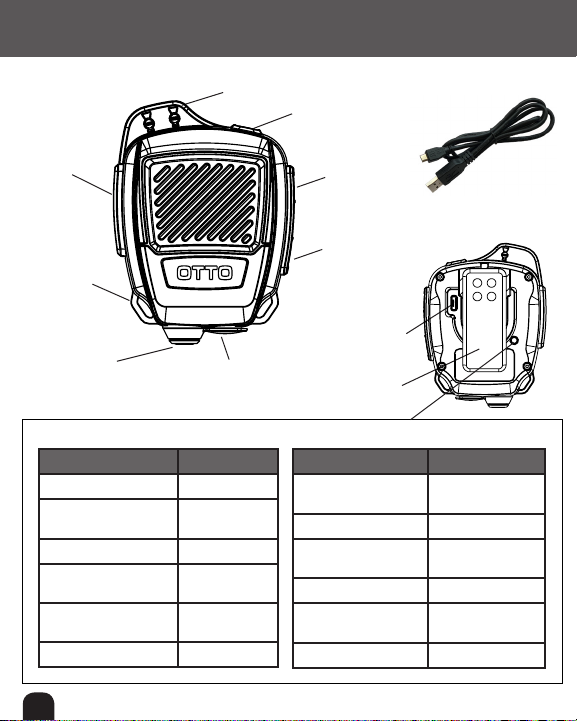

SUPPLIED EQUIPMENT
Push-to-Talk
Button
Noise-Canceling Microphone
Emergency
Button
Volume
Down
Button
Multi-function
On/Off Button Earphone Jack
with Cover 360° Rotating
Clothing Clip
Micro USB
Charging Port
USB to Micro-USB
Charging Cable
Lanyard
Loops
Volume
Up
Button
LED Indicator Light
Color Indicates
Solid Red Charging
No Light when
charging
Charging is
complete
Red fast flash twice Low Battery
Red and Blue flash
together 3 times
Power On
complete
Red and Blue flash
together 3 times
Power Off
complete
No Light Powered Off
Color Indicates
Alternating Red and
Blue flash continuously
Ready to Pair
Blue flash 10 times Pairing Complete
Blue fast flash twice
every 5 seconds
Paired
Blue fast flash 3 times Incoming Call
Red and Blue flash
together every 5 secs.
Music Mode
Flashing Red and Blue Charging Error

Bluetooth®REVO NC2
5
OPERATION
Figure 1

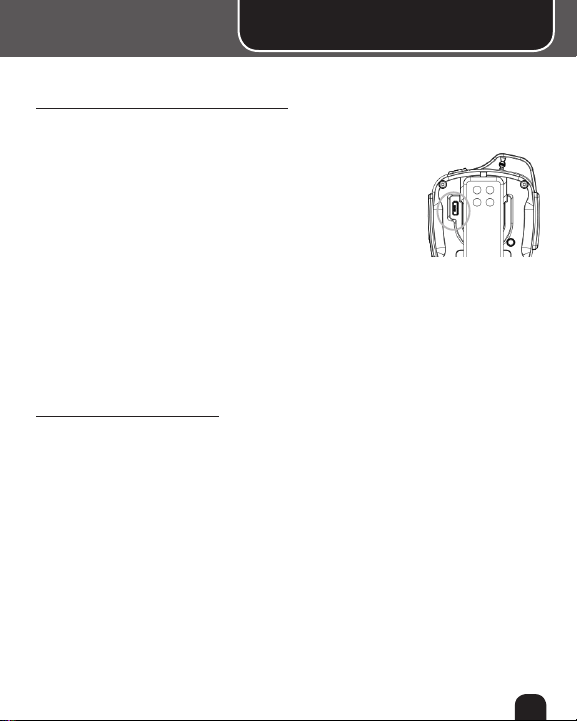

Charge the Speaker Microphone
The Bluetooth®Revo NC2 is powered by an integrated rechargeable
battery. The battery should be fully charged before first use.
• Plug the charging cable into the Micro-USB
charging port on the back of the unit (Figure
1). Plug the other end of the cable into a USB
port in a computer, vehicle or wall charger.
• The red indicator light will show solid red
while charging and will turn off when the unit
is fully charged. Battery charge time is approximately 3 hours.
• The rechargeable battery will supply approximately 12 hours of
service before recharging is needed.
• Low battery is indicated by a flashing red indicator light.
Power On/Off the Unit
• Push and hold the multi-function button for 3 seconds or until
the red and blue indicator lights flash 3 times and you hear a
series of tones. When power is on, the blue light will flash once
every 3 seconds until the unit is paired.
• To turn off, push and hold the multi-function button for 3
seconds or until the red and blue indicator lights flash again 3
times and you hear a different series of tones.
• If the speaker mic is not paired with a device within 5 minutes,
the unit will automatically power off to conserve the battery.
• Wait 5 seconds after the unit powers down before turning it
back on to attempt to pair again.

6
OPERATION, CONTINUED
Pairing
The Bluetooth®Revo NC2 speaker microphone may be paired with a
compatible Bluetooth®-enabled two-way radio or mobile device. Once
connected, the microphone and speaker of the Bluetooth® Revo NC2
will be available for use.
When successfully paired, the Bluetooth®Revo NC2 will remain paired
with the device, even when the both the speaker microphone and the
paired device are powered down. There is no need to pair the two
again when powered back up.
1. To enable pairing mode, hold down the multi-function button
and the PTT button at the same time until you hear “Ready to
Pair” and the indicator light flashes red and blue.
2. Follow the pairing instructions in the user guide for your
mobile phone or tablet or your Bluetooth®-enabled two-way
radio.
3. Select “OTTO_PTT_RSM_XXXX” in the pairing menu on your
device. The Xs represent the serial number of your specific
Bluetooth® Revo NC2 speaker microphone.
4. The speaker microphone will emit a tone when pairing is
successful and the blue light will flash 10 times.
5. Pairing mode will time out after 150 seconds if the unit is not
successfully paired with a device. Repeat steps 1-4 to attempt
to pair again.
6. The Bluetooth®Revo NC2 speaker mic retains pairing
information for as many as six device. Check the Bluetooth®
menu on the device to be sure the speaker microphone is
paired with the correct device.

Bluetooth®REVO NC2
7
OPERATION, CON’T
Volume Controls
• Raise the volume in steps by briefly pushing the Volume +
button. Hold the button down to instantly reach maximum
volume.
• Lower the volume in steps by briefly pushing the Volume -
button. Hold the button down to instantly reach minimum
volume.

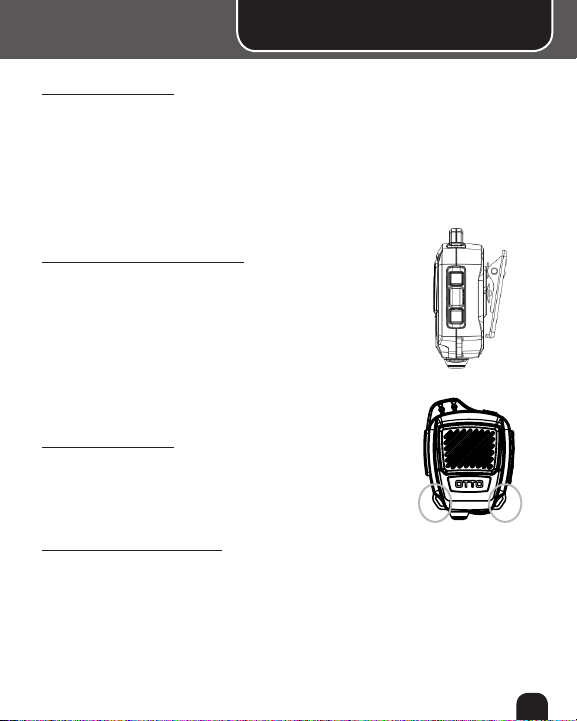

Attach to Belt or Clothing
The clip on the back on the Bluetooth®Revo NC2 can
be rotated 360° to the best position to attach to your
person. (Figure 2)
• Rotate the clothing clip on the back of the
speaker microphone to the preferred position.
• Attach to belt, shirt, lapel, ballistic vest or
other clothing for convenient operation.
Attach a Lanyard
To wear the speaker mic around your neck, simply
attach a lanyard to the loops on the sides of the
speaker mic (Figure 3).(Lanyard not included)
Attach an Earphone Kit
An optional earphone kit may be plugged into the audio jack to
silence the external speaker and enable private
listening. A full assortment of compatible earphone kits is available
at www.otto-comm.com.
Figure 2
Figure 3

OPERATING MODES
8
Two-Way Radio Functions
The Bluetooth® Revo NC2 connects wirelessly to compat-
ible two-way radios. To use the speaker microphone with
a radio, follow the instructions in the radio manufacturer’s
user manual.
• Push and hold the push-to-talk (PTT) button to
transmit messages to others in the network.
• Release the button to end transmission and allow
others to talk.
Mobile Device Functions
To set up the Bluetooth®Revo NC2 to use with popular public safety
mobile applications like ESChat or Zello, please follow the instructions
included in the apps.
Push-to-talk over Cellular Mode
• Push and hold the push-to-talk (PTT) button to transmit messages
to others in the network.
• Release PTT button to end transmission and allow others to talk.
Call Mode - Incoming calls are indicated by a ringing tone and a flash-
ing blue light.
• Answer Call: Push and release the multi-function button once. A
tone will sound.
• Reject Call: Push and hold the multi-function button for 3
seconds. “Call Rejected” will be heard.
• Hang Up: Push and hold the multi-function button for 3 seconds.
A tone will sound.

Bluetooth®REVO NC2
OPERATION, CON’T
9
Call Mode, continued
To toggle to a call waiting:
• Push and release the PTT button once to end the first call and
answer the second call.
• Push and release the multi-function button once quickly to
put the first call on hold and answer the second call. A tone
will sound every 15 seconds as long as a call is waiting.
• Push and release the multi-function button to toggle between
the calls.
• Push the multi-function button to hang up the active call and
make the call waiting the active call.
Music Mode - The speaker microphone will play music stored on a
mobile device.
• Choose the song/playlist on the mobile device and press play.
• Use Volume +/- buttons on the Bluetooth®Revo NC2 to
control the volume.
• Push and release the multi-function button to pause play.
Push and release again to resume play.
• Tap the Volume + button twice to skip forward one song.
• Tap the Volume - button twice to skip back one song.

• Clean the OTTO®Speaker Microphone only with a dry cloth.
• Do not clean the speaker microphone when it is being charged.
Always unplug the charger first before cleaning the speaker
microphone.
• Do not use abrasive cleaners to clean your speaker microphone
because this could cause scratches and damage.
CARE AND MAINTENANCE
SPECIFICATIONS
10
• Compatible with a growing number of two-way radios, smartphones
and tablets
• Battery discharge time is approximately 12 hours with an 80-10-10
duty cycle
• Noise-canceling Speaker Mic Sensitivity @94 dB SPL: -35 dB Typical.
• Bluetooth® operating range: 10 meters
• Bluetooth 5.0 wireless communication standard
• Meets MIL-STD-810G for high performance in harsh environmental
conditions including 40 mph blowing rain
• PTT switch life: 200,000 cycles
• Operating temperature: -20° C to +60° C
• Storage temperature: -40° C to +70° C
• 1-year warranty on battery; 2 years on speaker microphone

FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment has been verified to comply with the limits for a Class B computing device,
pursuant to FCC Rules. The user is cautioned that changes and modifications made to the
equipment without the approval of manufacturer could void the user’s authority to operate this
equipment.
INDUSTRY CANADA NOTICE
This device complies with Industry Canada’s license-exempt RSS standard(s). Operation is
subject to the following two conditions:
1. This device may not cause interference
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
1. l’appareil ne doit pas produire de brouillage
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
Bluetooth®REVO NC2
11

Information on Disposal of Old Electrical and Electronic Equipment (applicable
for EU countries that have adopted separate waste collection systems).
Products with the symbol (crossed-out wheeled bin) cannot be disposed
as household waste.
Old electrical and electronic equipment should be recycled at a facility
capable of handling these items and their waste by products. Contact
your local authority for details for locating a recycle facility nearest to you.
Proper recycling and waste disposal will help conserve resources while still
preventing detrimental effects on our health and the environment.
10 West Main Street • Carpentersville, IL U.S.A. 60110
Toll Free Phone: [phone]-OTTO (6886)
Phone: [phone] • Fax: [phone]
E-mail: [email protected]
www.otto-comm.com
804470 10/19 © 2019 OTTO Engineering, Inc.
For warranty information, customer service
or replacement parts, please contact:
Optional Earphone Kits Part Number
Earphone with acoustic tube, 3.5 mm right angle
plug, coil cord, black
V1-10433
Earphone with acoustic tube, 2.5 mm right angle
plug, coil cord, black
V1-10432
Dual Noise Attenuating Earphone, 3.5mm plug,
coil cord, black
VR10001
Dual Noise Attenuating Earphone, 2.5mm plug,
coil cord, black
VR10002
Additional accessory options are available at otto-com.com
