Outdoor Gourmet 163912 Owner's manual

Customer Service: [phone]
7:00 am to 12:00 am CST (daily)
Live Chat at: www.academy.com
Email: [e-mail]
----------------------OR--------------------
Customer Service: 1-888-837-1380, 8:00am to 5:00pm, PST
Monday thru Friday
Email: [e-mail]
(Made in China)
Please keep this instruction manual for future reference
Revision 1 –10/14
Assembly Instructions & User’s Manual
Sierra Barrel Smoker
Style Number: 163912 (CG2003701-OG)

Table of Contents
Note: Before beginning assembly of product, make sure
all parts are present. Compare parts with package content
list and hardware contents. If any part is missing or
damaged do not attempt to assemble the unit. Contact
customer service for replacement parts.
Warnings………………………………………………….….…………3-4
Exploded View…………………………..…….…………….………......5
Tools, Parts and Hardware………..…………..…………………..... 6-11
Assembly Instructions…………………………………................. 12-26
Preparation for use & Lighting instructions…………...................27-28
Operating Instructions………………………………………..……..29-31
Care and Maintenance………………………………………………….31
Warranty Information………………………………............................32
Page 2 of 32

Warnings
OUTDOOR USE ONLY!
Never use grill indoors. Carbon Monoxide poisoning can lead to death. Do not operate grill
indoors or in an enclosed space.
Only use this grill on a hard, level, non-combustible, stable surface (concrete, ground, etc.)
capable of supporting the weight of the grill. Never use on wooden or other surfaces that could burn.
DO NOT attempt to remove charcoal ash tray while coals are hot.
When grill is in use, keep clearance of 36” between the hot grill and any combustible materials,
such as bushes, trees, wooden decks, wooden fences, buildings, etc. Do not place hot grill under
roof overhang or in any other enclosed area.
The maximum weight of charcoal to be use is 6 pounds (2.7kg) for main grill, 4.4 pounds (2kg) for
side fire box. Too much charcoal may cause the surface coating peel off.
For outdoor use only. Do not operate grill indoors or in an enclosed area because of carbon
monoxide poisoning that can lead to death.
For non-commercial use only. Do not use this grill for other than its intended purpose.
We recommend the use of a Charcoal Chimney starter to avoid the dangers associated with
charcoal lighting fluid. If you choose to use charcoal lighting fluid, only use lighting fluid approved for
lighting charcoal. Carefully read manufacturer’s warnings and instructions on the charcoal lighting
fluid and charcoal prior to the use of their product. Store charcoal lighting fluid safely away from grill.
When using charcoal lighting fluid, allow charcoal to burn with grill lid and doors open until covered
with a light ash (approximately 20 minutes). This will allow charcoal lighting fluid to burn off. Failure
to do this could trap fumes from charcoal lighting fluid inside the grill and may result in a flash fire or
explosion when lid is opened.
Do not use gasoline, kerosene or alcohol for lighting charcoal. Use of any of these or similar
products could cause an explosion possibly leading to severe bodily injury.
Never add charcoal lighting fluid to hot or even warm coals as flashback may occur causing
severe burns.
Place grill in an area where children and pets cannot come into contact with unit. Close
supervision is necessary when grill is in use.
Do not leave grill unattended when in use.
Do not store or use grill near gasoline or other flammable liquids, gases or where flammable
vapors may be present.
Do not store lighter fluid or other flammable liquids or materials under the grill.
Use only a high grade plain charcoal or charcoal / wood mixture.
When adding charcoal and / or wood, use extreme caution and follow instructions in “Adding
Charcoal / Wood During Cooking” section of this manual.
Grill is hot when in use. To avoid burns:
DO NOT attempt to move the grill.
Wear protective gloves or oven mitts.
DO NOT touch any hot grill surfaces.
DO NOT wear loose clothing or allow hair to come in contact with grill.
Page 3 of 32

Warnings
Page 4 of 32
When grilling, grease from meat may drip into the charcoal and cause a grease fire. If this should
happen close lid to suffocate the flame. Do not use water to extinguish grease fires.
Use caution when opening the lid. Keep hands, face and body a safe distance away. Flash flare-
ups may occur when air comes into contact with fire or hot coals.
Never place more than 5 pounds (2.3 kg) on side table. Do not lean on the side table. Always
ensure side table is securely fastened.
Do not allow charcoal and/or wood to rest on the walls of grill. Doing so will greatly reduce the life
of the metal and finish of your grill.
Use caution during assembly and while operating your grill to avoid scrapes or cuts from sharp
edges of metal parts. Use caution when reaching into or under grill.
In windy weather, place grill in an outdoor area that is protected from the wind.
When opening lid, be sure lid is fully opened and secure to prevent lid from closing unexpectedly.
Close lid to suffocate flames.
Never leave coals and ashes in grill unattended. Before grill can be left unattended, remaining
coals and ashes must be removed from grill. Use caution to protect yourself and property.
Carefully place remaining coals and ashes in a non-combustible metal container and saturate
completely with water. Allow coals and water to remain in metal container 24 hours prior to
disposal.
Extinguished coals and ashes should be placed a safe distance from all structures and
combustible materials.
With a garden hose completely wet the surface beneath and around grill to extinguish any ashes,
coals or embers which may have fallen during the cooking or cleaning process.
After each use, clean the grill thoroughly and apply a light coat of vegetable oil to prevent rusting.
Cover the grill to protect it from excessive rusting.
Use caution when lifting or moving grill to prevent strains and back injuries.
We advise that a fire extinguisher be on hand. Refer to your local authority to determine proper
size and type of fire extinguisher.
Store the grill out of reach of children and in a dry location when not in use.
Do not attempt to service grill other than normal maintenance as explained in “After-Use Safety”
and “Proper Care & Maintenance” sections of this manual.
Properly dispose of all packaging material.
Use caution and common sense when operating your grill.
Failure to adhere to safety warning and guidelines in this manual could result in bodily injury or
property damage.
Save this manual for future reference.
PROP 65 WARNING
WARNING: This product can expose you to chemicals including soot, which is known to the
State of California to cause cancer, and carbon monoxide, which is known to the State of California to
cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Page 5 of 32
Exploded View

Some steps may require the assistance of another adult.
This symbols will be shown in each
procedure for indication of hand
tightening the bolt and nut.
This symbols will be shown in each
procedure for indication of tightening
the bolt and nut with tools.
Tools Required
Parts List
Page 6 of 32
1 Philips Screwdrivers
2 Adjustable Wrench
3 Pliers
Description Picture Qty
1 Leg Tube (Right)
2 pcs
2 Leg Tube (Left)
2 pcs
3 Bottom Rack
1 pc

Page 7 of 32
Description Picture Qty
4 Connecting Tube
2 pcs
5 Stabilizing Plate (Right)
1 pc
6 Stabilizing Plate (Left)
1 pc
7 Wheel
2 pcs
8 WheelAxle
1 pc
9 Lower Grill Body
1 pc
10 Side Handle (Right)
1 pc
11 Air Vent
2 pcs
Parts List

Page 8 of 32
Description Picture Qty
12 Upper Grill Body
1 pc
13 Upper Side Fire Box
1 pc
14 Lower Side Fire Box
1 pc
15 Side Fire Box Lid
1 pc
16 Lid Handle
2 pcs
17 Side Fire Box Lid Stopper
1 pc
18 Side Fire Box Door
18a: Door -1pc
18b: Latch - 1pc 1 pc
19 Side Fire Box Charcoal Tray
1 pc
Parts List

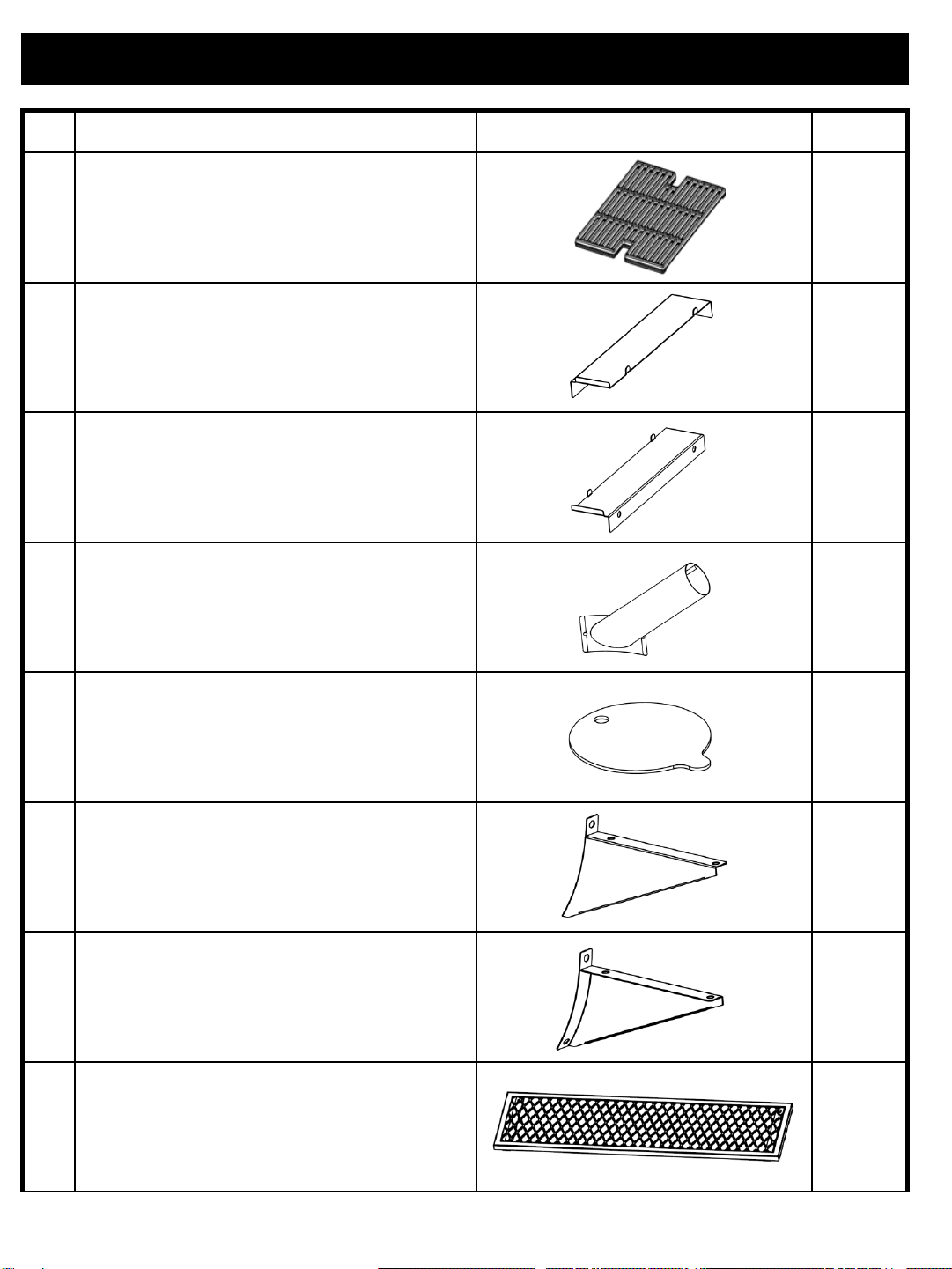

Page 9 of 32
Description Picture Qty
20 Side Fire Box Cooking Grate
1 pc
21 Warming Rack Support (Left)
1 pc
22 Warming Rack Support (Right)
1 pc
23 Smoke Stack
1 pc
24 Smoke Stack Cover
1 pc
25 Front Table Support (Left)
1 pc
26 Front Table Support (Right)
1 pc
27 Front Table
1 pc
Parts List

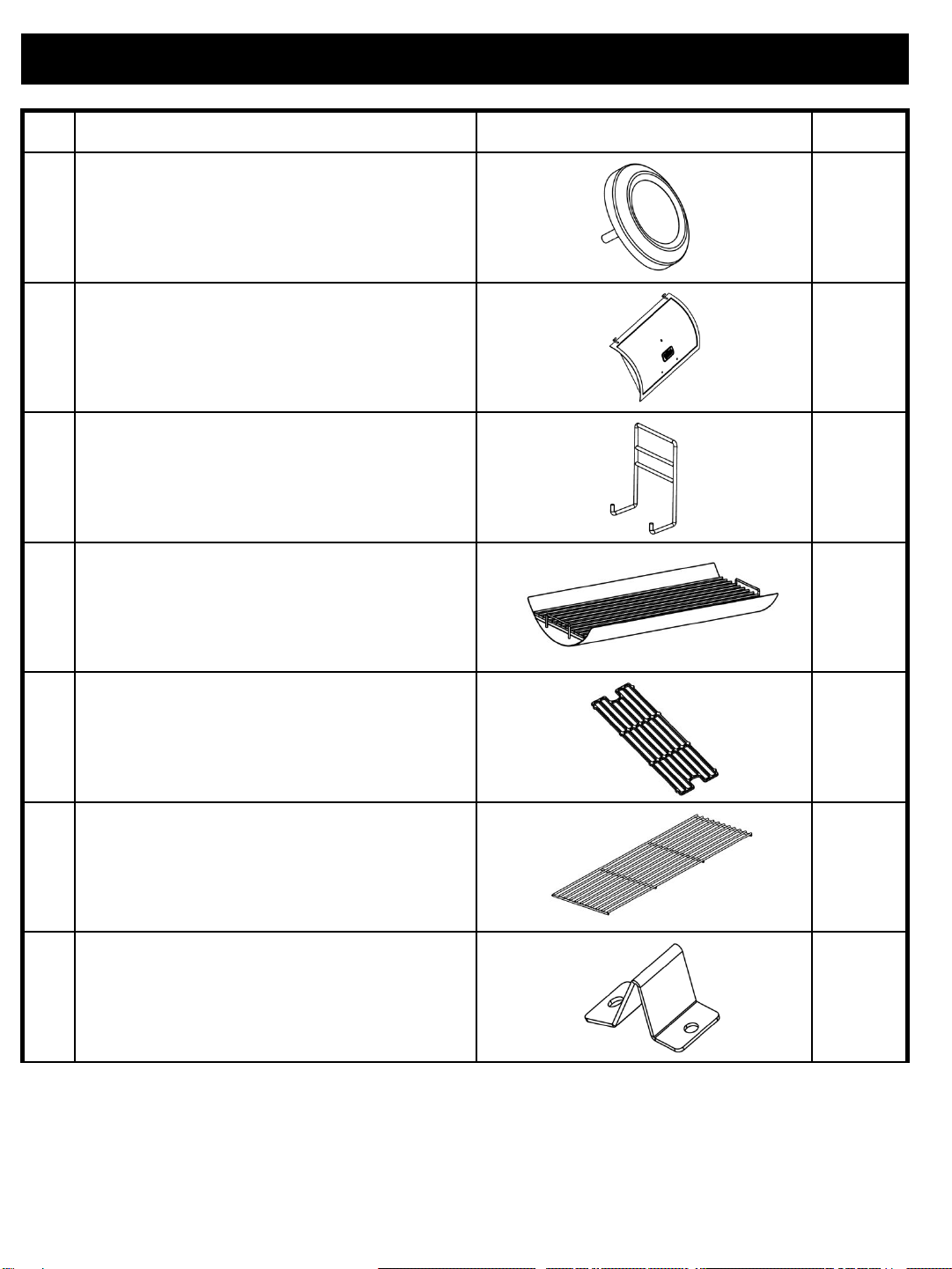

Page 10 of 32
Description Picture Qty
28 Thermometer
1 pc
29 Lid
1 pc
30 Charcoal Tray Holder
2 pcs
31 Charcoal Tray
1 pc
32 Cooking Grate
4 pcs
33 Warming Rack
1 pc
34 Grill Body Lid Stopper
2 pcs
Parts List

Page 11 of 32
Description Picture Qty
A Bolt M6 x 40 12 pcs
B Flange Nut M6 54 pcs
C Lock Nut M10 2 pcs
D Bolt M6 x 12 52 pcs
E Lock Nut M6 3 pcs
F Bolt M4 x 10 2 pcs
G Cap Nut M8 1 pc
H Spring 1 pc
I Insulation Washer 8 pcs
K Bolt M6 x 15 4 pcs
L Washer 2 pcs
Hardware

Assembly Instructions
Step 1:
Step 2:
Page 12 of 32
Attach Leg Tube (#1, 2) to Bottom
Rack (#3)
Attach Connecting Tube (#4) to legs.

Assembly Instructions
Step 3:
Step 4:
Page 13 of 32
Attach Wheel (#7) & WheelAxle (#8)
to cart.
Hardware
C - 2 pcs
Attach Stabilizing Plate (#5, 6) to
cart.
Hardware
A - 8 pcs
B - 8 pcs

Assembly Instructions
Step 5:
Step 6:
Attach Side Handle (#10) to grill body.
Page 14 of 32
Hardware
B - 4 pcs
I - 4 pcs
K - 4 pcs
Attach Lower Grill Body (#9) to cart.
Hardware
A - 4 pcs
B - 4 pcs

Assembly Instructions
Step 7:
Step 8:
Page 15 of 32
Attach Upper Grill Body (#12) to grill
body.
Hardware
B - 12 pcs
D - 12 pcs
Attach Air Vent (#11) to grill body.
Hardware
D - 1 pc
E - 1 pc

Assembly Instructions
Step 9:
Step 10:
Page 16 of 32
Attach Side Fire Box Lid Stopper
(#17) to side fire box.
Hardware
B - 1 pc
D - 2 pcs
Attach Upper Side Fire Box (#13) to
Lower Side Fire Box (#14).
Hardware
D - 4 pcs

Assembly Instructions
Step 11:
Step 12:
Page 17 of 32
Attach Side Fire Box Lid (#15) to
Upper Side Fire Box (#13).
Hardware
F - 1 pc
L - 1 pc
Attach Lid Handle (#16) to Side Fire
Box Lid (#15) .
Hardware
B - 2 pcs
D - 2 pcs
I - 2 pcs

Assembly Instructions

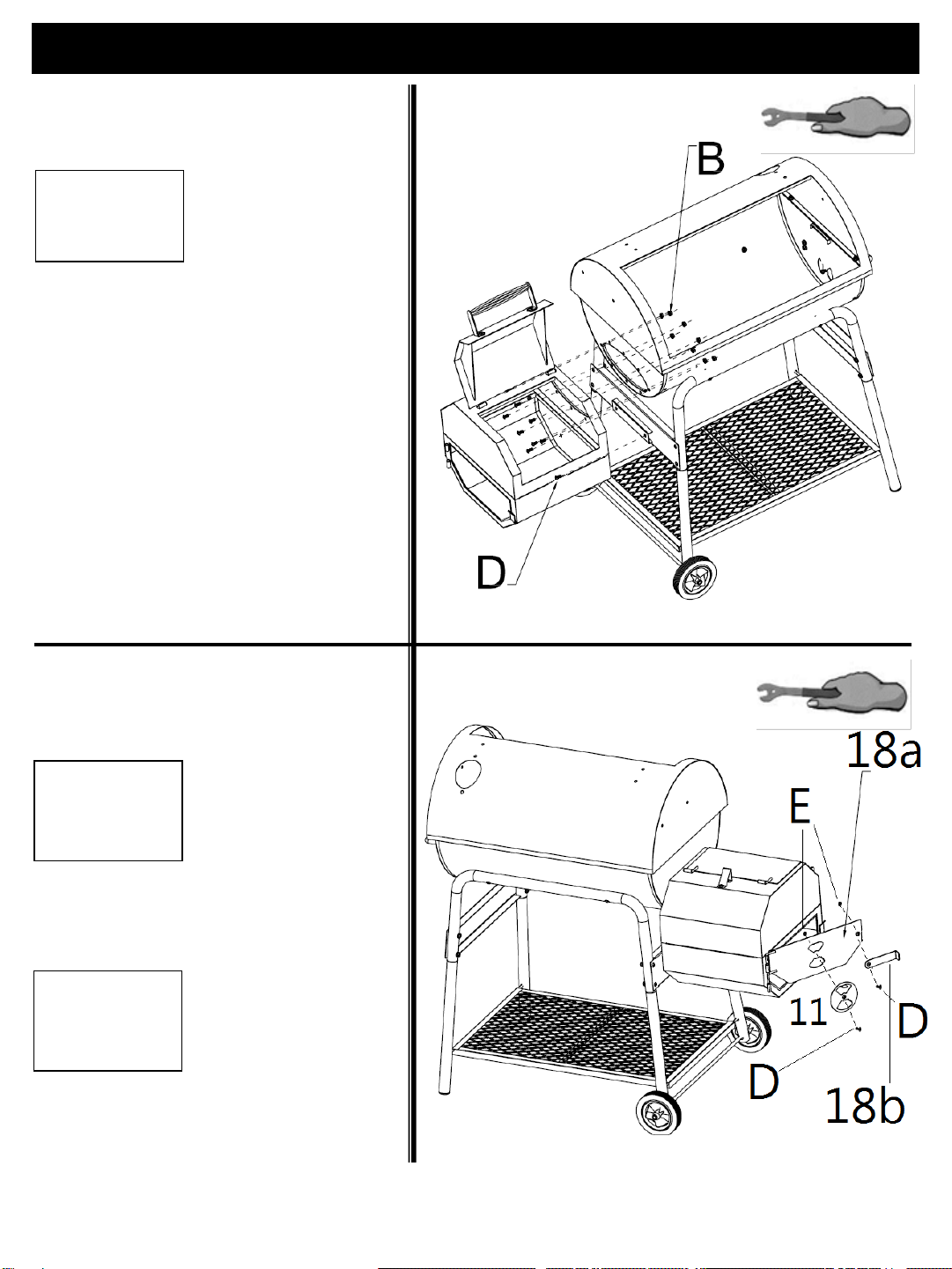

Step 13:
Step 14:
Page 18 of 32
Attach Air Vent (#11) to Side Fire Box
Door (#18).
Attach Side Fire Box Latch (#18b) to
Side Fire Box Door (#18a).
Hardware
D - 1 pc
E - 1 pc
Attach side fire box to grill body.
Hardware
B - 8 pcs
D - 10 pcs
Hardware
D - 1 pc
E - 1 pc

Assembly Instructions

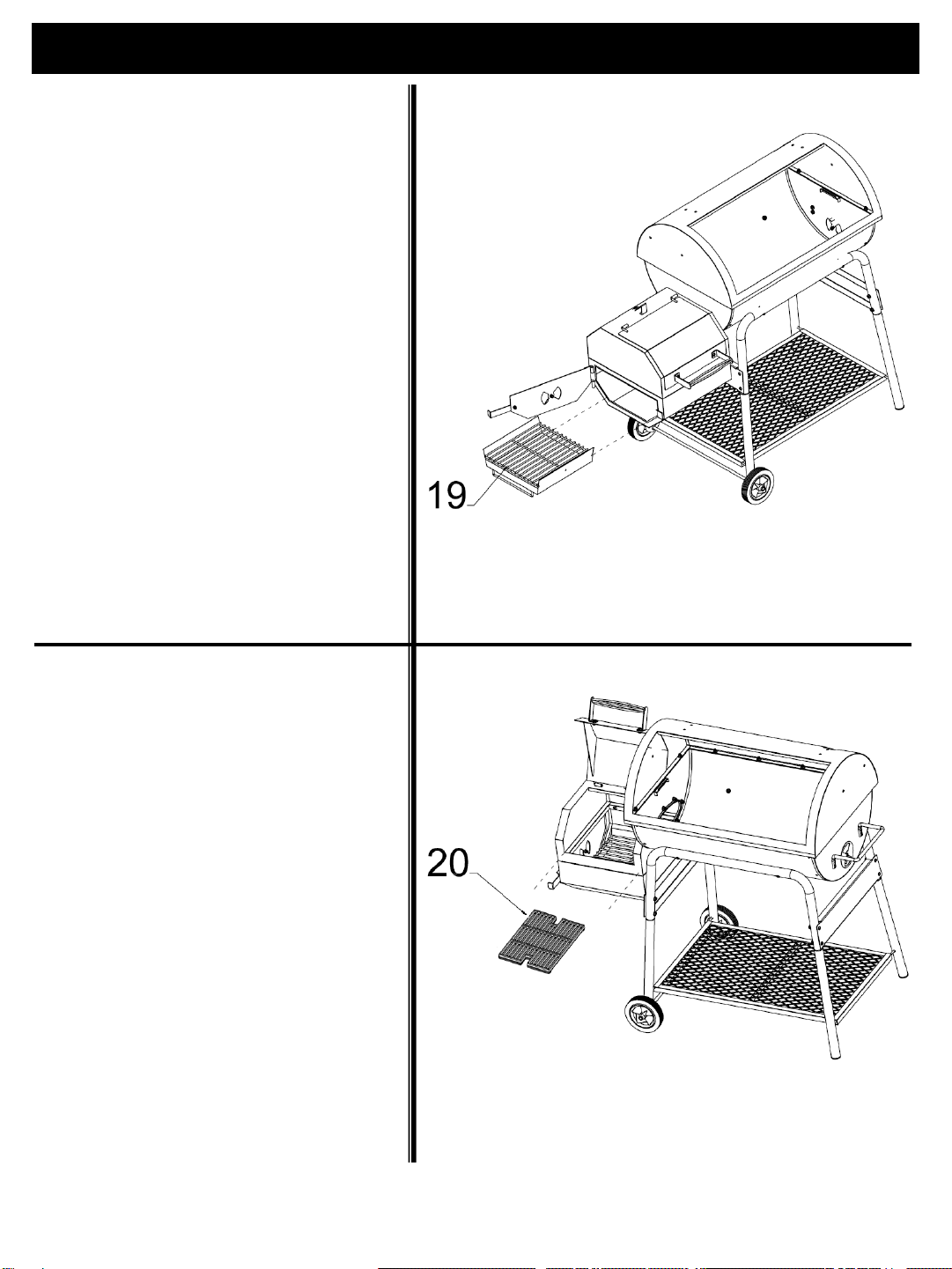

Step 15:
Step 16:
Page 19 of 32
Put Side Fire Box Charcoal Tray
(#19) in side fire box.
Put Side Fire Box Cooking Grate
(#20) in side fire box.

Assembly Instructions

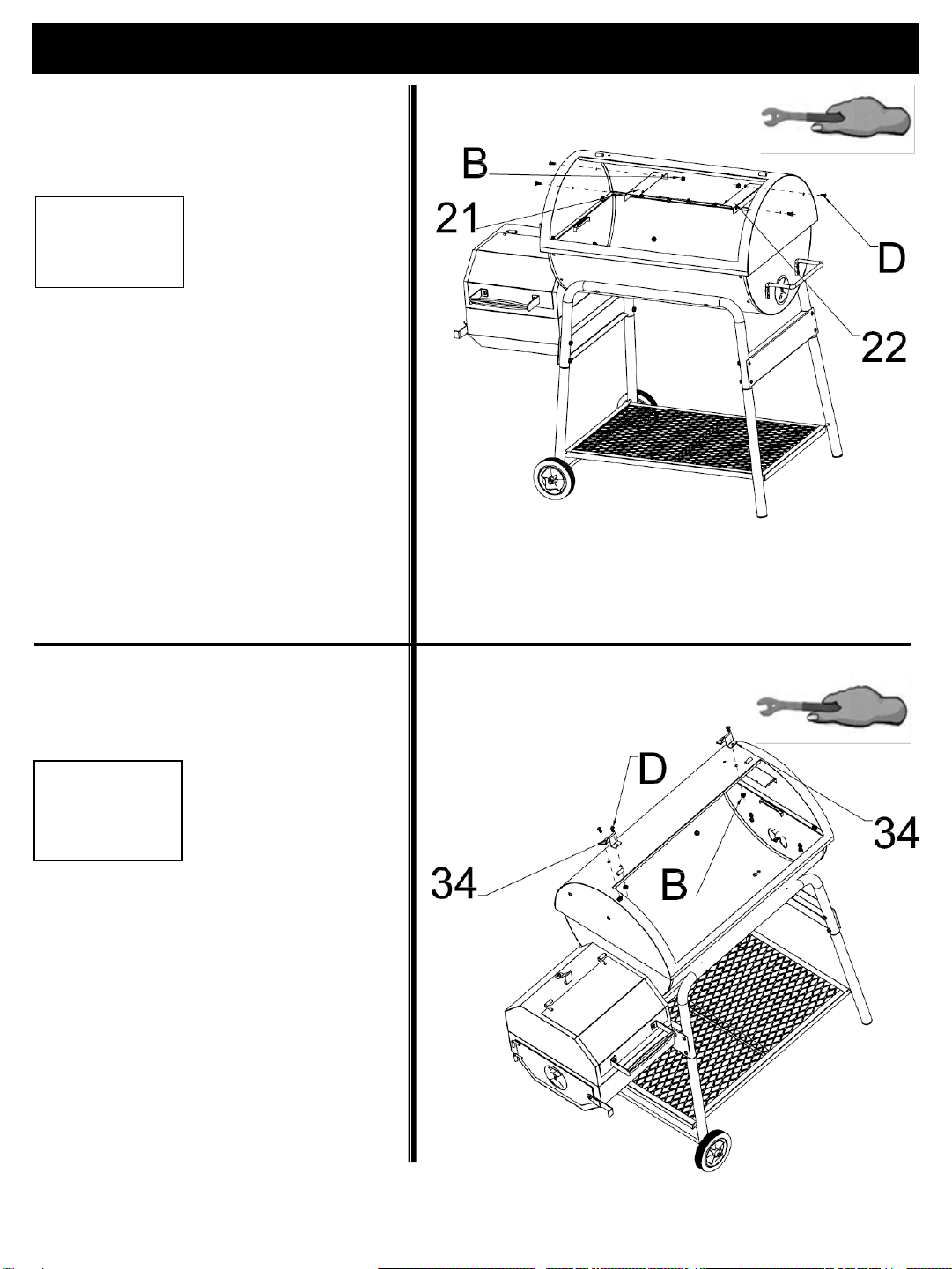

Step 17:
Step 18:
Page 20 of 32
Attach Grill Body Lid Stopper (#34) to
grill body.
Hardware
B - 3 pcs
D - 3 pcs
Attach Warming Rack Support (#21,
22) to grill body.
Hardware
B - 4 pcs
D - 4 pcs
