Outdoor Plus Custom Fire Pit User manual

© 2013 The Outdoor Plus

Specications
Propane Gas Natural Gas
Max. Input BTU/Hr 78,000 78,000
Orice Size 2.5 mm
Manifold Pressure 10” Water Column 7” Water Column
Maximum Gas Supply Pressure 11” Water Column 14” Water Column
Maximum Inlet Supply Pressure 13” Water Column 14” Water Column
Regulator Pre-Set 11” Water Column
The Outdoor Plus fire pits are designed for outdoor use only.
Carbon Monoxide Hazard
This appliance can produce carbon monoxide which has no odor. Using it
in an enclosed space can kill you. Never use this appliance in an enclosed
space such as a camper, tent, car, or home.
WARNING!
The Outdoor Plus
780 East Francis Street, Suite T
Ontario, CA 91761
[phone]
(909)-874-0146 (fax)
www.theoutdoorplus.com

Specifications............................................... ii
Safety Instructions........................................... 2
Set-Up .................................................... 4
Placement and Location............................................... 5
Liquid Propane ...................................................... 6
Natural Gas ........................................................ 9
Leak Testing Procedure .............................................. 10
Decorative Glass Placement .......................................... 11
Battery ........................................................... 11
Natural Gas Conversion.............................................. 12
Operating the Fire Pit........................................ 15
Lighting Instructions ................................................ 16
Turning Off Gas .................................................... 17
Cleaning, Maintenance, Storage............................... 18
Replacement Parts.......................................... 20
One Year Limited Warranty ................................... 21
Save these instructions!
Read this before installing or operating your
new Outdoor Plus re pit.
The Outdoor Plus manufactures a wide range of products and models and
specializes in custom fabrication. Although this manual describes features
common to all fire pit models, the examples shown may not necessarily
reflect your specific fire pit configuration.

2Safety Instructions
Safety Instructions
Do not store combustible materials, gasoline and any other flammable vapors and
liquids. A propane gas cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
WARNING!
Improper installation, adjustment, alteration, service or maintenance can cause in-
jury or property damage. Read the installation, operating and maintenance instruc-
tions thoroughly before installing or servicing this equipment.
WARNING!
California Proposition 65 Warning: Chemicals known to the State of California to
cause cancer, birth defects or other reproductive harm are found in and/or created
by the combustion of natural gas, propane, butane and other fuels. Always operate
this unit as described in the owner’s manual and in well ventilated areas.
WARNING!
Do not use charcoal or other solid fuel in gas burning appliances.
Do not use your fire pit for cooking. Do not heat any unopened glass or metal con-
tainer of food in the fire pit. Pressure may build up and cause the container to burst,
possibly resulting in serious personal injury or damage to the fire pit.
Never use the fire pit in windy conditions. If used in a consistently windy area a
windbreak will be required. Always adhere to the specified clearances listed in this
manual.
Never allow clothing or other flammable materials come in contact with any hot
surface until it has fully cooled. Never wear loose fitting or hanging garments while
using your fire pit. Fabric may ignite and result in personal injury.
When handling propane gas line and connectors, do not allow them to come in
contact with any metal surfaces. Do not drop propane connectors.
CAUTION!

3
Safety Instructions
In the event that a burner goes out, turn burner knobs to the full OFF position and let
it air out. Do not attempt to use the fire pit until the gas has had time to dissipate.
Propane gas source to the fire pit must be regulated. Do not operate if regulator has
been removed. Fire or explosion can occur.
In the event that a burner goes out, turn burner knobs to the full OFF position and let
it air out. Do not attempt to use the fire pit until the gas has had time to dissipate.
Propane gas source to the fire pit must be regulated. Do not operate if regulator has
been removed. Fire or explosion can occur.
In the event that a burner goes out, turn burner knobs to the full OFF position and let
it air out. Do not attempt to use the fire pit until the gas has had time to dissipate.
Propane gas source to the fire pit must be regulated. Do not operate if regulator has
been removed. Fire or explosion can occur.
Keep all electrical supply cords away from the heated areas of the fire pit.
Clothing or other flammable materials should not be hung from the appliance, or
placed on or near the appliance.
When using the fire pit, do not touch the rock, fire screen, or immediate surround-
ings, as these areas become extremely hot and could cause burns.
Do not reach over your fire pit when hot or in use.
Never leave children unattended in the area where the fire pit is being used. Close
supervision of children is necessary when any appliance is used near children. Nev-
er leave the fire pit unattended when in use.
Do not store items of interest to children around or below the fire pit.
Never allow children to sit or stand on any part of the fire pit.
DANGER!
GAS SAFETY
SAFETY

4Set-Up
Set-Up
Setting up for use with liquid propane (LP)
1 Place the fire pit in a desired location page 5
2 Connect the propane tank page 6
3 Perform a leak test page 10
4 Place the decorative stone or decorative fire objects page 11
5 Insert the battery in the igniter
Setting up for use with natural gas (NG)
1 Place the fire pit in a desired location page 5
2 Connect to an NG gas source page 9
3 Convert the orifice to NG page 12
4 Perform a leak test page 10
5 Place the decorative stone or decorative fire objects page 11
6 Insert the battery in the igniter page 11
You are responsible for ensuring that a natural gas line (if required) is
installed and safe for use. We recommend that a licensed contractor
install your fire pit.
Installation must conform to local codes, or in the absence of local codes,
with either the National Fuel Gas Code, ANSI Z223.1 / NFPA54, Natural
Gas and Propane Installation Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2), as applicable.

5
Set-Up
Placement and Location
Your Outdoor Plus fire pit is designed for outdoor use only.
Never locate this appliance in a building, garage, or any other enclosed
room or under a sealed overhead structure, or in any type of enclosed
area such as a garage, shed, or breezeway. Keep clear of trees and
shrubs.
Do not place fire pit under or near windows or vents that can be opened
into your home.
Maintain sufficient distance as to not overheat any overhead combus-
tible material such as a patio cover.
The area surrounding your fire pit should be kept clean and free from
flammable liquids and other combustible materials such as mops, rags
or brooms, as well as solvents, cleaning fluids, and gasoline.
Do not block the vents located near the base of your fire pit as gas may
build up in case of leak and cause serious damage.
Do not install or operate your fire pit in such a manner that the cross
ventilation openings are blocked. Fresh air must be able to pass though
installed vents to safeguard against residual gas accumulation. Failure
to allow proper ventilation may cause fire or explosion.
Do not locate appliance where it can get excessively wet. Do not use
this appliance if any part has been underwater. Immediately call a quali-
fied service technician to inspect the unit and to replace any part of the
control system and any gas control which has been underwater.
Place your fire pit on a flat and stable surface in an outdoor location such
as a patio deck.
Maintain the following clearances to combustible materials:
Sides and back 48 inches (122 cm) (measured from side)
Top 120 inches (305 cm) (measured from hearth)

6Set-Up

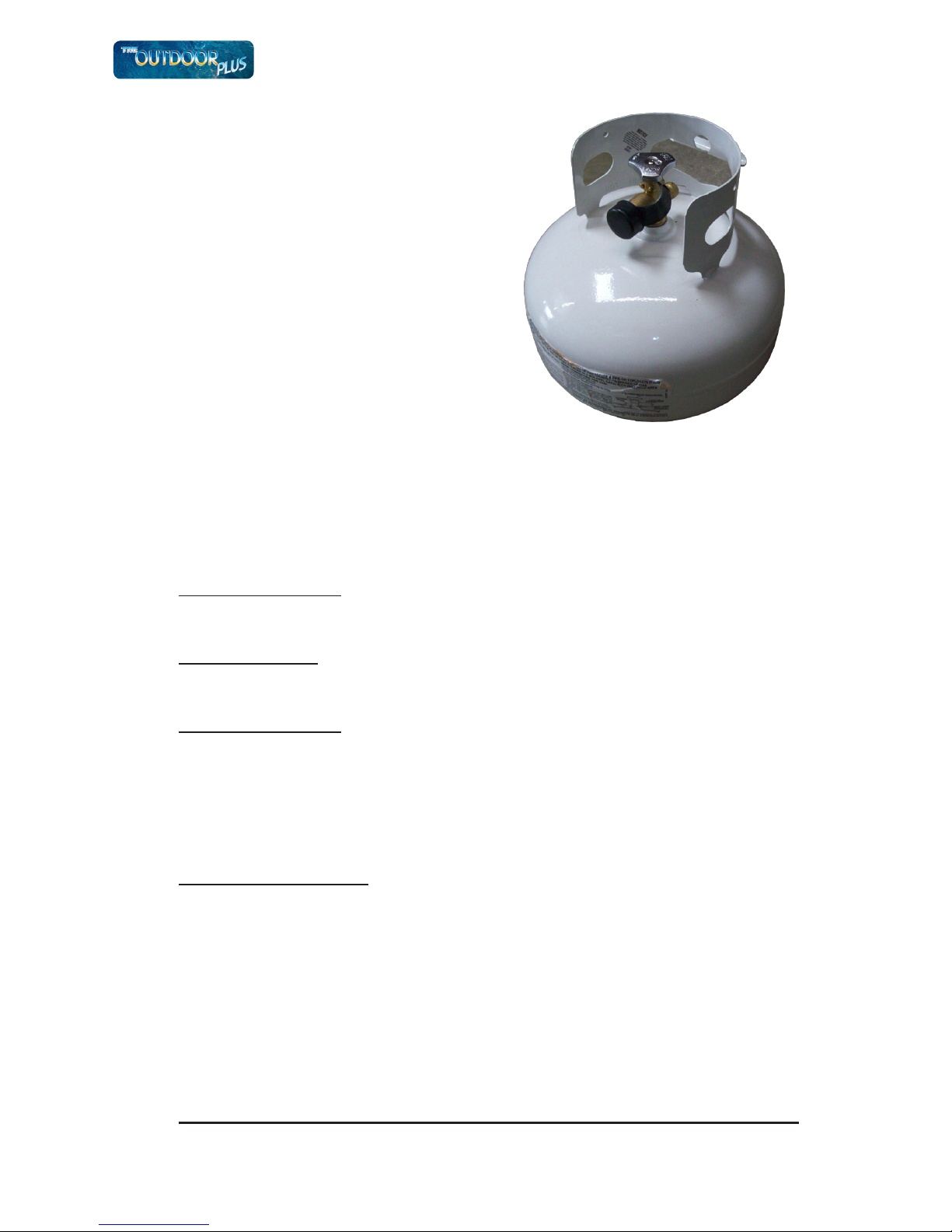

Liquid Propane
Your Outdoor Plus fire pit is built with
a tank enclosure, but is not provided
with a propane tank. You will need to
provide one. The enclosure will ac-
commodate a 2 lb propane tank.
Use these specification for purchas-
ing your propane tank:
Specications
The 2 lb propane gas supply cylinder
is constructed and marked in accor-
dance with the specifications for propane gas cylinders as required by
the U.S. Department of Transportation (DOT) or the CAN/CSA B339, Cyl-
inders, Spheres and Tubes for the Transportation of Dangerous Goods.
Manifold Pressure: For plumbed-in liquid propane installation, use a
regulator.
Supply Pressure: Maximum line pressure for plumbed-in propane is 14”
W.C psi (3.5 kPa). Minimum line pressure for propane is 11” W.C.
Pressure Regulator: The unit must be used with the supplied gas pressure
regulator and hose assembly. The regulator will control and maintain a
uniform gas pressure in the manifold. The burner orifice has been sized
for the gas pressure delivered by the regulator. Replacement pressure
regulator and hose assemblies must be those specified in this manual.
Cylinder Specification: Any propane gas supply cylinder used with this
fire pit must be approximately 12 inches in diameter and 18 inches high.
The maximum fuel capacity is 20 lbs. of propane, or 5 gallons. Full cyl-
inder weight should be approximately 38 lbs. (43.7 lbs. nominal water
capacity.) Always use the cylinder dust cap on the cylinder valve outlet
during transport and when the cylinder is not connected to the fire pit.
The 20 lb propane gas cylinder used must include a collar to protect the
cylinder valve.

7
Set-Up
Filler Valve: If you do not have an updated filler valve on your exist-
ing propane tank, you will need to purchase one at your local hardware
store, as you will not be allowed to refill the tank at any filling station.
Transporting Gas Cylinder: Only one cylinder should be transported at
a time. Transport cylinder in an upright and secure manner with control
valve turned off and the dust cap in place.

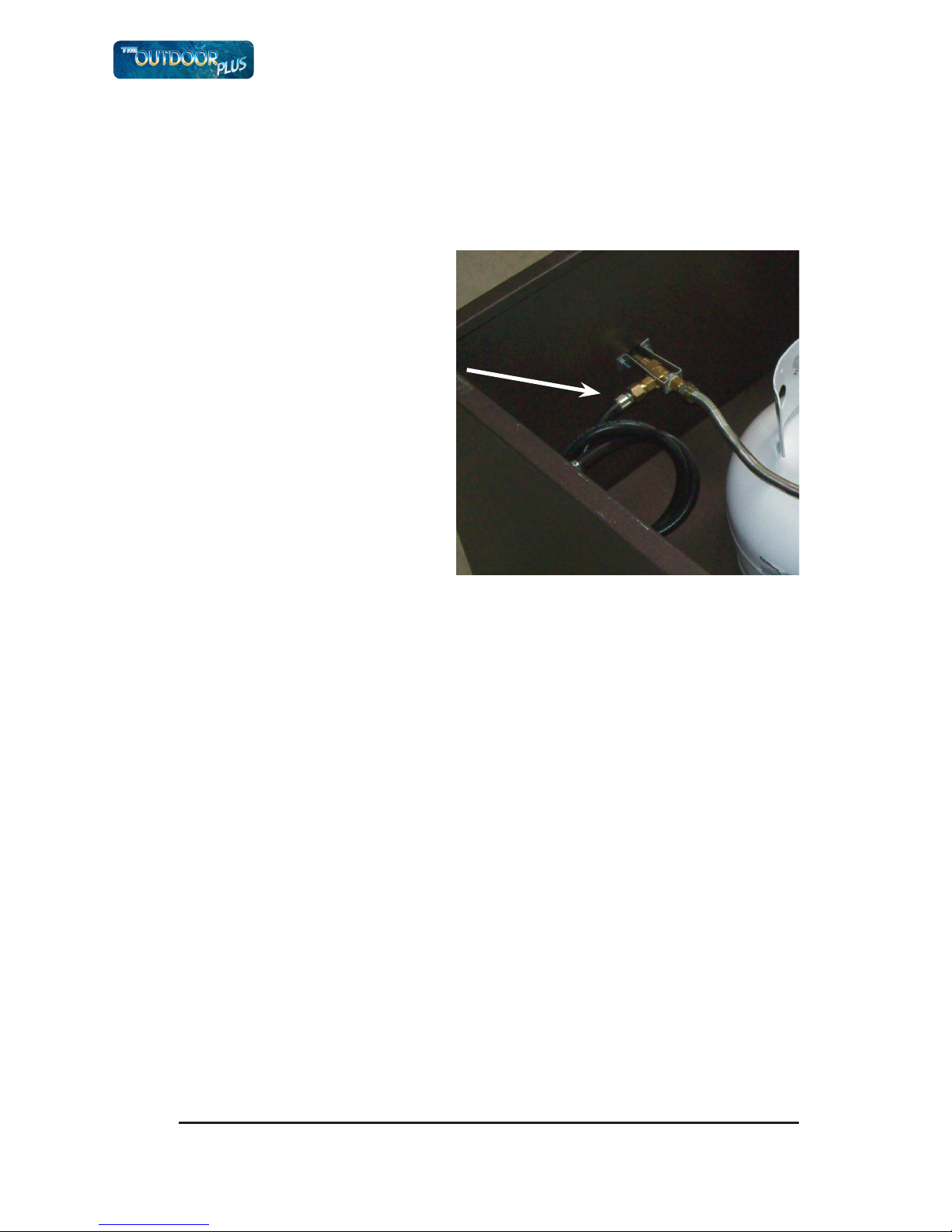

Connection
The flex line that runs from the igniter to the burner has been connected
at the factory. You will only need to connect the propane line from the
igniter to the propane tank.

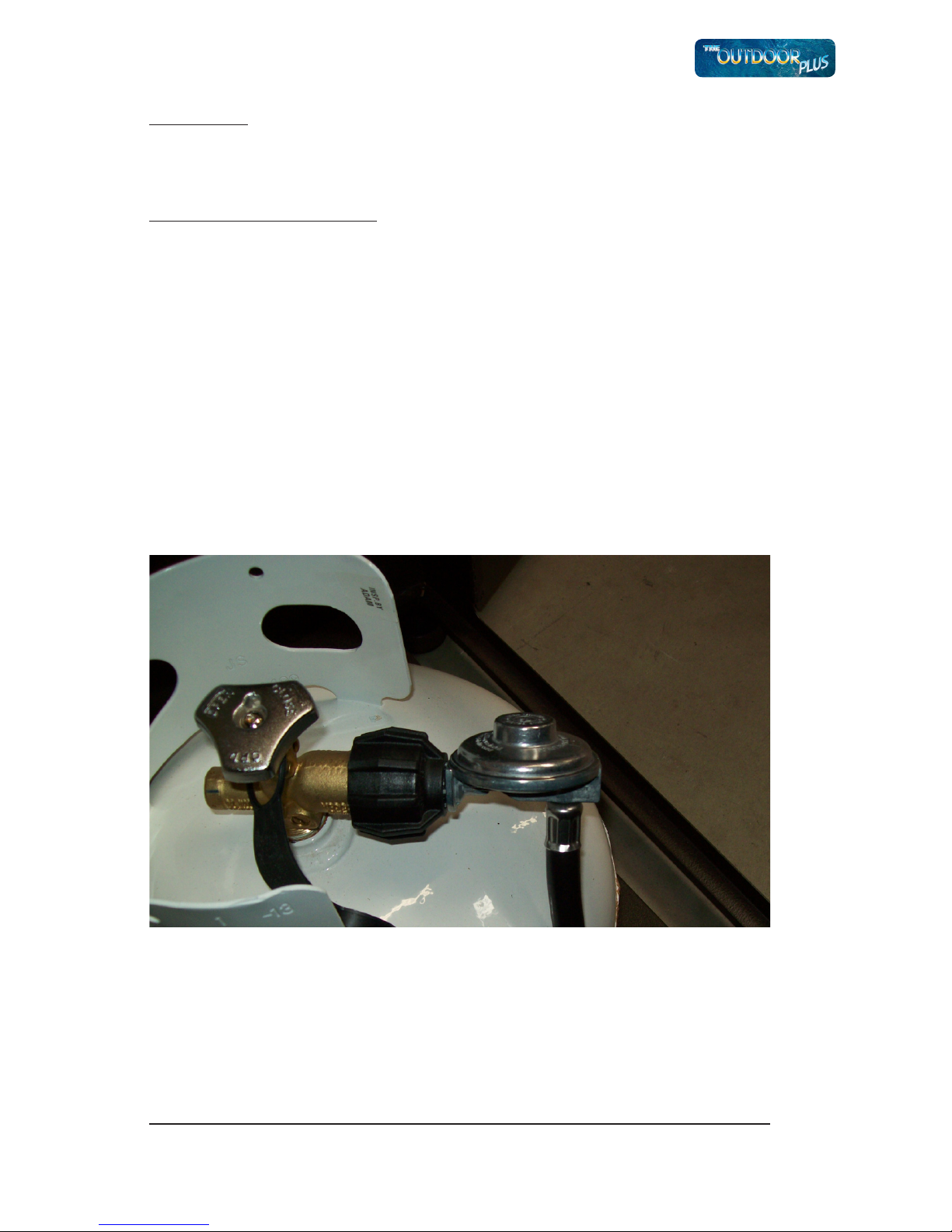

When connecting the regulator assembly to the tank valve, hand tighten
the black QCC-1 nut clockwise. DO NOT use a wrench to tighten. See
the image below.

8Set-Up

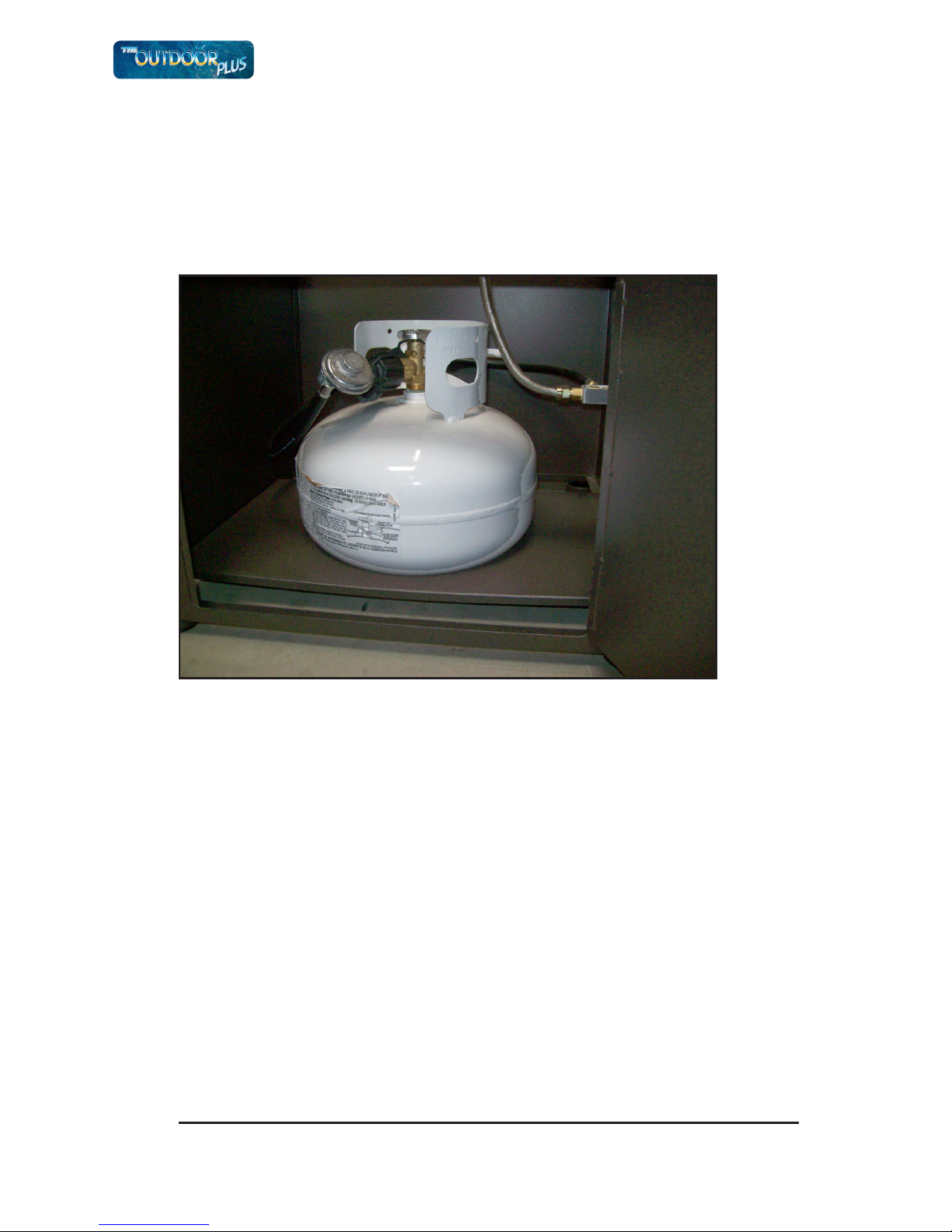

Location of the Propane Tank
Outdoor Plus fire pits are built with an enclosure that safely holds a 2 lb
propane tank.
Place the propane gas cylinder in the enclosure as shown below.

9
Set-Up
Natural Gas
Ensure that the service supplying the fire pit is fitted with a conveniently
positioned shut off valve with easy access. The shut off valve MUST
NOT be inside the appliance!
Requirements
Always check the rating plate to make sure the gas supply you are hook-
ing up to is the gas type the fire pit is manufactured for.
The installation of this appliance must conform with local codes or, in
the absence of local codes, to the national fuel gas code, ANSI Z223.1a-
1998. Installation in Canada must be in accordance with the standard
CAN/CGA-B149.2, Propane Installation Code. Natural gas connection
must be performed by a licensed contractor or local gas company rep-
resentative.
Ensure that the service supplying the fire pit is fitted with a conveniently
positioned shut off valve with easy access.
Installation
Connect the incoming gas supply line to the on/off gas valve of the ap-
pliance. Make certain ALL gas connections are tight, turn the on/off
valve at the unit to the ‘on’ position and use soap and water to test
for leaks. Gas will be released at the burner for this duration. DO NOT
USE AN OPEN FLAME AND REMOVE BATTERY FROM IGNITER BEFORE
PERFORMING THIS TEST. An authorized gas appliance installer must
provide this installation service. Note that the correct natural gas orifice
must also be installed prior to fuel line hook up to maintain proper flame
height and clean burn of fuel.
Connect to the gas source and perform a leak test.

10 Set-Up
Leak Testing Procedure
Perform a leak test at least once a year whether the gas supply cylinder
has been disconnected or not. In addition, whenever the gas cylinder is
connected to the regulator or whenever any part of the gas system is
disconnected or replaced, perform a leak test.
As a safety precaution, remember to always leak test your fire pit out-
doors in a well-ventilated area. Never smoke or permit sources of igni-
tion in the area while doing a leak test. Do not use a flame, such as a
lighted match to test for leaks. Use a solution of soapy water.
Prepare a leak testing solution of soapy water by mixing in a spray1.
bottle one part liquid soap to one part water.
Make sure all the control knobs are in the OFF position.2.
Turn on the gas.3.
Apply the leak-testing solution by spraying it on joints of the gas4.
delivery system. Blowing bubbles in the soap solution indicates that
a leak is present.
Stop a leak by tightening the loose joint or by replacing the faulty5.
part with a replacement part recommended by the manufacturer. Do
not attempt to repair the cylinder valve if it is damaged. The cylinder
must be replaced.
Turn the control knob back to the full OFF position.6.
If you are unable to stop a leak:
Turn the control knob back to the full OFF position.7.
Shut off the gas supply to the fire pit and release pressure in the8.
hose and manifold.
On propane systems, remove the cylinder from the fire pit.9.
Call an authorized gas appliance service technician or an liquid pro-10.
pane gas dealer.
Do not use the appliance until the leak is corrected.

11
Set-Up

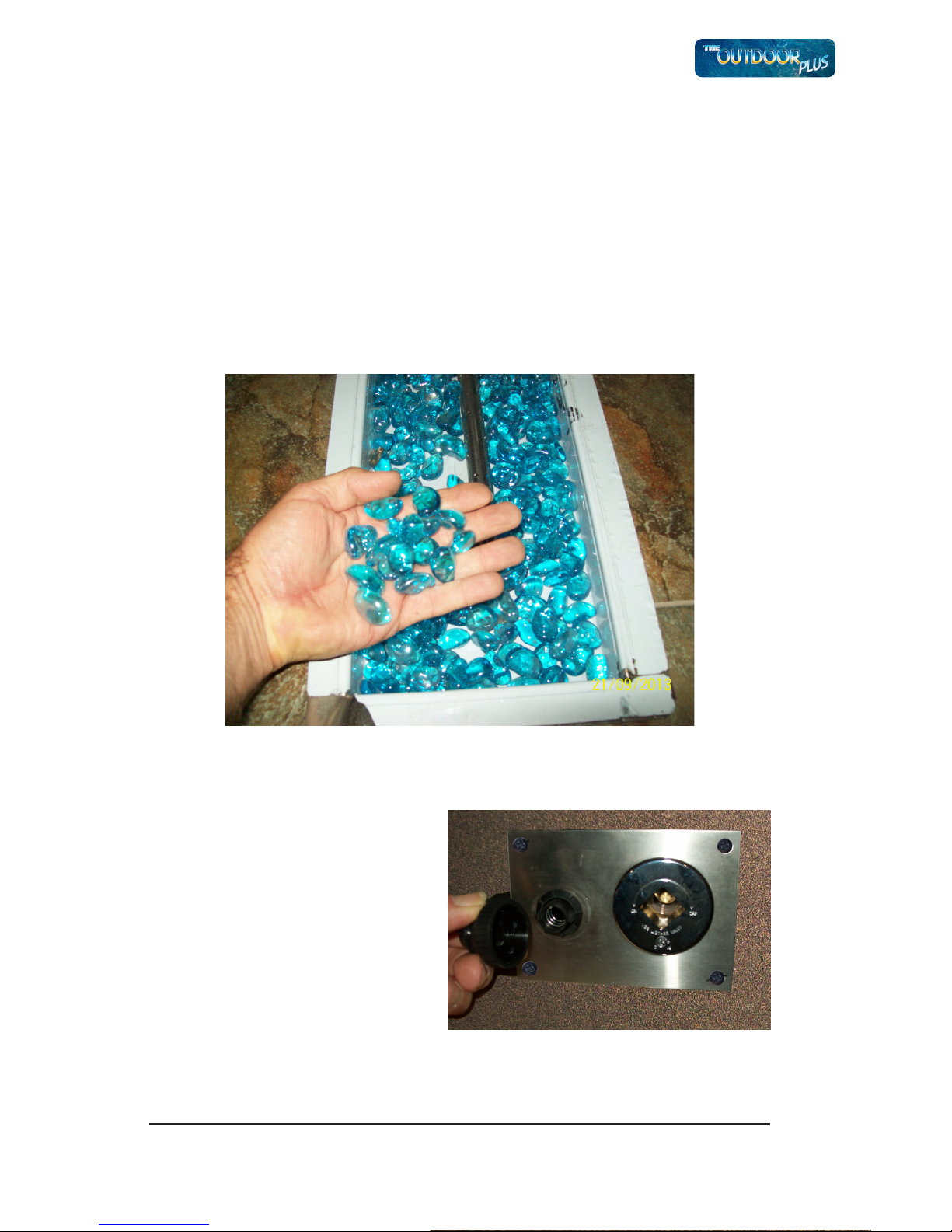

Decorative Glass Placement
After you have completed all plumbing installation, you can fill the fire
bowl with the decorative glass.
Depending on which glass option you chose, you may have one, two, or
several bags of glass.
Glass placement is entirely your choice according to your preferences. It
will not affect the operation of the fire pit in any way.
Battery
If your fire pit has a gas valve
with an igniter, you will need to
insert the battery before you use
it.
Unscrew the black cap that con-
tains the button on the igniter
and insert the battery with the
positive side extending out.

12 Set-Up
Natural Gas Conversion
CAUTION: This service is to be completed only by an authorized gas ap-
pliance installer. Do not attempt this conversion on your own as there is
risk of serious injury or death.
To The Authorized Gas Appliance Installer:
Outdoor Plus are shipped from the factory equipped to burn on liquid pro-
pane fuel. Gas conversion from LP to NG only requires turning the brass
nut on the orifice assembly connected to the bottom of the burner.
Make sure unit is not in operation and is cool enough to perform this ser-
vice. Shut off and disconnect propane fuel source at the regulator end.

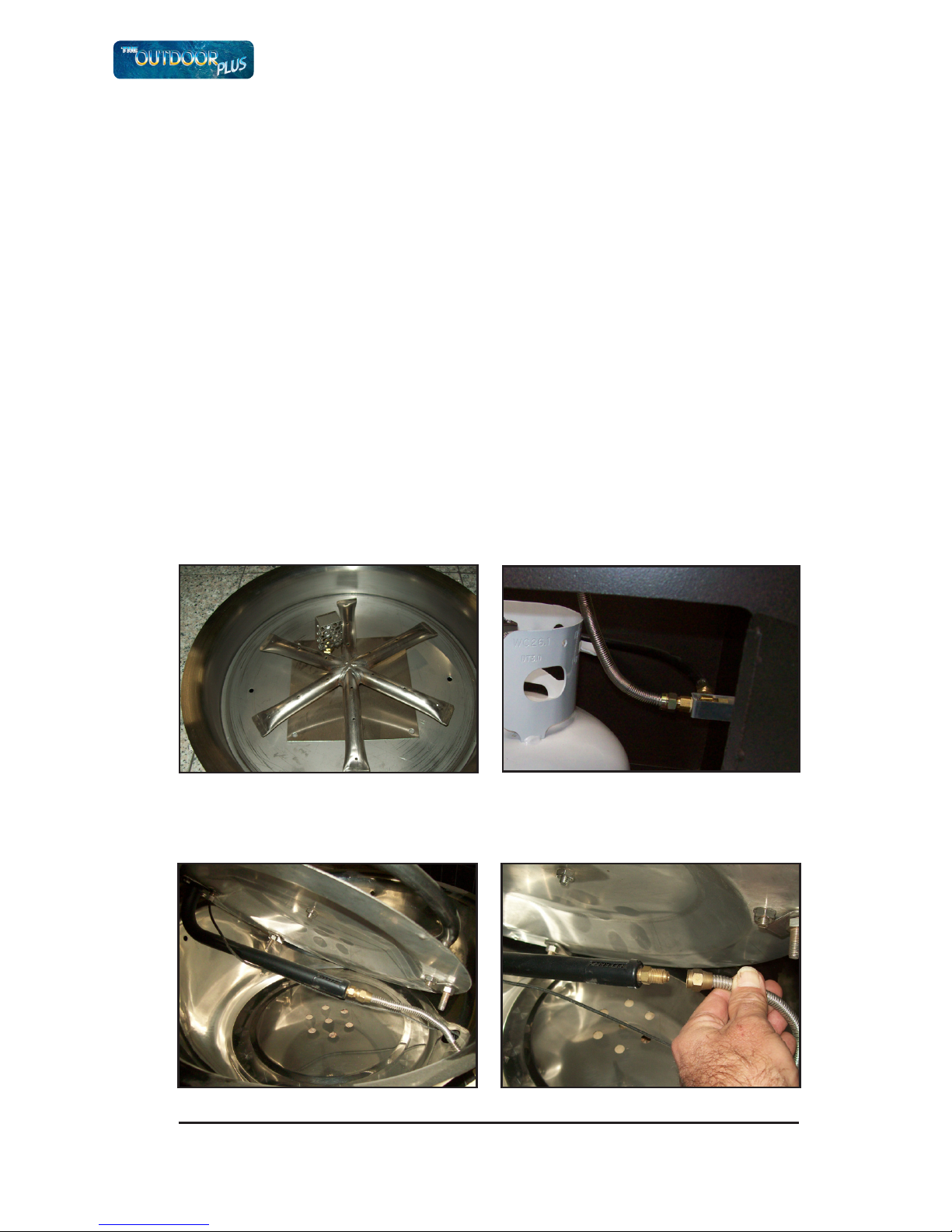

Remove the decorative stone1.
or other decorative place-
ments within the fire bowl.
Lift up and remove burner from3.
the fire bowl.
Disconnect the flex hose lead-2.
ing to the burner from the gas
valve.
Disconnect the flex hose from4.
the burner.

13
Set-Up
The 1/2” adaptor connects to the burner
under the fire bowl.
There are six holes in the orifice that are
covered by conversion washer when it
is used for LP. After you disconnect the
1/2” adaptor from the burner, turn the
brass conversion washer counter-clock-
wise so that it moves away from the six holes in the side of the orifice.
The figure at right shows how they are properly exposed.
When this is finished, reattach the orifice to the burner.

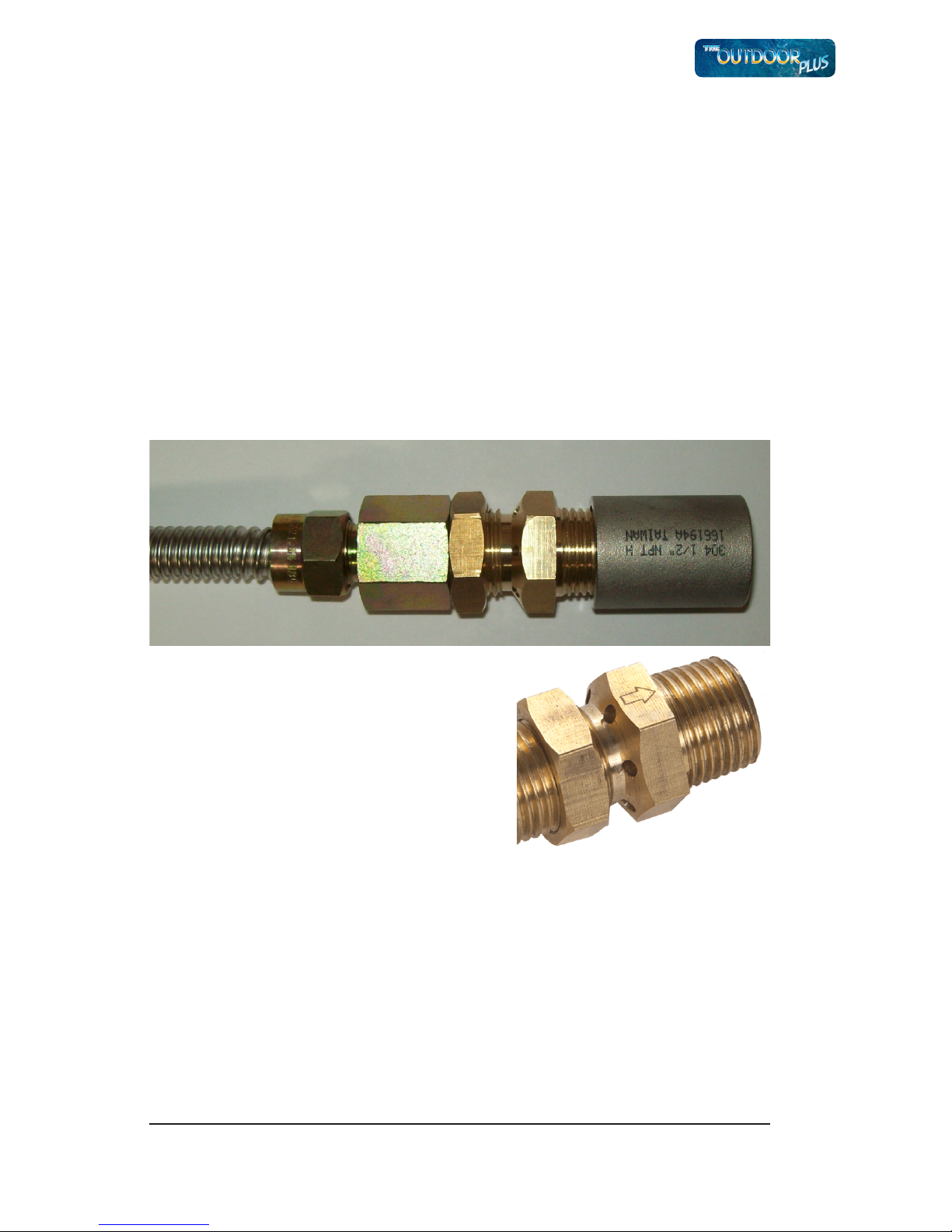

Orice assembly for re pit burners
Converting the orifice assembly requires no additional parts. The gas
orifice is self-contained for use with both LP and NG.
As shown in the figure below, the entire assembly is composed of four
pieces:
3/8” to 1/2” adaptor with flared male end•
Brass conversion washer•
Brass orifice•
Male to male 1/2” adaptor•

14 Set-Up
Disconnect the black LP hose from the gas valve inside the enclosure.
You will need to attach a NG regulator in the enclosure to the gas valve
where the LP hose was connected. Do not remove the flex line from the
gas valve. Note: A NG regulator is NOT included with the fire pit.
Remove from gas valve
Attach NG regulator HERE

15
Operation
Operating the Fire Pit
WARNING: DO NOT use solid fuel, such as wood or charcoal, in gas
fueled fire pits.
Upon completing the gas line connection, a small amount of air will be
in the lines. When the first lighting the burner, it will take a few seconds
for the lines to purge themselves of this air.
Once the purging is
complete, the burner
will light and operate as
indicated in the instruc-
tion manual. Subsequent
lighting of the appliance
will not require purging
unless the gas supply
has been disconnected.
Inspect the burner be-
fore each use of the ap-
pliance. If there is any evi-
dence that the burner is damaged, it must replaced before operating.
Upon completing the gas line connection, a small amount of air will be
in the lines. When first lighting the burner, it will take a few minutes for
the lines to purge themselves of this air. Subsequent lighting of the ap-
pliance will not require such purging.
Never allow the ON / OFF valve to remain in the open position without
placing a burning match on top of the burner FIRST!
You must have clear and easy access to the ON / OFF valve AFTER the
appliance is installed and connected to the gas supply in order to safely
turn of the burner.
Make sure the burner is in place prior to using the appliance. If the
burner is damaged, install a replacement burner as specified by the
manufacturer.

16 Operation
For your safety, read before lighting.
Before operating smell all around the appliance area for gas odors•
and next to the floor because some gases are heavier then air and
will settle on the floor.
Use only your hand to turn the manual gas control valve. Never use•
tools. If the valve will not turn by hand, do not try to repair it. Call a
qualified service technician. Force or attempted repair may result in
a fire or explosion,
Do not use this appliance if any part has been under water. Immedi-•
ately call a qualified service technician to inspect the appliance and
replace any part of the control system and any gas control which has
been under water.
Make sure the ignitor battery has been installed properly. Ignitor•
will not operate properly without a battery installed.
Lighting Instructions
Remove protective storage cover and locate the manual gas control1.
valve and igniter button on the fire pit.
Make sure fuel supply is properly connected and turned on at the2.
source.
Shut off gas.
Extinguish any open flame.
Do not try to light the appliance.
If odor continues, keep away from the appliance and immediately call
your gas supplier or your fire department.
What to do if you smell gas

17
Operation

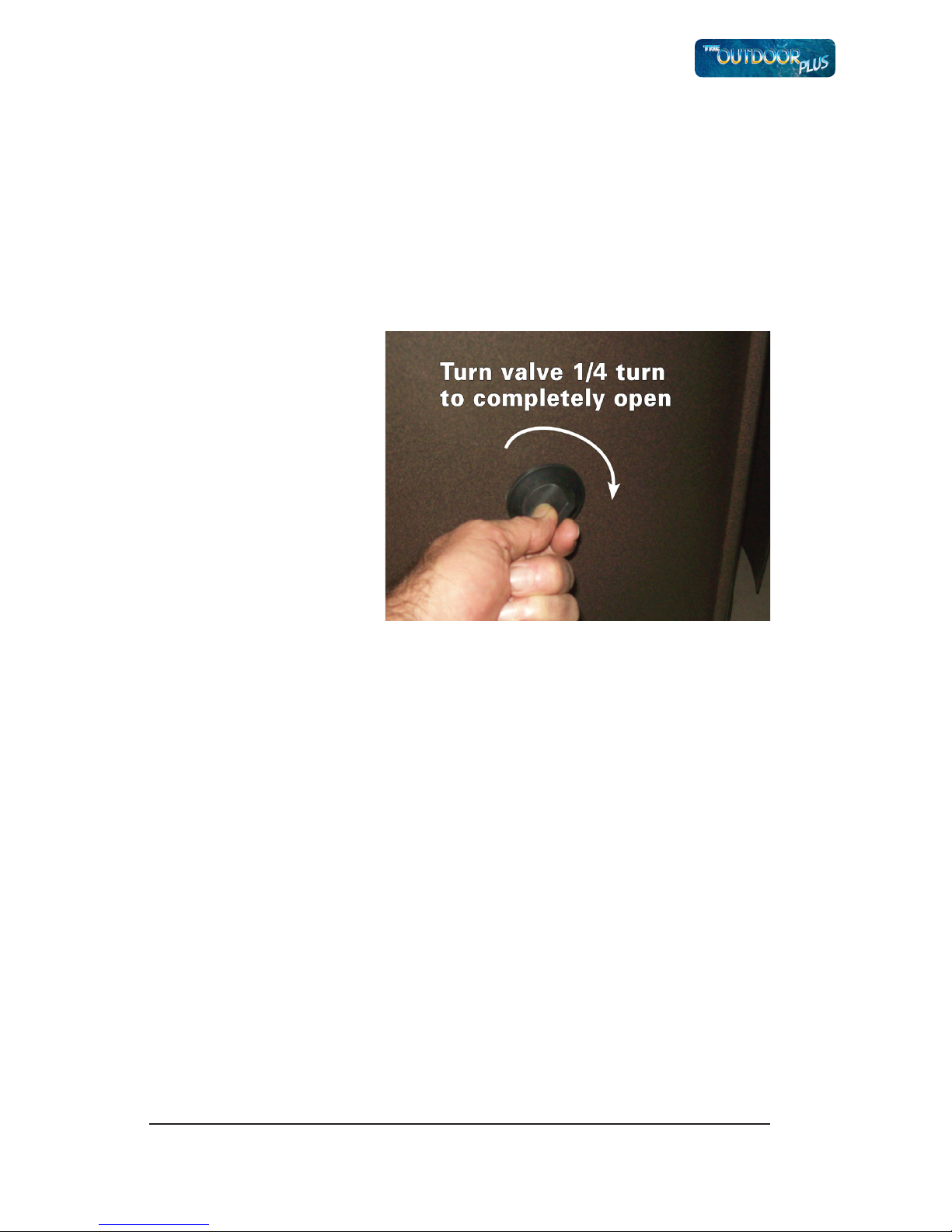

Depress igniter button until you hear it sparking. You will hear a3.
small popping noise. Keep igniter button pushed in while slowly
turning the fuel flow valve to the full flow position at the fire pit.
The fire pit should light within 5 seconds. If you do not hear the ig-
niter sparking you may need to replace the battery. The starter uses
one standard AAA battery, located directly behind the rubber push
button knob. (Unscrew knob to access battery.) Note some models
ship with the batteries removed or may not be included with your
model.
If a flame does not start within 10 seconds, shut off all gas supply4.
and wait five minutes to allow all gas fumes to clear. Re-try or go to
trouble-shooting and start again from step 1.
Turning Off Gas
Turn the ON/OFF valve to the off position at the unit for natural gas unit.
For propane units, turn the ON/OFF valve to the OFF position at the unit
and then turn the valve on the propane tank to the OFF position clock-
wise.
NOTE
The propane regulator in this appliance is equipped with a low flow pro-
tection device. Unless the propane cylinder valve is opened before the
valve, the gas flow will be reduced resulting in a very small flame.
To reset this device, shut off the valve, disconnect the hose from the
cylinder to relieve the pressure, then close the propane cylinder valve.

18 Cleaning, Maintenance, Storage
Cleaning, Maintenance, Storage
Cleaning
Inspect the appliance before initial use. Clean the appliance at least an-
nually and have it inspected by a qualified field service person.
Periodically remove the logs and examine the burner. If the burner is
dirty, clean it with a soft wire brush. Also examine the area around the
burner air shutter. Remove any dirt or debris in this area. This will ensure
long life and trouble-free operation.
Carbon (soot) may build up on the surfaces of the logs with heavy use.
This is more likely to occur with propane gas. Clean soot off the surface
of the logs periodically to prevent excessive buildup.
To clean the logs, be sure the fire is out, the gas supply is turned off and
the logs are cool to the touch. The soot can then be brushed of with a
dry bristle brush or cloth. Take care while cleaning the logs as they can
become damaged if mishandled.
The easiest way to clean the fire pit is to let it cool completely off. Spray
the enclosure off with water. Note: Do NOT spray water directly onto the
burner and igniter.
When not in use and after cooling, cover your fire pit with a full length
cover. The cover will help protect your fire pit from detrimental effects
of weather and environmental pollutants (see your local Outdoor Plus
dealer for details).
Before placing the cover on the fire pit, make sure the unit is shut off,
that the gas lines are disconnected and that the unit has had sufficient
time to cool. Install the cover and use the tie-down straps to secure it
tightly to the unit to prevent the wind from blowing it off.
More frequent cleaning may be required as necessary. It is imperative
the control compartment, burner and circulation air passageways of the
appliance be kept clean and free.
