Outland Living NGCK-A User manual

FMI BRANDS INC.
107 – 19052 26 Avenue | Surrey, B.C. Canada V3Z 3V7
Toll Free 1-888-514-1663 | Fax [phone] D.787.000.V1_400
NOTE: This assembly instruction manual is for
OUTLAND Fire Table model FMPPC2E (400) only.
Please contact OUTLAND, or visit www.outlandliving.com if you require
the assembly instruction manual for Fire Table model FMPPC2E-1 (401).
Propane to
Natural Gas Appliance
Conversion Kit
NGCK-A
PART #787
AUTO IGNITION
NATURAL GAS CONVERSION KIT RATINGS
GAS ORIFICE SIZE 2.6mm
MANIFOLD PRESSURE 7in WC
INLET PRESSURE 0.25 PSIG
INPUT RATING 35,000BTU/h
Tested by CSA International
APPLIANCE MODELS ACCEPTABLE TO BE USED WITH THIS KIT - NGCK-A 787 (AUTO IGNITION MODELS)
TICK SERIES NAME MODEL NUMBERS SERIES NUMBERS
OUTLAND FIRE TABLE FMPPC2E, FMPPC2E-1 400, 401

Natural Gas Conversion Kit
En-2 NATURAL GAS CONVERSION KIT - OUTLAND LIVING™FIRE TABLE - FMPPC2E (400)
REQUIRED TOOLS (Not Included)
• Philips Screwdriver #3 (large)
• Adjustable Crescent Wrench
• Lighter Wand
• Soap Water Spray Bottle
CAUTION:
The gas supply shall be shut off prior to disconnecting the
electrical power, before proceeding with the conversion.
Natural Gas Conversion Kit – Conversion Instructions
WARNING:
Your natural gas conversion kit comes with a quick-
disconnect (part 5) which should be installed by a
professional certified natural gas fitter.
WARNING:
This conversion kit shall be installed by a qualified service
agency in accordance with the manufacturer’s Instructions
and all applicable codes and requirements of the Authority
Having Jurisdiction. If the information in these instructions
is not followed exactly, a fire, explosion or production of
carbon monoxide may result causing property damage,
personal injury or loss of life. The qualified service agency
is responsible for the proper installation of this kit. The
installation is not proper and complete until the operation
of the converted appliance is checked as specified in the
manufacturer’s instructions supplied with the kit.

1-888-514-1663 | WWW.OUTLANDLIVING.COM En-3

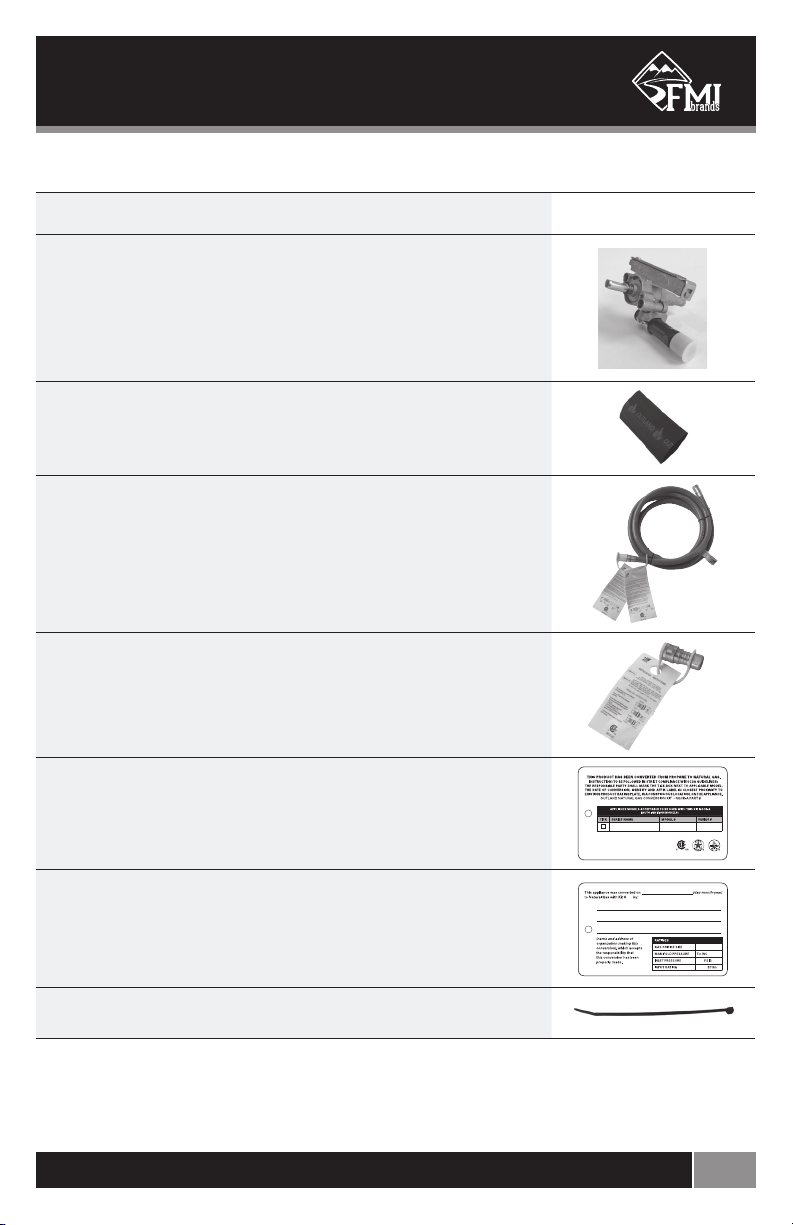

CONTENTS
1. Natural Gas Conversion Kit Manual - FMPPC2E (400)
2. Natural Gas Valve (marked with Yellow Cap)
3. Heat Shrink Tubing
4. Low Pressure Natural Gas Hose with Quick Disconnect Inlet Fitting
and 5/8”-18UNF Outlet Connector; MAX. WP 1/2 PSI; 3/8” diameter,
12ft length (marked with Yellow Cap)
5. Quick Disconnect for Gas Hose with 3/8”-18 NPT Inlet Connector;
MAX. WP 1/2 PSI (marked with Yellow Cap)

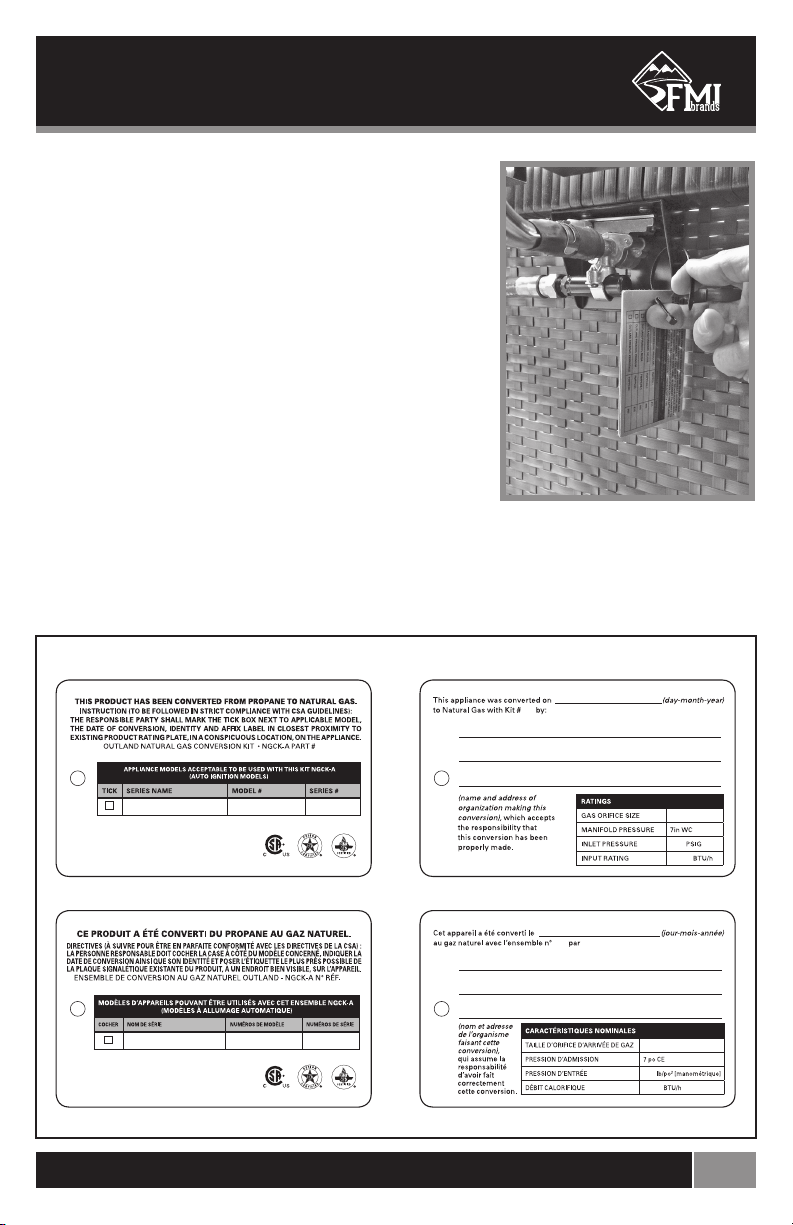

6. Marking and Warning Label (Side/Tag 1): Conversion Statement Label
7. Marking and Warning Label (Side/Tag 2): Conversion Identification
Label
8. Marking and Warning Label - Hang Strap
2.5 in x 4 in (63.5 mm x 101.6 mm)
TAG 1, SIDE 1 • ÉTIQUETTE 1 / CÔTÉ 1 TAG 2, SIDE 1 • ÉTIQUETTE 2 / CÔTÉ 1
TAG 1, SIDE 2 • ÉTIQUETTE 1 / CÔTÉ 2 TAG 2, SIDE 2 • ÉTIQUETTE 2 / CÔTÉ 2
OUTLAND FIRE TABLE FMPPC2E, FMPPC2E-1 400, 401
TABLE DE FEU OUTLAND FMPPC2E, FMPPC2E-1 400, 401
787
787
787
35,000
0.25
2.6mm
35 000
0,25
ENSEMBL E DE CONVERSI ON AU GAZ NATUREL O UTLAND
Distr ibué par : FMI BR ANDS INC
107 – 19052 26 Avenue, Su rrey, C.-B.
V3Z 3V7 • 1.88 8.514.1663
787
2,6 mm
OUTLA ND NATURAL GA S CONVERSIO N KIT
Distr ibuted by: FMI B RANDS INC
107 – 19052 26 Avenue, Su rrey, BC
V3Z 3V7 • 1.88 8.514.1663
2.5 in x 4 in (63.5 mm x 101.6 mm)
TAG 1, SIDE 1 • ÉTIQUETTE 1 / CÔTÉ 1 TAG 2, SIDE 1 • ÉTIQUETTE 2 / CÔTÉ 1
TAG 1, SIDE 2 • ÉTIQUETTE 1 / CÔTÉ 2 TAG 2, SIDE 2 • ÉTIQUETTE 2 / CÔTÉ 2
OUTLAND FIRE TABLE FMPPC2E, FMPPC2E-1 400, 401
TABLE DE FEU OUTLAND FMPPC2E, FMPPC2E-1 400, 401
787
787
787
35,000
0.25
2.6mm
35 000
0,25
ENSEMBL E DE CONVERSI ON AU GAZ NATUREL O UTLAND
Distr ibué par : FMI BR ANDS INC
107 – 19052 26 Avenue, Su rrey, C.-B.
V3Z 3V7 • 1.88 8.514.1663
787
2,6 mm
OUTLA ND NATURAL GA S CONVERSIO N KIT
Distr ibuted by: FMI B RANDS INC
107 – 19052 26 Avenue, Su rrey, BC
V3Z 3V7 • 1.88 8.514.1663

Natural Gas Conversion Kit
En-4 NATURAL GAS CONVERSION KIT - OUTLAND LIVING™FIRE TABLE - FMPPC2E (400)

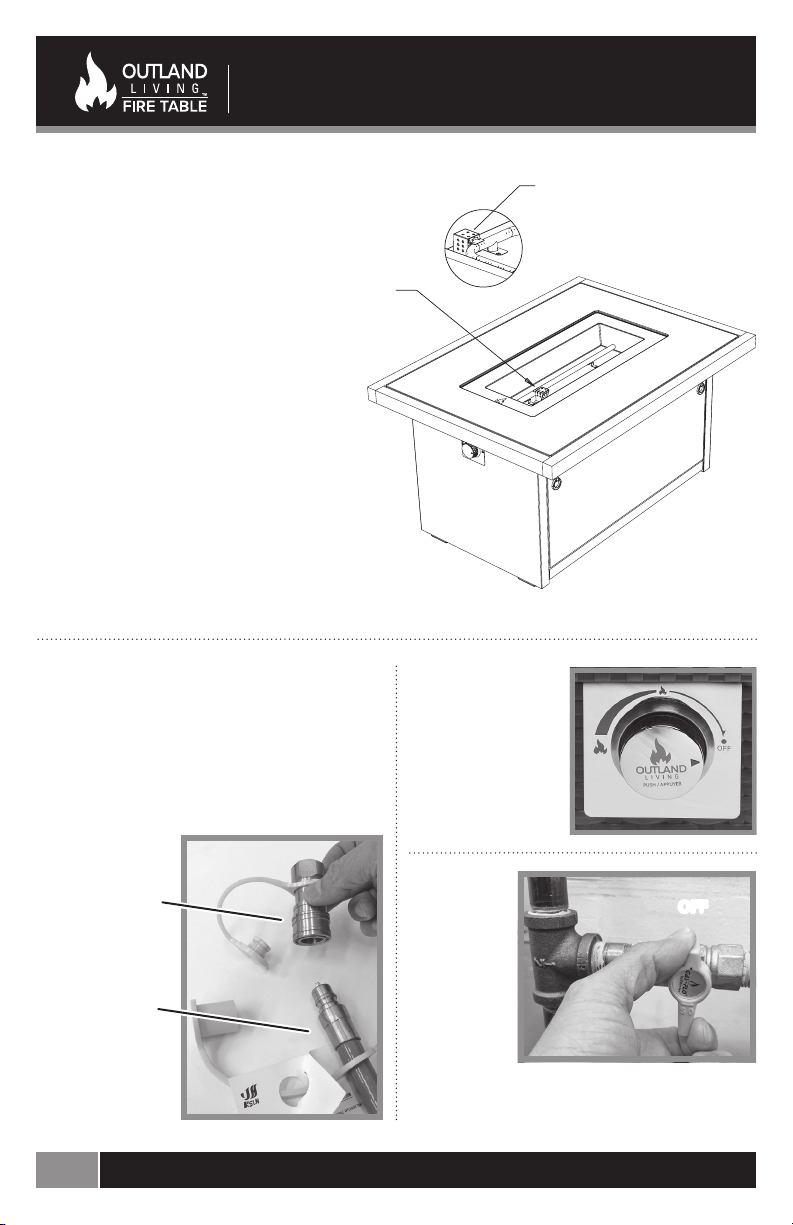

STEP 1
a. Ensure the fire table
gas control knob is
in the OFF position.
b. Remove side
panels.
GLASS ROCKS NOT
SHOWN
OFF

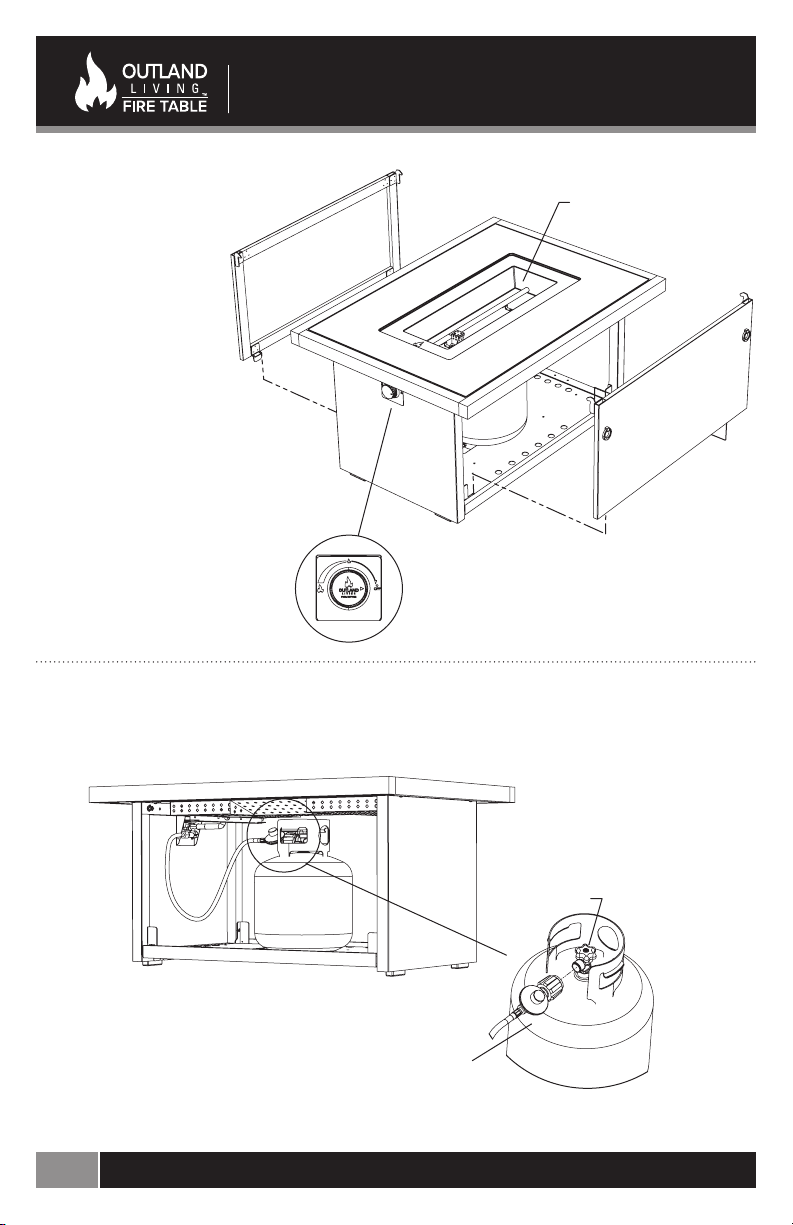

STEP 2
a. Close the valve on the LP (propane) cylinder.
b. Disconnect and remove the LP cylinder from the Fire Table.
CLOSE VALVE ON
LP (PROPANE)
CYLINDER
DISCONNECT AND REMOVE
THE PROPANE CYLINDER
FROM FIRE TABLE

1-888-514-1663 | WWW.OUTLANDLIVING.COM En-5

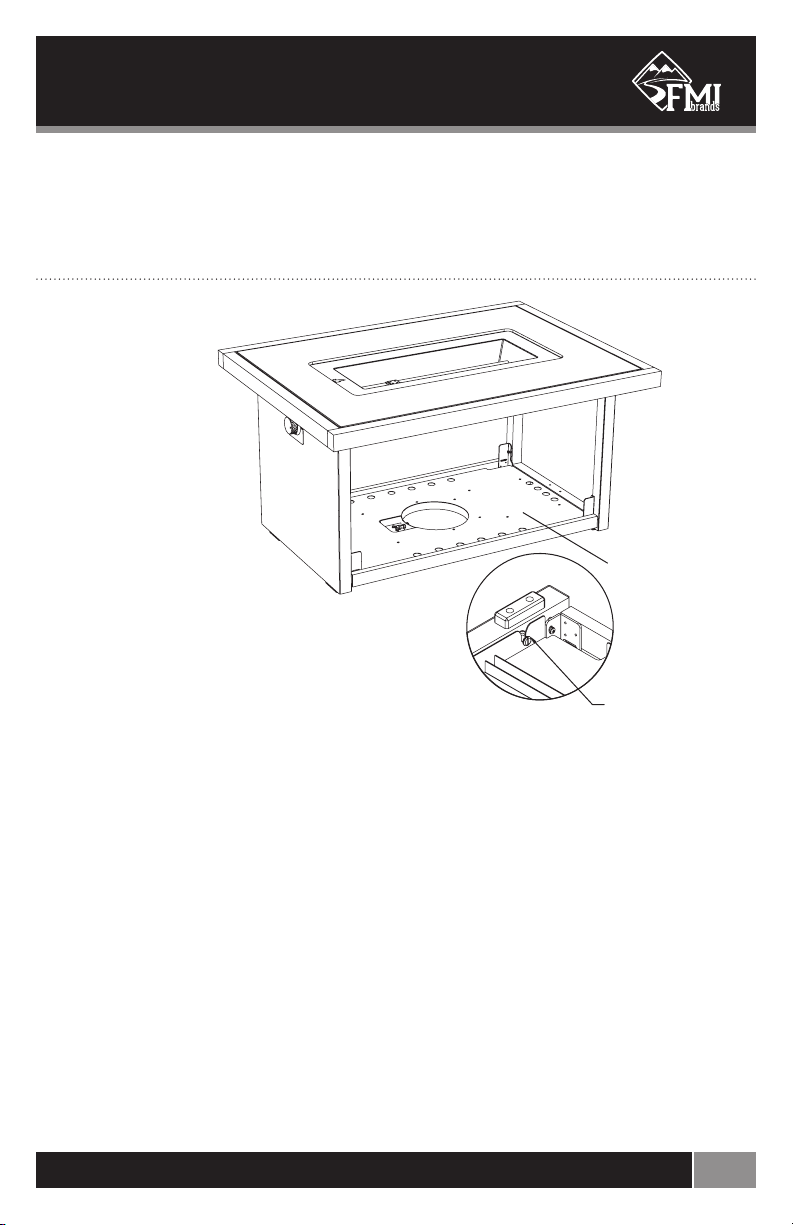

STEP 3
Empty the Fire Table burner tray of all glass rocks.
WARNING: Avoid glass dust. Always wear gloves to handle rocks; caution for glass dust when
handling; use a rag to wipe glass dust.

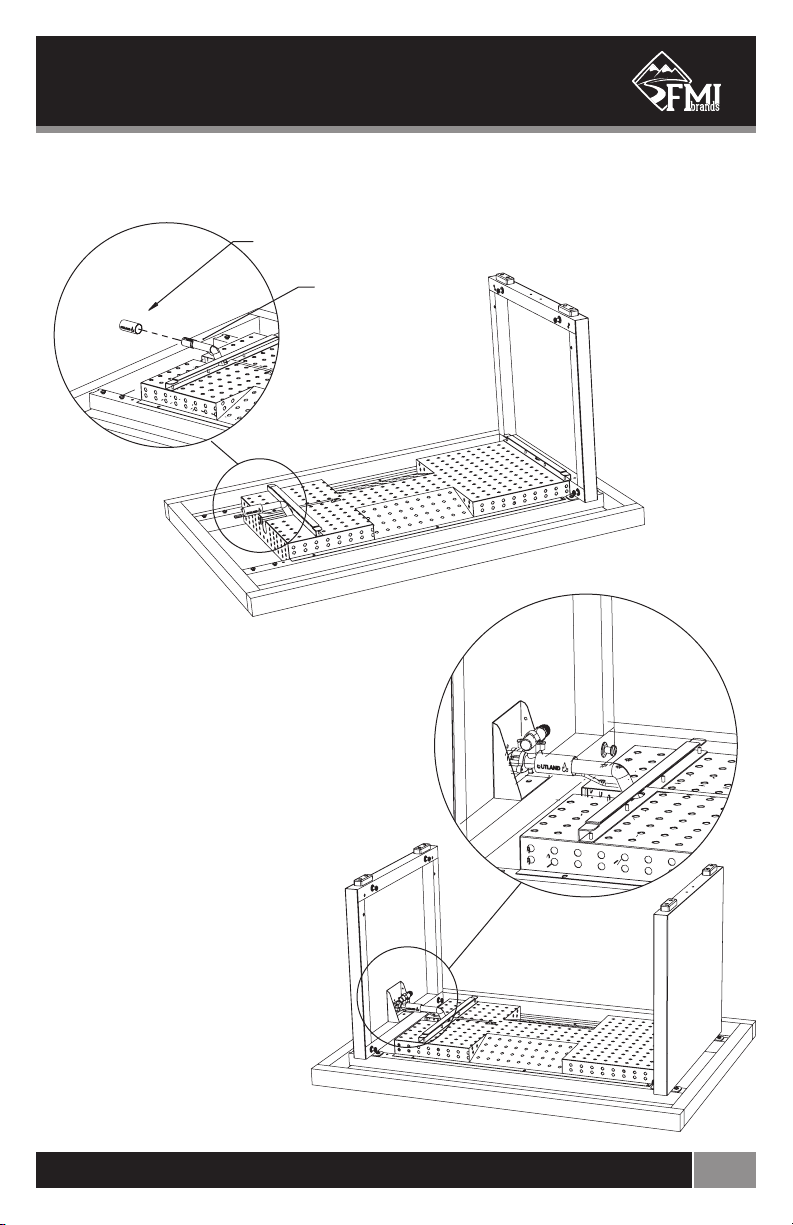

STEP 4
Remove bottom
Cylinder Base by
lifting off press-fit
studs.
4X STUDS
CYLINDER BASE
DETAIL A

Natural Gas Conversion Kit
En-6 NATURAL GAS CONVERSION KIT - OUTLAND LIVING™FIRE TABLE - FMPPC2E (400)

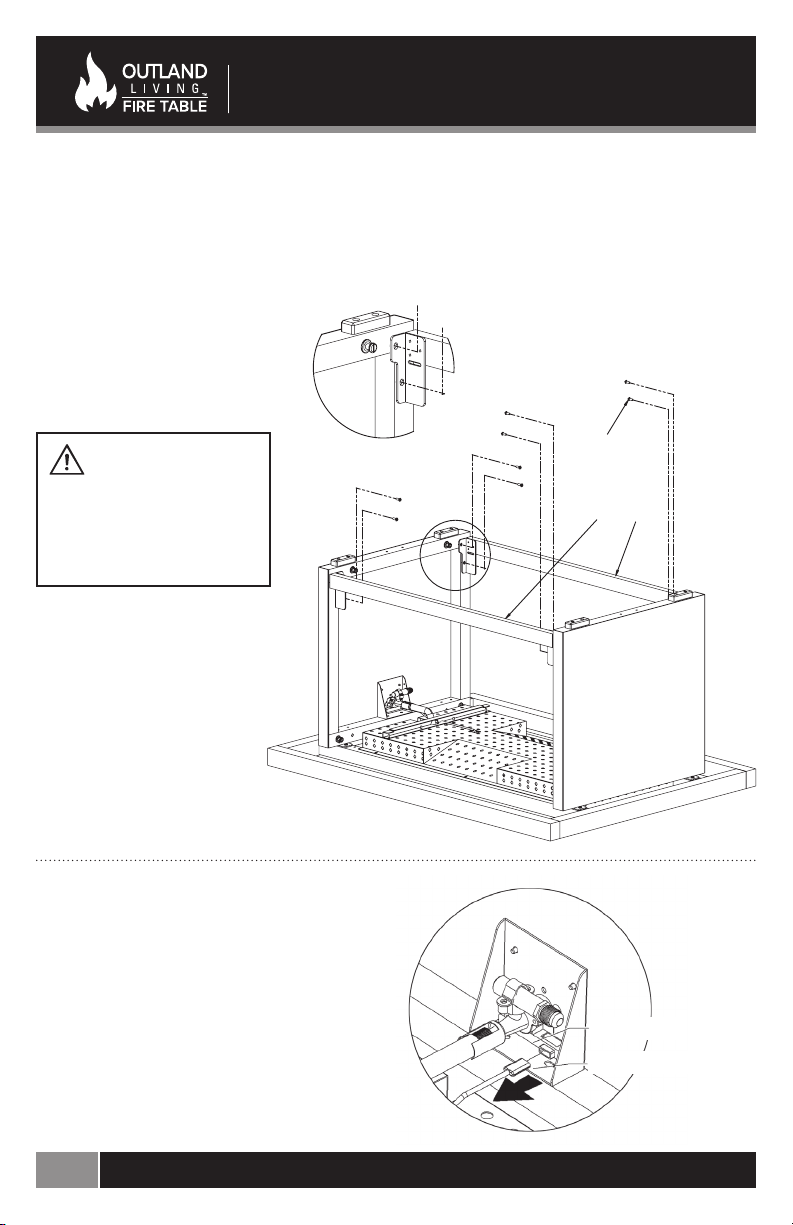

STEP 5
a. Remove the glass table top and ***GENTLY*** set it aside.
USE EXTREME CAUTION! The fire table top tempered safety glass may explode if contact is
made with uneven ground, especially ceramic tile! Place glass top on a blanket, or foam surface
and avoid hitting the glass corners.
b. Turn Fire table over and
lay on a flat non-marking
surface. This is a two
person job.
c. Remove Cross Bars by
removing (8x) M6 screws.
STEP 6

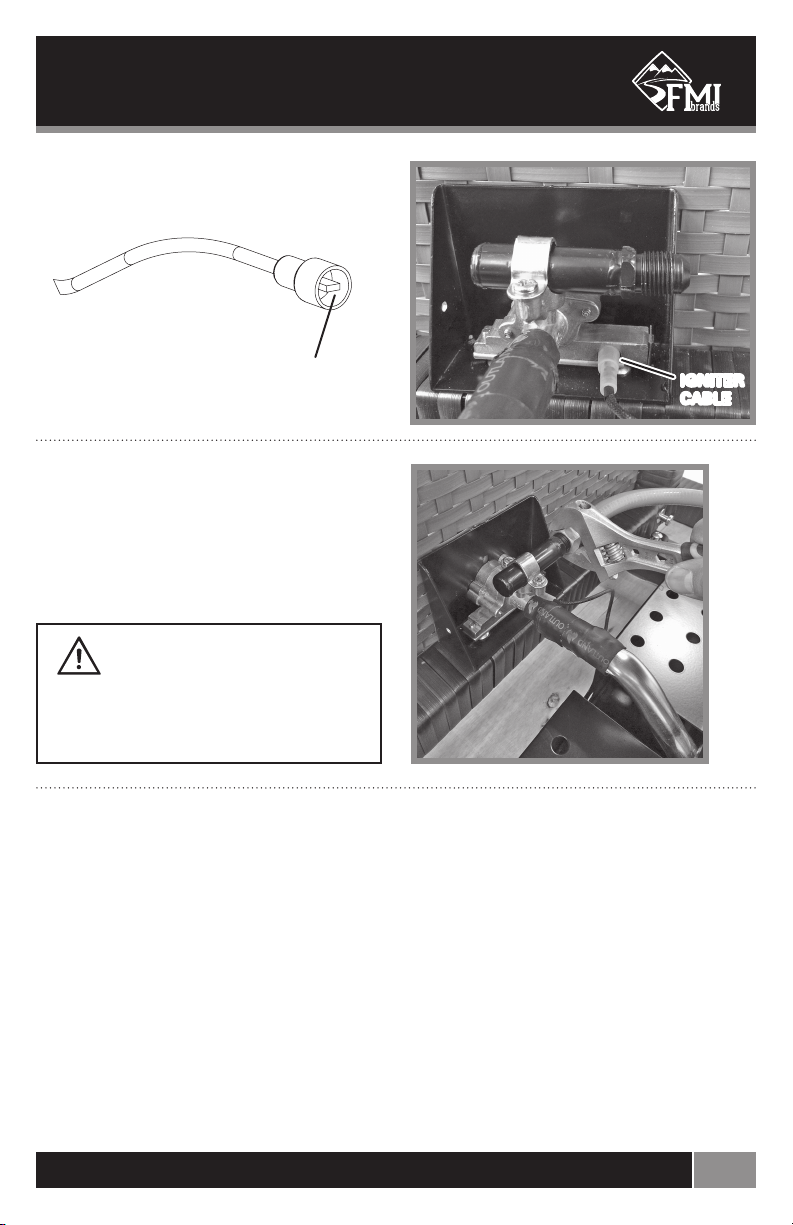

Disconnect the igniter cable. Slide protective
cap back to expose the cable connection.
Grasp the cable at the base and pull firmly.
DETAIL B M6 SCREWS
CROSSBARS
GAS VALVE
IGNITER CABLE
B
WARNING:
Place the Fire Table on a flat
cardboard, foam or blanket
work surface to avoid
damaging the wicker.

1-888-514-1663 | WWW.OUTLANDLIVING.COM En-7
STEP 7

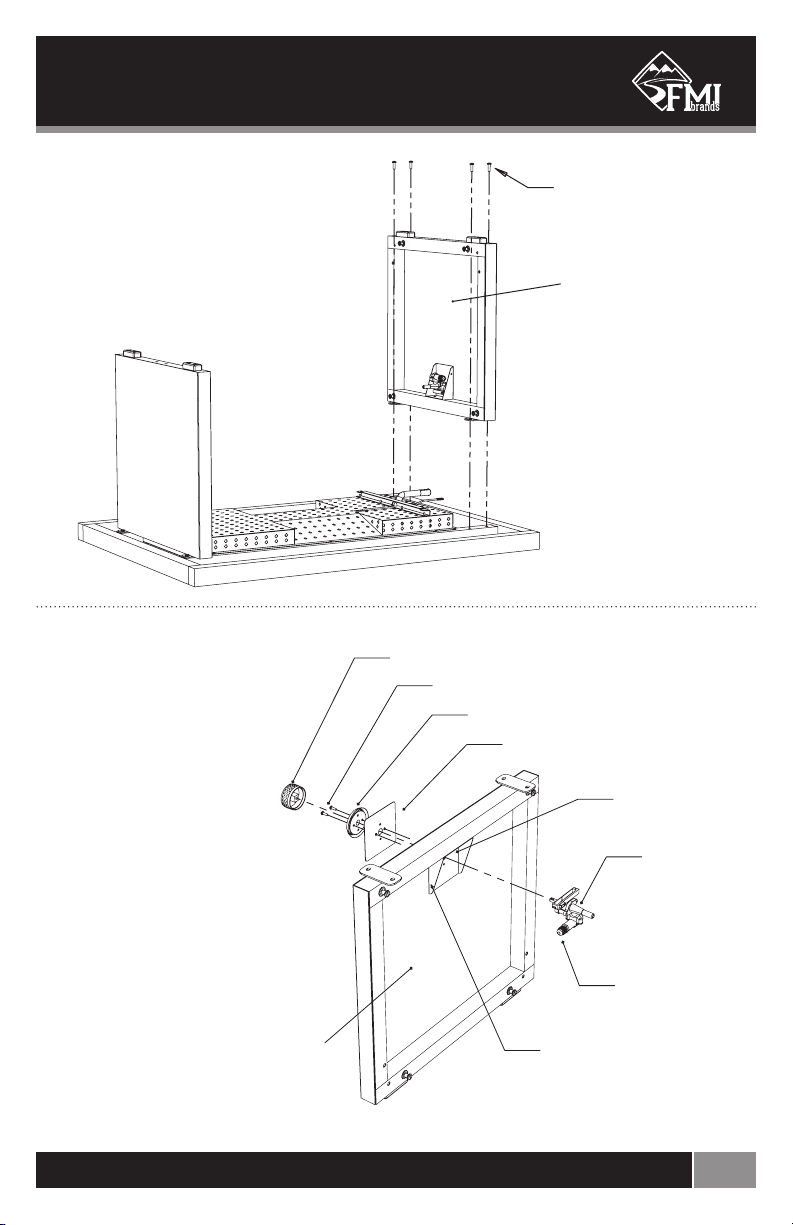

Remove End Panel with Gas Knob and
Valve by removing (4x) M6 screws.
STEP 8
Disassemble the propane gas
valve.
Remove the gas control knob
by gripping firmly and pulling
straight out. Remove the two
screws located next to the
exposed valve stem. This
will release the base ring,
faceplate and the propane
gas valve, which you can set
aside. Label and save this
propane valve for converting
back to propane if required.
M6 SCREWS
END PANEL WITH
GAS KNOB & VALVE
END PANEL
WITH GAS
KNOB & VALVE
GAS KNOB
(2X) SCREWS
BASE RING
FACEPLATE
MOUNTING
BRACKET
HANG TAG
LOCATION
GAS VALVE
GAS VALVE
HOSE COUPLING
(FACING DOWN)

Natural Gas Conversion Kit
En-8 NATURAL GAS CONVERSION KIT - OUTLAND LIVING™FIRE TABLE - FMPPC2E (400)
VALVE
STEM
ENSURE COUPLING
FACES DOWN & TO
THE RIGHT
LEFT RIGHT
Note: Ensure the arrow on the knob
aligns with the OFF indicator on the
valve cover when the valve is set in
the closed position. To check, push
and turn the knob clockwise until it
stops. The arrow on the knob should
be aligned with the OFF indicator on
the valve cover at this point.

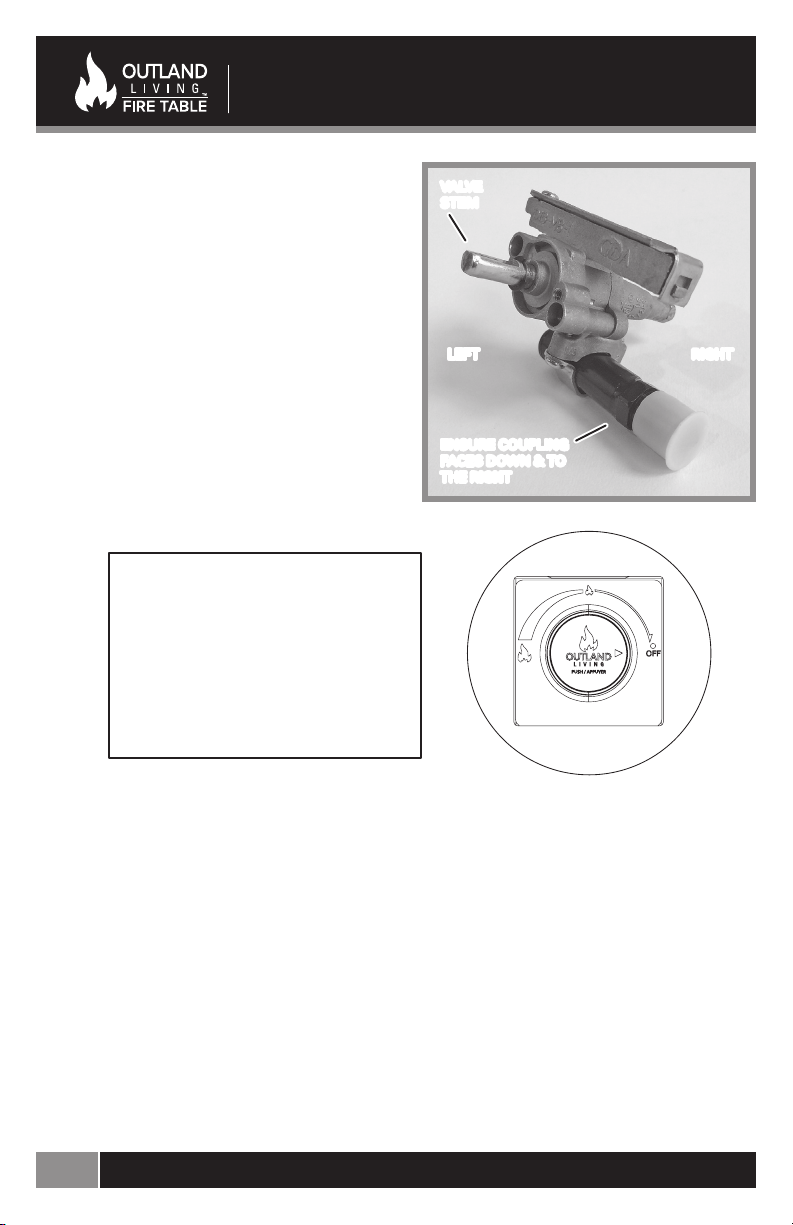

STEP 9
Assemble the natural gas valve (part 2).
a. Take the new NATURAL GAS valve (marked
with Yellow Cap) and insert the stem through
the valve cover ensuring the coupling is facing
down and to the right.
b. Align the openings of the gas valve, valve cover
and gas knob base ring and insert the two
screws.
c. Attach the gas knob by aligning the flat side
keyway to the flat side of the gas valve stem
and firmly press-fitting.

1-888-514-1663 | WWW.OUTLANDLIVING.COM En-9
HEAT SHRINK TUBING
BURNER
VENTURI TUBE
STEP 10
Slide the heat shrink tubing (part 3) over the burner venturi tube.
STEP 11
Mount the end panel with new natural gas
bracket assembly.
Use the same 4x M6 screws.
Important: Ensure the gas valve orifice is
aligned to sit inside the burner venturi tube.

Natural Gas Conversion Kit
En-10 NATURAL GAS CONVERSION KIT - OUTLAND LIVING™FIRE TABLE - FMPPC2E (400)
STEP 12
Apply the heat shrink tubing.
Position the heat shrink tubing so that it
generously overlaps the connection where
the gas valve orifice enters the burner venturi
tube and extends past the air inlet holes in

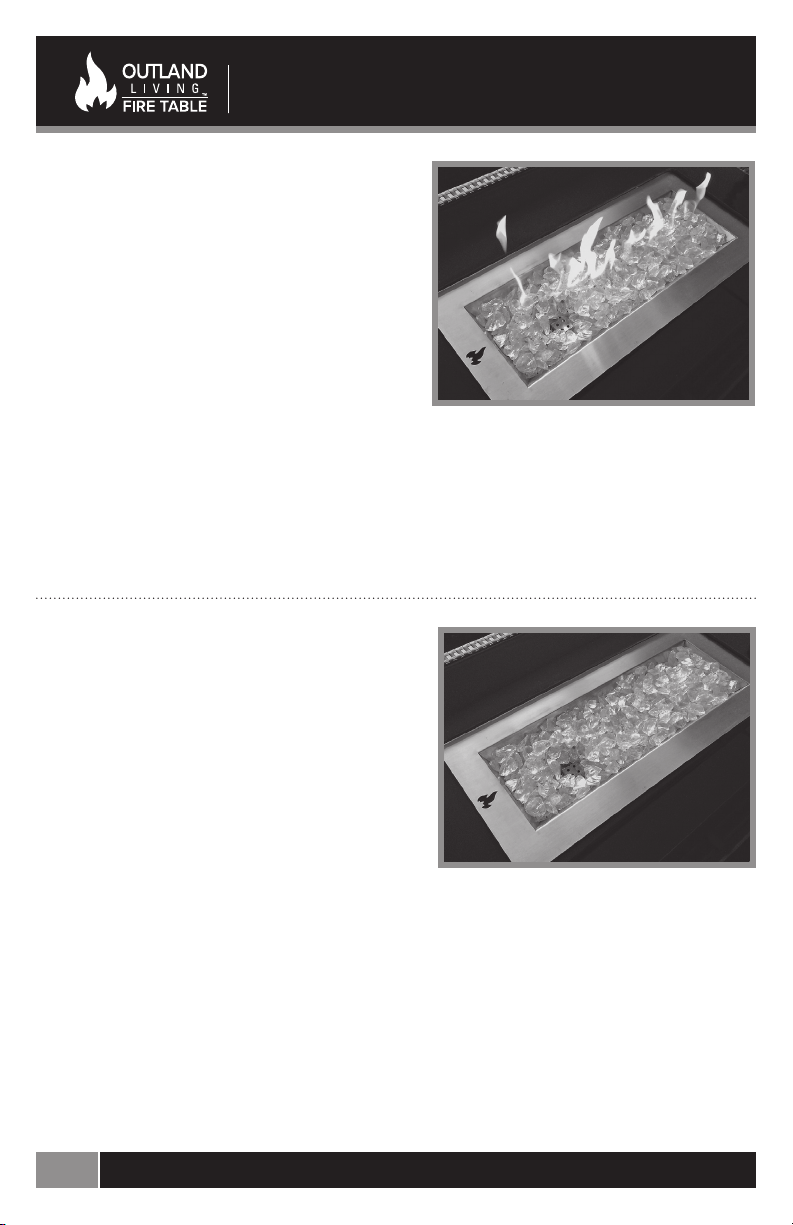

the burner tube. *** For the best looking
decorative flame quality it is important to
ensure all the air gaps and air inlet holes are
completely covered.***
Use a lighter wand, or lit match, to apply
flame heat close to and directly underneath
and around the heat shrink tubing. Don’t burn
a single spot too long. Have a steady hand and use a slow back and forth motion with the flame.
Ensure the heat shrink tubing cinches snugly over the entire circumference and no visible gaps in
the ends remain. The heat shrink tubing must set firmly around the parts, forming a good seal, so
no air gets in.

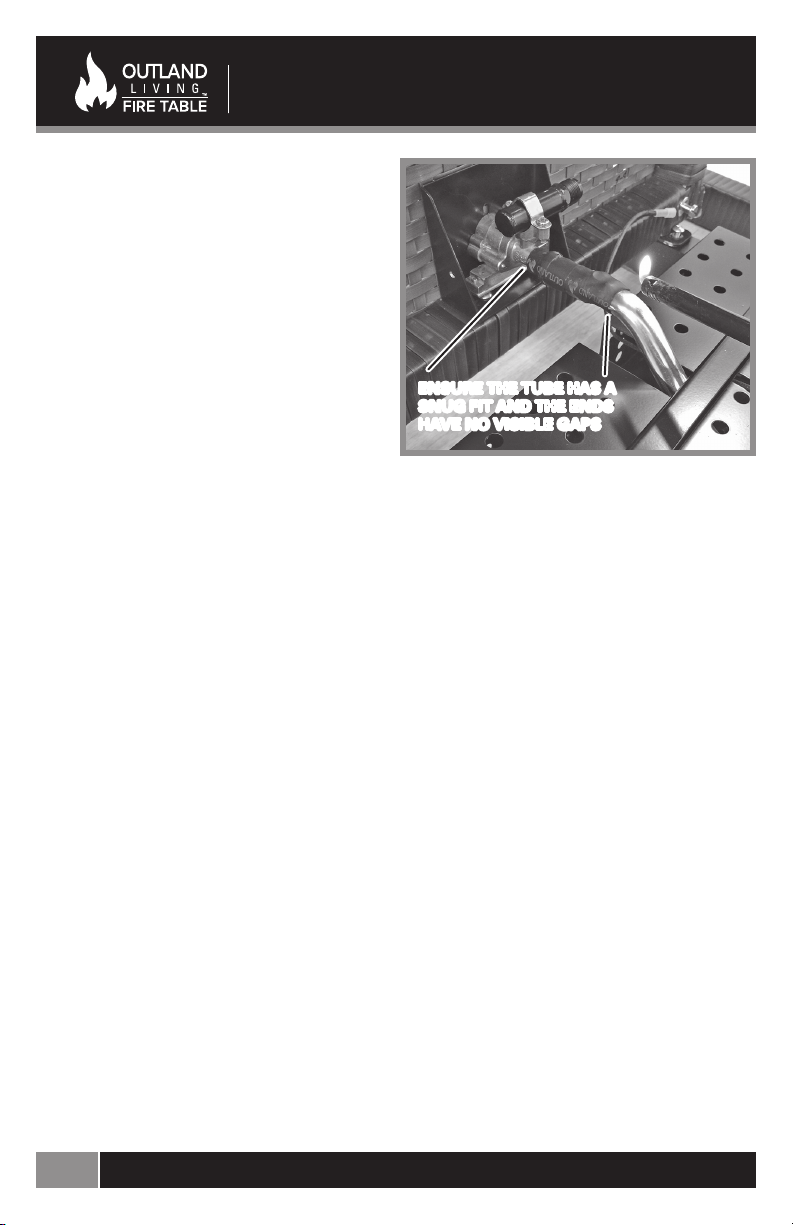

TIP: Once you have positioned the heat shrink tubing in place you do not need to hold on to it
during the heat application. The flame will naturally shrink and contract the heat shrink tubing,
conforming to the parts underneath and sealing off the air holes.
Oh Darn it!!
If, for some reason, after applying the heat shrink tubing there are visible gaps, or exposed air
holes around the venturi connection area, we suggest you use common high heat electrical tape
to close those gaps.
ENSURE THE TUBE HAS A
SNUG FIT AND THE ENDS
HAVE NO VISIBLE GAPS
