SAFETY REGULATIONS
Please read this manual carefully and in its entire-
ty. It contains important information regarding safety
issues, including guidelines for general safe use of
rigging systems as well as advisories on govern-
ment regulations and liability laws. The suspension
of large, heavy objects in public places is subject
to numerous laws and regulations at the national/
federal, state/provincial, and local levels. The user
must assume the responsibility for making sure that
the use of any rigging system and its components in
any particular circumstance or venue conform to all
applicable laws and regulations in force at the time.
GENERAL SAFETY RULES
• Carefully read this manual in all its parts
• Respecttheworkingloadlimitsandmaximumcon-
gurations of the elements and of any third-party
component (such as suspension points, motors,
rigging accessories, etc...)
• Do not incorporate any accessory not provided
by Outline; all damaged or defective components
must be replaced only by equivalent parts ap-
proved by Outline
• Ensure personnel health and safety, ensure that
no one is standing under the system during the
installation, ensure that all personnel involved in
the installation are equipped with personal safety
devices
• Always double check that the elements are cor-
rectly connected before suspending the system.
The rigging elements are easy to use, however the
installation shall be carried out only by qualied per-
sonnel that are familiar with the rigging techniques,
safety recommendations and with the instructions
described in this manual.
All mechanical components are subject to wear and
tear over prolonged use as well as corrosive agents,
impacts or inappropriate use. For this reasons us-
ers have the responsibility to adopt and adhere to a
schedule of inspections and maintenance. Key com-
ponents (screws, connecting pins, welded points,
rigging bars) must be inspected before every use.
Outline strongly recommends to carefully inspect
the system components at least once a year, report-
ing in a written document the date, the name of the
inspector, the points checked and any anomalies
discovered.
DISPOSAL OF WASTE MATERIALS
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused. When this
crossed-out wheeled bin symbol is attached to a
product, it means the product is covered by the Euro-
pean Directive 2012/19/EU and subsequent amend-
ments. This means that the product must NOT be
disposed of with other household-type waste. It is
the users’ responsibility to dispose of their waste
electrical and electronic equipment by handing it
over to an approved reprocessor. For more infor-
mation about where you can send your equipment
for recycling, please contact your local distributor.
The correct disposal of your old product will help
prevent potential negative consequences for the
environment and human health.
CONFORMITY AND WARRANTY
All the Outline electro-acoustic and elec-
tronic devices are in conformity with the
provisions of EC/EU directives (as stated in
our CE declaration of conformity).
The CE declaration of conformity is attached to the
product warranty certicate and is shipped with
the product.

OUTLINE S.R.L.
Via Leonardo da Vinci, 56
25020 Flero (Brescia) Italy
Tel.: [phone]
Fax [phone]
[email protected] www.outline.it
3
STADIA 100 LA SERIES DESCRIPTION
SAFETY PRECAUTIONS
Stadia 100 LA series comprises three loudspeak-
er modules of very similar dimensions and identical
horizontaldirectivity(100°)whichofferachoiceof10°,
20° or 30° dispersion in the vertical plane allowing
the modules to be combined to provide optimum cov-
erage for the location.
Each loudspeaker is equipped with eight 8” woofers
and four 3” compression drivers loaded by Outline’s
patented wave guide D.P.R.W.G. The four waveguides
are arrayed on an arc and the total angle denes the
vertical coverage. The main difference between the
three models is the angle between each waveguide
and the consequent box shape.
Each element can be coupled with any other ele-
ment of the Stadia 100 LA series to build dedicated
solutions for the specic space to cover.
The enclosures are constructed with birch ply n-
ished with ‘outSIDE’, an extraordinarily tough and
waterproof elastoplastic coating which interacts
with the cabinet material to provide extreme levels
of long-term protection. The outSIDE coating is just
one of the fundamental parts of the outSIDE concept,
which is a set of conceptual and implementative op-
erations leading the product to be suitable for expo-
sure to aggressive weather conditions.
Stadia 100 LA are intended to be used in installa-
tions and must be installed following the local and
regional safety rules. Specic rules must be applied
to the rigging structures that have to hold the assem-
bly of one or more devices and to the cables for the
connection to the amplier. Periodic controls must
be performed at regular time intervals according to
local laws, to the presence of additional safety de-
vices (such as tab washers against screw loosening)
and to the working conditions of the components (ex-
posure to heavy weather, heavy use, etc..).
An example of tests includes: a transducer test (i.e.
to be performed before and after every use), a visual
test for the rigging safety (i.e. to be performed every
six months), a visual test for the paint and wooden
external parts (i.e. to be performed once a year).
Additional tests must be performed after every un-
usual event such as incorrect use, very heavy storms,
etc...
The results of the periodic tests must be reported
on a document like the one at the end of this manual.

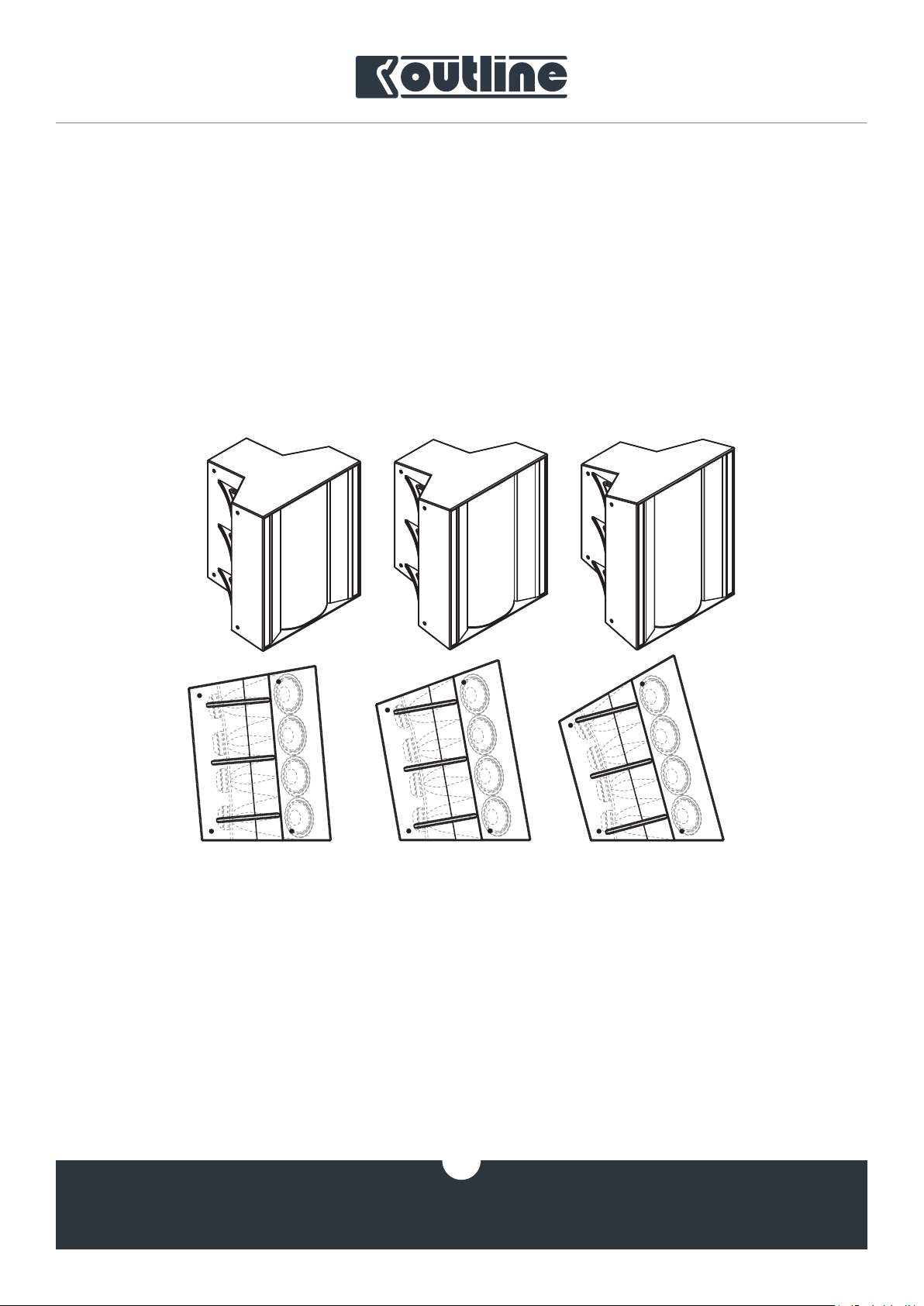

Stadia 100 -10 LA Stadia 100 -20 LA Stadia 100 -30 LA

OUTLINE S.R.L.
Via Leonardo da Vinci, 56
25020 Flero (Brescia) Italy
Tel.: [phone]
Fax [phone]
[email protected] www.outline.it
4
RIGGING INSTRUCTIONS
RIGGING POINTS POSITION
RIGGING STRUCTURE
Each Stadia 100 LA speaker requires an external
rigging structure to support each single element
and the total weight of the cluster if more than one
loudspeaker is used. The rigging hardware must be
designed according to the local laws and local safety
factors and considering the total load of the system,
the dynamic factors inducted by vibrations, winds
and mounting procedures. The rigging system shall
allow also safe mounting and dismounting opera-
tions and easy visual control.

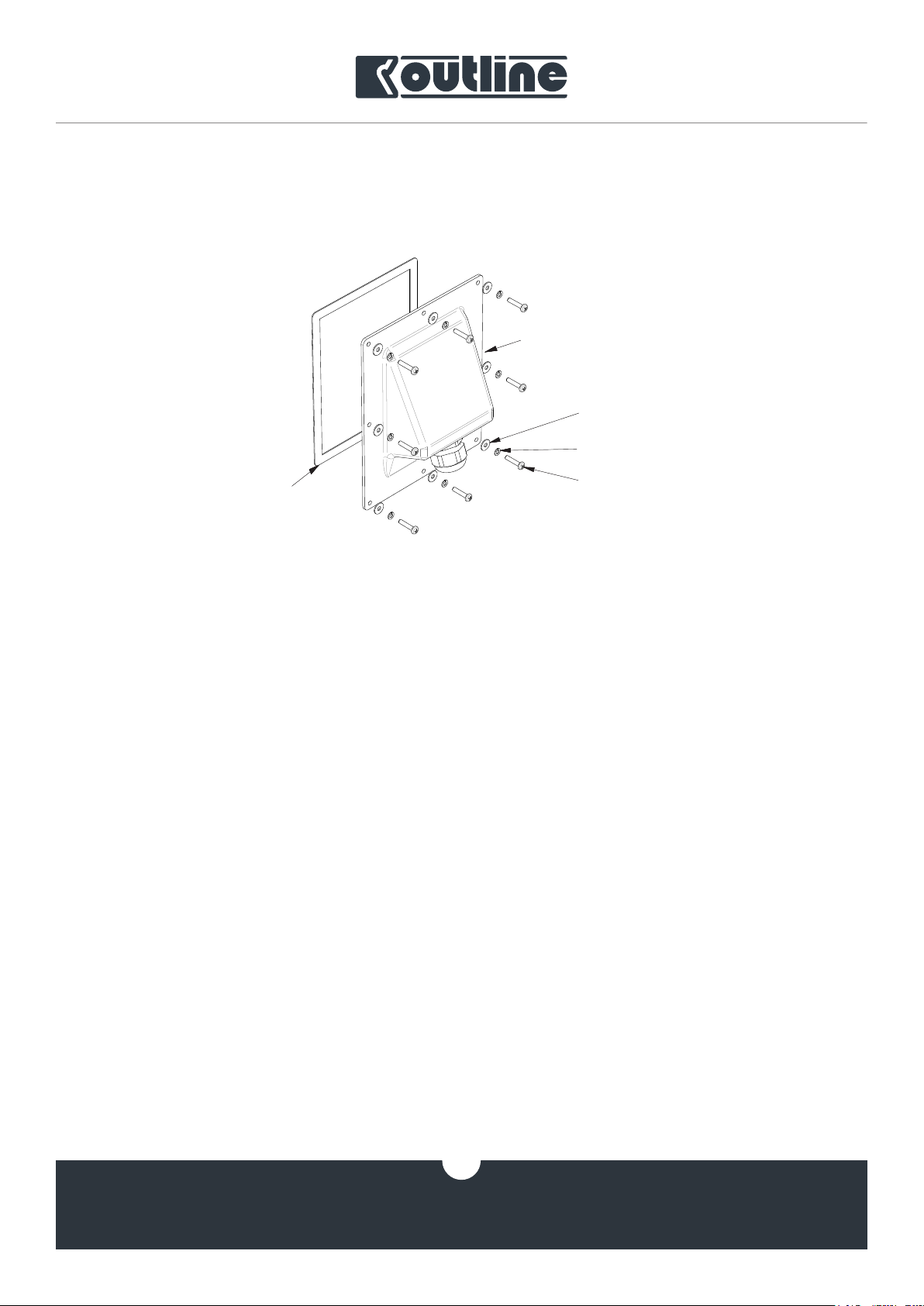

Each Stadia 100 LA offers eight M10 threaded fe-
male points. Four rigging points are available on each
side of the Stadia cabinet. Two of them are close to
the front panel (as shown in the picture below) and
two are close to the rear panel. Please refer to the
overall dimensions drawings for the exact position
of each point.
Figure 1: Detail of the position of a rigging point on a Stadia
The external rigging hardware must provide
support for each loudspeaker. This means that the
loudspeakers are NOT intended to support other
loudspeakers or other weights.
When multiple loudspeakers are used to build
a so-called “line array”, the external rigging must
embrace each loudspeaker and the entire array, as
shown in the picture below.
Yes
No

OUTLINE S.R.L.
Via Leonardo da Vinci, 56
25020 Flero (Brescia) Italy
Tel.: [phone]
Fax [phone]
[email protected] www.outline.it
5
RIGGING POINTS DETAILS
The rigging points consist of unperforated inserts
designed to hold a M10 bolt while protecting the
speaker from water. The inserts are made of ano-
dized corrosion-resistant aluminium alloy (Ergal)
but it is in any case suggested to protect against wa-
ter the points that are not used.
The length of the screw must allow the effective
use of 22 mm of thread and must not exceed the
maximum depth of the insert (27 mm), as shown
in the picture below. It is strictly forbidden to use a
shorter screw for safety reasons and to avoid dam-
ages to the loudspeaker.

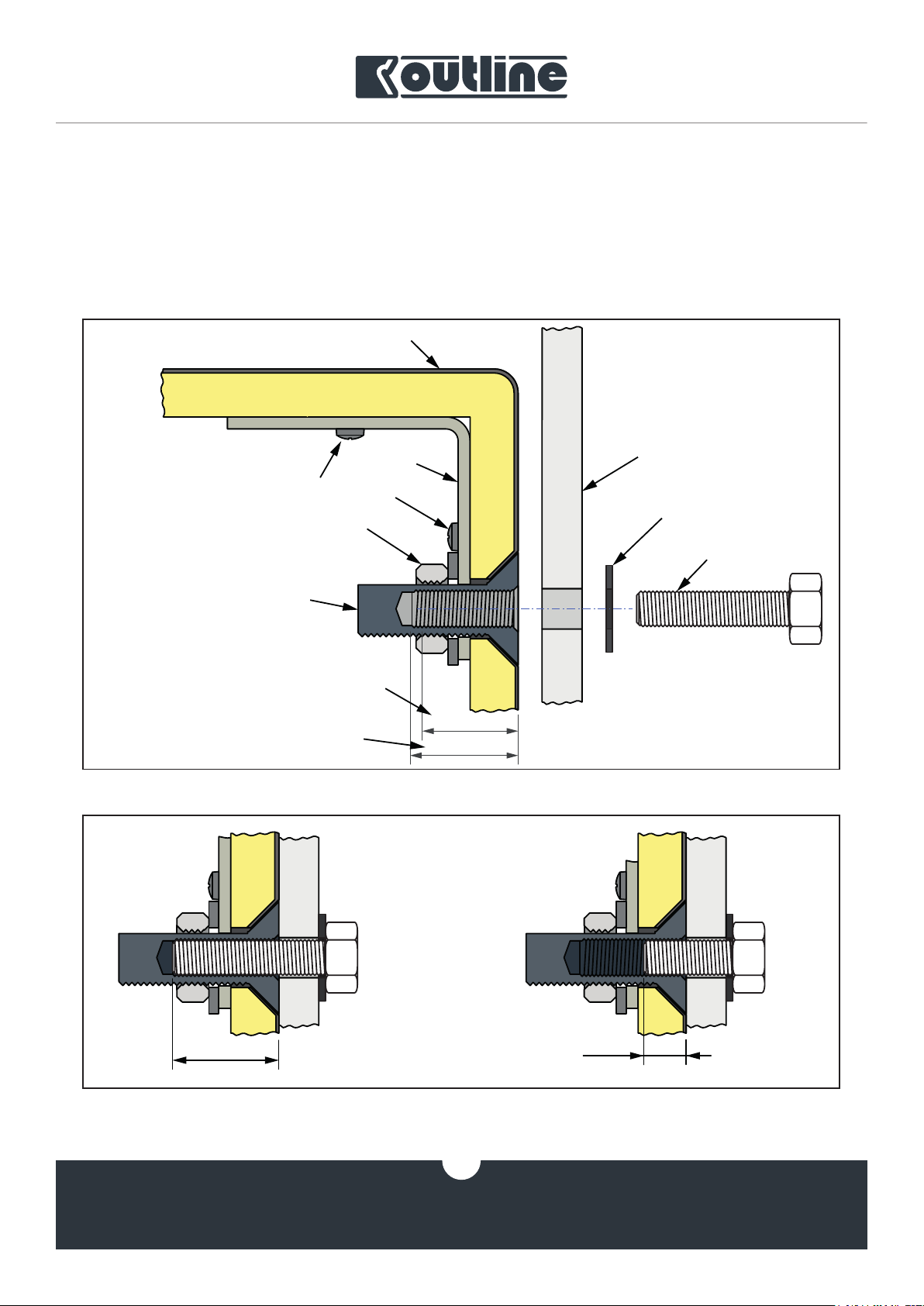

Figure 2: Rigging points details: each rigging point is made of a special insert that can receive a
