Outwell Arctic frost 35 User manual

ARCTICFROST

UK: INSTRUCTIONMANUAL

DE:BEDIENUNGSANLEITUNG

DK: BRUGERVEJLEDNING

FR:MODED'EMPLOI

NL:GEBRUIKSAANWIJZING

CZ:NÁVODKPOUŽITÍ

NO:BRUKERVEILEDNING

INNOVATIVEFAMILYCAMPING

35/45/55

Model: 590197,Arctic Frost 35

Model: 590199,Arctic Frost 45

Model: 590201,Arctic Frost 55

Please read this operating manual carefully before starting the device. Keep it in a safe place for

future reference.

1. SAFETY INSTRUCTIONS

WARNING!

•Do not operate the appliance if it is visibly damaged.

•Do not block the gaps of the cool box with things like pin, wire, etc.

•Do not expose the appliance to rain or soak it in water.

•Do not place the appliance near naked flames or other heat sources (heaters, direct sunlight,

gas ovens etc.)

•Do not store any explosive substances like spray cans with a flammable propellant.

•Ensure the supply cord is dry and not trapped or damaged. Do not locate multiple portable socket-outlets

or portable power supplies at the rear of the appliance.

•Check the voltage specification on the type plate corresponds to that of the energy supply. The appliance

is only to be used with the power supply unit provided with the appliance.

•Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of

the type recommended by the manufacturer.

•Once unpacked and before turning on, the appliance must be placed on a level surface for more than 6

hours.

•Make sure that the appliance stays horizontally when it is running. The tilt angle must be less than 5°for

long time running and be less than 45°for short time running.

•Keep the ventilation openings in the unit casing or in the built-in structure free of obstacles.

(Around the compressor ≥100mm).

•Keep the appliance stable on the ground or in the car; Do not drain upside down.

•

CAUTION!

•Repairs may only be carried out by qualified personnel. Incorrect repair may cause danger. The lamp and

supply cord must be replaced by the manufacturer or qualified persons.

•Children aged 3-8 years are only allowed to load and unload refrigerating appliances.

•Children shall not play with the appliance.

•Cleaning and user maintenance shall not be made by children without supervision.

•The appliance can be used by children aged from 8 years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or

instruction concerning use of the device in a safe way and understand the hazards.

NOTICE!

•Disconnect the power supply before each cleaning and maintenance and after every use.

•Do not use sharp tools to defrost; Do not damage the refrigerant circuit.

•Check if the cooling capacity of the appliance is suitable for storing the food or medicine.

•Food may only be stored in its original packaging or in suitable containers.

•If the appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the lid

open to prevent mould developing within the appliance.

•The cool box contains a flammable gas inside the compressor.

•The appliance is designed for recreational camping.

UK: INSTRUCTIONMANUAL

INDEX

1. SAFETY INSTRUCTIONS .......................................................................PAGE 3

2. PRODUCT FEATURES ............................................................................PAGE 4

3. PRODUCT STRUCTURE .........................................................................PAGE 4

4. REVERSE DOOR OPENING DIRECTION ...............................................PAGE 5

5. FUNCTION AND OPERATION ...............................................................PAGE 6

6. *BATTERY OPERATION (*NOT INCLUDED) .........................................PAGE 7

7. CARE AND MAINTENANCE...................................................................PAGE 8

8. TROUBLESHOOTING.............................................................................PAGE 9

9. GUARANTEE ..........................................................................................PAGE 10

10. TECHNICAL INFORMATION..................................................................PAGE 10

2 3

UK: INSTRUCTIONMANUAL

IF YOU WISH TO FINALLY DISPOSE OF THE DEVICE

1. Remove cables, lid, tie-down brackets from body with compressor and dispose according to

local regulations. Ask your local recycling centre for details about how to do this in accordance

with the applicable disposal regulations.

2. Place the packaging material in the appropriate recycling waste bins wherever possible.

1. PRODUCT FEATURES

•High-efficiency DC compressor and conversion module.

•CFC free and great heat insulation.

•Lowest cooling to -20°C/-4°F (based on 25°C/77°F room temperature).

•Intelligent battery protection system prevents your vehicle from running out of battery.

•LED display control panel for temperature setting, USB charging port: SV/lA.

•Detachable lithium battery: 15600mAh/11.1V.

•Specific parts: interior drain plug, oversized wheels, telescopic handle, cupholders (in the lid), interior LED

light, cutting board and bottle opener.

3. PRODUCT STRUCTURE

Note: There are buttons on both sides of the telescopic handle, press them at the same time to pull the rod.

The cutting board can be moved by turning the knob on the top cover. Clean and dry the cutting board after

every use.

4. REVERSE LID OPENING DIRECTION

The lid opening direction can be changed according to actual needs, please follow the instructions below:

LID DISASSEMBLY:

Open the lid

at a90® angle

Reverse the lid

opening direction

Take off the lid

from one side

Align the lid shaft with the

hole on one side and insert it

Take off the lid

from the other side

Fix the lid on the other side,

installaion finished

LID INSTALLATION:

UK: INSTRUCTIONMANUAL

Sealing strip Lid latch

Left compartment

LED control panel

Cutting board

Right compartment

Telescopic handle Bottle opener

Button Handle

Footpad

Machine compartment

Detachable battery

Charging port

Wheel

4 5

UK: INSTRUCTIONMANUAL

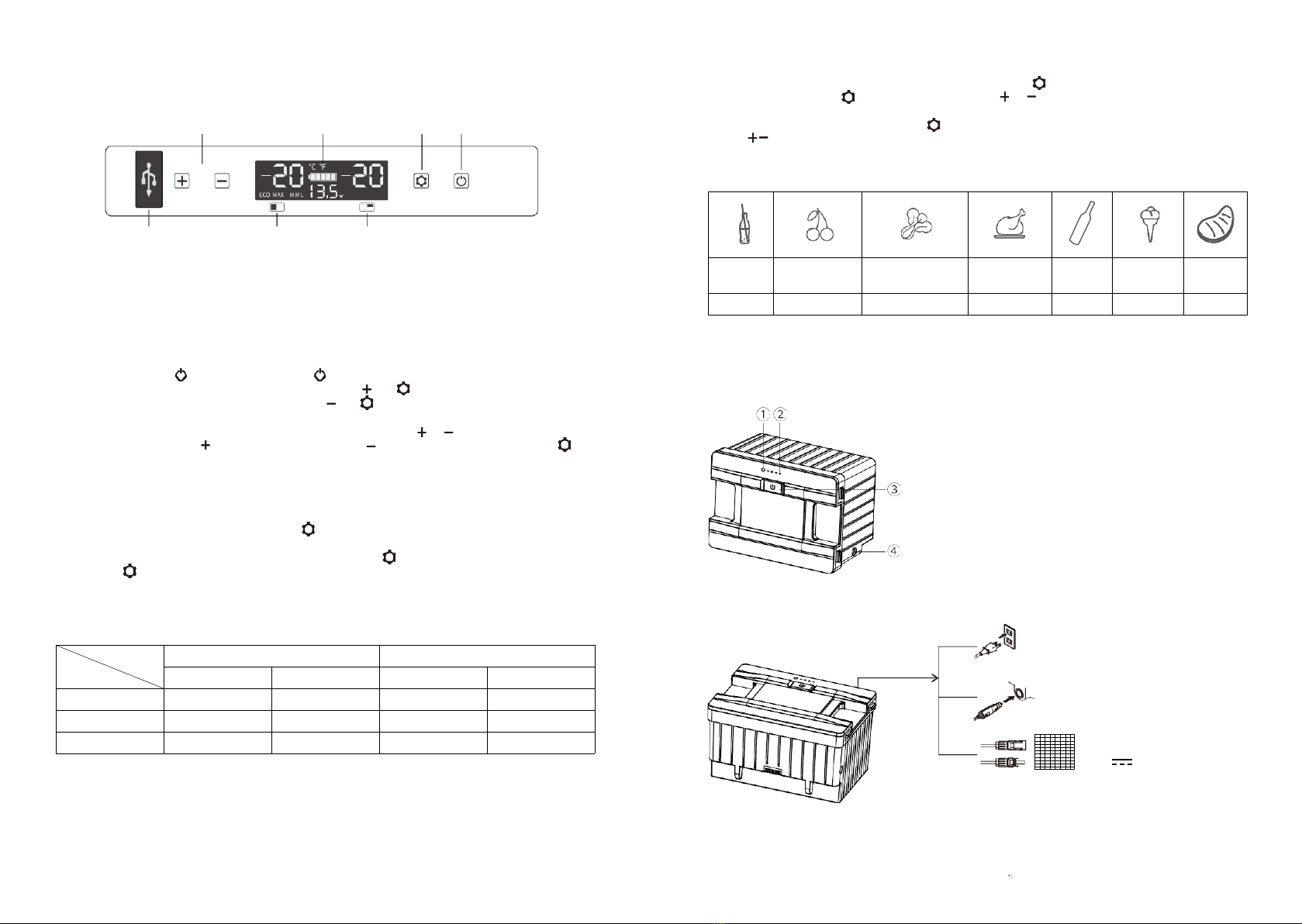

5. FUNCTIONS AND OPERATION

* Note: the right compartment is on the side where the compressor is.

•Power supply: Connect to DC 12V/24V or AC 100~240V (using dedicated adapter)

•Display Screen Initialization: When the cool box is switched on the buzzer will make a long beep, and

the display will be on for two seconds then enter the standby mode.

•Power On/Off: Press to switch ON, long press for three seconds to switch OFF.

•Temperature Setting: Under the running state, long press and at the same time for three seconds

to switch ON/OFF the left compartment, long press and at the same time for three seconds to

switch ON/OFF the right compartment. Two compartments cannot be switched off at the same time.

When both left and right compartments are set in running state, press or to enter left compartment

temperature setting, press to increase temperature, press to decrease temperature, and press to

switch between left or right compartment. The setting will be saved after stop operating for four seconds

(Note: the temperature displayed is the current temperature of the compartments, it will take a while to

reach the set temperature.)

Temperature setting range: -20~20°C (-4~68°F)

•Cooling Mode: Under the running state, press to switch to MAX (fast cooling) and ECO(Energy saving

Mode). (*Factory setting is MAX.)

•Battery Protection Mode: under the running state, long press for three seconds until screen flashes,

then press again to select protection mode H (High), M (Medium) and L (Low).

(*Factory setting is H).

VOLTAGE REFERENCE:

* the voltage is a theoretical value, there may be a deviation in different scenarios.

* H should be set when the product is connected to car power, and M or L should be set when it is

connected to a portable battery or other back-up battery.

•Temperature Unit Setting: switch off the cool box, long press for three seconds until E1 displays, then

switch to E5 by pressing again. Under E5 mode, press or to select Celsius or Fahrenheit.

(*Factory setting is °C.)

•Reset: Switch off the cool box, long press for three seconds until E1 displays, under E1 mode, long

press at the same time for three seconds to reset it.

RECOMMENDED TEMPERATURES FOR COMMON FOOD:

6. *BATTERY OPERATION (*NOT INCLUDED)

Battery ON/OFF: A long press on the power button will switch the battery ON/OFF. When the battery is OFF,

a short press on the power button will show how much battery power is left.

Model: Arctic Frost Rechargeable Battery (590202) / FSAK-002

Capacity: 15600mAh/l 73Wh Rated Voltage: 11.1V

Charging Limited Voltage (DC): 12.6V Charging Limited

Current (DC): 3A

➀Power Indicator (Green: charging; Blue: discharging)

➁Battery Indicator (show current battery)

➂Power Button ➃DC Charging Port

Warning: do not disassemble the battery!

Charge in the cool box

(using dedicated adapter)

(Charging time≈8h)

Car cigarette lighter

DC 12/24V

(When the Input voltage>13.V,

charging time≈8h)

Solar (Not included)

DC 12 50V

(Connect to the "Solar" port of the cool box)

(When using 100W solar panel, charging time≈5h)

Charge in the cool box

(in standby model)

•Battery charging (for reference only):

UK: INSTRUCTIONMANUAL

Drinks Fruits Vegetable Ready-to-

eat food

Wine

Icecream

Meat

5°C/41°F

5~8

°C/41~46°

3~10°C/37~50°F 4°C/39°F

°C/50°

-l0°C/14°F -l8°C/0°F

USB LEFT COMPARTMENT RIGHT COMPARTMENT

TEMPERATURE CONTROL LED DISPLAY SET ON/OFF

INPUT

MODE

DC 12V DC 24V

CUT-OFF CUT-IN CUT-OFF CUT-IN

L8.5V 10.9V 21.3V 22.7V

M10.1V 11.4V 22.3V 23.7V

H11.1V 12.4V 24.3V 25.7V

6 7

UK: INSTRUCTIONMANUAL

Note: It is suggested to switch off the cool box when charging the battery (the power supply may mainly

power the compressor when the cool box is running).

If connecting to a solar panel, please place the cool box in a cool place to dissipate heat. The charging

input power should be higher than the working power of the cool box (about 40-45W), or switch off the

refrigerator, otherwise the battery will run out.

It is suggested to use 100W solar panel.

MAX 42V DC and 50V DC no-load from solar panel: SOV; MAX Solar Input Current: 1OA.

Note: the output of the solar panel is unstable, so it cannot power the cool box directly. When using a solar

panel, the battery should be put into the cool box.

•Discharging time (for reference only): In the low battery protection mode, the battery can last about 4

hours after being fully charged. When the temperature of the cool box is set between 2~8°C (ambient

temperature 25°C), it can last 12 hours after the internal temperature stabilizes. Remove or switch off the

battery to prevent self-discharge when not in use.

7. CARE AND MAINTENANCE

Cleaning:

•Switch off and unplug the device first to avoid electric shock.

•Use a wet cloth to clean the device and then wipe with a dry cloth.

•Do not soak the cool box in water or clean it under running water.

•Do not use abrasive cleaning agents during cleaning as these can damage the device.

Storage:

If the device will not be in use for a long time, please follow these instructions:

•Switch off and unplug the device.

•Take out all the items stored in the device.

•Wipe off excess water with a soft rag.

•Put the cool box in a cool and dry place.

•Leave the lid slightly open to prevent odors from forming.

•Recommended storage environment: Ambient temperature: 25°C, ambient humidity: ≤75%.

Defrosting:

•Humidity can form frost in the interior of the cooling device or on the evaporator. This reduces the cooling

capacity. Defrost the device in good time to avoid this.

•Switch off and unplug the device first to avoid electric shock.

•Take out all the items stored in the device.

•Keep the lid open.

•Wipe off the defrosted water.

Never use hard or pointed tools to remove ice or to free objects frozen onto the device.

Replacing the AC plug fuse (220-240V)

1. Unplug the cable from the mains socket and the cool box charging port.

2. Pry open the fuse cover with a small flat head screwdriver in the center of the cable plug. Replace fuse

with a new one that has the same rating (BS 1362 13A).

3. Re-assemble the cable plug in the reverse order.

Replacing the cool box fuse (15A)

1. Unplug the cable from the mains or 12V socket and the cool box charging port.

2. Pry open the fuse cover with a small flat head screwdriver in the cool box charging port. Replace fuse with

a new one that has the same rating (ATOregular blade fuse 15A).

3. Re-assemble the charging port in the reverse order.

8. TROUBLESHOOTING

*For models with FSAK-002 detachable battery, if code Fl displayed, unplug or turn off the battery, or

connect to DC12/24V/AC100-240V (using the adapter) power supply to power the compressor and battery in

time to avoid long-term micro-current draining the battery.

8 9

UK: INSTRUCTIONMANUAL

Issues Cause/Suggestions

Cool

box does

not

work

•

Check if the switch is on.

•

Check if the plug and socket are properly connected.

•

Check if the fuse has been burnt.

•

Check if the power supply is malfunctioned.

•

Switching the cool box on/off frequently may cause start delay

of the compressor.

Cool

box compartments

are

too warm

•

The lid is opened frequently.

•

A large amount of warm or hot food was stored recently.

•

The cool box has been disconnected for a long time

Food

is frozen

•

The temperature was set too low

There

is "water flow"

noise

from inside the

cool

box

•

It is a normal phenomenon, caused by the flow of refrigerant.

There

are waterdrops

around

the cool box

casing

or lid gap

•

It is a normal phenomenon, the moisture will condense to water

when it touches a cold surface of the cool box.

The

compressor is slightly

noisy

when starting

•

It is a normal phenomenon, the noise will be reduced after the

compressor works stably.

Code

Fl displayed

•

Possible cause: low voltage to cool box. Adjust the battery protection

from High to Medium or from Medium to Low.

Code

F2 displayed

•

Possible cause: condenser fan is overloaded.
