Oval EL 2310-08E Series User manual


SMART COMMUNICATION UNIT
MODEL EL 2310-08E □□□
Applicable flowmeter : OVAL Coriolis Flowmeters
Ins. No. E-023-2-E
ALTI
mass
Type U, Type S, Type B
For the installation of application software “LinkTop” and the interface
driver, refer to Ins. No. E-020IMC “Smart Communication Unit MODEL:
EL2310 Software Installation Procedure Manual”.

E-023-
2
CONTENTS
1. SMART COMMUNICATION UNIT......................................................................................... 5
1.1 General .................................................................................................................................... 5
2. BEFORE YOU BEGIN ............................................................................................................. 5
2.1 Inspection upon Receipt .......................................................................................................... 5
2.2 Hookup with Associated Equipment and Devices ................................................................... 6
2.3 PC Interface Adapter ............................................................................................................... 7
3. EL2310 OPERATION ............................................................................................................... 8
3.1 LinkTop Screen ........................................................................................................................8
3.2 Starting the LinkTop and Connections..................................................................................... 9
3.3 Terminating the Connection................................................................................................... 11
3.4 Terminating the LinkTop......................................................................................................... 12
3.5 Menu: Process Variables (Processing Values Display) ......................................................... 13
3.5.1 Processing value measurements (View fld dev vars)....................................................... 13
3.5.2 Display of the converter writing state (Write protect) ....................................................... 14
3.6 Menu: Setup (Settings) .......................................................................................................... 15
3.6.1 Converter variables (Fld dev var) ..................................................................................... 16
3.6.2 Output settings (Outputs)................................................................................................. 18
3.6.2.1 Analog and pulse assignment (Analog, Pulse Assign)............................................... 18
3.6.2.2 Analog output 1 setting (Analog output 1).................................................................. 20
3.6.2.3 Analog output 2 setting (Analog output 2).................................................................. 21
3.6.2.4 Pulse output 1 setting (Pulse output 1) ...................................................................... 21
3.6.2.5 Pulse output 2 setting (Pulse output 2) ...................................................................... 23
3.6.2.6 Status output setting (Status output).......................................................................... 23
3.6.2.7 Error output level settings (Error output) .................................................................... 25
3.6.3 Status input settings (Status input) .................................................................................. 27
3.6.4 H/L alarm setting (H/L alarm)........................................................................................... 29
3.6.4.1 H/L alarm assignment (H/L alarm assign) .................................................................. 29
3.6.4.2 H/L alarm parameter settings (H/L alarm param)....................................................... 30
3.6.5 Converter information settings (Device information) ........................................................ 32
3.6.6 Converter display settings (LCD) ..................................................................................... 34
3.6.6.1 Display order settings (Var. priority) ........................................................................... 34
3.6.6.2 Display update frequency setting (Refresh LCD) ....................................................... 35
3.6.6.3 Display character size setting (Font) ..........................................................................36
3.6.6.4 Measurement value decimal point position settings (Decimal) .................................. 37
3.6.6.5 Display backlight time setting (Back light).................................................................. 38
3.6.6.6 Display contrast setting (Contrast) ............................................................................. 39
3.6.7 Converter key settings (Key)............................................................................................ 40

E-023-2-E
3
3.7 Menu: Diag/Service (Checking and Adjustment) ................................................................... 42
3.7.1 Converter self-diagnosis functions (Test/Status) ..............................................................43
3.7.1.1 Self-diagnosis function 1 (Self Diag) ........................................................................... 43
3.7.1.1.1 Hardware check (Hardware) .................................................................................. 43
3.7.1.1.2 Drive resistance check (Drive coil check).............................................................. 44
3.7.1.1.3 Converter internal state checks (Xmtr condition)................................................... 46
3.7.1.1.4 LCD test (LCD test) ............................................................................................... 47
3.7.1.2 Self-diagnosis function 2 (Installation). ...................................................................... 48
3.7.1.2.1 Static device installation state check (Static)......................................................... 48
3.7.1.2.2 Dynamic device installation state check (Dynamic). ............................................. 49
3.7.2 Loop test (Loop test) ........................................................................................................50
3.7.2.1 Analog output 1 loop test (Fix Analog 1)..................................................................... 50
3.7.2.2 Analog output 2 loop test (Fix Analog 2) .................................................................... 52
3.7.2.3 Pulse output 1 loop test (Fix Pulse 1)......................................................................... 52
3.7.2.4 Pulse output 2 loop test (Fix Pulse 2)......................................................................... 53
3.7.2.5 Status output loop test (Fix Status output) .................................................................53
3.7.2.6 Status input loop test (Fix Status input)...................................................................... 54
3.7.3 Converter adjustment function (Calibration) .....................................................................55
3.7.3.1 Automatic zero point adjustment (Auto zero) .............................................................. 55
3.7.4 Analog output adjustment (Trim Analog) .......................................................................... 58
3.7.4.1 Analog output 1 adjustment (Trim Analog 1)............................................................... 58
3.7.4.2 Analog output 2 adjustment (Trim Analog 2) .............................................................. 60
3.7.5 Cumulative total display, control (Counter/Totalizer cntrl)................................................ 60
3.7.5.1 Cumulative total 1 display and control (Counter/Totalizer cntrl 1) ............................... 60
3.7.5.2 Cumulative total 2 display and control (Counter/Totalizer cntrl 2)............................... 61
3.8 Menu: Maintenance. .............................................................................................................. 62
3.8.1 Log and converter internal temperature display (Maintenance xmtr) ............................... 63
3.8.1.1 Error log display (Error log)......................................................................................... 63
3.8.1.2 Converter internal temperature log display (Xmtr temp log) .......................................64
3.8.1.3 Converter internal temperature display (Xmtr temp)................................................... 65
3.8.1.4 Converter elapsed time display (History)....................................................................66
3.9 Menu: Window....................................................................................................................... 67
3.10 Menu: File ............................................................................................................................69
3.10.1 Database ........................................................................................................................ 69
3.10.1.1 Opening files ............................................................................................................ 69
3.10.1.2 Saving files ..............................................................................................................69
3.10.1.3 Deleting files ............................................................................................................ 70
3.10.1.4 Downloading ............................................................................................................ 71
3.10.2 Printing ........................................................................................................................... 73

E-023-2-E

3.11 Troubleshooting.................................................................................................................... 75
3.11.1 If there is no response .................................................................................................... 75
3.11.2 If it is not possible to connect to the flowmeter............................................................... 75
3.11.3 Input errors ..................................................................................................................... 76
3.11.4 Error and status display list............................................................................................. 77
4. PRODUCT CODE EXPLANATION ..................................................................................... 79
5. GENERAL SPECIFICATIONS ............................................................................................. 79
CONVENTIONS
Shown in this manual are the signal words NOTE, CAUTION and
WARNING, as described in the examples below:
NOTE: Notes are separated from the general text to bring
the user's attention to important information.
CAUTION: Caution statements signal the user about hazards or
unsafe practices which could result in minor personal
injury or product or property damage.
WARNING: Warning statements signal the user about hazards
or unsafe practices which could result in severe
personal injury or death.

E-023-2-E

1. SMART COMMUNICATION UNIT
1.1 General
Described in this manual are the operating instructions to use the Smart Communication Unit Model
EL2310 which operates in the Microsoft operating system Windows environment.
The EL2310 is a communication terminal designed for use in combination with a personal computer
(hereinafter referred to as PC) and any one of the OVAL Coriolis series flowmeters to set up, alter,
adjust, or read out parameters and variables, through interactive communications, locally at the point of
measurement or from a terminal in a remote location. Using a Windows PC at hand, you can monitor
multiple windows on its screen.
※: The EL2310 operates on the application software "LinkTop" furnished.
CD-ROM(one)
(LinkTop and driver)
Interface Adapter
Fig.1
LinkTop
®
for ALTImass
2. BEFORE YOU BEGIN
2.1 Inspection Upon Receipt
※Be sure you have the following items.
Remove the products from the EL2310 carton and make sure you have all the components required.
NOTE: For the installation of “LinkTop” and the interface driver, refer to “Installation Procedure
Manual”.

E-023-2-E

Flowmeter
Transmitter
OVAL Coriolis Flowmeter Receiving Instrument
(Load RLbuilt in)
Connection
Points
PC
Interface
Application Software
(LinkTop)
Probe
Polarity observation not required.
Connect probe acrosss + and - terminals
of analog output.
Tie-point
Terminal Block
LINE/＋
NEUT/−
LINE/＋Power
RL
NEUT/−
＋4〜20mADC
−
＋
−
Fig.2
2.2 Hookup with Associated Equipment and Devices
Equipment set-up with associated equipment and devices are shown in Fig. 2.
NOTE: In Fig. 2, the customer is to supply the PC that meets the following requirements:
◇PC/AT compatible (DOS/V machine)
◇Operating system is the Windows 2000, Windows XP, Windows Vista, Windows 7.
◇RAM: 8MB or larger.
◇Hard disk: 10MB or larger
◇Provision of USB port
The receiving instrument in the figure above requires a load resistance 250Ω min. Its upper limit depends
on the specification of transmitter used.
If the receiving instrument does not have a built-in RL, use it with an external RLconnected in series.

E-023-2-E

USB connector
Body
Cable length from
probe 500 approx.
Cable length from connector 1000 approx.
50
Probe
(60)
Fig.3
2.3 PC Interface Adapter
Comprised of components as shown in Fig. 3, it converts the flowmeter transmitter signal (Bell 202) into
the USB signal.
All dimension in millimeters

E-023-2-E

3.EL2310 OPERATION
3.1 About LinkTop Screen
Fig. 4 shows how the LinkTop window looks like.
Fig.4
Menu
PC-to-Flowmeter
Communications Status
Title Bar
Message Box Field
The state of communications is indicated at bottom left of the screen by :
◇During communications : RX WAIT
◇Communications interrupted : IDLE

E-023-2-E

Fig.5
Click here.
Fig.6
Fig.7
Click here..
Fig.8
3.2 Starting the LinkTop and Connections
①Hook up the owmeter transmitter, PC interface adapter, and "LinkTop" preinstalled PC as shown in
Fig. 2.
②To get the LinkTop up and running, click from "Start" at lower left of the PC screen and click "LinkTop
for Coriolis 3 (J)" from "Program".
③Click "Port setting (I) Ctrl + I" in "File (F)" at the top-level menu of screen.
④Set up the port.
Select the option labeled COM □(USB) and click "OK" ( □is the port number connected to the interface).
⑤On seeting the screen like the one shown in Fig. 7, click "Connect (C) F3" in "File (F)" at the top-level
menu of screen.
⑥At the message box as like the one in Fig. 8, click "OK" button and the connection process begins.

E-023-2-E
0
Fig.9
Fig.10
Fig.11
⑦As you click "OK" and start the connection process, a message box like the one in Fig. 9 appears.
A bar graph in the middle of message box indicates progress of connection process.
When the connection process begins, the transmitter connected is automatically identified and the
transmitter name appears in the title bar. A message indicating "ongoing communication" appears at
lower left of the screen with "IDLE" ⇔"RX WAIT" shown alternately.
⑧Upon completion of connections, a message box like the one in Fig. 10 appears. Click "OK" button.
⑨When connection is complete, of the menus at the top-level menu of screen, certain items that had
been dimmed and couldn't be chosen are usable now (menu characters turned black).

E-023-2-E

Fig.12
Click here.
Fig.13
Fig.14
3.3 Terminating the Connection
To terminate connection between the owmeter transmitter and LinkTop, follow the procedure given below:
①Click on "File (F)" at top-level menu on the screen as shown in Fig. 12, select "Disconnect (U) Shift + F3"
and click on again.
② At the message box as shown in Fig. 13, click on "OK." This brings the connection between the owmeter
and LinkTop to come to an end.
③Clicking on "Cancel" abandons the process of terminating the connection.
④When connection is terminated, part of the menu turns to be inactive (characters turn to white in color)
as shown in Fig. 14.

E-023-2-E
2
Fig.15

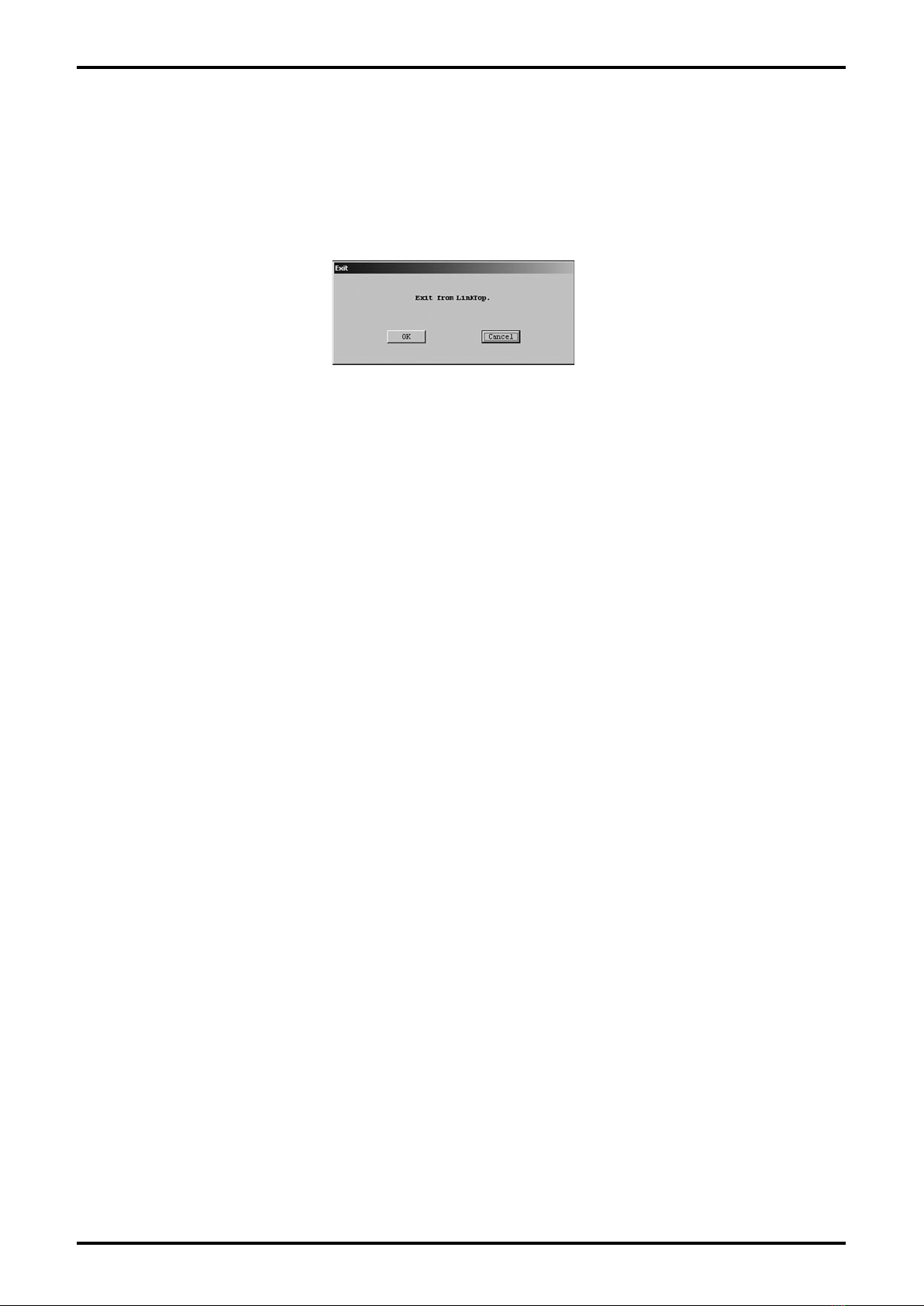

3.4 Terminating the LinkTop
To exit the LinkTop, click on "File (F)" at top-level menu of the screen, select "Exit (E)," and click on again.
A message box as shown in Fig. 15 appears. If you are sure to exit the LinkTop, click on "OK" button.
Clicking on "OK" button will cause the application window to disappear from the desktop.
To abort the terminating process, click on "Cancel."

E-023-2-E
3
Fig.16
3.5.1 Processing value measurements (View fld dev vars)
① Click "Process Variables (V)" in the menu at the top of the screen, and then select and click "View d
dev vars".
②The following window will be displayed (Fig. 17).
Fig.17
If the "Sensor type" is CB or CS, then "Temp (Outer)" will be added, and "Volume ow" will not be shown.
3.5 Menu: Process Variables (Processing Values Display)
The "Process Variables" menu can be used to conrm the owmeter’s process values (instantaneous ow
value, uid density, uid temperature, cumulative total ow value, and analog output), as well as the Write
Protect state.
For the actual screen, refer to Fig. 16.

E-023-2-E

③If there is some kind of problem with the owmeter converter, then an error message will be displayed
in the window under the process value measurement window. For details, refer to section 3.11.4, "Error
and status display list".
④To close the process value measurement window, click "Cancel".
3.5.2 Display of the converter writing state (Write protect)
①Click "Process Variables (V)" in the menu at the top of the screen, and then select and click "Write
protect" to display the following window (Fig. 18).
"Write protect" indicates whether or not the converter is writeable.
・ "Not write protected" (writeable): Parameters can be modied and the various setting can be made.
・ "Write protected" (not writeable): Parameters cannot be modied and the various settings cannot be
made.
②To close the converter write protection state display window, click "Cancel".
Fig.18

E-023-2-E

Setup Fld dev var
Outputs Analog/Pulse Assign
Analog output1
Analog output2
Pulse output1
Pulse output2
Status output
Error output
Status input
H/L alarm H/L alarm assign
H/L alarm param
Device information
LCD Var. priority
Refresh LCD
Font
Decimal
Back light
Contrast
Key
Setup Item Tree
Fig. 19
3.6 Menu: Setup (Settings)
The "Setup" menu can be used to set the flowmeter’s various parameter values, the converter’s
information, and so on.
If a "Diag/Service" window is displayed on the screen, then it will not be possible to set the various
parameters, converter information, and so on. Close these window before making settings.
For the actual screen, refer to Fig. 19.

E-023-2-E

3.6.1 Converter variables (Fld dev var)
①Click "Setup (S)" in the menu, and then select and click "Fld dev var".
②The following window will be displayed (Fig. 20).
Fig.20
③In the "Flow" section, the mass ow unit, volume ow unit, inow direction, ow damping, ow cutoff,
and volume ow compensation coefcient can be set.
If the "Sensor type" is CB or CS, then the volume ow unit "Vol ow unit" and "Vol ow coef" selection
items will not be displayed.
The ow direction can be set to either "Forward" or "Reverse", whereby "Forward" means the direction
indicated for the ow direction on the owmeter unit is treated as the "positive direction", and "Reverse"
means the opposite direction from the arrow is treated as the "positive direction". Flow cutoff indicates
a percentage of the maximum allowed ow, with the standard setting at "0.3%". This functions both in
the positive and negative directions.
④In the "Density" section, the density unit, density damping, gas multiphase ow determination, density
compensation, and settled density can be set.
If the gas multiphase ow determination exceeds the setting value of the measurement density’s
"Slug low limit" or "Slug high limit", then this is seen as a gas multiphase ow, and the owmeter
side’s result and output are forcibly set to "0". When "Slug low limit" is set to "0" and "Slug high limit" is
set to "10", the gas multiphase ow determination function is turned "OFF". Also, if it is within the time
set in "Slug duration", then the gas multiphase ow state will be ignored, and ordinary measurements
will be continued.
When density compensation "Compensation" is set to "ON", the density and volume flow become
values that are converted based on the base temperature (calculated with "Standard temp" and
"Expansion coef").
When settled density "Settled dens" is set to "ON", then the value set with "Dens value" is reected in
the volume ow.

E-023-2-E

⑤In the temperature "Temp" section, the temperature unit and temperature damping can be set.
⑥Set each item. For the items with a triangle on the right side, click the triangle to make your selection
from the drop-down list. For the other items, directly input a numerical value.
⑦After all settings are complete, click the "OK" button to display a message box (Fig. 21).
Click "OK" here to change the settings to the inputted values, and to reect the changed setting values
in the owmeter’s output. For the sake of safety, if the owmeter’s output is used to control valves or
other such parts, then change that control loop to manual control so that the control loop is in a state
whereby it is not inuenced by the owmeter’s output.
⑧Click "OK" to change the settings to the inputted values, and then click the "OK" button in the displayed
message box (Fig. 22) to complete the setting process.
⑨After the "OK" button is clicked, the item input window will appear again. Click the "Cancel" button to
close the item input window.
To cancel the settings, click the "Cancel" button in any step from ②to ⑦.
CAUTION
If the unit is changed, then it will be necessary to update the units included in
other windows.
If a window including units is opened, then close that window and reopen it to
update the units.
Fig.21
Fig.22

E-023-2-E

3.6.2 Output settings (Outputs)
3.6.2.1 Analog and pulse assignment (Analog/Pulse Assign)
①Click the "Setup (S)" menu, and then select and click "Analog/Pulse Assign" from the "Outputs" drop-
down list.
②The following window will be displayed (Fig. 23). Assign analog output 1 and 2 here, as well as pulse
output 1 and 2.
③Set each item assignment. Make your selections from the drop-down lists by clicking the triangles on
the right side of each item, as shown in Fig. 24, Fig. 25, and Fig. 26.
If the "Sensor type" is CB or CS, then the "Pulse output 1" and "Pulse output 2" selection items will be
xed at "Mass ow", and therefore will not be displayed.
Also, when the "Pulse output 2" selection items "Double Pulse 90", "Double Pulse -90", and "Double
Pulse 180" are selected, the setting becomes the phase difference with "Pulse 1".
Fig.23
Fig.24
Fig.25
Fig.26

E-023-2-E

④Click the "OK" button after all settings are completed to display the message box (Fig. 27).
Click "OK" here to change the settings to the inputted values, and to reect the changed setting values
in the owmeter’s output. For the sake of safety, if the owmeter’s output is used to control valves or
other such parts, then change that control loop to manual control so that the control loop is in a state
whereby it is not inuenced by the owmeter’s output.
When the pulse output assignment is modied, the cumulative total will be reset, and a conrmation
message box will be displayed as shown in Fig. 28. To avoid resetting the cumulative total, click the
"Cancel" button. If you do not mind resetting the total, click the "OK" button again.
Also note that if "Cancel" is clicked, settings will not be modied.
⑤Click "OK" to change the settings to the inputted values, and then click the "OK" button in the displayed
message box (Fig. 29) to complete the setting process.
Also note that when the analog output assignment is changed, this can generate an alarm.
In this case, the message box shown in Fig. 30 will be displayed.
Fig.27
Fig.28
Fig.29
Fig.30

E-023-2-E
20
⑥After the "OK" button is clicked, the item input window will appear again. Click the "Cancel" button to
close the item input window.
To cancel the settings, click the "Cancel" button in any step from ②to ④.

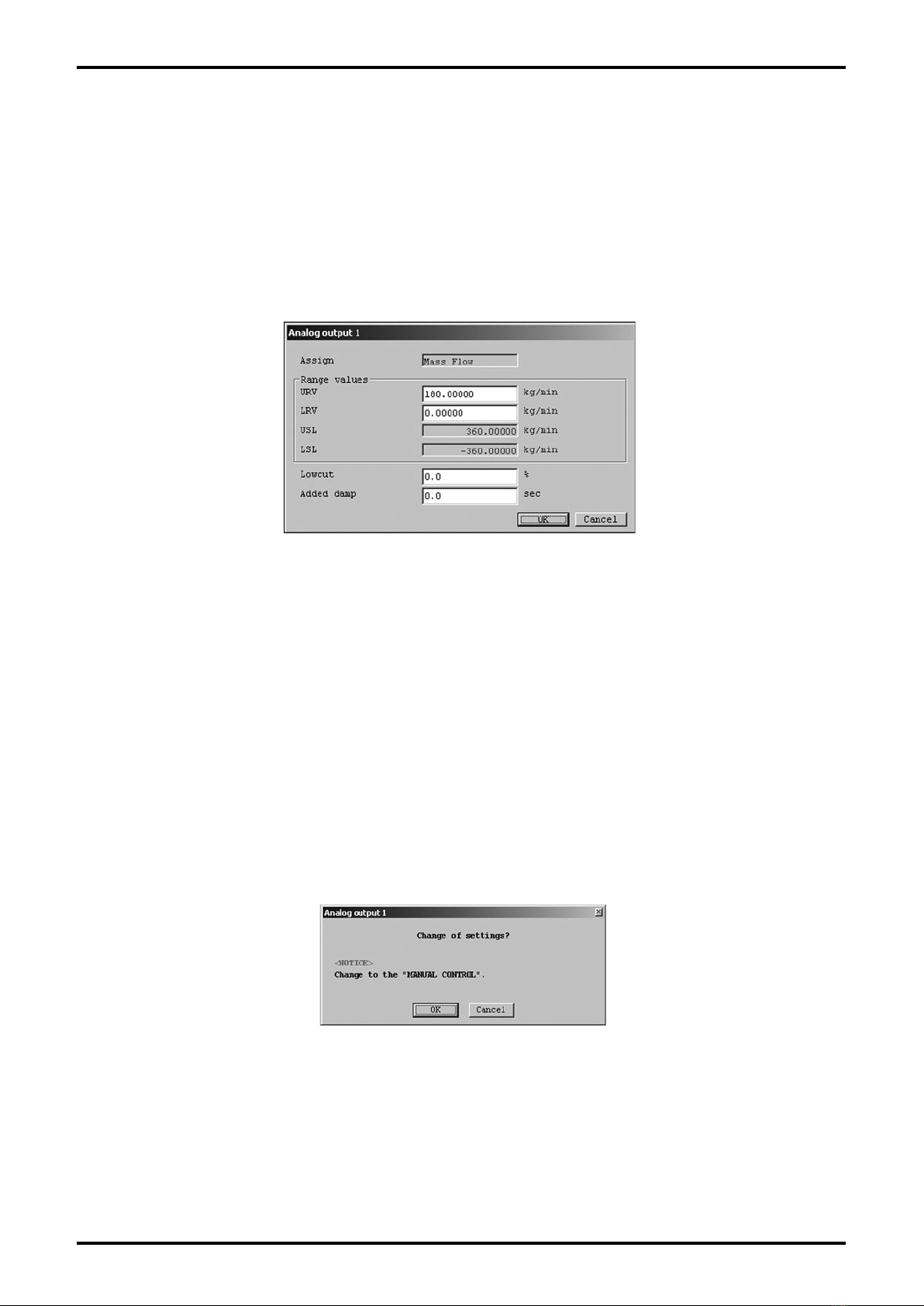

3.6.2.2 Analog output 1 setting (Analog output 1)
①Click the "Setup (S)" menu, and then select and click "Analog output 1" from the "Outputs" drop-down
list.
②The following window will be displayed (Fig. 31). Set analog output 1 here.
③Set each item. USL (the sensor’s upper limit) and LSL (the sensor’s lower limit) indicate the input
range of URV (20mA setting) and LRV (4mA setting), so use this as a rule of thumb when making your
settings.
When "Lowcut" is set to "0.0%", the lowcut function is turned off. "0.0%" is the standard setting. If
anything other than ow (mass or volume) is assigned, be sure to set 0.0%. Also note that when "Bi
direction" is selected, the lowcut function will work in both positive and negative directions.
④Click the "OK" button after all settings are completed to display the message box (Fig. 32).
Click "OK" here to change the settings to the inputted values, and to reect the changed setting values
in the owmeter’s output. For the sake of safety, if the owmeter’s output is used to control valves or
other such parts, then change that control loop to manual control so that the control loop is in a state
whereby it is not inuenced by the owmeter’s output.
Fig.31
Fig.32
