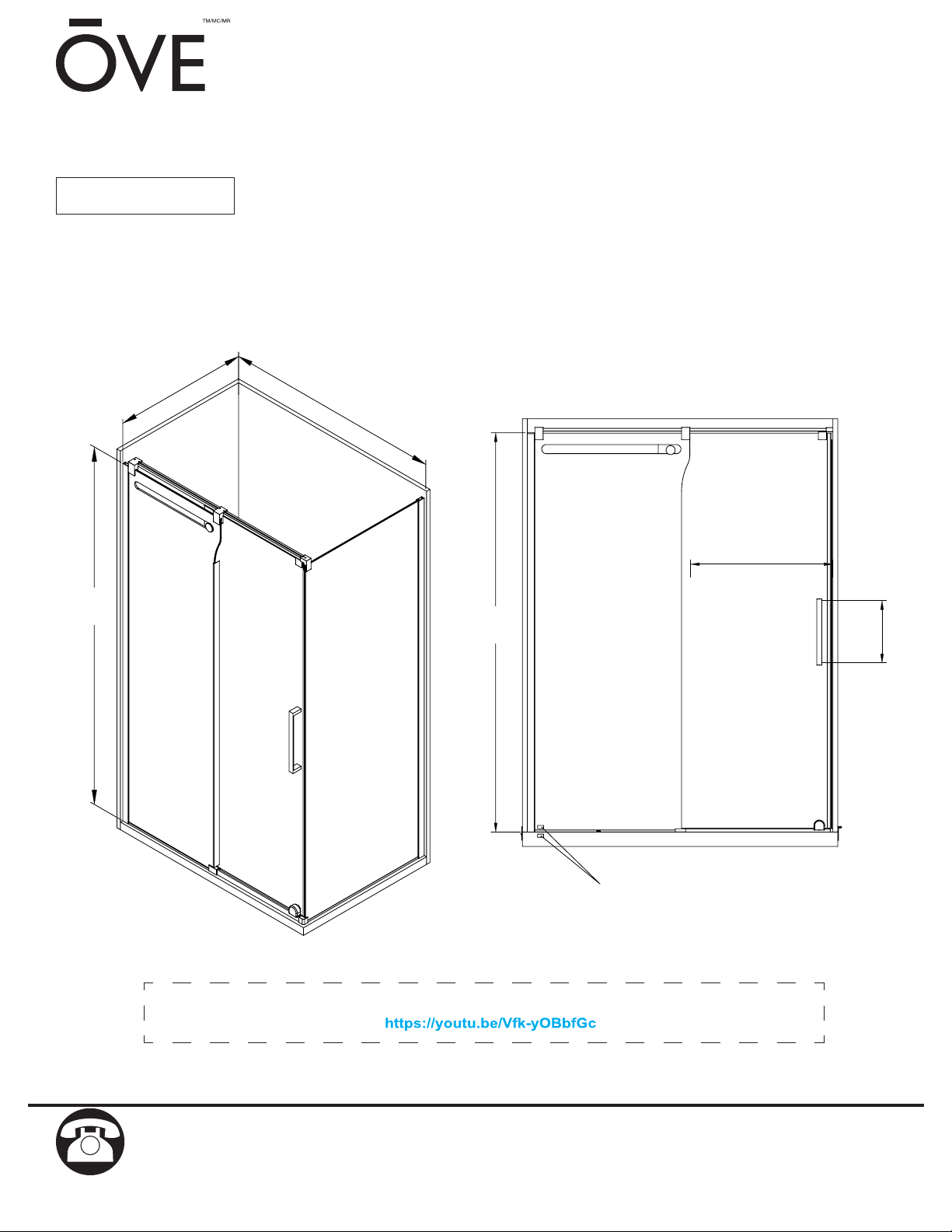

OVE ERIKA-LEA-SP32 User manual

1
ERIKA 32
1930
[76]
1219 / 1524
[48] / [60]
295
[11 5/8]
CSA Markings
Opening
470 / 620
[18 1/2 / 24 7/16]
1930
[76]
Measures: millimeter [inch]
MODEL #ERIKA-LEA-SP32
ITEM #0665832
813
[32]
2017-04-28
An installation video guide can be found on our Youtube channel.
2800 Etienne Lenoir, Laval
Québec H7R 0A3 Canada
Purchase date: _________________________ Product Tracking Reference: ________________________
Questions, problems, missing parts?
Before returning to your retailer, call our customer service department at
1-866-839-2888, 9 a.m. - 5 p.m., EST, Monday - Friday

2
CAUTION
Please carefully read the following important safety information before handling or installing this shower. There
is a risk of serious injury while handling this product. To minimize these risks, please note:
• Always wear safety glasses and gloves while handling.
• Always read and follow all the steps in the installation instructions.
• Inspect all contents and glass for damage before installation.
• Extreme caution should be taken while handling the glass during installation as the tempered glass may
shatter if in contact with a hard surface.
• Handle the tempered glass with caution! Improperly handling the glass can cause it to break suddenly in
small pieces (never in pointed fragments).
• Always take all precautions not to touch the tempered glass with any tools during the installation, or after
installed.
• Do not cut or modify the tempered glass as it will shatter if cut.
• Carefully remove product from packaging and keep packaging until installation is complete.
• Inspect all parts for damage; if there is damage to the unit prior to installation, please contact customer
service at the number provided in this guide.
• Installtheshoweronaoorthatislevelandabletoaccommodatetheweightoftheunitandanoccupant.
• Consult local building codes and compliance standards prior to installation and ensure conformity.
• Afterinstallation,andfromtimetotime,checktheglassfortandnishtoensurethatnothinghascome
loose since installation.
• Keep this installation manual for future reference.
NOTICE
• Anymodicationoralterationfromwhatisspeciedinthisinstructionmanualwillvoidanyandallwarranty
on this product.
• The distributor is not responsible for any damage to the unit or personal property caused by improper
installation. If you disregard instructional warnings, you will void your warranty and possibly deal with water
damage.
• Consult www.ovedecors.com for any additional information or question on this product’s installation.
PREPARATION
You will need at least two people to install this unit properly.
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents
list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: Shower (60 min).
SAFETY INFORMATION

3
TABLE OF CONTENT
PACKAGE CONTENT.......................................................................................................................................... 5
HARDWARE CONTENT...................................................................................................................................... 6
TOOLS REQUIRED............................................................................................................................................. 6
SHOWER REVERSIBILITY.................................................................................................................................. 7
BASE INSTALLATION GUIDELINES (OPTIONAL)............................................................................................ 8
WALL TRACK INSTALLATION............................................................................................................................9
GLASS PANEL INSTALLATION....................................................................................................................... 10
SUPPORT BAR INSTALLATION....................................................................................................................... 12
DOOR PANEL INSTALLATION......................................................................................................................... 14
HANDLE INSTALLATION & SEALING.............................................................................................................. 16
LIMITED PRODUCT WARRANTY......................................................................................................................17
CARE AND MAINTENANCE..............................................................................................................................17

4
PACKAGE CONTENT
B
T
U
V1
V2
W

5
PACKAGE CONTENT
PART# DESCRIPTION QTY CODE
BWall track 199STR0025-WM
TDecorative cap 199SGC3113-WM
UReturn panel 199SG10046-WM
V1 Glass panel’s bracket (Lea) 199SGC2030-WM
V2 Glass panel’s bracket (Erika) 199SGC3109-WM
WReturn panel clamp 299SGC0037-WM
XHardware content 199SHW0064-WM

6
HARDWARE CONTENT
TOOLS REQUIRED
Pencil Screwdriver Level
Measuring Tape Silicone Rubber mallet Cutter
Safety glasses Allen key
2.5mm & 4mm
Ratchet
5mm Bit socket
Drill with ceramic tile bits
ø3mm (1/8in) & 8mm (5/16in)
FFDD EE
Wall Anchor
ø8x30mm
3+1
Cap
3x
Fitting
3x
KK
Screw
ST4x12mm
3+1
Screw
ST5x30mm
3+1
Cap
2x
MM
LL

7
SHOWER REVERSIBILITY
B
A
• This instruction is drawn up for an opening from right to left (see illustration A).
• For an installation from left to right (see illustration B), use the same instructions, but switch around the
panels: mirror effect.

8
BASE INSTALLATION GUIDELINES (OPTIONAL)
1 2
4
Tile Wall
Studs
Drywall
Silicone
5
Shower Base
3
Shower Base
Cement
Floor
Wood shim
Flange
Stud
Drywall
Silicone
Flange

9
1. Level the tracks (B) and mark the track holes’ positions.
2. RemovethetracksanddrillpilotholesinthemarkedlocationswithaΦ8mm(5/16in)drillbit.
3. Insertthewallanchors(FF)usingarubbermalletuntilthewallanchorsareushwiththewall.
4. Replace and secure the tracks (B) with screws (EE). Do not overtighten.
WALL TRACK INSTALLATION
Φ8mm
5/16in
Helpful Hint
Do not overtighten!
This may crack the
acrylic or tile walls.
FF
EE
2
B
3
1
4
Helpful Hint
Make sure there
is a support stud
located behind the
drywall, behind the
tracks!
28mm
1 1/8in
Base edge
22mm
7/8in
Base edge

10

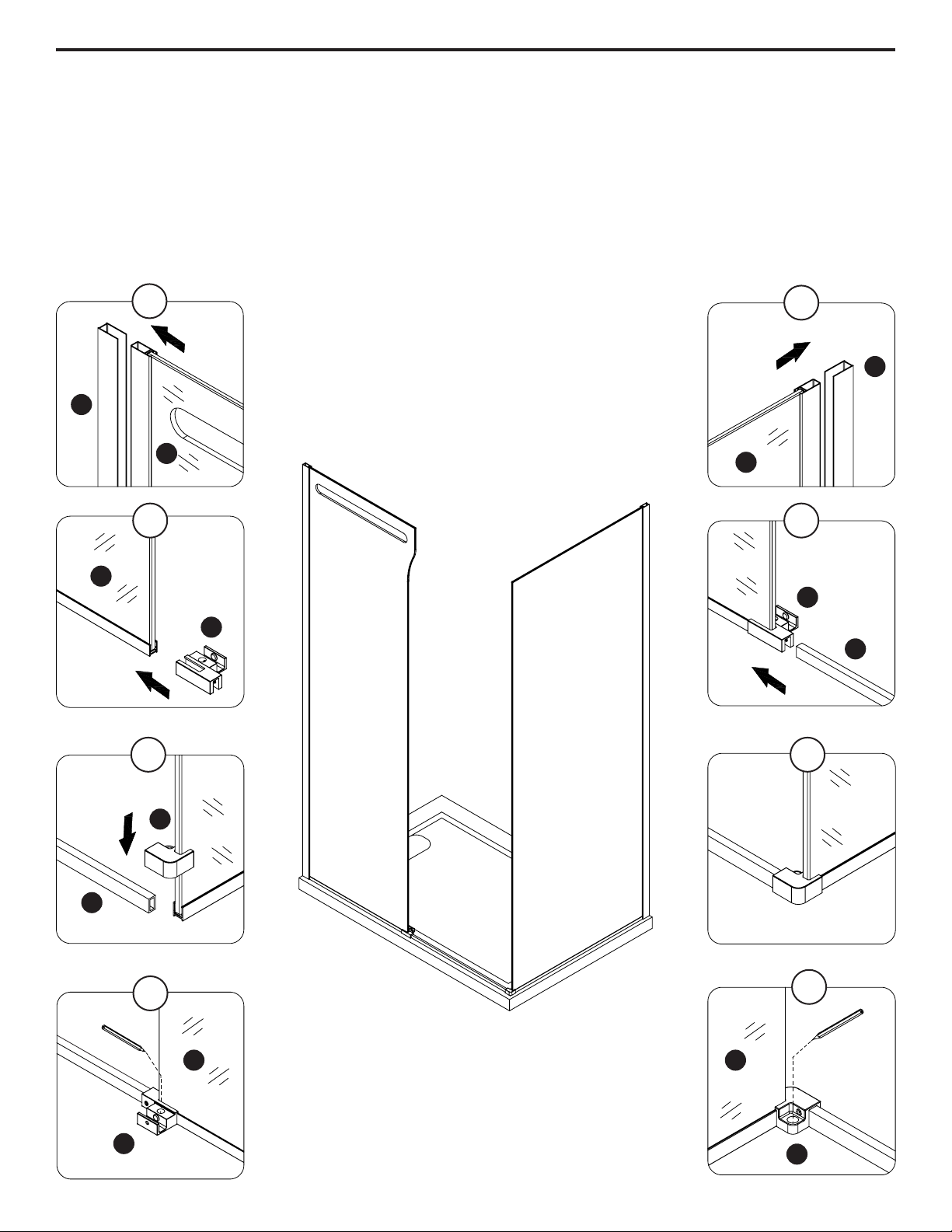

1-2. Insertthexedpanel(C)andthereturnpanel(U)intothemetaltracks(B).Donotfullytightenitasfurther
adjustments may be required.
Note: The wall track (B) allows you to adjust the position of the glass panel (C & U). Adjusting the depth and/
or giving the xed glass panel a slight angle allows for precise alignment with the door.
3. Smoothlyslidetheguide(N)atthebottomofthexedglasspanel(C)withoutsecuring.
4-6. Insert the roller guide track (O) into the guide (N). Place the return panel clamp (W) onto the track (O).
7-8. Mark the positions of holes of the sliding door guide (N) and the return panel clamp (W).
GLASS PANEL INSTALLATION
B
C
1
C
N
3
O
N
W
O
C U
5 6
4
7
N
2
8
B
U
W

11

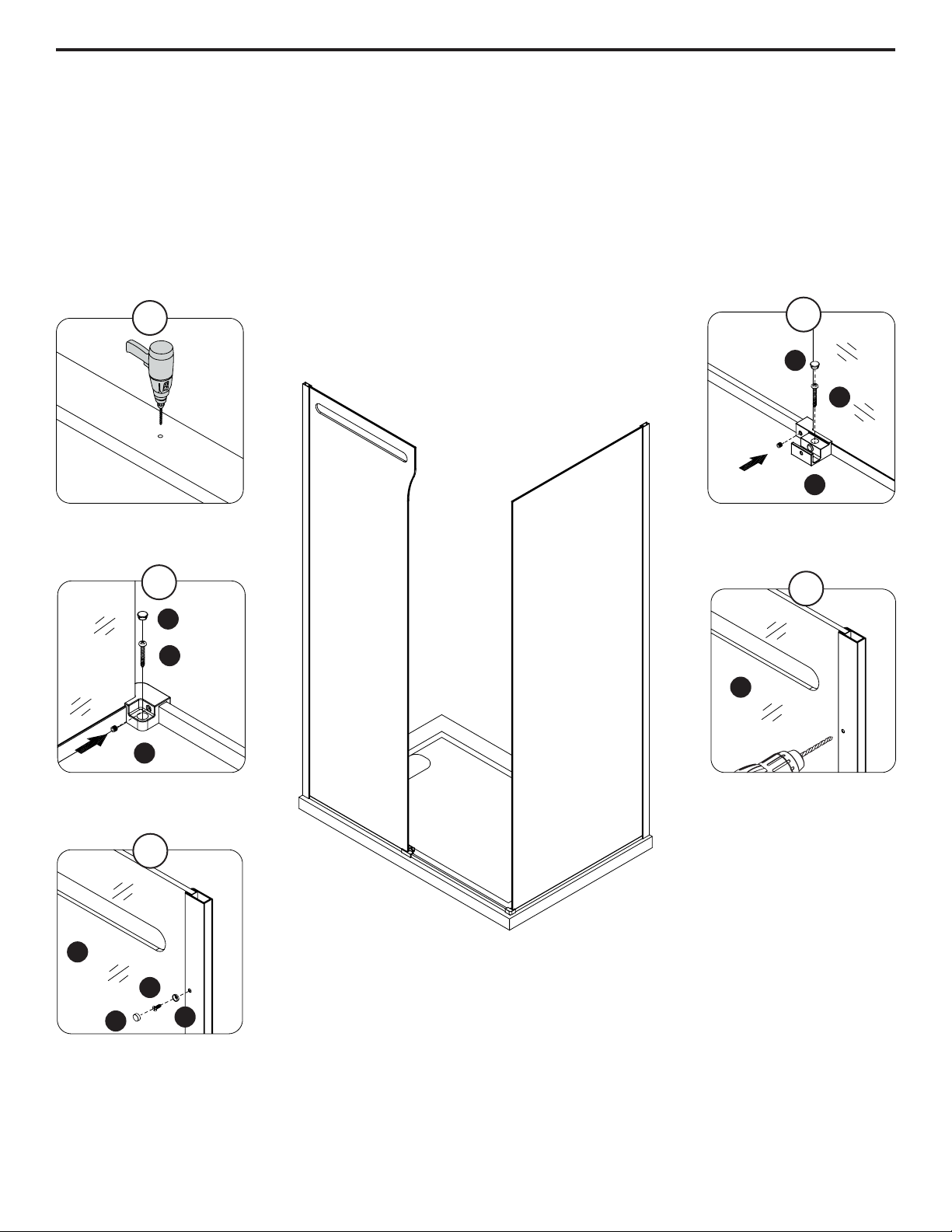

1. Drill a pilot hole for the sliding door guide (N) and the return panel clamp (W) using a ø3mm (1/8in) drill bit.
2. Install the sliding door guide (N) with the screw (CC) and the cap (II).
3. Install the return panel clamp (W) using the screw (BB) and the cap (II).
4-5.Drillthexedglasspanel(C)on3positionswithaø3mm(1/8in)drillbit.Levelthexedglasspanel(C)andxit
withthettings(MM),thescrew(DD)andthecap(LL).
GLASS PANEL INSTALLATION
1
Φ3mm
1/8in
II
CC
N
3
II
BB
MM
C
DD
LL
4
5
C
W
2
Φ3mm
1/8in

12

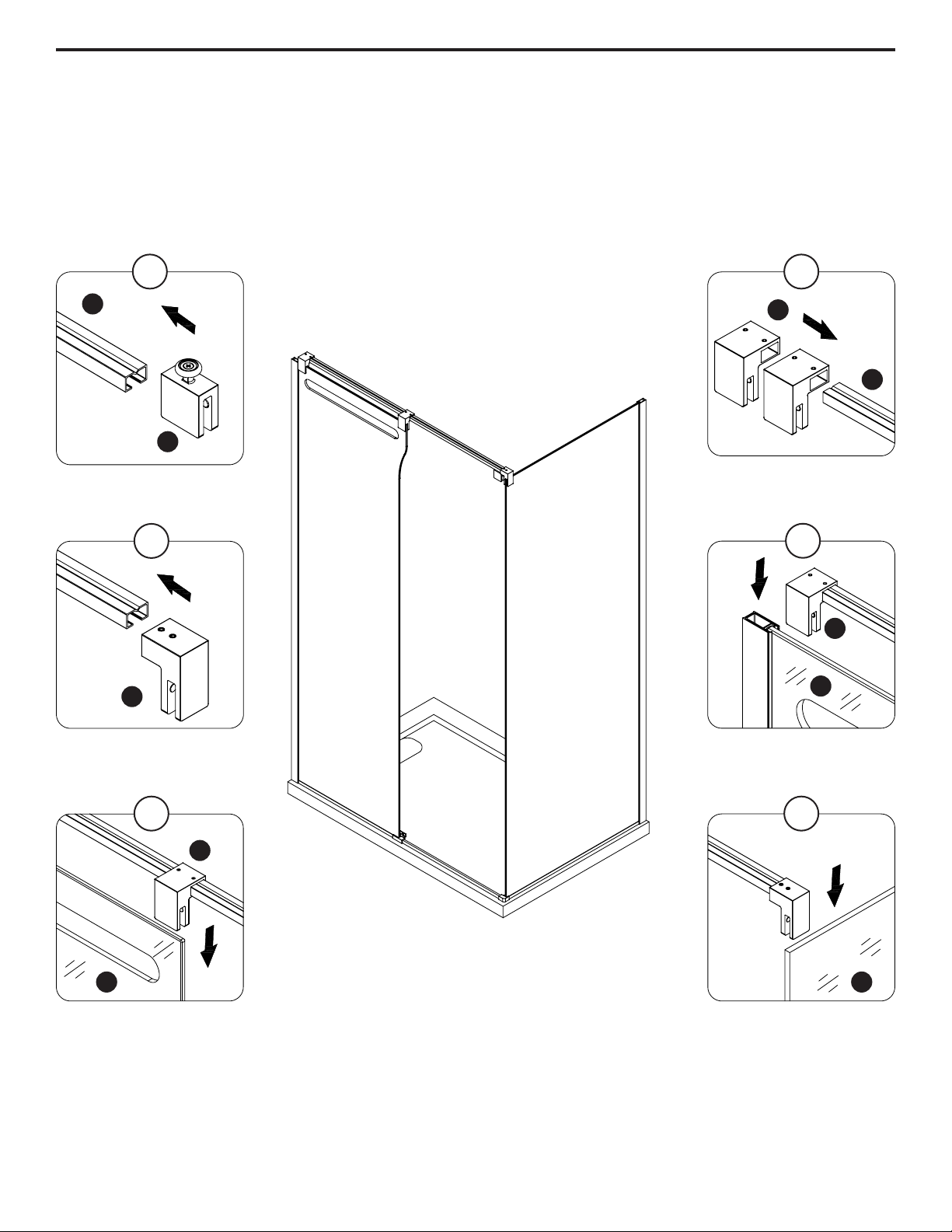

1-3. Slidetheauxiliaryroller(E),2xedpanel’sbrackets(G)andtheglasspanel’sbracket (V2) onto the support bar
(F).
4-6. Looselymountthesupportbar(F)ontoxedglasspanel(C)andthereturnpanel(U)andlevelit.
SUPPORT BAR INSTALLATION
E
1
FG
2
F
34
C
G
5
G
C
6
V2
U

13

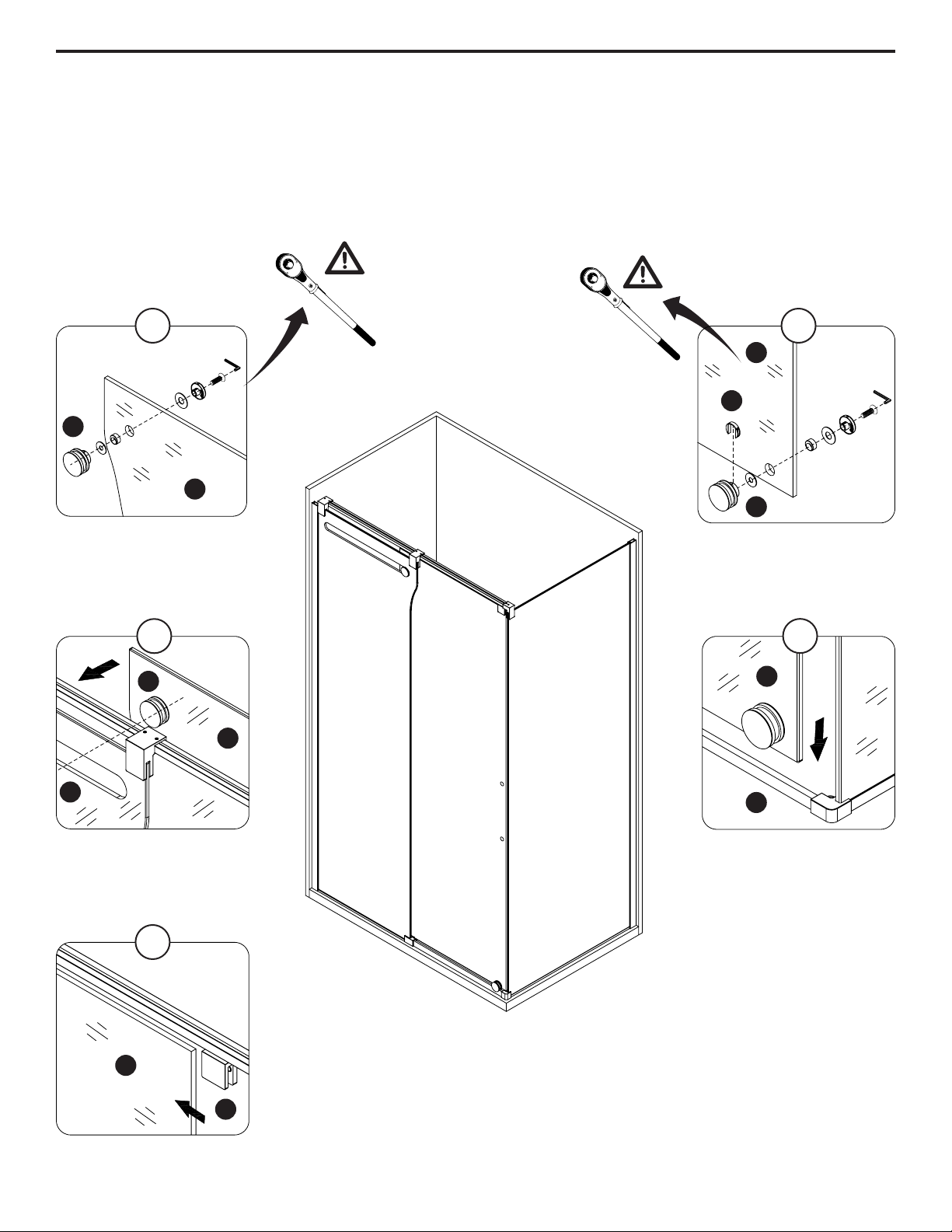

1-2.Fixthesupportbartoxedpanel(C)andthereturnpanel(U).
3-4. Installthedecorativecap(Q&T)ontothexedpanel(C)andthereturnpanel(U).
5-6.Drillthereturnpanel(U)on3positionswithaø3mm(1/8in)drillbit.Levelthereturnpanel(U)andxitwiththe
ttings(MM),thescrew(DD)andthecap(LL).
SUPPORT BAR INSTALLATION
KK
1
C
G
MM
U
DD
LL
2
3 4
56
U
V2
KK
U
Q T

14
1-2. Install the 2 door rollers (H) on the door glass panel (J). Use a ratchet to strongly tighten the bolts. Insert
the clip (L) at the bottom roller.
3-4. Gentlyhangthedoorpanelbyits2rollers(H)onthexedpanel(C)andtherollerguidetrack(O).
5. Slide the auxiliary roller (E) into the door panel (J).
DOOR PANEL INSTALLATION
H
J
L
H
J
3
J
C
J
O
J
E
5
H
1 2
4

15

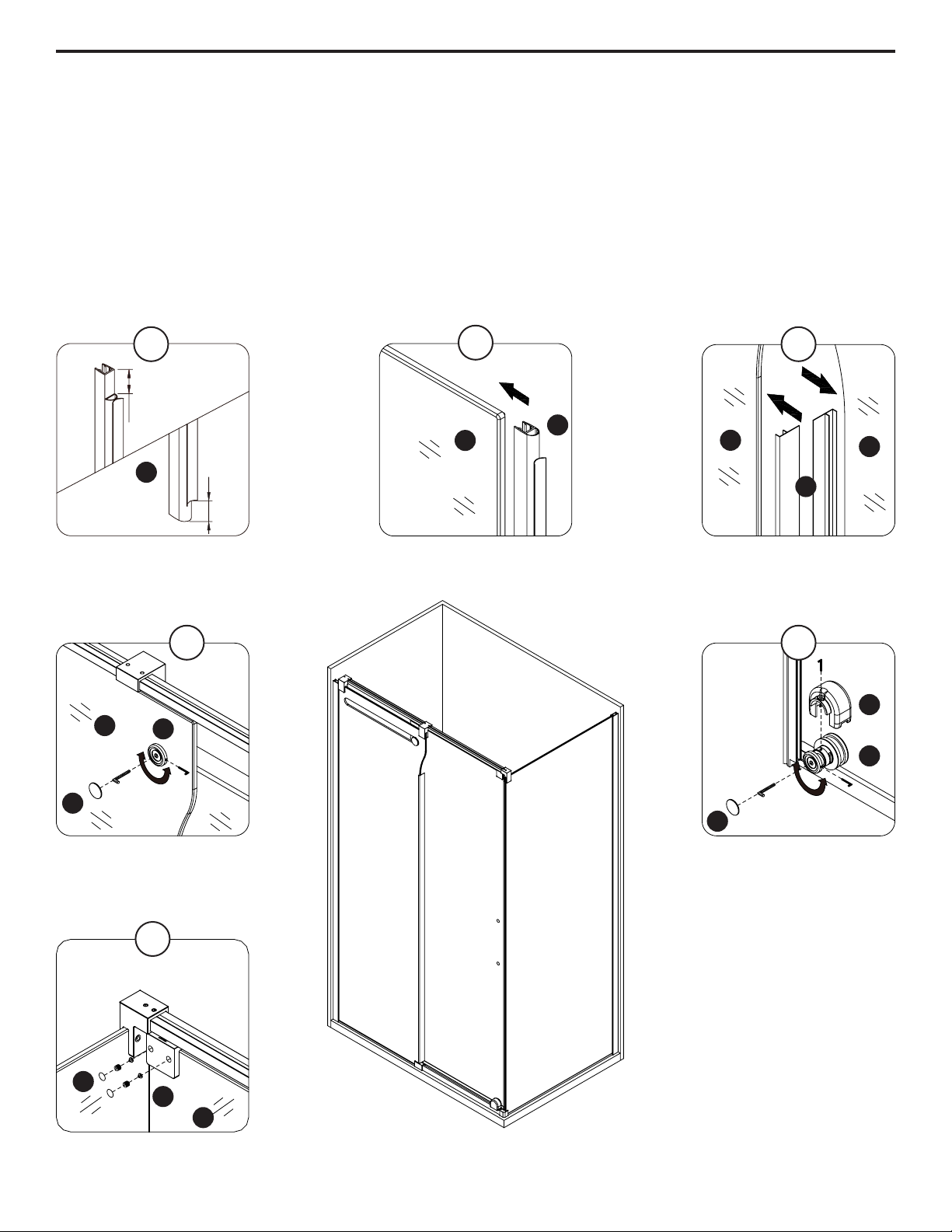

1-2. Cut the top and bottom surplus part of the door panel vertical seal strip (I) with a cutter so that the seal
stip do not hit the bracket and clamp when closing the door. Install the door panel vertical seal strip (I) onto the
door panel (J).
3. Install the 2 vertical seal strips (R).
4-5. Adjust the level of the glass panel using the eccentric mechanism of the rollers. Then install the cap (JJ)
onto the door roller (H). Insert the roller cover (K) at the bottom roller.
6. Secure the support bar (F) to the door panel (J) using the auxiliary roller (E) and the cap (KK).
DOOR PANEL INSTALLATION
R
4
J
JJ
KK
3
5
CJ
K
JJ
H
H
J
E
JI
6
2
1
35mm
1 3/8in
11mm
7/16in
I

16
HANDLE INSTALLATION & SEALING
1. Install the door handle (M) using an Allen key.
2. Ensure that the door closes tightly and opens smoothly, and that there is a tight connection between the side
glass panels and the frame as well as the support bar.
Applyaclearsiliconewatersealantaroundtheoutsideperimeterofanyxedshowercomponents(horizontally
betweenbottomofxedsideglasspanelandbase,aswellasverticallybetweenthewall,glassframes,and
any side glass panel).
Allow 24 hours for silicone to dry.
Improper application of silicone sealant may cause your shower to leak.
M
1
2

17
OVE Decors ULC
LIMITED Product Warranty
OVE is a distributor of the following Products:
• Shower Doors (warranty period 5 years).
• Acrylic Surfaces (warranty period 5 years against blistering, cracking or chipping in the acrylic surface).
• AcrylicShellStructure(warrantyperiod5yearsagainstlossofwaterthroughberglasslaminateoftheacrylicbody).
• Shower Hardware (handles, hinges, rubber support clips, metal support bars and wall tracks) (warranty period 1 year against defects in materials
or workmanship).
LimitedWarranty:OVEwarrantstotheoriginalretailpurchaserthatwithinareasonabletimeafternoticationfrompurchaser,OVEwillrepairor
replace the Product, or any part or component of the covered Product, distributed by OVE which is proven to the satisfaction of OVE to be defective in
workmanship or materials, and which has failed during normal use and within the warranty period. This Limited Warranty does not apply to Products
that have been damaged, or which fail, as a result of causes other than manufacturing defects (such as but not limited to improper installation; lack
of or improper care or maintenance; exposure to elements including corrosive products, environments or water; alteration; abuse or misuse). This
warrantydoesnotcoverdamagetonishes.ThewarrantycommencesontherstdateaProductispurchasedbythecustomer.Thiswarranty
applies exclusively to products purchased and used in non-commercial applications.
Warranty Claim Procedure: To make a claim please call 1-866-839-2888 to trouble-shoot the issue and start the claim process, or email info@
ovedecors.com. Products may be inspected or evaluated by OVE and any Product or component found to meet the above warranty criteria will be
repaired or replaced at OVE’s option. Replacement or repaired parts will be shipped at no cost to customer via ground freight only. Any expedited
methods of shipments are customer’s expense.
DISCLAIMER AND EXCLUSION OF WARRANTIES: This warranty is meant to be a complete and exclusive statement of
the terms of all limited warranties offered by OVE.
To the fullest extent permitted by law, other than the express warranty set forth in this instrument there are NO
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE EXTENDED BY OVE.
Thiswarrantygivesyouspeciclegalrights.Youmayalsohaverights,whichmayvaryunderapplicablestate,provinces,ornationallegislation,
whichcannotbedisclaimedormodiedbytheaboveDisclaimer.Exceptaspermitted,theDisclaimerisnotintendedtowaive,modify,releaseorlimit
the applicability of preemptive state, province, or national legislation inconsistent with the terms of this Limited Warranty and Disclaimer. However, to
theextentpermittedbylaw,noimpliedwarrantiesofmerchantabilityortnessareintendedorextendedhereunder.NotwithstandingtheDisclaimer
if any implied warranty is imposed by operation of law, to the extent permitted, the duration of such implied warranties is limited to the shorter of the
term of the express warranty or the applicable statute of limitations.
The Products listed above are intended to be installed and used for personal, consumer residential use. Use of Products for any other purpose such
as commercial purposes voids this warranty. The Limited Warranty is applicable only to the Products listed herein, and no warranty is extended to
productsnotdistributedbyOVE.Thewarrantyisapplicableonlytotherstretailpurchaser.
Transferability: This warranty is not transferrable.
LIMITATION AND EXCLUSION OF REMEDIES AND DAMAGES: OVE’s sole responsibility under this Limited Warranty shall
be to repair or replace, at its option, any defective Product or component. Purchaser agrees that this is the sole and
exclusive remedy under this Limited Warranty. OVE will not be responsible for any incidental, consequential, special or
indirect damages, including loss of use as a result of any manufacturing defect in a Product. OVE will not be responsible
for labor, or any other fees associated with removal or installation of warranted parts. Some states, provinces, or
national legislation do not allow the exclusion or limitation of incidental or consequential damages, so this limitation
may not apply to you.
Productmodication:OVEreservestherighttochange,modifyorimprovetheProductswithoutobligationtoincorporatesuchchangesinProducts
previously sold or installed.
AuthorityandModication:TheretailsellerisnottheagentofOVEandisnotauthorizedtovaryormodifythetermsoftheLimitedWarranty.In
addition, the retail seller cannot bind OVE or make any representations or promises about the Product that are binding on OVE.
CARE AND MAINTENANCE
For the daily maintenance, use a wet cloth and a soft liquid cleaner.
Never use abrasive cleaners containing some acetone, chlorine or strong bleach, scrapers, metallic brushes, nor other objects or the products which
can graze or tarnish surfaces.
Usearatchettostronglytightenanyboltsusedtosupportthexedglasspanelsordoorspanel(supportboltscanwithstandupto250lbf*inof
torque).
Check these bolts every 4 months and re-tighten them if necessary.

18
Mesures: millimètres [pouces]
ERIKA 32
1930
[76]
1219 / 1524
[48] / [60]
295
[11 5/8]
Marques CSA
Ouverture
470 / 620
[18 1/2 / 24 7/16]
1930
[76]
MODÈLE #ERIKA-LEA-SP32
ARTICLE #0665832
813
[32]
Un guide d’installation video est disponible sur notre chaîne Youtube.
2017-04-28 2800 Etienne Lenoir, Laval
Québec H7R 0A3 Canada
Date de l’achat: _______________________ Numéroderéférenceduproduit:______________________
Questions, problèmes ou pièces manquantes?
Avant de retourner le produit à votre détaillant, contactez notre service à la clientèle au
1-866-839-2888, du lundi au vendredi de 9h00 à 17h00 HNE.

19
AVERTISSEMENT
Veuillez lire attentivement les importantes consignes de sécurité suivantes avant la manutention et l’installation
de cette douche. La manipulation de ce produit présente un risque de blessure grave. Pour minimiser ces
risques, veuillez prendre note de ce qui suit:
• Toujours porter des lunettes et des gants de sécurité pendant la manutention.
• Toujours lire et suivre toutes les étapes indiquées dans les instructions d’installation.
• Avant l’installation, inspecter tout le contenu et le verre pour détecter toute forme de dommages.
• Pendant l’installation, faire très attention lorsque vous manipulez les pièces en verre, car le verre trempé peut
se fracasser s’il entre en contact avec une surface dure.
• Manipulez le verre trempé avec précaution sinon il pourrait se briser en petits morceaux (jamais en fragments
pointus).
• Prendre toujours toutes les précautions nécessaires pour que, pendant l’installation ou après, les outils que
vous utilisez n’entrent pas en contact avec le verre trempé.
• Nepascoupernimodierleverretrempé,carilpourraitsebriserenéclats’ilestcoupé.
• Sortir le produit de son emballage avec soin et le conserver jusqu’à ce que l’installation soit complétée.
• Inspectez toutes les pièces. S’il y a des dommages sur le produit avant l’installation, veuillez communiquer
avec le service à la clientèle au numéro indiqué dans ce guide.
• Installez la douche sur un plancher au niveau et capable de supporter le produit et son utilisateur.
• Veuillez consulter le code du batiment et les normes de conformité avant l’installation du produit.
• Après l’installation, et périodiquement, vérier l’assemblage et la nition des pièces en verre, pour vous
assurer qu’aucun élément ne s’est desserré depuis l’installation.
• Conserver le présent manuel d’instruction pour consultation future.
AVIS
• Toute modication ou altération apportée aux indications données dans le présent manuel d’instructions
annule toute garantie associée à ce produit.
• Le distributeur n’est pas responsable pour les dommages sur le produit ou sur la personne causés par une
installation inadéquate. Si vous ne tenez pas compte des indications du manuel d’instruction, vous annulerez
votre garantie et vous vous exposerez à des dommages causés par les fuites d’eau.
• Pour de plus amples renseignements sur l’installation du produit ou si vous avez des questions, veuillez
consulter le site www.ovedecors.com.
PRÉPARATION
2 personnes sont requises pour installer le produit correctement et sécuritairement.
Avant de commencer l’installation du produit, soyez assuré d’avoir toutes les pièces. Comparez les pièces
avec les listes fournies. S’il y a des pièces manquantes ou endommagées, ne tentez pas d’assembler le
produit.
Temps de montage estimé: douche (60 min).
INFORMATION SUR LA SÉCURITÉ

20
TABLE DES MATIÈRES
CONTENU DE L’EMBALLAGE ......................................................................................................................... 22
QUINCAILLERIE FOURNIE .............................................................................................................................. 23
OUTILS REQUIS ............................................................................................................................................... 23
CETTE DOUCHE EST RÉVERSIBLE ............................................................................................................... 24
GUIDE D’INSTALLATION DE LA BASE (OPTIONNEL) ................................................................................... 25
INSTALLATION DES RAILS MURAUX ............................................................................................................. 26
INSTALLATION DU PANNEAU DE VERRE..................................................................................................... 27
INSTALLATION DE LA BARRE DE SUPPORT ................................................................................................ 29
INSTALLATION DE LA PORTE ........................................................................................................................ 31
INSTALLATION DE LA POIGNÉE ET SCELLAGE ........................................................................................... 33
GARANTIE LIMITÉE DU PRODUIT...................................................................................................................34
TRAITEMENT ET ENTRETIEN.......................................................................................................................... 34
