OVE BERNARD IT-515 User manual

p. 1
OVE SMART TOILET
Model BERNARD (IT-515)
INSTRUCTION MANUAL
Thank you for choosing OVE SMART TOILET. Please read and understand this entire manual before
attempting to assemble, operate or install this product.
29-1/8 in
740 mm
12 in
305 mm
16-9/16 in
420 mm
23 in
585 mm
WATCH OUR YOUTUBE INSTALLATION VIDEO
https://youtu.be/Fitsmm5qjcM

p. 2
CONTENT
SAFETY NOTICE ............................................................................................. p.3
WARNINGS ...................................................................................................... p.4
PART LIST ........................................................................................................ p.5
INSTALLATION INSTRUCTIONS ................................................................. p.6-8
FIRST TIME USE .............................................................................................. p.9
CONTROLS DESCRIPTION ..................................................................... p.10-11
FEATURES .................................................................................................... p.12
INTELLIGENT FEATURES ............................................................................. p.13

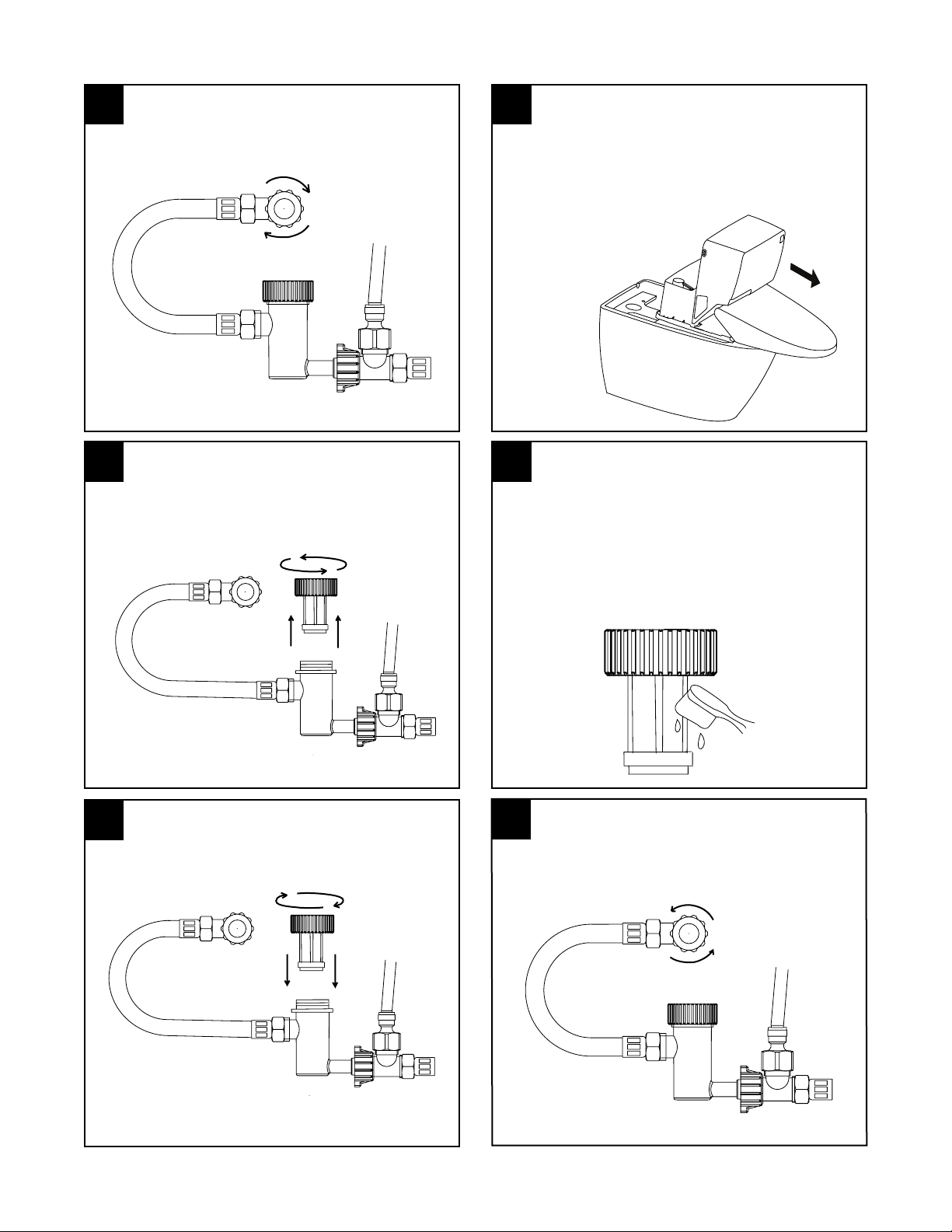

CLEANING THE FILTER ................................................................................ p.14
LONG TERM STORAGE ................................................................................ p.15
NOZZLE MAINTENANCE .............................................................................. p.15
SPECIFICATION SHEET ............................................................................... p.16
MAINTENANCE & CONSUMER RESPONSIBILITIES ................................... p.17
LIMITED 1 YEAR WARRANTY ....................................................................... p.17
INFORMATION ABOUT YOUR WARRANTY COVERAGE ............................ p.17
NOTES ON WARRANTY ................................................................................ p.17
FOR WARRANTY SERVICE .......................................................................... p.17
INSTALLATION PICTURE .............................................................................. p.18
CONTACT US ................................................................................................. p.19

p. 3
SAFETY NOTICE
1. It is forbidden to disassemble toilet by yourself.
2. Please do not set this product in a wet place, because it is an electronic product. If set in the
bathroom, please insure that there is proper air ow.
3. Please insure that the product is set more than 0.6 meter away from the bathtub.
4. Please make sure electric power is AC 120V. Ensure the electrical socket can bare a load of 500W
power (or else it can cause re or electrical shock).
5. Please make sure the electrical source is well grounded.
6. Please do not put any water or detergent on the product or its electrical plug.
7. Do not touch the electrical plug with a wet hand (or else it can cause re or electric shock).
8. Do not use the product if it has these following problems. When any of the following problems occur,
turn off the electricity and close the water valve.
• Water leaking from the pipe or the main body.
• Crack or breakage
• Abnormal sound or smell of the product
• Smoke coming out from the product
9. Keep any ame or ammable products away from the toilet.
10. Please do not step on the toilet seat, the seat cover, the main body, or put anything heavy on the
product. Otherwise, the product may break and may cause injury or the product may break and may
cause indoor ooding.
11. Please do not put your nger or anything else into the outlet of the drying blower.
12. Please do not touch or cover the drying blower outlet with clothes, or it may lead to burn injury or
electric shock.
13. Please do not tightly bend or press the exible supply hose, or it may lead to water leakage or it may
decrease the water pressure.
14. Please clean the product with soft cleaning products.
15. Please do not use any harsh detergents to clean the product.
16. Please do not throw anything other than toilet paper into the toilet or it may lead to blockage and
indoor ooding.
17. Please be careful to not let objects like a comb, toothbrush or other stuff fall into the toilet.
ATTENTION!
BEFORE INSTALLING THE PRODUCT, YOU MUST READ AND
UNDERSTAND CAREFULLY ALL BELOW WARNINGS.

p. 4
WARNINGS
Do not leave the
toilet exposed to the sun.
May cause yellowing or
color fading.
Direct sunlight affects the
good functioning of the
remote.
To prevent against power
surge damages, make
sure the ground is working
in the power socket.
Radio or transmitting
devices may interfere with
the toilet’s remote control
functions
If you do not plan to use
the toilet for a long time,
close the inlet water valve
and unplug the toilet.
If the power cut off during
washing and the nozzle is
still out: Do not push it back
manually, it will revert to its
resting position once the
power is back ON.
Do not use DC current.
Only AC 120V with load
capacity over 500W are
accepted.
If power cuts off during
nozzle self-cleaning, the
water will continue to ow
out. Manually close the
inlet water valve of the
toilet until power comes
back ON.
Do not expose the toilet to
freezing temperature. This
will void the warranty and
damage the piping.
Be careful not to spill water
on the top of the toilet:
Electronics are located
under the plastic cover.
Do not lean on the cover.

p. 5
PART LIST
A
B
G
E
C
J
I
H
D
F
K
o
Item Qty #
ALight Indicator Panel 1 --
BToilet Water Inlet 1 --
CWater Filter 1 99TOI0144-OR
DWater Supply Hose 1 99TOI0143-OR
EWater Tube 1 99TOI0146-OR
FSide Control Panel 1 --
GSeal ring 1 99TOI0148-OR
HSeat 1 99TOI0149-OR
ISeat Opening Sensors 2 --
JRemote Receiver 1 --
KRemote 1 99TOI0152-OR
B

p. 6
Remove the water tank lid and unscrew the bolts inside the tank.
INSTALLATION INSTRUCTIONSINSTALLATION INSTRUCTIONS
The following steps #4 to #8 will show you how to remove the seat from
the toilet ceramic base. This will allow you align the toilet’s bottom holes
onto the oor ange bolts more easily, and also, to tighten the nuts on
the ange bolts more easily. You are not required to remove the toilet
seat if you can easily tighten the nuts onto the ange bolts from the
opening behind the toilet.
Start to remove the toilet seat by unscrewing the 2 small screws on
each sides of the seat.
Flip the seat cover gently and rest it onto the toilet bowl. Take care of not
pulling the connected wires.
Position correctly the two xing bolts of the oor ange.
3
Install the oor ange according to the manufacturer’s
recommendations. Ensure that the ange is ush with the oor.
If the ange is not ush with the oor, this may result in an
inadequate installation.
Ensure that your water inlet pipe and your oor discharge drain are
installed according to the drawing. These are minimum measurements,
the toilet can be installed if your actual measurements are longer than
shown.
TIP: Align 2 pieces of masking tape with the center of the drain,
this will help you position the toilet in future steps.
1 2
150mm
400mm
305mm
NOT
SUPPLIED
4 (optional)
5 (optional) 6 (optional)

p. 7

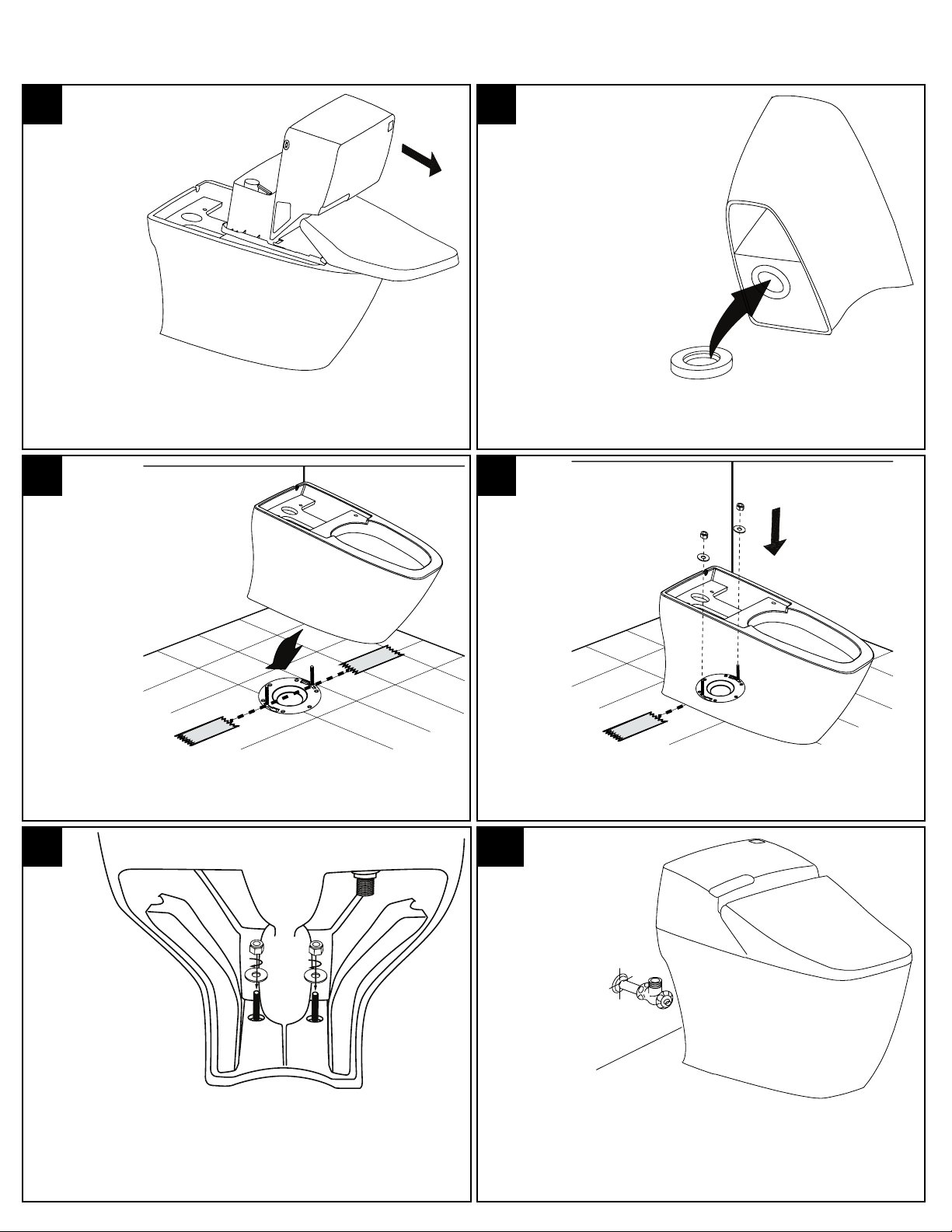

With care, re-install the tank and the seat onto the ceramic base.
With care, remove the whole tank and the seat from the ceramic base.
Gently set it aside on a soft surface.
INSTALLATION INSTRUCTIONS
Using a ratchet, tightly screw the nuts to the xing bolts.
Place the seal ring under the toilet.
87
11 12
Install the washers and nuts onto the two xing bolts of the oor ange.
Position the toilet onto the oor ange, making sure the xing bolts are
aligned with the toilet’s holes.
9 10

p. 8
INSTALLATION INSTRUCTIONS
Connect the water inlet hose to your existing shut off valve on the wall.
Then connect the other end of the hose to the toilet’s water inlet located
at the back, underneath the lter.
13
Apply silicone around the base of the toilet.
Wait for 24h for it to dry.
14
24h

p. 9
2
4
3
1
FIRST TIME USE
1Open the water supply shut off valve.
Plug the toilet in the power socket.
2
The toilet will turn ON automatically. The toilet’s lights will start blinking from left to right circularly.
The toilet will give out one short beeping sound when the lights blinking has complete 1 cycle.
The blinking light indicates that the bidet water tank is lling with water, the toilet seat and the
cleaning water are warming up. A sensor in the toilet will stop the lling process automatically after
approx. 30 seconds when the tank is full of water.
3
Once the beeping sounds and the ashing light have stopped, the toilet is ready for use.
4
Notice:
• Warming up the toilet seat and the bidet water tank will take about 5 minutes.
• Leave the power continuously ON to assure all functions are ready for anytime use.
• If the toilet is not used for 5 days, it will drain and power off automatically.

p. 10
CONTROLS DESCRIPTION
POWER indicator:
The light will turn RED
when the toilet is powered
ON.
The light will turn off when
the toilet is powered OFF.
ECO MODE indicator:
The light will turn GREEN
when the ECO MODE is
active.
The light will turn off when
the ECO MODE is not
active.
WATER HEATING
indicator:
The light will turn RED
when the water heating is
active.
The light will turn RED
when the water heating is
not active.
SEAT HEATING
indicator:
The light will turn RED
when the seat heating is
active.
The light will turn RED
when the seat heating is
not active.
SEAT SENSOR
indicator:
The light will turn RED
when the Seat Sensor is
active.
The light will turn off when
the Seat Sensor is not
active.
BEEPING SOUNDS DIRECTIONS
LONG BEEPING = The toilet will give out one LONG beeping sound every time it SUCCESSFULLY receives a command.
SHORT BEEPING = The toilet will give out one SHORT beeping sound every time it UNSUCCESSFULLY receives a
command.
POWER:
Pressing this key will stop any ongoing function.
Pressing for 3 seconds will turn the power ON / OFF.
SPRAY/MOVE:
Pressing this key will initiate the Static Spray Cleaning function.
Press it again to change to the Back-&-Forth Spray Cleaning function.
*The SPRAY refers the 1 water jet function of the nozzle.
DRYING:
Pressing this key will initiate the Static Air Drying function.
While not seated on the toilet, pressing this key for 5 sec. will turn the AUTOMATIC
DRYING function ON/OFF.
BIDET/MOVE:
Pressing this key will initiate the Static Bidet Cleaning function.
Press it again to change to the Back-&-Forth Bidet Cleaning function.
*The Bidet refers the 4 water jets function of the nozzle.
SIDE CONTROL PANEL
SEAT
SENSOR
POWER ECO MODE WATER
TEMP
SEAT
TEMP
LIGHT INDICATOR PANEL

p. 11
CONTROLS DESCRIPTION
POWER:
Pressing this key will stop any ongoing function.
Pressing for 3 seconds will turn the power ON/OFF.
ECO MODE:
Pressing the key will turn ON/OFF the ECO MODE function.
FLUSH:
Pressing this key will ush the toilet.
Press this key for 5 sec., the AUTOMATIC FLUSHING FUNCTION will be turned OFF. Press it again
for 5 sec. to turn this function ON again.
SPRAY/MOVE:
Pressing this key will initiate the Static Spray Cleaning function.
Press it again to change to the Back-&-Forth Spray Cleaning function.
*The SPRAY refers the 1 water jet function of the nozzle.
BIDET/MOVE:
Pressing this key will initiate the Static Bidet Cleaning function.
Press it again to change to the Back-&-Forth Bidet Cleaning function.
*The Bidet refers the 4 water jets function of the nozzle.
MASSAGE SPRAY & NIGHT LIGHT :
Pressing this key during the Spray or Bidet cleaning will initiate the Massage Spray function.
Pressing this key when the user is not seated will turn ON/OFF the Night Light.
DRYING:
Pressing this key will initiate the Air Drying function.
WATER TEMP:
Pressing this key will cycle through the 4 possible temperatures settings for the Spray/Bidet cleaning
water jets.
4 settings: Room temp / 34C (93F) / 37C (99F) / 40C (104F)
AIR TEMP:
Pressing this key will cycle through the 4 possible temperatures settings for the air drying function.
4 settings: Room temp / 40C (104F) / 50C (122F) / 55C (131F)
SEAT TEMP:
Pressing this key will cycle through the 4 possible temperatures settings for the seat heating.
4 settings: Room temp / 34C (93F) / 38C (99F) / 42C (108F)
UP & DOWN ARROWS:
Pressing these keys during the Static or the Back-&-Forth Spray or Bidet Cleaning will increase or
decrease the water jet pressure.
4 settings: 4 increments from low to high.
LEFT & RIGHT ARROWS - WHILE SEATED:
Pressing these keys during the Static Spray or Static Bidet Cleaning will move the nozzle forward or
backward.
4 settings: 4 increments from rear to front.
LEFT & RIGHT ARROWS - WHILE NOT SEATED:
When the user is not seated onto the toilet. Pressing the LEFT key will OPEN/CLOSE the cover. Press
the RIGHT key will OPEN/CLOSE the seat.
Pressing the RIGHT key for 5 sec. will turn the AUTOMATIC OPEN/CLOSE SEAT function ON/OFF.
o

p. 12
FEATURES
SPRAY CLEANING (1 WATER JET)
This function will only work if the user is sitting on the toilet. Press the SPRAY/MOVE
key for spray cleaning. Water will spray and clean the user. Press the key again and the
nozzle will move back & forth to insure the cleanest result. You can use this key stoke to
get the best cleaning effect.
BIDET CLEANING (4 JETS OF WATER)
This function will only work if the user is sitting on the toilet. Press the BIDET/MOVE key
for bidet cleaning. Water will spray and clean the user. Press the key again and the nozzle
will move back & forth to insure the cleanest result. You can use this key stoke to get the
best cleaning effect.
If you are not seated on the toilet seat, the toilet seat sensors will prevent water from squirting out of the
nozzle or warm air from owing out of the dryer.
The nozzle washes itself before and after every use with the programmed automatic nozzle washing cycle.
The spray function will automatically stop after approx. 1 minutes of continuous use, because the water in the
bidet tank will be exhausted. Wait 30 sec. for the tank to ll-up and press again to start.
It will take about 10 seconds after pressing the BIDET/MOVE or SPRAY/MOVE key before water starts to
spray out of the nozzle. Please be patient.
AIR DRYING
This function will only work if the user is sitting on the toilet. Press the DRYING key for air
drying. The air will drying the user.
If you press the DRYING key while the toilet is ushing, you will need to wait about 10 seconds before warm
wind starts to ow out of the dryer.
The toilet will keep spraying for 1-2 seconds after you stand up, so be sure to press the STOP key before
standing up from the toilet seat during the cleaning process.
POWER:
If the toilet is not used for 5 days, it will turn OFF automatically.
MASSAGE SPRAY:
The MASSAGE SPRAY function will pleasantly clean the user with a strong intermittent
single water jet.
FLUSHING
Use the FLUSHING key to ush the toiler at any time.
A manual FLUSH BUTTON is also available, located on the right of the toilet.
The smart toilet will clean the bowl with water automatically after user leaves. Long pressing this key of the
remote will turn ON/OFF this AUTOMATIC FLUSHING function.

p. 13
SMART FEATURES
AUTOMATIC OPEN/CLOSE SEAT
The smart toilet is equipped with a sensor which will
automatically open and close the seat when the user is
nearby or leaving.
The user can turn this function ON/OFF by long pressing
the RIGHT ARROW key on the remote controller
.
*When the AUTOMATIC OPEN/CLOSE SEAT function
is ON, the ECO MODE icon on the Light Indicator Panel
will blink continuously
AUTOMATIC FLUSHING
The smart toilet will automatically ush after each use,
bringing the hygiene level to the highest standards.
This function can be turned ON/OFF by long pressing
the FLUSHING key on the remote.
AUTOMATIC DRYING
The smart toilet will automatically start drying the user
after the use of the SPRAY or BIDET function, for a fully
automated cleaning session.
This function can be turned ON/OFF by long pressing
the AIR DRYING key on the side control panel of the
toilet.
AUTOMATIC ODOR CATALYST
As soon as the user sits on the toilet, a fan sucks the
air out of the toilet bowl and through an advance odor
ghting catalyst. This prevents the bad smells during
the toilet’s usage, insuring a pleasant experience.
ECO MODE
ECO MODE will cut down the electricity usage of your
smart toilet during times of none-usage. The bidet water
tank and the seat will start heating only once the user is
sitting on the toilet, whereas in normal mode, the bidet
water and seat are kept to your preferences for your
instant enjoyment.

p. 14
CLEANING THE FILTER
Close your shut off valve, turn clockwise.
Do not take out the lter before closing the
shut off valve.
Reach the lter behind the toilet ceramic
base.
If the lter is unreachable due to limited
space between the toilet and the wall,
uninstall the whole seat from the ceramic
base. (see installation instructions steps 4
to 7).
Unscrew the lter cover by turning
counterclockwise and take out the lter.
Clean the lter.
Use a tooth brush to clean the dirt on the
lter.
Use a cloth to clean the dirt and deposits in lter
body.
Use water instead of detergent. Do not overexert
the lter while cleaning, do not damage the
shape of the lter.
Open the shut off valve counterclockwise.
Make sure the water does not leak out.
If necessary, re-install the whole seat onto
the ceramic base.
1 2
3 4
6
Re-Install the lter.
Safely tighten the lter to avoid leakage.
5

p. 15
In order to prevent from any damages that may be caused from frozen toilet water, please drain away
the remaining water according to the following methods.
When leaving for a long time without using this toilet, please make sure to drain all the water from the
toilet.
LONG TERM STORAGE
In order to make sure the function of washing can work properly, please clean the nozzle regularly.
1) Turn on the toilet.
2) Long pressing the SPRAY key will turn off the toilet’s sensors.
3) Pressing the SPRAY key again for 5 seconds will extend the nozzle.
4) GENTLY wash the nozzle it with soft wet cloth or brush.
5) Press the POWER key to retract the nozzle and return
the toilet to its normal state.
Press simultaneously the DRYING and BIDET keys together for 3 seconds. The toilet will take 2 minutes
to drain its water content and power off automatically. It is now ready for storage.
NOZZLE MAINTENANCE
All the toilet’s lights will start blinking every 3 seconds. The toilet will give out one long beeping
sound after the lights blink. The lights and beeping sound will keep working until the toilet nish
this draining process.

p. 16
SPECIFICATION SHEET
Item Content
Electric Load AC 120V / 500W / 60HZ
Electric Cord 1.5 m insulated power cord
Cleaning System
Spray Cleaning (1 jet) Water pressure 0.1-0.6 MPa / 14.5-87.0 psi
Bidet Cleaning (4 jets) Water pressure 0.1-0.6 MPa / 14.5-87.0 psi
Water Temp From ambient temperature to 40 C
Heater Capacity AC 120V / 450W / 60HZ
Cleaning Tank Capacity 0.9 L
Overheating Safety Temperature safety reset protector integrated. Toilet will shutdown if temp. is out of
specs.
Anti-Reux Anti-Reux check valve integrated.
Drying System
Drying Air Temp From ambient temperature to 55 C
Air Speed 5 m/s
Heater Capacity AC 120V / 270W / 60HZ
Overheating Safety Temperature Fuse
Heating Seat
Seat Temp From ambient temperature to 40 C
Heater Capacity AC 120V / 40W / 60HZ
Overheating Safety By design
Deodorization System
Filter Eliminates odors through an odor ghting catalyst.
Limitations
Water Supply Pressure Lowest water pressure is 0.1MPa (14.5 psi), highest water pressure is 0.6MPa (87.5 psi)
Water Supply Temp 10-35 C
Ambient Temp 0-50 C

p. 17
MAINTENANCE & CONSUMER RESPONSIBILITIES
■The DISTRIBUTOR does prohibits the use of harsh abrasive cleansers on any of its products. Harsh cleansers will damage the
inner workings of the toilets.
■ For daily maintenance, use a wet cloth and a soft liquid cleaner.
■Never use abrasives or cleaners containing acetone, chlorine or strong bleach, scrapers, metallic brushes, nor other objects or
products which can graze or tarnish surfaces.
LIMITED 1 YEAR WARRANTY
The DISTRIBUTOR warranty is valid for a period of 1 year after purchased. Improper use of this product or any deviations to the
general guidance given in the user manual will void the warranty. This non-transferable warranty applies only to the original purchaser
and proof of purchase is required for all claims.
This warranty applies to the DISTRIBUTOR toilet installed for residential use only.
The DISTRIBUTOR warrants that, when installed in accordance with the Recognized Plumbing Industry Practice, the toilets are free
of manufacturing defects for a period of one (1) year from the date of purchase.
The DISTRIBUTOR will repair or replace the damaged product or parts only if they were installed and used in a proper way according
this user manual.
Before accepting to repair or replace the product, the DISTRIBUTOR is entitled to send a representative to inspect the product. We
will offer free of charge service for inspecting, repairing and replacing for the items within this warranty period; However the freight
charges are the customer’s responsibility.
INFORMATION ABOUT YOUR WARRANTY COVERAGE
This warranty does not cover damages or failure attributable to:
• Toilets installed with obvious visual defects.
• Rough handling or improper operation.
• The presence of sediment or impurity in the water supply system used.
• Defects or damages to toilets caused by installation that does not comply strictly with the instructions set forth in the Recognized
Plumbing Industry Practice.
• Defects or damage to toilets caused by severe accidents (e.g. re, electric surge, etc.)
• Damage caused by ooding or standing water from leaking pipes, faucets, household appliances, etc.; Up to and including
ooding and any damage caused by acts of God.
NOTES ON WARRANTY
This warranty applies only to the original purchaser and installation site and is not transferable.
FOR WARRANTY SERVICE
►To make a claim, contact the DISTRIBUTOR no later than 30 days following the date of discovery or detection of defect.
► Proof of purchase, such as the bill of sale is mandatory when requesting warranty service.
►The DISTRIBUTOR reserves the right to designate a representative to inspect the vanity for analysis.
►No unauthorized person, installer, dealer, agent or employee of the DISTRIBUTOR or any representative is entitled to assume
any liability on behalf of the DISTRIBUTOR relating to the sale of this product or has the authority to increase or alter the
obligations or limitations of this warranty.

p. 18
INSTALLATION PICTURE

p. 19
Save this manual for future reference
Conservez ce manuel pour usage ultérieur
Conserve este manual para futura referencia
HEAD OFFICE / SIÈGE SOCIAL / OFICINA PRINCIPAL
2800 Etienne Lenoir, Laval
Quebec H7R 0A3 Canada
Customer service / Service à la clientèle / Service al cliente
Tel.: [phone]
Fax: [phone]
[email protected]
www.ovedecors.com
8:00 am - 5:00 pm E.S.T Monday - Friday
8 h à 17 h HNE, du lundi au vendredi
8 h a 17 h HDE, de lunes a viernes
KEEP THIS INFORMATION
CONSERVEZ CES INFORMATIONS
CONSERVE ESTA INFORMATIÓN
Purchase date
Date d’achat
Fecha de compra
Product Tracking Reference
Suivi et référence du produit
Numero de referencia
English and Frenchspeaking representatives available
Représentants disponibles en Anglais et Français
Representantes disponibles para inglés y francés
