Overhead door 1026 User manual

Includes:
®Remote Control
(For the ultimate in safety!)
•Safe-T-Beam®System must be
installed to close door.
•For use only with sectional doors.
•Homelink®and Car2U®compatible.
•Easy programming.
For Answers and Assistance
1.800.929.3667
or visit
www.OverheadDoor.com
Homelink®is a registered trademark of Johnson Controls Technology Company.
Car2U®is a registered trademark of Lear Corporation.
Save this manual for future reference
Model 1026
Installer: Leave this manual with homeowner.
GARAGE DOOR OPENER
PN# 3642136534, 2/26/2010 REV.1
1026
StandardDriveTM
Chain/BeltOpeners
© 2008 Overhead Door Corporation. Overhead Door and the Ribbon logo are registered trademarks of Overhead Door Corporation. Standard
Drive is a trademark of Overhead Door Corporation. All other trademarks are the property of their rightful owners. Consistent with our policy of
continuing product improvements, we reserve the right to change product specifications without notice or obligations. R900-746

PN# 3642136212, 02/26/2010 REV. 1
2
OVERVIEW OF POTENTIAL HAZARDS
READ THIS SAFETY INFORMATION
Garage doors are large, heavy objects that move with the help of springs under high tension and electric motors. Since moving
objects, springs under tension, and electric motors can cause injuries, your safety and the safety of others depend on the owner or
user of this system to read, understand and implement the information in this manual. If you have questions or
do not understand
the information presented, contact Overhead Door Corporation or an authorized Overhead Door Dealer
.
The safety alert symbol and following signal words DANGER, WARNING, and CAUTION are used throughout this manual to call
attention to and identify different levels of hazard and special instructions.
This is the safety alert symbol. This symbol is placed next to signal words and messages to help you identify
important safety information
The word:
DANGER indicates an imminently hazardous situation which, if NOT avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if NOT avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if NOT avoided, may result in injury or property damage.
The word NOTE is used to indicate important steps to be followed, important considerations, or location of parts.
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
SAFETY INFORMATION
POTENTIAL
HAZARD EFFECT PREVENTION
Keep people clear of opening while door is moving.
Do NOT allow children to play with the door operator.
Do NOT operate a door that jams or one that has a broken spring.
MOVING DOOR
WARNING:
Could result in Death
or Serious Injury
Turn OFF power before removing operator cover.
When replacing cover, make sure wires are not pinched or near
moving parts.
Operator must be properly grounded.
ELECTRICAL
SHOCK
WARNING:
Could result in Death
or Serious Injury
Do NOT try to remove, install, repair or adjust springs or anything to
which door spring parts are fastened, such as, wood blocks, steel
brackets, cables or other like items.
Installations, repairs and adjustments must be done by a trained door
system technician using proper tools and instructions.
HIGH
SPRING
TENSION
WARNING:
Could result in Death
or Serious Injury

PN# 3642136212, 02/26/2010 REV. 1
3
OPENER FEATURES
C ODE D ODGER
®
Access Security System.
An electronic access code system that enhances the security of the door opener by continuously changing
the access code each time the remote control is used. The door opener responds to each new code only
once. An access code copied from a working system and tried again will not control the door opener.
*Opener MUST be installed with the
included Wall Button.
SAFETY FEATURES
Safe-T-Beam®Non-Contact Reversing System**.
Puts an invisible beam across the door opening. The door
stops and reverses to the full open position if anything passes
through the beam. Red or green LED indicator lights on the
power head provide a self diagnostic code if an operational
problem exists. (Refer to Section 10.)
Safe-T-Reverse
®
Contact Reversing System.
Automatically stops and reverses a closing door within
2 seconds of contact with an object. (Refer to Section 6.)
Safe-T-Stop
®
Timed Reversed System.
Automatically opens a closing door if it fails to close completely
within 30 seconds.
Watch Dog
™ Monitoring System.
Monitors the Safe-T-Beam®** system to ensure proper func-
tionalityand will automatically stop and reverse a closing door if
a problem is detected.
Automatic Lighting System.
One bulb lighting supplies up to 75 watts of light for safer
evening exits and entries. Turns ON when door is activated and
automatically turns OFF 3 minutes later.
Manual Emergency Release.
Manually releases door from door opener. Use during a power
failure or other emergency to allow manual opening and closing
of door. (Refer to Section 6.)
**Safe-T-Beam®Safety Reverse System
MUST be installed to close door.
TABLE OF CONTENTS
SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
OPENER FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SAFETY FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
PRE-INSTALLATION CHECK LIST . . . . . . . . . . . . . . . . . . . . . . . 4-5
RECOMMENDED TOOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
PARTS IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
KEY ILLUSTRATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
SAFETY INSTALLATION INFORMATION . . . . . . . . . . . . . . . . . . . . 9
INSTALLATION
1 OPENER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10
2INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-13
3WALL BUTTON INSTALLATION . . . . . . . . . . . . . . . . . . . 14-15
4SAFE-T-BEAM®SYSTEM INSTALLATION . . . . . . . . . . . 16-17
5CONNECTING TO POWER . . . . . . . . . . . . . . . . . . . . . . . . . 18
ADJUSTMENTS
6LIMIT SWITCHES & FORCE ADJUSTMENT . . . . . . . . . 19-21
KEYED EMERGENCY RELEASE . . . . . . . . . . . . . . . . . . . . 20
CONTACT REVERSE TEST. . . . . . . . . . . . . . . . . . . . . . . . . 21
7PROGRAMMING REMOTE CONTROLS. . . . . . . . . . . . . . . 22
8BATTERY/ VISOR CLIP INSTALLATION . . . . . . . . . . . . . . . 23
9LIGHT BULB AND LENS INSTALLATION . . . . . . . . . . . . . . 23
SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
MAINTENANCE & TROUBLESHOOTING
10 ROUTINE MONTHLY MAINTENANCE . . . . . . . . . . . . . . . . 24
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
TROUBLESHOOTING GUIDE - OPENER. . . . . . . . . . . . . . 26
TROUBLESHOOTING GUIDE - POWER HEAD LED . . . . . 27
TRANSMITTER COMPLIANCE STATEMENT . . . . . . . . . . . . . . . 28
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Lighted Wall Button*.
Operates door opener from inside garage. (Refer to section 3)
and Car2U®compatible.
Follow the Homelink®or Car2U®instructions in your car
owner’s manual.

6To avoid damage to your door and/or
opener, make sure you disable and/or
remove any door locks, ropes, and/or cables
(NOT door lift cables) prior to installing your
opener. (
Refer to Section 1.)
4

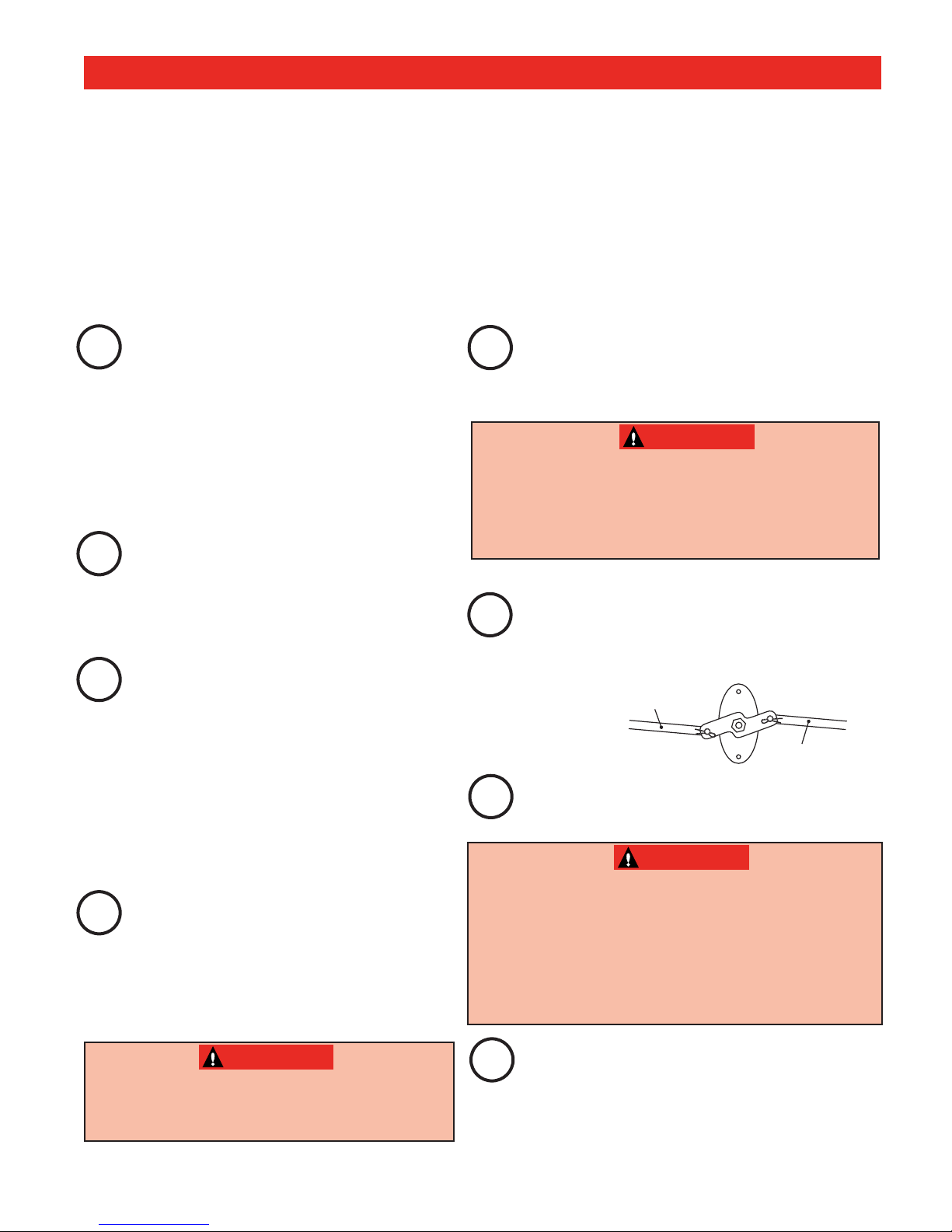

PRE-INSTALLATION CHECK LIST FOR HELP-1.800.929.3667 OR WWW.OVERHEADDOOR.COM
Things to consider if you are planning to "Do-it-yourself."
This opener is designed for use with SECTIONAL doors only.
In many cases you will be replacing an existing door opener with a new one, however, if this
will be the first opener installed there are some pre-installation issues which need to be
addressed. They are as follows:
The Overhead Door Corporation recommends that you read and fully understand all
information and instructions contained herein before choosing a "Do-it-yourself"
installation. Any questions should be directed to Overhead Door Corporation or an
authorized Overhead Door Dealer.
1Check your ceiling where the power
head of your new unit will be mounted.
Plan how you will be mounting the power head.
It is possible that ceiling joists may not be in the
position needed with respect to the garage door
opener. It may be necessary to add an
additional bracket and
fasteners (not included
with your new door opener kit).
(Refer to Section 2.)
2Check the wall directly above the garage
door.The door opener’s header bracket
must be securely fastened to this wall. Insure
that the structure will provide a strong mounting
location. (
Refer to Section 2.)
3Check to see if the mounting location
for the Safe-T-Beam®System is clear from
obstruction and has a wood surface available
for attaching the mounting brackets.The
brackets may be attached to concrete if necessary
but extra tools and special fasteners (not supplied)
will be required.
(Refer to Section 4 and 5.)
NOTE: Mounting brackets must be installed
within code specifications.
4Is your sectional garage door made of
aluminum, light-weight steel, fiberglass
or glass panels?Additional support bracing
must be added to these type doors. If this is the
case, please contact the door manufacturer or
authorized dealer so that they can furnish you
with a "bracing kit."
(Refer to Section 2.)
7Insure that your door is properly balanced
and moving freely. (
Refer to Section 2.)
If your door jams, binds, is improperly
balanced or has a broken spring, have it
repaired or adjusted by a trained door system
technician. Door springs, cables, pulleys,
brackets and associated hardware are under
extreme tension and can cause serious injury
or death.
WARNING
(The issue numbers below refer to the circled numbers in the illustrations on page 5.)
8(NOT SHOWN) If your garage does not have
a separate entry door, you should consider
an emergency release kit (GER-2)for installation on
your garage door. (See emergency release kit notes
on page 20.)
DO NOT USE AN EXTENSION CORD!
DO NOT USE A PORTABLE GENERATOR! This
product is designed to operate on
standard house current.
DO NOT USE ALTERNATE POWER SUPPLIES.
WARNING
5You need a properly grounded 110-120 Volt
power supply available.The outlet should be
no more than 3 feet from the power head once it is
mounted.
(Refer to Section 5.)
Remove
Remove
To reduce the risk of injury to persons or
damage to property - Use this opener only
with sectional doors.
WARNING
PN# 3642136212, 02/26/2010 REV. 1

5
TYPICAL SECTIONAL DOOR INSTALLATION FOR HELP-1.800.929.3667 OR WWW.OVERHEADDOOR.COM
EXTENSION SPRING
OR
TORSION SPRING
SAFE-T-BEAM®
SENSORS
BRACES
ADDED
HEADER BRACKET
MOUNTING BOARD
POWER CORD
(APPROX. 45 IN.)
TO 120V GROUNDED
OUTLET
4
1
3
6
2
3
5
SECTIONAL DOOR
Pg. 19 Pg. 13
Pg. 12-13
Pg. 14
Pg. 11
Pg. 17-18 Pg. 17-18
MAX. 6"
MIN. 5"
Pg. 24
To reduce the risk of injury to persons or
damage to property - Use this opener only
with sectional doors.
WARNING
7
NOTE: This opener is designed for
use with SECTIONAL doors only.
PN# 3642136212, 02/26/2010 REV. 1
TYPICAL SUPPORT
BRACKET
(NOT PROVIDED)

6

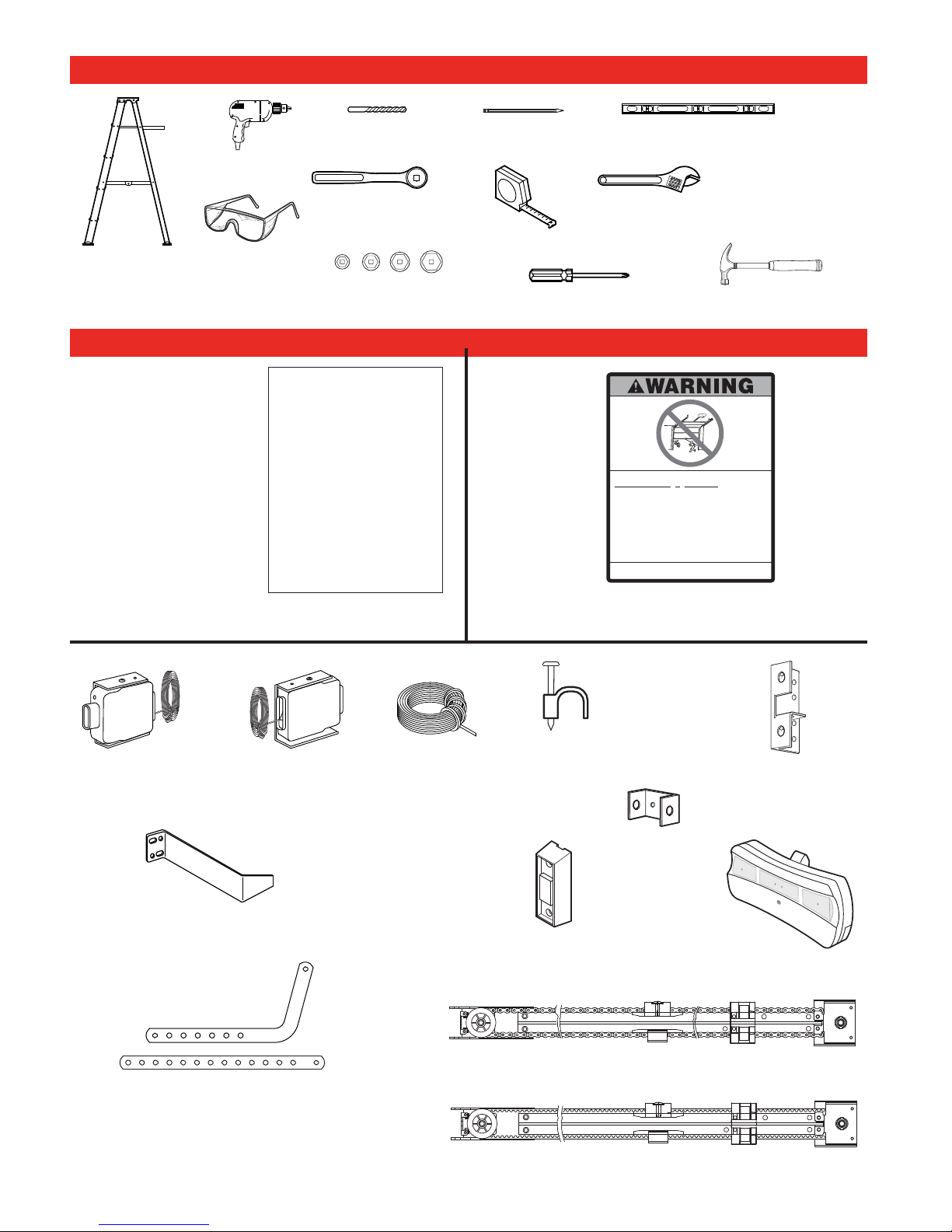

RECOMMENDED TOOLS FOR HELP-1.800.929.3667 OR WWW.OVERHEADDOOR.COM
3/16" Drill Bit
1/4", 7/16", 3/8" and
1/2" Sockets
Step ladder
Drill
Ratchet
Carpenter’s level
Pencil
Tape measure
Wire strippers
Phillips screwdriver
Adjustable wrench

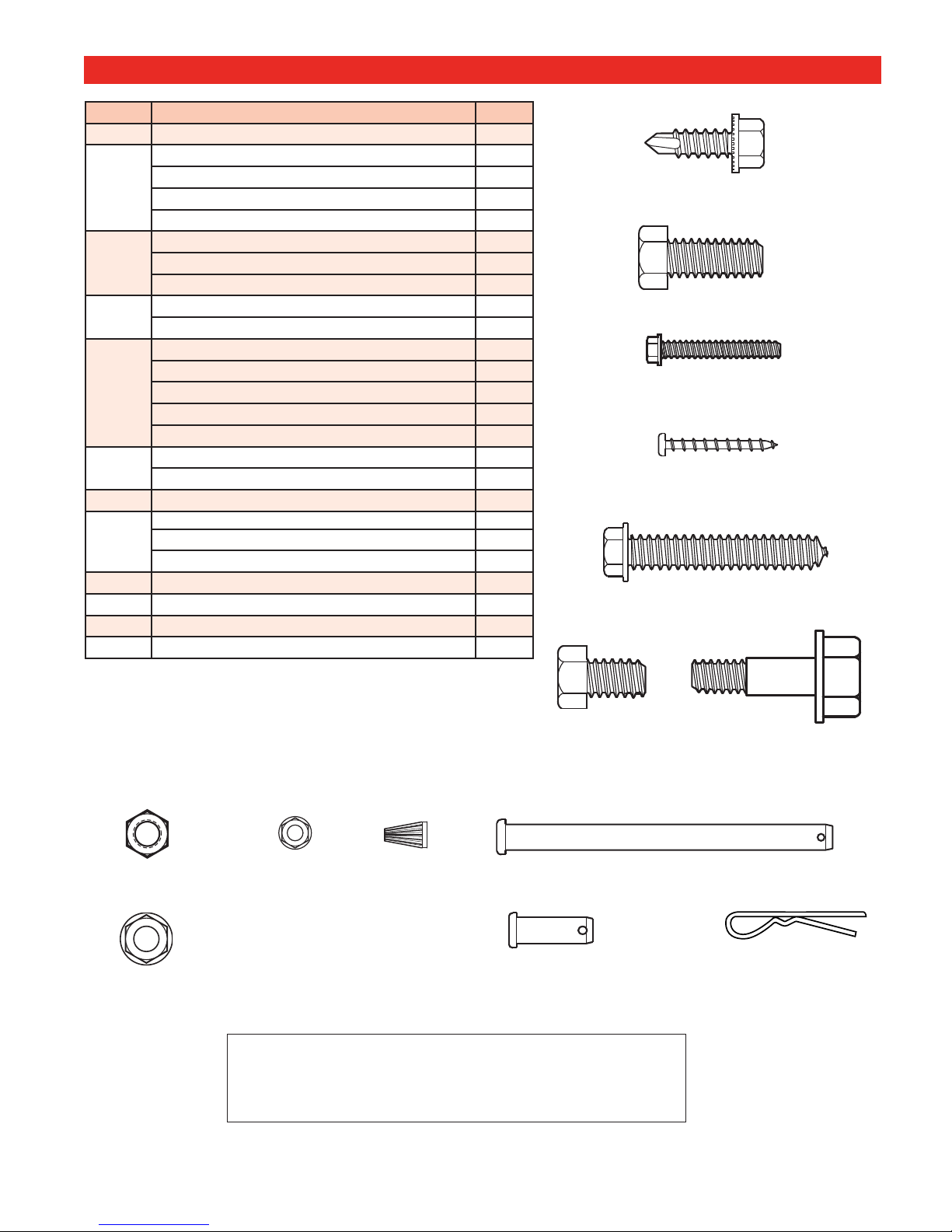

PARTS IDENTIFICATION -
Not Shown Full Size .
Three-button
Remote Control
Child can be pinned under automatic garage door.
Death or serious injury can result.
•
Never let child walk or run under moving door. .
•
Never let child use door opener controls.
•
Always keep moving door in sight.
•
If person is pinned, push control button or use
emergency release.
•
Test door opener monthly:
Refer to your owner'
’
s manual.
Place 1
1
/ 2 -inch object (or 2x4 laid flat) on floor.
If door fails to reverse on contact, adjust opener.
If opener still fails to reverse door, repair or replace opener.
Do not remove or paint over this label.
Mount wall control out of child's reach (at least 5 feet above floor).
Place next to wall control. ©1999
Wall Button
Safety Brochures Entrapment Warning
Label
Safe-T-Beam®Source
with wire
(Red LED)
Safe-T-Beam®Sensor
with wire
(Green LED)
Wire Insulated Staple
Door
Bracket
Header Bracket
Safe-T-Beam®
Source/Sensor Bracket
Door Arm
Hammer
Safety Glasses
Pro Rail (Chain) Section
-- OR --
Pro Rail (Belt) Section
PN# 3642136212, 02/26/2010 REV. 1

FASTENERS - Shown Full size (
See Parts List below for full description.)
Lag screw - 5/16" x 2"
Self-drilling Screw
1/4"-20 x 3/4"
Hex Flange Nut
- 1/4"-20
Cotter pin
Clevis pin
5/16" x 3/4"
Hex Bolt - 5/16"-18 x 3/4"
Hex Flange Nut
- 5/16"-18
#10-16 x 1-1/4" Phillips Hex Screw
Hex Bolt - 5/16"-18 x 1/2"
#4-24 x 1" Pan Head
Phillips Screw
Clevis pin, long
5/16" x 3"
7
BAG NO. DESCRIPTION QUANTITY
1BOLT – 5/16''-18 x 1/2'' 3
2CLEVIS PIN, LONG – 5/16" x 3" 1
COTTER PIN 1
HEADER BRACKET 1
LAG SCREW – 5/16'' x 2'' 2
3HEX BOLT – 5/16''-18 x 3/4'' 5
HEX FLANGE NUT – 5/16''-18 5
LAG SCREW – 5/16'' x 2'' 2
4SELF DRILLING SCREW – 1/4''-20 x 3/4'' 3
DOOR BRACKET 1
5HEX BOLT – 5/16''-18 x 3/4'' 3
SELF LOCKING NUT – 5/16''-18 1
HEX FLANGE NUT – 5/16''-18 2
CLEVIS PIN – 5/16" x 3/4" 1
COTTER PIN 1
6WALL BUTTON ASSEMBLY 1
PAN HEAD PHILLIPS SCREW – #4-24 x 1'' 2
713 MM INSULATED STAPLE 30
8 Safe-T-Beam®SOURCE/SENSOR BRACKET 2
PHILLIPS HEX SCREW – #10-16 x 1- 1/4'' 4
WIRE NUT (GREY) 4
NO NUMBER REMOTE WITH BATTERY 1
NO BAG Safe-T-Beam®SOURCE/SENSOR & WIRE SET 1
NO NUMBER LIGHT COVER - WHITE 1
NO NUMBER LIGHT COVER - COLOR 1
Self Locking Nut
- 5/16"-18
Wire Nut
MISSING ANY PARTS? Please call toll free - 1.800.929.3667
DO NOT RETURN TO POINT OF PURCHASE.
IMPORTANT! - Information needed when calling
• Model number - (located on packaging)
• Store, city, state, and date of purchase
Shoulder Bolt
- 5/16"-18 x 1"
PN# 3642136212, 02/26/2010 REV. 1

8

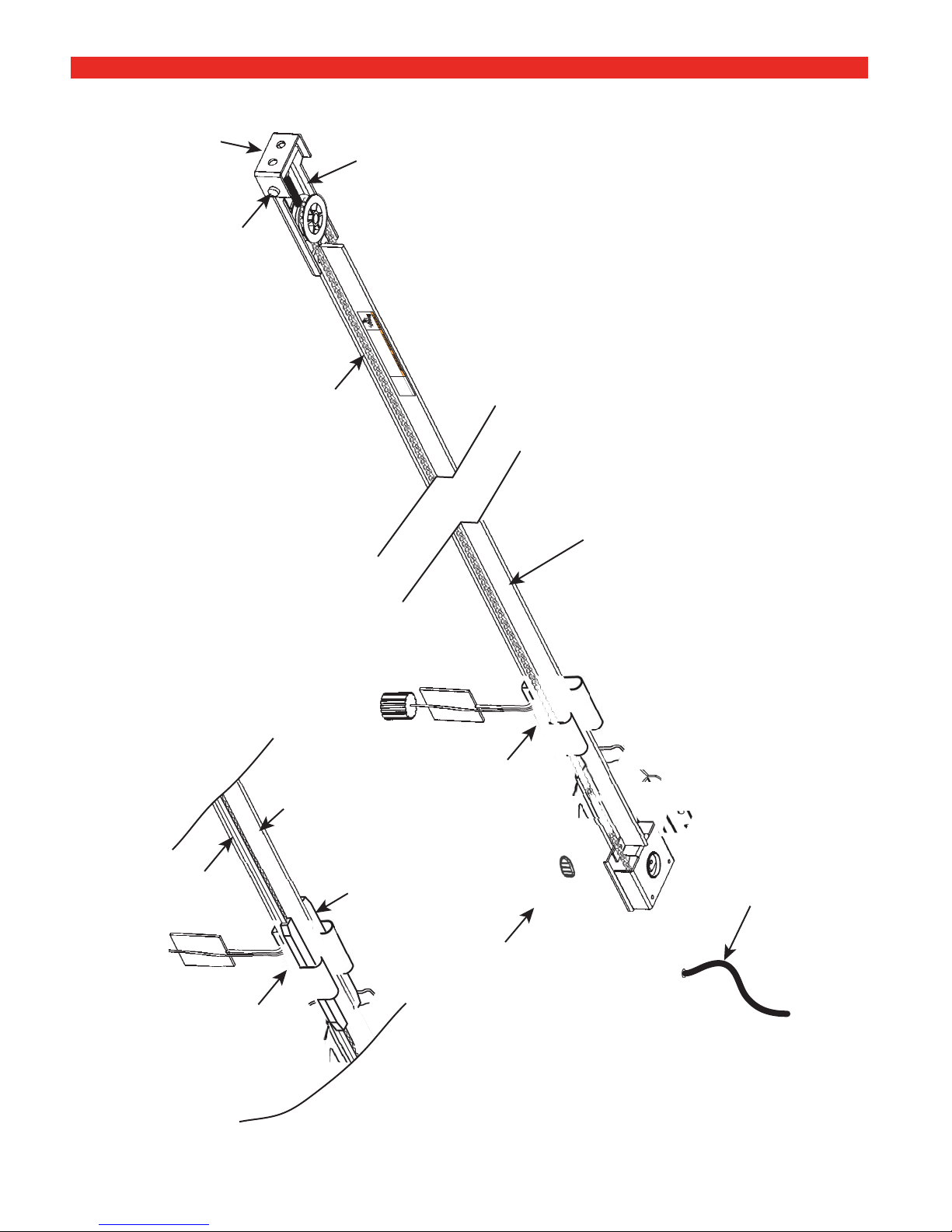

1-PIECE RAIL HARDWARE ASSEMBLED VIEW
FOR HELP-1.800.929.3667 OR WWW.OVERHEADDOOR.COM
Tensioner
Rail with chain
Chain
Carriage Slide
Release Knob
Header
Bracket
Power Head
Power Cord
Clevis Pin, Long & Cotter Pin
NOTE
Some doors need
bracing. Contact
door distributor or
manufacturer for
instructions.
HIGH SPRING TENSION
Can Cause Serious Injury or Death
Repairs or adjustments must be made by a trained service person using proper tools and instructions
Rail with belt
Belt
Carriage Slide
Belt Clamp
CHAIN
BELT
PN# 3642136212, 02/26/2010 REV. 1

9
OPENER ASSEMBLY
FOR HELP-1.800.929.3667 OR WWW.OVERHEADDOOR.COM
1
Clear a workspace area to unpack and organize box
and contents for assembly.
1. There are 4, or more, boxes inside the carton.
Each box is numbered 1 - 4. Note that some
openers will contain the same parts and be
packaged with fewer boxes. Carefully remove
the three internal boxes (Labeled #1, 2, and 3)
and place them on the floor for easy access
(Fig. 1-1). These boxes contain assembly parts
and the contents are organized by assembly
tasks. For quick reference inside the lid of each
box there is a label illustrating the components
inside.
2. Remove the motor power head and place it on
the floor for later use. Remove box #4 and
place it on the floor for later use.
Do NOT run until opener is fully assembled.
CAUTION
FIG. 1-1 Internal boxes.
RAIL ASSEMBLY: Use a clean, flat surface.
clevis pin & cotter pin
bolts &
nuts
Insulated
Staple
Control
Wire
Wall Control
Door Bracket
Door
Bag 4
Bag 6
Bag 7
Bag 5
Box Label Example
#4
1. READ AND FOLLOW ALL SAFETY, INSTALLATION
AND OPERATION INSTRUCTIONS.
(If you have
questions or do not understand an instruction, call the
Overhead Door Corporation or an authorized Overhead
Door Dealer.)
2. Install only on a properly balanced sectional garage door.
An improperly balanced door could cause severe injury.
Have a trained door system technician make repairs or
adjustments to cables, spring assemblies, and other
hardware before installing the opener.
3. Remove all ropes and remove or make inoperative all
locks connected to the garage door before installing opener.
4. Where possible, install the door opener 7 feet or more
above the floor. For products having an emergency
release, mount the emergency release 6 feet above the floor.
IMPORTANT INSTALLATION INSTRUCTIONS
WARNING:
To reduce the risk of severe injury or death:
5. Do NOT connect the opener to source of power until
instructed to do so.
6. Locate the control button:
• Within sight of door,
• At minimum height of 5 feet so small children are not
able to reach it, and
• Away from all moving parts of the door.
7. Install the Entrapment WARNING Label next to the
control button in a prominent location. Install the
Emergency Release Tag on or next to the
emergency release.
8. After installing the opener, the door must reverse within
2 seconds when it contacts a 1-1/2 inch high object (or a
2 x 4 board laid flat) on the floor.
To reduce the risk of injury to persons or
damage to property - Use this opener only
with sectional doors.
WARNING
PN# 3642136212, 02/26/2010 REV. 1
NOTE: Please follow ALL instructions in their NUMBERED sequence. Use Wall Button and safety sensors
provided with this unit. Do NOT substitute Wall Button or safety sensors.

FIG. 1-3 Chain adjustment.
FIG. 1-2 Rail - Power head assembly.
Chain Pulley Bracket (at wall end of rail)
Chain
T-Rail at center of rail assembly
1/8"
T-Rail
Chain
Tighten nut to move pulley this direction
Use 1/2" socket
on adjustment nut
Use
5/16"-18 x 1/2"
Bolts
FIG. 1-5 Disable garage door lock.
Remove
Remove

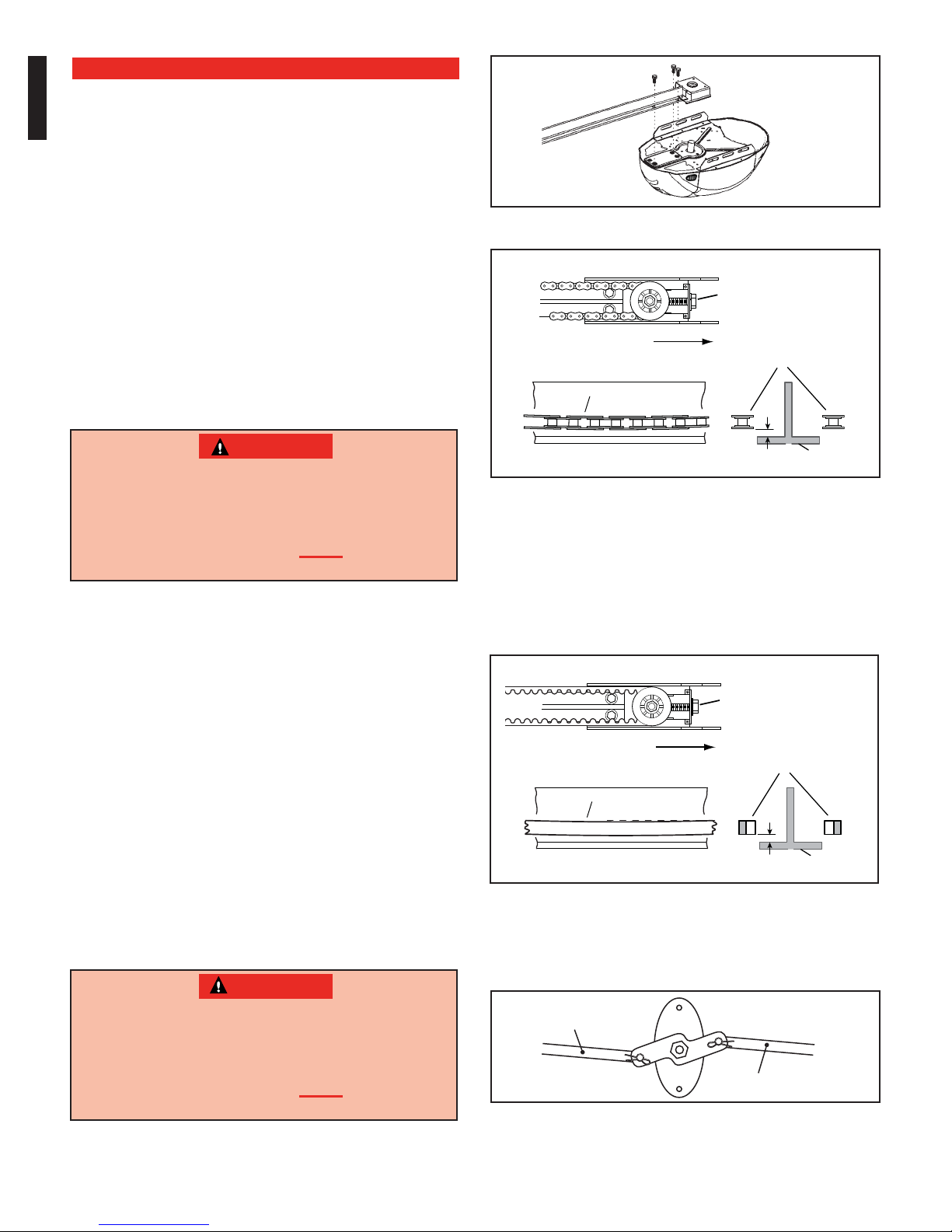

POWER HEAD & RAIL ASSEMBLY
Assembly for CHAIN DRIVE OPENER
NOTE: Handle carefully! Drive chain can slide out
of rail.
NOTE: For power head and rail assembly locate
Bag 1 from Box 1.
NOTE: Copy serial number from power head
frame and record it on warranty page.
1. Attach rail assembly to power head by aligning
the sprocket onto the motor shaft. Use (3)
bolts, 5/16"-18 x 1/2" (Fig. 1-2).
2. Tighten the chain by turning the adjustment
nut clockwise. The chain adjustment nut is
located in the Chain Pulley Bracket (opposite rail
end from the power head) (Fig. 1-3).
3. Tighten chain until chain is approximately 1/8
inch above the base of the rail at midpoint on
the rail (Fig. 1-3). Do NOT over tighten chain.
Set assembled power head and rail aside. Begin with
Section 2 INSTALLATION.
FIG. 1-4 Belt adjustment.
Belt Pulley Bracket (at wall end of rail)
Belt
T-Rail at center of rail assembly
1/8"
T-Rail
Belt
Tighten nut to move pulley this direction
Use 1/2" socket
on adjustment nut
Assembly for BELT DRIVE OPENER
NOTE: For power head and rail assembly locate
Bag 1 from Box 1.
NOTE: Copy serial number from power head
frame and record it on warranty page.
1. Attach rail assembly to power head by aligning
the sprocket onto the motor shaft. Use (3)
bolts, 5/16"-18 x 1/2" (Fig. 1-2).
2. Tighten the belt by turning the adjustment nut
clockwise. The belt adjustment nut is located in
the Belt Pulley Bracket (opposite rail end from the
power head) (Fig. 1-2).
3. Tighten belt until belt is approximately 1/8 inch
above the base of the rail at midpoint on the
rail (Fig. 1-2). Do NOT over tighten belt.
Set assembled power head and rail aside. Begin with
Section 2 INSTALLATION.
10
PN# 3642136212, 02/26/2010 REV. 1
You should have removed all ropes and/or
cables (NOT door lift cables) and disabled
the door lock already. If you have not,
remove all ropes and/or cables and
disable garage door lock NOW before
continuing with installation (Fig. 1-3).
CAUTION
You should have removed all ropes and/or
cables (NOT door lift cables) and disabled
the door lock already. If you have not,
remove all ropes and/or cables and
disable garage door lock NOW before
continuing with installation (Fig. 1-3).
CAUTION

11
FIG. 2-2 Finding highest point of travel.
INSTALLATION FOR HELP-1.800.929.3667 OR WWW.OVERHEADDOOR.COM
2
HEADER AND DOOR
MOUNTING BRACKETS:
1. Finding header bracket mounting location.
• Close garage door.
– Use a pencil and level.
a) Mark center of garage door (one-half overall
width) on the wall with 6" vertical line at top
edge of door.
b) Continue this line on wall above door for
about 12" (Fig. 2-1, a).
• Raise garage door until top edge of door
reaches its maximum height
(Fig. 2-2) .
• With door at highest point.
–
Measure height from top edge of door to floor
(Fig. 2-2).
• Close door again.
• Mark height measurement on wall above door
(Fig. 2-1, c) .
– Make your mark across vertical line made earlier.
• Add 2-1/2" to height mark just made on
wall. This
is location for header bracket (Fig. 2-1, d).
NOTE: If header bracket location needs to be
above header for garage door opening, you need
to add a "mounting surface." A2" x 6" board
securely attached (board and fasteners not
included) to wall studs on either side of your mark
is sufficient (Fig. 2-3).
NOTE: For header bracket and bolts locate Bag 2
from Box 1.
NOTE: The bolts supplied in Bag 2 are designed
to be used on pressure treated lumber.
2. Mounting the header bracket.
• Hold header bracket against wall (Fig. 2-3).
• Position bracket as shown.
– Place center on vertical line.
– Bottom edge on final height line.
•
Mark screw hole locations on wall.
• Drill 3/16" pilot holes at each screw hole mark.
–
Fasten header bracket with 2 lag screws
(provided) (Fig. 2-3).
FIG. 2-1 Final height mark.
Header bracket must be fastened to garage
framing. Do NOT fasten to drywall, particle
board, plaster or other similar materials.
WARNING
2-1/2"
top of door
in closed
position
d) - final
height mark
HIGHEST POINT OF TRAVEL
TRACK
SECTIONAL
DOOR
HEADER
FROM HERE
TO FLOOR
2-1/2"
HIGHEST POINT OF TRAVEL
TRACK
SECTIONAL
DOOR
HEADER
FROM HERE
TO FLOOR
a) - 6" vertical
line
b) - extend
vertical line
c) - door at
highest point
door at highest point
door at highest point
final height mark
final height
mark
2-1/2"
FIG. 2-3 Header bracket mounting (on header &
above header)
.
Door springs are under high tension. If spring or
its shaft is in the way, measure 2-1/2" above
spring or shaft on the garage door centerline and
mark this height as your location for header
bracket.
Do NOT move door spring!
WARNING
PN# 3642136212, 02/26/2010 REV. 1

12
MOUNTING THE OPENER:
1. Getting started.
• Position assembled rail
on wall next to header
bracket
(Fig. 2-4).
– Place material on floor under power head to
protect from scratching. (A box, stool, or
similar device may be needed to clear a
torsion spring.)
NOTE: For header bracket pins locate Bag 2
from Box 1.
2. Mounting the assembly.
•Attach rail to header bracket using clevis pin
and cotter pin (Fig. 2-5).
• Support power head on step-ladder to prevent
interference with header mounted (torsion)
spring.
NOTE: Before final attachment to ceiling, insure
that assembly is in proper alignment (Fig. 2-4).
NOTE: For nuts, bolts, and lag screws locate
Bag 3 from Box 1.
• On finished ceilings, locate ceiling joists or
trusses using a stud finder or similar device.
Attach angle iron (not provided) to joists or
trusses through finish material using (provided)
lag screws (Fig. 2-6).
• On unfinished ceilings or open ceilings,
straps may attach directly to joists or trusses.
Depending on the garage construction, extra
framing material (not provided) which may be
required should be installed using appropriate
construction techniques (Fig. 2-6).
NOTE: Refer to your local building codes for
appropriate framing materials and construction
techniques.
• Attach mounting straps (not provided) to ceiling
using lag bolts (Fig. 2-6).
• Set height of power head to following
(Fig. 2-6):
a)
Rail must clear door at door’s highest point
of travel.
b) Be level or power head slightly below level.
• Securely tighten power head mounting bolts
and nuts.
• Carefully raise and lower door manually.
Ensure door does not contact any section of
power head or rail.
• Check that rail clamp bolts and nuts are tight.
•DO NOT PLUG OPENER IN YET!
YES / SÍ / OUI
NO
NO
FIG. 2-4 Position assembly and align.
VIEW
FROM ABOVE
(not to scale)
HEADER BRACKET
Mounting Straps
(not provided)
FIG. 2-6 Mounting the power head.
ANGLE IRON ON FINISHED CEILING
Attach angle iron to beams
UNFINISHED OR OPEN BEAM
Extra framing
not needed
Extra framing
NEEDED
DRYWALL
bolts & nuts
bolts & nuts
FIG. 2-5 Rail mounting to header bracket .
COTTER PIN
CLEVIS PIN
(Chain drive
shown)
PN# 3642136212, 02/26/2010 REV. 1

PN# 3642136212, 02/26/2010 REV. 1
13
DOOR BRACKET:
NOTE: For door bracket and bolts locate Bag 4
from Box 2.
1. Finding door bracket mounting location.
• Door bracket is mounted as high on
door as
possible along vertical centerline and NO LOWER
THAN top set of rollers (Fig. 2-7).
2. Mounting the door bracket.
• Proper bracing should be verified at this point.
– Align door bracket centered on your vertical
centerline (Fig. 2-8).
– Attach using 3 self-drilling screws for sheet
metal or other light weight material.
– Use lag screws (not provided) for solid
wooden sectional doors.
NOTE: For solid wood doors, carriage bolts
WITHOUT SLOTTED HEADS (not included) may
also be used for attaching door bracket.
INSTALL DOOR ARMS
NOTE: For door arm nuts and bolts, clevis and
cotter pins locate Bag 5 from Box 2.
1. Attach the arms.
• Fasten short branch of curved door arm to door
bracket using bolt and locking nut (Fig. 2-9).
•Fasten straight arm to carriage using a short
clevis pin and cotter pin (Fig. 2-9).
2. Connecting the arms.
•
Slide carriage back and forth to adjust arm length.
– Position the straight arm 50º down from the
rail.
• With the arms arranged in this position, fasten
arms together using bolts and nuts spaced as
far apart as possible (Fig. 2-9).
Doors made of masonite, lightweight wood,
fiberglass, and sheet metal must be properly
braced before mounting door opener. Contact
door manufacturer or distributor for a bracing kit.
The Overhead Door Corporation is not
responsible for damage caused due to
improperly braced door.
CAUTION
FIG. 2-7 Mounting door Bracket .
Centerline
even with or
above top roller
FIG. 2-9 Attaching door arms.
FIG. 2-8 Examples of door bracket positioning.
centerline of top roller
A B
Centerline
Short Clevis Pin & Cotter Pin
Bolts as far
apart as
possible
50°

PN# 3642136212, 02/26/2010 REV. 1

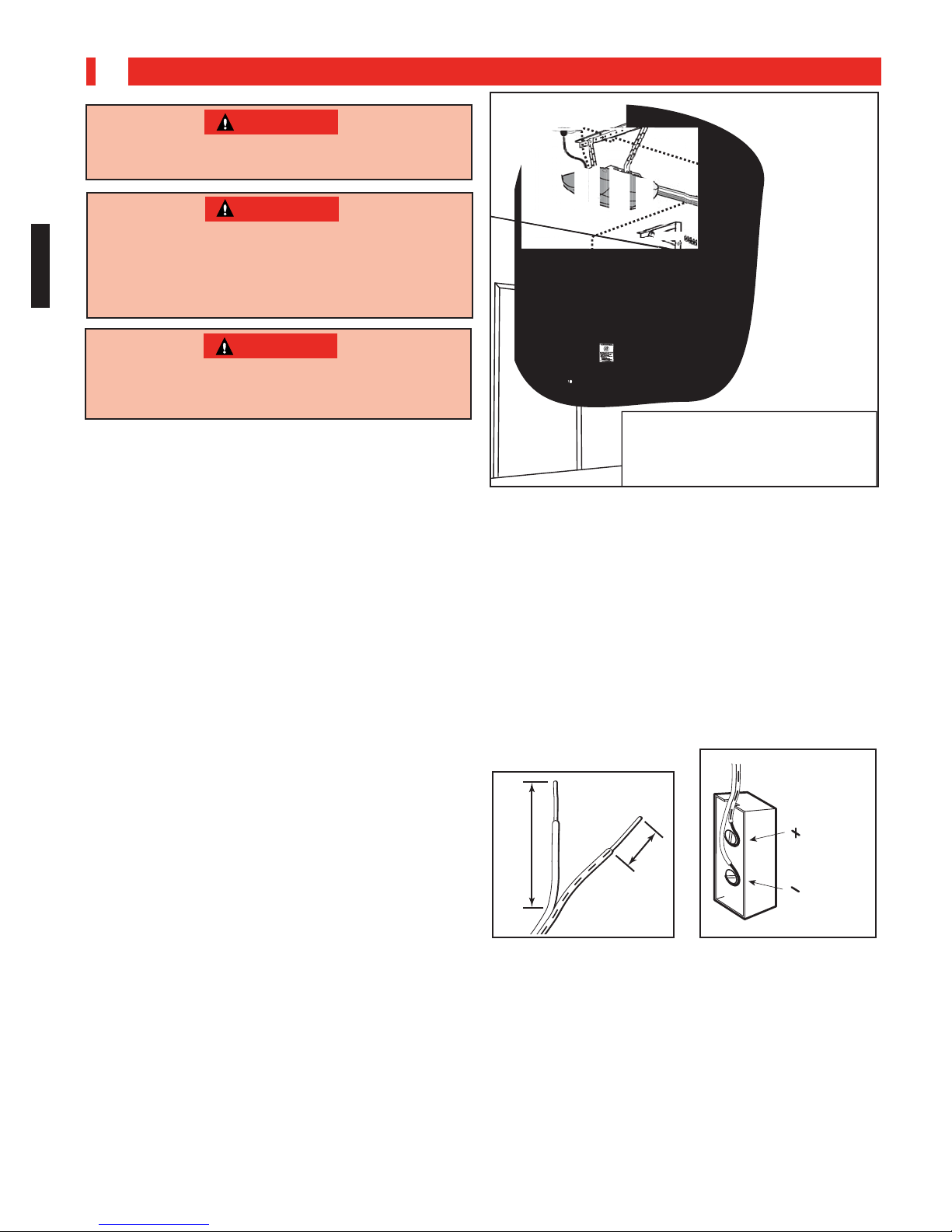

14
NOTE: For Wall Button, wire and insulated
staples locate Bags 6 and 7 from Box 2.
1. Wall Button location.
• Wall Button location should be in direct sight
of door.
• It should be at least five feet (5') above floor to
prevent small children from operating door.
• It must be away from any moving parts. (You
should NOT be able to reach the garage door
while standing at Wall Button.)
• Wall Button board screw connections are
polarized, (+) positive and (-) negative.
2a. Wiring (If pre-wired).
• Locate Wall Button pre-wired wire ends
(Fig. 3-1). (They should be located within the
guidelines mentioned above.)
• Split and strip ends of wire (Fig. 3-2).
• Fasten wire to Wall Button board screws on back
of Wall Button.
– Striped wire to the + (plus) terminal.
– White wire to the - (minus) terminal.
2b. Wiring (If NOT pre-wired).
• Pick a convenient location for mounting
Wall Button using the guidelines mentioned
above (Fig. 3-1).
• Run wire from Wall Button to power head
(Fig. 3-1).
• Split and strip ends of wire (Fig. 3-2).
• Fasten wire to control board screws on back of
Wall Button button.
– Striped wire to the + (plus) terminal.
– White wire to the - (minus) terminal.
WALL BUTTON INSTALLATION
FOR HELP-1.800.929.3667 OR WWW.OVERHEADDOOR.COM
3
Verify there is NO power to the opener before
installing Wall Button wires and Wall Button.
WARNING
Staples which are too tight can cut or pinch wires.
Cut or pinched wires can cause the Wall Button to
stop working. When using the insulated staples,
make sure you fasten them only as tightly as
needed to hold the wire snugly.
CAUTION
FIG. 3-2 Splitting and stripping .
FIG.3-1 Wall Button wire routing
Wire from
power head
to Wall Button.
Wall
Button
"Entrapment"
Warning Label
Separate
entry door EXAMPLE ONLY!
This is an example of wire routing
when NOT pre-wired. Your wire
routing may be different.
1/2"
2"
or
or
Black
Striped
White
Use of any other wall control can cause the door to
operate unexpectedly and the light not to work.
Use only the included Wall Button.
WARNING

PN# 3642136212, 02/26/2010 REV. 1

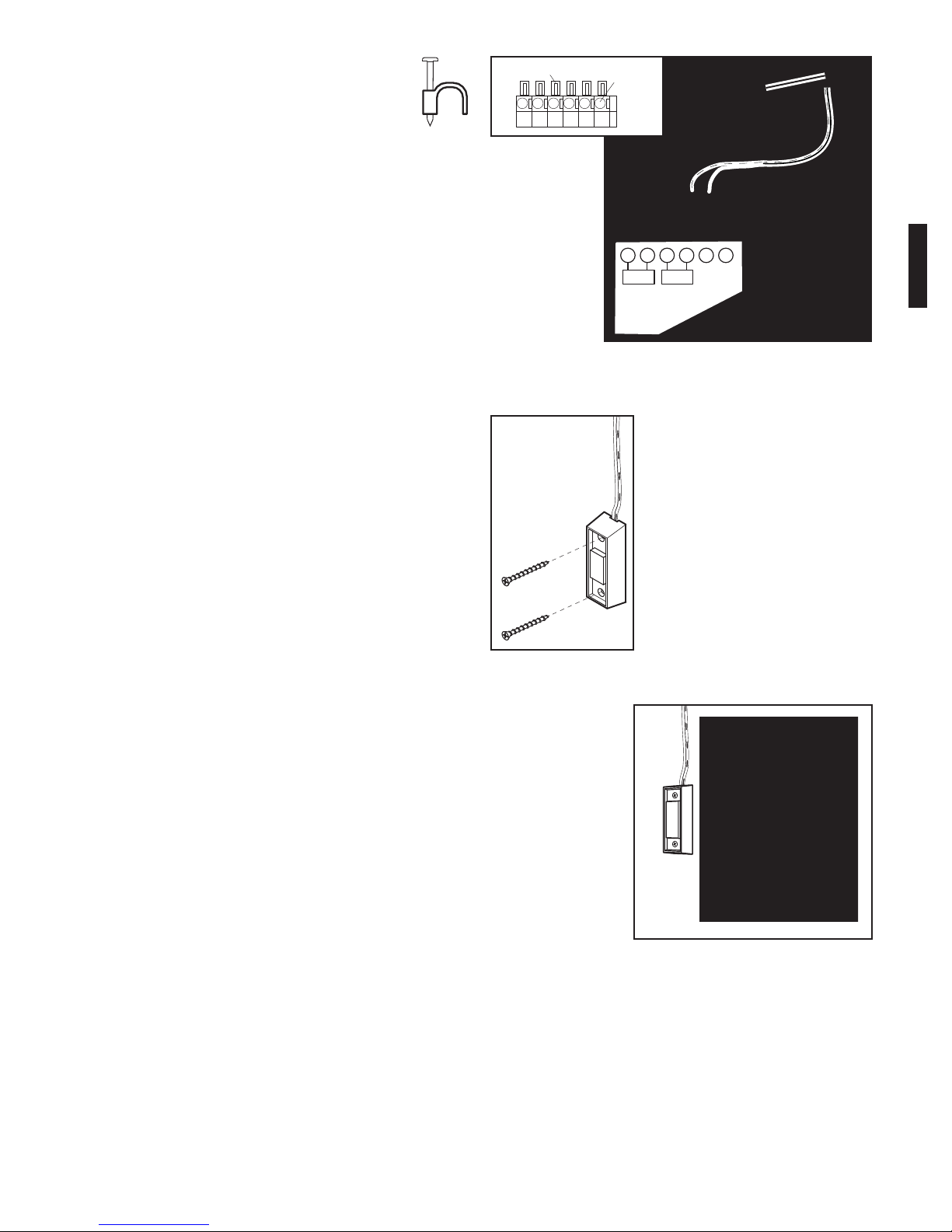

15
3. Securely fasten wires.
• Securely fasten wires to ceiling and
wall using insulated staples provided.
– Use insulated staples.
– Staples should be snug only.
• If rear cover is attached to power head,
remove it.
• On power head:
– Route Wall Button wires through wire guide.
– Split and strip ends of wire (Fig. 3-2 on
previous page).
– Insert wire into terminal holes and lightly press in
the orange locking clips above each terminal
hole. (You can use a pencil or small screwdriver
to comfortably press in locking clips.) The white
wire into #1 terminal hole and striped wire into
the #2 terminal hole.
– Confirm wire lock by lightly tugging on the wire.
The wire should remain in the terminal hole.
•Do NOT install rear cover yet.
4. Mounting.
• Fasten Wall Button to wall with 2 screws
(provided) (Fig. 3-4).
• Remove protective backing from "Entrapment"
warning label (Fig. 3-5). The "Entrapment" label
is located in the center of this manual.
– Stick label on wall near Wall Button.
FIG. 3-4 Mounting Wall Button.
Insulated
Staple
+–
PB
InfaredSensor
123456
FIG. 3-3 Insert wires .
(Power Head With Rear Cover Removed)
1234
Terminal
Holes
Locking
Clips
56
FIG. 3-5 Mounting Entrapment warning label.
wire guide

PN# 3642136212, 02/26/2010 REV. 1
16
SAFE-T-BEAM®SYSTEM INSTALLATION
FOR HELP-1.800.929.3667 OR WWW.OVERHEADDOOR.COM
4
NOTE: The opener will not close the door
automatically unless the Safe-T-Beam®System is
installed.
NOTE: For Sensors, screws, wire, and insulated
staples locate items and Bag 8 from Box 3.
1. Mounting brackets.
•Mark both sides of garage door frame or wall at
a height no higher than 6" and no lower than 5"
above floor (Fig. 4-1)
.
• Hold bracket against door frame or wall.
– Check if brackets extend out from wall far
enough, so tongue of bracket is beyond door,
tracks and any door hardware.
– If not:
a) Mounting bracket extensions are available
through an authorized Overhead Door
dealer.
b) Blocks of wood, etc. may be substituted for
extensions.
• Locate top of bracket on your mark (Fig. 4-2).
• Fasten each with 2 screws (Fig. 4-2).
NOTE: Mounting brackets can be attached to the
floor or concrete rim using concrete anchors
(not provided), obey manufacturer’s instructions.
2. Mounting Safe-T-Beam®Source (Red LED) and
Sensor (Green LED).
• If garage has only one garage door.
– Determine which side of garage receives most
direct sunlight (Fig. 4-4).
– Red LED should always be on sunny side
whenever possible (Fig. 4-4).
• For multiple doors.
– Preventing crossed signals is critical.
– Place source and sensor modules on adjacent
doors facing in opposite directions (Fig. 4-4).
NOTE: To help prevent interference from sun,
Safe-T-Beam®sensor with Green LED may be
placed further away from the door opening,
though extended no further out from the wall,
where it will spend more time in shadow.
• Slide source/sensor onto tongue of bracket until
it clicks into place (Fig. 4-3).
3a. Wiring (If NOT pre-wired).
• Route wire from Safe-T-Beam®sensors to power
head using method shown in (Fig. 4-5a).
• Securely fasten wires to wall and ceiling
as you go (Fig. 4-6 on next page).
– Use insulated staples.
– Staples should be snug only.
There should be no electrical power to the opener
while installing Safe-T-Beam®wires. If you have
plugged in the power cord—UNPLUG IT NOW!
WARNING
FIG. 4-1 Mark door frame .
FIG. 4-2
Mounting brackets .
FIG. 4-3 Attach
sensors to brackets .
s
l
id
e
bracket
tongue
mark
center of
bracket
FIG. 4-4 Safe-T-Beam®source and sensor
locations
.
SUN
ONE DOOR
GARAGE
THREE DOOR
GARAGE
RED
LED
RED
LED
GREEN
LED
RED
LED GREEN
LED
GREEN
LED GREEN
LED RED
LED
RED
LED
RED
LED
GREEN
LED GREEN LED
TWO DOOR
GARAGE
FIG. 4-5a Source and sensor wiring methods .
or
6 5 4 3 2 1 6 5 4 3 2 1
SensorSource
Red Green
Power
Head
Dashed Line = striped wire
Solid Line = white wire
Insulated
Staple

PN# 3642136212, 02/26/2010 REV. 1
17
3b. Wiring (pre-wired).
• Route wire from wall to Safe-T-Beam®sensors
(Fig. 4-5b).
• Splice pre-wiring to shortened sensor wire,
match wire pairs dash-to-dash and
plain-to-plain.
- Trim sensor wire to approximately one foot
(1 ft) from sensor.
- Split and strip ends of sensor wires and
pre-wired wires (Fig. 4-7).
- Splice wires together with (provided)
wire nuts.
• Route wire from ceiling to power head
(Fig. 4-5b).
• Securely fasten wires where they exit
wall and ceiling as you go.
– Use insulated staples.
– Staples should be snug only.
4. Split and strip ends of sensor wires (Fig. 4-7).
NOTE: For rear cover locate Box 4.
5. Attach Safe-T-Beam®wire to power head wire
terminal.
• Route Safe-T-Beam®wires through wire guide.
– Insert wire into terminal holes and lightly press
in the orange locking clips above each terminal
hole. (You can use a pencil or small
screwdriver to comfortably reach in and lightly
press down locking clips.) Insert white wires to
'even' numbered terminal holes and striped
wires into 'odd' terminal holes (Fig. 4-8).
– Confirm wire lock by lightly tugging on the wire.
The wire should remain in the terminal hole.
• Install rear cover. The rear cover is the same
color as the power head clips and body
(Fig. 4-9).
• Do not install the white (lamp) cover at this time.
NOTE: Safe-T-Beam®alignment check must be
performed following connection to electrical
power (see page 18). DO NOT PLUG IN YET!
Staples which are too tight can cut or pinch wires.
Cut or pinched wires can cause the Safe-T-Beam®
System to stop working. When using the insulated
staples, make sure you fasten them only as tightly
as needed to hold the wire snugly.
CAUTION

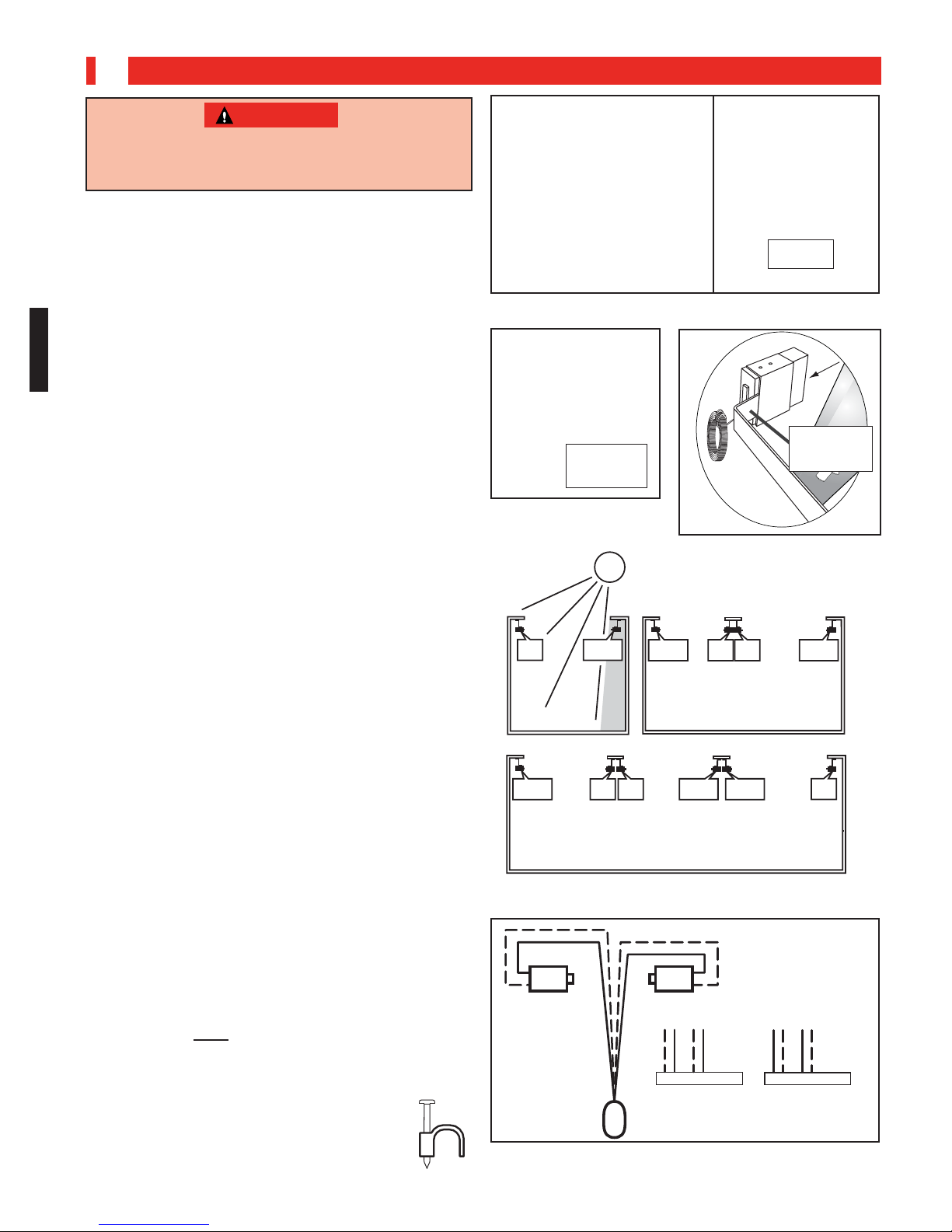

FIG. 4-7
Splitting and stripping
.
FIG. 4-6 Wire routing .
Wire
Wire
Sensor
Sensor
Invisible Light Beam
Protection Area
Insert Wire
Into Connector
Use this
wire routing
if NOT pre-wired
1234
Terminal
Holes
Locking
Clips
56
+–
PB
InfaredSensor
123456
FIG. 4-8
Insert wires
.
(Power Head With Rear Cover Removed)
FIG. 4-5b Pre-Wired source and sensor wiring
methods
.
or
6 5 4 3 2 1 6 5 4 3 2 1
SensorSource
Red Green
Power
Head Dashed Line = striped wire
Solid Line = white wire
Wall Wall
Ceiling
1/2"
2"
Cover clips
FIG. 4-9 Install rear cover
.
Insulated
Staple
Wire Nut

PN# 3642136212, 02/26/2010 REV. 1
18

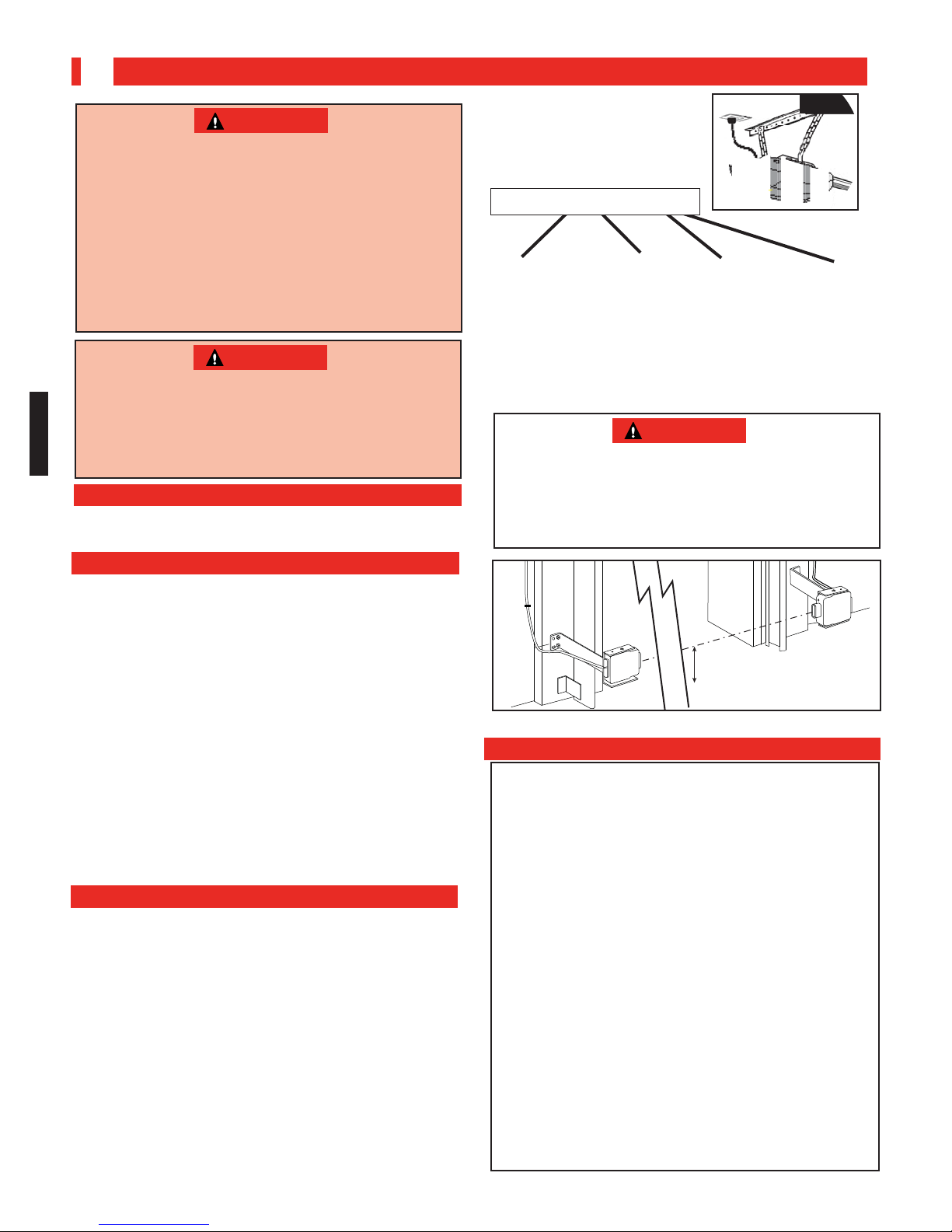

CONNECTING TO POWER
FOR HELP-1.800.929.3667 OR WWW.OVERHEADDOOR.COM
5
Plug the opener into a properly grounded
electrical outlet (Fig. 5-1).
• To reduce the risk of electrical shock, this equipment
has a grounded type plug that includes a third
(grounding) pin. This plug will only fit a grounded type
outlet. If you do not have a grounded outlet, contact
a qualified licensed electrician to install one. DO NOT
alter the plug in any way. The door opener must be
properly grounded in order to prevent personal injury
and damage to the components.
• DO NOT remove motor cover. All work performed
on motor must be done by a trained door system
technician.
WARNING
•Check local building codes to make sure that you
are not required to have your garage door opener
permanently wired, with circuit breaker protection.
If building codes require door opener to be
permanently wired have a qualified licensed
electrician connect power with permanent wiring.
CAUTION
WITH GROUNDED PLUG:
5" min
f
r
o
m
fl
oo
r
6" m
ax
fr
o
m f
l
o
o
r
FIG. 5-4 Check Safe-T-Beam®Alignment .
FIG. 5-1 Connect to power .
INFRARED PROTECTION FUNCTION
1. When the garage door is opening, its movement
will not be influenced if the Safe-T-Beam®is
obstructed.
2. If the Safe-T-Beam®is obstructed before the
garage door closes, the door will not close.
3. When the garage door is closing, if Safe-T-Beam®
is cut off by people or obstacle, the garage door
will reverse automatically to its fully opened
position. (Meanwhile, the opener light will keep
blinking until door moves to its fully opened
position.)
4. If the Safe-T-Beam®System fails, loses power,
or is installed improperly, you will have to press
and hold the Wall Button "open/close" button
until the door reaches its fully closed position.
The LED indicator light on the power head will
be green and blink twice (Pattern: ☼☼ pause
☼☼ pause) to inform you to eliminate problem
first. Otherwise, the door will reverse
automatically to its fully opened position if you
release the "open/close" button on the wall
control during the closing movement.
FIG. 5-2 Remove motor cover.
WITH PERMANENT WIRING:
Instructions for Electrician - ONLY.
• Remove power from circuit.
• Remove rear cover and motor cover.
– Remove four motor cover screws (Fig. 5-2).
• Remove existing power cord and strain relief
from the 7/8" dia. hole and discard (Fig. 5-3)
• Connect permanent wiring to power head using
7/8" diameter hole.
–White to white/black to black/ground to green.
– Use only UL recognized wire nuts.
• Wires inside the power head must be at least 6"
in length.
• Replace motor cover and rear cover and
re-energize the circuit.
NOTE: Overhead Door Corporation is not
responsible for charges resulting from work
preformed by an independent electrician.
Check Safe-T-Beam®alignment (Fig. 5-4).
• Insure that no part of door or its hardware is
in path between lenses of source and sensor.
• Insure that tops of lenses are between 5" - 6"
above the floor (Fig. 5-4). The brackets are
flexible, and can be adjusted slightly if needed.
• Adjust the Red LED transmitter by aiming the
unit directly at the Green LED receiver. Use the
adjustment screw located on the top of the
transmitter housing to make adjustments.
• The Red LED transmitter will blink if there is a
misalignment. When the LED units are aligned
the Red LED will remain ON continuously.
• After the alignment is finished tighten the
adjustment screws on both sensors.
Motor Cover Screws
FIG. 5-3 Power cord strain relief.
• Do NOT use an extension cord.
• Do NOT use a portable generator. This product
is designed to operate using standard
household current.
• Do NOT use alternate power supplies.
CAUTION
WITH POWER SUPPLIED:

PN# 3642136212, 02/26/2010 REV. 1
19
DOOR LIMITS
FOR HELP-1.800.929.3667 OR WWW.OVERHEADDOOR.COM
6
The OPEN (UP) and CLOSE (DOWN) door positions
are controlled by making the adjustments on the
panel located on the bottom of the power head. The
adjustments that can be made are:
• Close Travel Limit,
• Open Travel Limit,
Adjust Closing Force
Adjust Opening Force
Transmitter Programming
SETTING & TESTING OPEN/CLOSE LIMITS

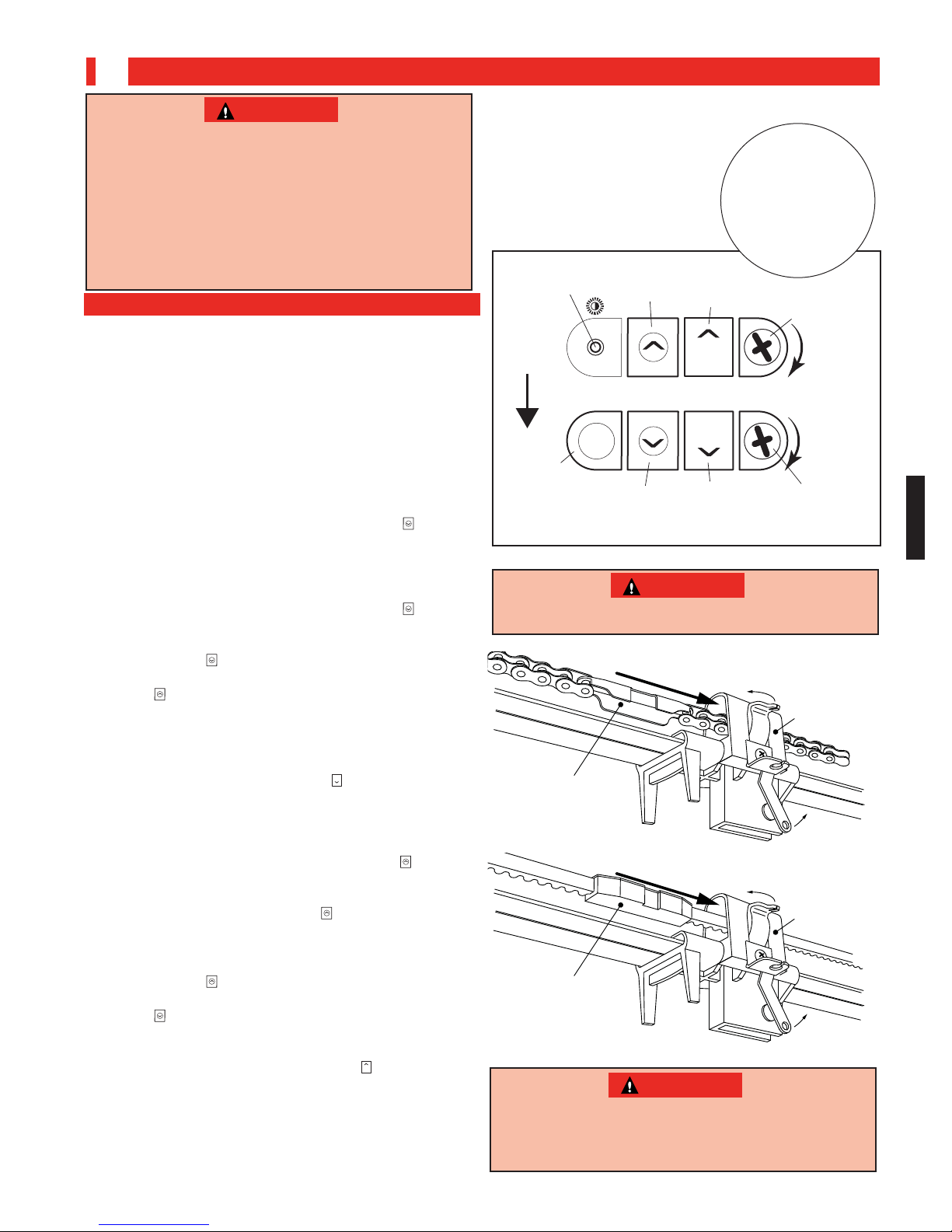

FIG. 6-1 Limit controls.
SET
SET
OPEN
FORCE
CLOSECODE
LEARN LIMITMANUAL
Open
Travel Limit
Open
Set Limit
Button
Close
Travel Limit
Close
Set Limit
Button
Down Force
Control
Adjustment
Up Force
Control
Adjustment
Learn
Code
Button
LED
Indicator Light
To
Garage Door
•Severe injury or death can result if the door
closing force is set too high.
• Never increase the door closing force above the
minimum required to move the door.
• Never adjust force to compensate for a sticking
or binding door.
• Once per month perform CONTACT REVERSE
TEST as described on page 21 and in
Section 10.
WARNING
Limit Controls location
on power head.
B) CLOSE TRAVEL LIMIT
1. Press and hold the "Close Travel Limit" button
until the door is fully closed.
2. You can quickly press and release the "Close
Travel Limit" button to move the door in small
increments. You can also use the "Open Travel
Limit" button to move the door slightly in the
UP direction.
3. Door is fully closed when the bottom edge of door
presses firmly onto the ground.
4. Once the door is in the desired position, press and
release the "Close SET Limit" button for 5
seconds. The LED indicator light will blink green
once. This stores the closed position in memory.
C) OPEN TRAVEL LIMIT
1. Press and hold the "Open Travel Limit" button
to move the door to its fully opened position. This
starts the opener moving in the UP direction.
2. Hold the "Open Travel Limit" button until the
door is in the fully opened position that you desire,
then release this button.
3. You can quickly press and release the "Open
Travel Limit" button to move the door in small
increments. You can also use the "Close Travel
Limit" button to move the door slightly in the
DOWN direction.
4. Once the door is in the desired position, press
and release the "Open SET Limit" button for 5
seconds. The LED indicator light will blink green
twice. This stores the opened position in memory.
SET
SET
FIG. 6-2 Engage Chain/Belt Connector to Carriage.
Carriage Assembly
Chain Connector
Latch
Movement
Latch
Movement
Move in this direction
Carriage Assembly
Belt Connector
Latch
Movement
Latch
Movement
Move in this direction
Operation of the opener without the Chain or Belt
Connector engaged to the Carriage Assembly will
result in damage to rail components including the
rail pulley.
CAUTION
A) ENGAGE CHAIN/BELT CONNECTOR
TO CARRIAGE
1. Press and hold the "Close Travel Limit" button
until the chain or belt advances and engages to
the Carriage Assembly (FIG 6-2).
Failure to verify the engagement of the belt/chain
connector will result in damage to rail components.
CAUTION
NOTE: Set Close Travel
Limit before setting Open
Travel Limit for unit to
operate normally. Unless
limits are being reset do not
press set limit buttons.

PN# 3642136212, 02/26/2010 REV. 1

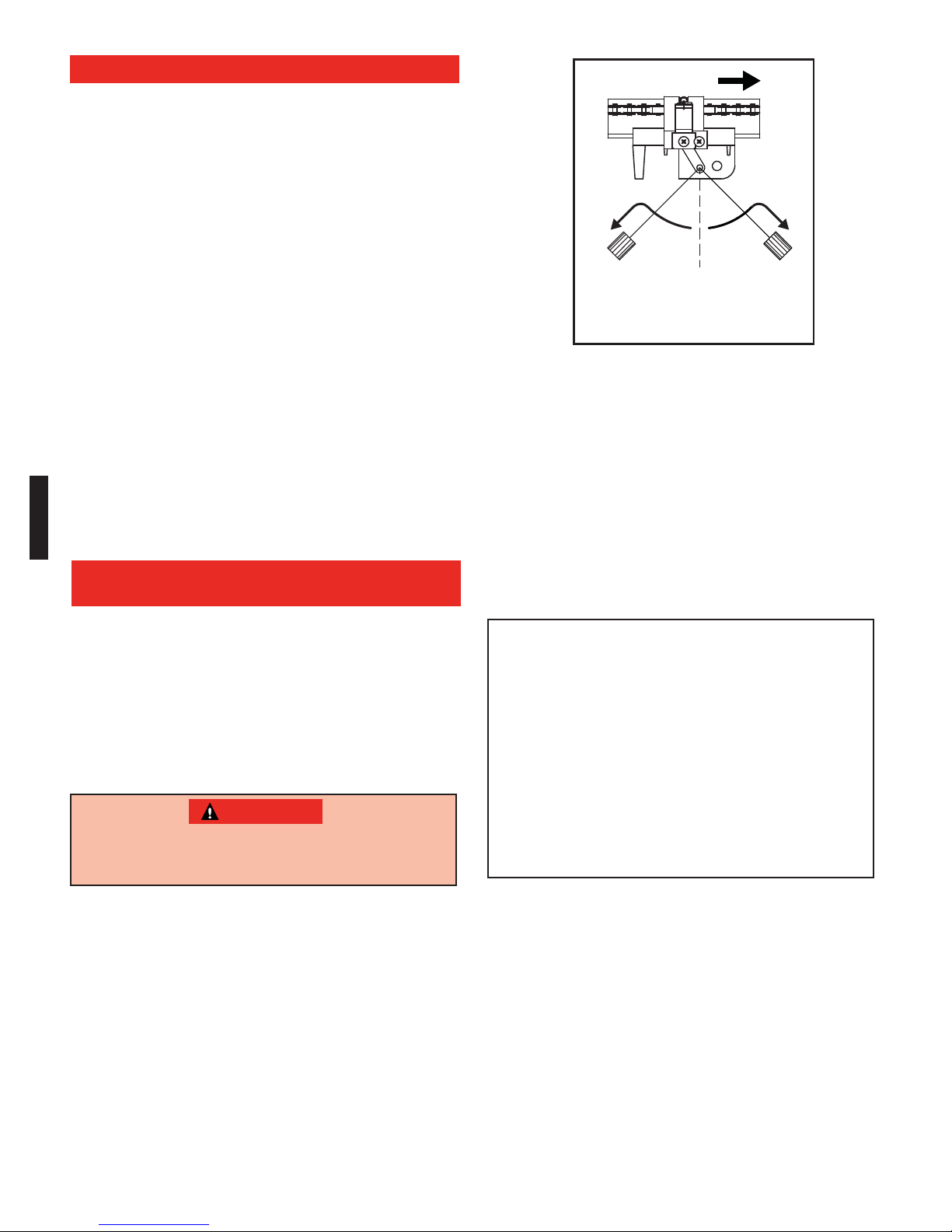

UNLOCK
DOOR
LOCK
TO RECONNECT
PULL TOWARD
DOOR
TO RELEASE
PULL TOWARD
THE OPENER
FIG. 6-3 Engage/Disengage Carriage Lock.
CARRIAGE LOCK
The Carriage Lock can be manually engaged or
disengaged.
• To disengage Carriage Lock
– Pull handle towards opener power head.
• To engage Carriage Lock
– Pull handle towards door.
KEYED EMERGENCY RELEASE
(PURCHASED SEPARATELY)
Obtain standard emergency release kit and remove
S-hook from the cable end that attaches to the
opener carriage.
1. Attach the emergency release cable loop end to
the opener carriage as shown (FIG 6-4).
Properly connecting the release cable to the
carriage fitting will enable the correct carriage
release action for the opener.
FIG. 6-4 Emergency release cable to carriage.
2. Follow the remaining installation instructions for
the standard emergency release kit.
3. Test for correct operation of emergency release kit.
Keyed Emergency Release Operation Instructions
• Place key in slot.
• Rotate and hold key while lifting garage door 1 to
2 inches.
• Release key and continue opening garage door.
NOTE: The next normal operation of the opener or
fully closing garage door manually will re-engage
the emergency release mechanism.
Improper connection of the emergency release cable
to the opener carriage will result in a failure of the
emergency release.
WARNING
20
