Overhead door OverDrive User manual

Included Wall Control MUST be installed prior
to Operation of this Garage Door Operator.
Safe-T-Beam®Safety Reverse System Must
be Installed and the Force Controls Must be
Properly Set to close door.
This Equipment meets or exceeds all Federal,
State and UL325 Safety Requirements.
*Will not operate twice as fast
on a one-piece door.
3505735581
SAVE FOR FUTURE
REFERENCE
Complete
with
Remote Control
and
SERIES II Electronics
NEED HELP?
Please call us if you are having difficulty, for any reason.
We would like to help you.
Call: 1.800.929.3667
Web: www.overheaddoor.com
SECTION PAGE
PRE-INSTALLATION CHECKLIST . . . . . . . . . . . . . . . . . . . 2-3
PARTS IDENTIFICATION.............................. 4-6
SAFETYINFORMATION & SAFETYFEATURES.......... 7
OPERATOR ASSEMBLY & INSTALLATION ........... 8-16
OPERATOR ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
OPERATOR INSTALLATION. . . . . . . . . . . . . . . . . . . . . 12-16
SAFE-T-BEAM®SYSTEM INSTALLATION........... 17-18
WALL CONTROL INSTALLATION ...................... 19
CONNECTING POWER.................................20
SETTINGS ......................................... 21-22
FORCE ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
LIMIT SWITCH ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . 22
CONTACT REVERSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
WIRELESS CONTROLS............................. 23-26
BATTERY / VISOR CLIP INSTALLATION . . . . . . . . . . . . . 23
PROGRAMMING REMOTE CONTROLS . . . . . . . . . 23-24
WIRELESS KEYPAD INSTALLATION . . . . . . . . . . . . . . . . . 24
PROGRAMMING WIRELESS KEYPAD . . . . . . . . . . . 25-26
OPERATING SAFETY INSTRUCTIONS ................. 26
OPERATIONAL FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . 27
MAINTENANCE.................................... 27-30
PERIODIC MAINTENANCE . . . . . . . . . . . . . . . . . . . . . 27-28
TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . 28-29
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
WARRANTY ........................................... 30
ACCESSORIES .......................................... A
SERVICE INFORMATION .............................. 13
TABLE OF CONTENTS
The Genuine. The Original.

2
PRE-INSTALLATION CHECK LIST FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
Things to consider if you are planning to “do-it-yourself.”
In many cases you will be replacing an existing door operator with a new one. However, if
this will be the first operator installed there are some pre-installation issues which need to
be addressed. They are as follows:

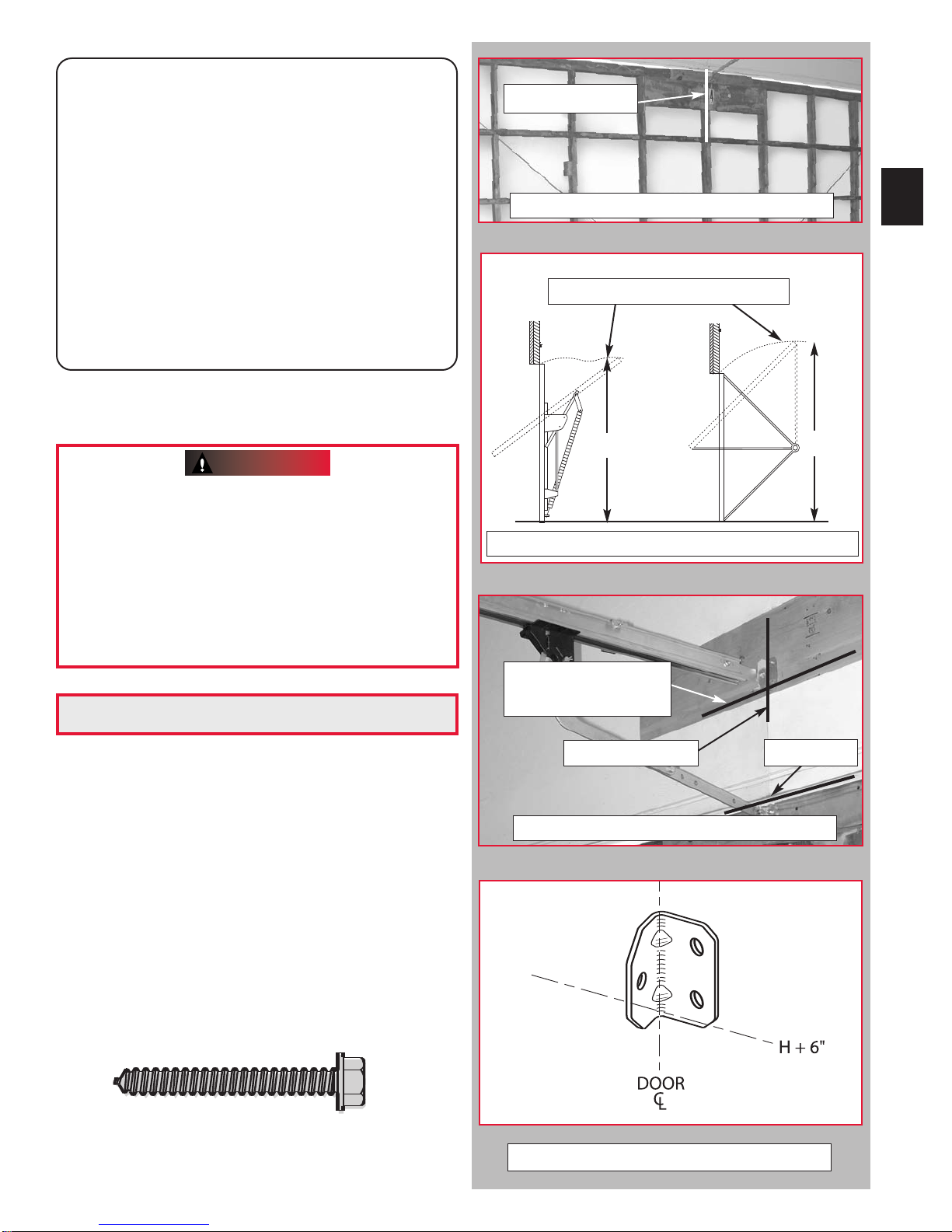

1Check your ceiling where the power head
of your new unit will be mounted.Plan how
you will be mounting the Power Head.
It is possible that ceiling joists simply may not
be in the exact position needed with respect to
the garage door operator. In any case it may
be necessary to add an additional bracket and
fasteners (not included with your new door
operator kit).
2Check the wall directly above the garage
door.The door operator’s header bracket
must be securely fastened to this wall. Insure
that the structure will provide a strong mounting
location. You may need to attach a board to the
wall frame in this area.
3Check to see if the mounting location for
the Safe-T-Beam®System is clear from
obstruction and has a wood surface
available for attaching the STB brackets.The
brackets may also be attached to concrete if
necessary but extra tools and special fasteners
(not supplied) will be required.
NOTE: 1-1/2" STB Adapters are available
through your local Genie Dealer.
4Is your garage door made of light-weight
steel, aluminum, fiberglass, or glass
panels?Additional support bracing must be
added to these type doors. If this is the case,
please contact the door distributor or manufacturer
so that they can furnish you with a “bracing kit.”
5You need a 110-120 Volt power supply
available.If you plan to plug the unit into a
standard electrical outlet, is one available?
The outlet should be no more than 3 feet from
the power head once it is mounted.
6To avoid damage to your door and/or
operator, make sure you disable any door
locks prior to installing your operator.
7Ensure that your door is properly balanced
and moving freely. SEE WARNING BELOW.
(This Operator is equipped with an Automatic
Garage Door Balance Detection System. See page
28, Troubleshooting section.)
If your door sticks, binds, or is out of
balance, have it adjusted by a professional.
Door springs, cables, pulleys, brackets and
associated hardware are under extreme
tension and can cause serious injury or
death.
WARNING
TOOLS REQUIRED
5/32"
Drill Bit
3/8", 7/16", 1/2"
and 9/16" Sockets
Stepladder
Drill
Ratchet
Pencil
Tape Measure
Hack Saw
Pliers
Wire Strippers
Hammer
Phillips Screwdriver
Wrench
(The issue numbers below refer to the circled numbers on the illustrations which appear on page 3.)
ADDITIONAL TOOLS YOU MAY NEED
8(NOT SHOWN) If your garage does not have
a separate entry door. You might want to
consider a GER-2 Emergency Release Kit for
installation on your garage door. Contact Customer
Service or visit the web site for information.
Carpenter’s Level
Straight Blade Screwdriver

3

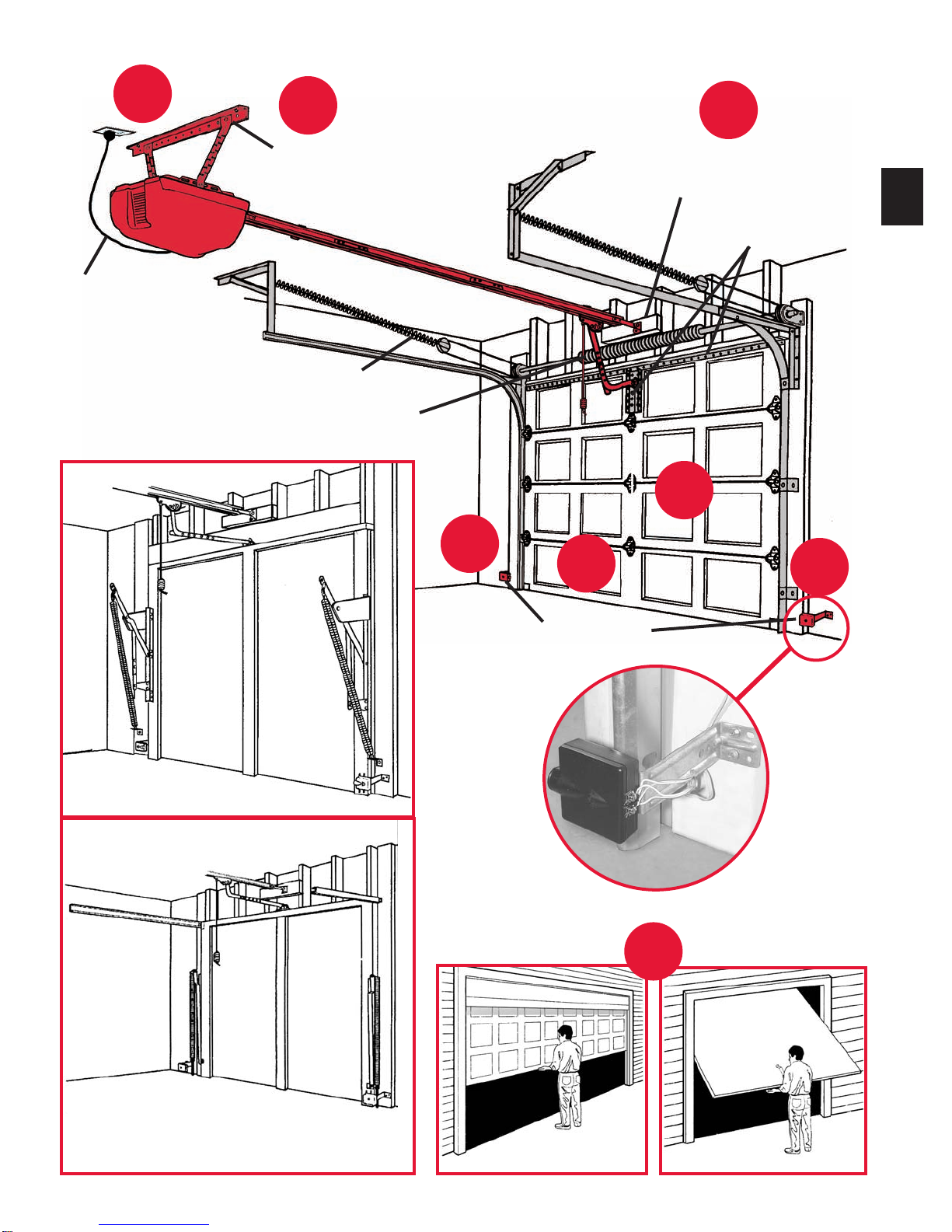

TYPICAL SECTIONAL DOOR INSTALLATION
5
TYPICAL
SUPPORT
BRACKET
EXTENSION SPRING
OR
TORSION SPRING
SAFE-T-BEAM®
BRACES
ADDED
HEADER BRACKET
MOUNTING BOARD
36” POWER CORD
TO
120V GROUNDED
OUTLET
6
4
3
12
3
TYPICAL (TRACK GUIDED)
1-PIECE DOOR INSTALLATION
7
SECTIONAL DOOR ONE-PIECE DOOR
TYPICAL (TRACKLESS)
1-PIECE DOOR INSTALLATION

NOTE: Accessories vary by Model .
FASTENERS - Shown Full Size. See Parts List for description.
42
25 52
3
DEF
12
456
789
0
GHI JKL MNO
PQRS
TUV
WXYZ
9V
39
NUSTBSENDSENS-1
37
45
44
43 48
49 50
1/4" x 2" Lag Screw
5/16"-18 Nut
Cotter Pin
Clevis Pin
Wire Clip
3/8"-16 x 7/8" Bolt
3/8"-16 Nut
#10-16 x 1-1/4" Phillips Hex Head Screw
1/4"-20 Nut
Insulated Staple
Coupler
#8-32 x 1" Screw
1/4"-20 x 5/8" Bolt
Rubber Bumper
5/16"-18 x 3/4" Bolt
1/4"-20 Shoulder Bolt
1/4"-20 x 3/4" Self-Drilling Screw
40
2
8
11
16
21
30
32
33
35
36
38
#6 x 1-1/4” Pan Head Screw
41
47
46
53
54
55
PARTS IDENTIFICATION FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
51
56
4

DOOR
DOOR
DOOR
DOOR
12
22
24
31
35
33
36
34
32
32
28
11
26
30
15
16
53
2
19
18
1
30
2154
46
56
3
8
23
8
33
[3]
NOTE: The Operator will not
function unless the Safe-T-Beam®
System is installed and the
Force Controls are properly set.

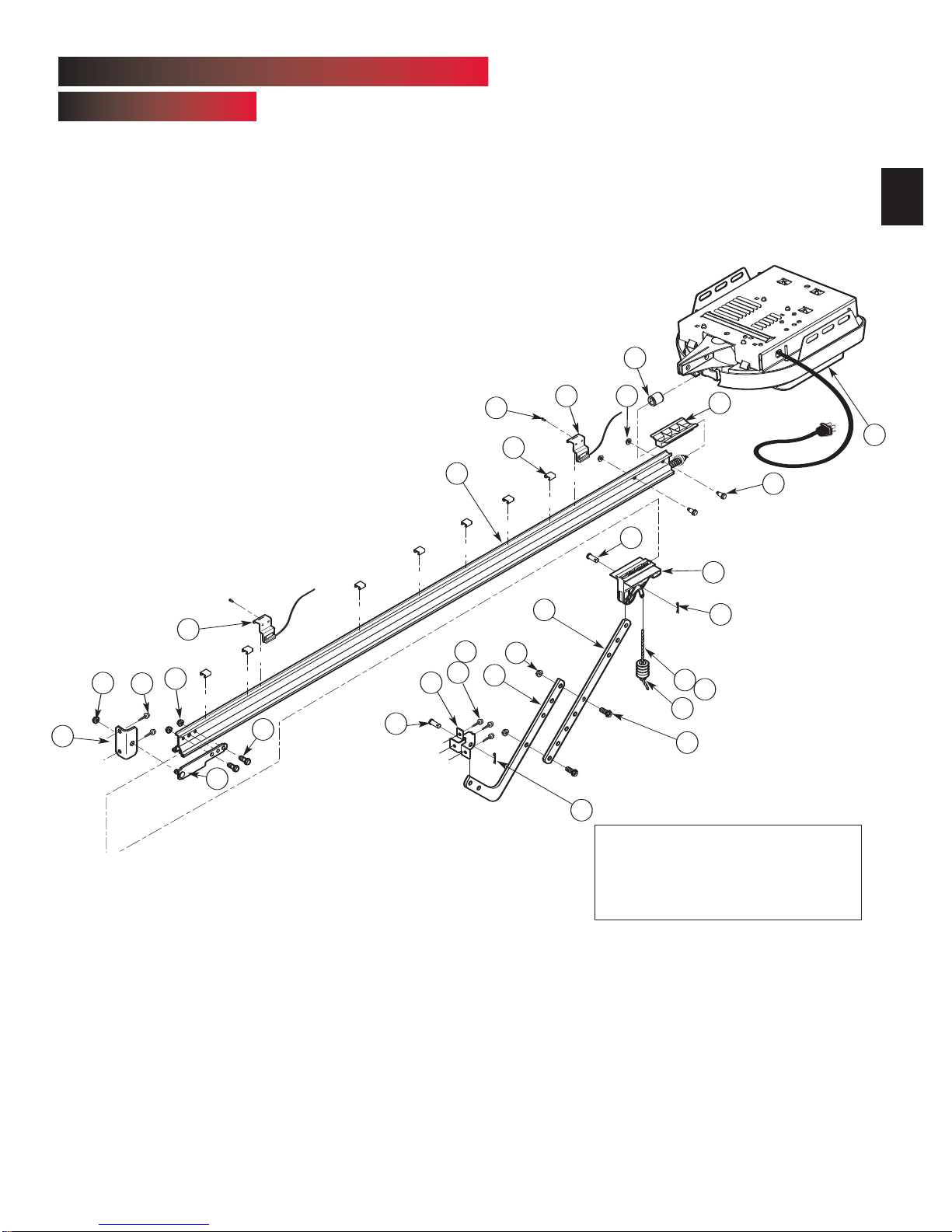

1-PIECE BOOM HARDWARE EXPLODED VIEW
Assembly for 10' or 12' door includes:
1. Special “Close” Limit Switch with longer
wires.
2. 96" Emergency Release Cord (yellow)
3. Rail Support Kit
“PRO” ONLY
5

Item Part Name Parts Required
1 Power Head Assembly (main carton) 1
2 1/4"-20 Hex Head Shoulder Bolt (blue bag) 2
3 Boom Assembly (1 piece)(packaged separately) 1
8 1/4"-20 Hex Serrated Flange Nut (blue bag) 4
11 5/16"-18 Hex Serrated Flange Nut (blue & orange bag)
12 Carriage Assembly (main carton) 1
15 Boom Strap (blue bag) 1
16 1/4"-20 Hex Head Bolt (blue bag) 2
18 Open Limit Switch Assembly (White)(green bag) 1
19 Close Limit Switch Assembly (Brown) (green bag) 1
21 No. 8-32 x 1" Hex Head Screw (green bag) 2
22 Emergency Release Cord (green bag) 1
23 Emergency Release Cord (long)(yellow)
24 Emergency Release Knob (green bag) 1
25 Emergency Release Tag (green bag) 1
26 Header Bracket (orange bag) 1
28 Door Bracket (orange bag) 1
30 1/4" x 2" Lag Screw (orange bag)
31 Straight Door Arm (main carton) 1
32 Clevis Pin (yellow bag) 2
33 Cotter Pin (yellow bag) 2
34 Curved Door Arm (main carton) 1
35 3/8" x 7/8" Hex Head Bolt (yellow bag) 2
36 3/8" Hex Serrated Flange Nut (yellow bag) 2
37 Wire (main carton) ≈95ft
38 Insulated Staple (red bag) ≈30
39 Wall Button (red bag)
40 Wall Console (main carton)
41 #6 x 1-1/4" Pan Head Screw (red bag) 4
42 Entrapment WARNING Label (manual) 1
43 Safe-T-Beam (STB) Sensor (Green LED)(main carton) 1
44 Safe-T-Beam (STB) Source (Red LED)(main carton) 1
45 Safe-T-Beam (STB) Bracket (yellow bag) 2
46 Coupler (blue bag) 1
47 No.10-16 x1 1/4" Phillips Hex Head Screw (yellow bag) 4
48 Single Button Remote Control (main carton)
49 Multi-Button Remote Control (main carton)
50 Wireless Keypad (main carton)
51 2-Button Remote Control (main carton)
52 Safety & Maintenance Guide (manual) 1
53 Wire Clip (green bag)
54 Carriage Stop (blue bag) 1
55 5/16"-18 x 3/4" Hex Head Bolt (orange bag)
56 1/4-20 x 3/4" Self-drilling Screw (orange bag) 3
57 Mounting Straps (main carton)
PARTS LIST
[1]
Item Part Name
1 Power Head Assembly
1A Lens (By Series/Model)
1B Top Plate Assembly
1C Light Socket (2)
1D Motor Assembly
1E Cover
1F Opto Wheel
1G Motor Drive Board
1H Controller Board
1K No. 10-24 x 3/8” Hex Head
1L No. 8-32 x 1” Phillips Screw
1M No. 8-32 x 3/8” Slotted Hex Head Screw
1N Toroid
1P Power Cord
1G
1B
1D
1F
1H
1C
1A
1K
1M
1N
1P
POWER HEAD EXPLODED VIEW
POWER HEAD PARTS LIST
1E
1L
10' & 12' only
varies/model
varies/model
varies/model
varies/model
varies/model
varies/model
varies/model
varies/model
6
varies/model
varies/model
varies/model
SERIAL NUMBER
MODEL
NUMBER

WARNING:
Garage Doors are large, heavy objects that move with the help of springs
under high tension and electric motors. Since moving objects, springs under
tension, and electric motors can cause injuries, your safety and the safety of
others depend on you reading the information in this manual. If you have
questions or do not understand the information presented, call your nearest
service representative.
In this Section and those that follow, the words Danger, Warning, and
Caution are used to emphasize important safety information. The word:
DANGER means that severe injury or death will result from failure to
follow instructions.
WARNING means that severe injury or death can result from failure to
follow instructions.
CAUTION means that property damage or injury can result from failure to
follow instructions.
The word NOTE is used to indicate important steps to be followed or
important considerations.
OVERVIEW OF
POTENTIAL HAZARDS
POTENTIAL
HAZARD
EFFECT PREVENTION
Keep people clear of opening while door is
moving.
Do Not allow children to play with the door
operator.
Do Not operate a door that jams or one that
has a broken spring.
MOVING
DOOR
WARNING:
Can Cause
Serious Injury
or Death
Turn off power before removing operator
cover.
When replacing cover, make sure wires are
not pinched or near moving parts.
Operator must be properly grounded.
ELECTRICAL
SHOCK
WARNING:
Can Cause
Serious Injury
or Death
Do Not try to remove, repair or adjust
springs or anything to which door spring
parts are fastened, such as, wood blocks,
steel brackets, cables or other like items.
Repairs and adjustments must be made by
a trained service person using proper tools
and instructions.
HIGH
SPRING
TENSION
WARNING:
Can Cause
Serious Injury
or Death
Safe-T-Beam
®
(STB) Non-Contact Reversing System
Places an invisible beam across door opening, that reverses the door during down travel to the fully open
position if anything passes through beam.
Safe-T-Reverse
®
Contact Reversing System
Automatically stops and reverses a closing door within 2 seconds of contact with an object.
Safe-T-Stop
®
Timed Reversed System
Automatically opens a closing door, if door does not close within 30 seconds.
Force Guard
®
Control
Used to set the force required for opening and closing door. For maximum safety, set the minimum force
required to fully open and close door.
Automatic Lighting System
Two light bulbs up to 60 Watts max. each, are used for safer entries and exits. The light turns on when door is
activated and automatically turns off 4.5 minutes later.
Manual Emergency Release
Allows the garage door to be opened or closed manually for emergencies or maintenance.
IMPORTANT
INSTALLATION
INSTRUCTIONS
1. READ AND FOLLOW ALL SAFETY, INSTALLATION AND
OPERATION INSTRUCTIONS. If you have any questions or
do not understand an instruction, call your service
representative.
2. Do Not install operator on an improperly balanced door. An
improperly balanced door could cause severe injury. Repairs
and adjustments to cables, spring assembly, and other
hardware must be made by a trained service person using
proper tools and instructions.
3. Remove all ropes, and disable all locks connected to the
door before installing operator.
4. Install door operator 7 feet or more above the floor. Mount
the emergency release knob 6 feet above the floor.
5. Do Not connect the operator to the source of power until
instructed to do so.
6. Locate the control button:
• Within sight of door.
• At a minimum height of 5 feet, so small children cannot
reach it.
• Away from all moving parts of the door.
7. Install the entrapment WARNING label next to the wall
button or console. Install the emergency release tag on, or
next to, the emergency release
8. The operator must reverse when the door contacts a 1-1/2
inch high object on the floor at the center of the doorway.
This is about the size of a 2" x 4" board laid flat.
To reduce the risk of
severe injury or death:
WARNING:
SAFETY INFORMATION OPERATOR INSTALLATION
SAFETY FEATURES (varies by model)
7

8

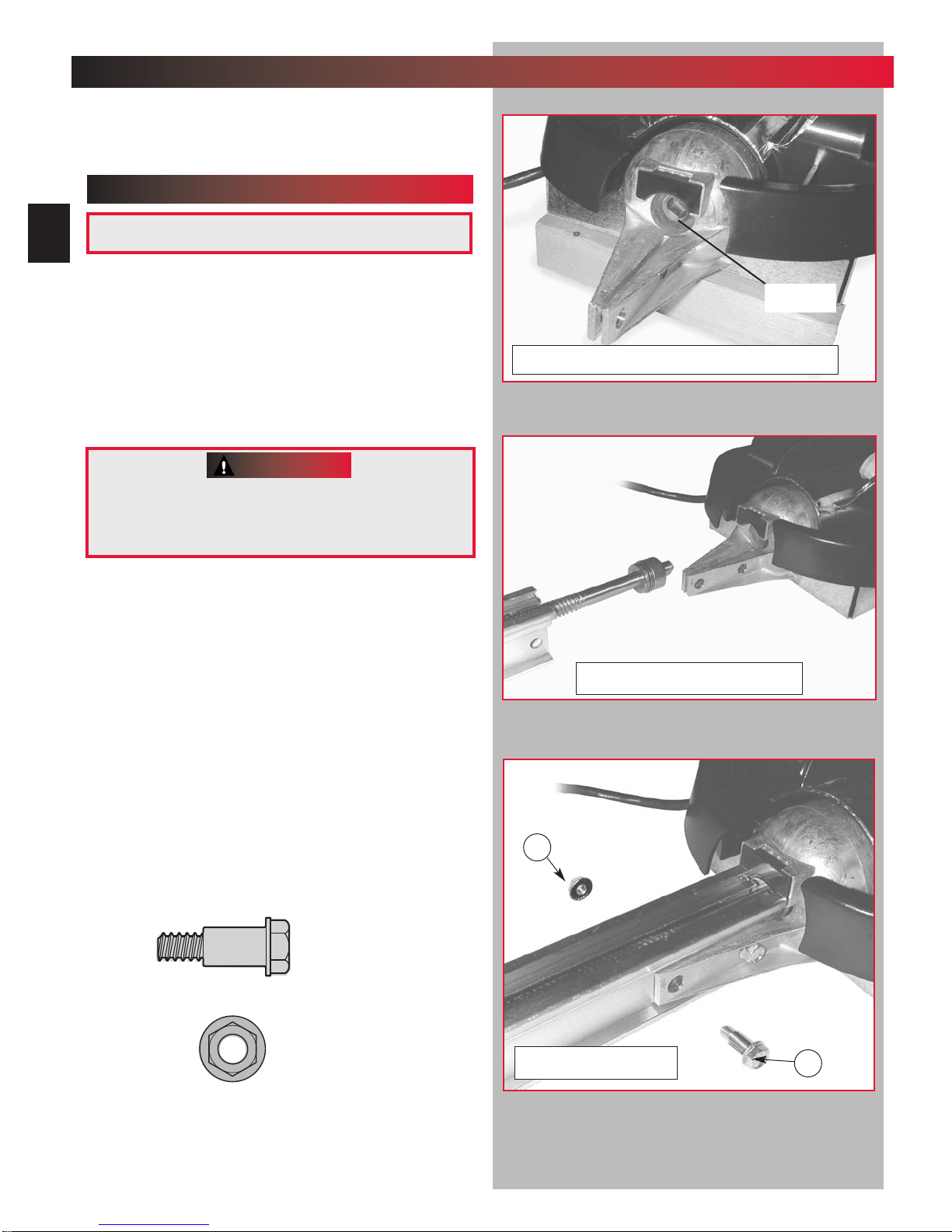

NOTE: 3 piece operator assembly is for doors up
to 7 feet 6 inches high. An extension kit for an 8 feet
high door is available.
Assemble on a clean, flat surface.
1. Install coupler [46] (Fig. 1-1).
• Line up and slide on motor shaft.
.
2. Connect boom to power head. Either 1-piece
boom or first section of 3-piece boom
(Fig. 1-2).
•Insure arrow on boom points away from power
head. (Fig 1-4 on page 9.)
• Push drive screw out about 5 inches.
• Line up and slide drive screw into coupler.
• Slide boom into bracket and line up holes with
those on power head (Fig. 1-3).
–Connect with bolts [2] and nuts [8].
Drive screw and boom liner can slide out
of boom sections. Keep boom sections
level until operator is fully assembled.
CAUTION
OPERATOR ASSEMBLY
Fig. 1-1 Install rubber bumper and coupler
Fig. 1-2 Push drive screw out
Fig. 1-3 Attach boom 2
8
1...
OPERATOR ASSEMBLY & INSTALLATION FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
Coupler
[2]
[8]
1/4"-20 Hex Head Bolt
1/4"-20 Hex Flange Nut
8OPEN BLUE PARTS BAG
Record your Model Number and Serial
Number now on page 11 in the center of
this manual.

3. On 1 piece boom assembly go to step 11.
4. Arrange arrows on boom sections (Fig. 1-4).
• Point arrows in same direction
away from
power head.
5. Attach middle boom section to first
boom section.
• Push middle drive screw out about 2 inches
toward the power head.
•
Slide collar [13] over the middle boom hook
(Fig.1-5).
• Turn screw by hand to align coupler hooks
between first and middle boom sections.
• Latch the two hooks together and
slide the collar over them (Fig. 1-6).
• Snap clip [14] next to collar (Fig. 1-7).
6. Attach boom clamps at the middle boom to
first boom joint (Fig. 1-8).
• Slide the middle boom section against the first
boom section.
• Place a boom clamp on each side of the boom
at the joint and line up the holes with those in
the boom.
• Finger tighten boom clamps with bolts [10] and
nuts [11].
7. Attach end boom section to middle boom
section to first boom section (Step 6).
8. Attach boom clamps at the end boom to
middle boom joint (Fig. 1-8).
• Repeat procedure used to attach middle boom
section to first boom section (Step 7).
NOTE: If installing a 3-piece boom assembly on
an eight foot high door refer to the instruction
sheet included with the optional boom extension
at this point.
Drive screw section and boom liner can slide
out of boom sections. Keep boom sections
level until operator is fully assembled
CAUTION
[10]
5/16"-18 Hex Head Shoulder Bolt
5/16"-18 Hex Head Flange Nut
[11]
9
Fig. 1-4 Arrange arrows
Fig. 1-8 Attach rail clamps
11
10
Clamp
het
slide collar
clip
Fig. 1-5
Fig. 1-6
Fig. 1-7
slide collar
[13]
Collar
Retaining Clip
[14]

10

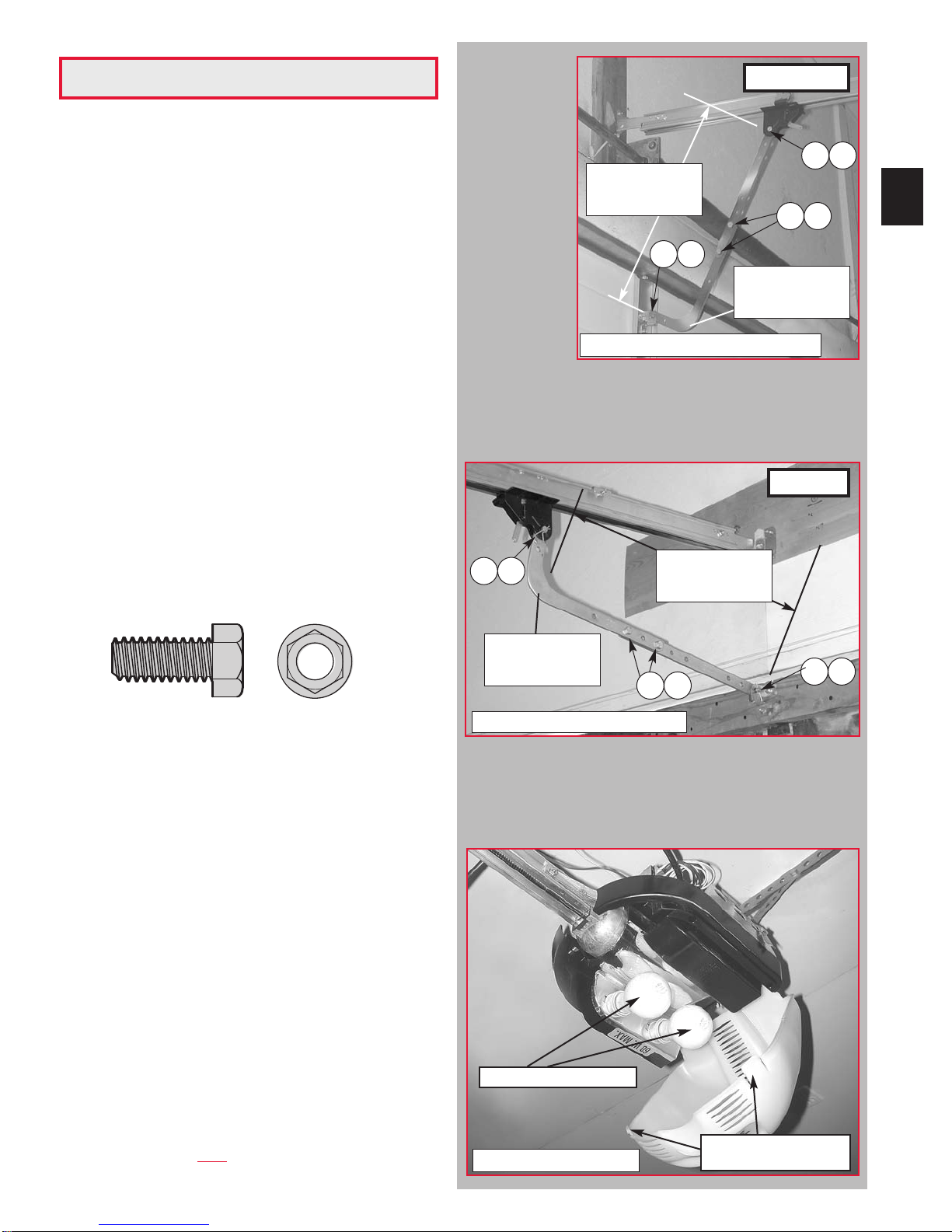

9. Install carriage and carriage stop (Fig. 1-9).
• Slide carriage stop into railand along the length
of the rail to the power head.
•Point arrow on side of carriage toward door.
• Place carriage lever in release position.
• Slide into carriage slot of boom assembly.
NOTE: Carriage release lever will be facing
power head.
10. Attach boom strap (Fig. 1-10).
• Connect to end boom section with bolts
[16] and nuts [8].
11. Tighten all nuts and bolts.
NOTE: Tighten nuts and bolts on boom so that
they grip metal snuggly. Do Not Over-Tighten.
12. Install lens cover (Fig. 1-11).
• Align hinge tabs with slots on motor cover
(Fig. 11A).
• Move antenna outside lens and out of way.
• Push hinges into slots on cover until
they snap into place (Fig. 11B).
• Swing lens cover closed and snap into place.

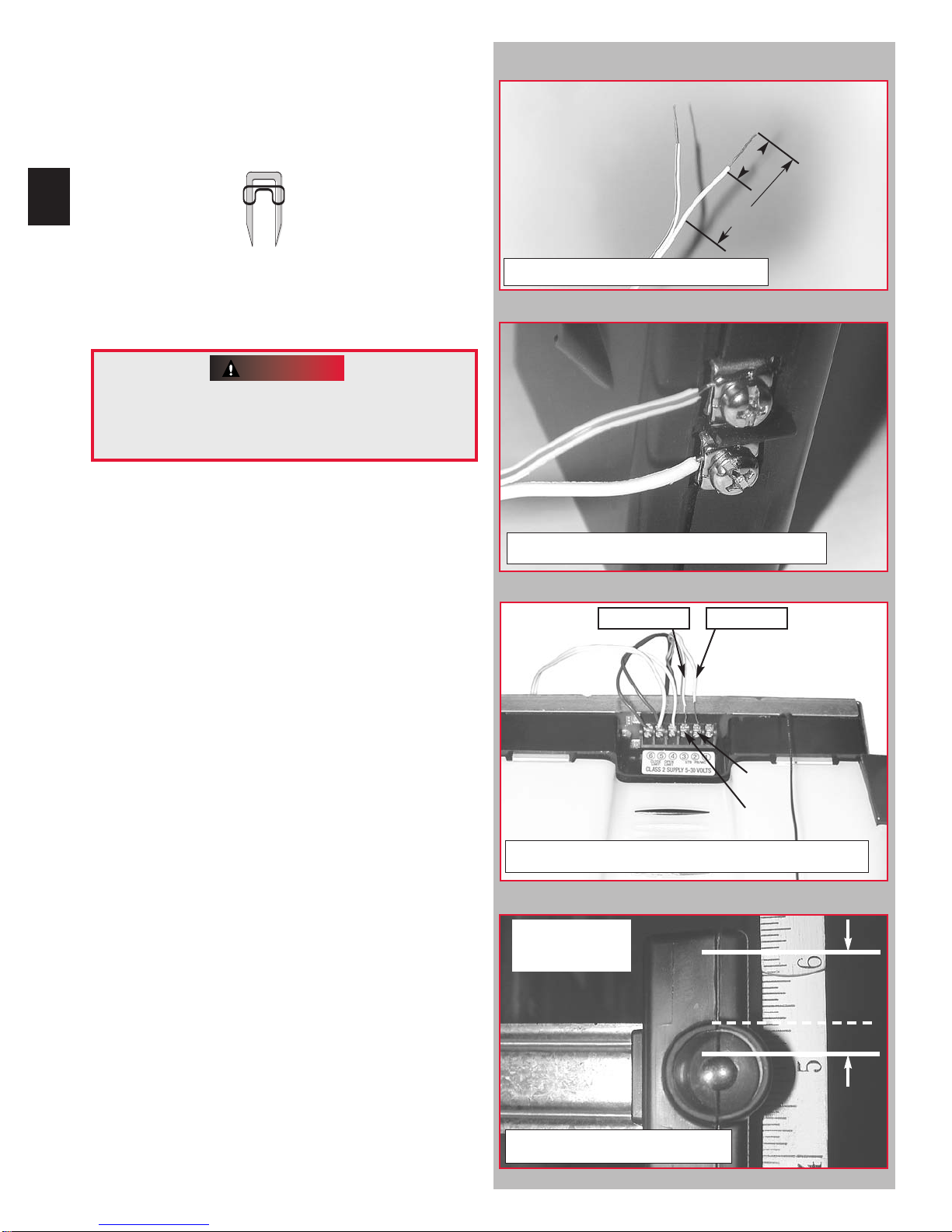

13. Place limit switches (Fig. 1-12).
•Turn unit right side up.
• Uncoil limit switch wires.
• Place switches on boom with arrows pointing
toward boom strap.
–Place CLOSE limit switch (brown wire) 12
"
from boom strap.
–Finger tighten the hold-down screw [21].
–Lay out the wire in the channel on top of the
boom, using wire clips [53] to hold it in place
as you go toward the power head.
–Save one clip for the OPEN switch.
–Place OPEN limit switch (white wire) 12
"
from power head. (Place over brown wire.)
–Finger tighten the hold-down screw.
–Lay out the wire in the channel on top of the
boom, using the last wire clip to hold both
limit switch wires in place.
NOTE:Do not over-tighten screw [21] on limit
switch brackets.
•Limit switch adjustments will be made later.
Fig. 1-9 Install carriage
Fig. 1-10 Attach boom strap
Slots
Fig. 1-11B Install lens
Release position
CLOSE
Fig. 1-12 Limit switch placement
power head
Last wire clip [53]
Arrow points toward boom strap
OPEN
Push in until they catch
[16]
1/4"-20 Hex Head Bolt 1/4"-20 Serrated Hex Nut
[8]
Fig. 1-11A Install lens
Hinge tabs
10
OPEN GREEN PARTS BAG
21
Engaged
position

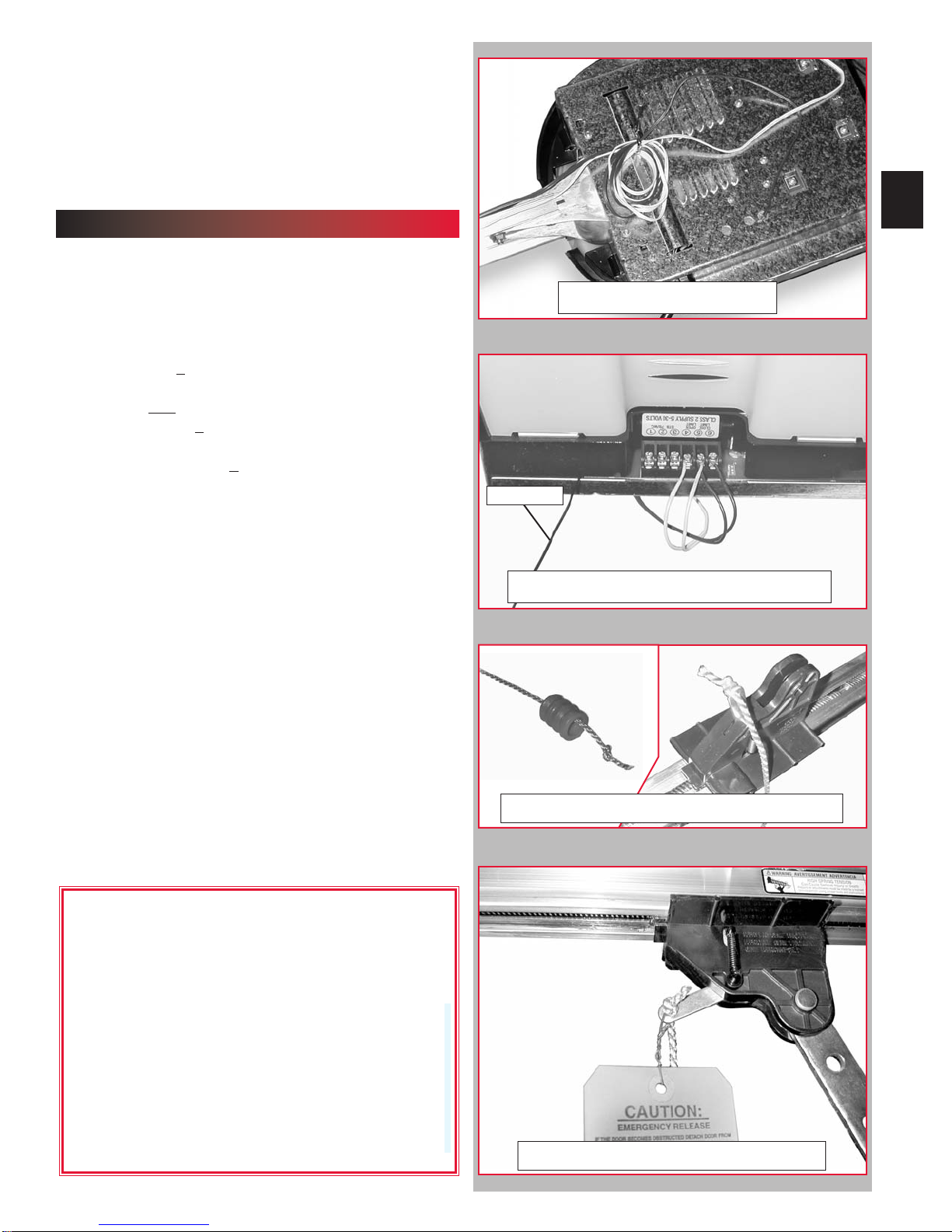

14.Bundle excess limit switch wires (Fig. 1-13).
•Leave just enough wire to easily reach
the terminals on back of power head.
• Hold the ends of the wires out beyond the back
of the power head as you flip the unit
upside-down again.
NOTE: Loosen(Do Not Remove) screws
from terminals.
15. Connecting limit switch wires to terminals
(Fig. 1-14).
• Connect one “OPEN” limit switch (white) wire to
terminal 4.
• Connect the other “OPEN” limit switch (white)
wire and one “CLOSE” limit switch (brown) wire
to terminal 5.
• Connect the other “CLOSE” limit switch (brown)
wire to terminal 6.
16. Attach emergency release knob and cord
(Fig. 1-15).
• Tie overhand knot at one end of cord.
• Thread opposite end of cord through knob and
hole in carriage lever.
• Tie overhand knot at this end of cord.
17. Attach emergency release tag (Fig. 1-16).
• Thread wire through small hole in
carriage lever.
• Wrap wire around itself, tie tight.
Antenna
Fig. 1-13 Bundle excess wire
Fig. 1-14 Limit switch terminal connections
NOTE: If your garage is equipped with only one
entrance — please consider installing an optional
Emergency Release Kit. See page B.
If you have not yet recorded the model and serial
numbers, do it now prior to installation.
Fig. 1-15 Attach emergency release knob/cord
Fig. 1-16 Attach emergency release tag
LIMIT SWITCH WIRING CONNECTIONS
FILL THIS IN AT TIME OF INSTALLATION FOR YOUR OWN
RECORDS,
SO THAT IT WILL BE AVAILABLE
IF YOU EVER NEED TO CALL US.
Date Purchased _____/_____/_____
Serial Number(see pg. 6 for loca-
tion)______________________________________
Operator Model
_____________________________________________
__________
Remote Control Model(see page 23 for loca-
tion)_____________________________
Dealer Name
11

WHAT TYPE OF DOOR DO YOU HAVE?
Look at the photos on the right. Door type determines
which of the remaining installation steps apply to you.
NOTE: Will Not Operate twice as fast on a one-piece
door.
1. Determine type of garage door (Fig. 1-17).
Type One
Track-guided doors –May be sectional or
one-piece (rare) with wheels attached which
ride within a metal “track.”
Type Two
Trackless –One piece doors only, normally
uses a system of very heavy framework for
bracing, and has no “track” but swings on
large spring loaded hinges or pivots at
either side of the door.
FOR TRACK GUIDED DOORS
2. Find center of door and header* (Fig. 1-18).
• Close door.
• Measure door width.
–Mark a vertical line (“C”) in the center on
inside of door and header.
3. Find header bracket position.
• Raise door, watching top edge of door.
• Stop door when edge reaches highest point
of travel.
• Measure distance from top edge of door to
floor (distance “H”) (Fig.1-19).
–add 2-1/2 inches to “H” (Fig. 20).
• Draw horizontal line across line “C” at
this height on header.
NOTE: If spring is in the way, place header
bracket above spring. Do Not Move Door Spring.
* The header is a heavily reinforced section of the
wall just above the top of the garage door
opening. Usually consisting of an engineered
lumber beam or layers of 2" x 12" lumber and
particle board sandwiched together.
OPERATOR INSTALLATION
Fig. 1-17 Type of door
TRACK GUIDED
TRACKLESS
Centerline (“C”)
Track
Sectional
Fig. 1-18 Find center of door
Centerline (“C”)
Fig. 1-20 Find header bracket position
Top of door
Highest point of travel
+ 2 1/2
"
(horizontal line)
Header bracket
goes here
“H”
Track
“H”
One-piece
HIGHEST POINT OF
TRAVEL
HIGHEST POINT OF
TRAVEL
Track guided doors
Fig. 1-19 Find distance “H”
12
Header

4.Mount header bracket.
• Set flange (where boom strap attaches to bracket)
on your vertical line (Fig. 1-23).
• Set bottom of bracket on your horizontal line.
(Fig. 1-24).
• Mark 2 hole positions.
• Drill two 5/32 inch holes.
• Attach bracket with 2 lag screws [30].
Header bracket must be fastened to garage
framing. Do Not fasten to drywall, particle board,
plaster or other such material.
It may be necessary to attach a board across the
wall studs above the door header, to serve as a
mounting plate for the header bracket, so the
bracket can be mounted at the proper location
and have sufficient support.
Trackless Doors
HIGHEST POINT OF TRAVEL
Fig. 1-22 Find distance “H”
Top of door
Centerline (“C”)
“H” “H”
FOR TRACKLESS DOORS
2. Find center of door and header (Fig. 1-21).
• Close door.
• Measure door width.
–Mark a vertical line (“C”) in the center on
the inside door and header.
3. Find header bracket position.
• Raise door, watching top edge of door.
• Stop door when edge reaches highest point
of travel.
• Measure distance from top edge of door to
floor (distance “H”) (Fig.1-22).
–Add 6 inches to distance “H” (Fig.1-23).
•
Draw horizontal line across line “C” at this height
on header.
Fig. 1-21 Find center of door
Centerline (“C”)
NOTE: Operator Will Not Operate twice as fast on a
one-piece door.
Fig. 1-24 Header bracket orientation
CAUTION
Lag Screw
[30]
13
OPEN ORANGE PARTS BAG
Fig. 1-23 Find header bracket position
Highest point of travel
+ 6
"
(horizontal line)

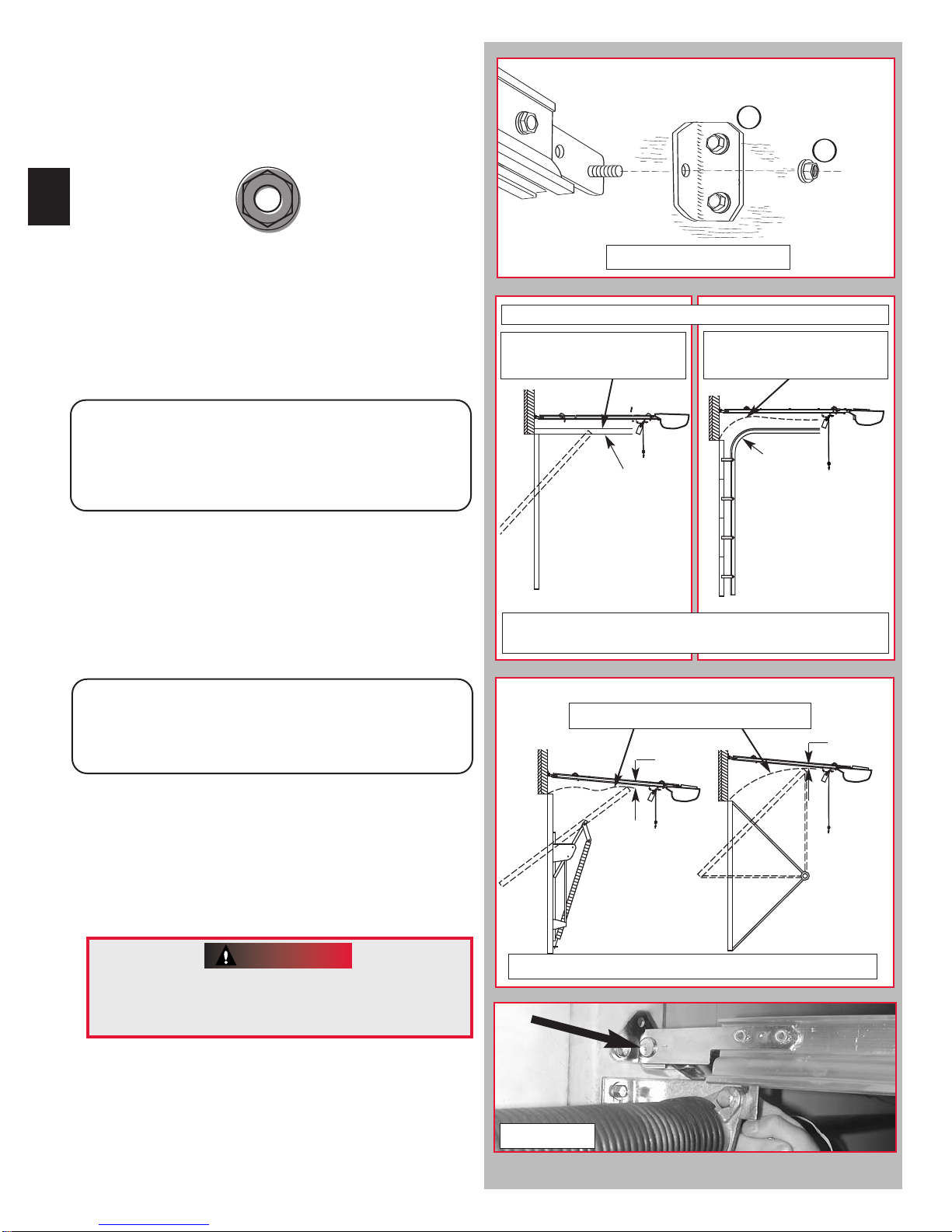

5. Attach boom at header bracket (Fig. 1-25).
• Place threaded end of boom strap through hole
on header bracket.
• Finger tighten nut [11] on threads.
6. Find power head position.
• Raise power head and temporarily support
above door. (Use step ladder, etc.)
• Open door until the top edge reaches the
highest point of travel.
• Center boom above door.
FOR TRACK GUIDEDDOORS
– Raise power head until boom is level or slightly
below
(Fig. 1-26).
• Temporarily support power head.
FOR TRACKLESS DOORS
–Raise power head until boom is 1 to 1-1/2
inches above door (Fig. 1-27).
• Temporarily support power head.
26
11
7. Mount power head (Fig. 1-29 next page).
8. Close door.
9. Tighten boom strap nut [11] at header bracket
(Fig. 1-28).
10. Install door brace if needed (See caution on
next page).
Mounting brackets must be fastened to garage
framing. Do Not fasten to drywall, particle board,
plaster or other such materials.
CAUTION
Track
Sectional
HIGHEST POINT OF
TRAVEL
Trackless Doors
1"-1 1/2" 1"-1 1/2"
HIGHEST POINT OF TRAVEL
Fig. 1-27 Find power head position
Fig. 1-28
FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
5/16"-18 Flange Nut
[11]
Fig. 1-25 finger tight
Track
One-piece
HIGHEST POINT OF
TRAVEL
Track guided doors
Fig.1-26 Find power head
position
14

Mounting Straps

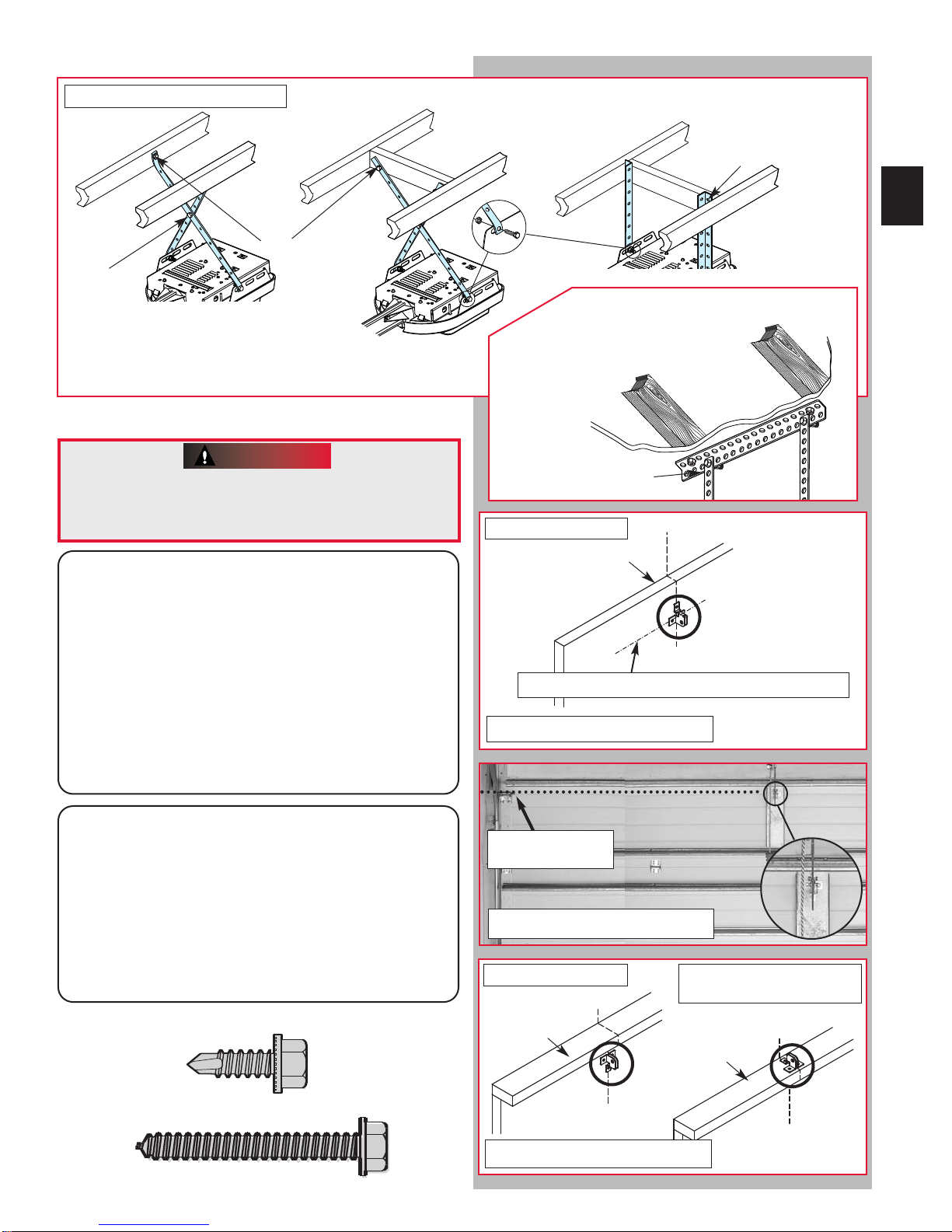

Fig. 1-29 Mounting Methods
“C”
“C”
Top of door
ONE-PIECE Doors
Fig. 1-30A Install Door Bracket
OPEN BEAM CEILING
[30]
Top of door
“C”
SECTIONAL Doors
FOR SECTIONAL DOORS
11. Install door bracket (Fig. 1-30A).
• Contact door distributor.
• Locate on centerline, no lower than top rollers
(Fig. 1-30B).
• Attach using self-drilling screws [56] for
metal doors, or
Use lag screws [30] for wooden doors. (Check
length of screws vs thickness of door prior to
use. Your door may require shorter screws.)
NOTE: PRIOR TO PROCEEDING WITH STEP 11 —
CONTACT DOOR DISTRIBUTOR FOR INSTRUCTION / ASSIS-
TANCE ON INSTALLING THE DOOR BRACKET
Doors made of masonite, lightweight wood, fiberglass,
and metal must be properly braced before mounting
door operator.
15
Even with or above top roller. See Fig. 1-31
FOR 1-PIECE DOORS
11A. Install door bracket (Fig. 1-31).
• Contact door distributor.
• Mount on centerline as high on the door
as possible.
• Attach using self-drilling screws [56] for
metal doors, or
Use lag screws [30] for wooden doors. (Check
length of screws vs thickness of door prior to
use. Your door may require shorter screws.)
CAUTION
FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
10. Install door brace if needed (See caution below).
1/4" x 2" Lag Screw
1/4"-20 x 3/4" Self-Drilling Screw
[30]
[56]
Attach at highest
possible point on door.
Fig. 1-31 Install Door Bracket
“C”
“C”
Top of door
15
[11]
[55]
[30]
NOTE: Read all instructions completely.
Garage constructions differ, so it may be
required to supply extra material and
modify instructions.
NOTE: Materials may vary.
FINISHED CEILING
Locate the ceiling joists or
trusses using a stud finder
or similar device.
Attach angle iron
(not included on
all models) to joists
through the
finish material
using lag
screws (30). [30]
[11]
[55]
Fig. 1-30B Install Door Bracket
even with or
above top roller
Perforated Angle Iron

3. Wiring.
• Routewire (37) using either method shown
(Fig. 2-5).
• Wires between power head and garage door
wall should be run along top of boom.
–Use wire clips to hold them in place.
–Wires can be slipped under the wire
clips already in place.
2...
SAFE-T-BEAM
®
SYSTEM INSTALLATION FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
NOTE: Operator will not close door automatically
unless the Safe-T-Beam System is installed.
1. Mounting brackets.
• Mark both sides of garage door frame or wall 5"
above floor. (Fig. 2-1).
•Hold bracket against door frame or wall.
–Check if brackets extend out from wall far
enough, so tongue of bracket is beyond door,
tracks or any door hardware.
–If not:
a. “STB” bracket extensions are available
at local dealer.
b. Blocks of wood, etc. may be substituted
for extensions.
• Center bracket on your mark (Fig. 2-2).
• Fasten each with 2 screws (47) (Fig. 2-2).
NOTE: Mounting brackets can be attached to
brick walls or concrete floor using masonry
anchors (not provided).
2. Mounting “STB” source and sensor.
• If garage has only one garage door.
–Determine which side of garage receives
most direct sunlight (Fig. 2-4), and place Red
LED here whenever possible (Fig. 2-4).
•For multiple doors.
–Preventing crossed signals is critical.
–Placesource andsensormodulesonadjacent
doors facing in opposite directions (Fig. 2-4).
NOTE: To helpprevent interferencefrom sun, “STB”
sensors (Green LED) may be placed further from thedoor
opening where they will spend more time in shadows.
• Slide source/sensor onto tongue of bracket until
it clicks into place (Fig. 2-3).
There should be no electrical power to the operator
while installing Safe-T-Beam System®wires. If you
have plugged in the power cord–UNPLUG IT NOW.
WARNING
[53]
Sensor
Source
Green
Red
Power
Head
Sensor
Source
Green
Red
Power
Head
AB
Dashed Line = striped wire
Solid Line = white wire
tongue
mark
center of
bracket
FIG. 2-4 STB locations
#10-16 x 1-1/4"
[47]
SUN
ONE DOOR
GARAGE
THREE DOOR
GARAGE
RED
LED
RED
LED
GREEN
LED
RED
LED GREEN
LED
GREEN
LED GREEN
LED RED
LED
RED
LED
RED
LED
GREEN
LED GREEN
LED
TWO DOOR
GARAGE
FIG. 2-1 Mark door frame
FIG. 2-2 Mount
brackets FIG. 2-3 Attaching
STB’s to brackets
FIG. 2-5 STB wiring methods
OPEN RED PARTS BAG
16

12. Install door arms (Fig. 1-32).
FOR SECTIONAL DOORS
–Attach straight arm to carriage.
–Secure with clevis [32] and cotter pin [33].
–Attach curved arm to door bracket.
–Secure with clevis [32] and cotter pin [33].
FOR 1-PIECE DOORS
–Attach curved arm to carriage.
–Secure with clevis [32] and cotter pin [33].
–Attach straight arm to door bracket.
–Secure with clevis [32] and cotter pin [33].
13. Close door completely.
• Make sure emergency release is disengaged.
14. Join door arms (Fig.1-33).
•Overlap door arms.
NOTE: For sectional doors overlap arms as much
as possible. Make arm assembly as long as
possible for one piece doors.
• Move carriage as necessary to align holes.
– Secure with bolts [35] and nuts [36].
15. Adjust emergency release cord.
• Pull cord through carriage lever until knob is
6 feet above floor.
•Tie new overhand knot in cord at carriage lever.
• Cut excess cord.
• Check all hardware for tightness.
16. Install light bulbs (not provided)(Fig. 1-34).
•Remove power from operator (if required).
• Lower lens cover.
–Push in lens latches and pull down on front
of lens cover.
• Do Not use short neck bulbs.
•Use bulbs rated for:
–60 Watts Maximum.
–Rough service recommend.
• Screw bulbs into light sockets.
NOTE: Do Not overtighten light bulbs in sockets.
Fig. 1-34 Install light
60 WATTS MAXIMUM
NOTE: Use of 130 Volt lights is recommended for
longer bulb life.
LENS LATCHES —
PUSH IN TO RELEASE
SECTIONAL
Curved end
toward
carriage
1-PIECE
Curved end
toward
door
As short as
possible
As long as
possible
Fig. 1-33 Join door arms (track-
Fig. 1-32 Join door arms (track-
3/8"-16 Bolt 3/8"-16 Nut
[35][36]
OPEN YELLOW PARTS BAG
33
32
33
32
36
35
33
32
33
32
36
35
17

3. Wiring (cont’).
•Securely fasten wires to wall as you go.
–Use insulated staples (included).
–Staples should be snug only.
• Make wire attachments at “STBs.”
–Split and strip wire ends to be connected
as shown (Fig. 2-6).
–Loosen terminal screws.
–Insert wire under flat plate and tighten screw.
It does not matter which wire, white or
striped, goes on which terminal (Fig. 2-7).
• Make wire attachments at power head.
–“STBs” are connected to terminals #2 and #3
on power head (Fig. 2-8). It does not matter
which wire, white or striped, goes on
which terminal.
4. Check the following.
•Insure that no part of door or its hardware is
in path between lenses of source and sensor.
• Insure that tops of lenses are between 5"-6"
above the floor (Fig. 2-9). The brackets are
flexible, and can be adjusted slightly if needed.
NOTE: “STB” alignment check will be
performed following connection to electrical
power (see page 20). DO NOT PLUG IN YET!
Staples which are too tight can cut or pinch wires. Cut
or pinched wires can cause the “STB” System to stop
working.When using the insulated staples, make sure
you fasten them only as tightly as needed to hold the
CAUTION
[38]
FIG. 2-7 Terminal attachments at STB
top edge of lens
between 5" - 6"
above floor.
FIG. 2-6 Splitting and stripping
WHITE WIRESTRIPED
2
3
FIG. 2-8 Terminal attachments at power head
FIG. 2-9 Check lens height
18 ≈1-1/4" to 1-1/2"
≈1/2"

3...
WALL CONTROL INSTALLATION FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
1. Finding the mounting location.
•Pick a convenient location for mounting
wall control.
–Location you choose should be in direct sight
of door.
–It should be at least 5' above floor to prevent
small children from operating door.
–It must be away from any moving parts. (You
should not be able to reach the door while
standing at wall control.)
2. Wiring.
•Run wire from power head to wall control.
•Securely fasten to ceiling using insulated
staples provided.
•Split and strip ends of wire (Fig. 2-6).
•On power head:
–Attach the striped wire to terminal #1 and
white wire to terminal #2 (Fig. 3-1).
•On back of wall control:
–Attach striped wire to terminal “B”, and
white wire to terminal “W.” (Fig. 3-2).
3. Mounting.
•Fasten wall control to wall with 2 screws
(wall button use 58) (console use 41)
(Fig. 3-3).
•Remove protective backing from “entrapment”
warning label (Fig. 3-4).
–Stick label on wall near wall control.
NOTE: Additional wall controls are available from
your dealer. ONLY ONE OF YOUR WALL
CONTROLS MAY BE THE LIGHTED TYPE. If you
have a lighted wall control, all your additional
controls must be unlighted. More than one lighted
wall control per operator will cause a malfunction.
Verify there is no power to the operator before
installing wall control wires.
WARNING
Use of any wall control other than the type
supplied will prevent the light from working and
could cause the door to operate on its own.
Cut or pinched wires can cause the wall control to
stop working. When using the insulated staples,
make sure you only pound them in as far as
needed to hold the wire snugly.
CAUTION
[41]
button console
[58]
#6 x 1"
#4 x 1"
WHITE WIRE
STRIPED
FIG. 3-1 Terminal attachments at power head
FIG. 3-2 Wall control wire attachment
FIG. 3-3 Mounting wall control
FIG. 3-4 Entrapment warning label
19
NOTE: Your operator will be supplied with either
one of the two wall controls shown in Fig 3-3.
NOTE: Operating features on page 26.
58 41

1. Check local building codes.
• Does building code require permanent wiring?
– If not, skip to step 9.
–
If yes, have an electrician perform steps 2
through 8.
To reduce the risk of electrical shock, this
equipment has a grounding type plug that has a
third (grounding) pin. This plug will only fit into a
grounding type outlet. If the plug does not fit into
the outlet, contact a qualified electrician to install
the proper outlet. DO NOT change the plug in
any way. The door operator must be properly
grounded to prevent personal injury and damage
to the components.
The electrical power to the door operator MUST
BE removed when motor cover is removed.
Electrical power must remain off while making
electrical connections.
WARNING
4...

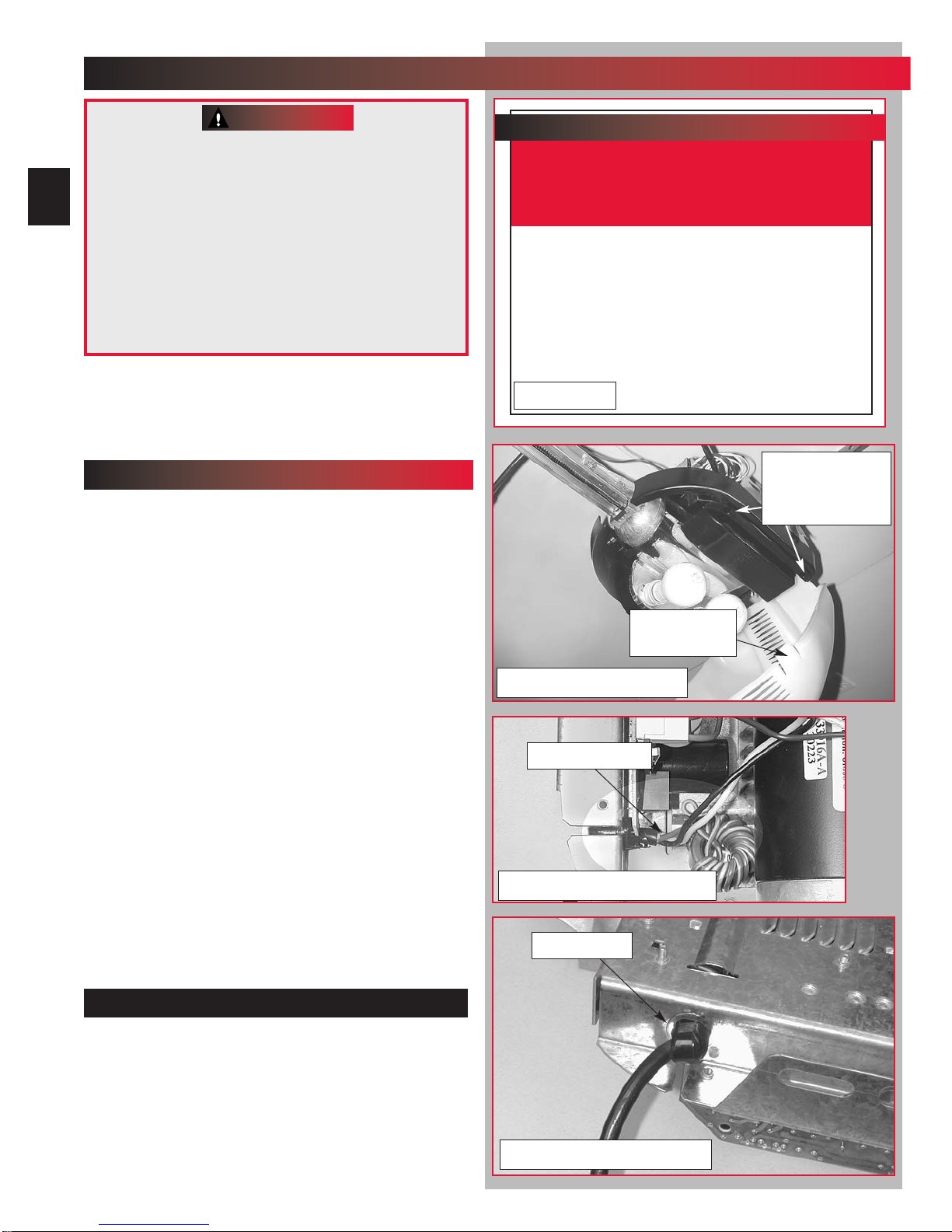

CONNECTING POWER
FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
Instructions for electrician.
2. Remove power from circuit.
3. Remove motor cover (Fig. 4-2).
•
Push in on release tabs (Fig. 4-2) while pulling
down on front of lens cover until cover snaps open.
• Remove 4 screws on motor cover.
–Slide motor cover down.
4. Remove and discard power cord .
•Cut off power cord inside power head (Fig. 4-3).
NOTE: There must be at least 6 inches of black
and white wire inside the power head.
• Remove knock-out plug, strain relief, and power
cord (Fig. 4-4). (Cut ground on line side of toroid.)
•Dispose of plug, relief and cord.
5. Install suitable entrance bushing.
6. Connect permanent wiring to power head wires.
• Connect white supply line to white wire.
• Connect black supply line to black wi
• Connect ground to green wire (ground).
NOTE: Use only U.L. recognized wire nuts
7. Replace motor cover (Fig. 4-2).
• Replace and tighten 4 screws.
• Close lens cover.
8. Reconnect power to circuit.
9. Plug in door operator.
• See warning above.
• Plug door operator into a grounded outlet.
• Perform STB®alignment check (Fig. 4-1).
NOTE: Circuit boards are light sensitive. Make
sure the cover is installed before energizing the
garage door operator.
CONNECT POWER WITH PERMANENT WIRING
Two screws per
side on motor
cover
Push in
to release
Knockout
Cut wires here
CONNECT POWER WITH PLUG
Fig. 4-2 Remove Cover
Fig. 4-4 Remove knockout
Fig. 4-3 Cut off power cord
Safe-T-Beam®Alignment Check
Fig. 4-1
After turning the electrical power on, if the
STB’s are not in proper alignment, the red
LED (Source) will blink continuously.
To correct the problem – the brackets are
flexible and can be adjusted slightly to bring
the system into alignment.
When the STB’s are in alignment the red LED
will stop blinking and stay on.
20
