Included Wall Control MUST be installed prior to operation of this Garage
Door Operator
Safe-T-Beam
®
Safety Reverse System Must be installed to close door
SAVETHISMANUALFOR FUTURE REFERENCE
NOTE: Your Residential Operator comes with a Boom Assembly
which is standard for up to a 7 foot 6 inch high door.An exten-
sion kit for an 8 foot high door is available.
For Answers and Assistance:
1.800.929.3667
or visit www.overheaddoor.com
Includes Remote Control
and SERIES II Electronics

2
NOTES / NAMES / NUMBERS

3
NOTES / NAMES / NUMBERS

4
Things to consider if you are planning to “do-it-yourself.”
Whether you are replacing an existing garage door operator or installing an operator in your
garage for the first time, there are some pre-installation issues which need to be addressed.
They are as follows:
The Overhead Door Corporation recommends that you read and fully understand all
information and instructions contained herein before choosing a
“ do-it-yourself ”
installation. Any questions should be directed to the Overhead Door Corporation or an
authorized Overhead Door Dealer.
6To avoid damage to your door and/or
operator, make sure you disable any door
locks prior to installing your operator.
PRE-INSTALLATION CHECK LIST FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
1Check your ceiling where the power
head of your new unit will be mounted.
Plan how you will be mounting the power head.
It is possible that ceiling joists may not be in the
exact position needed with respect to the garage
door operator. It may be necessary to add an
additional bracket and
fasteners (not included
with your new door operator kit).
2Check the wall directly above the garage
door.The door operator’s header bracket
must be securely fastened to this wall. Ensure
that the structure will provide a strong mounting
location.
3Check to see if the mounting location
for the Safe-T-Beam®System (STB)is
clear from obstruction and has a wood
surface available for attaching the STB
brackets.The brackets may be attached to
concrete if necessary but extra tools and special
fasteners (not supplied) will be required.
NOTE: 1-1/2" STB bracket adapters are available
through your local Overhead Door Dealer.
4Is your garage door made of
light-weight steel, aluminum, fiberglass
or glass panels?Additional support bracing
must be added to these type doors. If this is the
case, please contact the door distributor or
manufacturer so that they can furnish you with a
“bracing kit.”
7Ensure that your door is properly balanced
and moving freely. SEE WARNING BELOW.
If your door sticks, binds, or is out of
balance, have it adjusted by a professional.
Door springs, cables, pulleys, brackets and
associated hardware are under extreme
tension and can cause serious injury or
death.
WARNING
(The issue numbers below refer to the circled numbers in the illustrations on page 5.)
8(NOT SHOWN) If your garage does not have
aseparate entry door,you should consider
an emergency release kit (GER-2)(page 34) for
installation on your garage door. Contact Customer
Service or visit www.overheaddoor.com.
DO NOT USE AN EXTENSION CORD!
Extension cords can cause dangerous
overheating conditions.
DO NOT USE A PORTABLE GENERATOR!
This product is designed to operate on
standard house current. Do not use
alternate power supplies.
WARNING
5You need a 110-120 Volt power supply
available.The outlet should be no more than
3feet from the power head once it is mounted. (The
cord is 4 ft. in length.) SEE WARNING BELOW.
Homelink®is a universal
transceiver (a combined
transmitter and receiver), that provides a
convenient way to replace up to three hand-held
radio-frequency (RF) transmitters used to
activate devices such as gate operators, garage
door openers, entry door locks, security sys-
tems and even home lighting. Additional
HomeLink®information can be found at:
www.homelink.com or by calling 1.800.355.3515.

5
TYPICAL SECTIONAL DOOR INSTALLATION
5
TYPICAL
SUPPORT
BRACKET
EXTENSION SPRING
OR
TORSION SPRING
SAFE-T-BEAM®
BRACES
ADDED
HEADER BRACKET
MOUNTING BOARD
36” POWER CORD
TO
120V GROUNDED
OUTLET
6
4
3
12
3
TYPICAL (TRACK GUIDED)
1-PIECE DOOR INSTALLATION
7
SECTIONAL DOOR 1-PIECE DOOR

TABLE OF CONTENTS
6
Safe-T-Beam
®
(STB) Non-Contact Reversing System
Places an invisible beam across door opening that reverses the door during down travel to the fully open
position if anything passes through beam.
Safe-T-Reverse
®
Contact Reversing System
Automatically stops and reverses a closing door within 2 seconds of contact with an object.
Safe-T-Stop
®
Timed Reversed System
Automatically opens a closing door, if door does not close within 30 seconds.
Force Guard
®
Control
Used to set the force required for opening and closing door. For maximum safety, set the minimum force
required to fully open and close door.
Automatic Lighting System
Two light bulbs up to 60 Watts max. each are used for safer entries and exits. The light turns on when door is
activated and automatically turns off4.5 minutes later.
Manual Emergency Release
Allows the garage door to be opened or closed manually for emergencies or maintenance.
SAFETY FEATURES (varies by model)
SECTION PAGE
PRE-INSTALLATION CHECK LIST . . . . . . . . . . . . . . . . 4-5
TOOLS REQUIRED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
SAFETY FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
OPERATIONAL FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . 7
PARTS LISTS AND ILLUSTRATIONS . . . . . . . . . . . . . . . . . 7-9
POWER HEAD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ONE-PIECE BOOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
FASTENERS AND ACCESSORIES . . . . . . . . . . . . . . . . . . 9
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
PRE-INSTALLATION WARNING. . . . . . . . . . . . . . . . . . . . . . . 10
1 MAIN ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . 11-13
2 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-20
3 SAFE-T-BEAM
®
...........................21-22
4 WALL CONTROL ..........................23-24
5 LIGHT & LIGHT LENS . . . . . . . . . . . . . . . . . . . . . . . . . 24
6 CONNECTING POWER . . . . . . . . . . . . . . . . . . . . . . . . 25
7 SETTINGS ................................26-27
CONTACT REVERSE . . . . . . . . . . . . . . . . . . . . . . . 27
8 BATTERY & VISOR CLIP. . . . . . . . . . . . . . . . . . . . . . . 27
9PROGRAMMING REMOTE CONTROLS...........28
TRANSMITTER COMPLIANCE STATEMENT.............29
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . 29
10 MAINTENANCE & TROUBLESHOOTING . . . . . . . 30-31
11 WIRING DIAGRAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
ACCESSORIES ORDER FORM .......................34
TOOLS RECOMMENDED
5/32" Drill Bit
7/16" and 9/16"
Sockets
Step ladder
Drill
Ratchet
Carpenter’s level
Pencil
Tape measure
Wire strippers
Phillips screwdriver
Adjustable wrench

7
POWER HEAD EXPLODED VIEW
FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
Power Head Assembly
[1]
Item Part Name
1 Power Head Assembly
A Cover (By Series/Model)
BFront Plate Assembly
C Light Socket
D Motor Parts
E Receiver Assembly
FCapacitor (By Series/Model)
G Opto Wheel
H Opto-Luctor Assembly
JSequencer Assembly
K Circuit Board Bracket
L Transformer
POWER HEAD PARTS LIST
F
E
N
B
5
C
49
45 39 4
LM
K
HN
J
A
D
Item Part Name
M Terminal Strip
N No. 8-32 x 1/2" Hex Washer Head Screw
P No. 8-32 x 3/8" Slot Hex Washer Head Screw
R Capacitor Isolator
45 Bumper
41/4-20 Shoulder Bolt
5 1/4" Flange Nut
39 Coupler
41 No. 8-32 x 3/8" Phillips Hex Head Screw
42 No. 8-32 x 3/8" Phillips Pan Head Screw
49 Light Lens
OPERATIONAL FEATURES
CODEDODGER
®
Access Security System
Improves security of door operator by continuously changing the access code each time the remote control is
used. The door operator responds to each new code only once. An access code copied from a working system
and tried again will not control the door operator.
CODEDODGER
®
1-Button Remote Control
Controls door operator by allowing the garage door to be opened and closed remotely.
CODEDODGER
®
Multi-Button Remote Control
Operates multiple Intellicode®equipped door operators.
Lighted Wall Button (some models)
Operates door operator from inside garage. DO NOT use with lighted wall console.
Wall Console (some models)
Works like a lighted wall button but includes a Vacation Lock Switch that disables all controls. LED indicator
shows whether system is powered, locked or unlocked. Makes console easy to find in dark. Controls door
opener from inside garage. Independent light control allows convenient manual control of the Automatic Lighting
System. DO NOT use with lighted wall button.
NOTE: All items may not be supplied with your garage door operator.
G
P
42
41
R

8
1-PIECE BOOM HARDWARE EXPLODED VIEW
FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
1-Piece Boom & Screw Assembly
[2]
NOTE:The operator will not function properly unless the Safe-T-Beam®
sensors are installed and the force controls adjusted.
16
61
44
15B
22
9
2224
28
26
23
9
10
25
17
18
27
46
15A
439
45
5
47
25 24
13
Item Part Name Parts Required
1 Power Head Assembly 1
2 Boom Assembly (1 piece) 1
4 1/4-20 Hex Hd Shoulder Bolt 2
5 1/4"-20 Hex Flange Nut 2
6 Carriage Stop 1
9 5/16" Hex Flange Nut 5
10 Carriage Assembly 1
13 Boom Strap 1
15A Open Limit Switch Assembly (Grey) 1
15B Close Limit Switch Assembly (Brown) 1
16 No.8-32 x 3/8" Hex Head Screw 2
17 EmergencyRelease Cord 1
18 EmergencyRelease Knob 1
19 EmergencyReleaseTag 1
20 Header Bracket 1
21 Door Bracket 1
22 1/4" x 2" Lag Screw 8
PARTS LIST
Item Part Name Parts Required
23 Straight Door Arm 1
24 Clevis Pin 2
25 Cotter Pin 2
26 Curved Door Arm 1
27 3/8" x 7/8" Hex Head Bolt 2
28 3/8" Hex Flange Nut 2
29 Wire 95ft
30 Insulated Staple 30
31 Wall Button varies
33 Wall Console varies
34 #6 x 1-1/4”Pan Head Screw 2
35 EntrapmentWARNING Label 1
36 Safe-T-Beam (STB) System Sensor (Green LED) 1
37 Safe-T-Beam (STB) System Source (Red LED) 1
38 Safe-T-Beam (STB) System Bracket 2
39 Coupler 1
40 No.10 x 11/4" Phillips Hex Head Screw 4
41 #8 x 3/8”Hex Head Screw 2
42 #8 x 3/8”Pan Head Screw 2
43 Safety & Maintenance Guide 1
44 Wire Clip 4
45 Bumper (Check Carriage Stop) 1
46 5/16" x 3/4" Hex Head Bolt 5
47 1/4-20 x 3/4”Self-tapping Screw 3
49 Light Lens (shown on page 7) 1
50 Remote Control varies
PARTS LIST
20
21
2
~
~
~
~
~
~
~
~
OR

9
NOTE: Accessories vary by model.

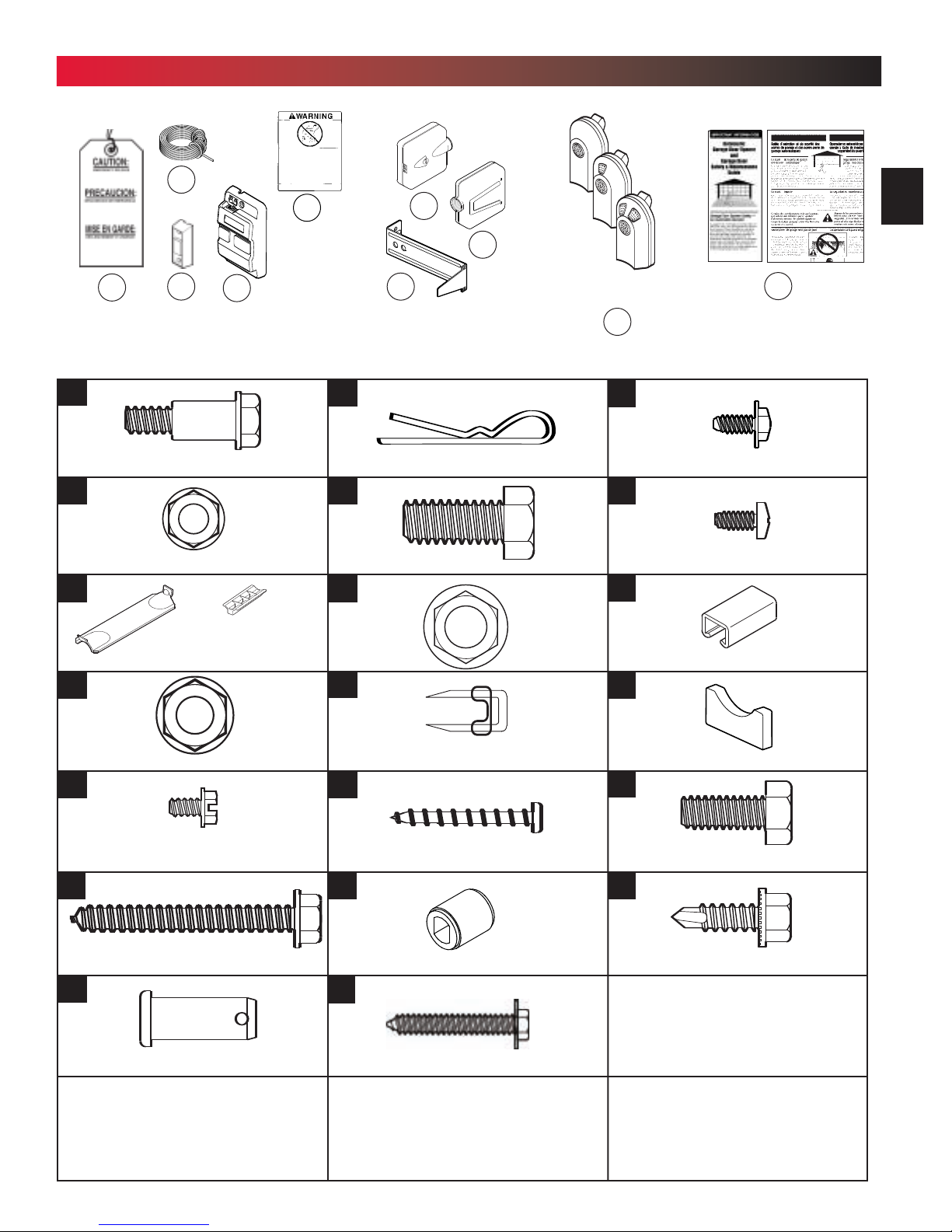

FASTENERS - Shown full size. See Parts List for description.
35
19 43
31
NUSTBSENDSENS-1
29
38
37
36
Cotter pin
Clevis pin
33
4
5
9
6
16
22
24
25
27
28
39
34
PARTS IDENTIFICATION FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
45
46
47
remotes
vary by model
Rubber bumper
1/4" x 2" Lag screw
5/16" Flange nut
3/8" Hex head bolt
3/8" Nut
#10 x 1-1/4" Phillips hex head screw
1/4" Flange nut
Insulated staple
Coupler
#8-32 x 3/8" Hex head screw 5/16" x 3/4" Hex head bolt
1/4" Shoulder bolt w/flange
1/4"-20 Self-drilling screw
#6 x 1-1/4" Pan head screw
42
44
41
30
40
Wire clip
#8 x 3/8" Pan head screw
#8 x3/8" Hex flange head screw
50
Carriage stop (not to scale)
OR

10
WARNING:
Garage doors are large, heavy objects that move with the help of springs
under high tension and electric motors. Since moving objects, springs under
tension, and electric motors can cause injuries, your safety and the safety
of others depend on you reading the information in this manual. If you have
questions or do not understand the information presented, call your nearest
service representative.
In this section and those that follow, the words Danger, Warning, and
Caution are used to emphasize important safety information.
The word:
DANGER means that severe injury or death will result from failure
to follow instructions.
WARNING means that severe injury or death can result from failure
to follow instructions.
CAUTION means that property damage or injury can result from
failure to follow instruction.
The word NOTE is used to indicate important steps to be followed
or important considerations.
OVERVIEW OF
POTENTIAL HAZARDS
POTENTIAL
HAZARD
EFFECT PREVENTION
Keep people clear of opening while door is
moving.
Do Not allow children to play with the door
operator.
Do Not operate a door that jams or one that
has a broken spring.
MOVING
DOOR
WARNING:
Can Cause
Serious Injury
or Death
Turn off power before removing operator cover.
When replacing cover, make sure wires are not
pinched or near moving parts.
Operator must be properly grounded.
ELECTRICAL
SHOCK
WARNING:
Can Cause
Serious Injury
or Death
Do Not try to remove, repair or adjust springs
or anything to which door spring parts are
fastened, such as, wood blocks, steel
brackets, cables or other like items.
Repairs and adjustments must be made by a
trained service person using proper tools and
instructions.
HIGH
SPRING
TENSION
WARNING:
Can Cause
Serious Injury
or Death
IMPORTANT
INSTALLATION
INSTRUCTIONS
To reduce the risk of
severe injury or death:
WARNING:
SAFETY INFORMATION PRE-INSTALLATION WARNING
SAVE THESE INSTRUCTIONS
Visit our website at:
www.overheaddoor.com
FILL THIS IN AT TIME OF INSTALLATION FOR YOUR OWN
RECORDS, SO THAT IT WILL
BE AVAILABLE IF YOU EVER NEED TO CALL US.
Date Purchased _____/_____/_____
Serial Number. _____/____/______________________________
Operator Model _______________________________________
Dealer Name __________________________________________
Dealer Address _______________________________________
City _________________________________________________
State ________________________________________________
Zip _____________________
WK YY PI
MM DD YY
1.READ AND FOLLOW ALL SAFETY,
INSTALLATION AND OPERATION
INSTRUCTIONS. If you have any questions
or do not understand an instruction, call your
service representative.
2.Do Not install Opener on an improperly
balanced door. An improperly balanced
door may cause severe injury. Repairs and
adjustments to cables, spring assemblies,
and other hardware must be made by a
trained service person using proper tools
and instructions.
3.Remove all handles and ropes, and
disable all locks connected to the door
before installing the Opener.
4.Install door Opener 7' or more above
the floor. Mount the emergency release
knob 6' above the floor.
5.Do Not connect the Opener to the
power source until instructed to do so.
6. Locate the Wall Control:
•Within sight of the garage door.
• At a minimum height of 5', so small
children cannot reach it.
• Away from all moving parts of the
garage door.
7.Install the entrapment WARNING label
next to the wall button or console. Install
the emergency release tag on the
emergency release.
8.The operator must reverse when the door
contacts a 11/2" high object on the floor at
the center of the doorway. This is the size of
a 2” x 4” board laid flat.
NOTE: Please keep original or photocopy of your
sales receipt with this manual for future reference
should service ever be required.
(See Fig. 1-1)

11
SECT 1—MAIN ASSEMBLY FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
1. Set power head so that front panel (with end
of shaft and boom attachment flange) is
facing up. Fig. 1-1.
NOTE: If you have this type Carriage Stop, skip
Step 2. DO NOT install Bumber.
2. Install bumper [45].
• Peel protective paper from glue side
of bumper.
•Stick bumper into position as shown.
Fig. 1-1.
3. Install coupler [39].
•Place coupler over end of shaft.
• Turn it as needed until it engages with shaft.
(It will drop down over end of shaft and will
no longer turn freely. Fig. 1-1.
4. Set power head on its bottom. Fig. 1-2.
5. Attach boom to power head.
•Place bearing end of screw against coupler.
Fig. 1-2.
•Turn screw until it engages with coupler.
• Slide boom into boom attachment
flange until holes in boom match up with
holes in flange.
• Secure boom with 2 bolts [4] and 2 nuts [5],
hand tight only. Fig. 1-3.
bumper
coupler
Fig. 1-1
Fig. 1-2
Drive screws can slide out of boom sections.
Keep boom sections level until operator is
fully assembled.
CAUTION
NOTE: 3-piece boom assembly is for doors up
to and including 7 feet 6 inches high. An exten-
sion for 8 feet doors is available.
OPEN BLUE PARTS BAG
Rubber bumper
Coupler
[39][45]
serial no.
Fig. 1-3

12
MAIN ASSEMBLY FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
NOTE: If installing an extension kit for an
8 feet high door, refer to the instructions
included with the extension kit now.
6. Flip power head/boom assembly over
(upside down), so that entire length of screw
is visible from above.
7. Install carriage stop [6].
• With bent tabs facing up, slide carriage stop
into boom. Fig. 1-4.
•Slide carriage stop along boom until it rests
against power head.
8. Install carriage [10].
• Place emergency release lever in released
position. Fig. 1-5.
•Make sure arrow on side of carriage
(Fig. 1-5) is pointing away from power
head. (Emergency release lever will be
facing power head.)
• Slide carriage into boom. Fig. 1-6.
NOTE: Carriage can be used as a temporary
support for the boom while performing the next
few steps of assembly. Slide carriage to mid
point of boom. Place emergency release lever in
engaged position.
9. Flip assembly right side up.
(Boom resting on carriage.)
10. Attach boom strap
[13] .
• Place boom strap against end of boom so that
attached stud passes in front of end of boom.
Fig. 1-7.
•Line up boom strap holes with boom holes.
• Secure with 2 bolts [46] and 2 nuts [9].
11. Make sure boom assembly is resting straight
and level.
• FULLY TIGHTEN ALL BOLTS AND NUTS IN
BOOM ASSEMBLY.
5/16" Flange nut
5/16" x 3/4" Hex head bolt
[9]
[46]
Fig. 1-4
Fig. 1-5
engaged
released
arrow
Fig. 1-6
power
head
carriage stop
carriage
Fig. 1-7
wrong
correct
rail
strap
carriage stop
USES BUMPER
NO BUMPER
OR

13
MAIN ASSEMBLY FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
12. Attach emergency release knob, cord
and tag.
• Tie an overhand knot in one end of
emergency release cord [17].
–
Slidecordthroughcenterofknob [18] .
Fig. 1-8.
– Slide cord through hole in emergency
release lever (on carriage).
– Tie a second knot in this end. Fig. 1-9.
–Slip wire of emergency release tag [19]
through hole in emergency release lever
and twist it around itself.
13. Attach limit switches.
• “CLOSE” limit switch
[15B] .
(Switches are identical.)
– Place “CLOSE” limit switch over top of
boom about 12 inches from boomstrap.
Fig. 1-10.
–
Check that white lever is toward
power head.
– Insert set screw [16] into limit switch
hand tight only to temporarily hold switch
in place. Fig. 1-10A.
– Attach brown wire to switch. Fig. 1-10B.
–Leaving some slack in wire (Fig. 1-11),
run wire down inside groove in top of boom
back to power head.
– Use wire clip [44] to help maintain slack.
Fig. 1-11.
•“OPEN” limit switch
[15A] .
– Place “OPEN” limit switch over top of boom
about 12 inches from power head. Fig.1-21.
–
Check that white lever is on side away from
power head. (This means limit switches
hang off opposite sides of boom. Check
this to help verify they are installed properly.)
– Insert set screw [16] into limit switch hand
tight only to temporarily hold switch in place.
– Attach grey wire to switch. Fig. 1-12.
– Leaving some slack in wire (Fig. 1-12),
run wire down inside groove in top of boom
back to power head.
–Use wire clip [44] to help maintain slack.
Fig. 1-12.
•Coil excess wire and tape it to top of power
head. Fig. 1-12A.
Fig. 1-10
A
B
Fig. 1-11
wire clip
power head
Fig. 1-12
A
“close”
switch
“open”
switch
set screw
OPEN GREEN PARTS BAG
Screws for attaching light cover are included in this bag.
Please set aside for use later.
grey wire
brown wire
Fig. 1-8
Fig. 1-9
release
knob
tag
cord

14
SECT 2—INSTALLATION FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
NOTE: There are differences in installations
depending on which type of door you have.
These differences are explained throughout
this section. Please note those steps which are
applicable to your particular door.
REFER TO PAGES 2 & 3.
There are two basic types of residential garage
doors. They are:
SECTIONAL DOORS—divided into a set of
narrow panels (usually four) connected by
hinges, so door can “bend” as it rides on a
curved track.
1-PIECE DOORS—consist of one large
panel and swivel on large spring-loaded hinges
on each side of door.
1. Determining header bracket location.
• Find center of door from side to side.
–Measure overall width of door.
(example: 16 feet)
– Divide overall width by 2.
(example: 16÷2 = 8 feet)
• Measure this distance from side of door and
draw a pencil line vertically from the top of
the door down approximately 1 foot. This is
the centerline. Fig. 2-1.
–Continue marking centerline on wall
above door from top of door up
approximately 1 foot. Fig. 2-1.
floor
garage door
TYPICALTRACK GUIDED
CENTERLINE
floor
garage door
TYPICALTRACKLESS
CENTERLINE
Fig. 2-1
#8-32 x 1/2" Hex head screw
Wire clip
[16]
[44]
Sectional doors may have one
torsion spring (as shown) or two
springs (one on each side).
Some older doors may have
extension springs.

15
INSTALLATION FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM

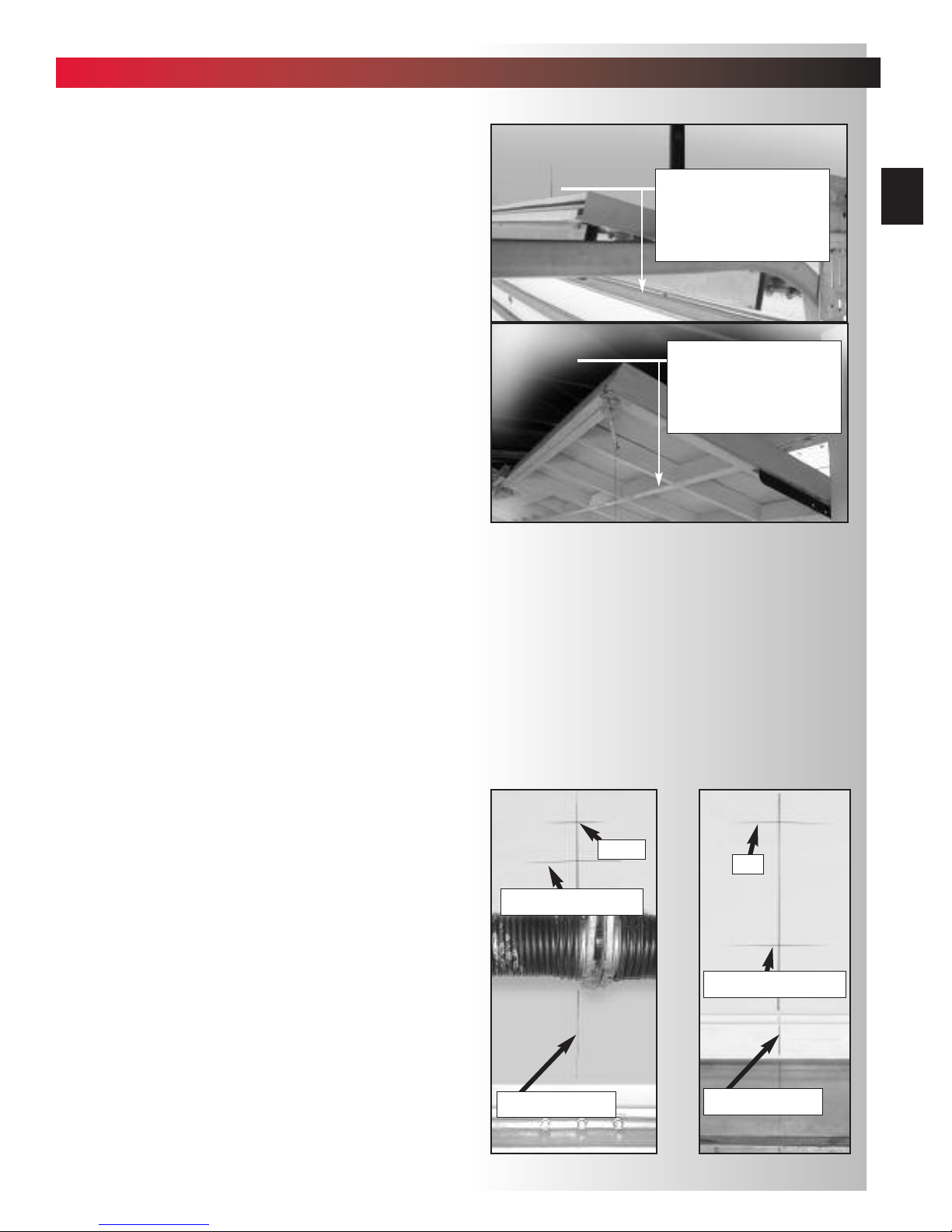

2. Finding highest point of travel.
• While raising garage door manually, watch
top edge of door to see where it reaches its
highest point. This is called “highest point of
travel.” Fig. 2-2.
•A locking pliers can be used to hold the
door in position by clamping it onto the rail.
(A stool, chair, table or any object that can
safely support door will work.) Fig. 2-3.
– With door held partly open (at its “highest
point”), measure distance from top edge
to the floor.
• Remove support and gently lower door.
• Mark “highest point of travel” at centerline
on wall above door. Fig. 2-3.
NOTE: Following step depends on type of door.
3. Final header bracket mounting location.
• For SECTIONAL DOORS—
add 2-1/2 inches to “highest point of travel”
and mark this height on centerline. Fig. 2-3.
•For ONE-PIECE DOORS—
add 6 inches to “highest point of travel” and
mark this height on centerline. Fig. 2-4.
Highest point of travel.
Measure from here to
floor
TRACK GUIDED
TRACKLESS
Fig. 2-2
Highest point of travel.
Measure from here to
floor
Fig. 2-3
Highest point of travel.
+6"
Highest point of travel.
+2-1/2"
Fig. 2-4
centerline of door centerline of door

16
INSTALLATION FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
NOTE: If torsion spring interferes with your
final location, mark bracket location 2-1/2" or
6" above torsion spring depending on garage
door type.
4. Check mounting location for strength.
Header bracket must be attached to
framework of garage.
Fig. 2-5.
• If final header bracket position is on garage
door header, continue with step 5.
• If final header bracket position is above
garage door header, a mounting plate must
be installed and mounting location must be
remarked before continuing with step 5.
Fig. 2-5.
•If your garage wall is finished (covered with
drywall), continue with step 5.
5. Mounting preparation.
•Hold bracket against wall where final header
bracket height crosses centerline.
•Make sure flange where boom strap
attaches, is on centerline. Fig. 2-6.
•Mark screw hole locations.
– If your wall is finished, take a small “finish
nail” and gently tap it through drywall
where you have marked screw holes to
find out if there is wood behind mounting
location. If your marked location is solid,
continue with step 6.
– If your marked mounting location is not
solid, a mounting plate must be installed
and mounting location remarked before
continuing. Fig. 2-7 and Fig. 2-5.
6. Mount header bracket [20].
•Drill 5/32 inch pilot holes at marked screw
hole locations.
•Fasten header bracket using 3 lag
screws [22].
floor
ceiling
garage door opening
header
header
studs
wall
C
L
TYPICAL UNFINISHED WALL
floor
ceiling
garage door opening
C
L
TYPICAL FINISHED WALL
wooden plate
fastened to wall studs
wooden plate
fastened to wall studs
Fig. 2-5
Fig. 2-7
flange for
boom strap
Fig. 2-6
flange for
boom strap
centerline of door
1/4" x 2" Lag screw
[22]
OPEN ORANGE PARTS BAG
header
bracket
header
bracket

17
INSTALLATION FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM

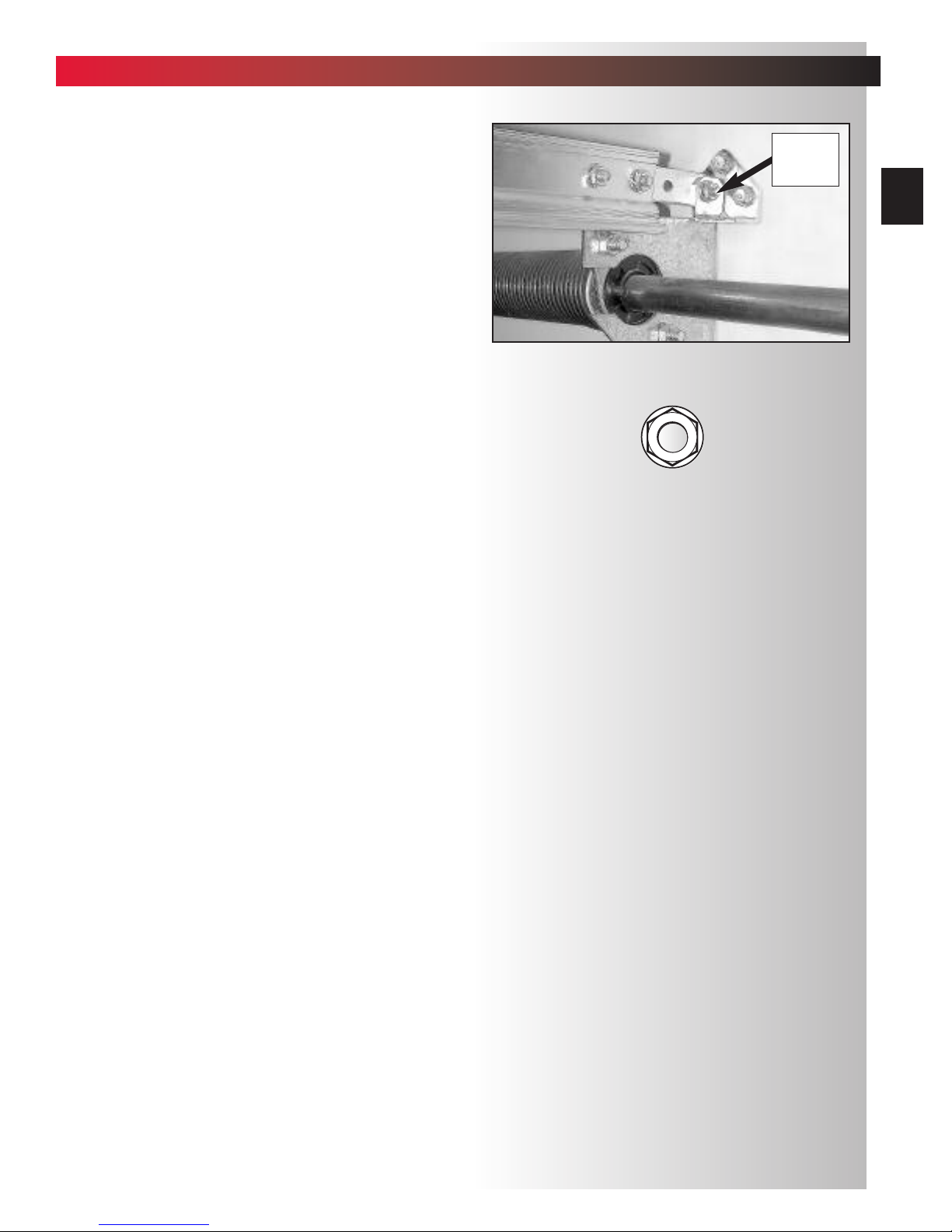

7. Attaching boom to header bracket.
• Gently set power head on garage floor while
leaning boom strap against header bracket.
(It is recommended that you place a piece of
cardboard or similar material between power
head and floor to prevent scrapes and
scratches to power head.)
NOTE: It may be necessary to support power
head above floor. As little as a few inches, or
as much as 5 or 6 feet depending on position
of torsion spring(s). Be sure to use a stable
support device, such as a ladder.
• Slide threaded stud of boom strap through
hole in flange of header bracket.
• Fasten with nut[9], finger tight only. Fig. 2-8.
Fig. 2-8
5/16" Flange nut
[9]
5/16"
FLANGE
NUT

18
INSTALLATION FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
8. Mounting power head.
• Raise power head and support it high
enough that you can manually raise garage
door fully open.
•Line up power head and boom with center of
door. Fig. 2-9.
•Keeping power head centered, mount
to ceiling:
– at proper height;
a. for sectional doors boom should be
level with floor or slightly below level.
Fig. 2-10.
b. for 1-piece doors boom should clear
door by about 2 inches. Fig. 2-10.
–using one of the preferred methods
shown, Fig. 2-11, mount power head.
(It is possible to use other mounting
methods. The critical point to remember is
that the mounting assembly must be
solidly attached and able to support the
weight of the power head.) DO NOT
ATTACH TO DRY WALL OR
SUSPENDED CEILING. It must be
anchored to the framework of the garage.
• Fully tighten boom strap nut.
Fig. 2-9
SECTIONALLEVEL OR SLIGHTLY BELOW LEVEL
1-PIECEMUST CLEAR DOOR BY 2 INCHES AT HIGHEST POINT OF TRAVEL
2"
Fig. 2-10
Perforated
Angle Iron
(not
included)
Mounting
Straps
(not
included)
FINISHED CEILING
Wood
Fig. 2-11
[22]
[46]
[9]

19
INSTALLATION FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
9. Mounting door bracket [21].
• Center of bracket must be on centerline of
door and must be mounted as high as
possible. Fig. 2-12A & B.
•Hold bracket against door at preferred
location and mark screw holes.
–for wooden doors, drill 5/32 inch
pilot holes.
a. Fasten door bracket using
3 lag screws [22].
b. Check thickness of door against lag
screws. (It may be necessary to mount
door bracket on a 2" x 6", etc. attached
to inside of door to prevent screws
from coming out other side of garage
door. Fig. 2-12A.
–for light-weight doors
CAUTION: In the case of sectional doors, the
door bracket must not be below the highest set
of rollers.
Fig. 2-13.
– there are a wide variety of reinforcements
depending on manufacturer and some are
equipped with hardware that is intended
to be used in place of the door bracket.
Be sure to confirm proper use of
this hardware with your door
manufacturer. Unauthorized improper
use of these attachment systems
could void your warranty.
WHEREVER POSSIBLE—USE DOOR
BRACKET SUPPLIED WITH YOUR
OVERHEAD DOOR OPERATOR.
a. Fasten door bracket using
3 self-drilling screws [47].
Fig. 2-12B
Fig. 2-12A
top of door
centerline
centerline top of door
attached board for
extra thickness
even with or
above top roller
Fig. 2-13
WOODEN ONE-PIECE
LIGHT-WEIGHT SECTIONAL
1/4" x 2" Lag screw
[22]
1/4"-20 Self-drilling screw
[47]
door bracket
door bracket

20
1-PIECE DOOR
INSTALLATION FOR HELP-1.800.929.3667 OR OVERHEADDOOR.COM
10. Attach door arms [23] and [26].
• For sectional doors.
– Connect short leg of curved arm to
door bracket. Fig. 2-14.
–Use clevis pin [24] and cotter pin [25].
Fig. 2-14.
–Connect straight arm to carriage.
– Use clevis pin [24] and cotter pin [25].
– Overall length of arms together should be
as short as possible, but must not be so
short that they are vertical when the door
is fully closed. Fig. 2-14.
a. Move carriage as necessary to
adjust length.
b. Place bolts [27] and nuts [28] as far
apart as possible. Fig. 2-14.
c. Tighten bolts and nuts.
•For 1-piece doors.
– Connect short leg of curved arm to
carriage. Fig. 2-14.
–Use clevis pin [24] and cotter pin [25].
Fig. 2-14.
–Connect straight arm to door bracket.
– Use clevis pin [24] and cotter pin [25].
– Overall length of arms together should be
as long as possible. Fig. 2-14.
a. Move carriage as necessary to
adjust length.
b. Place bolts [27] and nuts [28] as
close together as possible. Fig. 2-14.
c. Tighten bolts and nuts.
11. Adjust emergency release knob height.
•Knob should hang approximately 6 feet from
the floor.
– adjust as necessary to clear vehicles yet
maintain height where it can be
easily reached.
• Pull cord through lever until knob is at
desired height.
• Tie a new knot at the lever.
• Cut off excess cord.
Fig. 2-14
SECTIONAL DOOR
clevis & cotter pin
clevis & cotter pin
must be
some angle
off vertical.
—bolts/nuts (far apart as possible)
—bolts/nuts (close as possible)
Cotter pin
Clevis pin
3/8" Hex head bolt
3/8" Nut
[24]
[25]
[27]
[28]
OPENYELLOW PARTS BAG
