Overline Systems Digitear DE-BC User manual

Charger Box
User Guide
Version 25/03/2019

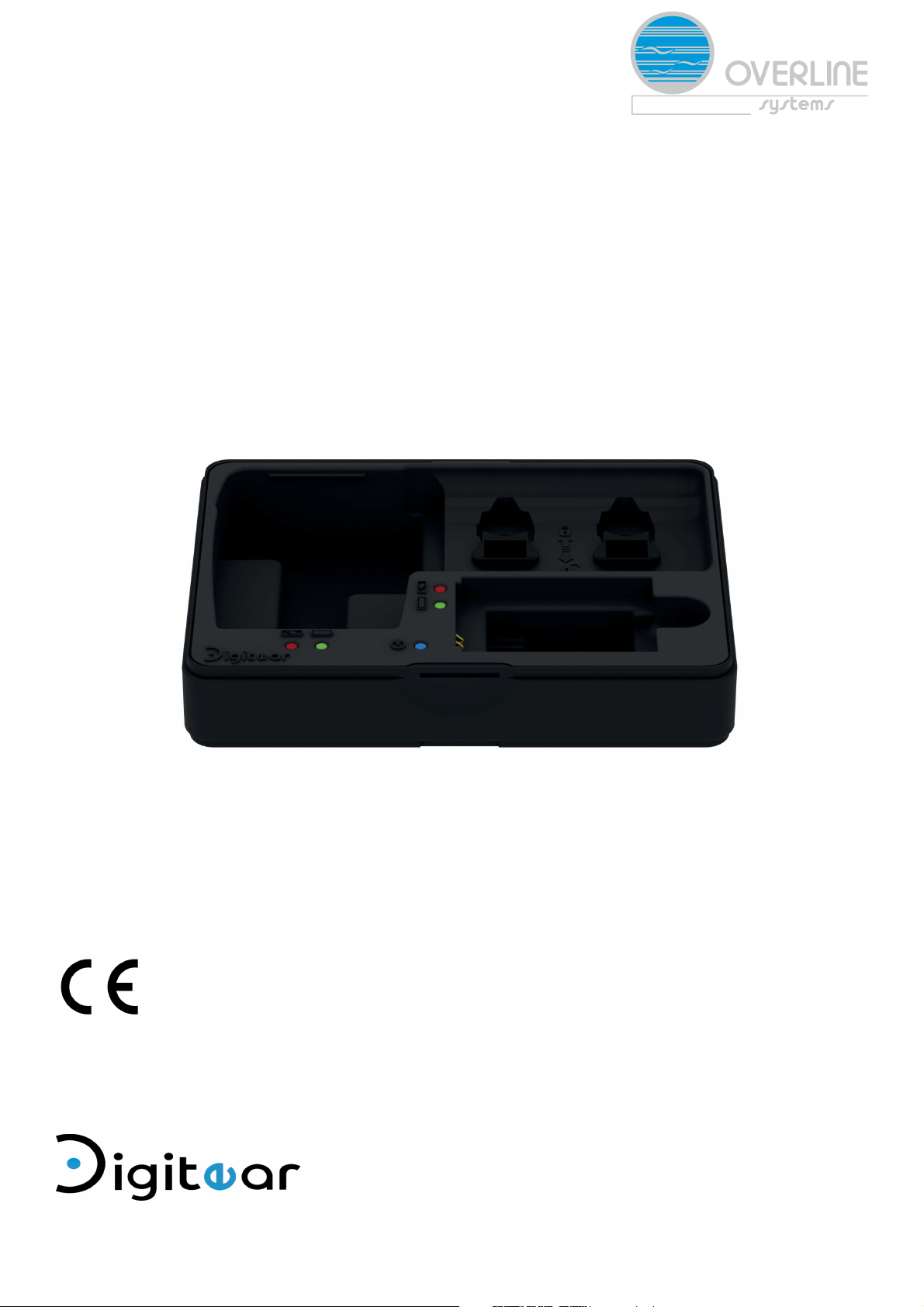

DE-BC Charger Box
English
FCC ID : DE-BC-001
IC : Complies to ICES-003 class B

TABLE OF CONTENTS
1 - DESCRIPTION OF THE Charger Box
2 - LIST OF PROVIDED ACCESSORIES
3 - SETTING UP THE Beltpack, THE In-Ear, AND THE SPARE BATTERY
4 - TECHNICAL FEATURES
5 - WARRANTY
6 - CERTIFICATIONS
Overline-Systems - www-digitear.eu - [e-mail]
Page 1/8
USER GUIDE Charger Box

Overline-Systems - www-digitear.eu - [e-mail]
1 - DESCRIPTION OF THE Charger Box
2 3 5
7
9
1
6
8
1
2
4
6
5
7
8
9
Spot for transporting and charging of the Belt-
pack.
LED for Beltpack charge:
Red light on: Beltpack is charging.
Green light on: Beltpack is fully charge charged.
Storage for replacement ear tips.
LED Power
The blue LED is on when the Charger box is
powered by an external power supply.
Spot for charging the Beltpack’s spare battery.
This battery enables the recharging of the ear-
pieces while in nomad mode.
LED for spare battery charge:
Red light on: Beltpack is charging.
Green light on: Beltpack is fully charged.
Locking-in the In-Ear.
Assures the maintenance and the electrical
contacts for charging.
Charging spot for the In-Ear.
Mini USB
Connector for outside power source.
3
4
USER GUIDE Charger Box
Page 2/8

2 - LIST OF PROVIDED ACCESSORIES
Mini charger USB 5V-1A
Ref. : VER05US050-MB
Beltpack’s spare battery
3,7V-1200 mAh
Ref. : BL - 5C
Overline-Systems - www-digitear.eu - [e-mail]
USER GUIDE Charger Box
Page 3/8

Overline-Systems - www-digitear.eu - [e-mail]
3 - SETTING UP THE Beltpack, THE In-Ear AND THE SPARE BATTERY

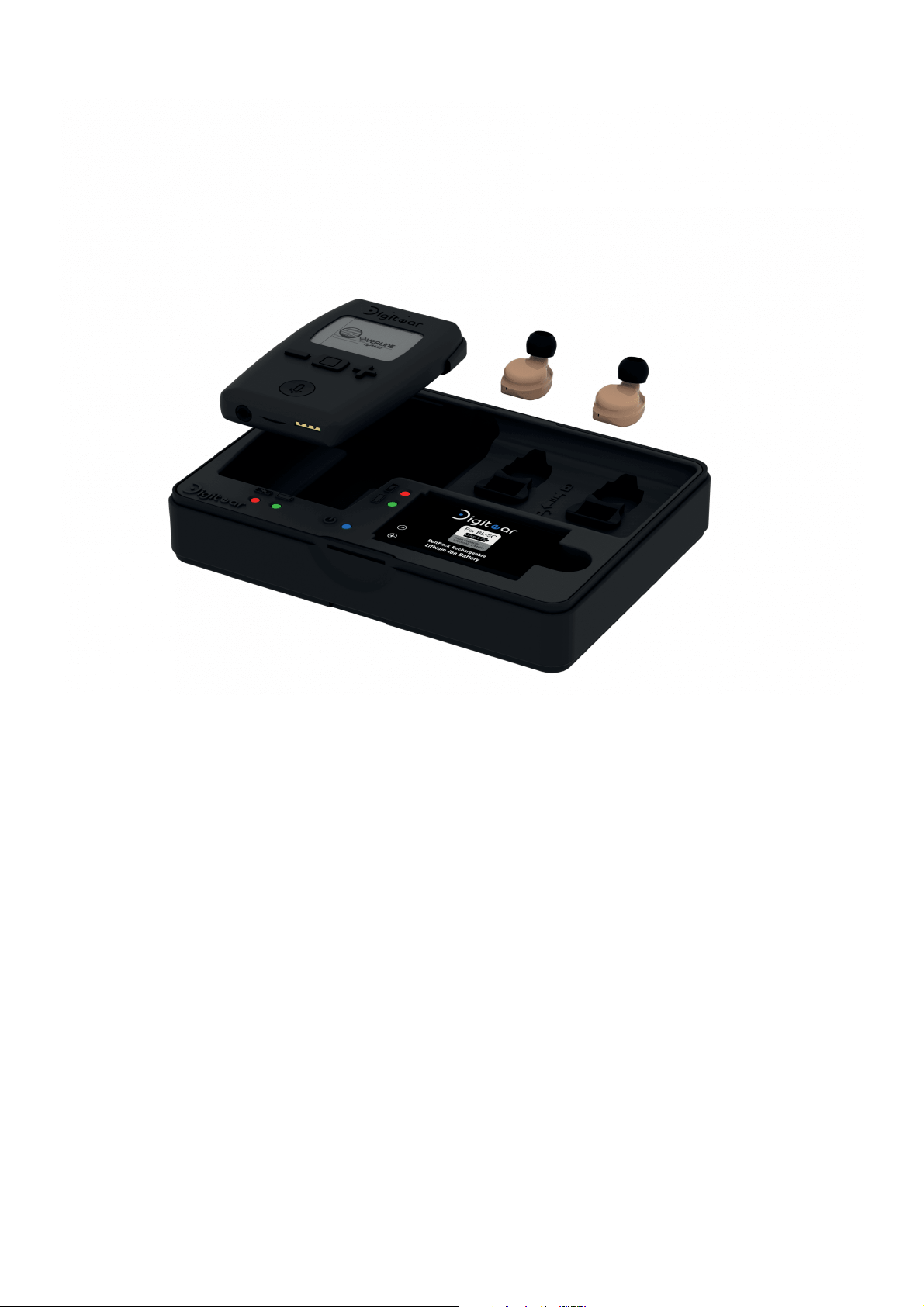

The Charger Box enables the charge of a complete set of wireless receivers: a Beltpack, two In-Ear
earpieces, and a spare battery for the Beltpack.
The charge occurs preferably with the provided wall adapter.
The Charger Box has a «nomad» mode allowing the recharging of the earpieces with the spare battery
and without the wall adapter.
The Charger Box can be closed thanks to its cover permitting storage and easy transportation.
USER GUIDE Charger Box
Page 4/8

4 - TECHNICAL FEATURES
Recharge In-Ear
Charge voltage (DC)
Charge current
Time needed for a complete charge
4,2 V
< 50 mA
~2 h
Recharge spare battery Beltpack
4,2 V
< 0,5 A
~3 h
Recharge Beltpack
4,2 V
< 0,5 A
~3 h
Charge voltage (DC)
Charge current
Time needed for a complete charge
Number of charging cycles for InEar while in Nomad mode ~10 fois
Charge voltage (DC)
Charge current
Time needed for a complete charge
+5 °C to +45 °C
Charger Box
5 V
1 A
Voltage (DC)
Current
Power supply Mini USB Charger XP Power Ref : VER05US050-MB
Input 100 - 240V ~ 50/60 Hz 0,18A, Output 5V = 1A max
Conditions of use (security from overheat)
Overline-Systems - www-digitear.eu - [e-mail]
USER GUIDE Charger Box
Page 5/8

5 - WARRANTY
Elements NOT covered by the warranty
This warranty only covers fautly parts and the manufacturing of the product. This warranty does not
cover :
- Periodical maintenance and reparations or replacements of parts due to normal wear and tear
- Shipping and handling costs and the risks associated with the transportation and the retrieval of the
product by the final customer
- All adaptations of the product which would be necessary to make it comply with the technical and/
or security standards in a country other than the one for which the product was originally designed and
manufactured for
- Consumable elements: elements that are scheduled to be replaced periodically during the life of the
equipment ( for example: ear tips, batteries over 12 months after the purchase date, and connection
cables)
The deteriorations or defects of the product resulting in:
- A poor usage or installation of the product ( for example: using the product in a way not intended,
installation or usage not standard to ‘s instructions and to the technical standards or security
in the country where it is used)
- Maintenance of the product non-compliant to Overline Systems’ instructions or negligence in
maintenance of the product
- Any mishandling of the product (ex: false maneuvre, fall, shock, impact, immersion ) or an inappropriate
environment (ex: bad aeration, vibrations, exposure to humidity or excessive heat, contacts with a
product (material or software), consumable, accesssory or device non compatible or defective, an
adaptation of the product towards its end of being put to conformity with technical or security standards
in a country other than the one the product was originally designed and manufactured for
- A modification or a reparation of a product not made by a third party approved by Overline Systems
- Sinister (ex: fire, flood, earthquake, lightenning)
Produit: (TX-Box, Charger Box, Beltpack, In-Ear)
24 months pieces or workshop labor
Battery: 12 months (starting the purchase date)
ACCESS POINT: covered by the manufacturer’s initial warranty
Accessories alone will not be taken in by our reparation centers.
Overline-Systems - www-digitear.eu - [e-mail]
USER GUIDE Charger Box
Page 6/8

6 - CERTIFICATIONS
Produit destiné à une utilisation en intérieur.
This product is for indoor use only.
Tout changement ou modification apporté à cet équipement non expressément approuvé par OVERLINE
Systems peut annuler l’autorisation d’utiliser cet équipement.
Any changes or modifications made to this equipment not expressly approved by OVERLINE Systems may void the
authorization to operate this equipment.
Item : DE-BC Charger Box
Type identification : DE-BC-001
PMN : Digitear
CE
L’équipement est conforme aux exigences suivantes :
This product complies to the following requirements :
Sécurité :
IEC 62368-1: 2014 (2.Edition) and Cor. 1: 2015
EN 62368-1: 2014/AC: 2015/A11: 2017
Compatibilité électromagnetique :
ETSI EN 301 489-1 V2.2.0 (DRAFT)
EN 55024:2010
EN 55032:2015
DoC disponible sur www.digitear.eu
DoC available : www.digitear.eu
FCC/IC
L’équipement est conforme aux exigences suivantes :
This product complies to the following requirements :
47 CFR Part 15:2016
ICES-003, Issue 6:2016
ANSI C63.4:2014
Equipment classification : Equipment for fixed use
Environnement classification : Residential, commercial and light industry
Overline-Systems - www-digitear.eu - [e-mail]
USER GUIDE Charger Box
Page 7/8

Ce produit est conforme aux spécifications de la réglementation ICES-003 classe B du Canada.
NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures :
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
