Owon XDG2000 Series User manual

General Warranty
OWON warrants that the product will be free from defects in materials and workmanship for a period
of 3 years (1 year for accessories) from the date of purchase of the product by the original purchaser
from the OWON Company. This warranty only applies to the original purchaser and is not transferable
to the third party.
If the product proves defective during the warranty period, OWON either will repair the defective
product without charge for parts and labor, or will provide a replacement in exchange for the defective
product. Parts, modules and replacement products used by OWON for warranty work may be new or
reconditioned like new performance. All replaced parts, modules and products become the property of
OWON.
In order to obtain service under this warranty, customer must notify OWON of the defect before the
expiration of the warranty period. Customer shall be responsible for packaging and shipping the
defective product to the service center designated by OWON, and with a copy of customer proof of
purchase.
This warranty shall not apply to any defect, failure or damage caused by improper use or improper or
inadequate maintenance and care. OWON shall not be obligated to furnish service under this warranty
a) to repair damage resulting from attempts by personnel other than OWON representatives to install,
repair or service the product; b) to repair damage resulting from improper use or connection to
incompatible equipment; c) to repair any damage or malfunction caused by the use of non-OWON
supplies; or d) to service a product that has been modified or integrated with other products when the
effect of such modification or integration increases the time or difficulty of servicing the product.
Please contact the nearest OWON's Sales and Service Offices for services.
For better after-sales service, please visit www.owon.com.cn and register the purchased product online.
Excepting the after-sales services provided in this summary or the applicable warranty
statements, OWON will not offer any guarantee for maintenance definitely declared or hinted,
including but not limited to the implied guarantee for marketability and special-purpose
acceptability. OWON should not take any responsibilities for any indirect, special or consequent
damages.
For more details, please refer to the user manual on the supplied CD, it can also be downloaded at
www.owon.com.cn .

i
Table of Contents
1.General Safety Requirement .................................................................1
2.Safety Terms and Symbols.....................................................................2
3.General Inspection................................................................................3
4.Quick Start ............................................................................................4
Front panel overview ..................................................................................................................4
Rear Panel Overview...................................................................................................................6
Power on .....................................................................................................................................7

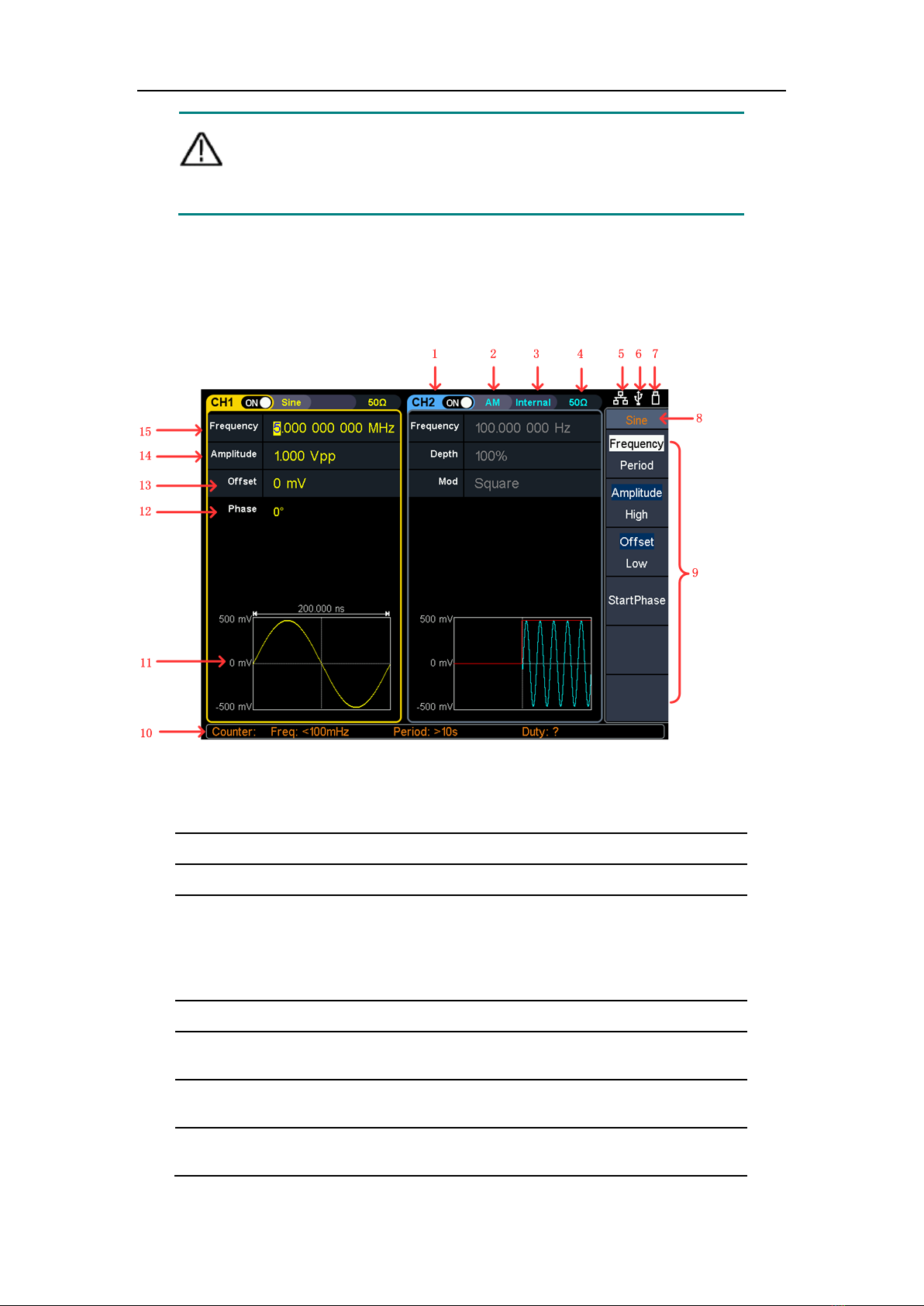

User Interface..............................................................................................................................8
Use build-in Help.........................................................................................................................9
Set the channel ...........................................................................................................................9

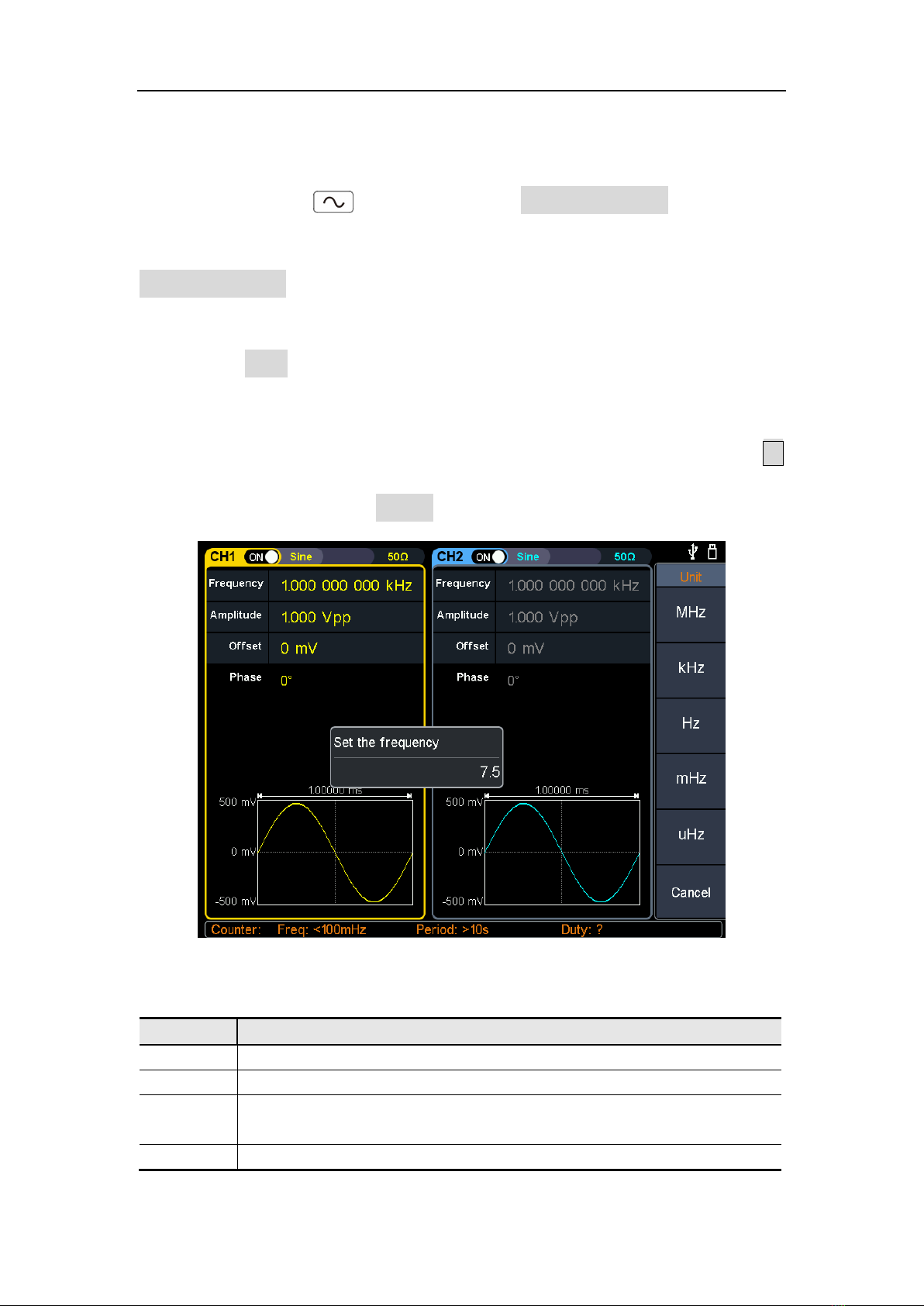

Set basic waveform .....................................................................................................................9
Output the build-in waveform (including DC) ..........................................................................11
Edit the arbitrary waveform......................................................................................................11
Generate the Modulated Waveform ........................................................................................12
Generate Sweep........................................................................................................................13
Generate Burst ..........................................................................................................................13
Counter......................................................................................................................................14
File Store System.......................................................................................................................15
Save the current arbitrary wave...................................................................................15
Bring up arbitrary wave files in internal/external memory .......................................16
Erase waveforms from memory...................................................................................16
Save/recall instrument setup....................................................................................................17
Utility Setting.............................................................................................................................17
5.Communicate with PC.........................................................................19
Using USB Port ..........................................................................................................................19
Using LAN Port ..........................................................................................................................19
Connect Directly................................................................................................................19
Connect through a Router ................................................................................................20
6.Appendix.............................................................................................22
Appendix A：Accessories .........................................................................................................22
Appendix B：General Care and Cleaning.................................................................................22

1.General Safety Requirement
1
1. General Safety Requirement
Before any operations, please read the following safety precautions to
avoid any possible bodily injury and prevent this product or any other
products connected from damage. In order to avoid any contingent
danger, this product is only used within the range specified.
Use Proper Power Cord. Use only the power cord supplied with the product and certified to use in your country. 
Product Grounded. This instrument is grounded through the power cord grounding conductor. To avoid electric
shock, the grounding conductor must be grounded. The product must be grounded properly before any connection
with its input or output terminal. 
Limit operation to the specified measurement category, voltage, or amperage ratings. 
Check all Terminal Ratings. To avoid instrument damage and the risk of electric shock, check all the Measurement
Limits and markers of this product. Refer to the user's manual for the Measurement Limits before connecting to the
instrument. Do not exceed any of the Measurement Limits defined in the following section. 
Do not operate without covers. Do not operate the instrument with covers or panels removed. 
Use Proper Fuse. Use only the specified type and rating fuse for this instrument. 
Avoid exposed circuit. Do not touch exposed junctions and components when the instrument is powered. 
Do not operate if in any doubt. If you suspect damage occurs to the instrument, have it inspected by qualified
service personnel before further operations. 
Use your instrument in a well-ventilated area. Inadequate ventilation may cause increasing of temperature or
damages to the device. Please keep well ventilated and inspect the intake regularly. 
Do not operate in wet conditions. In order to avoid short circuiting to the interior of the device or electric shock,
please do not operate in a humid environment. 
Do not operate in an explosive atmosphere. 
Keep product surfaces clean and dry. 
Only the qualified technicians can implement the maintenance. 

2.Safety Terms and Symbols
2
2. Safety Terms and Symbols
Terms in this Manual. The following terms may appear in this manual:
Warning: Warning indicates the conditions or practices that could result in
injury or loss of life.
Caution: Caution indicates the conditions or practices that could result in
damage to this product or other property.
Terms on the Product. The following terms may appear on this product:
Danger: It indicates an injury or hazard may immediately happen.
Warning: It indicates an injury or hazard may be accessible potentially.
Caution: It indicates a potential damage to the instrument or other property
might occur.

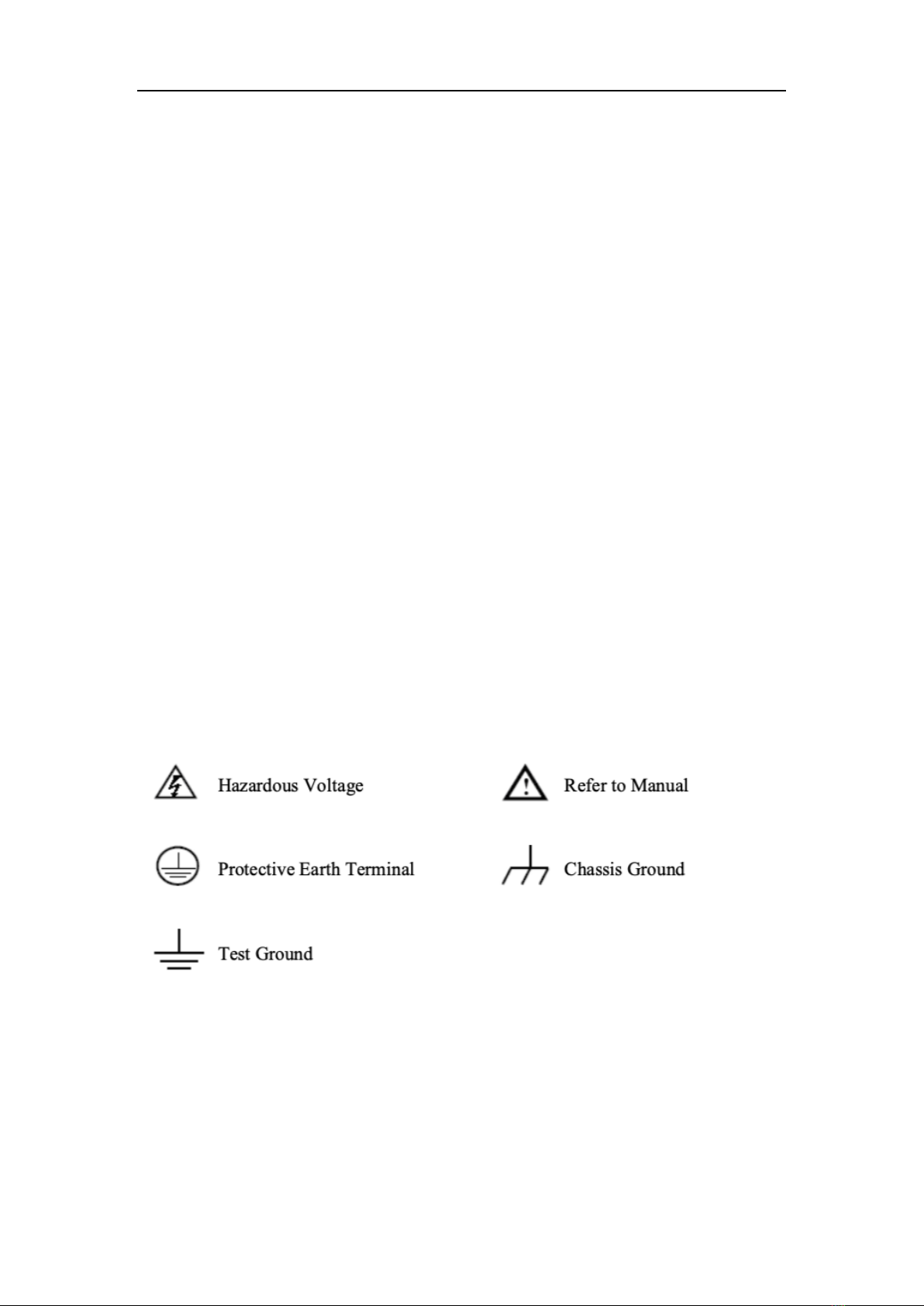

Safety Symbols
Symbols on the Product. The following symbol may appear on the product:

3.General Inspection
3
3. General Inspection
After you get a new multimeter, it is recommended that you should make a
check on the instrument according to the following steps:
1. Check whether there is any damage caused by transportation.
If it is found that the packaging carton or the foamed plastic protection cushion
has suffered serious damage, do not throw it away first till the complete device
and its accessories succeed in the electrical and mechanical property tests.
2. Check the Accessories
The supplied accessories have been already described in the Appendix A:
Enclosure of this Manual. You can check whether there is any loss of
accessories with reference to this description. If it is found that there is any
accessory lost or damaged, please get in touch with the distributor of OWON
responsible for this service or the OWON's local offices.
3. Check the Complete Instrument
If it is found that there is damage to the appearance of the instrument, or the
instrument can not work normally, or fails in the performance test, please get in
touch with the OWON's distributor responsible for this business or the
OWON's local offices. If there is damage to the instrument caused by the
transportation, please keep the package. With the transportation department
or the OWON's distributor responsible for this business informed about it, a
repairing or replacement of the instrument will be arranged by the OWON.

4.Quick Start
4
4. Quick Start
Front panel overview
18
4
9
19
12
7
6
13 12 10
5
11
8
3
14
16
17 15

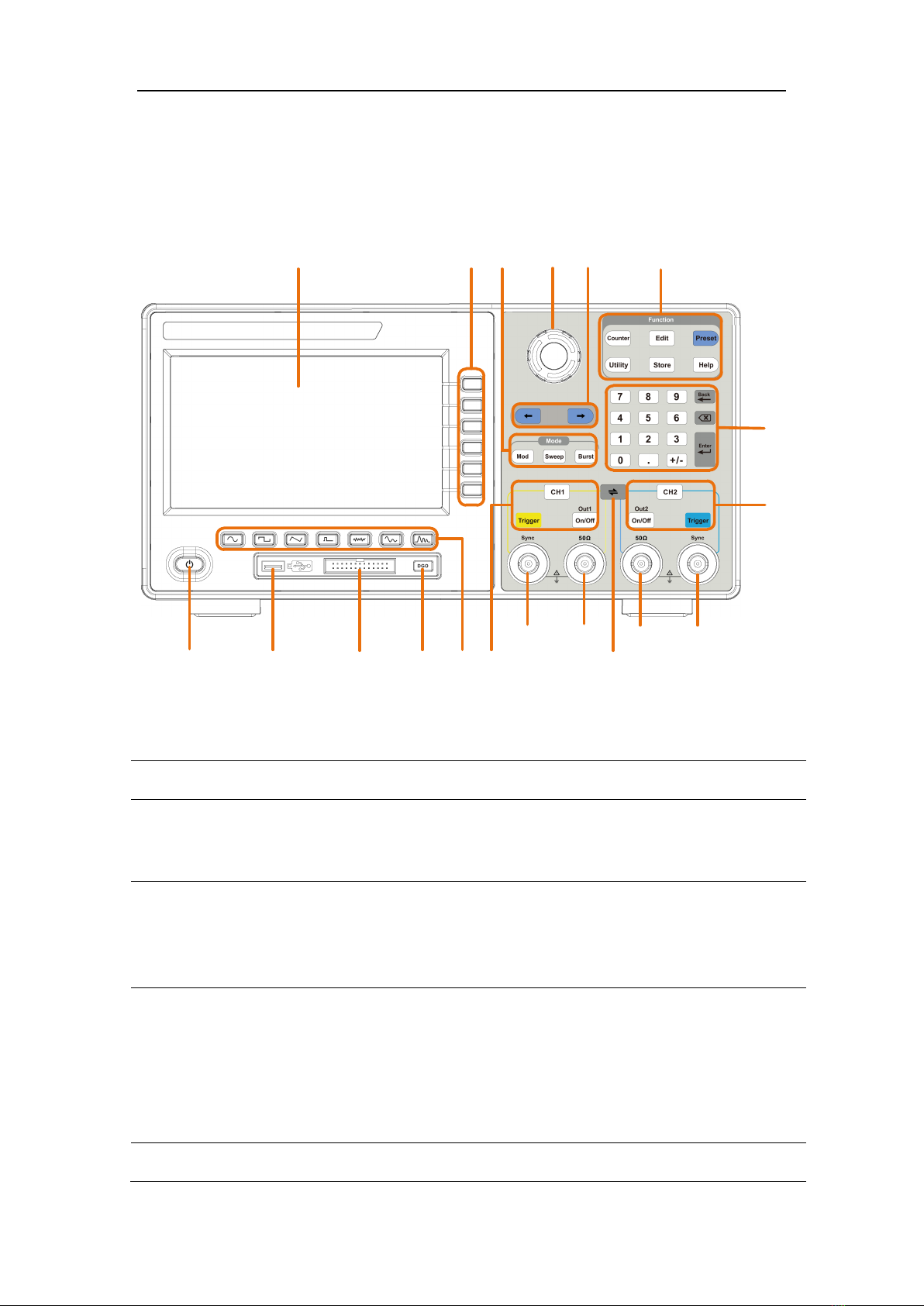

Figure 4-1 Front Panel overview
1
LCD
Display the user interface
2
Menu
selection
keys
Includes 6 keys to activate the corresponding menu
3
Mode keys
Mod：output the modulated waveform
Sweep
：
scan the sine, square,ramp or arbitrary waveforms
Burst
：
generate the sine, square, ramp, pulse or arbitrary
burst
4
Knob
Change the currently selected value, also used to select
the character in the soft keyboard when the file location or
file name is entered.
When inserting a USB flash drive, press the knob to save
the current display screen to the folder of the USB flash
drive in BMP image format.
5
Direction key
Move the cursor of the selected parameter

4.Quick Start
5
6
Operation
keys
Counter：enter the counter interface
Edit：enter the wavform edit interface
Preset：enter the preset menu, set the reset parameter or
power-on parameter; save or load the setting file.
Utility
：
set the utility function
Store
：
save/load arbitrary waveform or instrument setup
Help
：
To get contextual help for any front panel button or
menu softkey, press the button and then press the button
for which you need help.
7
Number
keypad
Input the parameter
8
CH2 Function
keys
CH2 button：After entering the waveform interface and
selecting the CH2 channel (the backlight of the button is
on), the waveform and parameters of CH2 can be set after
selection.
Blue Trigger button：CH2 manual trigger button. In sweep
or burst mode, when the trigger source is selected as
“Manual”, each press of this button will initiate a trigger.
On/Off button：Turns the output of the CH2 channel on or
off. When the output is turned on, the backlight of the
button lights up.
9
CH2 Sync
When Utility → CH1/2 Set → CH2 Sync turned on, this
terminal outputs a synchronization message that matches
the current configuration of CH2.
10
CH2 Out
Output CH2 signal
11
CH1⇌CH2
button
Display the channel copy menu
12
CH1 Out
Output CH1 signal
13
CH1 Sync
When Utility → CH1/2 Set → CH1 Sync turned on, this
terminal outputs a synchronization message that matches
the current configuration of CH1.
14
CH1 Function
keys
CH1 button：After entering the waveform interface and
selecting the CH1 channel (the backlight of the button is
on), the waveform and parameters of CH1 can be set after
selection.

4.Quick Start
6
Yellow Trigger button：CH1 manual trigger button. In
sweep or burst mode, when the trigger source is selected
as “Manual”, each press of this button will initiate a trigger.
On/Off button：Turns the output of the CH1 channel on or
off. When the output is turned on, the backlight of the
button lights up.
15
Waveform
Selection
area
Includes: Sine , Square , Ramp , Pulse ,
Noise , Arb Wave , Harmonic Wave . When a
waveform is selected, the corresponding backlight is lit.
16
DGO button
Digital output
(only for the model with digial output function)
17
Digital
channel
Digital signal Output connector
(only for the model with digial output function)
18
USB interface
Connect with external USB devices, e.g. U disk.
19
Power button
Turn on/off the waveform generator.

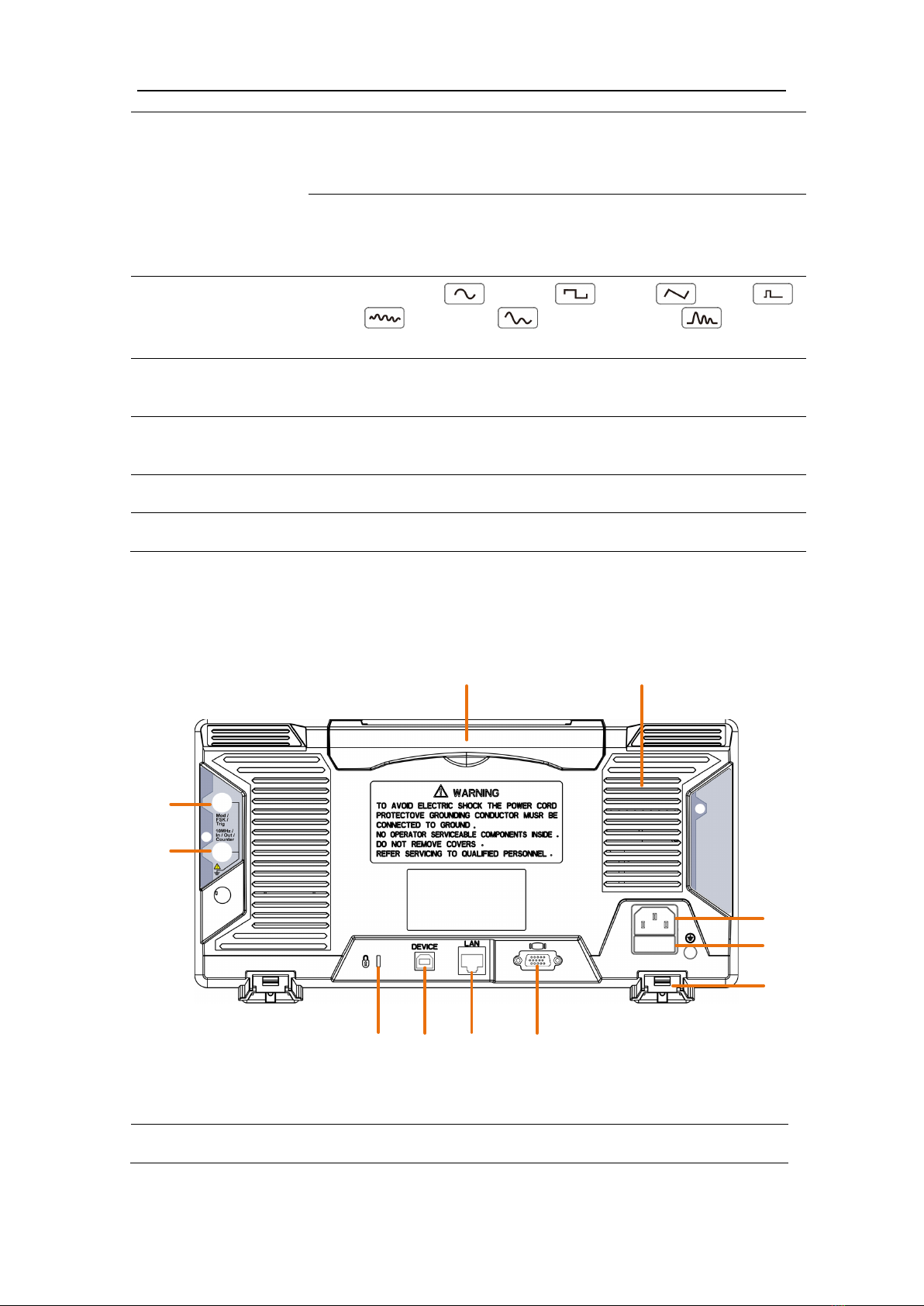

Rear Panel Overview
987
11
10
12
5
3
4
6
Figure 4-2 Rear Panel Overview
1
Retractable handle

4.Quick Start
7
2
Air vents
3
AC input connector
AC input connector
4
Fuse Container
The place to install the fuse
5
Foot Stool
Tilt the signal generator for easy operation.
6
COM interface
(optional)
This interface can be used to connect with PC.
7
LAN interface
The network port which can be used to connect
with PC.
8
USB Device interface
Used to connect a USB type B controller. Can be
connected with PC, the signal generator can be
controlled by the host computer software.
9
Lock Hole
You can lock the device to a fixed location using
the security lock (please buy it your
self) to
secure the device.
10
10MHz/In/Out/Counter
（
refer to clock
input/output/counter
input
）
connector
It is default to receive the frequency meter input
signal. Used to receive a 10MHz clock signal
when the instrument is set to an internal clock
source and Utility → System → CLK Output is
turned o
n; it is used to receive an external
10MHz clock signal when the instrument is set to
an external clock source.
11
Mod/FSK/Trig
(modulation/trigger
input) connector
When modulating the waveform, outputting the
sweep frequency, and outputting the burst, the
signal accessed here can be used as an
external source.
Note: If one channel turns on AM, FM, PM, PWM or
OSK, and the other channel turns on ASK, FSK,
PSK, sweep or burst, and both channels are set to
external trigger, then the channel that sets the trigger
source can be accessed to external trigger, the other
channel automatically cancels the external trigger
because of the different external modulation signal
types.
Power on
(1) Connect the instrument to an AC power source using the power cord supplied
with the accessory.

4.Quick Start
8
Warning：
To prevent electric shock, make sure the instrument is properly
grounded.
(2) Press the power button on the front panel. The startup screen will display.
User Interface
Figure 4-3 User Interface
1
Display channel name and channel switch status
2
Current waveform or current mode
3
Trigger source
Internal：Internal modulation or internal trigger source
External：External modulation or external trigger source
Manual：Manual trigger source
4
Load, High Z indicates high resistance
5
This indicator is lit when the network is connected through the
LAN interface.
6
Lights up the indicator when connected to the USB Host via the
USB DEVICE interface.
7
When the instrument detects the USB flash drive, it lights up the
indicator.
