OXO Tot Sprout chair User manual

Instruction Manual
SproutTM Chair
Sprout High Chair & Youth Chair grows with your child
from 6 months to 5 years of age
IMPORTANT! KEEP FOR FUTURE REFERENCE

Congratulations on your purchase of the OXO Tot Sprout Chair, a chair that grows with your child
from six months to five years!
Sprout Chair is an extended use Chair that grows with your child through their developmental stages.
The seat adjusts in height, width and depth and the footrest is height-adjustable for a perfect fit
during all stages.
A depth-adjustable tray accommodates your growing baby and can be removed so the Chair can
be pulled up to the table. The seat, back and cushions are contoured for comfort and promote
“sitting up straight.”
We know how eating time can be messy, so the Chair and cushions are easily wipeable for quick
cleanup of crumbs and other sticky messes.
For children age three and older, the crotch post, tray and harness are removable to convert the
Sprout High Chair to a Youth Chair so children can sit comfortably at the table. For grown-ups’
added convenience, Sprout requires no tools to adjust the seat, tray or footrest. Sleek wood
construction and space-saving design complement any home décor.
Please read instructions carefully before assembling your Sprout Chair.
Complies with ASTM F404-08

TABLE OF CONTENTS
Parts Included......................................................2
Assembling High Chair..........................................3
Base Assembly.........................................4
Seat Back Assembly.................................5
Seat Bottom Assembly.............................6 – 7
Seat Removal..........................................7
Installing Footrest....................................8
Adjusting Footrest...................................8
Tray Attachment......................................9
Tray Adjustment......................................9
Securing Child.........................................10
Youth Chair Assembly...........................................11
Tray Removal..........................................12
Seat Adjustment......................................12 – 13
Seat Cushion Replacement.......................13
Footrest Adjustment................................14
Harness Removal....................................14
Care, Cleaning & Storage.....................................15
Replacement Parts...............................................15
Warranty.............................................................16
Registration.........................................................16
Contact Us...........................................................16

INCLUDED
NOT INCLUDED
2

ASSEMBLING THE HIGH CHAIR
Failure to follow these warnings and the assembly instructions could result in serious injury or death.
• Prevent serious injury or death from falls or sliding out.
- Always secure child in the restraint. Snugly adjust the restraint belts to fit your child.
- Warning: Do not leave the child unattended.
- Use High Chair only with children capable of sitting upright unassisted.
- Never adjust seat height when child is sitting in seat.
- Do not allow children to climb into the High Chair unassisted.
- The tray is not designed to hold the child in the Chair.
• Maximum weight 60lbs (27kg)
• Avoid injuries to adults and older children from falls.
- Do not use High Chair as a step stool or ladder to climb up or reach elevated surfaces.
- Do not allow adults or older children to sit in High Chair.
• Never use High Chair without seat back attached.
• Keep High Chair away from open re and other sources of strong heat (electric and gas res).
• Do not over tighten screws.
• Tighten screws frequently.
• Check this product for damaged hardware, loose joints, missing parts or sharp edges before and after assembly and frequently during
use. Do not use High Chair unless all components are correctly fitted and adjusted. DO NOT use High Chair if any parts are missing,
damaged or broken. Contact OXO for replacement parts and instructional literature if needed at 1-800-545-4411(U.S.).
Outside U.S. contact your local distributor or [e-mail]. DO NOT substitute parts.
• Adult assembly is required. Take care when unpacking and assembling; contains small parts and sharp edges.
WARNING
!
3

Insert barrel nuts (L) all the way into each hole on the bottom of the rear
brace (E). Using a at head screwdriver (not included), orient the barrel
nuts so that the grooves are horizontal and pointing towards end of rear
brace.
Lower rear brace (E) into place between the left leg (G) and right leg (F).
Note: Warning label should be facing upwards. Insert two leg screws (K)
with four washers (O) and (N) and repeat on opposite side to attach rear
brace to legs. Tighten all four screws with hex wrench. Note: Split washer
must go on leg screw first.
Insert barrel nuts (L) all the way into each hole on the bottom of the front
brace (J). Using at head screwdriver, orient the barrel nuts so that the lines
are horizontal and pointing towards end of front brace.
Raise front brace (J) into place between the left leg (G) and right leg (F).
Insert two leg screws (K) with four washers (O) and (N) and repeat on
opposite side to attach front brace to legs. Note: Split washer must go on
leg screw first. Tighten all four screws with hex wrench.
HIGH CHAIR – Base Assembly
4

Flip leg assembly over. Lower seat back (A) into position so that arms
are outside of the legs. Insert two seat back screws (M) on each side and
tighten. Ensure all screws are tightened securely.
HIGH CHAIR – Seat Back Assembly
5
The OXO Sprout Chair has three seat height adjustment positions. Positions 1 and 2 are for use in the High Chair mode only and for ages 6
months to 3 years old. Position 3 is for the Youth Chair and for children 3 years to 5 years old. If you are assembling for Youth Chair skip
to page 11.
STOP

HIGH CHAIR – Seat Bottom Assembly
Check tightness: Using a Phillips Head screwdriver (not included), check the
four screws under the crotch post to make sure they are attached securely.
DO NOT remove screws.
View chart below to select the recommended seat position based on child’s
age. Children do vary in height and weight. Strap holes on seat back should
be slightly above or level with child’s shoulders. If shoulder holes are below
child’s shoulders, move seat from position 1 to position 2.
6
6 – 18 months Position – 1
Position – 218 – 36 months
Note: Position 3 is for Youth Chair mode only, children 3 years of age or older.

HIGH CHAIR – Remove Seat

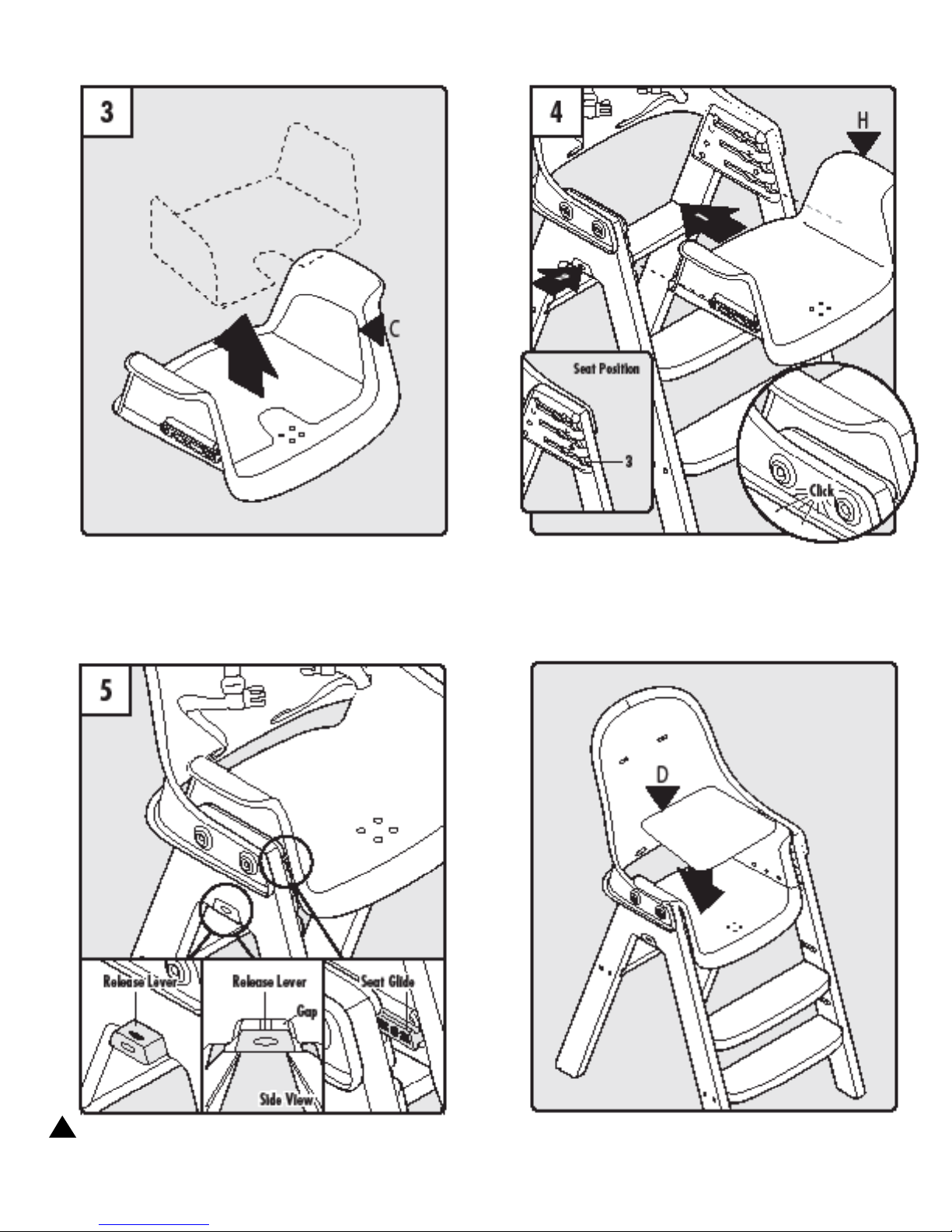

Install High Chair seat cushion (C).
To insert seat, align seat glide with seat position slots and push seat (H)
into selected seat position until it clicks into place. Press in release levers
on both sides.
Important: Seat is NOT locked if any red is visible on the release lever or if
there is a gap between release lever and leg. Seat is also NOT locked if any
red is visible on seat glide.
To adjust or remove seat, pull slide release levers on both left and right
sides. Simultaneously press down on both seat release levers to unlock
seat. Pull seat forward.
7

HIGH CHAIR – Installing Footrest
HIGH CHAIR – Adjusting Footrest
6 – 18 months Position – 1
Position – 218 – 36 months
Place child in the seat and select a footrest position where your child’s feet
will rest comfortably. See chart below for recommended footrest positions.
Note: Position 3 is for Youth Chair mode only, children 3 years of age or older.
Position the adjustable footrest (I) with curved surface toward the front of
leg. Slide footrest into desired position until you hear a “click.” Note: Check
if footrest is locked into place by pushing on the front surface.
To adjust the footrest, simultaneously slide the two footrest latches on the
bottom of the footrest inward. Then slide the footrest backward and out of
the front legs.
8
